Product Type	Network Attached Storage (NAS)
Model	Scroll Essential
Brand	Storage Options
Dimensions (W x H x D)	200 x 50 x 150 mm
Weight	1.0 kg
Power Supply	12V DC, 2A
Supported Drives	Up to 2x 3.5" SATA HDD/SSD
Network Interface	Gigabit Ethernet
File System Support	ext4, Btrfs, NTFS, FAT32
Main Functions	File sharing, backup, media streaming, remote access
RAID Support	RAID 0, RAID 1, JBOD
Operating Temperature	0°C to 40°C
Humidity	20% to 80% non-condensing
Noise Level	< 25 dB (idle)
Maintenance	Keep ventilation slots clear; clean with dry cloth
Safety	Use only provided power adapter; unplug before cleaning
Spare Parts	Power adapter, network cable, drive screws available
Repairability	Drive replacement tool-free; fan replacement requires screwdriver
Warranty	2 years limited
Package Contents	NAS unit, power adapter, Ethernet cable, quick start guide

Frequently Asked Questions - Scroll Essential Storage Options

How do I access my Scroll Essential NAS for the first time?

Connect the NAS to your network via Ethernet. Power it on and wait for the LED to turn blue. Open a browser and go to http://scroll-essential.local or use the Storage Options Setup Tool to configure administrator credentials and create storage volumes.

Can I remotely access my files on the NAS?

Yes, enable Cloud Access in the settings. You will need to register a Storage Options account and assign a device name. Then use the MyStorage app or web portal to access your files from anywhere.

What RAID levels does the Scroll Essential support?

It supports RAID 0 (striping), RAID 1 (mirroring), and JBOD. RAID 1 provides data redundancy by mirroring one drive to the other.

How do I replace a faulty hard drive?

Power off the NAS, remove the drive tray (tool-free), replace the drive, and insert the tray back. Power on and go to Storage Manager to rebuild the RAID. The NAS will automatically sync data.

Can I use SSDs with the NAS?

Yes, both 3.5" HDDs and 2.5" SSDs are supported. For SSDs, you may need to use an adapter bracket (not included). SSDs improve performance especially for caching.

What backup options are available?

You can schedule backups to external USB drives, other NAS devices via rsync, or cloud services like Google Drive and Dropbox. Use the built-in Backup Manager app.

How do I reset the NAS to factory settings?

Locate the reset pinhole on the back. Insert a paperclip and hold for 10 seconds until the LED blinks. This will erase all settings and data. Use caution.

Is the NAS compatible with Windows and Mac?

Yes, it supports Windows (SMB/CIFS), macOS (AFP), and Linux (NFS). Use the file manager or mount the shared folders as network drives.

What is the maximum drive capacity supported?

Each drive bay supports up to 18 TB (tested with WD Red drives). Total raw capacity with two drives is up to 36 TB.

How do I update the firmware?

Go to System > Firmware Update in the web interface. The NAS checks for updates automatically. Click Install to update. Do not power off during update.

USER MANUAL Scroll Essential Storage Options

1:41 1:41 PM Monday, June 6

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER.

NO USER SERVICABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED PERSONNEL.

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of non-insulated "dangerous voltage" within the product's enclosure that may be of sucient magnitude to constute a risk of electric shock.

The exclamaon point within an equilateral triangle is intended to alert the user to the presence of important operang and maintenance (servicing) instrucons in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE

CAUTION:

TO PREVENT ELECTRIC SHOCK, ENSURE THE PLUG IS FULLY INSERTED INTO A MAINS SOCKET

IMPORTANT SAFEGUARD

All lead-free products oered by the company comply with the requirements of the European law of the Restricon of Hazardous Substances (RoHS) direcve, which means our manufacturing processes and products are strictly “lead-free” and without the hazardous substances cited in the direcve.

The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product's end-of-life. This applies to your product and any peripherals marked with this symbol. Do not dispose of these products as unsorted municipal waste. Contact your local dealer for procedures for recycling this equipment.

DISCLAIMER

We reserve the right to revise or remove any content in this manual at any me. We do not warrant or assume any legal liability or responsibility for the accuracy, completeness, or usefulness of this manual. The content of this manual is subject to change without noce.

Screenshots are for illustraon purposes only and may not be representave of the actual product.

RECOMMENDATIONS

• AVOID DUSTY LOCATIONS:
Excessive build-up of dust may cause the unit to fail.
• DO NOT EXPOSE TO MOISTURE:
Exposing the unit to water poses high risk of electric shock.
- DO NOT DROP:
Doing so could damage internal components.
• DO NOT OPEN CHASSIS:
No user-serviceable parts inside.

TRADEMARK ACKNOWLEDGEMENTS

• Android ^TM is a trademark of Google.
• Microso & Windows are registered trademarks of Microso Corporaon.
• All applicaons copyright © their respective owners.

WARRANTY AND TECHNICAL SUPPORT

To help you make the most of this product you'll nd a host of informaon including full product manuals, FAQ, troublesomeong guides and a support service if you have specie quesons, available at our support website: www.storageopons.com/support.

This product is also backed by a 12 month warranty in the unlikely event of something going wrong. More informaon and warranty registraon is available at www.storageopons.com/warranty.

Support:

www.storageopons.com/support/

Warranty:

www.storageopons.com/warranty/

TABLE OF CONTENTS

QUICK START GUIDE 5

OVERVIEW 5

CONVENTIONS USED IN THIS MANUAL 6

PACKAGE CONTENTS 6

BASIC OPERATION 7

5.1 – Physical Buons & Connecons 7

5.2 - Power On / O 8

5.3 – Using The Touch Screen 8

5.4 – Unlock The Screen 8

5.5 – Home Screen 9

5.6 - Touch Calibraon 9

5.7 – Add A Shortcut To The Home Screen 10

5.8 – Remove A Shortcut From The Home Screen 10

5.9 – Display Orientaon 10

CHARGE THE BATTERY 11

SETTINGS MENU 12

CONNECT TO A WIRELESS NETWORK 13

WEB BROWSER 14

APPLICATIONS 15

10.1 – Applicaons Menu 15

10.2 – Pre-Installed Applicaons 15

10.3 – Pre-Loaded Applicaons 16

10.4 – Add More Applicaons 16

WILD TANGET GAMES SERVICE 17

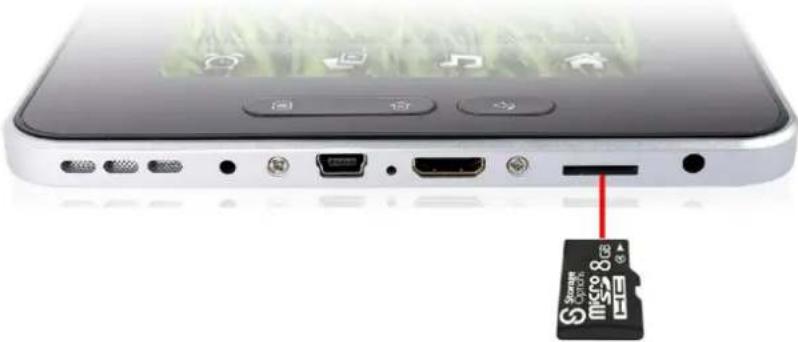

MEMORY EXPANSION WITH MICRO SD CARD 18

BUILT-IN CAMERA 18

CONNECT TO A COMPUTER 19

CONNECT TO A HIGH DEFINITION TELEVISION 20

Please follow this quick start checklist to guide you through using your Storage Opons Scroll Essenal:

1. Check the package contents. See secon "Package Contents" (page 6) for more details.

2. Charge the baery. See secon "Charge The Baery" (page 11) for more details.

3. Familiarise yourself with the physical buons and connecons, powering on, and touch screen control. See secon "Basic Operaon" (page 7) for more details.

4. Connect to a wireless network for web browsing. See secon "Connect To A Wireless Network" (page 13) for more details.

5. Familiarise yourself with the included applicaons. See secon "Applicaons" (page 15) for more details.

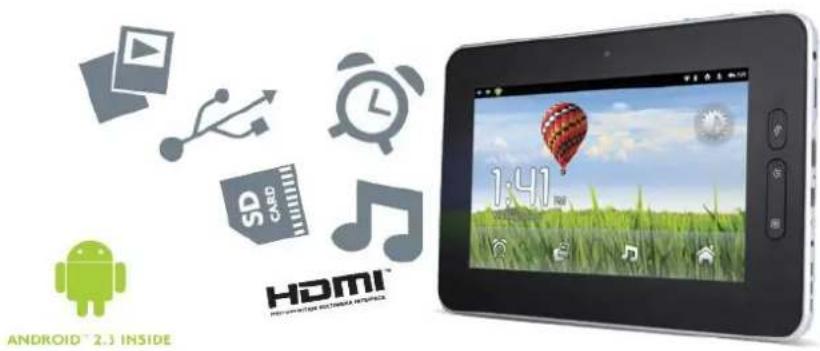

OVERVIEW

Scroll Essenal is a portable, touch-screen Android ^TM 2.3 tablet made especially for Internet browsing, social networking, games, superb quality video playback (with Full 1080p HD output) and an almost limitless number of other applicaons.

It comes with everything you'll need to get up and running, including major Android™ applicaons for e-book reading, social networking, news, radio, video, instant messaging and much more. Plus thousands of other apps are available across the internet for you to download.

HDMI 2.3 Inside ANDROID™ 2.3 INSIDE

• Entry level Android ^TM 2.3 Tablet with 1GHz ARM11 processor
• Simple resisve touch screen
• Plays 1080p HD content on your TV via HDMI
• 2GB internal memory, expandable with Micro SD card (up to 32GB)

CONVENTIONS USED IN THIS MANUAL

At various points in this manual you will see highlighted text. Please refer here for an explanaon:

NOTE

Important notes are highlighted in blue.

TIP

Tips on best pracce are highlighted in green.

CAUTION

Important cauons and warnings are highlighted in red.

PACKAGE CONTENTS

Check the package contents against this checklist. If anything is missing or damaged, please do not use the system, and inform your supplier as soon as possible.

Scroll Essenal

Mains adapter

USB cable

Instrucon manual

BASIC OPERATION

The Scroll Essenal has ve physical buons. Most other control is performed via the touch screen.

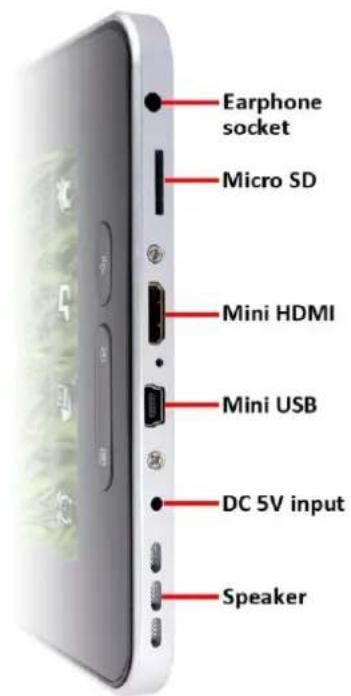

5.1 – PHYSICAL BUTTONS & CONNECTIONS

1:1 Volume Power Menu Home Return

Earphone socket Micro SD Mini HDMI Mini USB DC 5V input Speaker

BUTTON	ICON	DESCRIPTION
Power		Hold to power on / o the tablet
Volume		Decreases / increases volume
Return		Moves back one step in menus, moves back one page in web browser
Home		Returns immediately to the home screen
Menu		Opens / closes the context-sensitive menu (changes depending on the applicaon)

All connecvity is located on the boom edge, next to the Menu, Home and Return buons.

CONNECTION	ICON	DESCRIPTION
Earphone		Connect earphones to this standard 3.5mm jack socket
Micro SD		Insert a Micro SD card (up to 32GB)
Mini HDMI	HDMI	Connect to your HDTV via HDMI cable
Mini USB		Connect to your computer via USB cable
DC 5V	-	Recharge Scroll Essenal's baery using the supplied mains adapter
Speaker	-	Listen to audio from your favourite media

Press and hold the ☐on unl the Scroll Essenal logo appears on screen. The device will boot into the Android™ 2.3 operang system. This will take approximately 1 minute.

To turn the tablet o, press and hold the ☐uon again. A "Power O" menu will appear on screen. Choose "OK" to complete shutdown or "Cancel" to resume use.

Scroll Essenal features a resisve touch screen. To use it, apply slight pressure to any area on the screen. Touch an icon to load the applicaon.

You can also "touch and drag" to move items or scroll through lists by pressing and holding, then sliding your nger.

Two hand gestures with different tip positions, one pointing at a finger and the other holding a curved arrow (no text or symbols)

TIP

You can also use a plasc stylus instead of your nger on the touch screen.

5.4 - UNLOCK THE SCREEN

Scroll Essenal operates in a similar manner to a touch-screen mobile phone. When it is rst powered on, the Android ^™ operang system will boot, then you will be presented with a locked screen.

To unlock the screen:

1. If the screen is currently blank (Scroll Essenal is powered on but in standby), press the ☐uon (short press, do not hold).
2. Press and keep pressure on the green padlock icon, and drag it to the opposite side of the screen.

To lock the screen:

1. Press the ☐ion (short press, do not hold).
2. The screen will go blank to conserve baery power.

Mute / un-mute:

- From the locked screen, you can also mute / un-mute sound by dragging the speaker icon across the screen.

3:17 PM Thursday, May 12 Charging

TIP

Once the screen is locked, it will go to sleep aer a few seconds to prolong baery life.

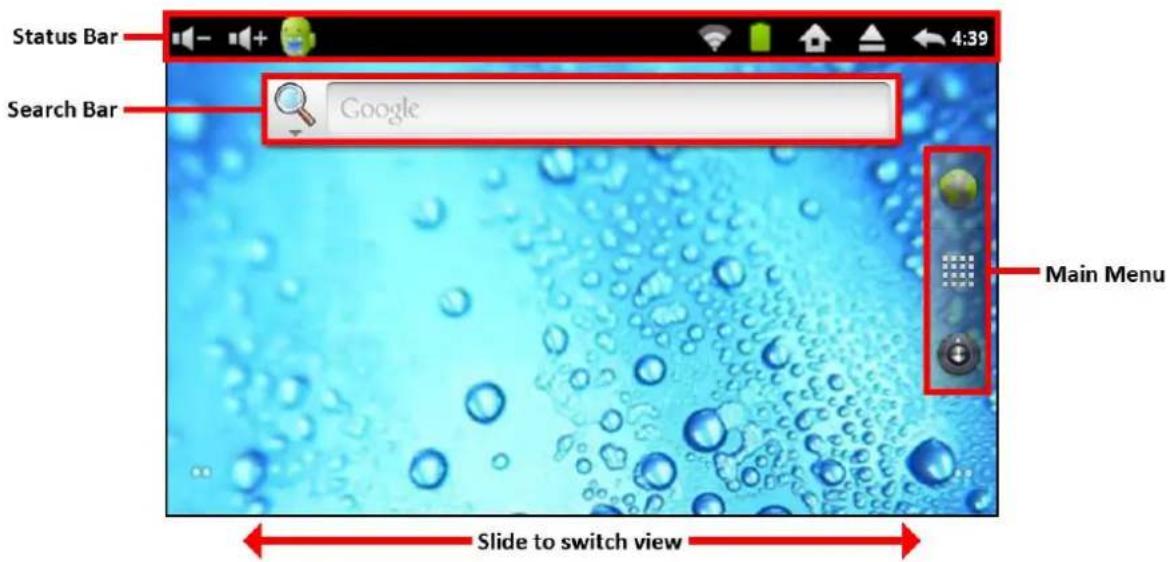

5.5 - HOME SCREEN

The Home screen will look similar to the picture below. It is actually ve screens, each of which can have a dierent layout of icons. To switch between screens, simply slide your nger or stylus le or right across the screen. The status bar and main menu are always visible, no maer which Home screen you are currently viewing.

Status Bar Search Bar Google Main Menu Slide to switch view

- The status bar displays system informaon, such as wireless connecvity, baery level and the system me. Touch and drag down the screen to expand the status bar for more detailed informaon.

- Touch the Search bar to quickly search the World Wide Web using Google.

- The Main menu gives quick access to the web browser, Applicaons menu, and Sengs menu.

- Press ☐ to display a context menu on the boom of the screen. From here you can add icons and shortcuts to the Home screen, manage applicaons, change the wallpaper, and more.

- Press 📋 at any me and from any applicaon to return directly to the Home screen.

The touch screen is pre-calibrated at the factory but occasionally it may be necessary to recalibrate to improve accuracy.

To calibrate the screen:

1. Go to Sengs → Touch Calibraon.

2. Touch the middle of each of the ve targets that appear in turn on screen. It is recommended to do this with a stylus or similar pointed object for more accurate calibraon.

Black background with five pink circular markers at corners (no text or symbols)

5.7 - ADD A SHORTCUT TO THE HOME SCREEN

You can place shortcuts to your favourite applicaons on each of the ve Home pages.

To add a shortcut to an applicaon on the Home page:

1. Press ☐ to display the context menu, then touch "Add".
2. From the "Add to Home Screen" menu, choose "Shortcuts".

3. From the "Select Shortcut" menu, choose "Applicaons".

4. Select your favourite applicaon from the list. It will appear in the next available space on the Home page.

TIP

Alternatively, from the Applicaons menu, touch and hold an icon for a few seconds. The Home screen will reappear. Drag the icon to any available space on the Home screen then release, and the icon will remain on the Home screen for quick access.

5.8 – REMOVE A SHORTCUT FROM THE HOME SCREEN

To remove a shortcut:

1. Touch and hold the icon. The Main menu will change to a recycle bin icon.
2. Drag the icon over the recycle bin. Once it turns red, release the icon and the shortcut will be removed.

5.9 - DISPLAY ORIENTATION

Scroll Essenal features a built-in G-Sensor which monitors the tablet's current orientaon and automacally adjusts the display to match.

To re-orientate the display:

- Simply turn Scroll Essenal to portrait or landscape posion, and the display will rotate to match.

Two tablet devices displaying colorful heart-shaped images over grass, with no visible text or symbols on the devices themselves.

NOTE

Some applicaons will lock screen orientaon. Normal rotaon funconality will resume once the applicaon is closed.

Automac screen rotaon can be switched o, if you prefer to just use Scroll Essenal in portrait mode.

To switch o automac rotaon:

- Open the Sengs menu, choose "Display", and touch "Auto-rotate screen" to remove the ck from the checkbox.

CHARGE THE BATTERY

It is recommended to fully charge Scroll Essenal overnight before rst use. This will help prolong the lifeme of the built-in baery.

To charge the baery:

- Insert the mains charger plug into the 5V DC socket (located between the speaker and USB socket) on Scroll Essenal. Connect the mains adapter to a UK 3-pin electrical socket.

DC 5V input

CAUTION

Do not use any mains adapter other than the one supplied. Using an incompatible adapter could damage the tablet and poses the potential risk of re.

• If Scroll Essenal is powered o, it will charge unl the baery is full.

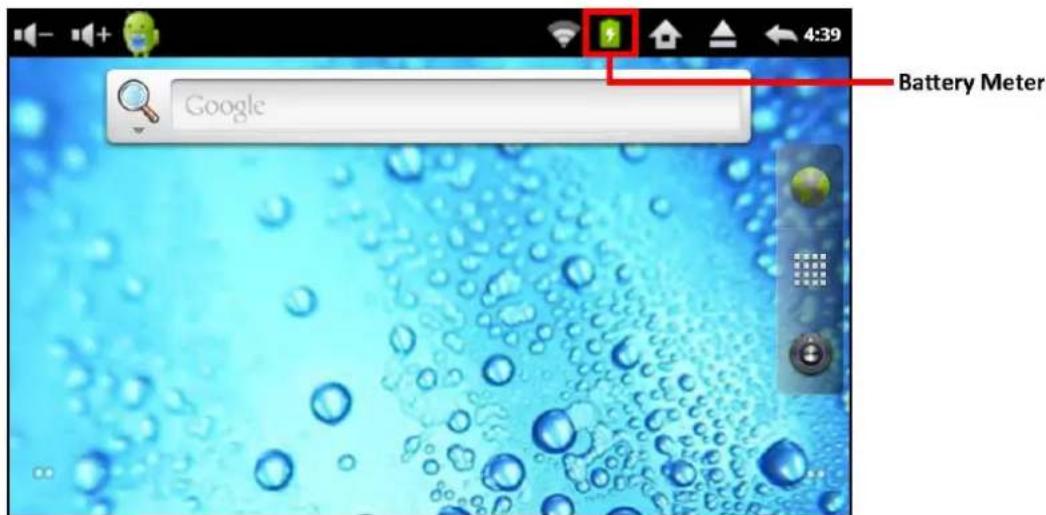

- If Scroll Essenal is powered on, the baery charge status will be indicated on screen by the baery meter.

4:39 Google Battery Meter

When Scroll Essenal is connected to a computer via USB cable, it will "trickle charge". The baery will charge via the USB socket, but at a much slower rate than via the DC 5V mains adapter.

SETTINGS MENU

The Sengs menu allows you to adjust Scroll Essenals' system conguraon.

To change sengs:

1. Touch the Sengs menu icon on the home screen. The Sengs menu will open.
2. Drag your nger / stylus up or down the screen to scroll through the list of available categories.
3. Touch a category tle to view its opons.

ITEM	ICON	DESCRIPTION
Wireless & Networks		Connect to / disconnect from wireless networks, view conncon status, etc
Sound		Change volume, ringtones, screen lock sounds, etc
Display		Change output sengs, brightness, window animaons, G-Sensor, etc
Applicaons		Manage applicaons, running services, etc
Accounts & Sync		Change account synchronisaon sengs, manage accounts, etc
Privacy		Backup / restore data, factory data reset, etc
Storage		Manage NAND and Micro SD card, view available capacity, etc
Language & Keyboard		Select language, add to the diconary, edit on-screen keyboard sengs, etc
Touch Calibraon		Calibrate the touch-screen
Date & Time		Set date, me zone, me, clock format, etc
Power-o Timer		Adjust how long the system is idle before it automacally shuts down
About Device		Informaon about your Android^TM device

Some opons will have a simple checkbox, whereas others will have a list of further sengs to choose from. You should take the me to become familiar with the opons in these categories.

CONNECT TO A WIRELESS NETWORK

The vast majority of applicaons support some kind of networking / Internet funconality. Scroll Essenal must be connected to your broadband router's wireless network to enable this funconality.

Scroll Essenal features standard wireless B / G capabilities, meaning it can connect to any router which is compatible with the 802.11b/g/n standard. Check your router's documentaon to conrm compatibility.

NOTE You will need your router's wireless access password to connue with these instrucons.

To enable wireless networking and connect to your router:

1. Go to Sengs → Wireless & Networks → Wi-Fi Sengs
2. Touch the Wi-Fi opon to enable it (a green ck will appear in the checkbox when enabled).
3. A list of available wireless network names (SSID) will appear under "Wi-Fi Networks".
4. Locate your SSID on the list and touch to select it.
5. You will be asked to input the password. This is the same password you would use to connect a laptop to your wireless network.

TIP

If you do not know your wireless password, please refer to your router's instrucon manual, or contact your Internet Service Provider (ISP).

An icon will be displayed in the status bar to show wireless conncon status:

4:39 Google Wireless Status

Once you are connected to a wireless network, you can select it on the list, to view conncon details (e.g. signal strength, link speed and IP address), and you can choose to disconnect from the network and / or remove the stored password.

NOTE

Some wireless networks have an additional wireless security level called MAC address Itering. It may be necessary to disable this to allow the Scroll Essenal access to the wireless network. For instrucons on how to do this, refer to your router's instrucon manual.

WEB BROWSER

Scroll Essenal has a built-in browser which can be used to browse the World Wide Web, in the same way you would use a browser on a desktop computer or laptop.

To use the browser:

1. Touch the browser icon on the home screen. The browser app will open.

NOTE

Make sure you are connected to your wireless network before opening the browser.

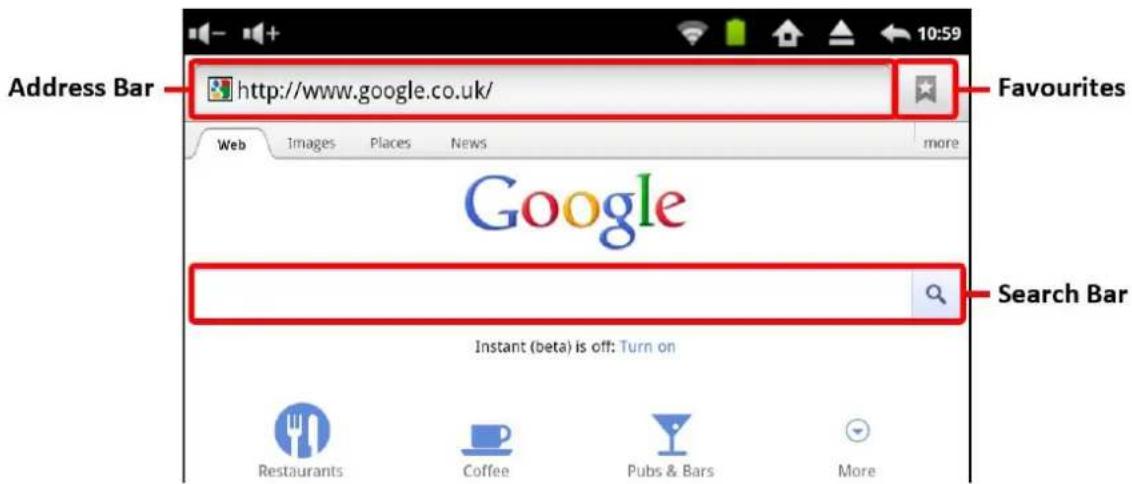

Address Bar http://www.google.co.uk/ Web Images Places News more Search Bar Instant (beta) is off: Turn on Favourites Google Restaurants Coffee Pubs & Bars More

1. By default, the browser will automatically load Google. Touch the search bar.
2. An on-screen keyboard will appear. You can use this to type in your search string. Touch "Go" on the keyboard to execute the search.

Further funconality:

• Use the address bar to go directly to a website if you know its address.
• Touch the Favourites icon to add the current page to your favourites list or select any previously stored favourite websites.
• Press the ☐ buon to view and select further opons and change sengs.
• Press the burn to return to a previous page.
• Press the button to return to the home screen.
  • The Google search bar is also available directly from the home screen.

APPLICATIONS

Scroll Essenal supports a wide variety of applicaons. A small selecon is pre-installed on the tablet and available from the applicaons menu, but many more can be downloaded from Android ^TM websites.

10.1 - APPLICATIONS MENU

Scroll Essenal features an applicaons menu which consists of a grid of icons, one for each installed applicaon.

To use the applicaons menu:

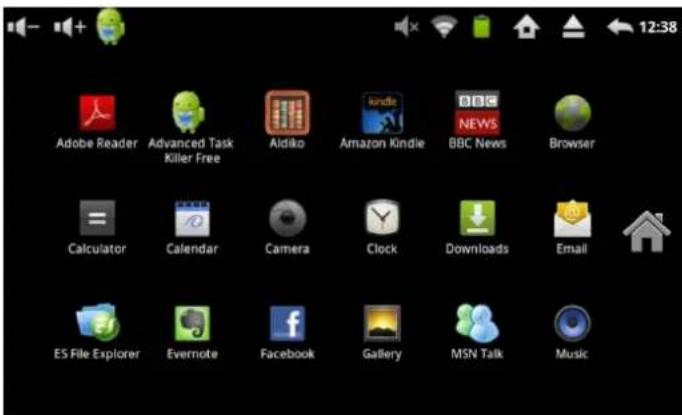

1. Touch the applicaons menu icon on the home screen. The applicaons menu will open.

Adobe Reader Advanced Task Killer Free Aidiko Amazon Kindle BBC News Browser Calculator Calendar Camera Clock Downloads Email ES File Explorer Evernote Facebook Gallery MSN Talk Music

1. Drag your nger up or down the screen to scroll through the list of applicaons.
2. Touch an icon to launch the applicaon.

TIP

You can add shortcuts to the Home screens for your favourite applicaons. See secon "5.7 – Add A Shortcut To The Home Screen" (page 10) for more details.

10.2 – PRE-INSTALLED APPLICATIONS

These applicaons are pre-installed as part of the Android ^TM operang system:

Advanced Task Killer Free

Browser

Calculator

Calendar

Camera

Clock

Downloads

Email

ES File Explorer

Gallery

Music

Scroll Apps

Search

Sengs

Sound Recorder

Video

YouTube

10.3 - PRE-LOADED APPLICATIONS

Scroll Essenal has several applicaons which are pre-loaded onto the internal memory. You will need to install them before you can use them.

To install the preloaded applicaons:

1. From the applicaons menu, touch the Scroll Apps icon. "Easy Installer" will load and a list of preloaded apps will appear.
2. Check the box next to each applicaon you wish to install.
3. Touch the "Install selected apps" buon at the boom of the screen, then follow the onscreen instrucons.

These applicaons are pre-loaded on Scroll Essenal:

Adobe Reader®

Aldiko Book Reader

Amazon Kindle™

BBC News

Evernote

Facebook

Quick Sys Info Pro

SlideMe Market

Tuneln Radio

Twier

WildTangent

10.4 - ADD MORE APPLICATIONS

There are thousands of applicaons available for Android ^TM from various websites. It is possible to download applicaon (.apk) les on a computer, then transfer them to Scroll Excel using the supplied USB cable. See secon "Connect To A Computer" (page 19) for more details. To install an applicaon from the .apk le, simply locate and select it in File Manager.

Slide ME

SlideMe is included in the preloaded applicaons list on Scroll Excel. Once installed, launch SlideMe from the applicaons menu to browse and directly download hundreds of available applicaons.

Other recommended websites are listed below. See secon "Get The Best From Your Scroll Excel" (page 21) for more informaon.

• Handango
• Freeware Lovers
• Opera Mobile Store
  hp://www.handango.com
  hp://www.freewarelovers.com
  hp://mobilestore.opera.com

NOTE

Scroll Excel does not support the ocial Android ^TM Market.

WILD TANGENT GAMES SERVICE

WildTangent provides a gaming service for Scroll Essenal where users can trial, rent or own top games, based on WildCoins. WildCoins are a digital currency which can be purchased in packs or as a subscripon. Users can also play for free in exchange for viewing an advert from a brand adverser.

The WildTangent Games applicaon is pre-loaded on Scroll Essenal. See secon "10.3 – Pre-Loaded Applicaons" (page 16) for instrucons on how to install.

To use WildTangent:

1. Open the WildTangent Games applicaon from the applicaons menu.
2. Sign into your account, or if you do not have one, select the "Create an account" opon. Follow the on-screen instrucons to create an account.
3. The main interface will launch and automacally show the latest games. Browse the featured games on this page, or touch the "Find Games" buon to search for a specific type of game.
4. Touch a game's icon to view details.

The "My Games" tab shows all games currently installed on Scroll Essenal. Touch a game's icon to launch it.

Touch and hold a game icon to open a sub menu with the following opons:

• Play to launch the game
  • Uninstall to remove the game from Scroll Essenal
• Stop Renng if you wish to disconnue renng (if applicable)

My Games All Games 4 ELEMENTS ZLEU Featured Games doodle jump Doodle Jump 4 Elecrisin Puzzlebox CHERRICKER GOB Scariffa Rock Twilight - The Movie Game Home Find Games

My Games All Games Most Recent Console Jump CD-LAPSS Ticketing Edition TeamWard My Games CD-LAPSS Ticketing Edition Console Jump TeamWard

TIP

Games installed via the WildTangent applicaon will also be available from Scroll Essenal's own applicaon menu.

While in the WildTangent applicaon, press the button to launch the context menu for further opons.

Refresh Sign In Settings Help My Account

For further informaon and support, please see hp://www.wildtangent.com.

MEMORY EXPANSION WITH MICRO SD CARD

Scroll Essenal has built-in ash memory, which can be expanded using Micro SD cards. You can use any Micro SD or Micro SDHC card up to 32GB capacity.

The best way to use a Micro SD card is to treat it as media storage; transfer media les (videos, music and photos) from your computer to your Micro SD card in the usual manner, then insert it into Scroll Essenal as shown:

SOSSEM micro8.8GB

Scroll Essenal will automatically mount the Micro SD card for use. The Gallery, Music and Video applicaons can all read media les directly from Micro SD card. To eject the Micro SD card, push it in slightly until it clicks, then release pressure. It will pop out from the socket.

NOTE

For other downloaded applicaons you may need to point them to the Micro SD card to read your media les. Refer to the instrucons included with each applicaon for direcons on how to do this.

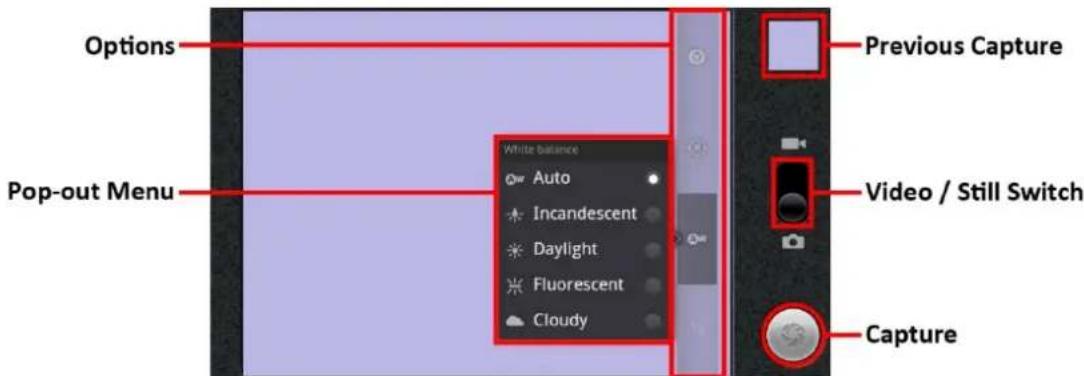

BUILT-IN CAMERA

The Camera applicaon lets you take photographs and record video clips using the built-in 0.3MP camera.

- Launch the Camera applicaon from the applicaons menu.

Options Pop-out Menu Previous Capture Video / Still Switch Capture

CONNECT TO A COMPUTER

Scroll Essenal can be connected to a Windows computer for le transfer via USB cable.

To connect to a computer:

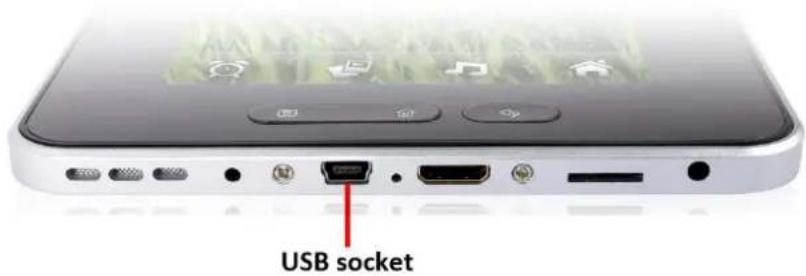

1. Using the supplied USB cable, plug the mini USB plug into Scroll Essenal's USB socket, and the full-size USB plug into your Windows computer's USB socket.

USB socket

1. Windows may present you with a "Found New Hardware Wizard". Please click the "Cancel" opon.

2. On Scroll Essenal, open the status bar by dragging your nger / stylus down from the top of the screen.

3. Touch the "USB connected" opon, then choose "Turn on USB storage".

USB Mass Storage USB connected You have connected your device to your computer via USB. Select the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

Scroll will appear as mass storage on your computer and will be assigned a drive leer within "My Computer". You can drag and drop les from your computer to Scroll just like you would with any other external storage device.

To disconnect from a computer:

1. Touch the "Turn o USB storage" buon to un-mount the ash memory.

2. Disconnect the USB cable.

NOTE

Failure to un-mount the ash memory could prevent Android ^TM applications from being able to access the memory, and cause erratic behaviour. Always un-mount before disconnecting the USB cable.

CONNECT TO A HIGH DEFINITION TELEVISION

Scroll Essenal is a powerful portable media player, but it can also be connected to your big-screen HDTV for Full HD video playback.

NOTE

You will need a Mini HDMI to HDMI cable to connect to a HDTV.

To connect to your HDTV:

1. Using a Mini HDMI to HDMI cable, plug the Mini HDMI connector into Scroll Essenal's Mini HDMI socket, and the full size HDMI plug into your HDTV's HDMI socket.

HDMI socket

1. Switch to the appropriate input on your HDTV. Refer to your TV's manual for instrucons on how to do this.
2. On Scroll Essenal, go to Sengs → Display → Output Sengs, and switch "Output Mode" to "HDMI".
3. Choose an appropriate video resolution and refresh rate. If you are unsure of this seng, either set it to "Auto Detect" or refer to your TV's manual for informaon on supported video modes.

Video playback will appear only on the HDTV, not Scroll Essenal's screen. However, you can sll control playback from the touch screen. Simply touch the screen and these controls will be displayed:

Transport Controls Current Time 01:22 Current Position 03:39 Total Length

At Storage Opons we want to make sure you get the most out of your miScroll tablet computer. To help you with this we would like to recommend you check out some of the websites listed below which give you access to a wide range of fun and useful freeware apps.

HANDANGO

Handango is one of the world's largest independent app stores serving mulple mobile plaorms. miScroll Users can visit Handango.com and aer signing up for a free account can access and download a variety of the free applicaons available for Android ^™ including Facebook, Youtube, Amazon Kindle, le browsers, alternate web browser and much more.

Applicaon les downloaded from Handango.com can then be transferred into your Storage Opons miScroll mobile Internet device, by simply following our easy to read FAQ. Please be aware, all use of the Handango.com services, store and applicaons therein are subject to the end user license agreements and policies of Handango.com.

hp://www.handango.com

FREEWARE LOVERS

Freeware Lovers is an open source repository of applicaons and services for mobile devices and much more. miScroll users can visit freewarelovers.com to access and download a variety of the free applicaons available for Android ^™ devices.

These apps can be downloaded directly into the miScroll or side-loaded onto the miScroll by following our easy to read Sideloading FAQ. Please be aware, all use of the freewarelovers.com site and applicaons therein are subject the end user license agreements and policies of freewarelovers.com.

hp://www.freewarelovers.com

OPERA MOBILE STORE

The Opera Mobile Applicaons store powered by Appia is a fantastic resource for many mobile plaorms including Android ^TM devices and Storage Opons miScroll. Simply Visit the Opera mobile store on your PC web browser or on the internet browser on the Storage Opons miScroll.

Browse the list of available applicaons and download the applicaons to your liking whether to your PC rst and transfer them to your miScroll, or directly to the miScroll itself. When prompted to select your device, simply select "Scroll Tablet PC" from the list and your download will begin. Please be aware, all use of the Opera mobile store site, and applicaons therein are subject the end user license agreements and policies of Opera and Appia respectively.

hp://mobilestore.opera.com

PRODUCT SPECIFICATION

Scroll Essenal

Scroll Essential 7" TABLET PC ANDROID 2.3 EVERYTHING YOU NEED FROM A TABLET

Hardware
Unit Size (mm):	134 (W) x 204 (H) x 13 (D)
Unit Weight:	360 g
CPU:	1GHz
RAM:	512MB DDR3
Built-in Storage:	4GB
Storage Expansion:	Micro SD card (up to 16GB)
Display:	7" 16:9 resisve single-touch
Resoluon:	800 x 480
Baery Type:	Rechargeable lithium
Baery Capacity:	2800mAh
USB Port	USB 1.1
Speaker:	1W / 8Ω
Wireless Connecvity:	Wi-Fi 802.11b/g/n
Soware
Operang System:	Android^TM 2.3
Web Browser:	Pre-installed
Video Support:	AVI, MPEG4, MPEG2, MKV
Audio Support:	MP3, WMA, AAC, AC3, WAV
Photo Support:	JPEG, BMP, GIF, PNG, TIFF
3D Gaming:	OpenGL rendering

NOTES

Scroll Essential

by Storage Options
