USER MANUAL Scroll Elite Storage Options

OUTPUTS 3D VIDEO TO 3D TVs & MONITOR 11:15 AM Tuesday 15 February 11:15 AM

ANDROID™ 4.0 INSIDE

Instruction Manual

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER.

NO USER SERVICABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED PERSONNEL.

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of non-insulated "dangerous voltage" within the product's enclosure that may be of sucient magnitude to constute a risk of electric shock.

The exclamaon point within an equilateral triangle is intended to alert the user to the presence of important operang and maintenance (servicing) instrucons in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE

CAUTION:

TO PREVENT ELECTRIC SHOCK, ENSURE THE PLUG IS FULLY INSERTED INTO A MAINS SOCKET

IMPORTANT SAFEGUARD

All lead-free products oered by the company comply with the requirements of the European law of the Restricon of Hazardous Substances (RoHS) direcve, which means our manufacturing processes and products are strictly “lead-free” and without the hazardous substances cited in the direcve.

The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product's end-of-life. This applies to your product and any peripherals marked with this symbol. Do not dispose of these products as unsorted municipal waste. Contact your local dealer for procedures for recycling this equipment.

DISCLAIMER

We reserve the right to revise or remove any content in this manual at any me. We do not warrant or assume any legal liability or responsibility for the accuracy, completeness, or usefulness of this manual. The content of this manual is subject to change without noce.

Screenshots are for illustraon purposes only and may not be representave of the actual product.

RECOMMENDATIONS

• AVOID DUSTY LOCATIONS:
Excessive build-up of dust may cause the unit to fail.
• DO NOT EXPOSE TO MOISTURE:
Exposing the unit to water poses high risk of electric shock.
- DO NOT DROP:
Doing so could damage internal components.
• DO NOT OPEN CHASSIS:
No user-serviceable parts inside.

TRADEMARK ACKNOWLEDGEMENTS

• Android ^TM is a trademark of Google.
• Microso & Windows are registered trademarks of Microso Corporaon.
• All applicaons copyright © their respective owners.

WARRANTY AND TECHNICAL SUPPORT

To help you make the most of this product you'll nd a host of informaon including full product manuals, FAQ, troublesomeong guides and a support service if you have specie quesons, available at our support website: www.storageopons.com/support.

This product is also backed by a 12 month warranty in the unlikely event of something going wrong. More informaon and warranty registraon is available at www.storageopons.com/warranty.

storageoptions.com/support/

[e-mail]

TABLE OF CONTENTS

QUICK START GUIDE 6

OVERVIEW 6

CONVENTIONS USED IN THIS MANUAL 7

PURPOSE OF THIS MANUAL 7

PACKAGE CONTENTS 7

BASIC OPERATION 8

6.1 – Buons & Connecons 8

6.2 - Power On / O 9

6.3 – Using The Touch Screen 9

6.4 – Unlock The Screen 9

6.5 – Camera Shortcut 9

CHARGE THE BATTERY 10

HOME SCREEN 11

DISPLAY ORIENTATION 12

SETTINGS MENU 13

NETWORK CONNECTIVITY 14

11.1 – Connect To A Wireless Access Point 14

11.2 – Connect To A 3G Network 15

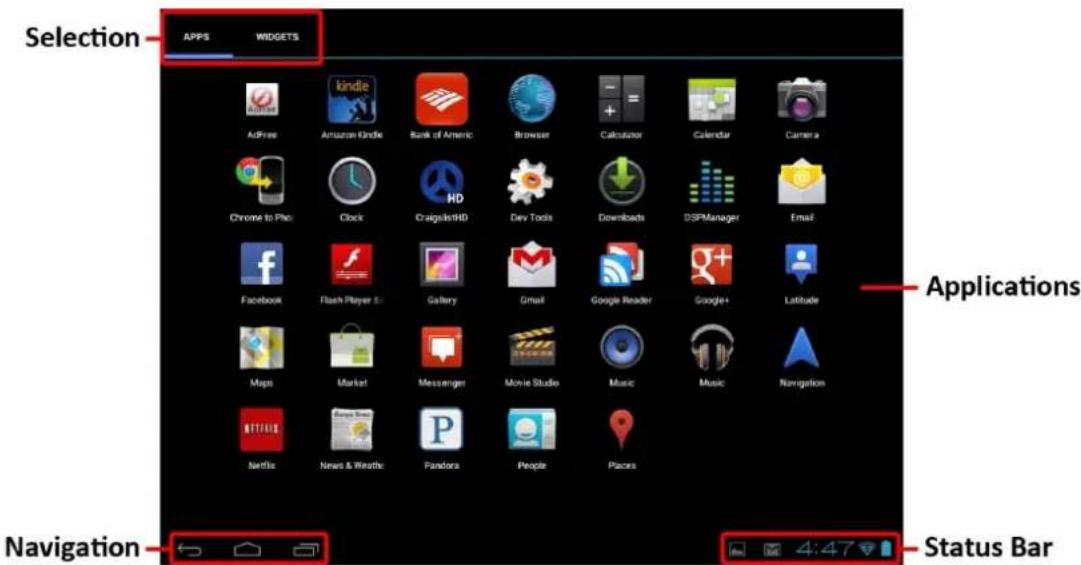

APPLICATIONS 16

12.1 – The Applicaons Menu 16

12.2 – Applicaons & Widgets 17

12.3 – Pre-Installed Applicaons 17

12.4 – Pre-Installed Widgets 17

12.5 – Pre-Loaded Applicaons 18

12.6 – SlideMe Marketplace 18

12.7 – Add More Applicaons 18

12.8 – Add A Shortcut To The Desktop 19

12.9 – Remove A Shortcut From The Desktop 19

12.10 – Uninstall Applicaons 19

TABLE OF CONTENTS (CONTINUED)

WEB BROWSER		20
VIDEO PLAYBACK		21
	14.1 – Playback On Scroll	21
	14.2 – Play 3D Content On Your HDTV	22
7DIGITAL MUSIC SERVICE		23
WILD TANGENT GAMES SERVICE		24
BUILT-IN CAMERAS		25

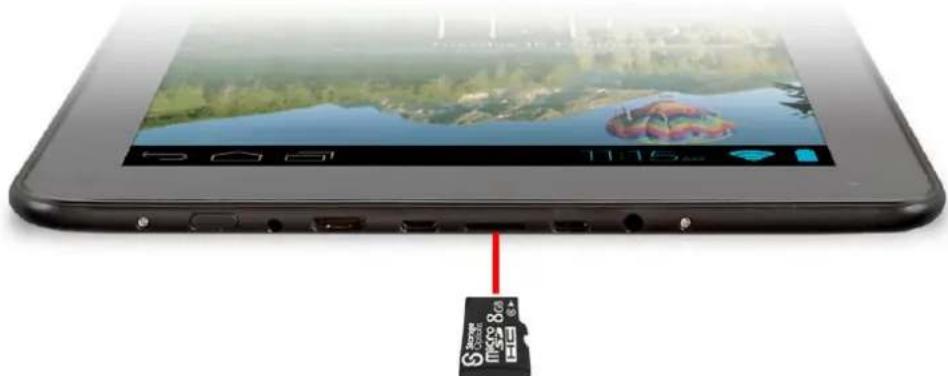

MEMORY EXPANSION WITH MICRO SD CARD		26
CONNECT TO A COMPUTER		27
SYSTEM RESET		28
PRODUCT SPECIFICATION		29
WARRANTY AND PRODUCT SUPPORT		30

Android robot logo silhouette in light green, no text or symbols present

QUICK START GUIDE

Please follow this quick start checklist to guide you through using your Storage Opons Scroll Elite:

1. Check the package contents. See secon "Package Contents" (page 7) for more details.

2. Charge the baery. See secon "Charge The Baery" (page 10) for more details.

3. Remove the protecve lm. Peel the protecve lm o the tablet's screen.

4. Familiarise yourself with the physical buons and connexons, powering on, and touch screen control. See secon "Basic Operaon" (page 8) for more details.

5. Connect to a wireless network for web browsing. See secon "Network Connecvity" (page 14) for more details.

6. Familiarise yourself with the included applicaons. See secon "Applicaons" (page 16) for more details.

OVERVIEW

Scroll Elite is a portable, capacive touch-screen Android ^TM 4.0 tablet. With its large 9.7", highly responsive screen, powerful hardware and stylish, slim design, Scroll Elite is the perfect companion for internet browsing, games, videos and a host of other applicaons.

At Scroll Elite's heart is a capable Cortex 1.2GHz processor with Mali-400 dual core graphics processing, 1GB RAM, 16GB of storage memory and a powerful 5000mAh baery. Whether it's rich Flash-based content, 3D games or support for major video and ebook formats that you want, Scroll Elite oers all this and more.

Smartphone displaying a landscape with mountains, a hot air balloon, and a digital clock showing 11:15 AM (no readable text or symbols on the scene itself)

• Android™ 4.0 tablet with intuitive 5 point mul-touch, capacive screen
  • Cortex 1.2GHz, Mali-400 dual core graphics processor
• Flash support for a richer online experience
• Plays 1080p HD and 3D content on your TV via HDMI
  • Dual Cameras 2MP (rear), 0.3MP (front)

CONVENTIONS USED IN THIS MANUAL

At various points in this manual you will see highlighted text. Please refer here for an explanaon:

NOTE Important notes are highlighted in blue.

TIP Tips on best pracce are highlighted in green.

CAUTION Important cauons and warnings are highlighted in red.

PURPOSE OF THIS MANUAL

This manual is intended to give you a quick overview of the Scroll Elite hardware and very basic functionality of the Android ^TM 4.0 operang system. It does not feature in-depth instrucons for Android ^TM 4.0. The applicaons are provided “as-is” as a bonus for Storage Opons customers. Please contact applicaon developers directly for help and informaon on their soware.

For more detailed informaon and instrucons on the Android ™ 4.0 operang system, please visit:

- hp://www.android.com/

Google is also an excellent resource for help with the Android ^TM operang system.

• hp://www.google.co.uk/

PACKAGE CONTENTS

Check the package contents against this checklist. If anything is missing or damaged, please do not use the system, and inform your supplier as soon as possible.

Scroll Elite

Micro USB cable

Earphones

Mains adapter

Micro On-The-Go (OTG) cable

Instrucon manual

BASIC OPERATION

The Scroll Elite has ve physical buons. Most other control is performed via the touch screen.

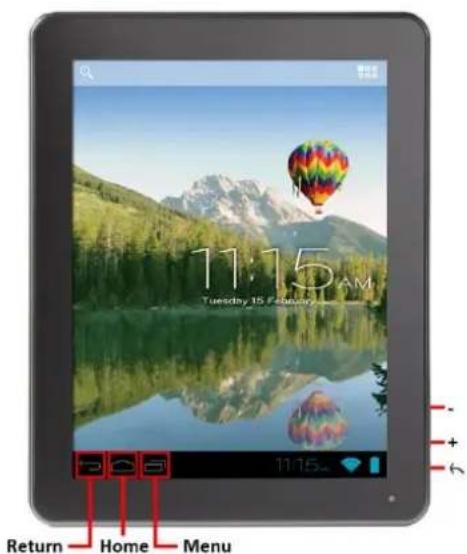

6.1-BUTTONS & CONNECTIONS

11:15 AM Tuesday 15 February Return Home Menu

Earphone socket Micro USB Micro SD Host USB Mini HDMI DC 5V input Power

PHYSICAL BUTTON	LABEL	USAGE	DESCRIPTION
Power		Hold	Hold to power on / o the tablet
Escape		Hold 2 seconds	Moves back one step to the previous menu / page
Volume –	–	Short press	Decreases volume
Volume +	+	Short press	Increases volume

ON-SCREEN BUTTON	ICON	DESCRIPTION
Return		Moves back one step to the previous menu / page
Home		Returns immediately to the Android desktop
Menu		Displays a menu of recently opened applicaons

CONNECTION	ICON	DESCRIPTION
Earphone		Connect earphones to this standard 3.5mm jack socket
Micro USB		Connect to your computer via USB cable
Micro SD		Insert a Micro SD card (up to 32GB)
Host USB		Connect peripheral devices (e.g. keyboard, USB ash drive)
Mini HDMI	HDMI	Connect to your HDTV via HDMI cable
DC 5V	-●+	Recharge Scroll Elite's baery using the supplied mains adapter

Press and hold the ☐on unl the tablet switches on. It will boot into the Android ™ 4.0 operang system. This will take approximately one minute.

To turn the tablet o, press and hold the ☐uon for approximately 3 seconds. A "Power O" menu will appear on screen. Choose "OK" to complete shutdown or "Cancel" to resume use.

Scroll Excel features a capacive touch screen. To use it, simply touch any area on the screen – no pressure is required. Touch (A) an open to select it.

You can also "touch and drag" (B) to move items or scroll through lists by touching and holding, then gliding your nger over the screen.

Use a nger and thumb to "pinch zoom" (C) on-screen items such as photographs and web pages.

A B C

6.4 - UNLOCK THE SCREEN

Scroll Elite operates in a similar manner to a touch-screen mobile phone. When it is rst powered on, the Android ^TM operang system will boot, then you will be presented with a locked screen.

To unlock the screen:

1. If the screen is currently blank (Scroll Elite is powered on but in standby), press the Buon (short press, do not hold). The screen will turn on.

2. Touch and drag the padlock icon over to the open padlock symbol on the right side of the screen.

Diagram showing a hand pressing a lock icon with a red arrow indicating lock status change

To lock the screen:

1. Press the duon (short press, do not hold).

2. The screen will go blank to conserve baery power.

6.5 - CAMERA SHORTCUT

From the locked screen, you can also unlock and go straight to the built-in Camera applicaon by dragging the padlock over to the camera icon.

TIP

If the tablet is not used for approximately one minute, it will go to sleep to prolong baery life. This seng can be changed in "Sengs" → "Display" → "Sleep".

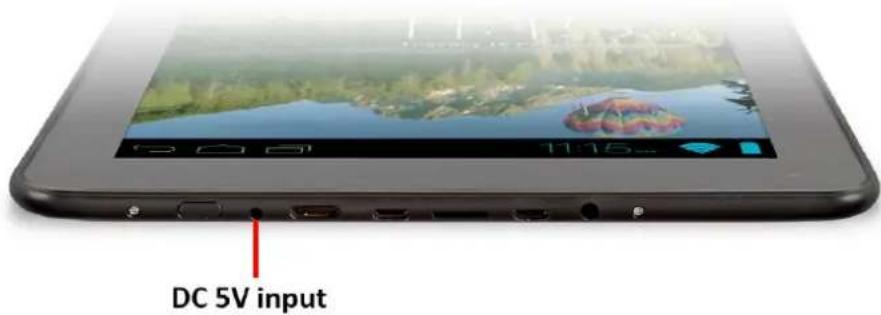

CHARGE THE BATTERY

It is recommended to fully charge Scroll Elite overnight before rst use. This will help prolong useful life of the built-in baery.

To charge the baery:

- Insert the mains charger plug into the 5V DC socket (located to the le of the HDMI socket) on Scroll Elite. Connect the mains adapter to a UK 3-pin electrical socket.

DC 5V input

CAUTION

Do not use any mains adapter other than the one supplied. Using an incompatible adapter could damage the tablet and poses the potential risk of re.

• If Scroll Elite is powered o, it will charge unl the battery is full.
- If Scroll Elite is powered on, the battery charge status will be indicated on screen by the baery meter:

11:15 AM Tuesday 15 February Battery Meter

Baery is full

Baery is discharging

Baery is charging

- When Scroll Elite is connected to a computer via USB cable, it will "trickle charge"; the baery will charge via the USB socket, but at a much slower rate than via the DC 5V mains adapter.

HOME SCREEN

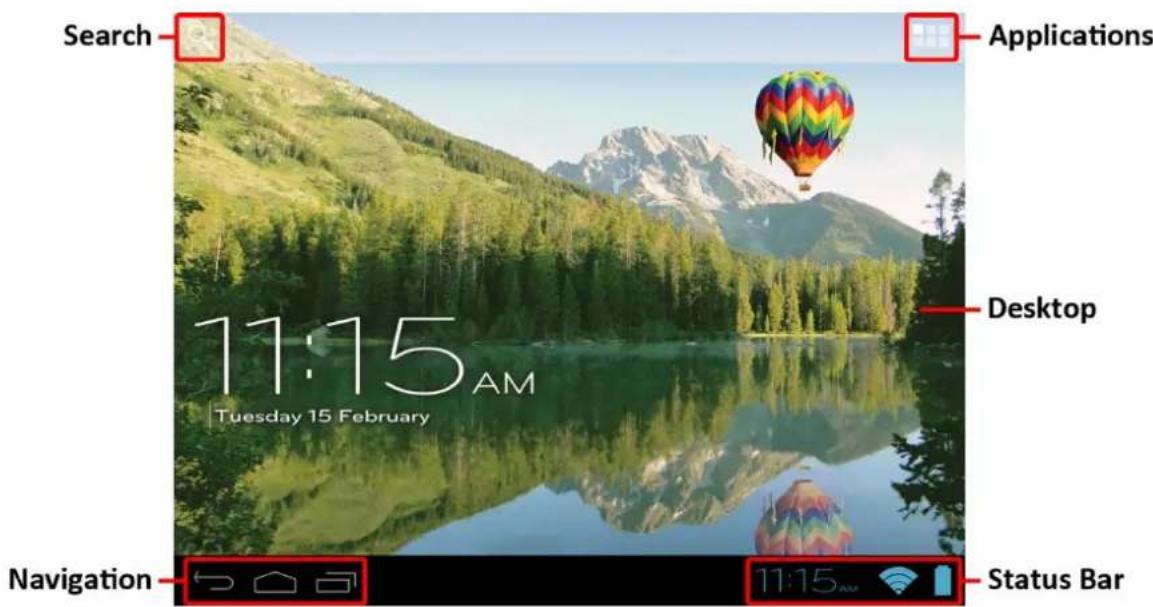

The Home screen will look similar to the picture below. It is actually ve screens, each of which can have a dierent layout of icons. To switch between screens, simply slide your nger le or right across the display. The status bar and navigaon buons are always visible, no maer which Home screen you are currently viewing.

Search Applications 11:15 AM Tuesday 15 February Desktop Navigation 11:15 AM Status Bar

• The Desktop can contain shortcuts to your most-used applicaons and widgets.
• Touch the Search icon to quickly search the World Wide Web using Google.
  • The icon will launch the Applicaons menu.
• The status bar displays system informaon, such as current me, wireless connecvity and baery level. Touch to expand the status bar for more detailed informaon.
• The buon moves back one step to the previous menu / page.
• The buon returns immediately to the Android desktop.
• The buon displays a menu of recently opened applicaons.

DISPLAY ORIENTATION

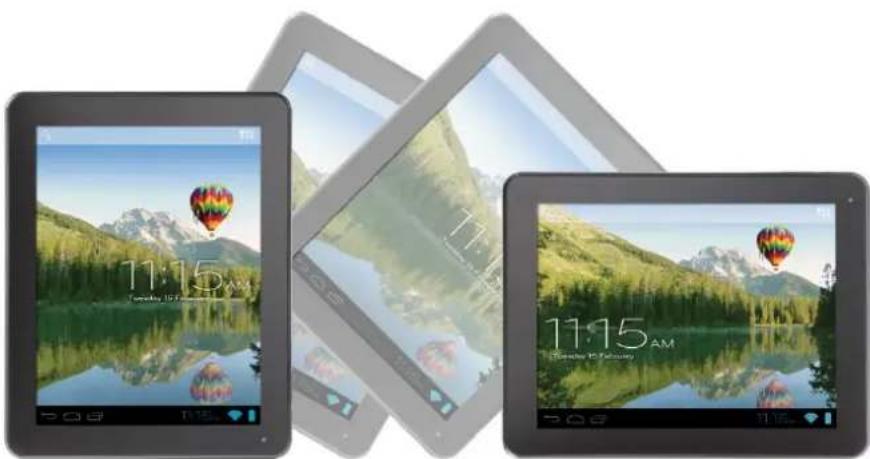

Scroll Elite features a built-in G-Sensor which monitors the tablet's current orientaon and automacally adjusts the display to match.

Three tablet devices displaying outdoor scenes with hot air balloons and mountain scenery (no readable text or symbols)

To re-orientate the display:

- Simply turn Scroll Elite to portrait or landscape posion, and the display will rotate to match.

NOTE

Some applicaons will lock screen orientaon. Normal rotaon funconality will resume once the applicaon is closed.

Automac screen rotaon can be switched o, which is useful if you would prefer to use Scroll Elite exclusively in landscape mode.

To switch o automac rotaon:

1. From the Home Screen, touch the 🐘icon (located at the top right) to open the Applicaons menu.
2. Touch the "Sengs" icon.
3. Select "Display".
4. Touch "Auto-rotate screen" to remove the ck from the checkbox. Scroll Elite will be locked into landscape mode.

To switch automac rotaon back on, repeat the above steps and ensure there is a ck in the checkbox in step 4.

SETTINGS MENU

The Sengs menu allows you to adjust Scroll Elite's system conguraon.

To change sengs:

1. Touch the Sengs menu icon on the Applicaons menu. The Sengs menu will open.

1. Glide your nger up or down the le side of the screen to scroll through the list of available categories.
2. Touch a category tle to view further opons on the right side of the screen.

ITEM	ICON	DESCRIPTION
Wi-Fi		Connect to / disconnect from wireless networks, view conncon status, etc
Data usage		Enable / disable mobile data, view current usage, set mobile data limit, etc
Sound		Change volume, touch sounds, screen lock sounds, etc
Display		Change brightness, wallpaper, sleep sengs, font size, etc
Storage		Manage NAND and Micro SD card, view available capacity, etc
Baery	[0x0x1]	See baery status and powered-on me
Apps	[0x0x1]	Manage applicaons, running services, etc
Accounts & sync	[0x0x1]	Switch synchronisaon on / o, manage accounts, etc
Locaon services	[0x0x1]	Change approximate locaon detecon, improve search results
Security	[0x0x1]	Change screen lock type, encrypon, passwords, credenal storage, etc
Language & input	[0x0x1]	Select language, add to the diconary, edit on-screen keyboard sengs, etc
Backup & reset	[0x0x1]	Backup & restore data, perform factory reset, etc
Date & me	[0x0x1]	Set date, me zone, me, clock format, etc
Accessibility	[0x0x1]	Set up large text, auto-rotate screen, speak passwords, etc
Developer opons	[0x0x1]	Advanced funcons for Android developers – debugging, HDCP check, etc
About tablet	[0x0x1]	Informaon about your Android^TM device

Some opons will have a simple checkbox, while others will have a list of further sengs to choose from. You should take me to become familiar with the opons in these categories.

For more detailed informaon, please visit hp://www.android.com/.

NETWORK CONNECTIVITY

The vast majority of applicaons support some kind of networking / Internet funconality. There are two ways to connect to the Internet using Scroll Elite; either through your wireless router (access point) or by plugging in a 3G network dongle.

11.1 - CONNECT TO A WIRELESS ACCESS POINT

Scroll Elite features standard wireless B / G / N capabilities, meaning it can connect to any router which is compatible with the 802.11b/g/n standard. Check your router's documentaon to conrm compatibility.

NOTE

You will need your router's wireless SSID and password to connue with these instrucons.

To enable wireless networking and connect to your router:

1. Go to "Sengs" → "Wireless & Networks" → "Wi-Fi" and slide the Wi-Fi switch to the right to enable it.

OFF ON

1. Aer a few seconds, Wi-Fi will be enabled and a list of available wireless network names (SSID) will appear. Locate your wireless network on the list and touch to select it.

2. You will be asked for the password. Type it in using the keyboard which automacally appears on screen.

TIP

If you do not know your wireless password, please refer to your router's instrucon manual, or contact your Internet Service Provider (ISP).

1. Touch the "Connect" opon to complete setup of your wireless conncon.

NOTE

Advanced users can touch "Show advanced opons" to set up a proxy and / or manual IP conguraon.

An icon will be displayed in the status bar to show wireless conncon status:

Full signal

Moderate signal

Weak signal

Once you are connected to a wireless network, you can select it on the list, to view conneccon details (e.g. signal strength, link speed and IP address). You can use the “Forget” opon to disconnect from the network and remove the stored password.

11.2 - CONNECT TO A 3G NETWORK

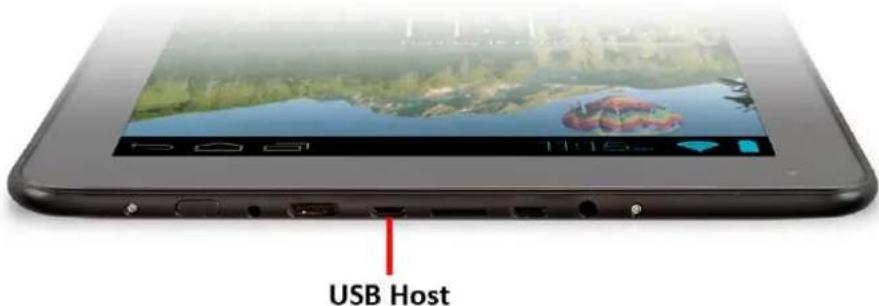

Scroll Elite supports a variety of 3G dongles from various manufacturers. Please see the support list on Scroll Elite:

1. Go to "Sengs" → "Wireless & Networks" → "More".
2. Select "3G Support Informaon" to display a list of compatible 3G dongles.

To use a 3G dongle, simply connect it to the USB Host port on Scroll Elite. It will automatically dial its Internet conncon.

USB Host

If your 3G dongle has a full-size USB conncon, you will need to use the supplied Micro USB On-The-Go (OTG) cable to adapt it for use with Scroll Elite. Plug your 3G dongle into the large socket on the OTG cable, then plug the OTG cable into the USB Host port on Scroll Elite.

Full signal

Moderate signal

Weak signal

NOTE

Unlisted 3G dongles may sell work with Scroll Elite. To test your own, simply plug it in and see if it connects to the Internet. Unfortunately Storage Opons cannot guarantee that your particular 3G dongle will be compatible, and we cannot support equipment from other manufacturers.

APPLICATIONS

Scroll Elite supports a wide variety of applicaons. A small selecon is pre-installed on the tablet and available from the applicaons menu, but many more can be downloaded from various websites.

12.1 - THE APPLICATIONS MENU

To open the Applicaons menu, touch the icon at the top right of the Home screen.

Selection AppS WIDGETS AdFree Amazon Kindle Bank of Americ Browser Calculator Calendar Camera Chrome to Photo Clock CragsInfoHD Dev Tools Downloads DSPManager Email Facebook Flash Player Sci Gallery Gmail Google Reader Google+ Latitude Maps Market Messenger Movie Studio Music Music Navigation Netflix News & Weather Fandora People Pacera Navigation 4:47 Status Bar

• Use the selecon menu to choose between viewing installed applicaons and widgets.
• If you have more applicaons than can t onto one page, slide your nger to the right across the screen to change to the next page.
• The status bar displays system informaon, such as system me, wireless connecvity and baery level. Touch it to expand and display more detailed informaon.
• The buon moves back one step to the previous menu / page.
• The buon returns immediately to the Android desktop.
• The buon displays a menu of recently opened applicaons.

*The above screenshot is for illustraon purposes only, and is not representave of the applicaons included on Scroll.

12.2 - APPLICATIONS & WIDGETS

Applicaons:

• Applicaons provide expanded funconality to Scroll Elite. A selecon of applicaons is pre-loaded onto your Scroll Elite tablet, and more can be downloaded from various websites.
• Applicaons usually take over the full screen when in use. You can use the "Home" and "Return" buons to quit a full-screen applicaon.

Widgets:

• Widgets give enhanced funconality to Scroll Elite's desktop by providing live updates such as news headlines, e-mail nocaons, current me, and more.
  • Some widgets are preinstalled, and others are installed along with their applicaon counterparts.

12.3 – PRE-INSTALLED APPLICATIONS

These applicaons are pre-installed on Scroll Elite:

Adobe Flash®

Advanced Task Killer

Browser

Calculator

Calendar

Camera

Clock

Downloads

Email

File Manager

Gallery

Hi-Q MP3 Recorder

Music

Scroll Apps

Scroll Help

Search

Sengs

YouTube

To access and launch the pre-installed applicaons, touch the 🎯icon on the Home screen to display the Applicaons menu.

12.4 - PRE-INSTALLED WIDGETS

These widgets are pre-installed on Scroll Elite:

• Analog clock: Displays a real me graphical analogue clock on the desktop
• Bookmark: Displays a single web page bookmark on the desktop
• Bookmarks: Displays mulple web page bookmarks on the desktop in a group
• Calendar: Displays upcoming appointments in your calendar
• Contact: Add one of your e-mail contacts to the desktop
• Email: Shows real me updates to your e-mail inbox

Please see hp://www.android.com for more informaon about widgets.

12.5 - PRE-LOADED APPLICATIONS

Scroll Elite has several applicaons which are pre-loaded onto the internal memory. You will need to install them before you can use them.

To install the preloaded applicaons:

1. From the applicaons menu, touch the "Scroll Apps" icon. "Easy Installer" will load and a list of preloaded apps will appear on screen.
2. Touch to place a ck in the check box next to each applicaon you wish to install.
3. Touch the "Install selected apps" buon at the boom of the screen, then follow the onscreen instrucons.

These applicaons are pre-loaded on Scroll Elite:

7digital

Adobe Reader®

Aldiko

Amazon Kindle™

BBC News

Evernote

Facebook

SlideMe Marketplace

Tuneln Radio

Twier

WildTangent

12.6 - SLIDEME MARKETPLACE

SlideMe Marketplace is pre-loaded onto Scroll Excel. Once you have installed it using tl method described above, you can launch the marketplace and browse available applicaons. For support and further informaon on SlideMe Marketplace, please visit hp://slideme.org.

Slide

NOTE

Scroll Excel does not support the ocial Android ^TM Market.

12.7 - ADD MORE APPLICATIONS

There are thousands of applicaons available for Android ^TM from various websites. It is possible to download applicaon (.apk) les on a computer, then transfer them to Scroll Excel using the supplied USB cable. See secon "Connect To A Computer" (page 27) for more details.

Here are some recommended websites:

• Opera Mobile Store
• Handango
• Freeware Lovers

hp://mobilestore.opera.com

hp://www.handango.com

hp://www.freewarelovers.com

12.8 - ADD A SHORTCUT TO THE DESKTOP

You can add shortcuts onto the desktop for quick access to your favourite applicaons. Shortcuts can be placed anywhere on the desktop grid, so you can organise them in whichever manner you like.

To place a shortcut on the desktop:

1. Open the Applicaons menu by touching the 🐘icon at the top right of the Home screen.
2. Touch and hold your favourite applicaon's icon.
3. The Applicaons menu will close and you will be returned to the desktop on the Home screen. A feint blue grid will appear which shows you where you can place the shortcut.
4. Drag the shortcut anywhere on the grid, then release it to place it in that posion.

TIP

To place a widget on the desktop, you can follow the procedure above, but switch to Widgets on the selecon menu aer step 1.

12.9 - REMOVE A SHORTCUT FROM THE DESKTOP

If you would like to remove an applicaon shortcut from the desktop, you can do so. To remove a shortcut:

1. Touch and hold the shortcut icon you would like to remove. A message stang "X Remove" will appear at the top of the screen.
2. Drag the icon over this message. Once it turns red, release the icon and the shortcut will be removed.

TIP

You can also use this method to remove widgets from the desktop.

12.10 - UNINSTALL APPLICATIONS

To uninstall an applicaon (i.e. completely remove it from your tablet), follow this procedure:

1. Open the Applicaons menu and touch the "Sengs" icon.

1. Touch the "Apps" opon on the le of the screen, then lter the list that appears by choosing "Downloaded", "On SD Card", "Running" or "All".
2. Touch the applicaon you would like to remove, choose "Uninstall" from the opons that appear on screen, then touch the "OK" opon to conrm.

WEB BROWSER

Scroll Elite has a built-in browser which can be used to browse the World Wide Web, in the same way you would use a browser on a desktop computer or laptop.

To use the browser:

1. Touch the "Browser" icon on the Applicaons menu. The browser will open.

2. By default, the browser will automacally load Google.

NOTE

Make sure you are connected to your wireless network before opening the browser.

Tabs Back / Forward Refresh Adress bar Google Storage Options - Techn... http://www.google.com/ Search Bookmarks Add bookmark Google UK Google Search I'm Feeling Lucky Web page Navigation 4:47 Status Bar

• Use tabs to load mulple websites and switch between them.
• Use the address bar to go directly to a website if you know its address.
  • Use ← / → (back / forward) and C (refresh) to navigate pages in the current tab.
• Touch the icon to bookmark the current page.
• Touch the ★ icon to select any previously stored favourite websites.
• Touch the icon to perform an Internet search.

VIDEO PLAYBACK

Scroll Elite is a powerful portable media player. The "Gallery" applicaon can play video and display photos that are stored on either internal memory or a Micro SD card.

To use the Gallery:

1. Touch the "Gallery" icon on the Applicaons menu. The Gallery applicaon will open.

1. The Gallery will automatically nd your media and arrange it in a thumbnails view. If you have mulple folders, it will show them rst. Touch a folder to select it, then you will be shown the media les in that folder.

2. Touch the thumbnail to play the le.

TIP

To view more informaon about a le (such as duraon, size and locaon), touch and hold its thumbnail, then then touch the buoy and select "Details".

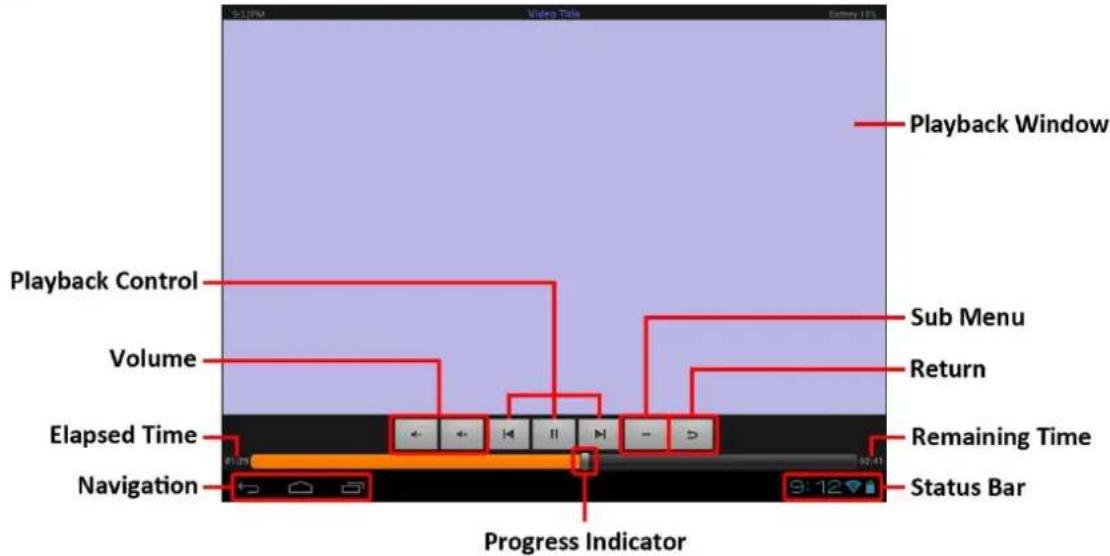

Video les will play back in full screen mode. For a few seconds during the start of playback, the user interface will be displayed:

5:12PM Video Title Battery 18% Playback Window Playback Control Volume Elapsed Time Navigation Sub Menu Return Remaining Time Status Bar Progress Indicator

• Use playback control buons to play / pause or skip backwards / forwards between videos.

- Drag the progress indicator le or right to fast forward or rewind the video.

• The Sub Menu provides further opons for subtles, repeat play, aspect rao etc.

- Touch the screen to reacvate the controls aer they have disappeared from view.

14.2 - PLAY 3D CONTENT ON YOUR HDTV

Scroll Elite can also be connected to your big-screen HDTV for Full HD and 3D video playback.

NOTE

You will need a 3D compatible Mini HDMI to HDMI cable to connect to a 3D HDTV.

To connect to your HDTV:

1. Using a Mini HDMI to HDMI cable, plug the Mini HDMI connector into Scroll Elite's Mini HDMI socket, and the full size HDMI plug into your HDTV's HDMI socket.

Mini HDMI

1. Switch to the appropriate input on your HDTV. Refer to your TV's manual for instrucons on how to do this.
2. Scroll Elite will automacally switch to HDMI mode and display an image on your TV screen.

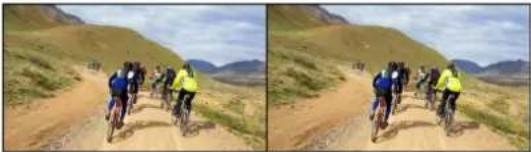

Scroll Elite supports 3D video playback on a compatible 3D HDTV. Simply play your 3D video in the same way you would play 2D video, and on your 3D HDTV select the appropriate 3D mode (le/right or top/boom, see examples below). Refer to your TV's manual for instrucons on how to do this.

VIDEO MODE	DISPLAY	TV MODE
Le / Right		L/R
Top / Boom		T/B

7 DIGITAL MUSIC SERVICE

7digital is a digital music content delivery and management applicaon. With over 17 million tracks available in MP3 format from all major labels, 7digital has something for everyone.

The 7digital applicaon is pre-loaded on Scroll Elite. See secon "12.5 – Pre-Loaded Applicaons" (page 18) for instrucons on how to install.

To use 7digital:

1. On the Applicaons menu, touch the 7digital applicaon to launch it.
2. You will be presented with the latest releases and you can swipe across the screen to see more.
3. When you try to purchase music, you will be asked to either create an account, or sign in to your existing account. You can also sign in from the opons menu; touch the "Buon" then go to "Sengs" → "General" and choose "Sign In".

There are many funcons available in 7digital. Refer to http://www.7digital.com for full informaon. To get started quickly, you should become familiar with these icons:

- Use the Q funcon at the top of the screen to type a search term for your favourite arst.

- Touch 🔒 to switch to your local music collecon. This can include music purchased from 7digital and / or music stored on your tablet (e.g. on a Micro SD card).

TIP

It is recommended to store your music collecon in a folder called "Music" in the root of the card.

- Touch ⚙ to switch back to the home screen where you can browse the latest releases.

To change the default currency:

1. Touch the ■buon at the top right of the screen, then choose "Sengs".

2. Scroll down the list until you end the "General" secon, and touch "Country".

3. Choose your preferred country from the list on screen. The currency displayed on the 7digital store will change to match.

NOTE

For support and further informaon on the 7digital music service, please visit hp://www.7digital.com.

WILD TANGENT GAMES SERVICE

WildTangent provides a gaming service for Scroll Elite where users can trial, rent or own top games, based on WildCoins. WildCoins are a digital currency which can be purchased in packs or as a subscrispon. Users can also play for free in exchange for viewing an advert from a brand adverser.

The WildTangent Games applicaon is pre-loaded on Scroll Elite. See secon "12.5 - Pre-Loaded Applicaons" (page 18) for instrucons on how to install.

To use WildTangent:

1. Open the WildTangent Games applicaon from the Applicaons menu.
2. Sign into your account, or if you do not have one, select the "Create an account" opon. Follow the on-screen instrucons to create an account.
3. The main interface will launch and automacally show the latest games. Browse the featured games on this page, or touch the "Find Games" buon to search for a specific type of game.
4. Touch a game's icon to view details.

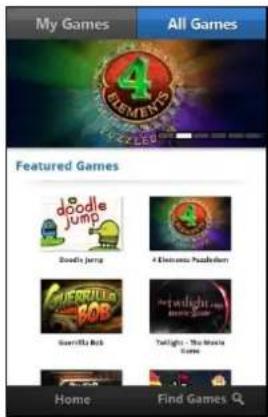

The "My Games" tab shows all games currently installed on Scroll Elite. Touch a game's icon to launch it.

Touch and hold a game icon to open a sub menu with the following opons:

• Play to launch the game
  • Uninstall to remove the game from Scroll Elite
• Stop Renng if you wish to disconnue renng (if applicable)

My Games All Games 4 TIEMEX'S 2 LED Featured Games doodle jump Doodle Jump 4 Electronics Paddlebury JUERICULE POT Guarilla Rob Twilight - The Movie Game Home Find Games

My Games All Games Meet Recent Console Jump COLDUPS holiday Editions TransWires My Games COLDUPS Holiday Editions Console Jump TransWires

TIP

Games installed via the WildTangent applicaon will also be available to launch from Scroll Elite's own Applicaons menu.

While in the WildTangent applicaon, press the button to launch the context menu for further opons.

NOTE

For support and further informaon on WildTangent, please visit hp://www.wildtangent.com.

BUILT-IN CAMERAS

The Camera applicaon lets you take photographs and record video clips using the built-in cameras.

- Launch the "Camera" applicaon from the Applicaons menu by touching the Camera icon:

5CN Viewport Select Camera Capture Settings Zoom Camera Mode

• Touch to switch between the front and rear cameras.
• Use the Viewport to align the scene you would like to capture.
• Slide the Zoom indicator along its track to zoom in or out.
• Touch to change white balance, exposure and other sengs.
• Touch the Capture buon to record.

There are three camera modes:

ICON	CAPTURE BUTTON	DESCRIPTION
		Sll picture mode
		Video recording mode
		Panoramic sll mode – capture very wide photographs

MEMORY EXPANSION WITH MICRO SD CARD

Scroll Elite features built-in ash memory, which can be expanded using a Micro SD card (not included). You may use any Micro SD or Micro SDHC card, up to 32GB capacity.

The best way to use a Micro SD card is to treat it as media storage; transfer media les (videos, music and photos) from your computer to your Micro SD card in the usual manner, then insert it into Scroll Elite as shown.

To insert and use a Micro SD card:

1. Push the Micro SD card into the slot indicated in the diagram below, unl it clicks and locks in place.
2. Scroll Elite will automacally mount the Micro SD card for use.

Top-down view of a tablet device with a small 3G card inserted into the front panel, showing a landscape background (no readable text or symbols)

To eject a Micro SD card:

- Push the Micro SD card inwards slightly until it clicks, then release pressure. It will pop out from the socket.

It is recommended to organise your Micro SD card by creang folders for dierent media types in the root:

micro s2 eBooks Music Pictures Videos

Place your media les in the respective folders. This may help if you need to instruct an application where to look for media les.

NOTE

For third party applicaons you may need to point them to the Micro SD card to read your media les. Refer to the instrucons specic to each applicaon for direcons on how to do this.

CONNECT TO A COMPUTER

Scroll Elite can be connected to a computer running Microso Windows for le transfer via USB cable. When plugged into your computer's USB port via the included USB cable, Scroll Elite should automacally appear as a removable drive, but if it does not, please follow the below instrucons.

To connect to a computer:

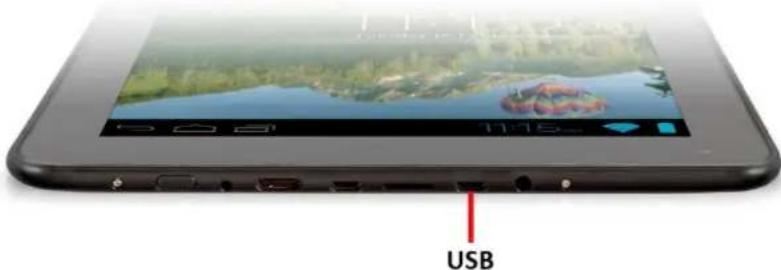

1. Using the supplied USB cable, plug the micro USB plug into Scroll Elite's USB socket (not the "USB Host" socket), and plug the full-size USB plug into an available USB socket on your computer.

USB

1. Windows may present you with a "New Hardware Wizard". Please click the "Cancel" upon to close this.
2. On Scroll Elite, touch the status bar at the boom of the screen.
3. Touch the "USB connected" opon, then choose "Turn on USB storage".

USB More Storage USB connected You have connected to your computer via XML. Send the button below if you used to log file between your computer and your Android's USB card. Turn an USB storage

Scroll will appear as mass storage on your computer and will be assigned the next available drive leer within "My Computer" or "Windows Explorer".

Drag and drop les from your computer's storage drives onto Scroll Elite, just like you would with any other external storage device.

To disconnect from a computer:

1. Touch the "Turn o USB storage" buon to un-mount the ash memory.
2. Disconnect the USB cable.

NOTE

Failure to un-mount the ash memory could prevent Android ^TM applicaons from being able to access the memory, and cause errac behaviour. Always un-mount before disconnecting the USB cable.

SYSTEM RESET

A system reset allows you to return the tablet back to factory default sengs.

CAUTION

Reseng to factory defaults will erase all data from the tablet's internal storage. You must do a back up of any important data before performing this procedure.

To reset your tablet to factory defaults:

1. Touch the "Sengs"

menu icon on the Applicaons menu. The Sengs menu will open.

1. Scroll down to the “Backup & reset” menu item, and touch to select it.

Settings Backup & reset ACCOUNTS Email Google Add account SYSTEM Date & time Accessibility Developer options About tablet 2 BACKUP & RESTORE Back up my data Back up your data, Wi-Fi passwords and other settings to Google senses Play key to add Backup up this help private cache Factory data reset When we call up an user restore back-up with the next day PERSONAL DATA Factory data reset End on all data is called 3 15:32 0

Backup & reset Backup & reset ACCOUNTS Email Google Add account SYSTEM Date & time Accessibility { } Developer options About tablet This will erase all data from your tablet's internal storage, including Your Google account System and app data and settings Downloaded apps You are currently signed in to the following accounts: gmail.com gmail.com To clear music, pictures and other user data, the SD card needs to be Repaced. Erase SD card Erase all the data on the SD card, such as music or phones Reset tablet 15:42 0

1. Select "Factory data reset". Android will warn you that you are about to erase everything on the tablet's internal storage, including:

2. Your Google account
   • System and applicaon data and sengs

3. Downloaded applicaons

A note states "To clear music, pictures and other user data, the SD card needs to be erased"; this message is referring to the internal memory (virtual SD card) on your tablet. It does not mean an inserted Micro SD card!

Selecng this opon is not advisable as it will delete the pre-loaded Scroll Apps from the tablet, meaning you will not be able to reinstall them once the tablet has been reset. If you are sure you want to erase the internal memory (virtual SD card), please make a backup of the "Scroll Apps" folder (either to Micro SD card or your computer) rst.

1. Select the "Reset tablet" opon. Android will ask you if you are sure; touch the "Erase everything" buon to conrm this. The tablet will shut down, perform the reset procedure, and then reboot.

NOTE

The reset procedure may take some me. Once the procedure is complete, the tablet will take longer to reboot than before. This is normal, and will only happen for the rst boot aer reseng the tablet.

PRODUCT SPECIFICATION

Scroll Elite

Scroll Elite 9.7" TABLET PC ANDROID 4.0 kS IPS SCREEN A TABLET FOR THE ELITE

Hardware
Unit Size (mm):	243 x 190 x 10
Unit Weight:	550 g
CPU:	Cortex 1.2GHz
GPU:	Mali 400 graphics processor
RAM:	1 GB
Built-in Storage:	16 GB
Storage Expansion:	Micro SD card, up to 32 GB
Display:	9.7" IPS capacive touch
Resoluon:	1024 x 768, 4:3
Baery Type:	Rechargeable lithium
Baery Capacity:	5000 mAh
USB Port:	1x USB, 1x USB Host
Speaker:	8 Ω / 1W
Wireless Connecvity:	802.11b/g/n
Soware
Operang System:	Android^TM 4.0
Web Browser:	Pre-installed
Video Support:	AVI, H.264, MPEG2, MPEG4, MKV, MP4Supports 1080p 3D video output
Audio Support:	MP3, AAC, AC3, WAV
Photo Support:	JPEG, BMP, GIF, PNG, TIFF
3D Gaming:	OpenGL rendering

WARRANTY AND PRODUCT SUPPORT

If you are experiencing dicules with your product, or have quesons which are not answered in this instrucon manual, our dedicated support site oers a wide range of clearly written FAQs, manuals and user guides which are designed to help you get the most from your purchase.

Visit our dedicated support site at storageopons.com/support/ for FAQs, manuals and user guides

If you are unable to nd an answer online, sll experiencing issues or suspect your product to be faulty, our UK based customer service team is available to oer full support, and can be contacted via the support pages of our website.

Submit a service request online if you cannot nd an answer to your problem

A member of our UK based support team will review your case and oer the highest level of advice and support

If our team believes that the product in queson is faulty, we will issue a returns authorisaon and arrange for a replacement to be sent free of charge.*

Return the product free of charge* – a pre-paid shipping label will be issued to return the product

Within 5 to 10 days a replacement product will be sent at no charge to you

Replacement product delivered directly to you

Please contact us directly if you have any queries or concerns:

storageoptions.com/support/

[e-mail]

Our aim is to provide the best possible service to our customers. We have a wealth of support material, guides and FAQs available on our website to help you get the most from your product. Our dedicated UK based Customer Service team are also on hand to oer further support and, in the unlikely event of any fault developing with your purchase, we have a full returns procedure designed to make receiving a replacement product as quick and easy as possible.

NOTES

Scroll Elite

by Storage Options
