USER MANUAL Scroll Essential II Storage Options

11:15 AM Tuesday 15 February

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER.

NO USER SERVICABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED PERSONNEL.

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of non-insulated "dangerous voltage" within the product's enclosure that may be of sucient magnitude to constute a risk of electric shock.

The exclamaon point within an equilateral triangle is intended to alert the user to the presence of important operang and maintenance (servicing) instrucons in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE

CAUTION:

TO PREVENT ELECTRIC SHOCK, ENSURE THE PLUG IS FULLY INSERTED INTO A MAINS SOCKET

IMPORTANT SAFEGUARD

All lead-free products oered by the company comply with the requirements of the European law of the Restricon of Hazardous Substances (RoHS) direcve, which means our manufacturing processes and products are strictly “lead-free” and without the hazardous substances cited in the direcve.

The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product's end-of-life. This applies to your product and any peripherals marked with this symbol. Do not dispose of these products as unsorted municipal waste. Contact your local dealer for procedures for recycling this equipment.

DISCLAIMER

We reserve the right to revise or remove any content in this manual at any me. We do not warrant or assume any legal liability or responsibility for the accuracy, completeness, or usefulness of this manual. The content of this manual is subject to change without noce.

Screenshots are for illustraon purposes only and may not be representave of the actual product.

RECOMMENDATIONS

• AVOID DUSTY LOCATIONS:
Excessive build-up of dust may cause the unit to fail.
• DO NOT EXPOSE TO MOISTURE:
Exposing the unit to water poses high risk of electric shock.
- DO NOT DROP:
Doing so could damage internal components.
• DO NOT OPEN CHASSIS:
No user-serviceable parts inside.

TRADEMARK ACKNOWLEDGEMENTS

• Android ^TM is a trademark of Google.
• Microso & Windows are registered trademarks of Microso Corporaon.
• All applicaons copyright © their respective owners.

WARRANTY AND TECHNICAL SUPPORT

To help you make the most of this product you'll nd a host of informaon including full product manuals, FAQ, troublesomeong guides and a support service if you have specie quesons, available at our support website: www.storageopons.com/support.

This product is also backed by a 12 month warranty in the unlikely event of something going wrong. More informaon and warranty registraon is available at www.storageopons.com/warranty.

storageoptions.com/support/

[e-mail]

TABLE OF CONTENTS

QUICK START GUIDE 6

OVERVIEW 6

CONVENTIONS USED IN THIS MANUAL 7

PURPOSE OF THIS MANUAL 7

PACKAGE CONTENTS 7

BASIC OPERATION 8

6.1 – Buons & Connecons 8

6.2 - Power On / O 9

6.3 – Using The Touch Screen 9

6.4 – Unlock The Screen 9

6.5 – Camera Shortcut 9

CHARGE THE BATTERY 10

HOME SCREEN 11

DISPLAY ORIENTATION 12

SETTINGS MENU 13

NETWORK CONNECTIVITY 14

11.1 – Connect To A Wireless Access Point 14

11.2 – Connect To A 3G Network 15

APPLICATIONS 16

12.1 – The Applicaons Menu 16

12.2 – Applicaons & Widgets 17

12.3 – Pre-Installed Applicaons 17

12.4 – Pre-Installed Widgets 17

12.5 – Pre-Loaded Applicaons 18

12.6 – SlideMe Marketplace 18

12.7 – Add More Applicaons 18

12.8 – Add A Shortcut To The Desktop 19

12.9 – Remove A Shortcut From The Desktop 19

12.10 – Uninstall Applicaons 19

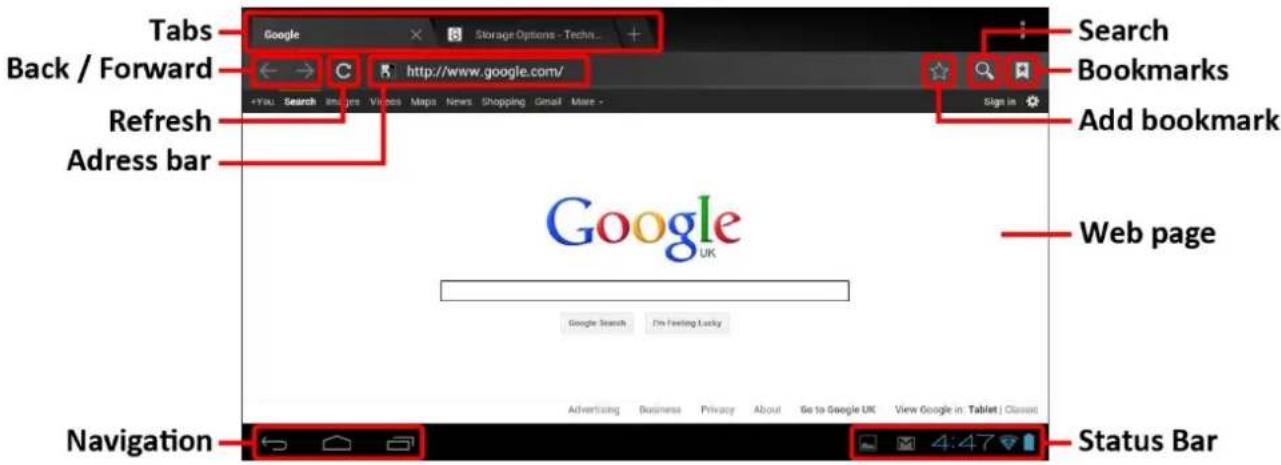

WEB BROWSER 20

TABLE OF CONTENTS (CONTINUED)

VIDEO PLAYBACK		21
7DIGITAL MUSIC SERVICE		22
WILD TANGENT GAMES SERVICE		23
DEFENX ANTI-VIRUS		24
SOCIAL NETWORKING		25
	18.1 – Facebook	25
	18.2 – Twier	25
BUILT-IN CAMERA		26

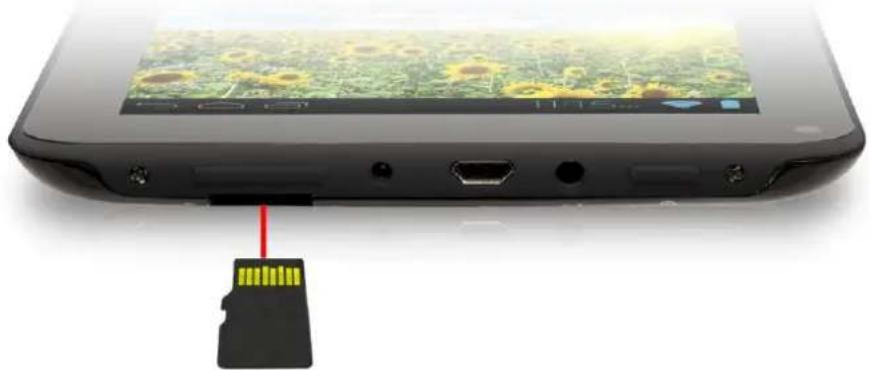

MEMORY EXPANSION WITH MICRO SD CARD		27

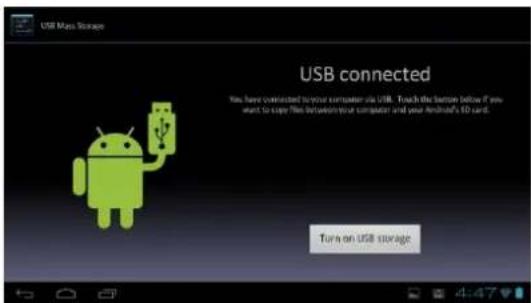

CONNECT TO A COMPUTER		28

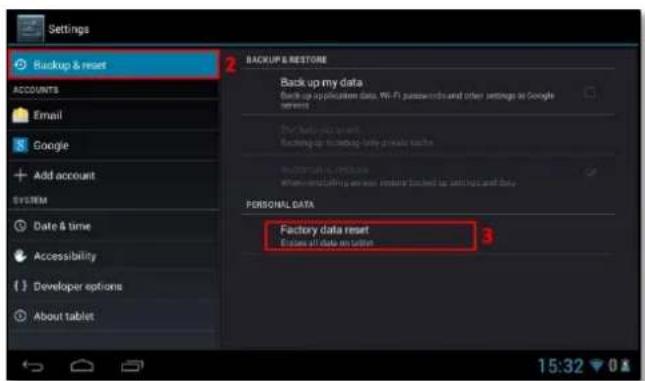

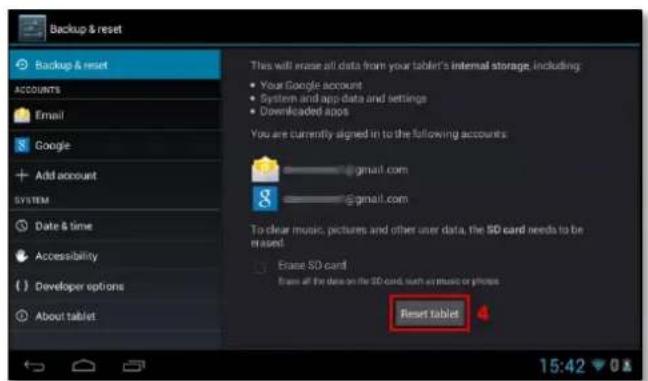

SYSTEM RESET		29
PRODUCT SPECIFICATION		30
WARRANTY AND PRODUCT SUPPORT		31

Android robot logo silhouette in light green, no text or symbols present

QUICK START GUIDE

Please follow this quick start checklist to guide you through using your Storage Opons Scroll Essenal II:

1. Check the package contents. See secon "Package Contents" (page 7) for more details.

2. Charge the baery. See secon "Charge The Baery" (page 10) for more details.

3. Remove the protecve lm. Peel the protecve lm o the tablet's screen.

4. Familiarise yourself with the physical buons and connexons, powering on, and touch screen control. See secon "Basic Operaon" (page 8) for more details.

5. Connect to a wireless network for web browsing. See secon "Network Connecvity" (page 14) for more details.

6. Familiarise yourself with the included applicaons. See secon "Applicaons" (page 16) for more details.

OVERVIEW

Scroll Essenal II is a capacive, touch screen tablet PC designed for use both at home and on the move. Running the intuitive Android 4.0 (Ice Cream Sandwich) operang system, the Essenal II is a tablet well equipped for internet browsing, social networking, games, videos and much more!

Running fast, responsive hardware, a slick and enjoyable experience is guaranteed from this device. Use the built in mulmedia centre to play the latest video and music content, enjoy a wide range of games wherever you are and stay connected with social networking applicaons.

A wide range of accessories are also available to enhance your Scroll Essenal II, including a smart, powerful speaker dock, a stylus and protecve cases to keep your device looking it's best at all mes*. Scroll Essenal II is everything you need from a tablet.

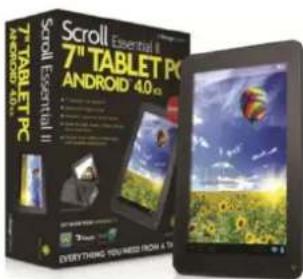

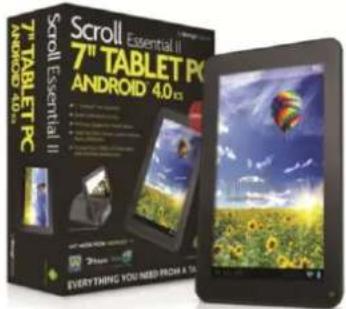

Scroll Essential II 7" TABLET PC ANDROID 4.0 EVERY IT'S EVERYTHING YOU NEEDS FROM A TV

• 7" Android 4.0 tablet PC
• Quick and simple to use
• Intuitive, capacive touch-Screen
  • Great for web, games, videos, eBooks, music and more
• Choose from thousands of great apps with SlideMe Marketplace

*Accessories available separately.

CONVENTIONS USED IN THIS MANUAL

At various points in this manual you will see highlighted text. Please refer here for an explanaon:

NOTE Important notes are highlighted in blue.

TIP Tips on best pracce are highlighted in green.

CAUTION Important cauons and warnings are highlighted in red.

PURPOSE OF THIS MANUAL

This manual is intended to give you a quick overview of the Scroll Essenal II hardware and very basic functionality of the Android ^TM 4.0 operang system. It does not feature in-depth instrucons for Android ^TM 4.0. The applicaons are provided “as-is” as a bonus for Storage Opons customers. Please contact applicaon developers directly for help and informaon on their soware.

For more detailed informaon and instrucons on the Android ™ 4.0 operang system, please visit:

- hp://www.android.com/

Google is also an excellent resource for help with the Android ^TM operang system.

• hp://www.google.co.uk/

PACKAGE CONTENTS

Check the package contents against this checklist. If anything is missing or damaged, please do not use the system, and inform your supplier as soon as possible.

Scroll Essenal II

USB cable

Earphones

Mains adapter

On-The-Go (OTG) cable

Instrucon manual

BASIC OPERATION

The Scroll Essenal II has very few physical buons. Most control is performed via the touch screen.

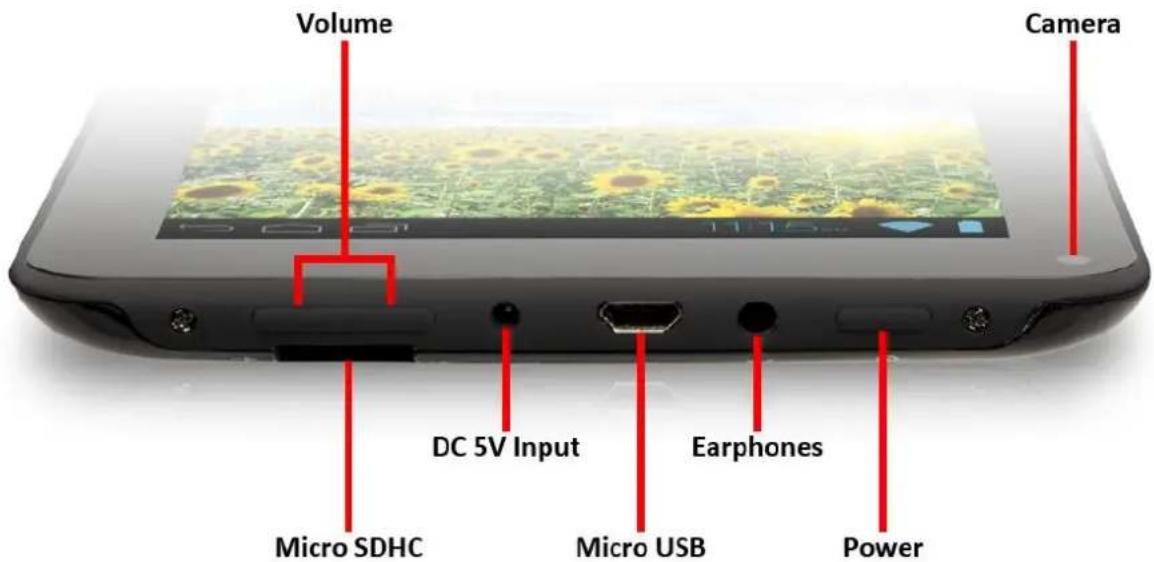

6.1-BUTTONS & CONNECTIONS

Volume Camera DC 5V Input Micro SDHC Micro USB Earphones Power

BUTTON	ICON	DESCRIPTION
Power		Hold to turn the tablet on or o
Volume		Decreases / increases volume

ON-SCREEN	ICON	DESCRIPTION
Return		Moves back one step to the previous menu / page
Home		Returns immediately to the Android desktop
Menu		Displays a menu of recently opened applicaons
Volume		Decreases / increases volume
Context Menu		Displays a menu of opons (diers depending on the applicaon)

CONNECTION	ICON	DESCRIPTION
Micro SD		Insert a Micro SD card (up to 32GB)
DC 5V		Recharge Scroll Essenal II's baery using the supplied mains adapter
USB		Connect peripheral devices (e.g. keyboard, USB ash drive)
Earphone		Connect earphones to this standard 3.5mm jack socket

NOTE

See secon "Built-In Camera" (page 26) for more informaon on the camera feature.

Press and hold the ☐on unl the tablet switches on. It will boot into the Android ™ 4.0 operang system. This will take approximately one minute.

To turn the tablet o, press and hold the ☐uon for approximately 3 seconds. A "Power O" menu will appear on screen. Choose "OK" to complete shutdown or "Cancel" to resume use.

Scroll Essenal II features a capacive touch screen. To use it, simply touch any area on the screen – no pressure is required. Touch (A) an opon to select it.

You can also "touch and drag" (B) to move items or scroll through lists by touching and holding, then gliding your nger over the screen.

Use a nger and thumb to "pinch zoom" (C) on-screen items such as photographs and web pages.

A B C

6.4 - UNLOCK THE SCREEN

Scroll Essenal II operates in a similar manner to a touch-screen mobile phone. When it is rst powered on, the Android ^TM operang system will boot, then you will be presented with a “locked” screen.

To unlock the screen:

1. If the screen is currently blank (Scroll is powered on but in standby), press the ☐uon (short press, do not hold). The screen will turn on.
2. Touch and drag the padlock icon over to the open padlock symbol on the right side of the screen.

To lock the screen:

1. Press the duon (short press, do not hold).
2. The screen will go blank to conserve baery power.

6.5 - CAMERA SHORTCUT

From the locked screen, you can also unlock and go straight to the built-in Camera applicaon by dragging the padlock over to the camera icon.

Diagram showing a hand pressing a lock icon with a red arrow indicating lock direction, next to an open lock symbol.

TIP

If the tablet is not used for approximately one minute, it will go to sleep to prolong baery life. This seng can be changed in "Sengs" → "Display" → "Sleep".

CHARGE THE BATTERY

It is recommended to fully charge Scroll Essenal II overnight before rst use. This will help prolong the useful life of the built-in baery.

To charge the baery:

- Insert the mains charger plug into the 5V DC socket (located to the le of the USB socket) on Scroll. Connect the mains adapter to a UK 3-pin electrical socket.

DC 5V Input

CAUTION

Do not use any mains adapter other than the one supplied. Using an incompatible adapter could damage the tablet and poses the potential risk of re.

• If Scroll Essenal II is powered o, it will charge unl the baery is full.
• If Scroll Essenal II is powered on, the battery charge status will be indicated on screen by the baery meter:

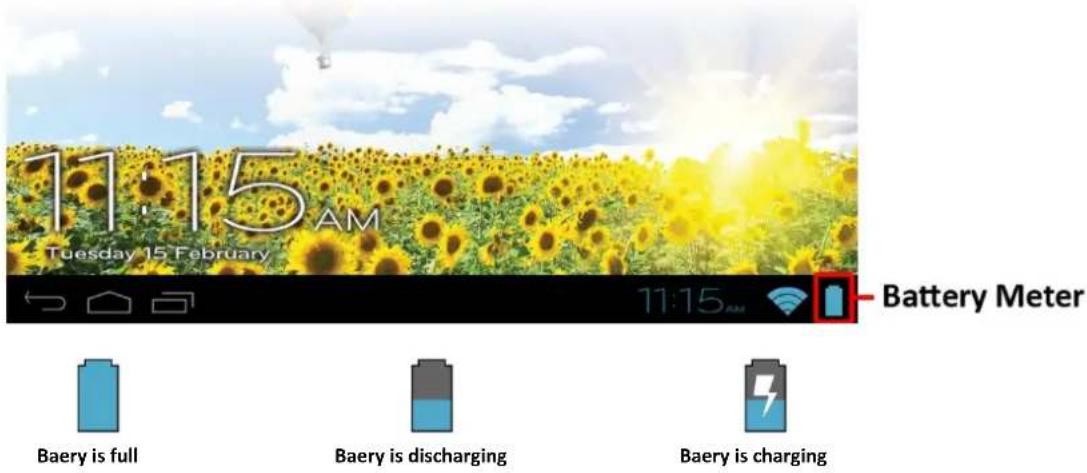

11:15 AM Tuesday 15 February Battery Meter Baery is full Baery is discharging Baery is charging

- When Scroll Essenal II is connected to a computer via USB cable, it will "trickle charge"; the baery will charge via the USB socket, but at a much slower rate than via the DC 5V mains adapter.

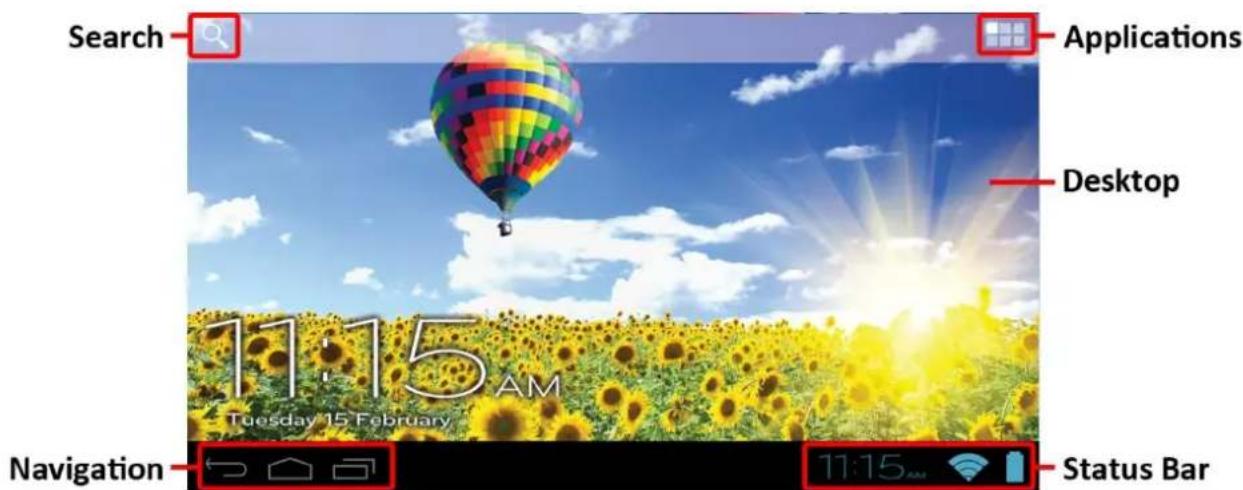

HOME SCREEN

The Home screen will look similar to the picture below. It is actually ve screens, each of which can have a dierent layout of icons. To switch between screens, simply slide your nger le or right across the display. The status bar and navigaon buons are always visible, no maer which Home screen you are currently viewing.

Search Applications Desktop 11:15 AM Tuesday 15 February Navigation 11:15 AM Status Bar

• The Desktop can contain shortcuts to your most-used applicaons and widgets.

- Touch the Search icon to quickly search the World Wide Web using Google.

• The icon will launch the Applicaons menu.

- The status bar displays system informaon, such as current me, wireless connecvity and baery level. Touch to expand the status bar for more detailed informaon.

- The buon moves back one step to the previous menu / page.

• The buon returns immediately to the Android desktop.

- The buon displays a menu of recently opened applicaons.

• The and buons decrease and increase volume.

• The ■ buon displays a menu of opons (diers depending on the applicaon).

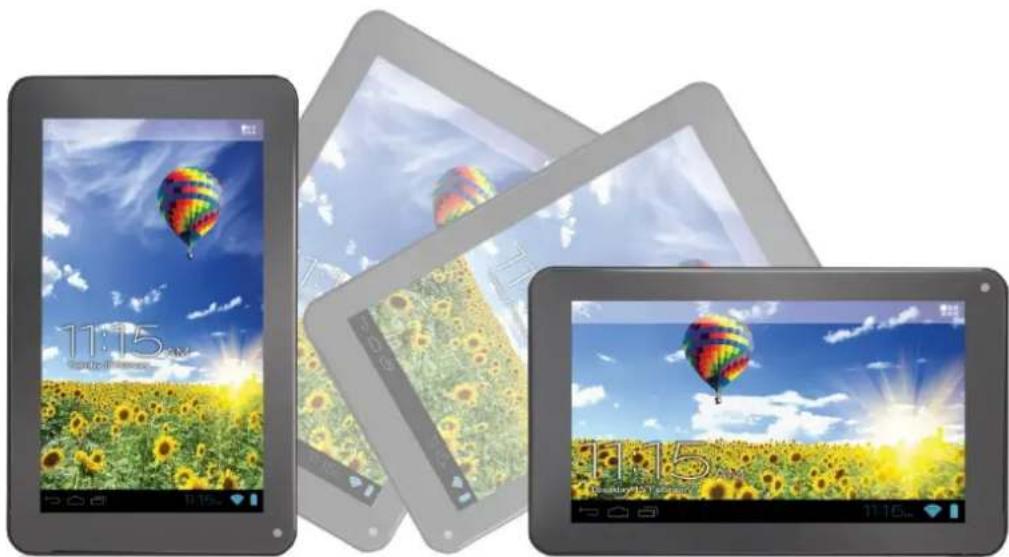

DISPLAY ORIENTATION

Scroll Essenal II features a built-in G-Sensor which monitors the tablet's current orientaon and automacally adjusts the display to match.

Three tablet devices displaying colorful hot air balloons over a sunflower field, no text or symbols visible on the devices themselves.

To re-orientate the display:

- Simply turn Scroll Essenal II to portrait or landscape posion, and the display will rotate to match.

NOTE

Some applicaons will lock screen orientaon. Normal rotaon funconality will resume once the applicaon is closed.

Automac screen rotaon can be switched o, which is useful if you would prefer to use Scroll Essenal II exclusively in landscape mode.

To switch o automac rotaon:

1. From the Home Screen, touch the 🎯icon (located at the top right) to open the Applicaons menu.
2. Touch the "Sengs" icon.
3. Select "Display".
4. Touch "Auto-rotate screen" to remove the ck from the checkbox. Scroll Essenal II will be locked into landscape mode.

To switch automac rotaon back on, repeat the above steps and ensure there is a ck in the checkbox in step 4.

SETTINGS MENU

The Sengs menu allows you to adjust Scroll Essenal II's system conguraon.

To change sengs:

1. Touch the "Sengs"

Menu icon on the Applicaons menu. The Sengs menu will open.

1. Glide your nger up or down the le side of the screen to scroll through the list of available categories.

2. Touch a category tle to view further opons on the right side of the screen.

ITEM	ICON	DESCRIPTION
Wi-Fi		Connect to / disconnect from wireless networks, view conneccon status, etc
Data usage		Enable / disable mobile data, view current usage, set mobile data limit, etc
Sound		Change volume, touch sounds, screen lock sounds, etc
Display		Change brightness, wallpaper, sleep sengs, font size, etc
Storage		Manage NAND and Micro SD card, view available capacity, etc
Baery		See baery status and powered-on me
Apps		Manage applicaons, running services, etc
Accounts & sync		Switch synchronisaon on / o, manage accounts, etc
Locaon services		Change approximate locaon detecon, improve search results
Security		Change screen lock type, encrypon, passwords, credenal storage, etc
Language & input		Select language, add to the diconary, edit on-screen keyboard sengs, etc
Backup & reset		Backup & restore data, perform factory reset, etc
Date & me		Set date, me zone, me, clock format, etc
Accessibility		Set up large text, auto-rotate screen, speak passwords, etc
Developer opons	{}	Advanced funcons for Android developers – debugging, HDCP check, etc
About tablet	i	Informaon about your Android^TM device

Some opons will have a simple checkbox, while others will have a list of further sengs to choose from. You should take me to become familiar with the opons in these categories.

For more detailed informaon, please visit hp://www.android.com/.

NETWORK CONNECTIVITY

The vast majority of applicaons support some kind of networking / Internet funconality. There are two ways to connect to the Internet using Scroll Essenal II; either through your wireless router (access point) or by plugging in a 3G network dongle.

11.1 - CONNECT TO A WIRELESS ACCESS POINT

Scroll Essenal II features standard wireless B / G / N capabilities, meaning it can connect to any router which is compatible with the 802.11b/g/n standard. Check your router's documentaon to conrm compatibility.

NOTE

You will need your router's wireless SSID and password to connue with these instrucons.

To enable wireless networking and connect to your router:

1. Go to "Sengs" → "Wireless & Networks" → "Wi-Fi" and slide the Wi-Fi switch to the right to enable it.

OFF ON

1. Aer a few seconds, Wi-Fi will be enabled and a list of available wireless network names (SSID) will appear. Locate your wireless network on the list and touch to select it.

2. You will be asked for the password. Type it in using the keyboard which automacally appears on screen.

TIP

If you do not know your wireless password, please refer to your router's instrucon manual, or contact your Internet Service Provider (ISP).

1. Touch the "Connect" opon to complete setup of your wireless conncon.

NOTE

Advanced users can touch "Show advanced opons" to set up a proxy and / or manual IP conguraon.

An icon will be displayed in the status bar to show wireless conncon status:

Full signal

Moderate signal

Weak signal

Once you are connected to a wireless network, you can select it on the list, to view conncon details (e.g. signal strength, link speed and IP address). You can use the "Forget" option to disconnect from the network and remove the stored password.

11.2 - CONNECT TO A 3G NETWORK

Scroll Essenal II supports a variety of 3G dongles from various manufacturers. To view the list of supported 3G dongles, please do the following:

1. Go to "Sengs" → "Wireless & Networks" → "More".
2. Select "3G Support Informaon" to display a list of compatible 3G dongles.

To use a 3G dongle, simply connect it to the USB port on Scroll Essenal II. It will automatically dial its Internet conncon.

Micro USB

If your 3G dongle has a full-size USB conncon, you will need to use the supplied USB On-The-Go (OTG) cable to adapt it for use with Scroll Essenal II. Plug your 3G dongle into the large socket on the OTG cable, then plug the OTG cable into the USB port on Scroll Essenal II.

NOTE

Unlisted 3G dongles may sll work with Scroll Essenal II. To test your own, simply plug it in and see if it connects to the Internet. Unfortunately Storage Opons cannot guarantee that your particular 3G dongle will be compatible, and we cannot support equipment from other manufacturers.

APPLICATIONS

Scroll Essenal II supports a wide variety of applicaons. A small selecon is pre-installed on the tablet and available from the applicaons menu, but many more can be downloaded from various websites.

12.1 - THE APPLICATIONS MENU

To open the Applicaons menu, touch the icon at the top right of the Home screen.

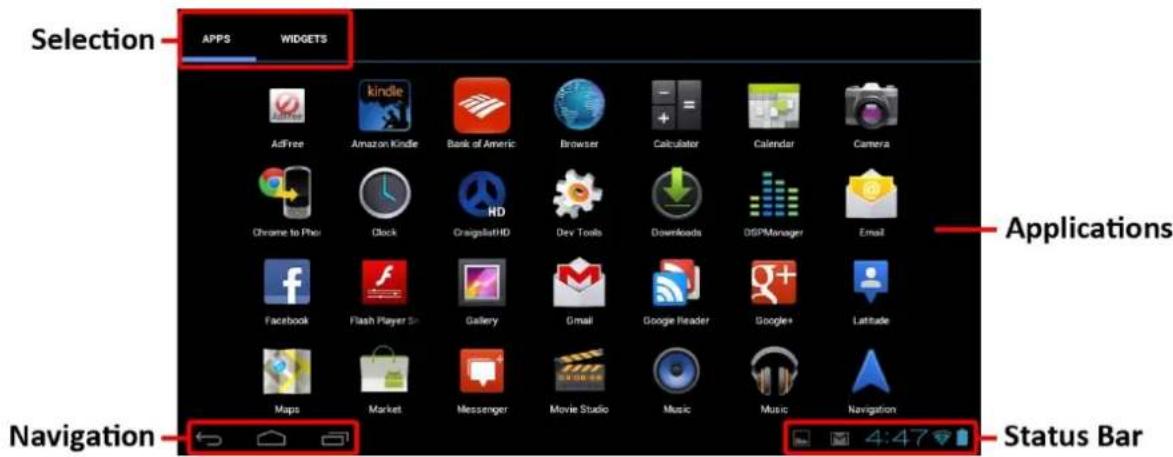

Selection APPS WIDGETS AdFree Amazon Kindle Bank of America Browser Calculator Calendar Camera Chrome to Phi Clock CraigslistHD Dev Tools Downloads DSPManager Email Facebook Flash Player Sr Gallery Gmail Google Reader Google+ Latitude Maps Market Messenger Movie Studio Music Music Navigation 4:47 Applications Status Bar

• Use the selecon menu to choose between viewing installed applicaons and widgets.
• If you have more applicaons than can t onto one page, slide your nger to the right across the screen to change to the next page.
• The status bar displays system informaon, such as system me, wireless connecvity and baery level. Touch it to expand and display more detailed informaon.
• The buon moves back one step to the previous menu / page.
• The buon returns immediately to the Android desktop.
• The buon displays a menu of recently opened applicaons.

*The above screenshot is for illustraon purposes only, and is not representave of the applicaons included on Scroll.

12.2 - APPLICATIONS & WIDGETS

Applicaons:

• Applicaons provide expanded funconality to Scroll Essenal II. A selecon of applicaons is pre-loaded onto your Scroll Essenal II tablet, and more can be downloaded from various websites.
• Applicaons usually take over the full screen when in use.

Widgets:

• Widgets give enhanced funconality to Scroll Essenal II's desktop by providing live updates such as news headlines, e-mail nocaons, current me, and more.
• Some widgets are preinstalled, and others are installed along with their applicaon counterparts.

12.3 – PRE-INSTALLED APPLICATIONS

These applicaons are pre-installed on Scroll Essenal II:

Adobe Flash®

Browser

Calculator

Calendar

Camera

Clock

Downloads

Email

File Manager

Gallery

Hi-Q MP3 Recorder

Music

Scroll Apps

Scroll Help

Search

Sengs

YouTube

To access and launch the pre-installed applicaons, touch the 🎯icon on the Home screen to display the Applicaons menu.

12.4 – PRE-INSTALLED WIDGETS

These widgets are pre-installed on Scroll Essenal II:

• Analog clock: Displays a real me graphical analogue clock on the desktop
• Bookmark: Displays a single web page bookmark on the desktop
• Bookmarks: Displays mulple web page bookmarks on the desktop in a group
• Calendar: Displays upcoming appointments in your calendar
• Email: Shows real me updates to your e-mail inbox

Please see hp://www.android.com for more informaon about widgets.

12.5 – PRE-LOADED APPLICATIONS

Scroll Essenal II has several applicaons which are pre-loaded onto the internal memory. You will need to install them before you can use them.

To install the preloaded applicaons:

1. From the applicaons menu, touch the "Scroll Apps" icon. "Easy Installer" will load and a list of preloaded apps will appear on screen.
2. Touch to place a ck in the check box next to each applicaon you wish to install.
3. Touch the "Install selected apps" buon at the boom of the screen, then follow the onscreen instrucons.

These applicaons are pre-loaded on Scroll Essenal II:

7digital

Adobe Reader®

Aldiko

Amazon Kindle™

BBC News

Defenx

Evernote

Facebook

Quick System Info Pro

SlideMe Market

Tuneln Radio

Twier

WildTangent

12.6 - SLIDEME MARKETPLACE

SlideMe Marketplace is pre-loaded onto Scroll. Once you have installed it using the method described above, you can launch the marketplace and browse available applications. For support and further information on SlideMe Marketplace, please visit http://slideme.org.

Slide

NOTE

Scroll Essenal II does not support the ocial Android ^TM Market.

12.7 - ADD MORE APPLICATIONS

There are thousands of applicaons available for Android ^TM from various websites. It is possible to download applicaon (.apk) les on a computer, then transfer them to Scroll Essenal II using the supplied USB cable. See secon “Connect To A Computer” (page 28) for more details.

Here are some recommended websites:

• Opera Mobile Store
• Handango
• Freeware Lovers

hp://mobilestore.opera.com

hp://www.handango.com

hp://www.freewarelovers.com

12.8 - ADD A SHORTCUT TO THE DESKTOP

You can add shortcuts onto the desktop for quick access to your favourite applicaons. Shortcuts can be placed anywhere on the desktop grid, so you can organise them in whichever manner you like.

To place a shortcut on the desktop:

1. Open the Applicaons menu by touching the 🐘icon at the top right of the Home screen.
2. Touch and hold your favourite applicaon's icon.
3. The Applicaons menu will close and you will be returned to the desktop on the Home screen. A feint blue grid will appear which shows you where you can place the shortcut.
4. Drag the shortcut anywhere on the grid, then release it to place it in that posion.

TIP

To place a widget on the desktop, you can follow the procedure above, but switch to Widgets on selecon menu aer step 1.

12.9 - REMOVE A SHORTCUT FROM THE DESKTOP

If you would like to remove an applicaon shortcut from the desktop, you can do so. To remove a shortcut:

1. Touch and hold the shortcut icon you would like to remove. A message stang "X Remove" will appear at the top of the screen.
2. Drag the icon over this message. Once it turns red, release the icon and the shortcut will be removed.

TIP

You can also use this method to remove widgets from the desktop.

12.10 - UNINSTALL APPLICATIONS

To uninstall an applicaon (i.e. completely remove it from your tablet), follow this procedure:

1. Open the Applicaons menu and touch the "Sengs"

1. Touch the "Apps" opon on the le of the screen, then lter the list that appears by choosing "Downloaded", "On SD Card", "Running" or "All".
2. Touch the applicaon you would like to remove, choose "Uninstall" from the opons that appear on screen, then touch the "OK" opon to conrm.

WEB BROWSER

Scroll Essenal II has a built-in browser which can be used to browse the World Wide Web, in the same way you would use a browser on a desktop computer or laptop.

To use the browser:

1. Touch the "Browser"

icon on the Applicaons menu. The browser will open.

1. By default, the browser will automatically load Google.

NOTE

Make sure you are connected to your wireless network before opening the browser.

Tabs Back / Forward Refresh Adress bar Google Search Bookmarks Add bookmark Google UK Web page Google Search I'm Feeling Lucky Navigation 4:47 Status Bar

• Use tabs to load mulple websites and switch between them.
  • Use the address bar to go directly to a website if you know its address.
  • Use ← / → (back / forward) and C (refresh) to navigate pages in the current tab.
• Touch the icon to bookmark the current page.
• Touch the ★ icon to select any previously stored favourite websites.
• Touch the icon to perform an Internet search.

VIDEO PLAYBACK

Scroll Essenal II is a powerful portable media player. The “Gallery” applicaon can play video and display photos that are stored on either internal memory or a Micro SD card.

To use the Gallery:

1. Touch the "Gallery" icon on the Applicaons menu. The Gallery applicaon will open.

1. The Gallery will automatically nd your media and arrange it in a thumbnails view. If you have mulple folders, it will show them rst. Touch a folder to select it, then you will be shown the media les in that folder.

2. Touch the thumbnail to play the le.

TIP

To view more informaon about a le (such as duraon, size and locaon), touch and hold its thumbnail, then touch the buoyon and select "Details".

Video les will play back in full screen mode. For a few seconds during the start of playback, the user interface will be displayed:

9:12 PM Video Title Battery 16% Playback Window Playback Control Sub Menu Volume Return Elapsed Time Remaining Time 01:25 02:41 Navigation Status Bar 9:12 Progress Indicator

• Use playback control buons to play / pause or skip backwards / forwards between videos.

- Drag the progress indicator le or right to fast forward or rewind the video.

• The Sub Menu provides further opons for subtles, repeat play, aspect rao etc.

- Touch the screen to reacvate the controls aer they have disappeared from view.

7DIGITAL MUSIC SERVICE

7digital is a digital music content delivery and management applicaon. With over 17 million tracks available in MP3 format from all major labels, 7digital has something for everyone.

The 7digital applicaon is pre-loaded on Scroll Essenal II. See secon "12.5 – Pre-Loaded Applicaons" (page 18) for instrucons on how to install.

To use 7digital:

1. On the Applicaons menu, touch the 7digital applicaon to launch it.
2. You will be presented with the latest releases and you can swipe across the screen to see more.
3. When you try to purchase music, you will be asked to either create an account, or sign in to your existing account. You can also sign in from the opons menu; touch the buon then go to "Sengs" → "General" and choose "Sign In".

There are many funcons available in 7digital. Refer to hp://www.7digital.com for full informaon. To get started quickly, you should become familiar with these icons:

• Use the Q funcon at the top of the screen to type a search term for your favourite arst.
• Touch 📂 to switch to your local music collecon. This can include music purchased from 7digital and / or music stored on your tablet (e.g. on a Micro SD card).

TIP

It is recommended to store your music collecon in a folder called "Music" in the root of the card.

- Touch 🔗 to switch back to the home screen where you can browse the latest releases.

To change the default currency:

1. Touch the :buon at the top right of the screen, then choose "Sengs".
2. Scroll down the list unl you nd the "General" secon, and touch "Country".
3. Choose your preferred country from the list on screen. The currency displayed on the 7digital store will change to match.

NOTE

For support and further informaon on the 7digital music service, please visit http://www.7digital.com.

WILD TANGENT GAMES SERVICE

WildTangent provides a gaming service for Scroll Essenal II where users can trial, rent or own to games, based on WildCoins. WildCoins are a digital currency which can be purchased in packs or as a subscripon. Users can also play for free in exchange for viewing an advert from a brand adverser.

The WildTangent Games applicaon is pre-loaded on Scroll Essenal II. See secon "12.5 – Pre-Loaded Applicaons" (page 18) for instrucons on how to install.

To use WildTangent:

1. Open the WildTangent Games applicaon from the Applicaons menu.
2. Sign into your account, or if you do not have one, select the "Create an account" opon. Follow the on-screen instrucons to create an account.
3. The main interface will launch and automacally show the latest games. Browse the featured games on this page, or touch the "Find Games" buon to search for a specific type of game.
4. Touch a game's icon to view details.

The "My Games" tab shows all games currently installed on Scroll Essenal II. Touch a game's icon to launch it.

Touch and hold a game icon to open a sub menu with the following opons:

• Play to launch the game
• Uninstall to remove the game from Scroll Essenal II
• Stop Renng if you wish to disconnue renng (if applicable)

My Games All Games 4 ELEMENTS ZLEU Featured Games doodle jump Doodle Jump 4 Elements Puzzleown JOGURTLEME BOB Jogurtilla Rob Twilight - The Movie Game Home Find Games

My Games All Games Most Recent CD-LAPTE Console Jump TeamWard My Games CD-LAPTE Console Jump TeamWard

TIP

Games installed via the WildTangent applicaon will also be available to launch from Scroll Essenal II's own Applicaons menu.

While in the WildTangent applicaon, press the buon to launch the context menu for further opons.

NOTE

For support and further informaon on WildTangent, please visit hp://www.wildtangent.com.

DEFENX ANTI-VIRUS

Defenx AnVirus is powerful and easy-to-use to protect your tablet from viruses, spyware and malicious applicaons that can make it unusable or lead to loss of data. A trial version of the Defenx An-Virus applicaon is included with Scroll Essenal II.

The rst me you run Defenx, it will ask you for a product key. This eld will already be completed with a trial key which allows use of the soware for 30 days.

Activation Defenx AntiVirus Enter Product Key DFXAV30D - TRIAL OK Cancel

Aer this me, if you wish to connue using Defenx An-Virus, you will need to purchase a full licence. You must accept the licence agreement to use the soware.

defenx* Scan Update Quarantine

Defenx An-Virus is simple to use. There are just three opons on the main screen:

OPTION	DESCRIPTION
Scan	Scans the internal memory for viruses / spyware.
Update	Checks for updates to the an-virus denion les. Scroll Essenal II must be connected to the Internet for this to work.
Quaranne	Lists les that have been placed in quaranne by Defenx An-Virus.

NOTE

Defenx An-Virus will also automacally scan the contents of a MicroSD card when it is inserted.

For more informaon and help with Defenx, please see hp://www.defenx.com.

SOCIAL NETWORKING

Scroll Essenal II is capable of connecng to your favourite social networking systems. You can either do this via the built-in web browser (see secon "Web Browser", page 20) or via dedicated applicaons. To install these pre-loaded applicaons, please see secon "12.5 – Pre-Loaded Applicaons" (page 18).

18.1 - FACEBOOK

Facebook is the most popular social networking experience. Keep in touch with your friends, share photo albums and use instant messaging. The rst me you use the Facebook applicaon, you will be required to accept an “End-User License Agreement” to use it. Touch the “I agree” opon to connue.

If you already have a Facebook account:

1. Touch the "Email" eld to display the on-screen keyboard and type your e-mail address.
2. Touch the "Next" opon, then type in your password.
3. Touch the "Done" opon, then choose "Login".
4. Interact with your friends!

facebook Email Password Login Don't have an account? Sign up

If you do not have a Facebook account, touch the "Sign up" opon at the boom right of the screen. For more informaon and help with Facebook, please see http://www.facebook.com.

18.2 - TWITTER

Twier allows you to connect to the informaon that is most important to you. You can follow tweets from friends, celebrities, experts, news crews and more. The rst me you use Twier you can either search for interests, or sign in to your account to follow tweets.

If you already have a Twier account:

1. Touch the "Sign In" opon, then the "Username or email" eld to display the on-screen keyboard and type your e-mail address.
2. Touch the "Next" opon, then type your password.
3. Touch the "Done" opon, then choose "Sign In" at the boom of the screen.
4. Interact with your friends!

twitter The best way to discover what's new in your world. Search for topic or name Browse interests Art & Design

If you do not have a Twier account, touch the "Sign Up" opon at the top right of the screen. For more informaon and help with Twier, please see hp://www.twier.com.

BUILT-IN CAMERA

The Camera applicaon lets you take photographs and record video clips using the built-in camera.

- Launch the "Camera" applicaon from the Applicaons menu by touching the Camera icon:

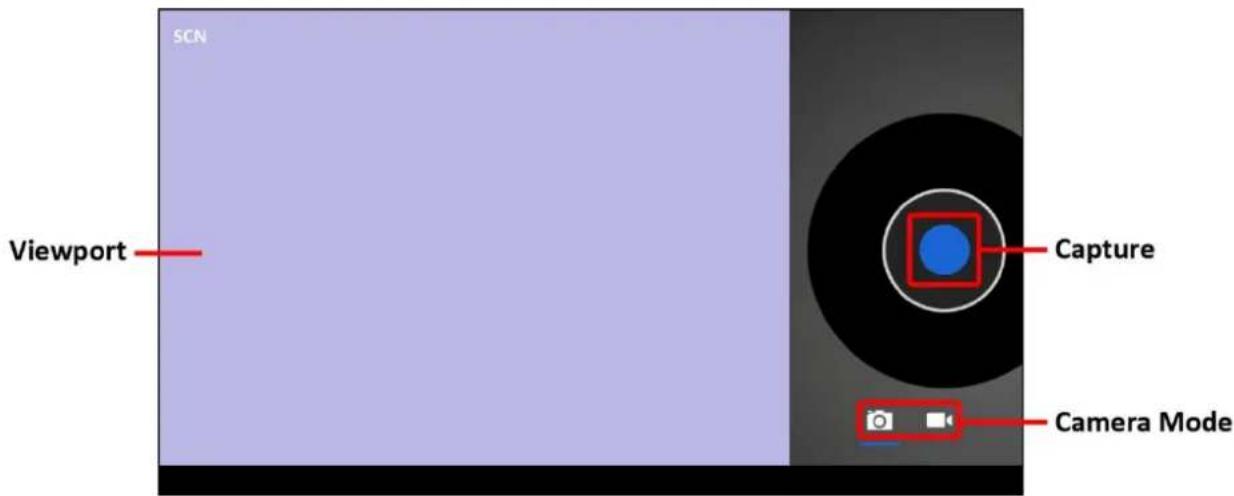

SCN Viewport Capture Camera Mode

• Use the Viewport to align the scene you would like to capture.
• Slide the Zoom indicator along its track to zoom in or out.
• Touch to change white balance, exposure and other sengs.
• Touch the Capture buon to record.

There are two camera modes:

ICON	CAPTURE BUTTON	DESCRIPTION
		SII picture mode
		Video recording mode

MEMORY EXPANSION WITH MICRO SD CARD

Scroll Essenal II features built-in ash memory, which can be expanded using a Micro SD card (not included). You may use any Micro SD or Micro SDHC card, up to 32GB capacity.

The best way to use a Micro SD card is to treat it as media storage; transfer media les (videos, music and photos) from your computer to your Micro SD card in the usual manner, then insert it into Scroll Essenal II as shown.

To insert and use a Micro SD card:

1. Push the Micro SD card (label side down) into the slot indicated in the diagram below, unl it clicks and locks in place.
2. Scroll Essenal II will automacally mount the Micro SD card for use.

Close-up of a smartphone rear panel showing a black USB flash drive inserted into the screen, with no visible text or symbols on the device itself.

To eject a Micro SD card:

- Push the Micro SD card inwards slightly until it clicks, then release pressure. It will pop out from the socket.

It is recommended to organise your Micro SD card by creang folders for dierent media types in the root:

micro s2 eBooks Music Pictures Videos

Place your media les in the respective folders. This may help if you need to instruct an application where to look for media les.

NOTE

For third party applicaons you may need to point them to the Micro SD card to read your media les. Refer to the instrucons specic to each applicaon for direcons on how to do this.

CONNECT TO A COMPUTER

Scroll Essenal II can be connected to a computer running Microso Windows for le transfer via USB cable.

To connect to a computer:

1. Using the supplied USB cable, plug the micro USB connector into Scroll Essenal II's USB socket, and plug the full-size USB plug into an available USB socket on your computer.

Micro USB

1. Windows may present you with a "New Hardware Wizard". Please click the "Cancel" upon to close this.
2. On Scroll Essenal II, touch the status bar at the boom of the screen.
3. Touch the "USB connected" opon, then choose "Turn on USB storage".

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button before if you want to copy this between your computer and your Android's 6D card. Turn on USB storage

Scroll will appear as mass storage on your computer and will be assigned the next available drive leer within "My Computer" or "Windows Explorer".

Drag and drop les from your computer's storage drives onto Scroll Essenal II, just like you would with any other external storage device.

To disconnect from a computer:

1. Touch the "Turn o USB storage" buon to un-mount the ash memory.
2. Disconnect the USB cable.

NOTE

Failure to un-mount the ash memory could prevent Android ^TM applicaons from being able to access the memory, and cause errac behaviour. Always un-mount before disconnecting the USB cable.

SYSTEM RESET

A system reset allows you to return the tablet back to factory default sengs.

CAUTION

Reseng to factory defaults will erase all data from the tablet's internal storage. You must do a back up of any important data before performing this procedure.

To reset your tablet to factory defaults:

1. Touch the "Sengs"

menu icon on the Applicaons menu. The Sengs menu will open.

1. Scroll down to the “Backup & reset” menu item, and touch to select it.

Settings Backup & reset ACCOUNTS Email Google Add account SYSTEM Date & time Accessibility Developer options About tablets BACKUP & RESTORE Back up my data Back up application data, Wi-Fi passwords and other settings to Google server Back-up access Back-up mounting-only private cache Additional resource When interacting with user restore backed up settings and data PERSONAL DATA Factory data reset Ensure all data on tablet 15:32 0

Backup & reset Backup & reset ACCOUNTS Email Google Add account SYSTEM Date & time Accessibility { Developer options About tablet This will erase all data from your tablet's internal storage, including Your Google account System and app data and settings Downloaded apps You are currently signed in to the following accounts gmail.com gmail.com To clear music, pictures and other user data, the SD card needs to be missed! Erase SD card Erase all the data on the SD card, such as music or photos Reset tablet

1. Select "Factory data reset". Android will warn you that you are about to erase everything on the tablet's internal storage, including:

2. Your Google account
   • System and applicaon data and sengs

3. Downloaded applicaons

A note states "To clear music, pictures and other user data, the SD card needs to be erased"; this message is referring to the internal memory (virtual SD card) on your tablet. It does not mean an inserted Micro SD card!

Selecng this opon is not advisable as it will delete the pre-loaded Scroll Apps from the tablet, meaning you will not be able to reinstall them once the tablet has been reset. If you are sure you want to erase the internal memory (virtual SD card), please make a backup of the "Scroll Apps" folder (either to Micro SD card or your computer) rst.

1. Select the "Reset tablet" opon. Android will ask you if you are sure; touch the "Erase everything" buon to conrm this. The tablet will shut down, perform the reset procedure, and then reboot.

NOTE

The reset procedure may take some me. Once the procedure is complete, the tablet will take longer to reboot than before. This is normal, and will only happen for the rst boot aer reseng the tablet.

PRODUCT SPECIFICATION

Scroll Essenal II

Scroll Essential II 7" TABLET PC ANDROID 4.0x EVERYTHING YOU NEED FROM A TUI

Hardware
Unit Size (mm):	115 (W) x 190 (H) x 10 (D)
Unit Weight:	300 g
CPU:	A13 Cortex A8 1.2GHz
RAM:	512 MB
GPU:	2D / 3D graphics processor
Built-in Storage:	8 GB
Storage Expansion:	Micro SD card, up to 32 GB
Display:	7" capacive mul-touch
Resoluon:	800 x 480
Baery Type:	Rechargeable lithium
Baery Capacity:	2600mAh
USB Port:	1x USB
Speaker:	8 Ω / 1W
Wireless Connecvity:	802.11b/g/n
Soware
Operang System:	Android^TM 4.0
Web Browser:	Pre-installed
Video Support:	AVI, H.264, MPEG2, MPEG4, MKV, MP4Supports 1080p 3D video output
Audio Support:	MP3, AAC, AC3, WAV
Photo Support:	JPEG, BMP, GIF, PNG, TIFF
3D Gaming:	OpenGL rendering

WARRANTY AND PRODUCT SUPPORT

If you are experiencing dicules with your product, or have quesons which are not answered in this instrucon manual, our dedicated support site oers a wide range of clearly written FAQs, manuals and user guides which are designed to help you get the most from your purchase.

Visit our dedicated support site at storageopons.com/support/ for FAQs, manuals and user guides

If you are unable to nd an answer online, sll experiencing issues or suspect your product to be faulty, our UK based customer service team is available to oer full support, and can be contacted via the support pages of our website.

Submit a service request online if you cannot nd an answer to your problem

A member of our UK based support team will review your case and oer the highest level of advice and support

If our team believes that the product in queson is faulty, we will issue a returns authorisaon and arrange for a replacement to be sent free of charge.*

Return the product free of charge* – a pre-paid shipping label will be issued to return the product

Within 5 to 10 days a replacement product will be sent at no charge to you

Replacement product delivered directly to you

Please contact us directly if you have any queries or concerns:

storageoptions.com/support/

[e-mail]

Our aim is to provide the best possible service to our customers. We have a wealth of support material, guides and FAQs available on our website to help you get the most from your product. Our dedicated UK based Customer Service team are also on hand to order further support and, in the unlikely event of any fault developing with your purchase, we have a full returns procedure designed to make receiving a replacement product as quick and easy as possible.

*Free replacement service applies to UK Mainland (excluding Scosh Highlands) only. Storage Opons reserves the right to charge for delivery to, or collecon from, other locaons.

Scroll Essential II

by Storage Options
