Product Type	Drip Coffee Maker
Model	AR10
Brand	Mr. Coffee
Capacity	10 cups (approx. 50 oz / 1.5 L)
Dimensions (W x H x D)	10.5 x 13.5 x 8.5 inches
Weight	3.5 lbs
Power	900 W, 120 V, 60 Hz
Water Reservoir	Removable, 10-cup capacity
Carafe Type	Glass carafe with ergonomic handle and drip-free spout
Brew Pause Feature	Allows pouring a cup mid-brew
Auto Shutoff	Automatic shutoff after 2 hours
Filter Type	Basket-style, uses #4 cone paper filters or permanent filter
Cleaning	Decalcify every 3 months with vinegar or descaling solution
Safety Features	Automatic shutoff, cool-touch handle
Replacement Parts	Carafe, filter basket, water reservoir lid available
Warranty	1-year limited warranty
Repairability	User-serviceable parts: filter basket, carafe, lid

Frequently Asked Questions - AR10 Mr. Coffee

How do I use the Mr. Coffee AR10 coffee maker?

Fill the water reservoir with cold water up to the desired cup level. Place a #4 cone filter in the basket and add ground coffee. Close the lid, place the carafe on the warming plate, and press the Brew button.

What is the maximum capacity of the AR10?

The AR10 brews up to 10 cups of coffee, which is approximately 50 ounces or 1.5 liters.

How do I clean the Mr. Coffee AR10?

Regular cleaning: Wash the carafe, filter basket, and lid in warm soapy water. For descaling, run a cycle with equal parts vinegar and water, then two cycles of plain water.

Does the AR10 have a brew pause feature?

Yes, the Brew Pause feature allows you to remove the carafe and pour a cup mid-brew without overflowing. Replace the carafe quickly to continue brewing.

What type of filter does the AR10 use?

It uses a basket-style filter that accepts #4 cone paper filters. You can also use a permanent mesh filter.

How do I turn off the auto shutoff?

The auto shutoff is not adjustable. It automatically turns off the warming plate 2 hours after brewing for safety.

Why is my coffee maker not brewing?

Check that the water reservoir is filled, the carafe is properly placed on the warming plate, and the machine is plugged in. If still not working, try descaling to remove mineral buildup.

Can I use ground coffee other than medium grind?

Yes, but medium grind is recommended for optimal extraction. Fine grinds may clog the filter, and coarse grinds may result in weak coffee.

Is the carafe dishwasher safe?

The carafe is top-rack dishwasher safe. The lid and filter basket should be hand washed to prevent damage.

What do I do if the coffee tastes bitter?

Bitter coffee may result from over-extraction. Use a coarser grind, reduce the amount of coffee, or descaling the machine to remove residue.

USER MANUAL AR10 Mr. Coffee

Instruction Manual for

AR Series Coffeemaker

©2003 Sunbeam Products, Inc. All rights reserved.

MR. COFFEE® is a registered trademark of Sunbeam Products, Inc.

Distributed by Sunbeam Products, Inc., Boca Raton, Florida 33431.

©2003 Sunbeam Products, Inc. Todos los derechos reservados.

Illustration of two modern coffee ovens with digital display and control buttons (no text or symbols on the devices themselves)

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock and/or injury to persons, including the following:

• READ ALL INSTRUCTIONS BEFORE USING THE COFFEEMAKER.
• Do not touch the coffeemaker's hot surfaces.
• To protect against electric shock, do not immerse the power cord, power plug or coffeemaker in water or other liquid.
• Close adult supervision is necessary when this appliance is used by or near children.
• Turn the coffeemaker off and unplug the power cord from the power source when the coffeemaker or clock are not in use and before cleaning. Allow the coffeemaker parts to cool before putting on or taking off parts and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or operate it after the appliance malfunctions or has been damaged in any manner. Return this appliance only to the nearest authorized service center for examination, repair or adjustment.
• The use of accessory attachments other than MR. COFFEE ^® brand may cause hazards or injuries.
• Do not use outdoors.
• Do not let the power cord hang over the edge of a table or counter or allow it to come in contact with hot surfaces.
• Do not place this appliance on or near a hot gas or electric burner or in a heated oven.
• To disconnect, turn the coffeemaker OFF, then remove the power plug from wall outlet.
• Do not use the coffeemaker for other reasons than its intended use.
• Place the coffeemaker on a hard, flat level surface to avoid interruption of air flow underneath the appliance.
• This coffeemaker is designed for household use only.

Decanter Use and Care

Follow the instructions below to reduce or eliminate the chance of breaking the decanter:

• This decanter is designed for use with your MR. COFFEE ^5 coffeemaker and therefore must never be used on a rangetop or in any oven, including a microwave oven.
• Do not set a hot decanter on a wet or cold surface.
• Do not use a cracked decanter or a decanter having a loose or weakened handle.
• Do not clean the decanter with abrasive cleansers, steel wool pads or other abrasive materials.
• Discard the decanter immediately if it is ever boiled dry.
• Protect the decanter from sharp blows, scratches or rough handling.

Warning: To reduce the risk of fire or electric shock, do not remove any service covers. There are no user serviceable parts inside the coffeemaker. Only authorized personnel should repair the coffeemaker.

THIS UNIT IS FOR HOUSEHOLD USE ONLY

Special Cord Set Instructions

1. A short power supply cord is provided to reduce the hazards resulting from becoming entangled in or tripping over a longer cord.
2. An extension cord may be purchased and used if care is exercised in its use.
3. If an extension cord is used, the marked electrical rating of the extension cord must be at least 10 amps and 120 volts. The resulting extended cord must be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over accidentally.

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

SAVE THESE INSTRUCTIONS

Table of Contents

Important Safeguards 2

Decanter Use and Care 3

Special Cord Set Instructions 3

Setting Up Your Coffeemaker 5

Coffeemaker Features 5

Adjusting the Power Cord Length. 7

Setting the Clock (Models ARX10, ARX11, ARX20 and ARX23 Only) 7

Brewing Coffee 8

Cleaning the Coffeemaker Before First Use 8

Selecting and Measuring Ground Coffee 8

Adding Water and Ground Coffee 8

Brewing Coffee Now 10

Brewing Coffee Later (Using the Delay Timer, Models ARX10, ARX11, ARX20 and ARX23 Only).... 11 Cleaning the Coffeemaker Between Brew Cycles .... 12

Maintaining Your Coffeemaker 13

Cleaning the Coffeemaker 13

Cleaning the Decanter 15

Troubleshooting 16

Service and Maintenance.... 17

Replacement Parts 17

Repairs 17

Questions, Comments and Suggestions 17

Warranty Information 18

Setting Up Your Coffeemaker

Congratulations on the purchase of your new MR. COFFEE® coffeemaker! Please read these instructions carefully before using your new coffeemaker. Proper use, care and maintenance will ensure trouble-free operation and the long life of this appliance. Save these instructions for cleaning and, if necessary, replacement parts information.

Coffeemaker Features

Your new MR. COFFEE ^® coffeemaker has the following features:

• Cord Storage – Allows you to store extra cord length for a tidy countertop.
• Drip-Resistant Decanter – Designed to help prevent drips after pouring.
• Ergonomically Designed Handle – Provides comfort, control and confidence when pouring.
• Lighted ON/OFF Switch (Models AR10, AR11, AR12 and AR13 Only) – This safety feature reminds you that your coffeemaker is on.
• Non-Stick Warming Plate – This feature prevents the decanter from sticking to the surface of the warming plate.
• Pause 'n Serve – Can't wait for the coffee to finish brewing? The Pause 'n Serve feature allows you up to 30 seconds to pour a cup of coffee while the coffee is still brewing.

• Programmable Controls (Models ARX10, ARX11, ARX20 and ARX23 Only)

• Clock: The LED clock serves as a handy kitchen clock, as well as allows you to set the timer.

• Timer: Would you like to wake up to a fresh pot of coffee? The timer allows you to preset when you would like the coffeemaker to brew your coffee automatically, up to 24 hours in advance.

• Two-Hour Auto Shut-Off: This safety feature keeps your coffee warm for 2 hours after you brew, then automatically turns off.

• Removable Filter Basket – The filter basket will lift out of socket to allow you to remove a filter and ground coffee before returning back to its socket.

• Water Window – The water window on the water reservoir allows you to quickly and accurately see exactly how much water you have added to the reservoir.

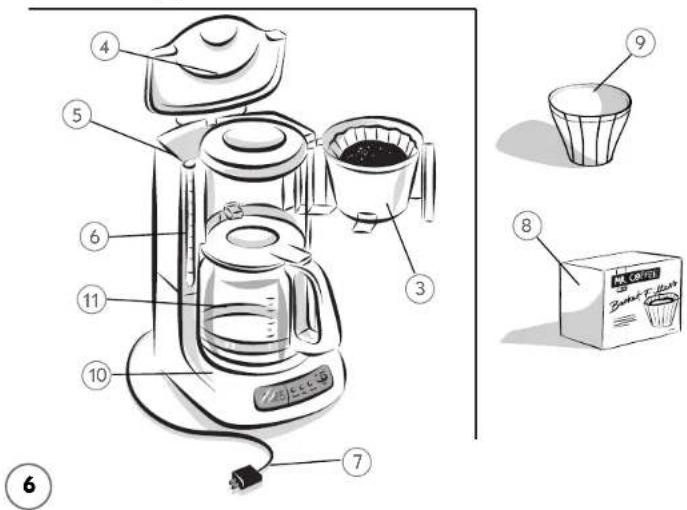

Coffeemaker Features

1
MODELS AR10, AR11, AR12 AND AR13

MODELS ARX10, ARX11, ARX20 AND ARX23

1. ON/OFF Switch (Models AB10, AB11)
   (Models 14.0, AR11, AR12 and AR13 Only)
2. Control Panel (Models ARX10, ARX11, ARX20 and ARX23 only)
   a. Hour Button
   b. Minute Button
   c. Brew Button
   d. On-Off Indicator
   e. Auto Indicator
   f. PM Indicator

3. Clock Display

4. Removable Brew Basket

5. Brew Basket Lid

6. Water Reservoir

7. Water Window

8. Power Cord

9. MR. COFFEE® Brand

8-12 Cup Basket

Style Coffee Filters

(not included)

1. MR. COFFEE® Brand

Permanent Filter

(not included)

1. Warming Plate

2. Decanter

Adjusting the Power Cord Length

You can customize the length of the power cord so that it is the exact length you desire.

To increase the length of the power cord: Grasp the power cord (not the power plug) and gently pull it away from the coffeemaker.

To decrease the length of the power cord: Grasp the power cord and feed into the coffeemaker.

Setting the Clock

(Models ARX10, ARX11, ARX20 and ARX23 only)

The clock flashes on the control panel to indicate that it has not been set.

You must set the clock if you want to use the timer feature.

To set the clock:

1) Press and hold the HOUR button until the clock displays the correct hour. See Figure A-1 (for Models ARX10, ARX11, ARX20 and ARX23). The PM indicator will light to indicate a PM time; if the PM indicator is not lit, the time is AM.

2) Press and hold the MIN. button until the clock displays the correct minute. See Figure B-1 (for Models ARX10, ARX11, ARX20 and ARX23). The clock is now set.

Illustration of a hand holding a tool on a curved surface, with arrows indicating direction (no text or symbols)

FIGURE A-1

FIGURE B-1

Brewing Coffee

Clean the Coffeemaker Before First Use

Follow the steps under "Adding Water and Ground Coffee" and "Brewing Coffee Now," (Pages 8 – 10) but do not add coffee grounds.

Selecting and Measuring Ground Coffee

For best results, use coffee ground for use with automatic drip coffeemakers. The amounts shown below are suggested amounts.

Number of Cups Tablespoons
12	9
10 7.5
8	6
6	4.5
4	3
2	1.5
One cup = Five ounces brewed coffee

• two level tablespoons = one level scoop
  • one cup = five ounces brewed coffee

Adding Water and Ground Coffee

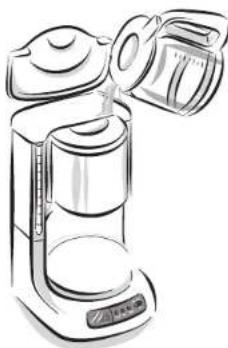

1) Swing open the brew basket and, if desired, lift out the removable filter basket.
2) Place a MR. COFFEE ^® brand 8-12 cup paper filter or a MR. COFFEE ^® permanent gold-tone filter in the filter basket.
3) Add the desired amount of ground coffee to the filter. Gently shake the filter basket to level the ground coffee.

Line drawing of a coffee maker with a lid, a kettle, and a coffee cup (no text or symbols)

4) Be certain that the filter is centered in the filter basket. Close the brew basket.

5) Fill the water reservoir with the desired amount of tap water.

Use the water window marks to measure the water, not the decanter marks. The decanter marks measure brewed coffee only.

Line drawing of a modern coffee maker with lid and side bowl (no text or symbols)

Abstract black-and-white line drawing of a vertical object with horizontal lines and curved elements (no text or symbols)

6) Place the decanter on the warming plate.

Make sure the decanter is accurately centered on the warming plate or the water and grounds will overflow from the brew basket. An overflow may cause personal injury or damage to property.

To reduce the risk of damaging the decanter and/or the risk of personal injury, do not add cold water to the decanter if the decanter is already hot. Allow the decanter to cool before using.

Do not brew coffee while the brew basket lid is open.

Brewing Coffee Now

For Models AR10, AR11, AR12 and AR13 only:

Push the switch to ON.

The ON/OFF switch will light, indicating that the coffeemaker is On and the brew cycle will begin. When the coffee stops flowing, the brew cycle is complete.

While the coffee is brewing, the Pause 'n Serve feature allows you to sneak a cup of coffee from the decanter. REPLACE THE DECANTER ON THE WARMING PLATE WITHIN 30 SECONDS TO PREVENT OVERFLOW AND POSSIBLE INJURY.

To turn Off the coffeemaker, press the ON/OFF switch to Off.

If the brew basket overflows or fails to empty into the decanter, do not open the brew basket. Unplug the coffeemaker and wait for the contents to cool before handling.

For Models ARX10, ARX11, ARX20 and ARX23 only:

Slide the switch to On. Press the brew button when ready to start brewing.

To turn the coffeemaker Off, slide the switch to Off.

Your Coffeemaker will keep your coffee hot for 2 hours, then automatically shut off.

Brewing Coffee Later

For Models ARX10, ARX11, ARX20 and ARX23 only:

You must set the time for when you would like the coffeemaker to begin brewing your coffee.

1) While the switch is in the Off position, press and hold the BREW button.

2) While still pressing and holding the brew button, press and hold the HOUR button until the clock displays the hour you desire. The PM indicator will light to indicate a PM time; if the PM indicator is not lit, the time is AM.

3) While still pressing and holding the brew button, press and hold the MIN. button until the clock displays the correct minute.

4) Release the brew button.

5) Push the switch to Auto.

The Delay Brew indicator will light. The delay timer is set and the coffeemaker will begin brewing the coffee at the time you selected.

If you want your coffee to brew at the same time the following day, simply add the desired amount of ground coffee, fill the water reservoir and slide the button to AUTO.

Cleaning the Coffeemaker Between Brew Cycles

To clean the used coffee grounds and filter:

1) Discard the grounds and paper filter and, if necessary, rinse the filter basket. You may also wash the filter basket in the dishwasher.

2) Rinse the decanter with warm water. You may also wash the decanter in the dishwasher (top rack dishwasher safe only).

Make sure the coffeemaker is turned Off when the decanter is empty.

Brewed coffee and grounds are both very hot. Handle them with care to avoid scalding injuries.

Unplug the coffeemaker's power cord if you are not using the coffeemaker or clock.

Maintaining Your Coffeemaker

Maintaining your coffeemaker and its parts will help extend the life of the appliance.

Cleaning the Coffeemaker

Your coffeemaker must be cleaned when you notice any of the follow conditions:

• excessive steaming
- increased brew cycle times
- the pumping action stops before all of the water has been pumped from the water reservoir

These conditions are caused by lime or other mineral deposits most commonly found in tap water.

How frequently you clean your coffeemaker depends upon the hardness of your tap water. The following table gives suggested cleaning intervals.

MR. COFFEE®

COFFEEMAKER CLEANER

Using MR. COFFEE® Cleaner

Please refer to MR. COFFEE® Cleaner box for instructions. Read caution statement on side panel of box before use.

Type of Water Cleaning Frequency

Soft water Every 80 brew cyclesHard water Every 40 brew cycles

To clean your coffeemaker:

1) Pour four cups of undiluted white household vinegar into the water reservoir.

Line drawing of a person wearing a hooded garment and holding a small object (no text or symbols)

2) Place a paper filter into the removable filter basket and close the brew basket lid.

3) Place the empty decanter on the warming plate.

Make sure to accurately place the decanter on the warming plate to avoid the possibility of overflow.

4) Start the brew cycle:

For Switch Models:

• AR10, AR11, AR12 and AR13 a. Push the ON/OFF switch to ON to begin the brew cycle.

For Programmable Models:

- ARX10, ARX11, ARX20 and ARX23 a. Turn the switch to On. Then, press the brew button to begin the brew cycle.

b. When the water has flowed into the decanter, turn the coffeemaker Off and let the water stand for 30 minutes.

c. Repeat Steps 1 - 4b.

Line drawing of a coffee maker with a hand holding the lid (no text or symbols)

d. Discard both the vinegar and filter. Fill the decanter with tap water and pour it into the water reservoir.

e. Place the decanter on the warming plate and begin the brew cycle.

f. Discard the water in the decanter and turn the coffeemaker Off. If necessary, repeat steps d through f to flush all traces of vinegar from the coffeemaker.

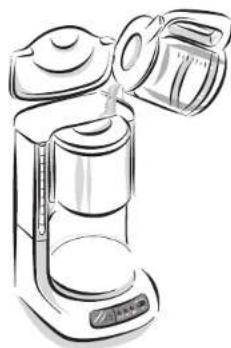

Cleaning the Decanter

Hard water can leave a whitish stain on the decanter. Coffee and tea may then turn this stain brown.

To remove decanter stains:

1) Fill the decanter with a solution of equal parts tap water and vinegar and let the solution stand in the decanter for approximately 20 minutes.

2) Discard the solution and wash and rinse the decanter.

Do not use harsh abrasive cleansers that may scratch the decanter; scratches may cause the decanter to break.

Line drawing of a milkshake machine with lid and control panel (no text or symbols)

Line drawing of a hand holding a coffee maker with a digital display (no text or symbols)

Line drawing of a coffee maker with a bottle beside it (no text or symbols)

TROUBLESHOOTING

POTENTIAL PROBLEMS	PROBABLE CAUSE
“ON” LIGHT DOES NOT ILLUMINATE	UnpluggedPower outage
COFFEE IS NOT BREWING	UnpluggedPower outageThe water reservoir is empty;check water windowThe filter basket is not properly insertedCarafe lid is not placed all the way on the warming plate
COFFEEMAKER ONLY BREWS WATER	No grounds in filter basket
COFFEEMAKER BREWS SLOWLY	Coffeemaker needs decalcifying
FILTER BASKET OVERFLOWS	The filter basket is not properly insertedCarafe is not placed all the way on the warming plateCarafe lid not on carafeToo many grounds placed in filterCarafe was removed from warming plate longer than 30 seconds
BURNING COFFEE SMELL	Empty carafe was left on hot warming plateCoffee was spilled on a warming plate
COFFEE IS NOT HOT	Power outageThe Automatic Shut-Off function has been activated
COFFEE TASTES BAD	Coffee ground other than for automatic-drip Coffeemaker was usedGround coffee-to-water ratio was unbalanced
GROUNDS ARE IN COFFEE	Paper filter not properly seated in basketFilter overflowed

Questions? You can call us toll-free at 1-800-672-6333.

Service and Maintenance

Replacement Parts

- Filters

For better tasting coffee and tea, we recommend that you use MR. COFFEE® brand 8-12 cup paper filters or MR. COFFEE® brand permanent filters. These filters are available at most grocery stores.

- Decanters

You can usually purchase a replacement decanter from the store where you purchased your coffeemaker. If you are unable to find a replacement, please call 1-800 MR COFFEE (1-800-672-6333) in the U.S. and Canada for information on where you can find a store that carries replacement decanters.

Repairs

If your coffeemaker requires service, do not return it to the store where you purchased it. All repairs must be made by Sunbeam or by an authorized MR. COFFEE® Service Center. If you live in the U.S. or Canada, please call us at the following toll-free telephone number to find the location of the nearest authorized service center:

1-800 MR COFFEE (1-800-672-6333)

To assist us in serving you, please have the model number (AR10, AR11, AR12, AR13, ARX10, ARX11, ARX20 or ARX23) and date of purchase information when you call.

Questions, Comments and Suggestions

We welcome your thoughts; please include your complete name, address and telephone number when you write or e-mail us at:

[e-mail]

You may also visit our website and discover the secret to brewing the perfect cup of coffee. You'll also find a rich blend of gourmet recipes, entertaining tips and the latest information on MR. COFFEE® products.

www.mrcoffee.com

Illustration of a coffee mug with steam rising next to a cup (no text or symbols)

One-Year Limited Warranty

Sunbeam Products, Inc. ("Sunbeam") warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. Sunbeam, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Sunbeam dealers, service centers, or retail stores selling Sunbeam products do not have the right to alter modify or in any way change the terms or conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than Sunbeam or an authorized service center. Further, the warranty does not cover acts of God, such as fire, flood, hurricanes and tornadoes.

Sunbeam shall not be liable for any incidental or consequential damages caused by the breach of any express or implied warranty. Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitation on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

How to Obtain Warranty Service

Take the product to an authorized Sunbeam service center. You may obtain a list of service centers and other repair/replacement instructions by calling 800 672-6333 or send an e-mail to [e-mail]. Please include name, address, telephone number, product model number and description of the problem.

For products purchased in the United States –

SUNBEAM SERVICE CENTER

c/o Warranty Center

117 Industrial Row

Purvis, MS 39475

DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE

PRECAUCIONES IMPORTANTES

Simple line drawing of a teapot and a mug with the word 'café' (no additional text or symbols)

Preparando Su Cafetera

Illustration showing two-step instructions for applying a tool to a curved surface, with arrows indicating direction (no text or symbols)

Preparando Café

Illustration of a coffee machine with a side dish containing dark coffee (no text or symbols)

Line drawing of a modern coffee maker with lid and control panel (no text or symbols)

Abstract black-and-white line drawing of laboratory glassware with no text or symbols

Line drawing of a robot arm holding a lamp (no text or symbols)

Line drawing of a hand holding a coffee maker with a digital display (no text or symbols)

Line drawing of a modern kitchen blender with lid and control panel (no text or symbols)

Line drawing of a coffee maker with a hand holding the lid (no text or symbols)

Line drawing of a coffee maker with a bottle beside it (no text or symbols)

PROBLEMAS Y SOLUCIONES

[e-mail]

Illustration of a cupcake and a coffee mug with the word 'café' on its side (no additional text or symbols)
