Product Type	Lawn Mower
Brand	Germania
Model	Power 41
Motor Type	OHV 4-Stroke
Engine Power	2 kW (2.7 PS)
Idle Speed	2850 min⁻¹
Cutting Width	416 mm
Collection Bag Capacity	50 L
Fuel Type	Unleaded Petrol (Super, Super Plus, Super E10, Normal E10)
Engine Oil	10W-40 (check before each use)
Weight	26 kg
Dimensions (L x W x H)	1510 x 500 x 1000 mm
Sound Pressure Level	83.8 dB(A)
Sound Power Level	96 dB(A)
Vibration Emission	4.8 m/s²
Spark Plug Gap	0.6–0.7 mm
Warranty (Private Use)	24 months
Warranty (Commercial Use)	12 months
Delivered Items	Collection bag, spark plug wrench, Bowden clamps, accessory
Safety Requirements	Wear ear and eye protection, sturdy shoes, long trousers
Max Slope for Use	20°

Frequently Asked Questions - Power 41 GERMANIA

What type of fuel does the Germania Power 41 lawn mower require?

The mower runs on unleaded petrol. You can use Super, Super Plus, Super E10, or Normal E10 gasoline. Always refuel outdoors with the engine off and cooled down.

What engine oil should I use and how often should I check it?

Use 10W-40 engine oil. Check the oil level before each use and add oil if necessary. After the first 5 hours of operation, change the oil, then every 25 hours or after 3 months.

How do I start the mower?

Press the Start-Stop lever, prime the engine using the primary pump if needed, and pull the starter cord. Ensure the blade is clear of obstacles and your feet are at a safe distance.

What is the cutting width and collection bag capacity?

The cutting width is 416 mm and the collection bag capacity is 50 liters. This allows efficient mowing with fewer stops to empty the bag.

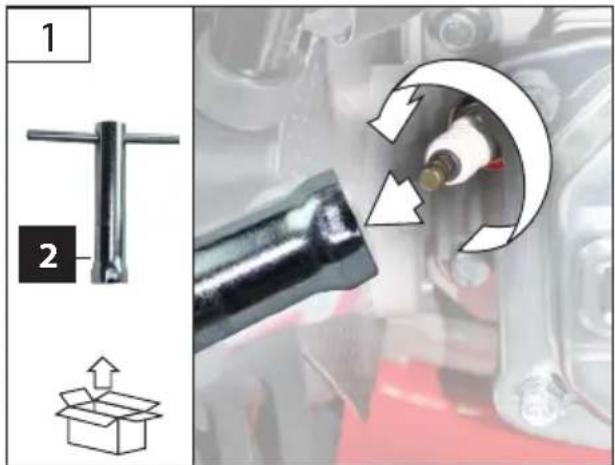

How do I maintain the spark plug?

Clean the spark plug regularly. Check the electrode gap and set it to 0.6–0.7 mm. Replace the spark plug after 100 hours of operation or if fouled.

What safety precautions should I take while using this mower?

Always wear ear and eye protection, sturdy shoes, and long trousers. Keep children and pets at least 5 m away. Never operate on slopes steeper than 20°. Wait for blades to stop before handling.

Why is grass not being collected properly?

Possible causes: blocked ejection channel, full collection bag, or wet grass. Clean the channel, empty the bag, and mow when the grass is dry. Also ensure the bag is properly attached.

How do I adjust the Bowden cables?

If the automatic feed is not working or the mower does not start, the Bowden cables may be too long. Adjust them using the coupling nut as described in the manual.

What is the weight and dimensions of the mower?

The mower weighs 26 kg and has dimensions of 1510 x 500 x 1000 mm (length x width x height). It is designed for residential lawns.

Where can I get spare parts or technical support?

Visit www.guede.com for spare parts and operating instructions. For technical questions, call +49 (0) 79 04 / 700-360 or email [e-mail]. Have your serial and product numbers ready.

USER MANUAL Power 41 GERMANIA

GB Translation of the original instructions

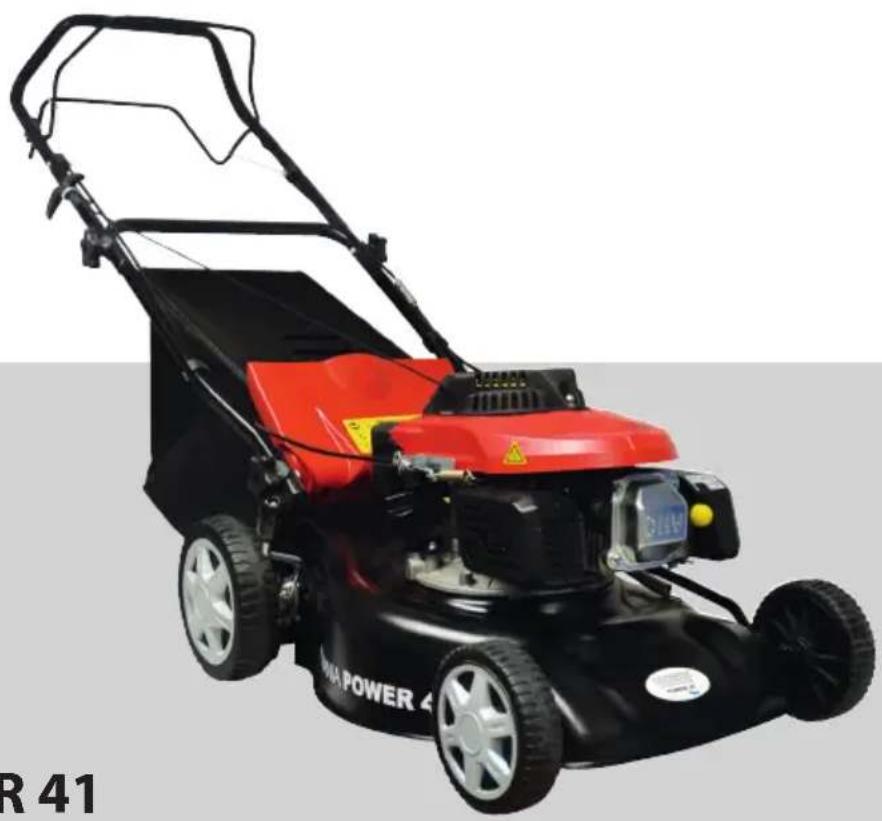

Red and black lawn mower with 'R41 POWER 4' branding, no visible text or symbols on the machine itself.

POWER 41

05304

GERMANIA®

Qualitätswerkzeuge

Please read the instructions carefully before starting the machine.

INBETRIEBNAHME | STARTING-UP THE MACHINE | 2

English TECHNICAL DATA | SPECIFIED CONDITIONS OF USE | SAFETY INSTRUCTIONS | MAINTENANCE | GUARANTEE | EC-DECLARATION OF CONFORMITY 24

Three mechanical components: a metallic screw, a curved bracket, and a black cap (no text or symbols visible)

DE Montage

GB Assembly

1

2-3

DE Inbetriebnahme

GB Starting-up the machine

2

4-9

DE Mähanweisungen

GB Cutting instructions

3

10

DE Betrieb

GB Operation

4

11

GB Cleaning / Maintenance

5

13-17

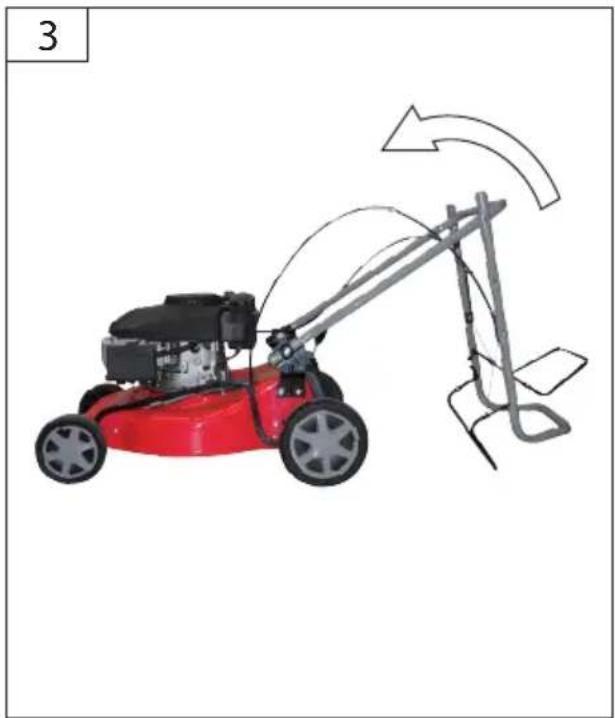

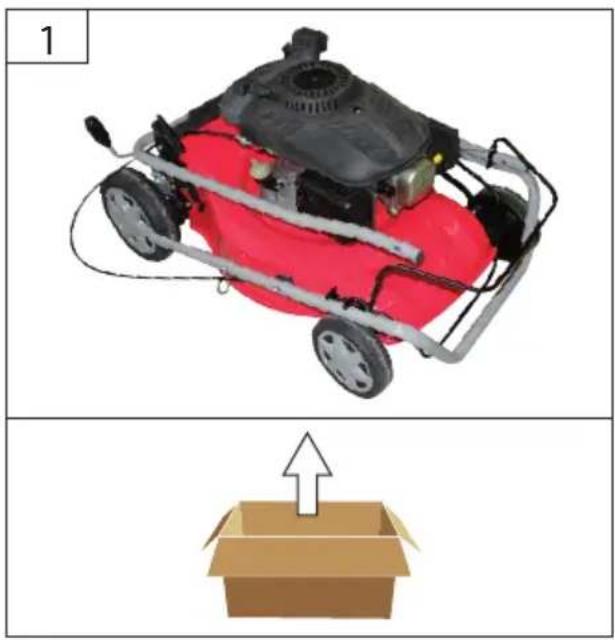

DE montage

GB assembly

Illustration of a red lawn mower with attached equipment, showing top-down view with an open cardboard box below (no text or symbols)

Red lawn mower with mechanical blades and motion arrows indicating cycle (no text or symbols)

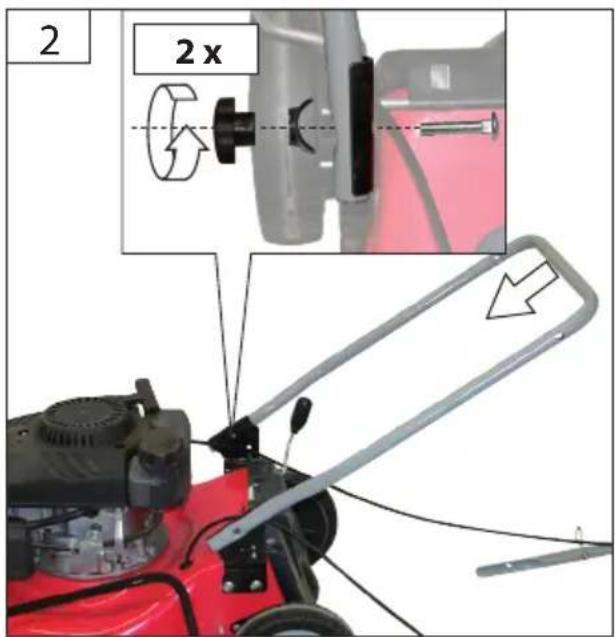

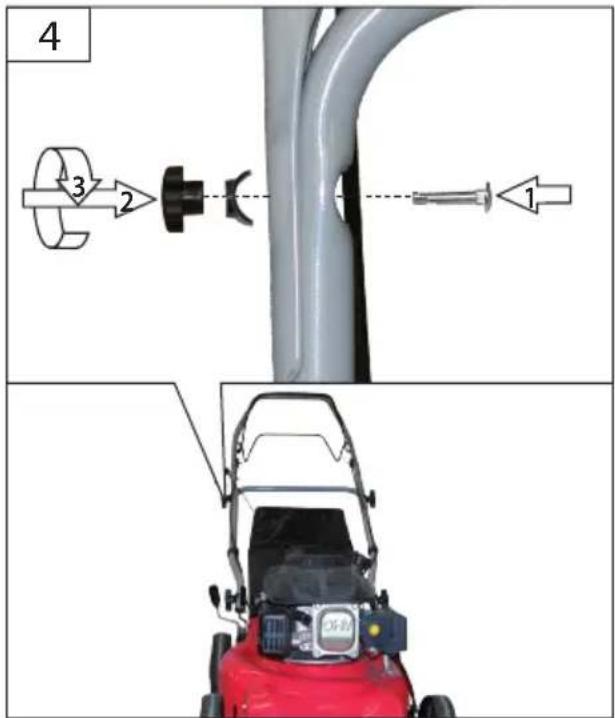

DE Montage
GB Assembly

1

Red and black lawn mower with attached tool, shown with a close-up inset of the blade (no text or symbols on the main image)

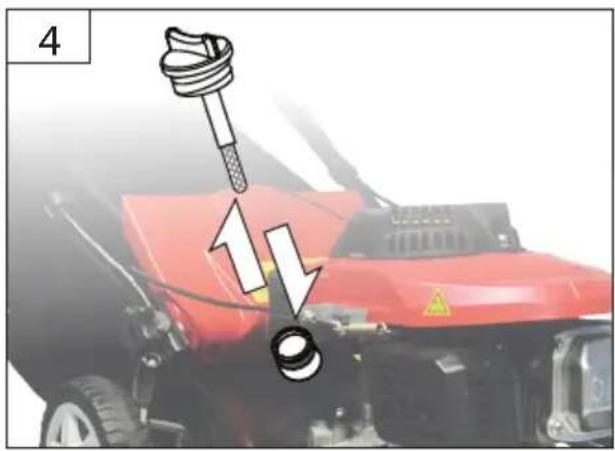

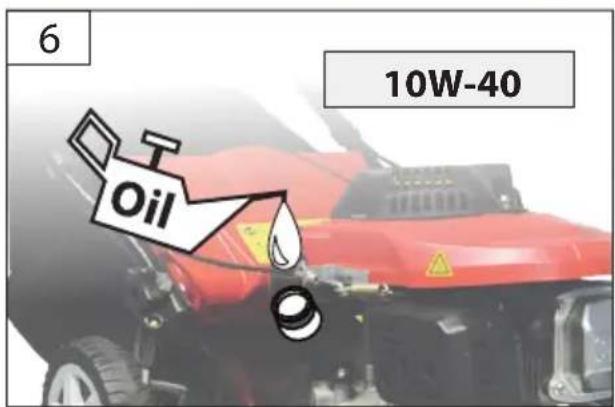

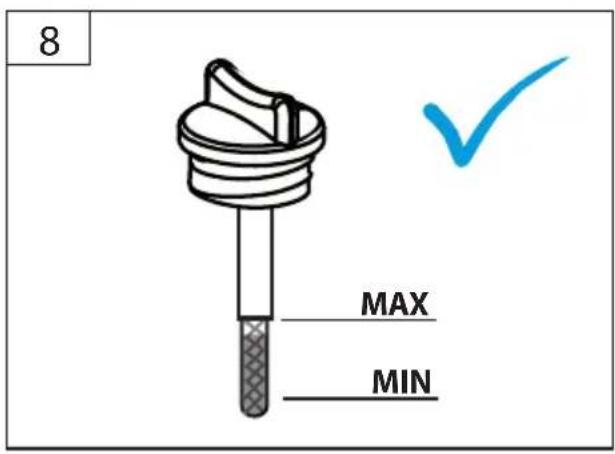

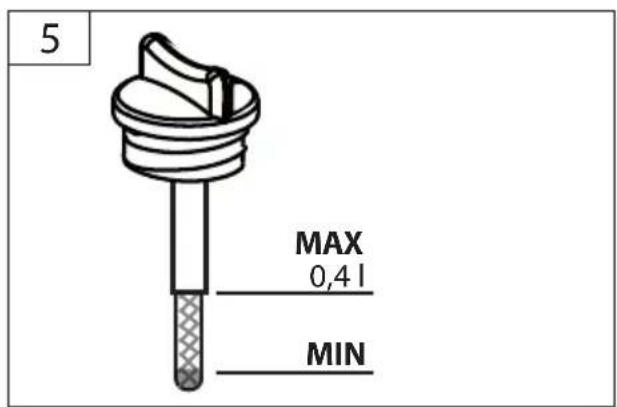

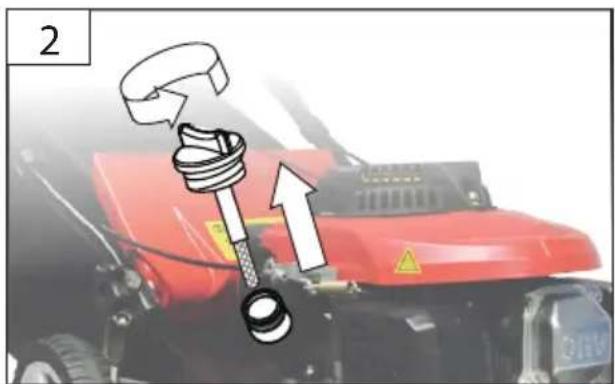

DE Ölstand kontrollieren

GB Oil level inspection

10W-40

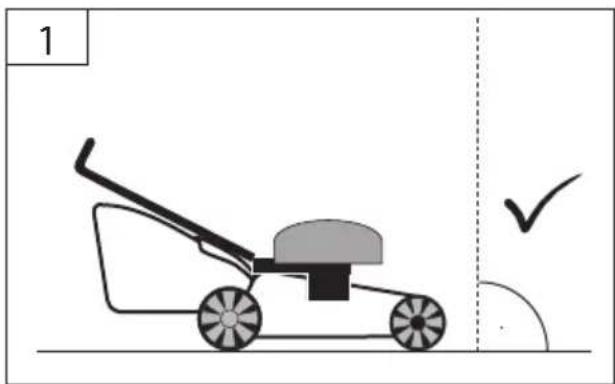

GB Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary. Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

GB To ensure quality, every piece of equipment is subject to a test operation and filled with motor oil. Oil is drained before transport; however, there can be some motor oil remains on the dip stick. Please check carefully the oil level and add motor oil again.

Simple line drawing of a lawn mower with a checkmark indicating right angle (no text or symbols)

Close-up of a red tractor's engine with a mechanical component inserted, showing a wrench and valve assembly (no text or symbols visible)

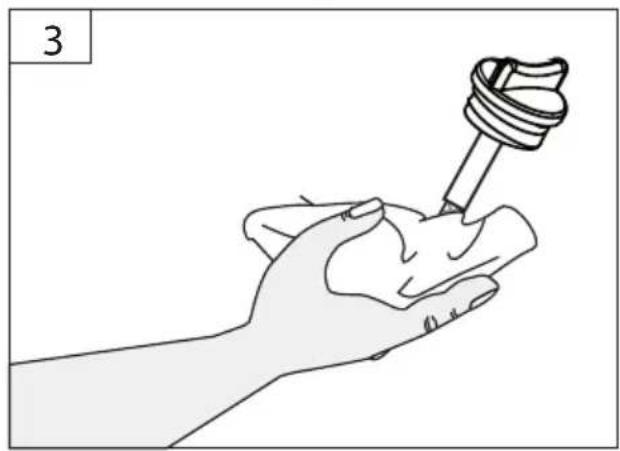

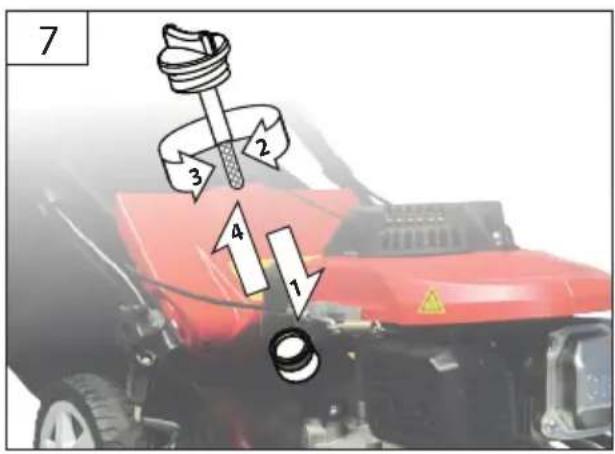

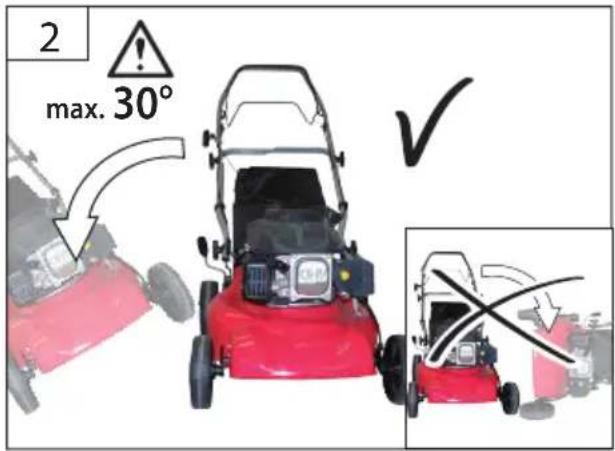

DE Ölstand kontrollieren
GB Oil level inspection

2

Line drawing of a hand holding a small object with a pipette inserted, no text or symbols present

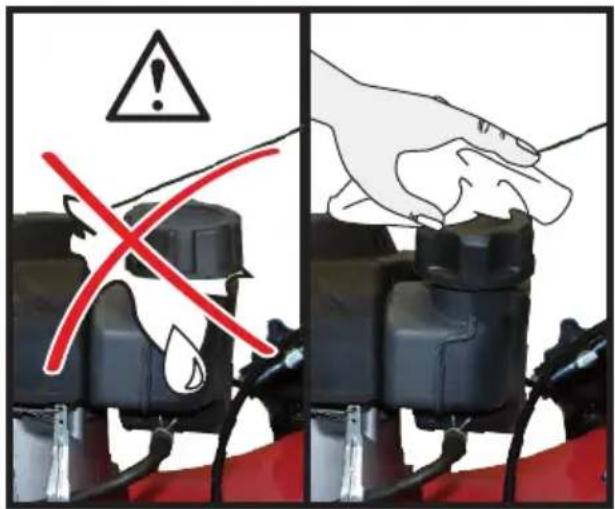

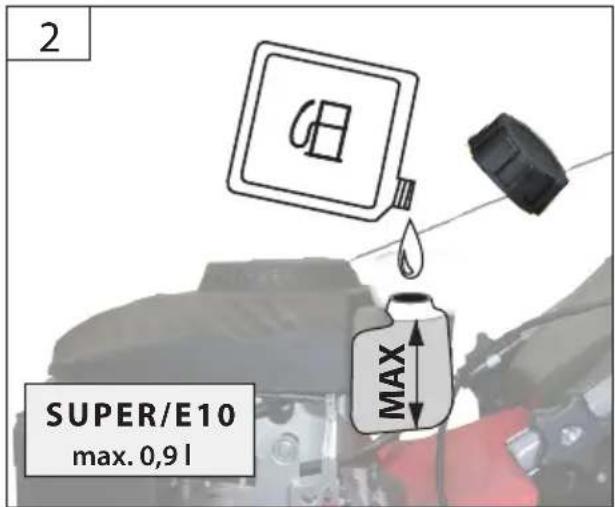

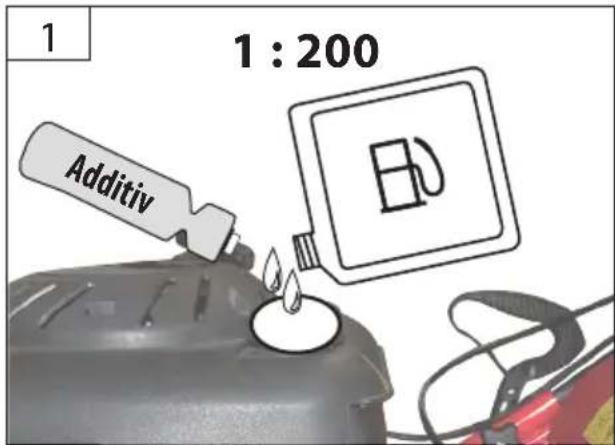

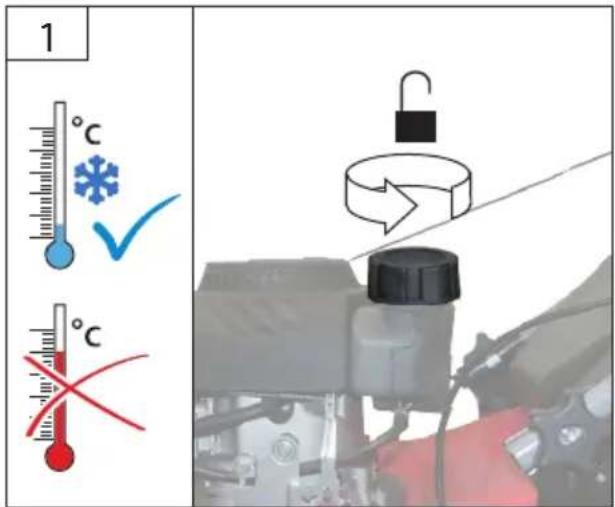

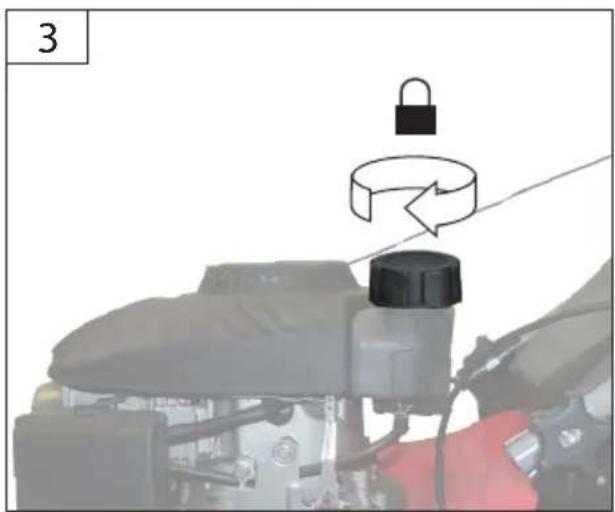

2	DE Tanken GB fuel tank filling

SUPER / SUPER PLUS/ SUPER E10/NORMAL/ NORMAL E10

Close-up of a car's wheel and suspension system with directional arrows (no text or symbols)

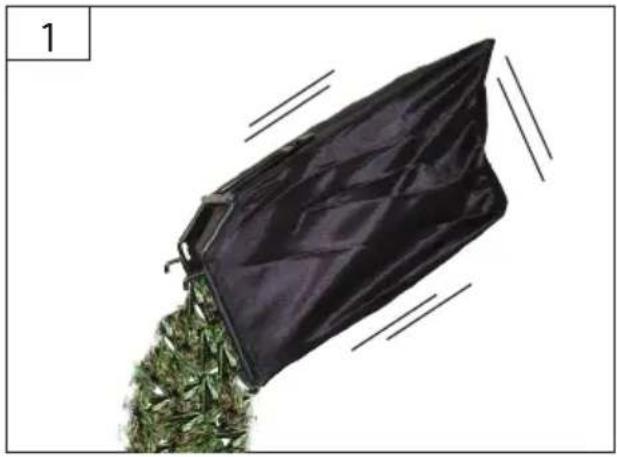

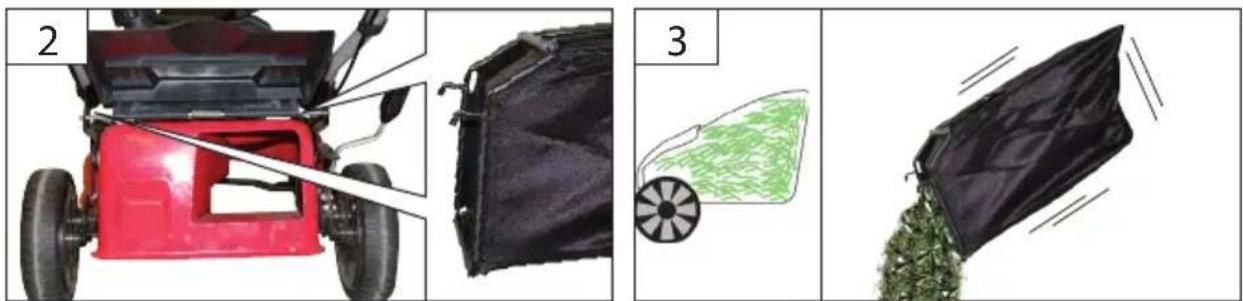

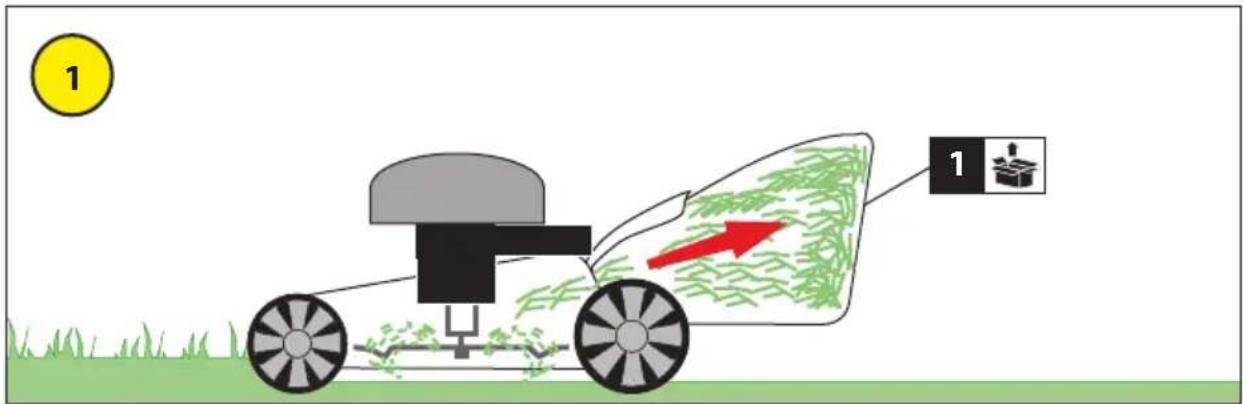

2	DE Mähen - Sammeln GB mow - collect

Close-up of a mechanical component with a tool and circular arrow indicating rotation or cycle (no text or symbols)

Red lawn mower with black cover and attached power strip, no visible text or symbols

Three-panel image showing a red wheeled cart, a black plastic bag, and a green mesh cover with waste dust (no text or symbols)

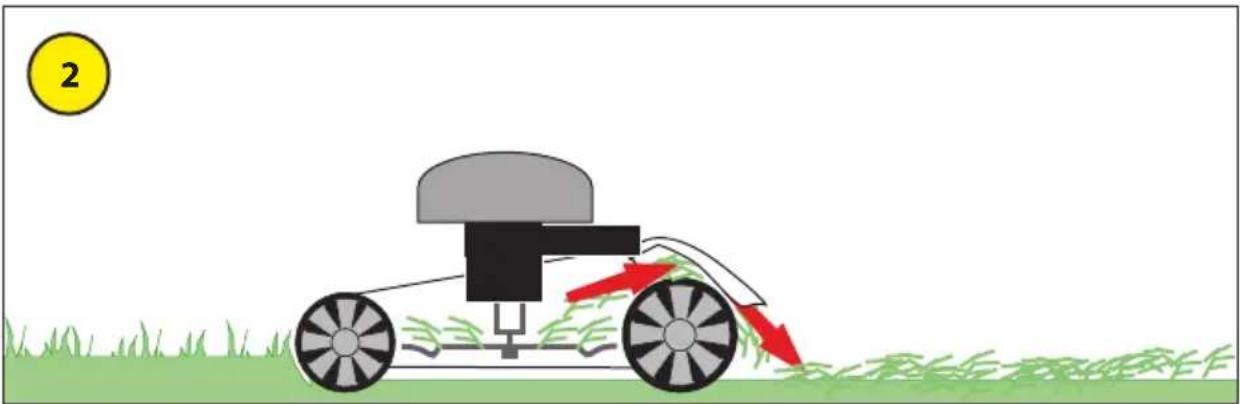

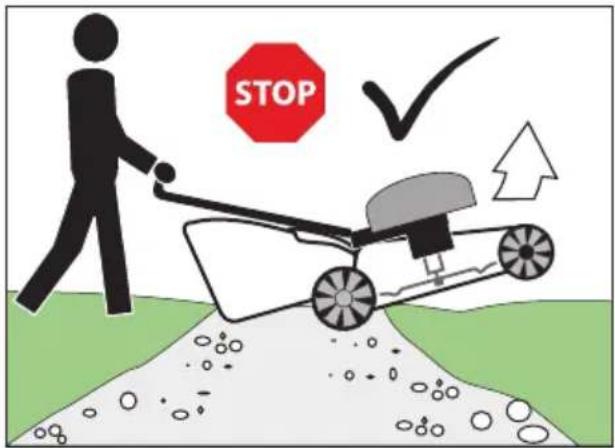

DE mähen

GB mow

2

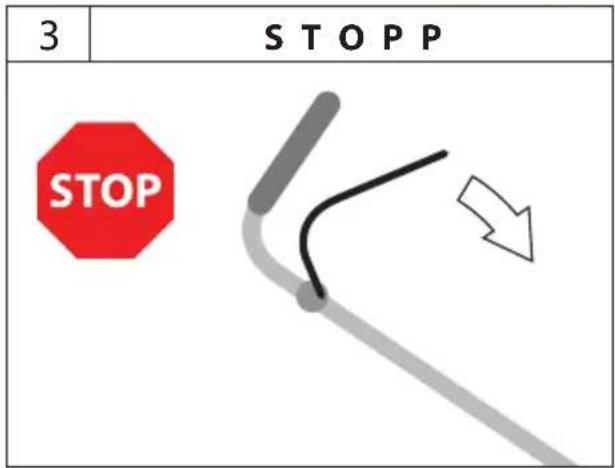

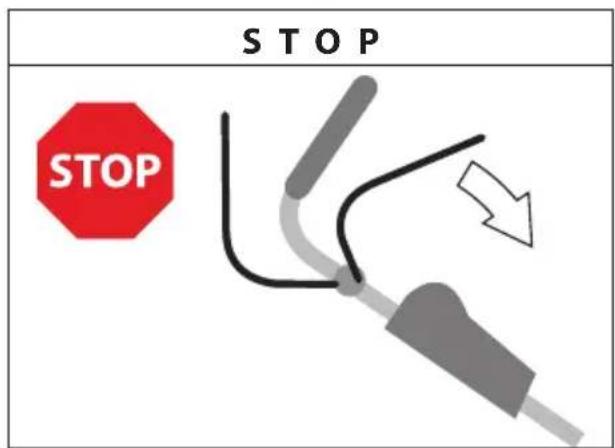

STOP

Illustration of a grassy field with a tractor and red arrows indicating movement or force, no text or symbols present.

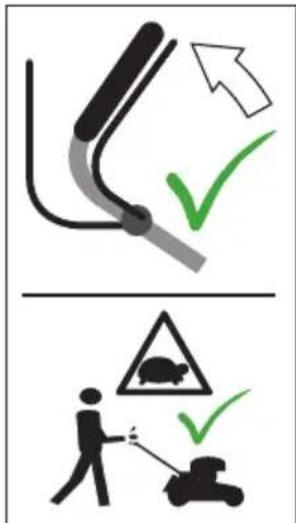

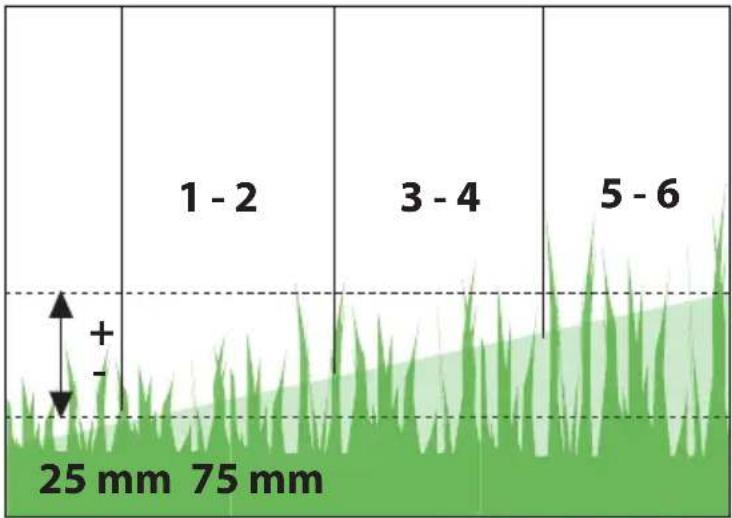

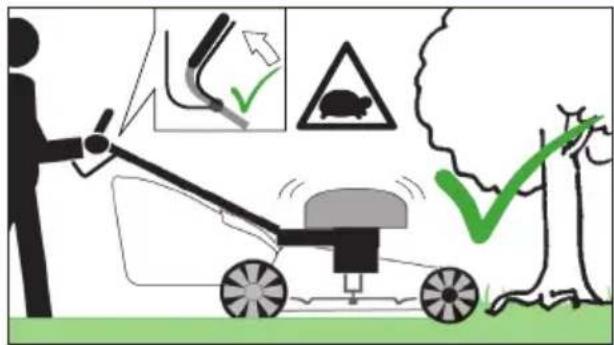

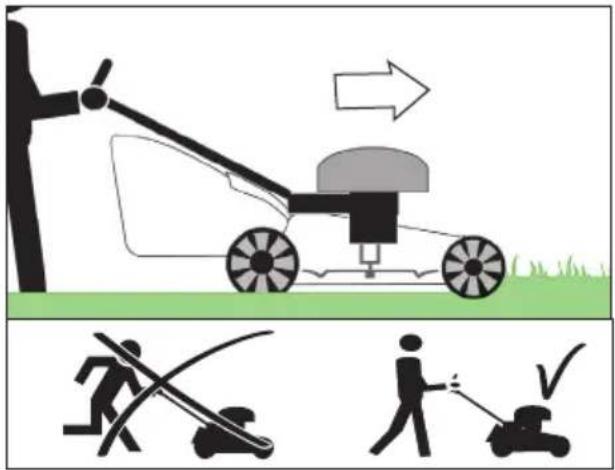

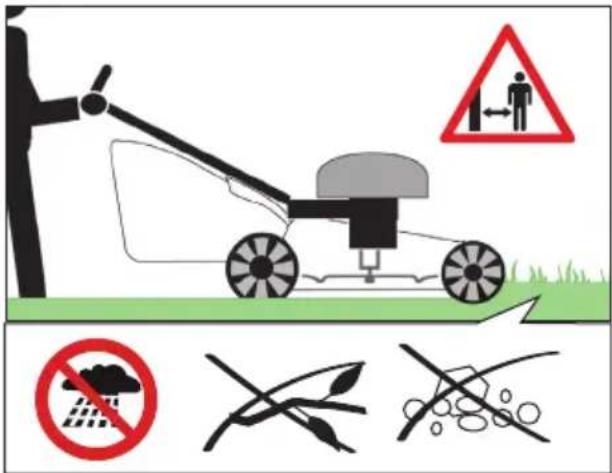

DE mähanweisungen

GB Cutting instructions

Illustration of a lawn mower with directional arrows and two pictograms below showing different actions (no text or symbols)

Illustration of a person crossing a road with a robot and warning sign, no text or symbols present

Illustration of a person using a manual lawn tool with a warning sign (no text or symbols on the diagram itself)

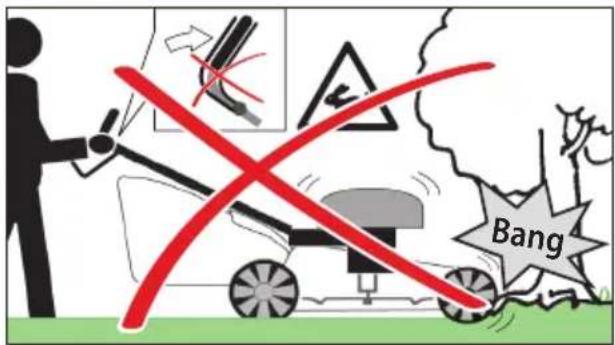

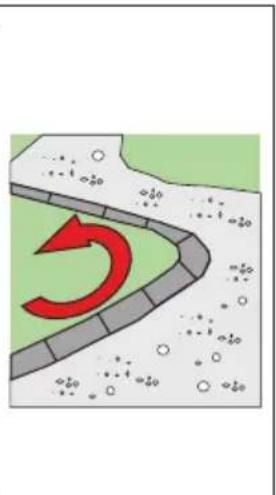

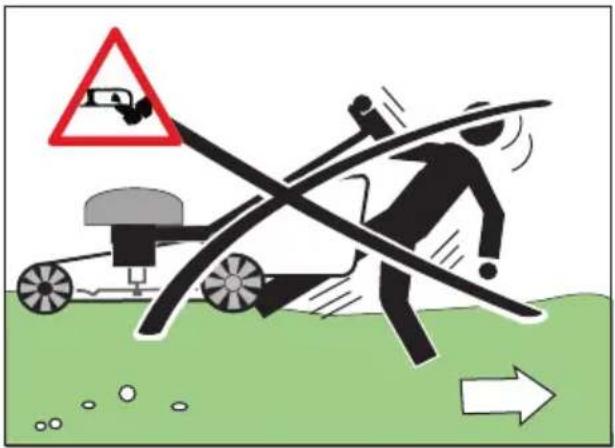

DE Mähanweisungen
GB Cutting instructions

3

Simple line drawing of a tree with a curved arrow below, symbolizing environmental change (no text or symbols)

Simple illustration of a white rock with a red curved arrow pointing downward (no text or symbols)

Simple illustration of a tree with a curved arrow and a running figure, no text or symbols present.

Diagram of a curved road with directional arrows indicating flow or movement, surrounded by scattered circular symbols (no text or labels)

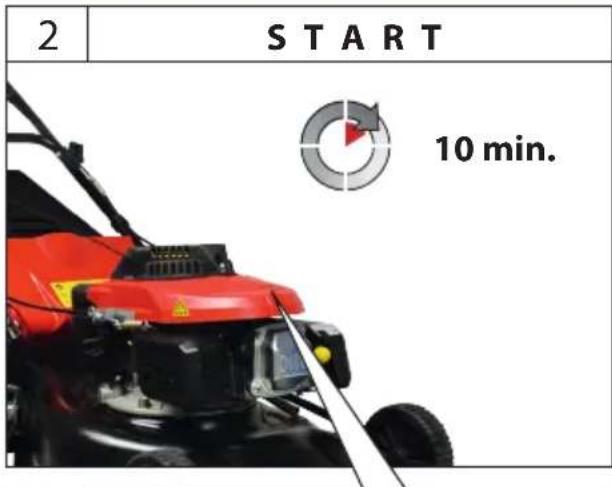

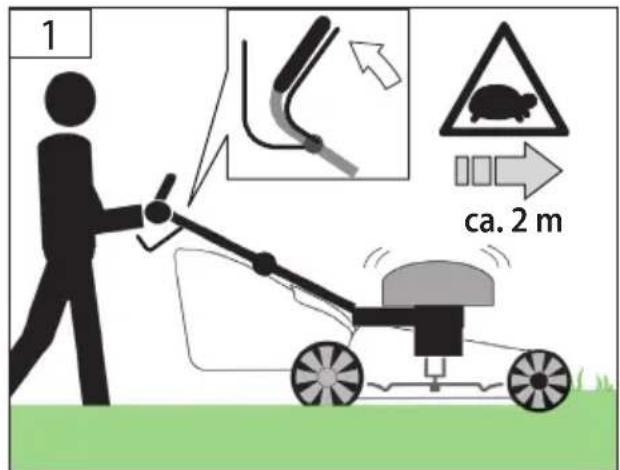

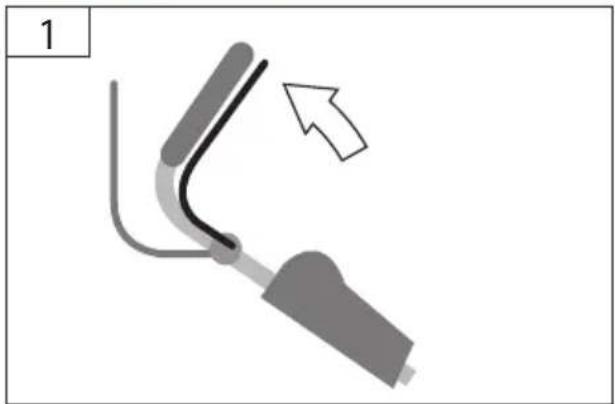

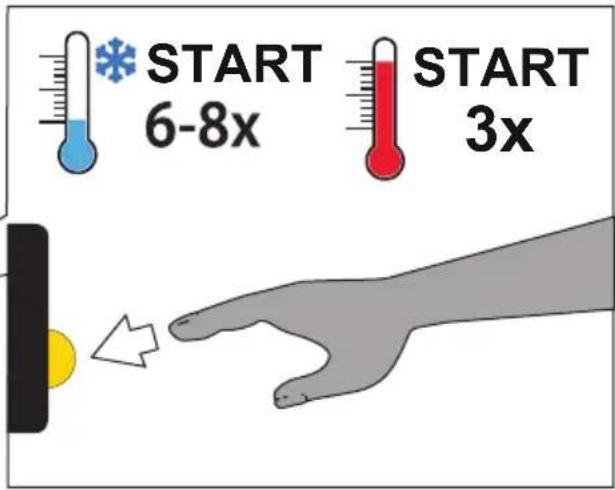

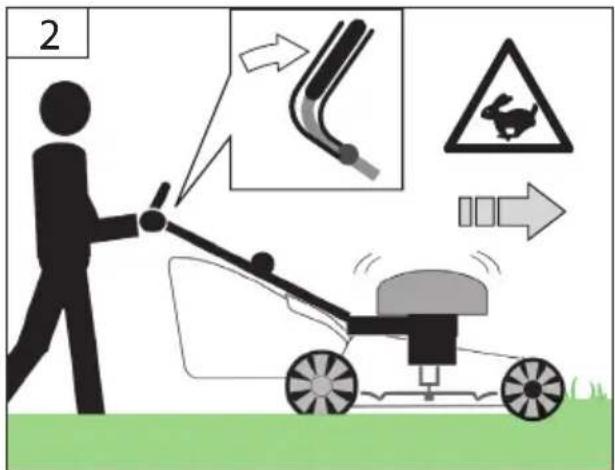

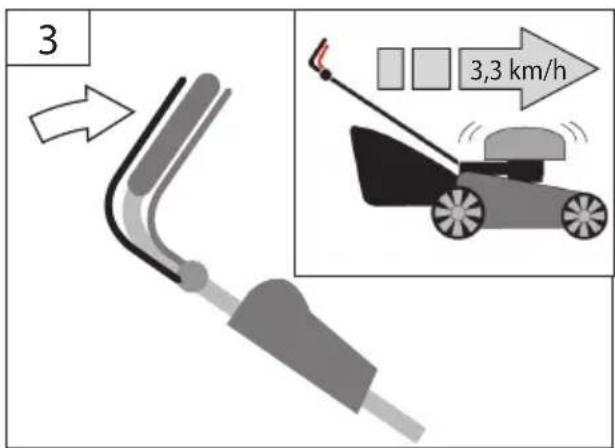

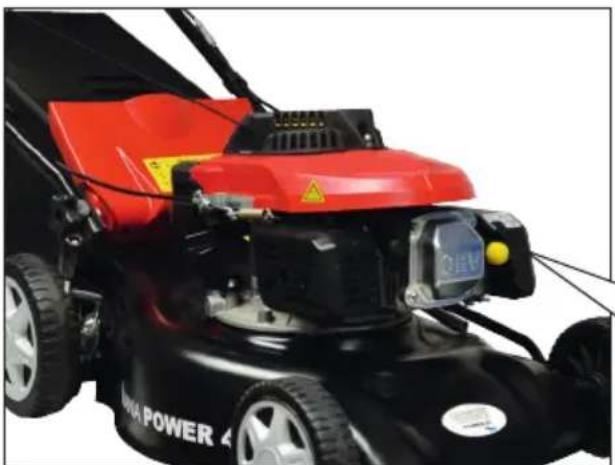

DE Betrieb - START

GB Operation - START

Close-up of a mechanical device with red components and a yellow warning symbol (no readable text or symbols)

Diagram of a medical or surgical device with a curved tool and arrow indicating direction (no text or symbols)

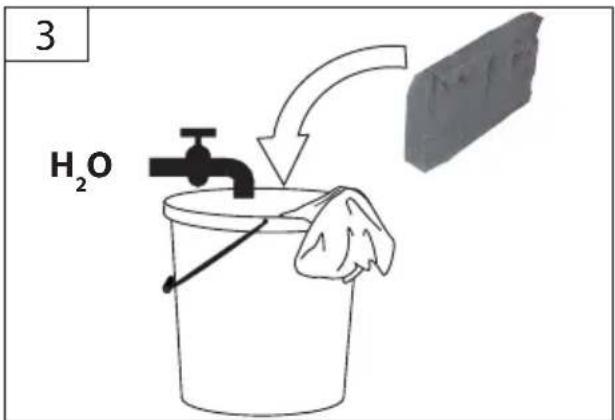

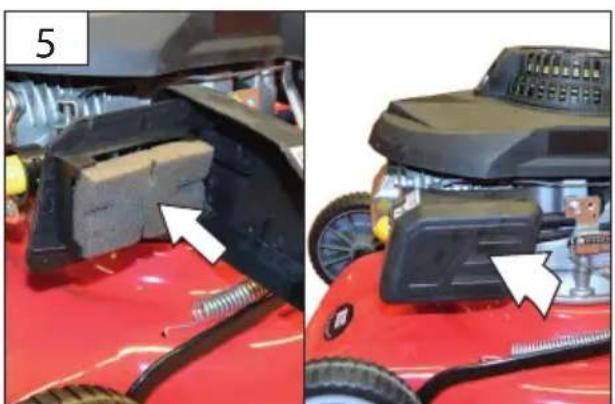

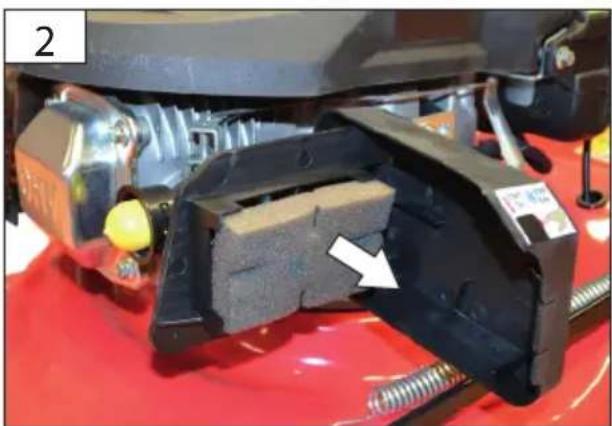

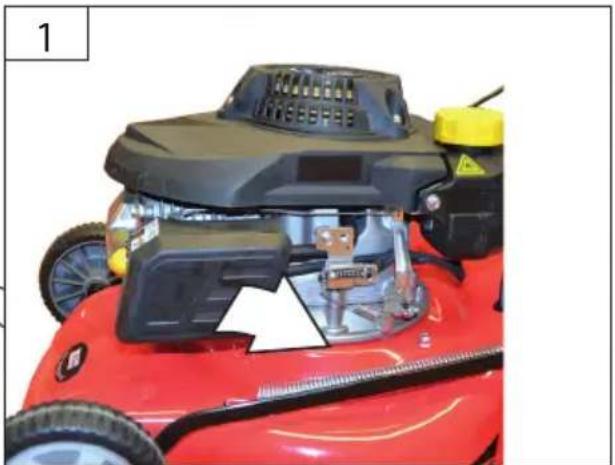

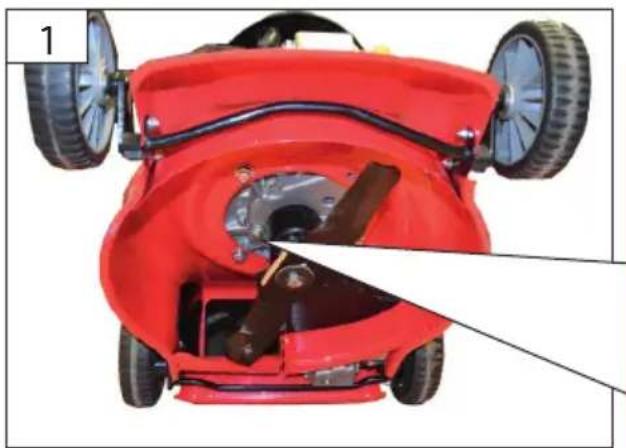

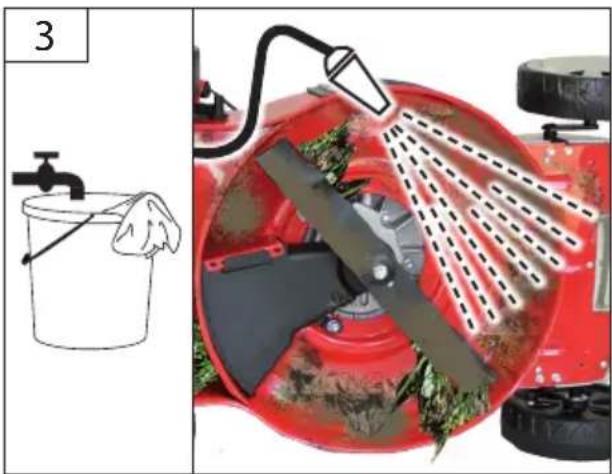

DE Reinigung / Wartung
GB Cleaning / Maintenance

5

Black shield partially covered by green foliage, with motion lines indicating movement (no text or symbols)

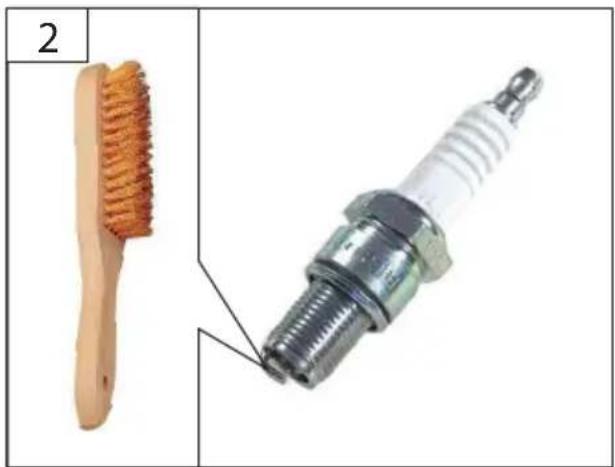

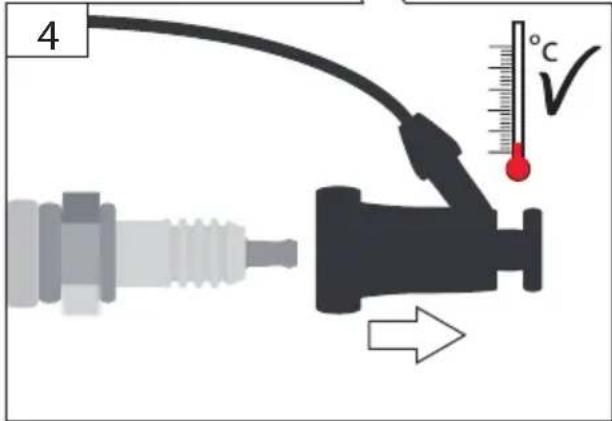

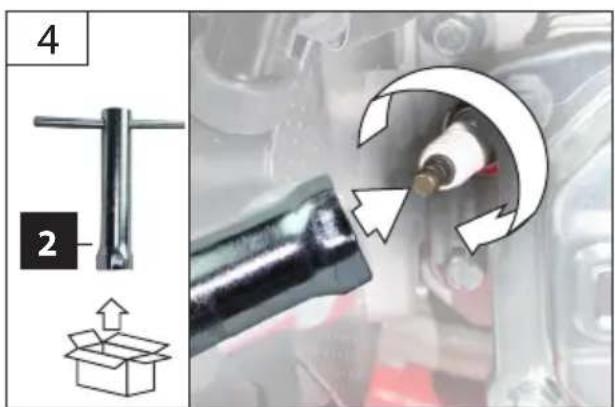

Two mechanical components: a wooden brush and a spark plug, both without any visible text or symbols.

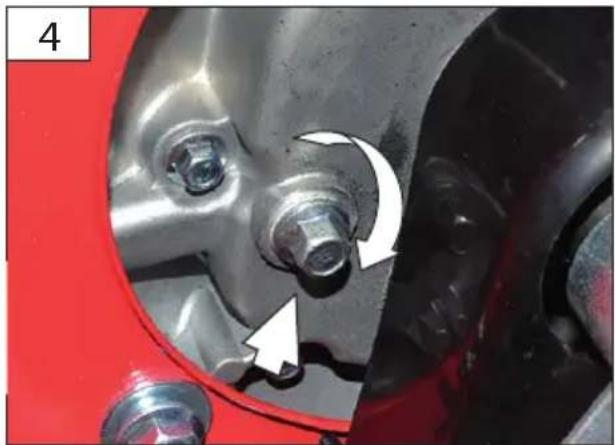

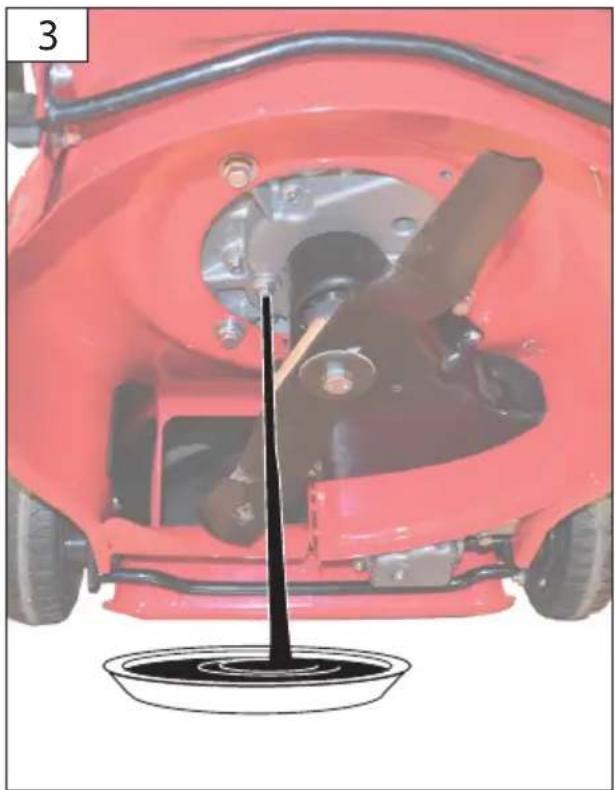

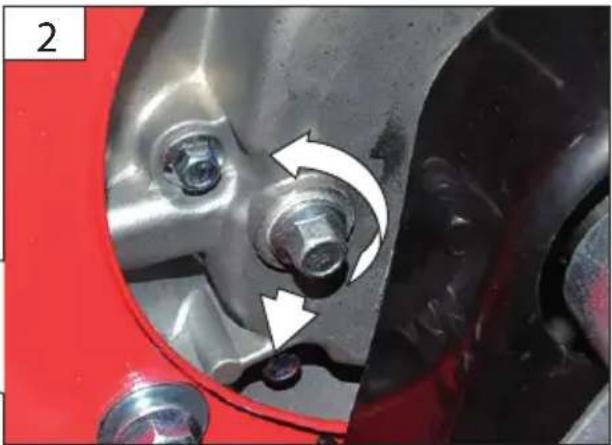

DE Ölwechsel

GB oil change

Top-down view of a red toy car showing wheel, suspension, and mechanical components (no text or symbols visible)

Close-up of a mechanical component with two bolts and directional arrows indicating movement (no text or symbols)

Close-up of a red tractor's wheel and head assembly with a black tool inserted into a bowl (no visible text or symbols)

Close-up of a mechanical component with a metallic bolt and red base, showing a circular feature with white arrows indicating rotation or movement (no text or symbols)

Close-up of a red and black lawn mower with visible battery and warning label (no text or symbols on the main body)

Red lawn mower with visible mechanical components and a yellow warning tag (no text or symbols)

Close-up of a mechanical assembly with a white arrow pointing to a damaged component on a red surface (no visible text or symbols)

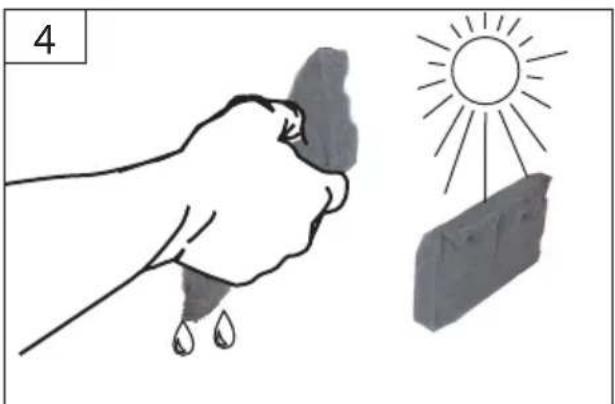

Illustration of a hand holding a bird with droplets, next to a sun and a rock (no text or symbols)

Close-up of a red lawn mower with visible mechanical components and a white arrow indicating a component (no text or symbols)

DE Bowdenzüge
GB Bowden cables

5

1

Mechanical assembly diagram showing a cable with threaded connector and spring-loaded cable (no text or symbols)

2

Mechanical assembly diagram showing a shaft connected to a spring and valve (no text or symbols visible)

3

1

Mechanical component diagram showing a shaft and housing with directional arrows indicating movement or force (no text or symbols)

2

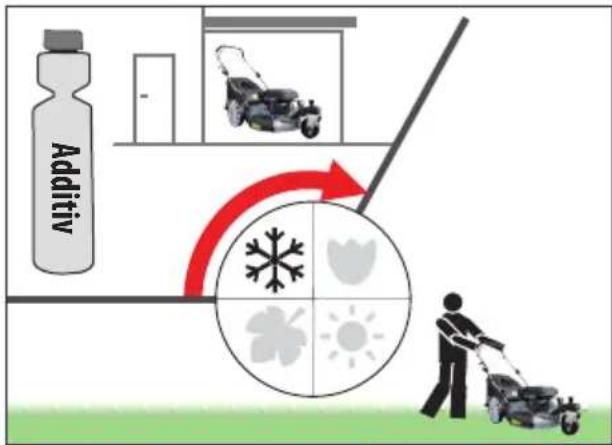


Technische Daten

OHV 4-stroke motor ....2 kW (2,7 PS)

Idle speed....2850 min ^-1

Cutting width....416 mm

Collection bag capacity 50 l

Fuel....Super/Super Plus/Super E10/....Unleaded petrol/ Unleaded petrol E10

Weight....26 kg

Dimensions....1510 x 500 x 1000 mm

Noise and Vibration Information

Sound pressure level L_n^1) .....83,8 dB (A)

Sound power level L 96 dB (A)

Wear ear protectors!

Vibration emission value a_h^2) 4,8 m/s²

^1) Uncertainty K=2,5 dB (A), ^2) Uncertainty K=1,5 m/s ^2

Warning: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

delivered items

1 Collection bag

2 Spark plug wrench

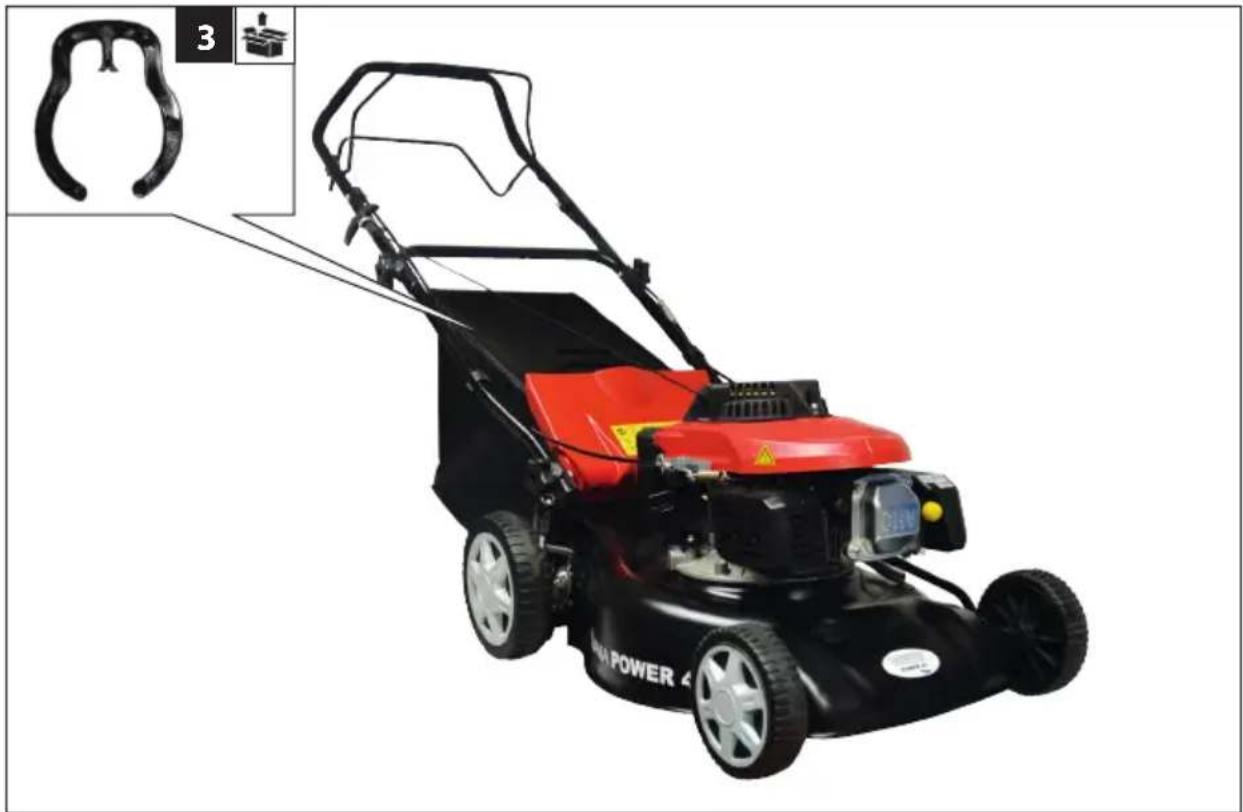

3 Bowden clamps

4 Accessory

Specified Conditions Of Use

The mower has been designed for cutting grass and grass areas with a maximum climb of 20^ in private gardens around the house and in garden colonies.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

⚠️ Use the appliance only outside, never use it in confined and bad ventilated areas.

The mower must not be used for cutting bushes, hedges and thickets, for cutting and mulching creepers or lawns on roofs or in balcony boxes. The mower must also not be used as a crusher for mulching tree cuttings and hedges or levelling any terrain roughness.

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

This device is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or without the necessary lack experience or knowledge unless they are supervised by a person who is responsible for their safety or were instructed by that person in how to use the device.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Local regulations may stipulate the minimum age of the user.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Emergency procedure

Danger of injury!

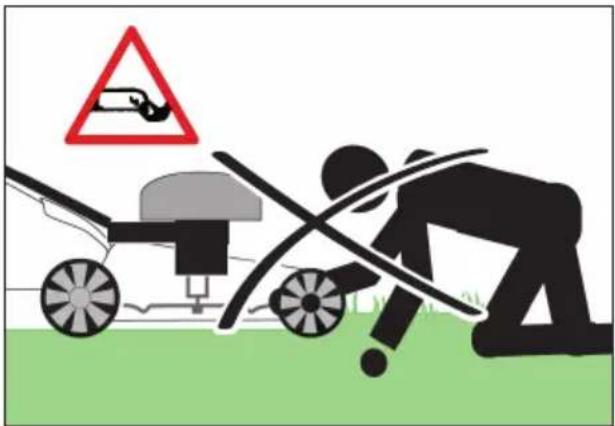

Never put your hands and feet near the rotating parts. Keep a distance from the ejection opening at all times.

Danger of burns!

Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler.

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Symbols

Caution!

Read the Operating Instructions

Wear ear protectors!

Wear eye protective goggles!

Caution - hot surface!

Danger of burns!

Warning against bounced subjects

Keep distance of persons!

Observe to keep out of dangerous zone

Switch the engine off and remove the

socket plug before any work on the engine.

Keep a sufficient distance from the cutting knife when operating the appliance.

Caution, risk of drawing-in

Risk of explosion

Refuel the engine only when switched off.

Risk of poisoning!

Use the appliance only outside, never use it in confined and bad ventilated areas.

Prohibited smoking and open fire using.

Keep the machine out of reach of children.

Do not use the machine in wet or moist conditions. Do not expose the machine to rain.

Wear safety cut through resistant shoes with safety sole and steel toe!

Warning against hot surfaces!

Warning against dangerous voltage!

Protect against humidity

This side up

Safety Instructions

WARNING

Read all safety warnings and all instructions, including those given in the accompanying brochure.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe distance is 5 m.

Wear personal protective equipment.

Wear solid shoes and long trousers. Never use the appliance when barefooted or in light sandals.

Wear protective gloves if necessary.

Use the appliance in broad daylight or in a well-lit environment.

Check carefully the terrain where the appliance is being used and remove any items that could get caught and be thrown away.

Fuel is highly flammable.

Keep the fuel in suitable containers only.

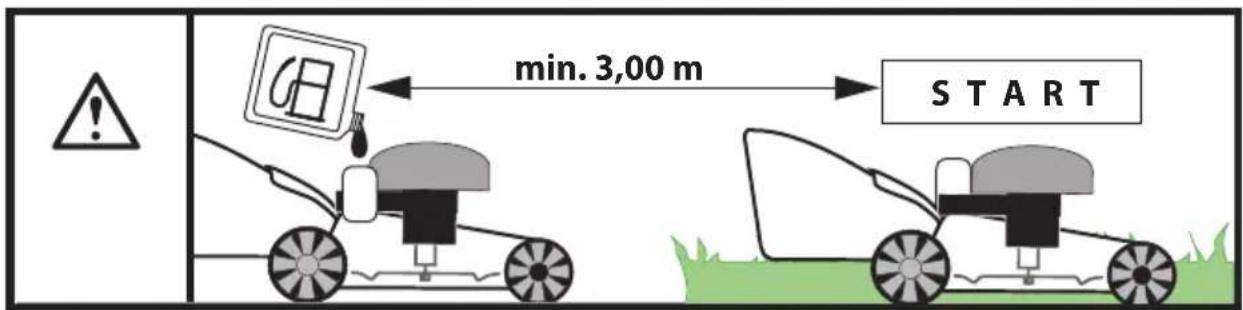

The appliance may only be refuelled outdoors and not near open fire or burning cigarettes.

Refuel before starting the appliance. If the engine is running or still hot, it must not be refuelled or the tank cover opened.

Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated.

The engine must necessarily be filled with engine oil before being put into operation for the first time.

Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

Carry out a visual inspection before any use to make sure the appliance, especially the cutting tools, fastening parts and the entire cutting unit are not damaged.

⚠️ Check all screw and plug-in connections and protective equipment if firm and tightened properly and whether all moving parts are running smooth whenever the appliance is to be put into operation.

The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conflict with the designation and it is prohibited to attach any protective equipment of other manufacturers.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Do not start the engine before your feet are in a safe distance from the cutting tools.

Do not incline the appliance when being started.

Do not start the appliance when you are standing in front of the ejection opening.

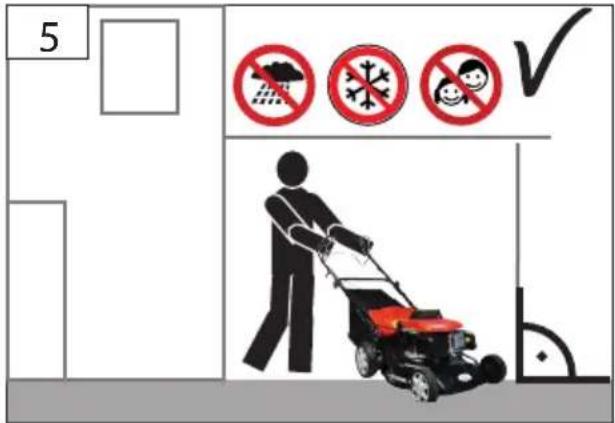

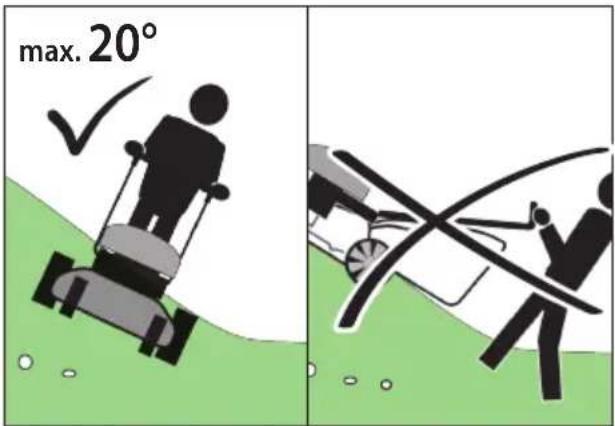

Make sure your posture is safe, especially on slopes. Do not cut on too steep slopes. Be particularly careful when changing travelling direction on slopes.

Pay maximum attention when turning around and pulling the appliance to you.

Switch the mower off whenever carrying or inclining it or when being outside a grass area. Wait until all rotating parts have stopped.

If an undesirable item is encountered or the appliance starts vibrating, the appliance must be switched off and the socket plug removed. Check whether the appliance is not damaged. Repair any damage.

Switch the appliance immediately off after finishing your work.

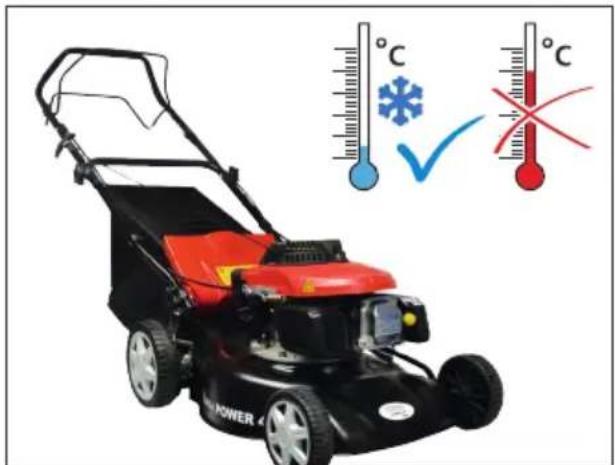

Do not store the appliance in enclosed places just after being switched off but let it cool down outdoors instead.

Never store the appliance with petrol in the tank inside a building where petrol fumes may potentially get in touch with open fire or sparks.

When the appliance is not going to be used for a long time, store it with an empty tank.

Replace any defective muffler.

Do not change the controlled engine setting and do not rev the engine up.

Maintenance

Switch the engine off and remove the socket plug before any work on the engine. Wait until all rotating parts have stopped and ambiance has cooled down.

Keep the appliance, especially the tank and engine, clean at all times. Clean the ejection opening and cover at regular intervals.

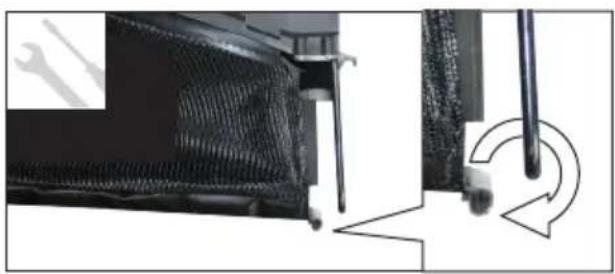

Apply environment-friendly oil to all moving parts. Check the collection bag at regular intervals for any wear and aging.

Refer all servicing to qualified service personnel.

Use only original accessories and original spare parts. Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Guarantee

A warranty period of 12 months applies to commercial use and 24 months apply to private use and commences on the day of purchase of the device.

Warranty applies exclusively to failures due to defective material or workmanship. An original sale slip with indication of date of sale must be presented in case of claiming for the warranty rights.

Warranty does not cover unprofessional use such

as device overload, violent use, damage caused by third party or foreign materials, failure to comply with operations and assembly manual, and normal wear and tear.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Inspection and maintenance plan

Regular servicing period Before		any start-up	After 1 month	After 3 months	After 6 months	After 12 months	After 24 months
			5 Hours of operation	25 Hours of operation	50 Hours of operation	100 Hours of operation	250 Hours of operation
Engine oil (10W-40)	Inspection	√
	Change		√		√
Air filter Inspection		√
					√
Spark plug	Inspection Clean					√
	Change						√

Provide appropriate servicing upon the earlier of the following: in the given month or after the specified hours of operation have expired.

Defects searching

Defect	Causes	Measure
The motor does not start	Start-Stop lever has not been pressed Press the Start-Stop lever
	Primary pump has not been used Use the primary pump
	Lack of fuel Add some fuel
	Bowden cables are too long Adjust the Bowden cables using the coupling nut.
	Wrong fuel, storing without petrol tank being drained	Drain the fuel tank and carburettor.Add fresh petrol.
	Sooted spark plug (carbon residues on electrodes), electrodes distance too big	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm
	The spark plug is wet from petrol (oversaturated engine).	Dry the spark plug out and refit it.
Grass is not collected	Blocked channelFull collection bagToo wet grass	Clean the ejection channelEmpty the collection bagCut in dry weather
Automatic feed is not working	Bowden cables are too long Adjust the Bowden cables using the coupling nut.

EC-DECLARATION OF CONFORMITY

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.

DECLARATION CE DE CONFORMITE

PROHLASENI O SHODE EU

2006/95/EC 2004/108/EC

2009/105/EC 1907/2006/EC

2011/65/EC ROHS 2009/142/EC

89/686/EEC (PPE) 1935/2004/EC

□ □

2006/42/EC

Annex IV

Notified Body:

Type Ex. Cert.-No.:

2000/14/EC_2005/88/EC

Noise: guaranteed L_WA 96 dB (A)

97/6 8/EC_

Emission No.: e13*97/68SN2G1*2011/88*0745*00
