Product Type	Centrifugal water pump
Brand	Germania
Model	HWW VF 100
Power Source	230 V ~ 50 Hz
Power Consumption	1000 W
Maximum Flow Rate	5000 L/h
Maximum Head	45 m
Inlet/Outlet Diameter	1" (25 mm)
Maximum Liquid Temperature	35 °C
Protection Class	IPX4
Weight	10.5 kg
Dimensions (L x W x H)	35 x 25 x 30 cm
Cable Length	1.5 m
Functions	Water transfer, garden irrigation, drainage
Maintenance	Clean filter regularly, check seals
Safety Features	Thermal overload protection, dry run protection
Spare Parts	Impeller, seals, capacitors available
General Information	Self-priming up to 8 m

Frequently Asked Questions - HWW VF 100 GERMANIA

How do I prime the pump?

Fill the pump housing with water through the priming plug before starting. Ensure the suction hose is submerged.

What should I do if the pump loses pressure?

Check for leaks in the suction line, clogged filter, or air in the pump. Re-prime if necessary.

Can I run the pump dry?

No, running dry can damage the seals and impeller. The pump has dry run protection but it should not be relied upon.

How often should I clean the filter?

Inspect the filter before each use and clean it monthly under normal conditions. More often if pumping dirty water.

What type of oil does the pump use?

This pump does not require oil; it is designed with sealed bearings that are maintenance-free.

Why is the pump not starting?

Check power supply, thermal overload reset, and ensure the pressure switch is not stuck. Safety first.

Can I use the pump for rainwater harvesting?

Yes, it is suitable for transferring rainwater from tanks, provided the water is clean.

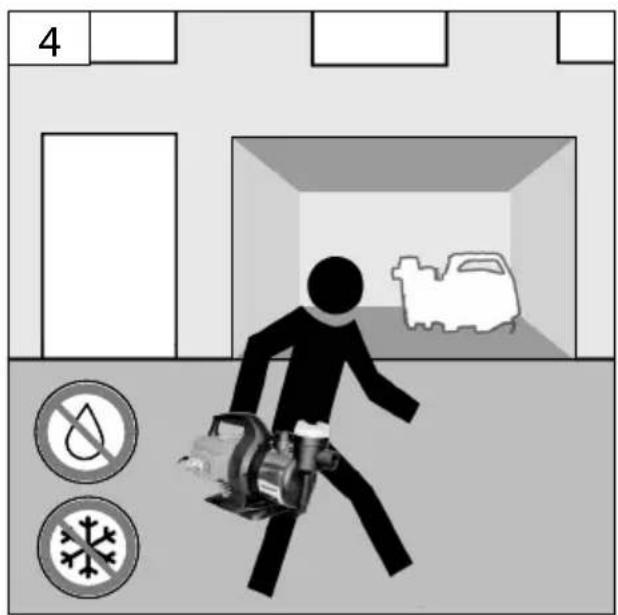

How do I store the pump in winter?

Drain all water, dry the interior, and store in a frost-free place. Remove hoses and protect the pump.

What is the maximum suction height?

The pump can self-prime up to 8 meters, but the total suction lift should not exceed 7 meters for reliable operation.

Where can I find replacement parts?

Contact Germania customer service or authorized dealers. Use only genuine parts to maintain warranty and performance.

USER MANUAL HWW VF 100 GERMANIA

GB Translation of the original instructions

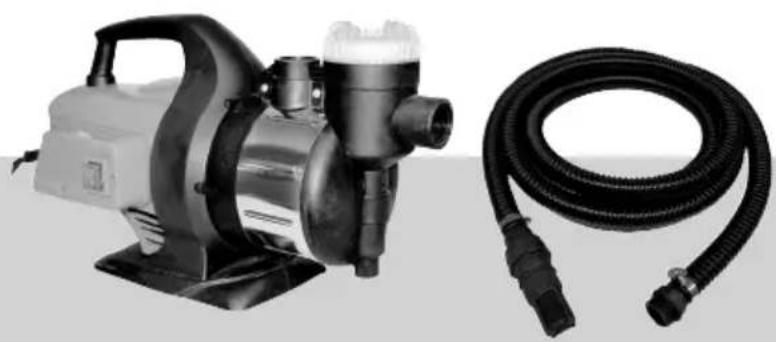

Exterior view of a mechanical pump and a black rubber hose (no text or symbols visible)

GP VF 80 Set
05324

Exterior view of a GE Latvia air compressor (HWW VF 100) with attached pipe and hose (no visible text or symbols on the device itself)

HWW VF 100
05323

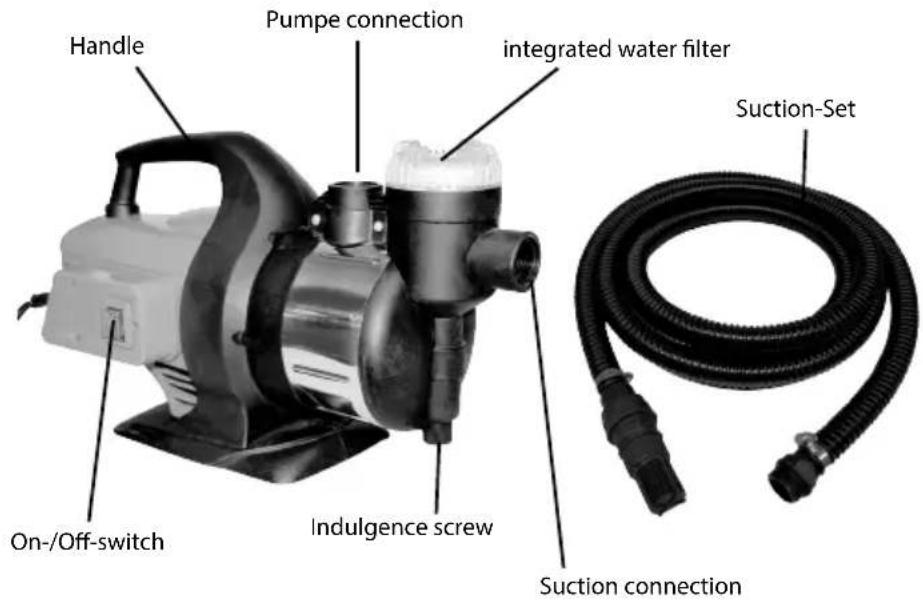

LIEFERUMFANG | DELIVERED ITEMS

GEWÄHRLEISTUNG

GUARANTEE

GARANTIE

GARANZIA

GARANTIE

ZÄRUKA

ZÁRUKA

JÓTÁLLÁS

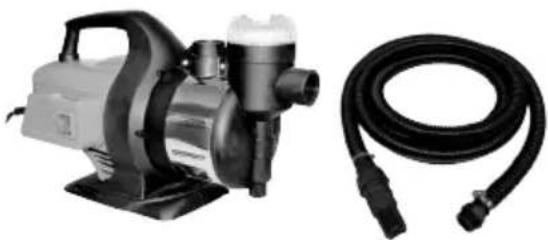

Exterior view of a mechanical pump and a black rubber hose (no text or symbols visible)

Industrial air compressor unit with control panel and piping (no visible text or symbols)

GP VF 80 Set

05324

HWW VF 100

05323

Please read the instructions carefully before starting the machine.

IINBETRIEBNAHME | STARTING-UP THE MACHINE | MISE EN SERVICE | MESSA IN FUNZIONE | INBEDRIJFSTELLING | UVEDENÍ DO PROVOZU | UVEDENIE DO PREVÁDZKY | ÜZEMBE HELYEZÉS | UVEDBA V POGON | PUŠTANJE U RAD | ПУСКАНЕ В ДЕЙСТВИЕ | PUNEREA İN FUNCTIUNE | PUŠTANJE U RAD ____ 5

Deutsch

Mechanical pump device with downward arrow indicating compression or disassembly (no text or symbols visible)

2

DE ANSCHLUSS

GB SERVICE CONNECTION

Mechanical assembly diagram showing a valve and adjustment mechanism (no text or symbols)

3

Illustration of a portable electric tool with a thermometer and temperature scale indicator (no text or symbols on the device itself)

4

DE BETRIEB

GB OPERATION

5

DE WARTUNG

GB MAINTENANCE

Illustration of a mechanical pump with a wrench above it (no text or symbols)

9

Silhouette of a person running away from a doorway with a cloud-like shape in the background (no text or symbols)

10

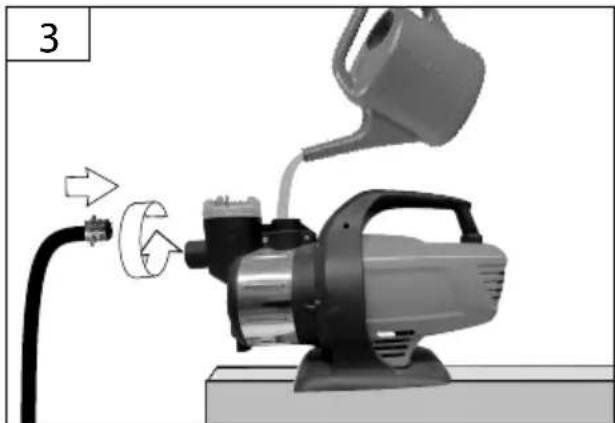

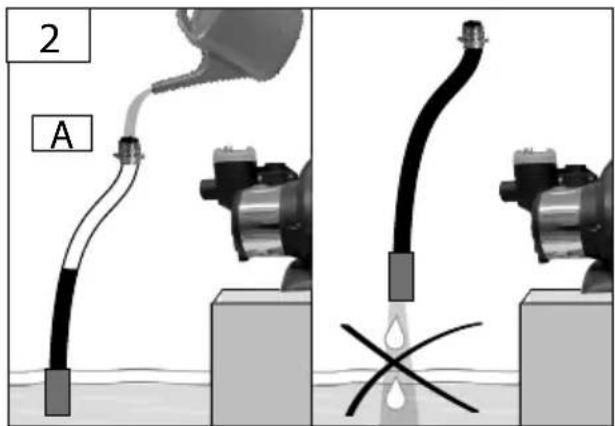

DE INBETRIEBNAHME GB STARTING-UP THE MACHINE

GP VF 80 Set

HWW VF 100

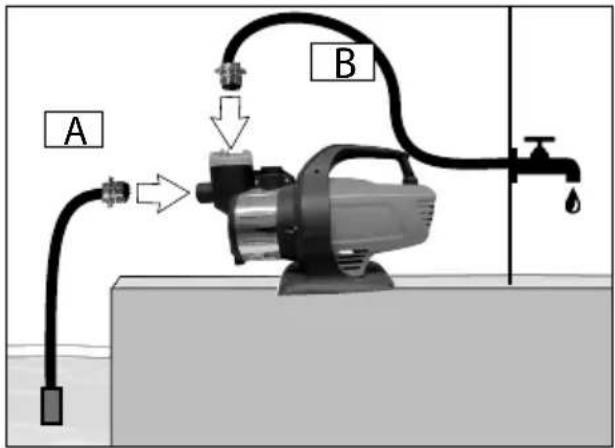

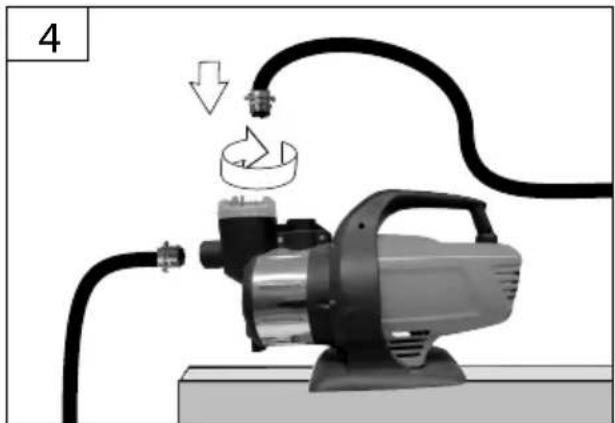

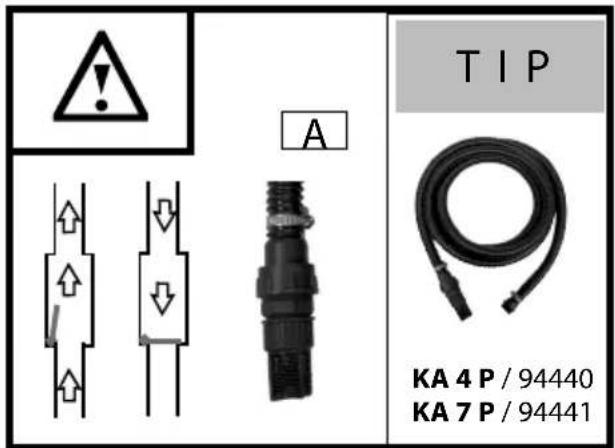

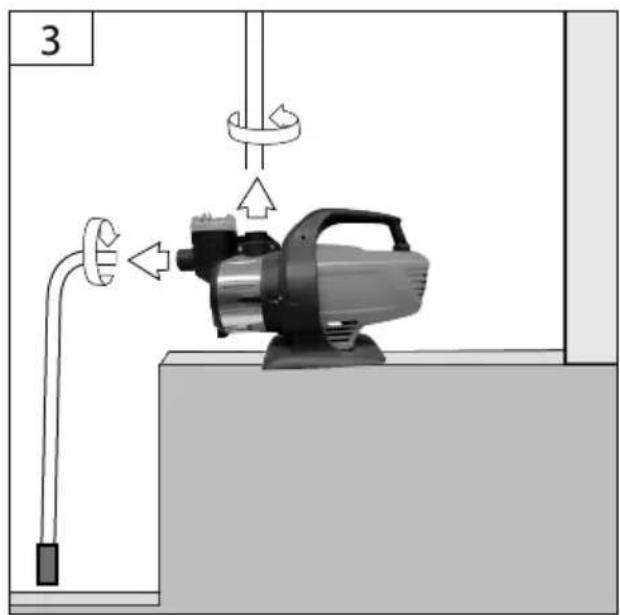

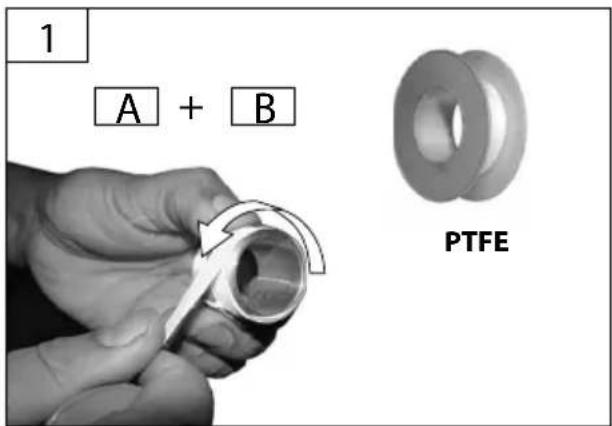

DE ANSCHLUSS

GB SERVICE CONNECTION

Mechanical assembly diagram showing a motor and gear assembly with directional arrows (no text or labels)

GP VF 80 Set

HWW VF 100

Mechanical device with pipe connection and fan assembly (no visible text or symbols)

Industrial machine with hoses and a valve, no visible text or symbols

Illustration of a mechanical device with a thermometer and heat pipes (no text or symbols)

GB The pump must not in any case run without fillings.

GP VF 80 Set

HWW VF 100

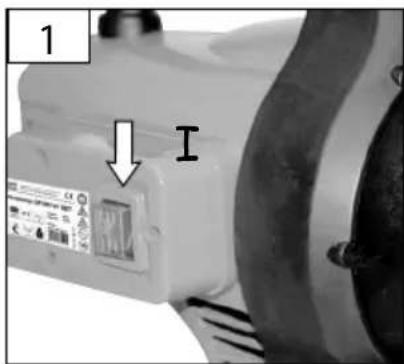

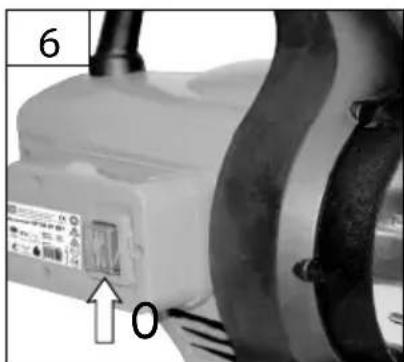

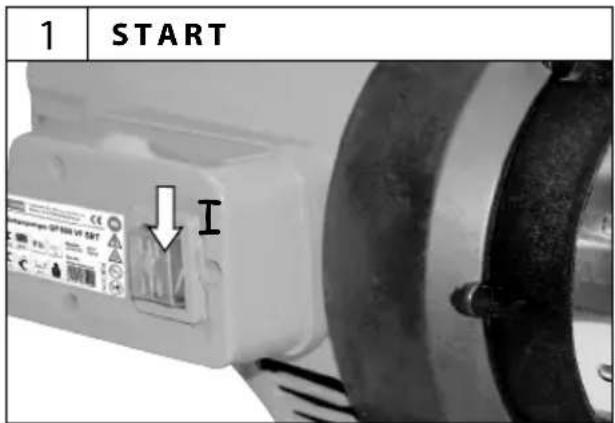

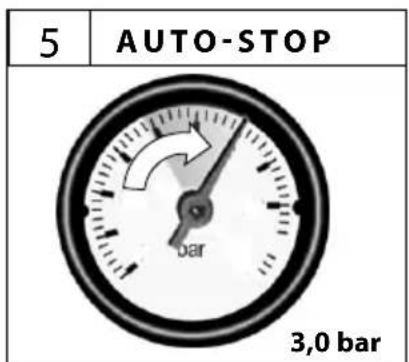

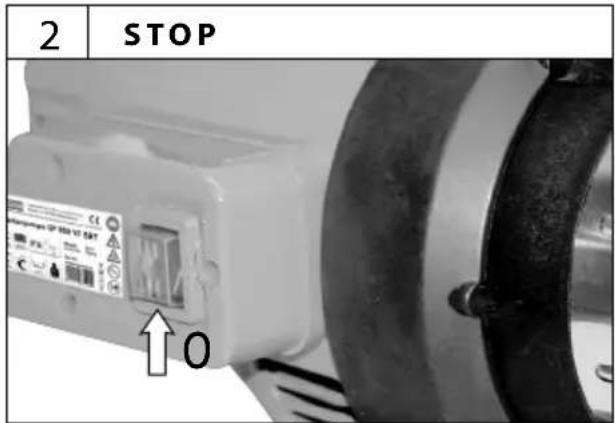

START STOP

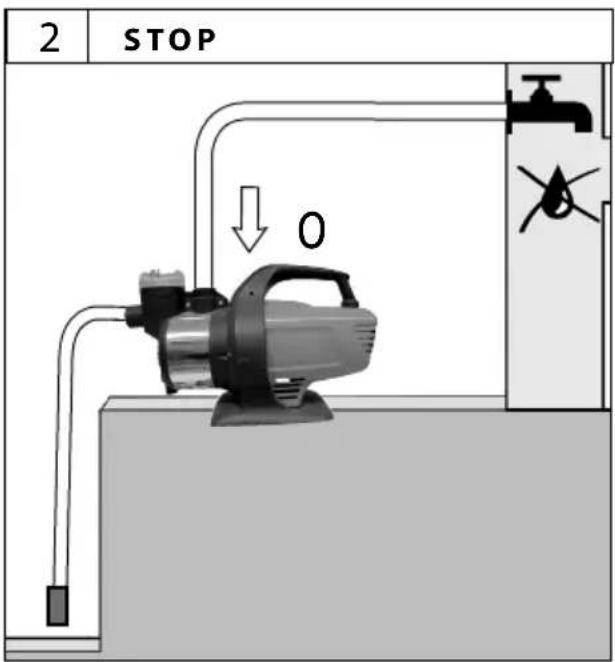

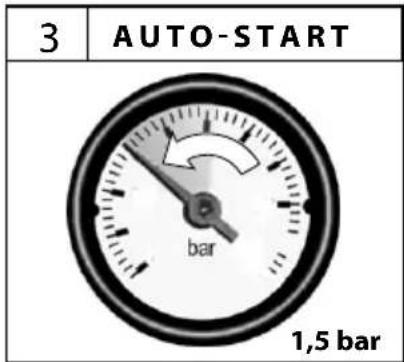

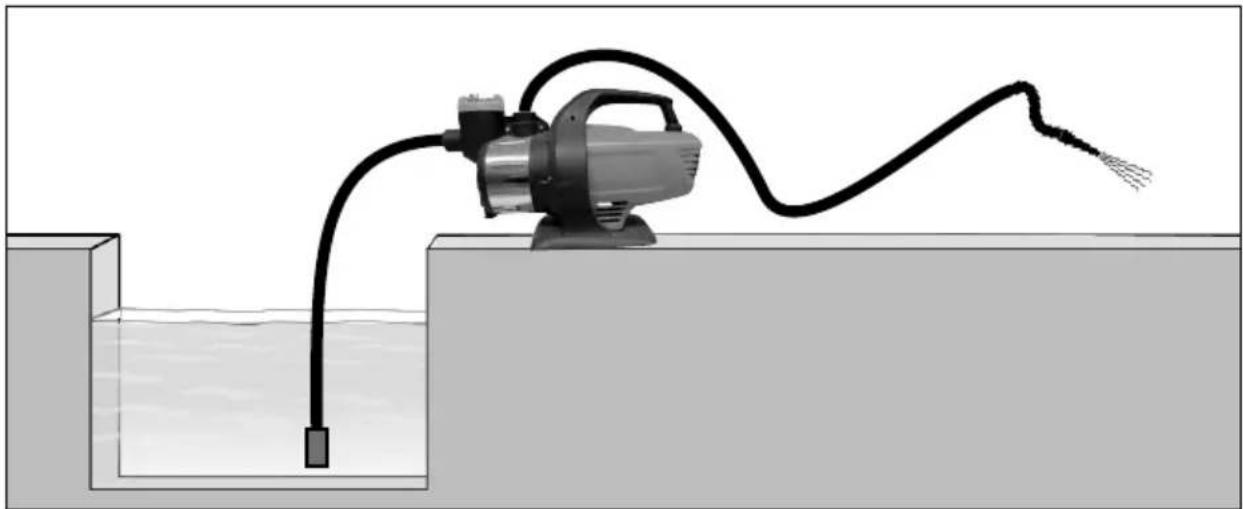

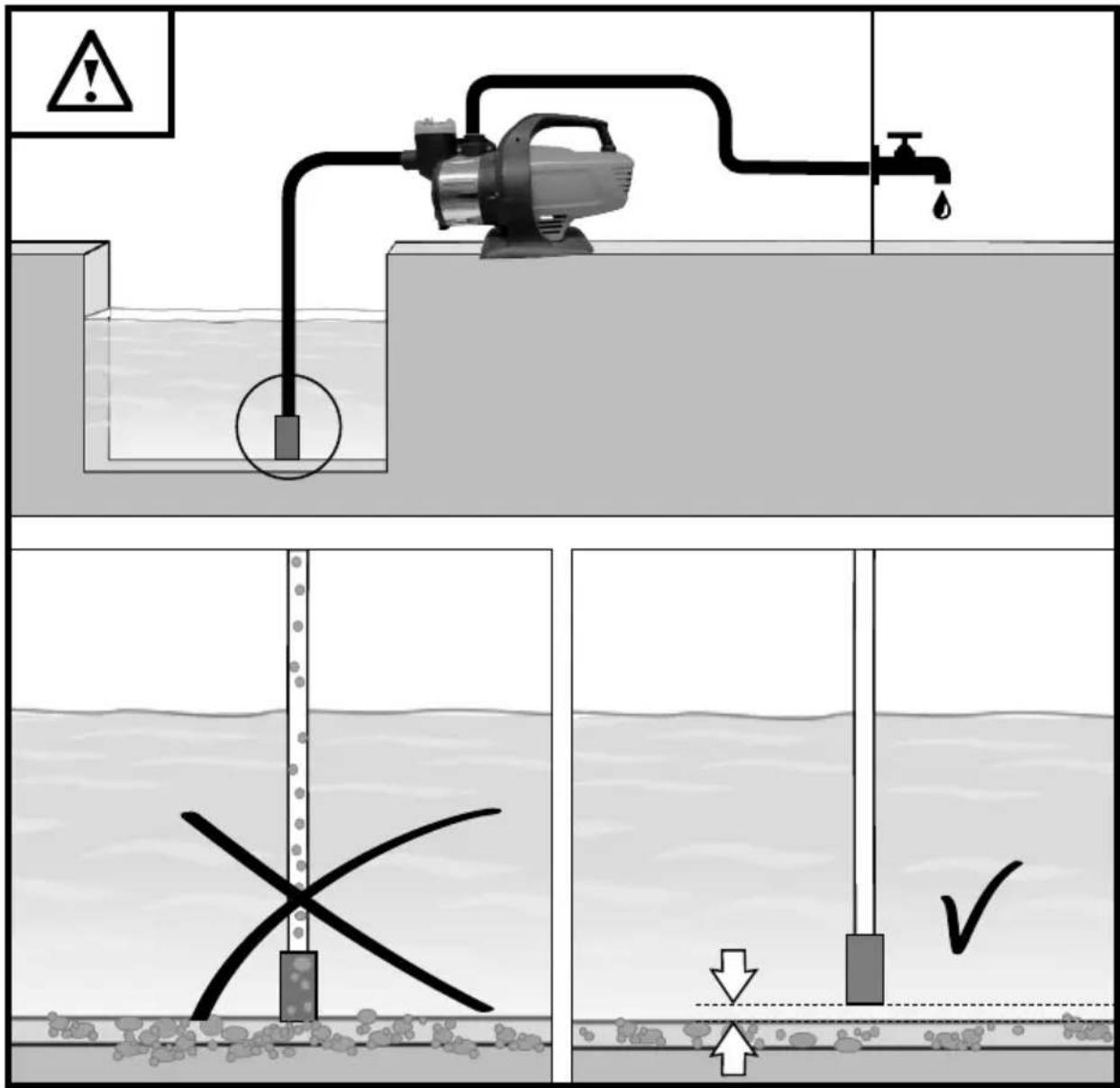

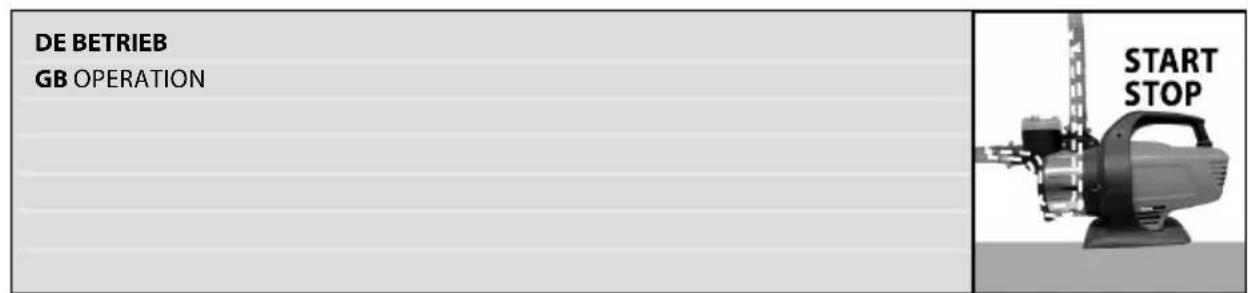

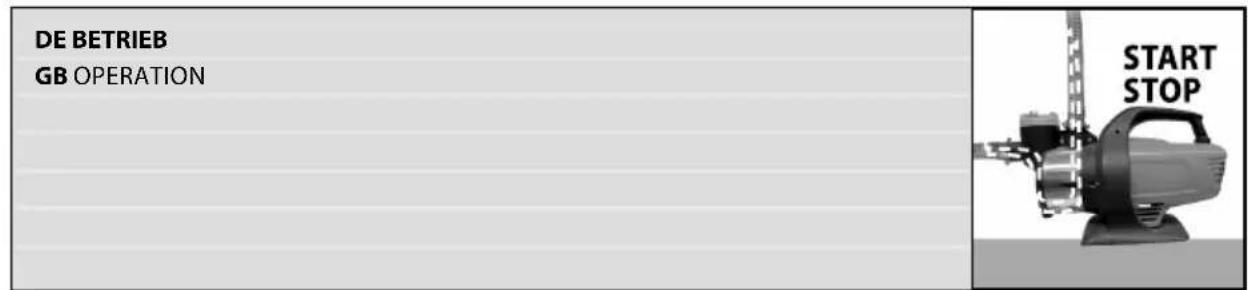

DE BETRIEB GB OPERATION

GP VF 80 Set

Diagram of a mechanical device connected to a container with liquid, showing fluid flow and wiring (no text or symbols)

HWW VF 100

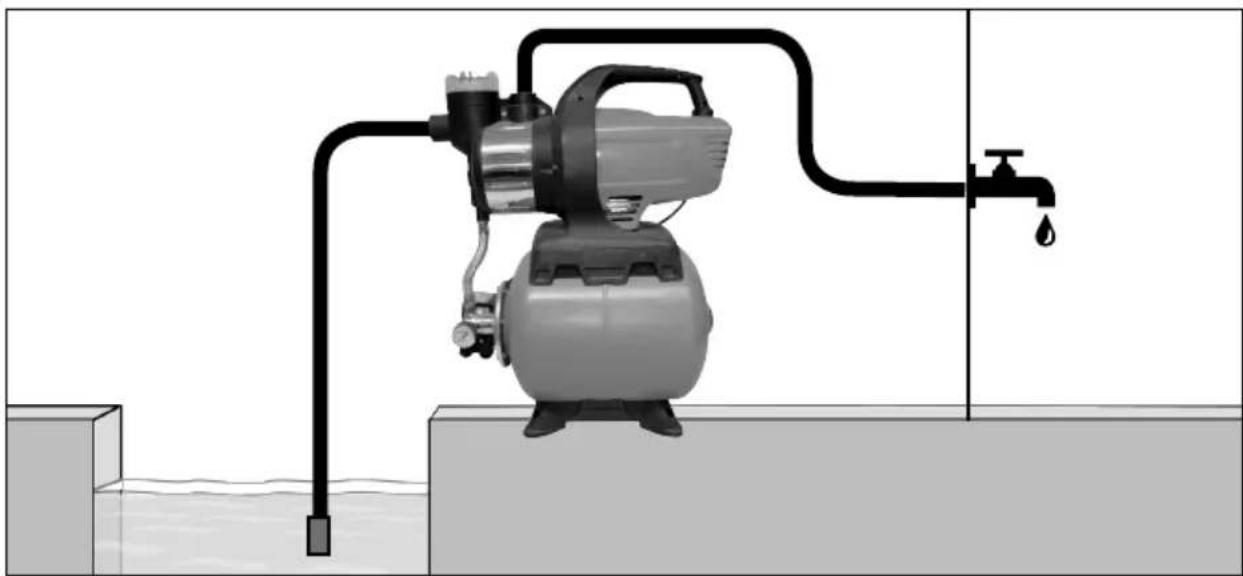

Diagram of a pressure vessel connected to a water tank via tubing, with a faucet and water level indicator (no text or symbols present)

Illustration of a faucet with water droplets falling, no text or symbols present

Simple black-and-white diagram of a faucet with a circular component above it, no text or symbols present.

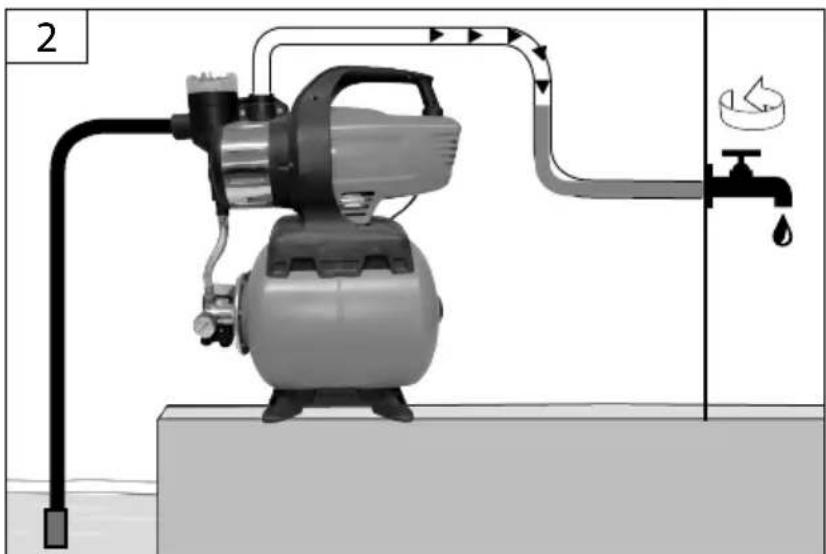

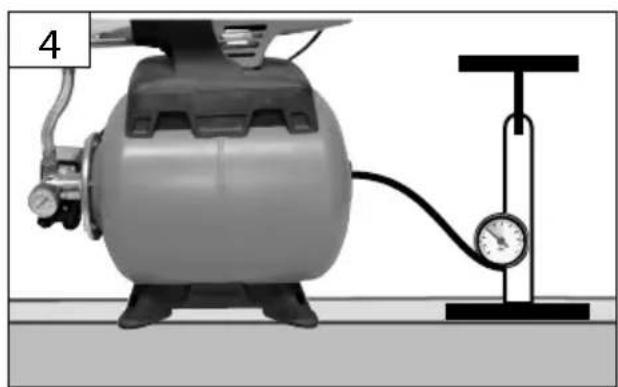

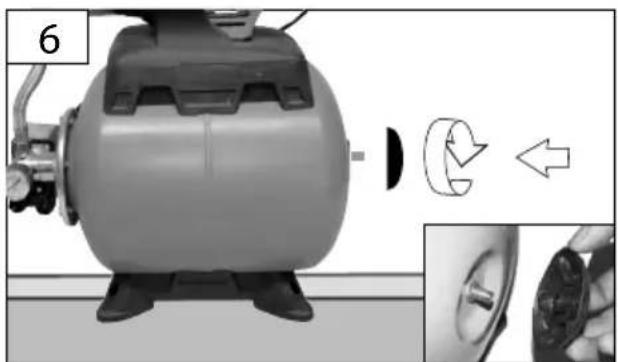

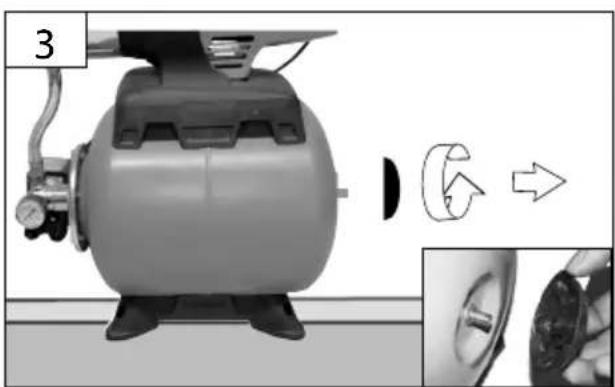

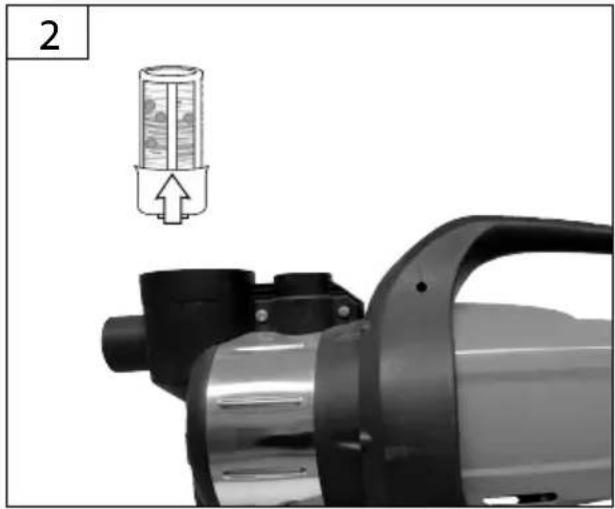

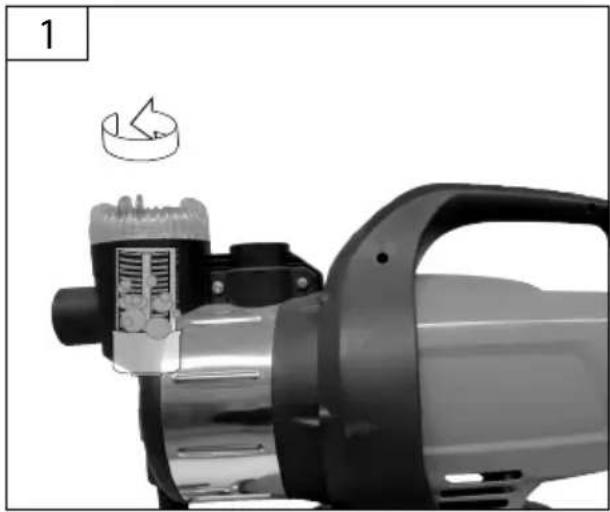

DE WARTUNG GB MAINTENANCE

GP VF 80 Set

HWW VF 100

Close-up of a mechanical device with a circular component and a separate view showing a knob (no text or symbols visible)

Close-up of a mechanical device with a cylindrical component and an arrow pointing to it, no visible text or symbols.

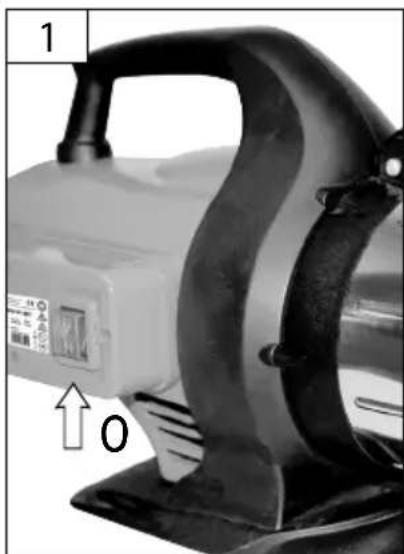

DE WARTUNG GB MAINTENANCE

HWW VF 100

Close-up of a power saw with a handle and blade, showing no visible text or symbols

Diagram of a gasifier system with pump, valve, and water tank (no text or labels)

Mechanical device with labeled parts and a circular arrow indicating rotation (no text or symbols present)

Experimental setup showing a pressure monitor measuring a tank, with a spring scale and stand (no text or symbols visible)

Silhouette of a person walking through an empty room with a smokestack (no text or symbols visible)

Diagram of a mechanical pump system with a water tap and tubing, no text or symbols present

Technische Daten

Gartenpumpe

GP VF 80 Set

Artikel-Nr. 05324

Service connection....230V\~50Hz

Motor output P1....800W

Max. delivered quantity....3200 l/h

Max. head of delivery....38 m

Max. suction head....8 m

Max. Water temperature....35°C

Hose connection....1" IG

Degree of protection.....IPX4

Weight....8,3 kg

Sound power level.....85 dB

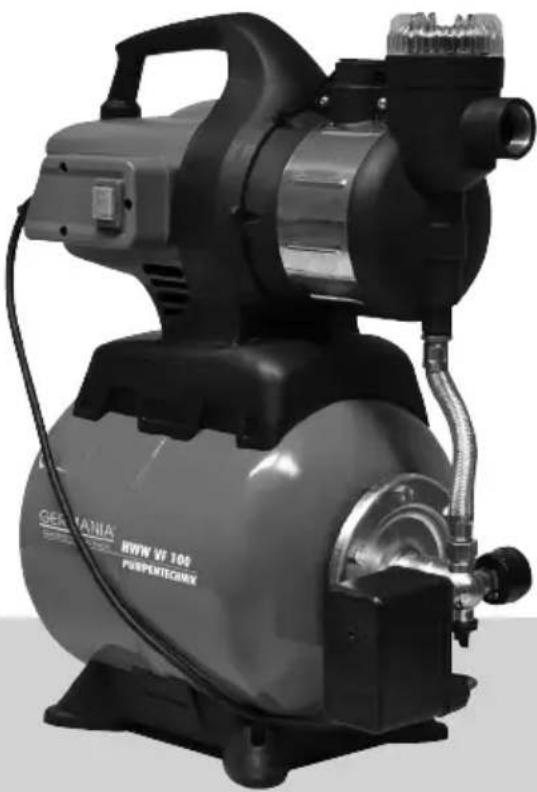

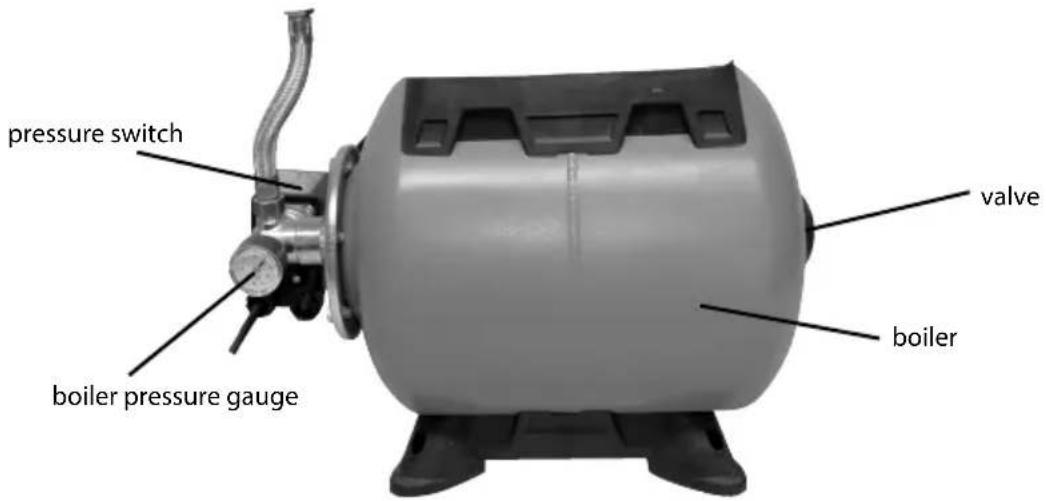

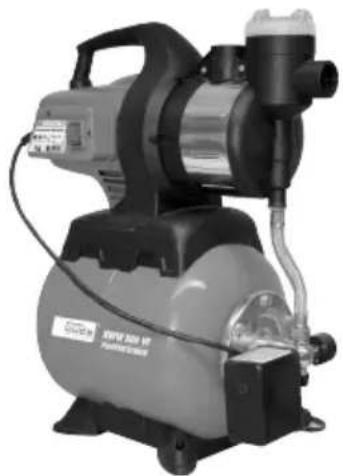

Domestic water supply unit HWW VF 100

Art. No 05323

Service connection 230V\~50Hz

Motor output P1 1000 W

Max. delivered quantity 3500 l/h

Max. head of delivery....44 m

Max. suction head 8 m

Max. Water temperature 35°C

Hose connection....1" IG

Degree of protection.....IPX4

Weight....12 kg

Sound power level......88 dB

tank capacity 19

Read and understand the operating instructions before using the appliance. Abide by all the safety

measures stated in the service manual. Act responsibly toward third parties.

In case of any doubts about connection and operation refer please to our customer center

Specified Conditions Of Use

The pump is designed for pumping clean water only to supply the home with water and to use it at home, in garden, courtyard and for fields. Respecting technical data and safety precautions.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

The pump is not suited for long-run operation (e.g. as a circulation pump in ponds or streams). When used in this manner, its service life is curtailed correspondingly. In these cases, then, use a time switch to secure sufficient idle periods between cycles of operation.

Do not leave the pump unattended while in operation in order to prevent subsequent damages caused by eventual malfunctions. Make sure to disconnect the device from the grid if you do not plan on using it.

Do not use the pump for drinking water!

The pump must not be connected to the existing water-supply network as a pressure-boosting device.

⚠️ Never use the pump as a pool circulation pump.

Safety Instructions

WARNING!

Electric shock! There is a risk of an injury caused by electric shock!

This device is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or without the necessary lack experience or knowledge unless they are supervised by a person who is responsible for their safety or were instructed by that person in how to use the device.

Children should be supervised to ensure that they do not play with the device. Always keep children and unauthorised persons out of reach of the appliance.

Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).

Before putting into operation, a qualified electrician must check whether electric safety measures required are in place. Any national regulations in this regard must be complied with.

Electric connection to a socket.

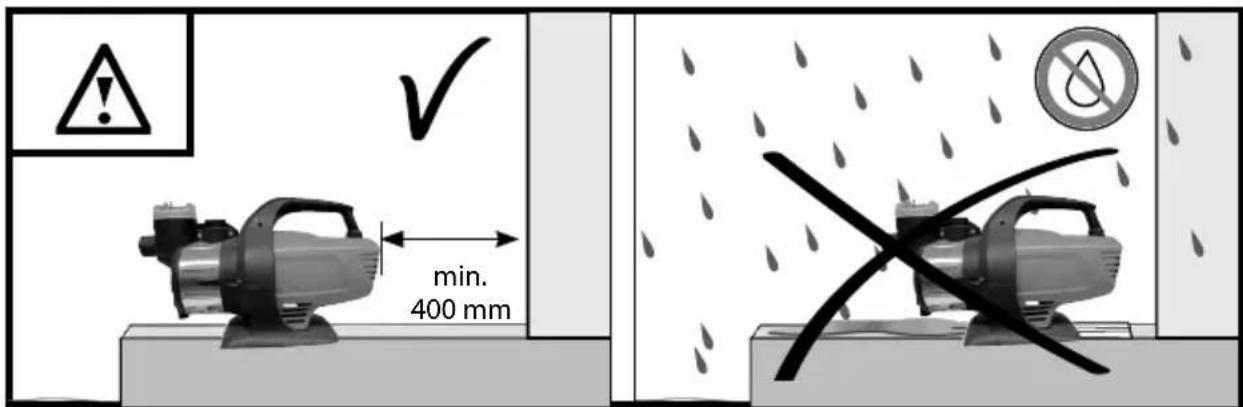

Do not expose the appliance to rain and do not use it in wet or moisture conditions.

It is necessary to make sure the connecting socket was not near water and humidity and the plug was protected against humidity.

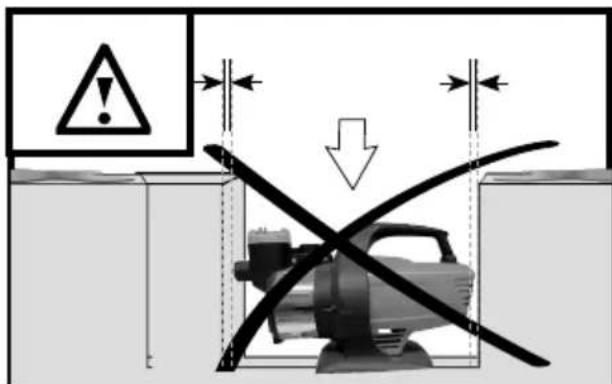

Avoid installing the appliance in wet shafts (risk of short circuit, corrosion effects)!

Check the voltage. Technical data given on the type label must correspond with electric network voltage.

Only use splash proof extension cables approved for outdoor purposes.

Do not grab the feeder cable, plunge the pump, lift or carry it while it is connected to the grid!

Check the cable and/or socket for damages before the appliance putting into operation.

To avoid danger, a damaged mains supply pipe must be replaced by the manufacturer. Do not under any circumstances attempt any repair yourself.

Protect the feeder cable from excessive temperatures, oil and sharp edges.

⚠️ If the pump is in operation, neither people nor animals can be present or plunged in the pumped liquid (e.g. pools, cellars, etc.).

⚠ The pump must not in any case run without fillings.

Do not leave the pump unattended while in operation in order to prevent subsequent damages caused by eventual malfunctions. Make sure to disconnect the device from the grid if you do not plan on using it.

The temperature of the drained liquid must not exceed +35 °C.

When using the pump for domestic water supply, always observe the local regulations of water management authorities and the waste water drainage.

If the pump is used in ponds, wells, etc. and appropriate pumping stations, standards valid for pumps in the given country must unconditionally be observed.

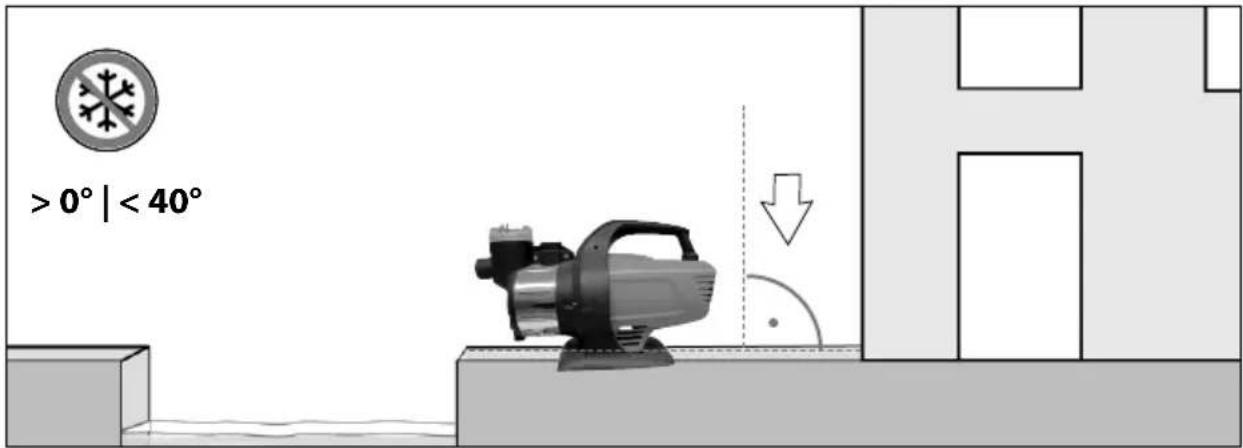

Do not use pump at outside temperatures over 40 °C or under 0 °C

In cold weather, the pumping body motor should not bewrapped in a blanket or another piece of textile with intent to prevent the water freezing.

The user is responsible to third parties if pump (dumping stations, etc.) is used.

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Maintenance

⚠️ Before carrying out any work on the machine, disconnect the plug from the socket.

Prior to every use, visually check the machine to rule out any defects, in particular on the power cable and the plug.

The machine must not be used under any circumstances if the machine or the safety devices are damaged.

Refer all servicing to customer service. Use only original accessories and original spare parts.

Caution: Standing water may corrode (brownish colour) in the pump according to design.

At winter storing, it is necessary to make sure there is no water in the appliance as the frost could damage the appliance. Prior to transportation, it is necessary to unplug the pump from the grid! The device has to be completely emptied and stored with frost-proof protection. Adhesion of mechanical seals can be prevented if you rinse the pump with appropriate oil (for example, with vegetable oil).

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Guarantee

Guarantee claims as per guarantee card attached.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee..

GÜDE cannot be held responsible for damages incurred in consequence of unqualified installation or unskilled handling of the pump.

The device has to be checked on a regular basis to ensure perfect functioning.

Let us refer to the fact we do not assume any responsibility – according to standards in force – for damage eventually caused by our appliances in the below-mentioned cases:

• Unprofessional repairs executed by unauthorised service centres;
• Use in conflict with the designed purpose, or failure to observe the use as designed;
• Pump overload with a continuous run;
• Damage as a result of icing or any other fault caused by climatic influences;
  Identical regulations apply for accessory parts.

To prevent damage (such as flooded rooms, etc.) as a result of faulty pump operation (failure or fault) the owner (user) is obliged to take reasonable safety measures (alarm assembly, spare pump, etc.).

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Symbols

Read the Operating Instructions

Before carrying out any work on the machine, disconnect the plug from the socket.

Protect against frost

With sotrage protect against wetness

Staying in the transportation medium prohibited

Warning against dangerous electric voltage

Warning against automatic starting

Accessory - Not included in standard equipment, available as an accessory.

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Protect against humidity

This side up

Inspection and maintenance plan

Time interval Description Any other details

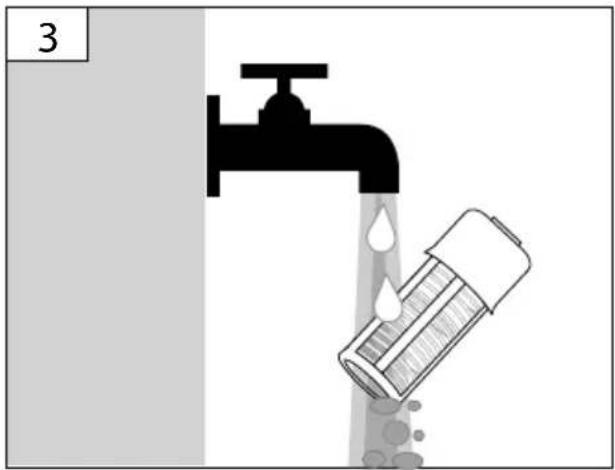

As needed Clean the check valve and the prefilter. Check the check valve function.

Failures – causes - removal

Failures Causes Removal
Engine does not start No power supply. Blocked pump wheel		Turn the engine shaft with screwdriver through the fan cover (to release friction circles sealing that may be stuck together).
Pump does not suck Missing, loose or blocked check valve Check valve is not in water. Pump without water Too high suction head. Air bubbles in the suction pipeline. Connections not sealed, pump sucks air, pump is not deaerated. Prefilter clogged		Fix or clean the check valve. Immerse the check valve into water. Fill the pump shell with water. Check the suction head. Check the tighten of suction pipeline. Carefully repeat connection according to the chapter „Connection“! Clean the prefilter.→10
Thermal detector switching the pump off →4	Pump is overheated and switched off by the thermal overloading protection. No electric power supply. Impurity particles (e.g. pebbles) have settled down in the suction hole.	Let the device getting cool! Check power supply. Disassemble and clean the suction hose, prevent from suction of foreign substances.
Insufficient amount of water pumped	Too high suction head. Strainer of the check valve dirty Water level quickly drops down	Check the suction head. Clean the strainer., Position the check valve lower. Clean the prefilter 10→10 Clean the pump and replace worn parts. (qualified workshop)

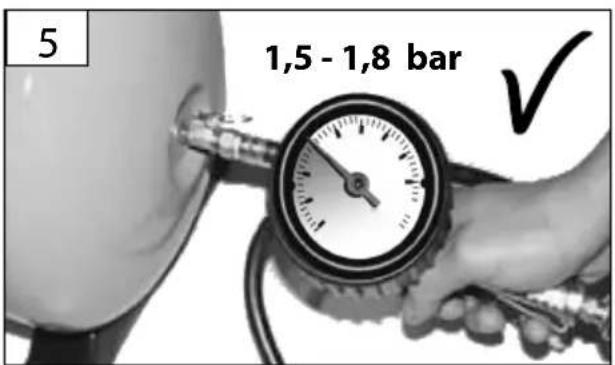

Reduced switching intervals	Air pressure in the receiver too low Control air pressure. →11

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.

2006/95/EC 2004/108/EC

2009/105/EC 1907/2006/EC

2011/65/EC ROHS 2009/42/EC

☐ 89/686/EEC (PPE) 1935/2004/EC

2006/42/EC

Annex IV

Notified Body: No:

Name:

Adress:

Type Ex. Cert.-No.:

□ 97/68/EC

Emission No.:

2000/14/EC_2005/88/EC
