USER MANUAL EGO-C25DCS CANDY

Microwave Oven Owner's Manual

Please read these instructions carefully before installing and operating the oven. Retain this manual for future reference.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the

a. Door (bent),
b. Hinges and latches (broken or loosened),
c. Door seals and sealing surfaces.

1. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

CONTENTS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

SPECIFICATIONS 2

BEFORE YOU CALL FOR SERVICE

INSTALLATION 2

GROUNDING INSTRUCTIONS 3

RADIO INTERFERENCE 3

IMPORTANT SAFETY INSTRUCTIONS 3

MICROWAVE COOKING PRINCIPLES 6

UTENSILS GUIDE 6

PART NAMES- 7

CONTROL PANEL 8

HOW TO SET THE OVEN CONTROLS 9

Setting digital clock 9
Microwave cooking 9
Grill cooking 10
Microwave and Grill cooking 10
Convection cooking 10
Microwave and Convection cooking 11
Defrost By Weight 11
Quick Start 11
Defrost By Time 11
Auto Cook 12
KeepWarmfunction 12
Child Lock 12
AUTOMATIC PROTECTION MECHANISM 13
CLEANING AND CARE 14

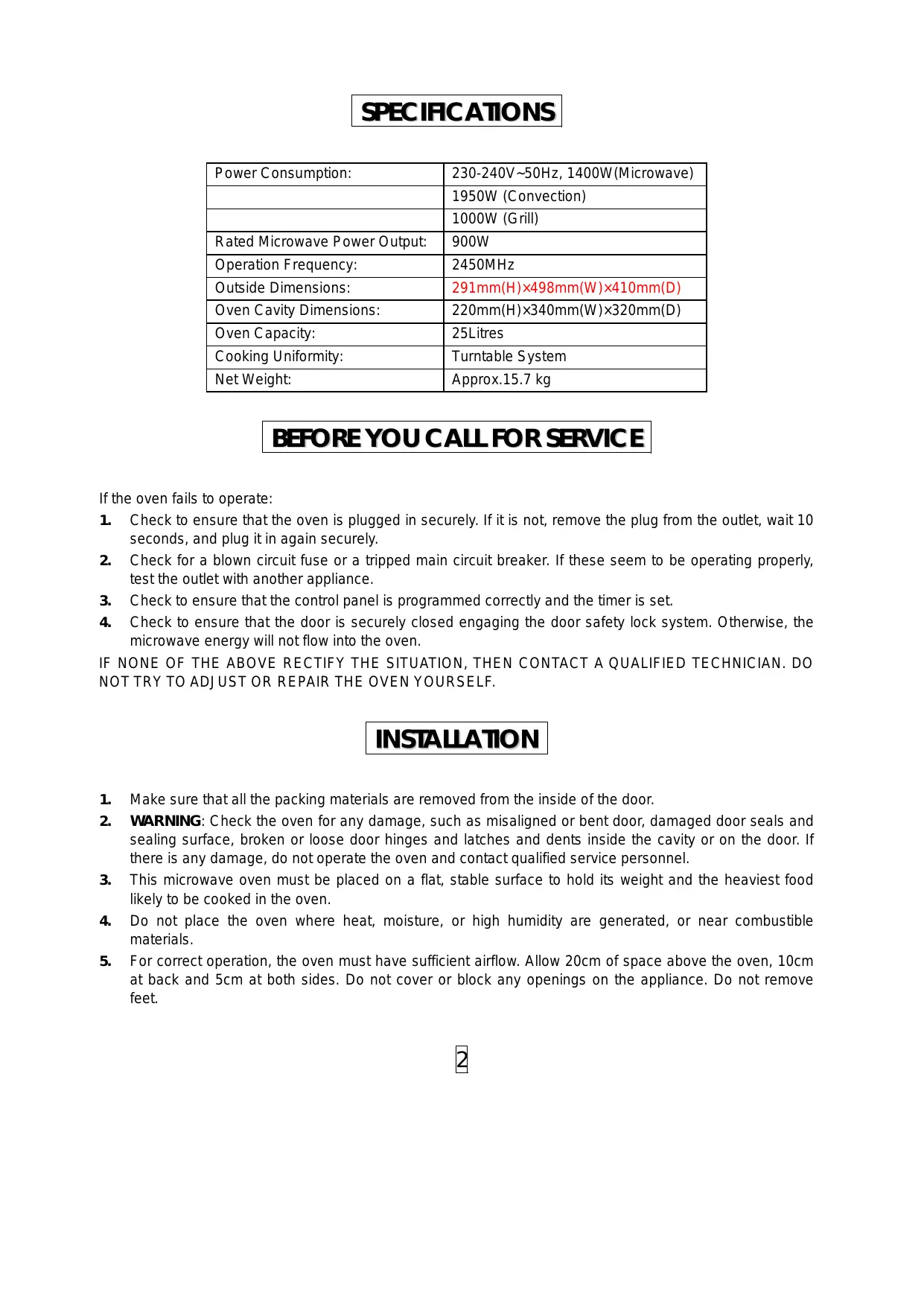

SPECIFICATIONS

Power Consumption:	230-240V~50Hz, 1400W(Microwave)
	1950W (Convection)
	1000W (Grill)
Rated Microwave Power Output:	900W
Operation Frequency:	2450MHz
Outside Dimensions:	291mm(H)x498mm(W)x410mm(D)
Oven Cavity Dimensions:	220mm(H)x340mm(W)x320mm(D)
Oven Capacity:	25Litres
Cooking Uniformity:	Turntable System
Net Weight:	Approx.15.7 kg

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFY THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.

5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.

6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.

7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. Do not use the oven outdoors.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

Note

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment.

When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
5. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
6. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
7. To reduce the risk of fire in the oven cavity:
   a. When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition.
   b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
   c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
   d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
8. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.
9. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.
10. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
11. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
12. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
13. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
14. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
15. Utensils should be checked to ensure that they are suitable for use in microwave oven.
16. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
17. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose for domestic purpose.
18. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
19. Children should be supervised to ensure that they do not play with the appliance.
20. The microwave oven is only used in freestanding.

21. WARNING: Do not install oven over a range cooktop or other heat-producing appliance. if installed could be damaged and the warranty would be avoid .

22. The accessible surface may be hot during operation.

23. The microwave oven shall not be placed in a cabinet.
24. The door or the outer surface may get hot when the appliance is operating.
25. The temperature of accessible surfaces may be high when the appliance is operating.
26. The appliance shall be placed against a wall.
27. Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
28. Children being supervised not to play with appliance
29. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person
30. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.
31. The microwave oven is for household use only and not for commercial use.
32. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
33. Please secure the turn table before you move the appliance to avoid damages.
34. Caution: It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.
35. The microwave oven is intended for defrosting, cooking and steaming of food only.
36. Use gloves if you remove any heated food.
37. Caution! Steam will escape, when opening lids or wrapping foil.
38. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
39. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle.

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

UTENSILS GUIDE

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.
2. Microwave can not penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

Cookware	Microwave	Grill	Convection	Combination*
Heat-Resistant Glass	Yes	Yes	Yes	Yes
Non Heat-Resistant Glass	No	No	No	No
Heat-Resistant Ceramics	Yes	Yes	Yes	Yes
Microwave-Safe Plastic Dish	Yes	No	No	No
Kitchen Paper	Yes	No	No	No
Metal Tray	No	Yes	Yes	No
Metal Rack	No	Yes	Yes	No
Aluminum Foil & Foil Container	No	Yes	Yes	No

Combination: applicable for both "microwave+ grill", and "microwave+ convection" cooking.

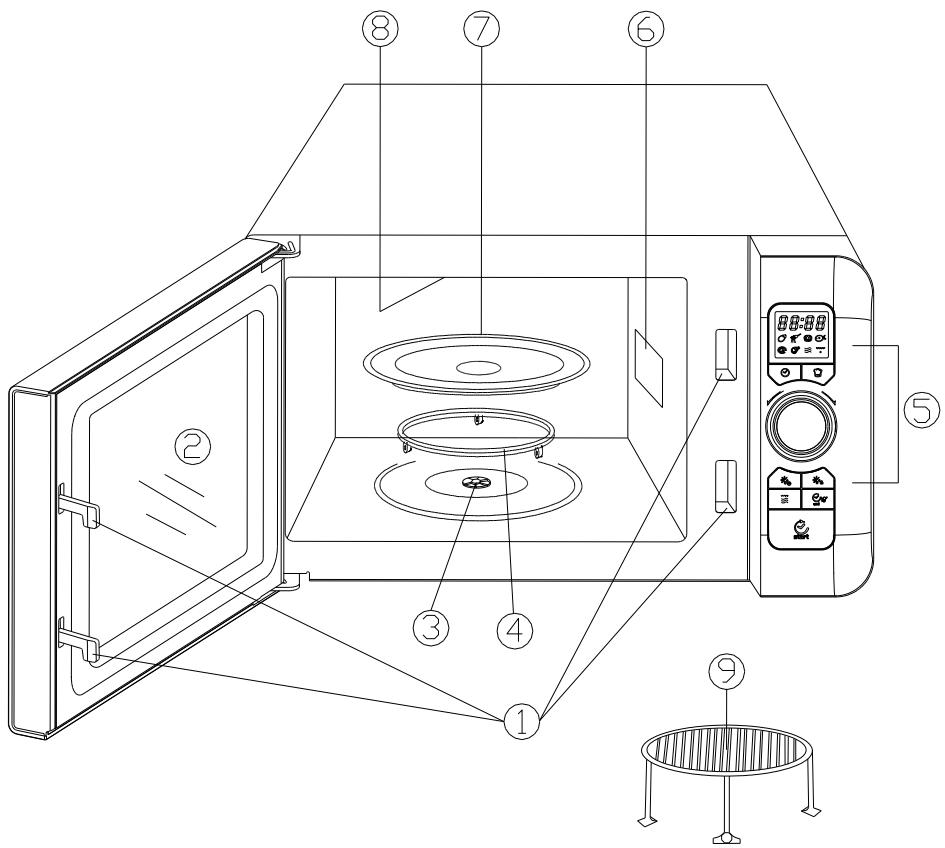

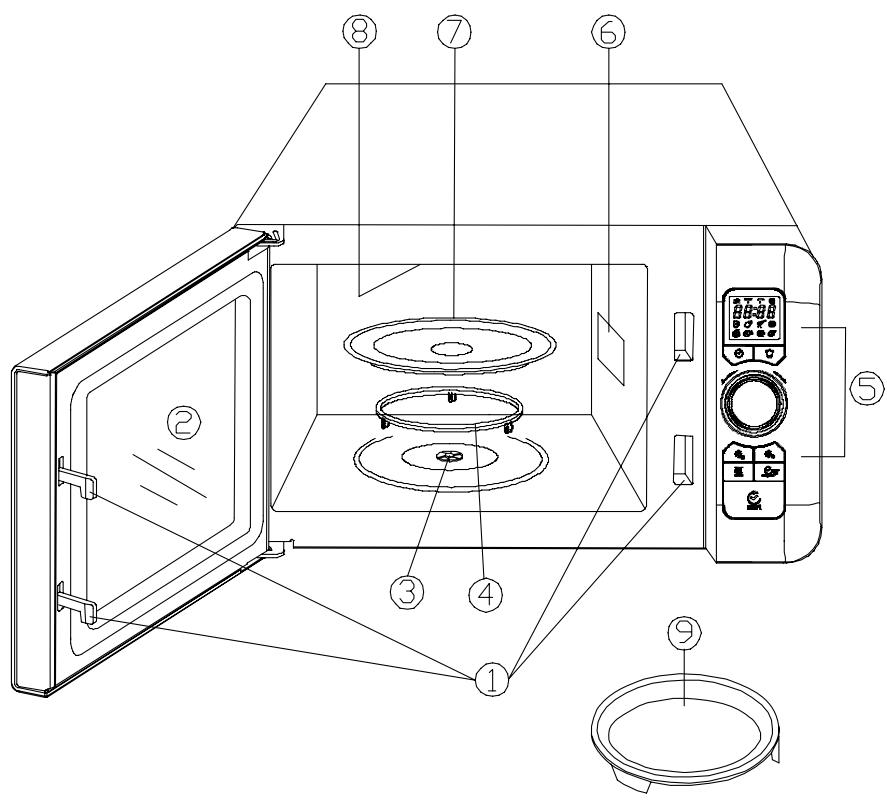

PART NAMES

1. Door Safety Lock System
2. Oven Window
3. Shaft
4. Turntable Support
5. Control Panel
6. Wave Guide

(Pleases do not remove the mica plate covering the wave guide)

1. Glass Tray
2. Grill Heater
3. Metal Tray

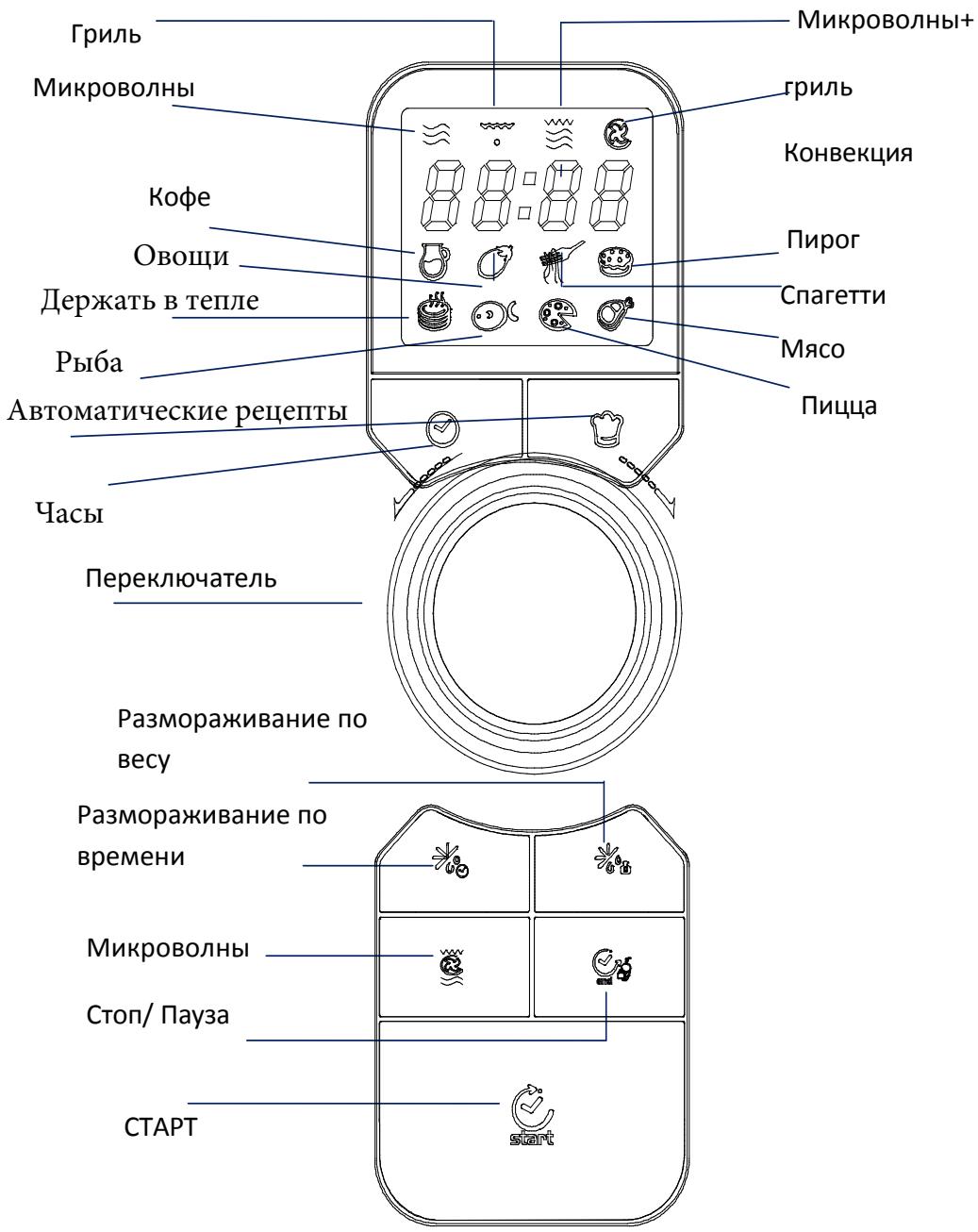

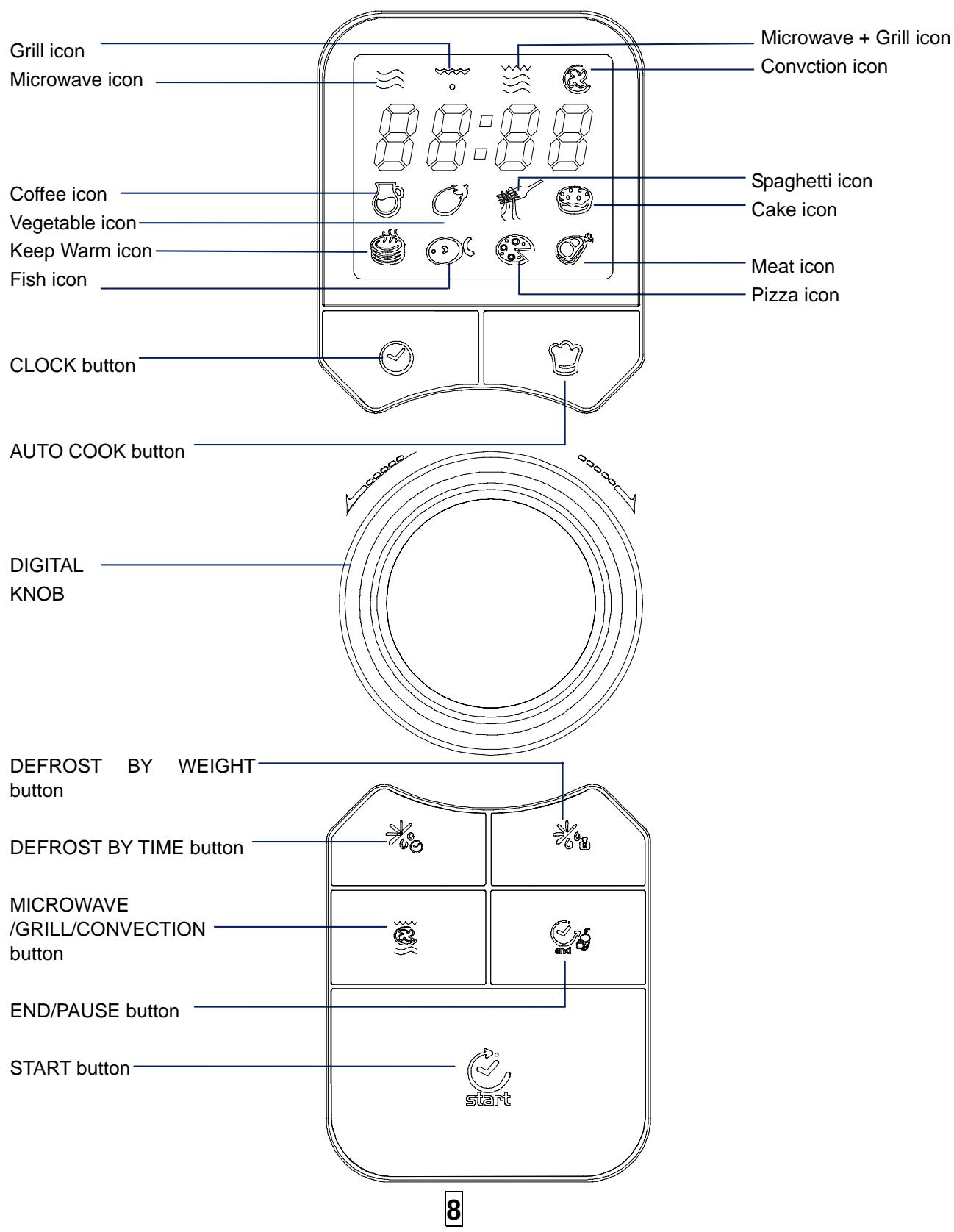

CONTROL PANEL

HOW TO SET THE OVEN CONTROLS

• After plugging in the oven or waiting for 60 seconds without operation in standby mode, the system enter into lock mode, you can't operate it until pressing START button.
• When setting a program, you can get the oven return to the standby mode after pressing END/PAUSE button or waiting for 30 seconds.
• During cooking, you can pause the program by pressing END/PAUSE button once, and then press START button to resume or press END/PAUSE button again to cancel it.
• After finishing a cooking program, the system will remind you once for every 2 minutes until you press any button or open the oven door.

Setting digital clock

With the oven ready for input, touch the CLOCK button once or twice to set the digital clock in 12 or 24 hours cycle.

FOR EXAMPLE: Suppose you want to set the oven clock time to 8:30.

1. Press CLOCK button.
2. Turn DIGITAL KNOB to indicate the digital clock in 24 or 12 hours cycle.
3. Press START button to confirm.
4. Turn DIGITAL KNOB to indicate the hour digit 8.
5. Press START button to confirm.
6. Turn DIGITAL KNOB to indicate the minute digits until the screen shows 8:30.
7. Press START button to confirm.

NOTE: During cooking, you can press CLOCK button to view the clock time.

Microwave cooking

The longest cooking time is 95 minutes.

There are six kinds of power level from P-00 to P100.

Suppose you want to cook for 5 minute at 60% power level.

1. Place food into the oven and close the door.
2. Press MICROWAVE/GRILL/CONVECTION button.
3. Turn DIGITAL KNOB to select microwave function and the screen shows ≈
4. Press START button to confirm.
5. Turn DIGITAL KNOB to select the power level until the screen shows P-60.
6. Press START button to confirm.
7. Turn DIGITAL KNOB to set the cooking time 5:00.
8. Press START button.

Note: During cooking, you can press MICROWAVE/GRILL/CONVECTION button to check the cooking power.

Grill cooking

The longest cooking time is 95 minutes.

Suppose you want to grill food for 10 minute.

1. Place food into the oven and close the door.
2. Press MICROWAVE/GRILL/CONVECTION button once.
3. Turn DIGITAL KNOB to select grill function and the screen shows ≈ ≈
4. Press START button to confirm.
5. Turn DIGITAL KNOB to set the cooking time 10:00.
6. Press START button.

Microwave and Grill cooking

The longest cooking time is 95 minutes.

There are two kinds of combination cooking mode.

Co-1: 30% time for microwave cooking, 70% for grill cooking.

Co-2: 55% time for microwave cooking, 45% for grill cooking.

Suppose you want to cook for 15 minute at combination mode.

1. Place food into the oven and close the door.
2. Press MICROWAVE/GRILL/CONVECTION button once.
3. Turn DIGITAL KNOB to select combination function and the screen shows
4. Press START button to confirm.
5. Turn DIGITAL KNOB to select combination mode and the screen shows Co-1 or Co-2.
6. Press START button to confirm.
7. Turn DIGITAL KNOB to set the cooking time 15:00.
8. Press START button.

Convection cooking

The longest cooking time is 95 minutes. Temperature: 110^ 200^ .

For example, suppose you want to cook for 30 minute at 160^ .

1. Place food into the oven and close the door.
2. Press MICROWAVE/GRILL/CONVECTION button once.
3. Turn DIGITAL KNOB to select combination function and the screen shows
4. Press START button to confirm.
5. Turn DIGITAL KNOB to select 160^ .
6. Press START button to confirm.
7. Turn DIGITAL KNOB to set the cooking time 15:00.
8. Press START button.

Microwave and Convection cooking

The longest cooking time is 95 minutes.

There are 4 kinds of combination cooking mode: Co-1→Co-2→Co-3→Co-4.

Co-1: 73% time for microwave cooking, 27% for convection cooking.

Co-2: 58% time for microwave cooking, 42% for convection cooking.

Co-3: 45% time for microwave cooking, 55% for convection cooking.

Co-4: 30% time for microwave cooking, 70% for convection cooking.

Suppose you want to cook for 20 minute at combination mode Co-2.

1. Place food into the oven and close the door.
2. Press MICROWAVE/GRILL/CONVECTION button once.
3. Turn DIGITAL KNOB to select combination function and the screen shows and
4. Press START button to confirm.
5. Turn DIGITAL KNOB to select combination mode Co-2.
6. Press START button to confirm.
7. Turn DIGITAL KNOB to set the cooking time 20:00.
8. Press START button.

Defrost By Weight

The oven allows the defrosting of meat, poultry, and seafood. The time and the defrosting power are adjusted automatically once the weight is programmed. The range weight of frozen foods varies between 100g and 1800g. FOR EXAMPLE: Suppose you want to defrost shrimp.

1. Place the shrimp to be defrosted into the oven.
2. Press DEFROST BY WEIGHT button once.
3. Turn DIGITAL KNOB dial to choose food weight.
4. Press START button to start.

Note: During defrosting program, the system will pause and sound beeps to remind user to turn food over, and then press START to resume the defrosting.

Quick Start

Use this feature to program the oven to microwave food at 100% power conveniently.

In standby mode, press START in quick succession to set the cooking time. The maximum cooking time is 10 minutes. The oven will start working automatically.

Defrost By Time

The longest cooking time is 95 minutes. The oven can quickly defrost food to the set time you entered.

FOR EXAMPLE: Suppose you want to defrost meat food.

1. Place the meat food to be defrosted into the oven.

2. Press DEFROST BY TIME button once.

3. Turn DIGITAL KNOB dial to set cooking time.

4. Press START button to start.

Note: During defrosting program, the system will pause and sound beeps to remind user to turn food over, and then press START to resume the defrosting.

Auto Cook

For food or the following cooking mode, it is not necessary to program the duration and the cooking power. It is sufficient to indicate the type of food that you wish to cook as well as the weight of this food.

For example, to cook Fish.

1. Press AUTO COOK button.
2. Turn DIGITAL KNOB dial to show Fish icon.

Code	Menu
A-1	Coffee
A-2	Vegetable
A-3	Spaghetti
A-4	Cake
A-6	Fish
A-7	Pizza
A-8	Meat

1. Press START button once to confirm.
2. Turn DIGITAL KNOB dial to choose food weight.
3. Press START button to start.

Keep Warm function

Keep Warm temperature is 50^ .

1. Press AUTO COOK button.
2. Turn DIGITAL KNOB dial to show Keep Warm icon.

Code	Menu
A-5	Keep Warm

1. Press START button to start.

Child Lock

Use to prevent unsupervised operation of the oven by little children.

To set the CHILD LOCK: Press and hold the END/PAUSE button for 3 seconds, a beep sounds and lock indicator lights.

To cancel the CHILD LOCK: Press and hold the END/PAUSE button for 3 seconds until lock indicator on display goes off.

AUTOMATIC PROTECTION MECHANISM

1. When the system enters into super high temperature protection status, the digital display shows "E-1" and continues to beep till the system comes back to normal condition and then press END/PAUSE.
2. When the system enters into super low temperature protection status, the digital display shows "E-2" and continues to beep till the system comes back to normal condition and then press END/PAUSE.
3. The system enters into protection mode when the system sensor is Short Circuited. The display shows "E-3" and continues to beep until pressing END/PAUSE. Call consumer service to check and replace the faulty sensor.

4. COOLING FEATURE

The controlling system of the microwave oven has the feature of cooling. As for any cooking mode which cooking time above 2 minutes, after finishing cooking, the oven fan will work about 3 minutes automatically to cool the oven for prolonging the life of the oven.

CLEANING AND CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
11. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
12. Please do not dispose this appliance into the domestic rubbish bin, it should be disposed to the particular disposal center provided by the municipalities.
13. When the microwave oven with grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon, because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.

MODEL: EGO-C25DCS

Horno de Microondas

1. Reinigen Tur-und Dichtfläche des Ofens.
2. Richten Sie die Empfangsantenne des Radios oder Fernseher.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

Combination: applicable for both "microwave+ grill"

TEILEBEZEICHNUGEN

NOTE: During cooking, you can press CLOCK button to view the clock time.

Microwave cooking

The longest cooking time is 95 minutes. There are six kinds of power level from P-00 to P100.

Suppose you want to cook for 5 minute at 60% power level.

1. Place food into the oven and close the door.
2. Press MICROWAVE / GRILL button.
3. Turn DIGITAL DIAL to select microwave function and the screen shows “ ≈ ” .
4. Press START button to confirm.
5. Turn DIGITAL DIAL to select the power level until the screen shows P-60.

POWER	100%	80%	60%	40%	20%	0%
DISPLAY	P100 ≈	P-80 ≈	P-60 ≈	P-40 ≈	P-20 ≈	P-00 ≈

1. Press START button to confirm.
2. Turn DIGITAL DIAL to set the cooking time “5:00”.
3. Press START button.

NOTE: During cooking, you can press MICROWAVE / GRILL button to check the cooking power.

Quick Start

Use this feature to program the oven to microwave food at 100% power conveniently. The maximum cooking time is 10 minutes.

In standby mode, place food into the oven and close the door, press START button continually to set the cooking time, and the oven will start working automatically. During cooking, you can increase the cooking time by pressing START button.

Grill cooking

The longest cooking time is 95 minutes. Suppose you want to grill food for 10 minute.

1. Place food into the oven and close the door.
2. Press MICROWAVE / GRILL button.
3. Turn DIGITAL DIAL to select grill function and the screen shows “ 三 三 ” .
4. Press START button to confirm.
5. Turn DIGITAL DIAL to set the cooking time "10:00".
6. Press START button.

Combination cooking

The longest cooking time is 95 minutes. There are two kinds of combination cooking mode.

Suppose you want to cook for 15 minute at combination mode.

Symbol	Menu
A-5	Keep Warm

Ecnn He coepkaTb neyb B uHCTOte, ee nobepxHOCTb 6yJeT nopTtbcra, a 3TO yMeNbIIT cPOK CnyKbI M MoKET COZaBaTb OAnCHOCTB npi pa6OTE.

XapakTepeNCTtKu

3eIeHbI N JeITbI = 3EMJIa

CnHn = HENTPAJIbHO

KopuHHeBbI = ΦA3A

3To obopyoBaHne DoJIKHO 3aEMJIbTcBc. B cnUyae KOPOTKORO 3amblKaHnI 3JeKTPnueckOu CEIN 3a3EmJIeHne YMeHbShaet OAnCHOCTb NOPaKeHnI 3JeKTPnueCKM TokOM, oBeCneHbA yTeKY 3JeKTPnueCKOr TOKA. 3Ta neCb 6obopyoBaHa UHypom C 3a3EmJIIOUcIM npOBODm 3a3EmJIeHHbIM 8TeNCeJIem. 8TeNCeJIb CNeDyET BCTABNtB B PO3eTK, KOtOpAr npabInbHO yCTAHOBJIeHa n 3a3EmJIeHa.

EcIn INHCTpyKUIN NO 3a3eMneHIO He COBCEM
NOHRTbI ININ OCTaANCSB COMHEHNA B
npABINbHOCTN 3a3eMNEHIN,
npOKOHcYbTnpyITecB C
KBaINΦuINpOBaHNbIM CnEuaINCTOM ININ
pa6oTHNKOM cepBcHcON cnJxkbI. EcIn
pnXoNDITcN HCNoJIb3OBAt b ydINIHNITb,
noJIb3yIteCB ToJIbKO 3-INOBOdHBIM
yDINIHNTeJIbHbIM SHHypOM.

1. Ha neyu yctaHOBJIeK KOpOTkIshHpy, UTObI yMeHbUINb ONaCHOCTb 3aNyTbIBaHnI dLIINHOrO shHypa, I UTObI Ha HrO He HAcTypanI.
2. Ecni nCnObl3yeTcra DInHHbI shHyp nnu yDnHHNTeJIb:

1)HomHaHbHbIe 3JKeTpoTeXnUeCKHe xapaKTePncTNI, yka3aHHbIe Ha shHype IIN Ha ydInnHTeJIe,doJIxHbI 6bITb He MeHbIe XapaKTePncTIK, yka3aHHbIX DnIy Neu.
2)YdINHHTeJIb DoJIKeH 6bITb 3- npOBoDHBIM, C 3a3eMJIeHHbIM npOBoDOM.
3)ДиINHbI ShHyp HUxHO npOJIOKHTb TaK, YTO6bI OH He CBVCan HaD CTOnKOu INn HAd CTOnOM, Ide erO MOKeT NOTaHyTB pe6eHOK, INn IDe erO MoXHo CJIyauHaHO 3aZeHNrB.

NOCYDA

IPENDYPPEKDEHNE Onachoctb TpaBmbl

Onacno CamocToTeIbHo
npOBoNTb OcCnyJXHBAHne NnI
peMOHT, KOTOpB bKlIOuaye
yJaIaHENe POKpbITnA,
3aUIIuaOuJeO OT
BO3JeCTBnM NKPOBOJHOBOH
3Heprn. 3TO dONJxeh CdEnaTb
CneIuaJIInCT.

CMOTPINE INHCTpyKUIO《MaTePnaIbI, KOtOpBIE MOXHO
NcONJIb3OBA Tb B MInKPOBOINHOBoI Neu, I KOTOpBIE HeJIb3a
NOMeUaTb B MInKPOBOINHOByIO ney》. CyueCTByET
HEMeTaJINuCeCKa Nocya, KOTopy IO HeBe3oNaCHO IOdBepraTb
BO3JeICTBnIO MInKPOBOIN. EcnI eCt b COMHeHnA, MOxHO
ONpOboBa Tb Nocdy, npOBeJc CLeDyUOsiNe npOceDypbl.

OnpooboBaHne nocydbi:

1.HanolnHTe npeHa3NaeHHb IJnMknpoBONH KOHTeHep 1 cTaKaHOM (250 M) xOLOdHOBdI, a B Hee yCTaHOBnTe NocyDy, KOTpyu XOTnHe OTOpOobBaTb.
2.HarpeBaIte Ha MaKcImaJIbHoi MoUHOCTn 1 MmHyTy.
3.OctopoXHO KOCHNTecb nocybl. Ecnn npCTaN nocyaTennna, He nCnOJIb3yIe ee dJa pnpTOToBNeHn B MmKpOBnHOBoI neH.
4.He npeBbIaIe Te BpeMeH HArpeBa 1 MInHyTbI.

MaTePnAJIbI, KOToPbIE MOxHOb HcNoJIb3OBaTb B MmKpOBOnHOBOn Neu 3aMeuHaN O nocyde

He chImaIte CBeTIO-KOpuHHeBoe nokpbITne "Mka"KOTOpoe 3akpenIeHO B KaMepe neu dIy 3aunIbI OT n3JyuHnMaarHeTpOHa

YctaHObKa nIOdknIouHeHne

1.YctpoiCTBO npedHa3NaeHOn NCKIIOHTeJIbHO Dnla 6bITOBORO DomaShero pPIMHeHn.
2.3Ta neyI ppeHa3HaueHaToIbKO dIa BCTpoEHNo yCTaHOBKn. OHa He npedHa3HaueHa dIy UcTaHOBKn Ha paOoey NOBepxHOCTn IIN BVHTpn KkyOHHOrO 1kaΦa.
3. 063aTeIbHo cO6JIuDaIte DeIcTByIOUe IpaBnJa yCTaHOBKn 3JeKTPooObpUoBaHnJ.
4.3TO yCTPOIcTB MOKeT yCTaHaBnBaTbCBA 3aKpeJIeHHOM Ha CTHe UkaΦy UwpiHoi 60 cm (TJy6HoiH He MeHee 55 CM n HA BbICote He MeHee 85 CM OT IOna).
5. UcTpoIcTBO oBOpyIDoBaHO cTaHdapTHOH BuJIKO I DoJXHO NIOKJIIOUaTbCra TOnBJKO K npaBnIbHO yCTaHOBLeHHO 3a3eMJeHHO p03ETke.
6. HanpjaKeHne B cETn DoJIxHO COOTBeTCTBOBaTb HapraJKeHIO, yKa3aHHOMy Ha 3aBoDcKo TaBnUKe.
7. UctahOBky po3eTKn I NOdkHoucheHne Ka6eIaDOLKeH npOIN3BOIDHT TOJIbKO KBAIIHcNUPOBAHHHbI 3NeKtprk. EcIn B pe3yIbTaTe yCTAHOBKn BUNKa OKa3bIBaETcR b HeIOCTyHOM MeCTe, Ha JINHN IOKJIIOUChENr CNEdyET YCTAHOBITb OBsIe BBIKJIOuAteIb c paCCToHMeJy KOHTaKTAMn He MeHee 3 MM.
8. 3anpeaetcnaonb3oBaTb nepexoHnKn, troHnKn u ydnHnteN. Penerpy3ka moKet npBecTe K noXapy.

Doctynha
NOBepXHOCTb BO
Bpempa6oTbI
Neu MoKeT HarpeBaTbCra.

PykoBoDCTBO no 3KcnIyatauH

1. Hactpoika yacob

PpmeaHn. 1) Ecnn Yacbl He yctaHOBneHb, OHN He 6ydt pa6oTaB npn NODKnOHeHH neu K cetn 3NeKTponHTAHn.

2) EcInB npocece yctaHOBKn YacOB hajatb " STOP" ", neYb aBTOMaTneCKn BepHeTcK npEdbIyueMy coCTOHHIO.

" "START" "noTBePdIte MOUHOCb.3aTeM c NOMOuBIO pyKoRTkn " yCTaHOBITe Bpema

nprirotoblenno 0:05 do 95:00. Eue pa3 haxmnte " START" ", YTO6bI NaaytB npocecc nprirotoblenna.

Ipnmep: 8bBkHouHb neh Ha 80% MOUHOCTn Ha 20 MInyT, BbIOJHnTe CNe dyOuue DeiCTBnA.

1) Haxmte oDIN pa3 "MICROWAVE".PnI 3TOM ha nDCNIIe NOBNTcR naNNscb "P100".
2) Haxmite "MICROWAVE" "euple pa3 nIIN NOBepHnTe pyKoAry" " yctaHOBnTe ypOBeHb MOUHOCTH B 80%.
3) UTo6bI nOToTbePdntb, HaxMnTe"
4)Поворотом руковский" установские В装配 - на дослес Должно появьск矮а Занени "20:00".
5) Haxmte " "START" - npn 3tom hauhctc npirotoBneHne.

IpiMueaHn. I3MeHeHne BpeMeHn pnproTOBHeHn npOxCxOHT no-pa3HOMy B pa3HbIX dHaapa3Ohax DmTeHbHOCTn npiroTOBHeHn:

0-1MHN :5ceKHyD
1-5MHN :10cekyHd
5-10 MNH :30 cekyHd
10-30MnH :1MnHyTa
30-95 MHH :5 MNHyT

npdoJnKTeBmKpOBoNHOro npiroTOBHeH (KOTope 6ydt npocXoDHT npu ypoBHe MoUHcTn B 100%) n HaxMnTE "START",чTo6bHaCyTa npiroTOBHeH.

5. Pa3MopaxnBaHne no Becy

"ycTaHOBnTe BpEMr npriroToBNeHnO 0:05do95:00.

Eepe pa3 nakmnte " "START" ", uTo6bI naHauTb npOToecn npiroToOBneHna.

PImeHAnu. IIO nCTeHEnnIONoBnBu yCTAHOBLeHHo npOdoNkHTeNbHOCTI pRTOBOTHeNIO ND pRINEM DABKDb 3BvHT 3BvKOBoi CnHAn.

Iaunyueheni KaueCTBa npiroTOBToHEnIO nOriPnEM roTOBtueeoc 6nIO OneCNEyET nepeBepHTb 3AkapbITb DBePUy neHcEcnYctAOBKn E bNIn NImeHbEs, To npiroTOBToHNpOdoNkTtC.

9 PnpuroToBnHeHne B pexmKeKUa

Haxmnte "MICROWAVE" oIN pa3.

NOBOPOTOM pYKoTKN

UCIOBNA TAPAHNHOOBCJNUBAHNA

UCIOBIAI TAPAHINHOFOOBCJYKINBAHNA

Cpok rapaHTnn - 12 mecnEb OT daTbI npOJaKn.

Bo BpemraTnHOro IepnoJa IIO6oI peMOHT MOKeT 6bITb BbIIIOJIHeH TOJIbKO KBAJIINΦI\PuPOBaHHbIM CIIeuaJIInCTOM cepBnCHOrO ΠeHTpa.

Ipeep nauo mepoHTa np6op hao OTKIOHHTB ot 3eKTPocetn, cHb IpeOxpaHntel NIN BbTHyB IIHyp
IItAHn H3 po3ETKn. HeippoeeCCHHOAHLHo BMeATeJIbCTBO n pemOH T aIIAPATA OAnchbl, OHN MOYr Bb3lbAtB
IIeHTaIeHNHe 3eKTPnueCKHM TOKOM N KOPOTKc 3AMbKaHne; CNEIOBaTEbHO, He IIbTAEteC yCTPAHtB
HEncpABNOCTc camOToTeBJHO.OCTaBte 3Ty paOTo CNEUAAHCTAM NIN PpeDCTaBNTeIM CepBNCHOI CEHTPa.
EcIn B paOto aIIAPATA BO3NHKnL KaKne-TO He3NaHTeBJHbE IIO6JIbM, IPOBepbTe C IOMOJIbU CNeIyIOJXs
INCTpyKUn, NIN CIIIO6BOH BBy IyPpABTcBc HmH Camn. Bn3NT CNEUAAHCTa N3 ABTOP3OBaHORO CepBNCHOI
IeHTra IOnJKeH 6bTB OIIaueHHBM Bam, ecN b6yDet YCTaHOBHe, YTO pnp6Op He paObaTe Ype3 ENoIObAOUIe
IIN He6peXHoe IcNOB3OBaHHe. XpaHnte INCTpyKUnTO kAmH 6pbzOM, YTO6bOHa OBAeTa IyIa IOI pyKoi B
ClyuHn Heo6xoDMOCtN; ecN 6yDete pepeDaBaTb Ipi6Op dpyROMy LIuY, IpeeaIe To TAKKe I INCTpyKUnIO.

UCIOBIA:

CeptnΦnKaT

TapaHTnJa DieCTBnTeJIbHa ToJIbKO IIpH NaIIuHm DeIcTBeJIbHOrO TapaHTnHOro CePTnΦHKaTa.

TapaHTnHbI ceTpNcKAT He DeiCTBnteIe Hpi NaIIMuN B HEm OIIIN60K, NcPiabIeHN IIN HECOTBTCTBNI.

B CeptnΦnKaTe IOnJKnbl 6bIb 3aIOJIHeHb IyNkTb: Na3BaHne I3dJIeNIA, MoIeJIb, cepHnHbI HOpE m3dJIeNIA, daTa IIpoJaKn, IIIOINcB IIpoJABuIa, IIeauTb TOPROBo OPraHn3aUIN. IIpn OTCyTCTBn IaTb IIpoJaKn, cPOK rapaHTnI aBTOMaTHueckn y6bnpaETcra N3 DaTb I3rTOBJIeHn yCtPoIcTba.

TpaHcIIOptIPOVBKa I xpaHeHne

Hn KaKHe IeΦeKtBt N3eJIIny, BbI3BaHHbIe He3a6oTIIINBOI TpaHCIOPTNPOBKO IN XpaHeHNEM N3eJIIny, He IIOJIeKaT 6ecIIaTHOMY rapaHTNIHOMY peMOHTy;

UcTaHOBKa n KcΠIyatauia

BecnIaTHbI rapaHTnHbI peMOHT He npoBOuNTcA, ecIn JeΦeKt H3JIeJIbY Bb13BaH:

HIIpaBnIbHbIM IIOKIIIOUeHHeM N3JeIINK INTOOHKy eIEKToP-, BOIO- I Ra3OChA6KeHne, a TaKKe HecOoTBcTCTBHe IIapAmTePoB BbIIeYKa3aHHbIX INTOOHKnOB IIapaMeTpam, KOTopbIe IIpeJIbYBIIaIOTc O6J3aTeJIbHbIMN

FocyapCTBeHHbIM cTaNapTaMn I NcTpyKuNeI IO KcIIyaTaMn.

3KcIIyataHnI3dEIn,IOKIIIOeHHbIX K cTeI 220B 6e3 3a3eMHeHnA, a TaKke IIOKIIIOeHHbIX K nCTOHTNky BOIOChA6JHnH 6e3 OTJIbHO rKaHa IIOaHu BObI K N3dEInIO YBIAETC cyIeCTBeHHbIM HApYHEHem IHCTpyKIIIN IO 3KcIIyataHnI M oMeT 6bITb OCHOBAHm E IIA CHTIN N3dEInN C rapaHTIN HO O6cIyJKNBaHn. IVcIIob3OBaHnE IIpIb6pa He B COOTBeTCTBN C INCTpyKIIne, a TAKKe HeIppaBbHO JIKcIIyataHnE, YTO BB3bBAIO IOIPOBILHe MEXAHuecknx I pUTHX BUNO DEΦeKTOB;

IcIOJIb3OBaHHe I3IeIIHa He B COOTBeTCTBnC eITo IpIaMbIM Ha3HaueHHeM IIN He B IOMaIIHHx YcIOBnX.

IpiHn HApuyIeHHI IIOm6bOpBaHnI IIO npTyHM IpNHyHAm, KOtOpBte He 3aBcIaT O3aBOJa-IPOn3BOJntTeJI He6peKHOCTb IIpi XpaHeHH, EKCIIpyataaII IN TpaHCIOPTpOBKe BlaJeIbIeM, TOpROBo NII IN TpaHCIOPTHOJ opraHHaIeIe.

B cIyae IIOtepr rapaHTnHOro TaIOna HIIu YeKa, BlaJeIeI, N36aBJIeTcra IIpaBa Ha 6ecIIaTHoe cepBvCHoe 06cIyKbVAHne

B cIyae IIOKIIIOUeHnI TexHnKn He cepTnΦNIIuPobAHbIM cepBnCHbIM ΒeHTpOM, N3dJIne cHmMaETcN 3 rapaHTn. PeMOHT

BecIIaTHbI rapaHTnHbI peMOHT He npBOOITcA, ecIn n3JIeIe:

CJIeIbI NIOCTOPOHHEOBMEIIaTeIbCTBa IIN peMOHTa He yIIOIHOMOyeHHbIMN IINaM;

IMeet He caHKIOHOHPOBAHHbIe 0npMo I3MEHeHnKoHcTpyKIOHN IIIN HeIIpneMJIeMbIe KOMIIIEKToIiE;

IMeetIOBpeKdEHHy,Bb3BaHHbHe HeIpeDcKa3yeMbIMn ABLeHNNMn I JeCTBnMn CTNXN;

IMeetIOBpeKdEHeN, BbI3BaHHbIe, IcIIOJIb3OBAHmE HecTaHApTHbIX MaTePnaIOB I yctpoCTB;

IMeet IOBpeKJdeHnY, Bb3BaHHbIe IIOJaAHnEM B cepeINHy IN3JeINy IIOCTOpOHnX IIpeIMeTOB, JKNBOTbIX INI HaceKOMbIX;

He nmeet cepnHoro Homepy nn ero HeBO3MOxHO yCTaHOBHTb;

IMeet HekOMIIeKTHoCTb Iocne erO npOJaXn;

IMeet MexaHnueckne IIOBpeKJehna(CTeKJIaHHbIe I IIpaCTNKOBbIe I3JeIIIA);

Fapantna He paccipoctpaHaeTcHa pacxOdbHe MaTePnAJIb N aKceccyapbl.

OTBeTCTBeHHOCTb

ΦHmMa He Hecet OTBETCTBEHHOCTh 3a y6bTKI IIpyueHeHHBe Bam IIN OKpykaIOHM B CBA3N C HECOOTBETCTBEHHbIM NCIOJIb3OBaHHem IIpIbOpa.

BBeJeHne n3eJIINb E KcIpyaTaIIO H Iopap6OTky CeTe eIeKToPo-, BOIO- I ra3OChA6KeHne IJIa COBMeCTHMOCtN C n3eJIINeM He IyJIeTc8 30HOJ OTBeTCTBeHHoCTn ΦHpMb I ΦHpMoI He OIIaYHbAeTc8. B cIyuae Bo3HNKHObeHIn NIO6bIX IPO6IeM C BaIIIM M PIP6OpOM, IpeIe TEM KaK Bb3bIBaTB MaCTepa, IPOBepbTe IpaBnJIbHoCTb YcTAHOBKn I yHKIIIOHnPOBaHIn B COOTBeTCTBn C IHCTpyKIIeN. OIIaTy Bb3OBA MaCTepa Bbl6yTe IPOBOINb 3a CBoI Ccyet, ecII IN 3eJIeN 6blIO B pa6Oyem COCTOHN IIIN 6blIO HIIpaBnJIbHO yctAHOBLeHO, INI HIIpaBnJIbHO NCIOJIb3OBAIOc8.

3a KaueCTBO rapaHTnHOro peMOHTA OTBETCTBeHHocTb Hecet O6cIyKnaIOJaaOpraHn3aIIa(cIyK6a cepBnca). IOIOJIHNTEJIbHYIO INHΦOPMAIINIO OTHOCNTeJIbHO IPOJYKIIIN MAPKIN CANDY BBI MOXETE IIOLYUHTb HA CAITE

WWW.CANDY.UA

3A TEJIΕΦΟHOM ΓΟΡΥΕΝΙΗΝΙ

044 220 12 89

4. IIpHroTyBaHHa B KOM6iHOBaHomy peKHMi (rphJb)

5. IpiHroTyBaHHa B KOM6iHOBaHomy peXHMi (KoHBeKnIa)

Be3KoHTOBHn rapaHTiHn peMOHT He IPOBOJNTbCra, kIIO Bnpi6:

MaC cIiDn CTOpOHHbO R BTPuAHN a6o peMOHTy He yIOBHOBaJKeHNM o6aMn;
Mahe cahkioHOBAHI 3miHn KOHCTpyKii a6o HeepnHrTHi KOMJIeKtYIOHi;
Maé PONKOJKeHHa, BHKJIHKaHHepepe6aayBaHmN ABHsAmn i iiamn CTHXi;
MaIIOIIKOJKeHHaI, BKNJIINKaHl, BKNOPNCtAHHm HecTaHApTHNX MaTepiAJIb I npncTpoIB;
MaecIOIkoJKeHHa, BHKJIkaHi IIOJaAHmBcepeHNHy Bnpo6y cToPOHHix IppeMeTIB, TBapHH aOkoMax;
He maecepiHoro Homepy a6o Ioro HeMOJINBO BCTaHOBHTN;
Maε HeKOMJIeKTHiCt bIicJMyo IpoJaKy;
Maç MexañúHí NOIJKOJKeHHa (CKJIaHI Ta IIJaCTHKOBi Bnpo6h);

IapaHTi He po3IOBcIOJxOyIObC Ha po3XiJHi MaTePiaJi i akcecyapn.

BijnoBiaJbHictb

ΦipMa He Hece BiIIOBiJaJIbHocTi 3a 36HTKN IIpNHHeHi Bam qN OTOUyOuHM B 3B'J3Ky 3 HeBiIIOBiJINM BHKOpNCtAHHm IIpNJaNy.

BVeIeHnBnPo6y B eKcIIpyataiia I Opo6Ky MepeK eJIeKtpo-, BOIO- i ra3OIOCTaAHN HdIycymichocti 3 Bnpo6om He c3OHOU BiINIOBIAJIbHOCti Bnpo6HnKa H Bnpo6HnKOM He oIIauchTbcra. BBNIIaIKy BHNHKHeHHa 6yIb-kaNX IIpo6Jem 3 BaIHMM IIpHJaIOM.

IIpei TmK BnKJIHKaTH MaIcTpa, IpeeBiPe Te IpaBnJIbHicTb yCTaHOBKn i yHKIOHyBaHHa B BiIOBIDHOCTI Do IHcTpkyii. OIIaTy BnKJInKy MaIcTpa Bn 6yJeTe IpoBOdHTn 3a Cbi paxyHOK, JkiO Bnpi6 6yB B po6oOmy cTaHi a6o 6yB HeIIpaBnJIbHO BCTaHOBJeHN, a6o HeIIpaBnJIbHO BnKOpNCTOByBaBCra.

3a kicTB rapaHTiHOro peMOHTy BiIOBiaJIbHicTb Hece o6cIyROByOua opraHiz(a(cIyK6a cepBicy).

Ybara!
