Product Type	Microwave Oven with Grill
Model	CMG20SMBLI-07
Capacity	20 Litres
Microwave Power	700 W
Grill Power	1000 W (approx.)
Power Levels	5 (Low, M.Low, Med, M.High, High) + Grill combinations
Timer	Up to 35 minutes with mechanical knob
Turntable	Glass turntable with rotating ring and axis
Display	Mechanical knobs (no digital display)
Interior Light	Yes
Door Type	Drop-down (side hinge typical)
Installation	Freestanding only (not built-in)
Dimensions (W x D x H)	Approx. 45 x 36 x 26 cm
Weight	Approx. 12 kg
Power Supply	230 V ~ 50 Hz
Energy Consumption	Approx. 1050 W (input)
Functions	Microwave, Grill, Combination (Microwave+Grill)
Defrost Function	Yes, via microwave power levels
Accessories Included	Glass turntable, rotating ring, grill rack
Cleaning	Wipe with damp cloth; do not use steam cleaner or abrasives
Safety Features	Door interlock, overheat protection (if smoke, keep door closed and unplug)
Repair	Only by trained service personnel; do not remove covers
Warranty	Standard manufacturer warranty (check local supplier)

Frequently Asked Questions - CMG20SMBLI-07 CANDY

What type of cookware can I use in the Candy CMG20SMBLI-07 microwave?

Use heat-resistant ceramic, glass, or plastic containers. Never use metal containers or those with metal trim. For grill and combination modes, only heat-resistant ceramic and glass are suitable. Avoid plastic wrap touching high-fat foods.

How do I clean the microwave interior?

Unplug the oven and let it cool. Wipe the interior, door seals, and waveguide cover with a damp cloth and dry thoroughly. Do not use abrasive cleaners, gasoline, or metal brushes. For odors, heat lemon slices or orange peel in a cup of water for 2-3 minutes.

Can I use the microwave if the door or seals are damaged?

No. If the door or door seals are damaged, do not operate the oven until it is repaired by a trained person. Operating with damaged seals may cause microwave leakage.

How do I defrost food in this microwave?

Place food on the turntable and select a low power level (e.g., M.Low at 30% power). For example, 200g defrosts in about 4 minutes, 400g in 8 minutes, and 600g in 12 minutes. Turn or stir food halfway for even defrosting.

What is the maximum cooking time?

The timer knob allows up to 35 minutes. At the end, a bell rings and the knob returns to '0'. For longer cooking, you can reset the timer after it stops.

Why is my microwave not heating?

Check if the door is closed properly, the timer is set, and the power supply is working. Test with a cup of water for 1 minute. If the light and fan work but water is cold, contact a service center. Disconnect and discharge high-voltage capacitor before any repair.

Can I place the microwave in a cabinet?

No. The microwave must be freestanding with at least 10 cm clearance at the back, 5 cm on sides, and 20 cm above. It should not be built into a cabinet.

How do I use the grill function?

Place food on the grill rack and select a combination mode (e.g., 80% microwave + 100% grill). The grill allows browning and crisping. Use only heat-resistant ceramic or glass containers for combined cooking.

Is the interior light supposed to turn off when the door is closed?

Yes, the interior lamp should go off when the door is properly closed. If it stays on, the door may not be sealed correctly, which could affect operation.

What should I do if smoke appears during use?

Immediately switch off or unplug the appliance and keep the door closed to stifle flames. Do not open the door until smoke subsides. This can happen if food with high fat content overheats or if grease builds up.

USER MANUAL CMG20SMBLI-07 CANDY

CMG20SMWLI-07/CMG20SMBLI-07

PAP

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Household use only SAVE THESE INSTRUCTIONS

IMPORTANT SAFEGUARDS

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a trained person.

WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation, which involves the removal of any cover, which gives protection against exposure to microwave energy. WARNING: Liquids or other food must not be heated in sealed containers since they are liable to explode.

1. Only use utensils that are suitable for use in microwave ovens
2. Metallic containers for food and beverages are not allowed during microwave cooking.

3. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition

4. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

5. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container;

6. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns;

7. Eggs in their shell and whole hard-boiled eggs shall not be heated in microwave ovens since they may explode, even after microwave heating has ended;

8. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. The microwave oven is intended to be used freestanding or built-in or in a cabinet.

9. The appliance must not be placed in a cabinet
10. Care should be taken not to displace the turntable when removing containers from the appliance.
11. The appliance shall not be cleaned with a steam cleaner.

Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

CAUTION: HOT SURFACE

1. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
3. Children shall not play with the appliance.
4. Cleaning and user maintenance shall not be made by children without supervision.
5. "To be in compliance EN 61000-3-11, the product shall be connected only to a supply of the system= 0.40089 ohms or less. Before connect the product to public power network, |Zsys| impedance: please consult your local power

supply authority to ensure the power network meet above requirement

INSTALLATION

Take out all the packing. If there is a safe film over the oven, tear it off before use. Check carefully for damage. If any, immediately notify dealer or send to the manufacturer's service center.

1. Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank.
2. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side to the wall should be at least 5 cm, the free distance above the top surface at least 20 cm. the distance of the microwave to the ground should be at least 85 cm.
3. The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance, or noise may occur. The distance should be more than 5m.
4. The appliance must be positioned so that the plug is accessible, and must ensure a good grounding in case leakage, ground loop can be formed to avoid electric shock.
5. The microwave oven must be operated with the door closed.
6. The microwave oven must not be placed in a cabinet. The microwave oven is intended to be used freestanding.
7. As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually would smell the odor, even a slight smoke, It is normal case and would not occur after several times use, keep the door or window open to ensure good ventilation. So it is strongly recommended to place a cup of water in the cavity, setting at high power and operate for several times.

CLEANING

MICROWAVE OVEN CARE

CAUTION

The oven should be cleaned regularly and any food deposits removed.

WARNING

a. Remove the power cord from the wall outlet before cleaning. After cooling products. Don't immerse the appliance in water or other fluids when cleaning.
b. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
c. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance.
d. Do not remove the waveguide cover.
e. When the microwave oven has been used for a long time, there may be some strange odors exist in oven, Following 3 methods can get rid of them:
1) Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.
2) Place a cup of red tea in oven, then heat with high micro power.
3) Put some orange peel into oven, and then heat them with high Micro Power for 1 minute.
f. When the product is not used, it should be placed in try and ventilated areas as well as possible.

WARNING

Details how to clean surfaces in contact with food:

After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built -up grease may o

verheat and begin to cause smoke or catch fire.

TIPS FOR CLEANING

Details for cleaning door seals, cavity and adjacent parts:

Exterior:

Wipe the enclosure with a dampened soft cloth.

Door:

Using a dampened soft cloth, wipe clean the door and window. Wipe the door seals and adjacent parts to remove any spill or spatter.

Wipe the control panel with a slightly dampened soft cloth.

Interior walls:

Wipe clean the interior surfaces with a dampened soft cloth. Wipe clean the waveguide cover to remove any food splashed.

Turntable / Rotation ring / Rotation axis:

Wash with mild soap water.

Rinse with clean water and allow drying thoroughly.

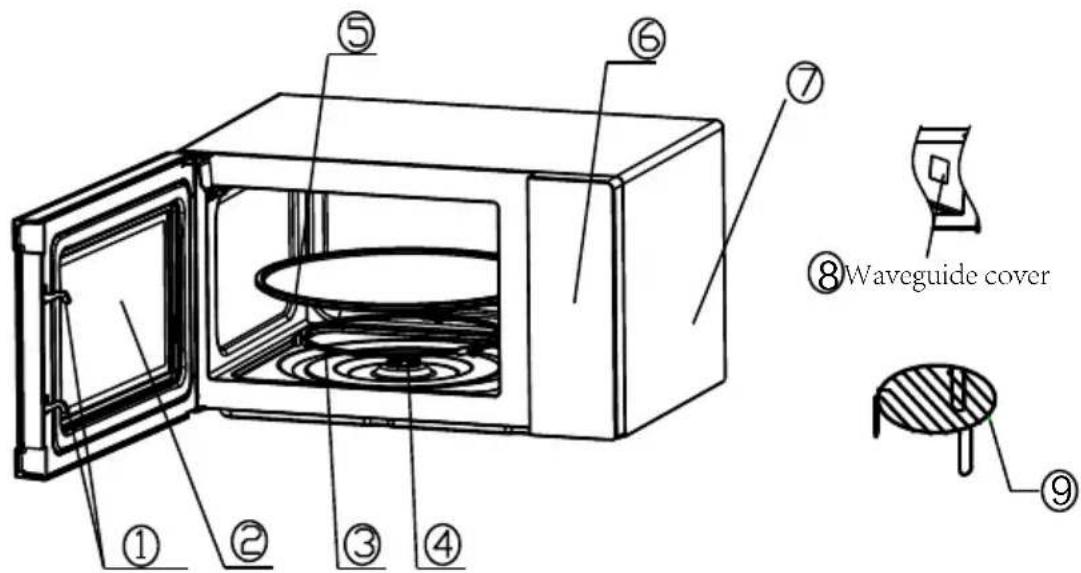

PRODUCT INSTRUCTION

1) Door lock

Microwave oven door must be properly closed in order for it to operate

2) Viewing window

Allow user to see the cooking status

3) Rotating ring

The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating

4) Rotating axis

The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate

5) Turntable

The food sits on the turntable, its rotation during operation helps to cook food evenly

CAUTION

- Place the rotating ring first

- Fit the turntable onto the rotating axis and make sure that it is geared in properly

6) Control panel

See below in details (the control panel is subject to change without prior notice)

7) Outer cover

Used for wrapping and protecting the internal structural parts and electrical components of the whole machine

8) Waveguide cover

It is inside the microwave oven, next to the wall of control panel.

WARNING

Never remove the waveguide cover

9) Grill rack

Use to place the roasting food.

The maximum setting is 35 minutes, there is a ringtone at the end, and the knob returns to the "0" position.

2. MICROWAVE and GRILL COMBINATION FUNCTION

FIRE POWER	Microwave output ratio	POWER (w)	Grill output ratio
LOW	17% power output	120W	/
M.Low	30% power output	200W	/
Med	55% power output	390W	/
M.High	80% power output	550W	/
HIGH	100% power output	700W	/
	20% power output		80% power output
	30% power output		70% power output
	40% power output		60% power output
	/		100% power output

Below is some food defrosting time advice:

No.	Weight	Defrost time
1	200g	About 4 minutes
2	400g	About 8 minutes
3	600g	About 12 minutes

OPERATION

1) Connect the cord

- Before connecting the cord, make sure the timer is set to "0" position.

- Do not block the ventilation.

2) Place the food on the glass turntable and close the door
- Food must be contained in a utensil
3) Select the desired power level
4) Once the desired time is set, the cooking begins. If pausing in between is needed, just open the door at any time, and close it to resume operation.
5) When it times out and cooking ends, the microwave oven produces a bell ring, the inside lamp will also be automatically turned off.

If food is removed before time out, make sure to set back the timer to “0” position, this avoids the microwave oven from operating in empty load.

6) When handling or turning food over, it is strongly recommended to use gloves and be careful not to touch the cavity wall.

UTENSILS GUIDELINE

It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Material of container	Microwave	grill	Combi	Notes
Heat-resistant ceramic	Yes	Yes	Yes	Never use the ceramics which are decorated with metal rim or glazed
Heat-resistantplastic	Yes	No	No	Can not be used for long timemicrowave cooking
Heat-resistant glass	Yes	Yes	Yes
Plastic film	Yes	No	No	It should not be used when cooking meat or chops as the over-temperature may do damage to the film
Grill rack	No	Yes	Yes
Metal container	No	No	No	It should not be used in microwave oven. Microwave can not penetrate through metal.
lacquer	No	No	No	Poor heat-resistant. Can not be used for High-temperature cooking
Bamboo wood and paper	No	No	No	Poor heat-resistant. Can not be used for High-temperature cooking

COOKING TIPS

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once

during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner

Whether the food is done

Color and hardness of food help to determine if it is done, these include:

• Steam coming out from all parts of food, not just the edge
• Joints of poultry can be moved easily
• Pork or poultry shows no signs of blood
• Fish is opaque and can be sliced easily with a fork

Browning dish

When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded.

MAINTENANCE

SERVICING

Please check the following before calling for services.

1. Place one cup of water (approx. 150ml) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min.

2. Does the oven lamp light?

3. Does the cooling fan work? (Put your hand over the rear ventilation openings.)

4. Does the turntable rotate? (The turntable can rotate clockwise or counter clockwise. This is quite normal.)

5. Is the water inside the oven hot?

If “NO” is the answer to any of the above questions, please check your wall socket and the fuse in your meter box.

If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED.

SERVICING SAFEGUARDS

Caution: MICROWAVE RADIATION

1. The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching.

2. During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.

3. Magnetron
   • High voltage transformer
   • High voltage capacitor
   • High voltage diode

4. High voltage fuse

5. The following conditions may cause undue microwave exposure during servicing.

6. Improper fitting of magnetron;

7. Improper matching of door interlock, door hinge and door;
8. Improper fitting of switch support;
9. Door, door seal or enclosure has been damaged.

Correct disposal of this product

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:- the WEEE should not be treated as domestic waste;- the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.
