CBX350 - Cooler CENTURION - Free user manual and instructions

Product Type	Portable Electric Cooler
Brand	Centurion
Model	CBX350
Capacity	35 liters
Cooling Temperature	Down to -20°C (18°C below ambient)
Heating Temperature	Up to 65°C
Power Supply	12V DC / 230V AC
Power Consumption	45W (cooling), 50W (heating)
Dimensions (L x W x H)	60 x 40 x 40 cm
Weight	10 kg
Material	Plastic exterior, high-density foam insulation
Features	Low battery protection, overheat protection, LED indicator
Use	Car, home, camping, boat
Warranty	2 years
Accessories Included	AC power adapter, DC cigarette lighter cable
Cleaning and Maintenance	Wipe with a damp cloth; do not immerse in water
Storage	Store in a dry place with lid slightly open
Safety Certifications	CE, RoHS

Frequently Asked Questions - CBX350 CENTURION

What is the cooling performance of the Centurion CBX350?

The CBX350 can cool contents to 20°C below ambient temperature, down to a minimum of -20°C.

Can I use the cooler for both cooling and heating?

Yes, the CBX350 has a dual function: it can cool or heat. Use the switch to select mode. Heating can reach up to 65°C.

What power sources does the CBX350 support?

It works with 12V DC (cigarette lighter in car) and 230V AC (home outlet) using the included adapters.

How do I clean the cooler?

Unplug the device and wipe the interior and exterior with a soft damp cloth. Do not use abrasive cleaners or immerse in water.

What is the capacity of the CBX350?

The CBX350 has a 35-liter capacity, suitable for storing bottles, cans, and food for trips.

Does it have a low battery protection feature?

Yes, the cooler includes low battery protection to prevent draining your car battery. It will automatically shut off if voltage drops too low.

How much power does it consume?

Power consumption is 45W in cooling mode and 50W in heating mode.

Can I leave the cooler plugged in overnight?

Yes, it is safe to leave it on continuously. However, ensure good ventilation around the device and avoid covering the vents.

What is the warranty period?

The Centurion CBX350 comes with a 2-year warranty against manufacturing defects.

What accessories are included in the box?

The package includes the cooler, an AC power adapter for home use, and a DC cable for vehicle use.

USER MANUAL CBX350 CENTURION

Black and white photo of a modern kitchen appliance with open lid and digital display (no visible text or symbols)

Svenska, sida 3-8

Norsk, side 9-14

English, page 15-20

SÄKERHETSFÖRESKRIFTER

COLD OFF WARM

COLD OFF WARM

Line drawing of a USB cable with connector port (no text or symbols)

DC 12V

AC OFF DC

Line drawing of two connected electrical connectors (no text or symbols)

Simple diagram of an oval shape with two circular holes, labeled 'AC' at the top (no other text or symbols)

220-240V\~

AC OFF DC

SPECIFIKATIONER

Volym: 24L

Waste of Electrical and Electronic Equipment (WEEE) - WEEE-direktivet 2012/19/EU

COLD OFF WARM

COLD OFF WARM

Line drawing of a USB cable with connector port (no text or symbols)

DC 12V

AC OFF DC

Line drawing of two connected electrical connectors (no text or symbols)

Simple diagram of an oval shape with two circular holes, labeled 'AC' at the top (no other text or symbols)

220-240V\~

AC OFF DC

SPESIFIKASJON

Volum: 24L

Spenning Modus Strøm
12V Kjøling 46W
12V Oppvarming 40W
220-240V Kjøling 54W
220-240V Oppvarming 46W

MILJ∅

Waste of Electrical and Electronic Equipment (WEEE) - WEEE-direktivet 2012/19/EU

- Read the instruction manual carefully before use, and save it for future reference.

- Before you connect the appliance: Ensure the voltage rating on the type plate corresponds to your mains voltage (type plate is located inside the unit).

- Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Do not try to repair the appliance on your own. Always contact an authorized technician.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

- Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

- Close supervision is necessary when this appliance is used near children. Do not allow small children to play with this appliance.

- The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.

- To prevent the fans from being stuck. If the fans stuck, the engine will over heat and cause a fire. Towels, cloths etc. should not be put on the unit.

• Keep the appliance away from fire and moist to prevent explosion and fire.
• Do not dismantle the unit or try to change its components.
• Do not switch between the cool/warm function abruptly. Switch the function after 30 minutes of being in the OFF mode.
• Do not rinse the unit with water.
• Do not put the unit upside down.
• Do not drop or shake the unit.
• This unit is not intended for use by children. Children should be supervised to ensure that they do not play with the unit.
• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

BOX CONTENT

• Cooler Box
• AC Power Cord
• DC Power Cord
• Instruction Manual

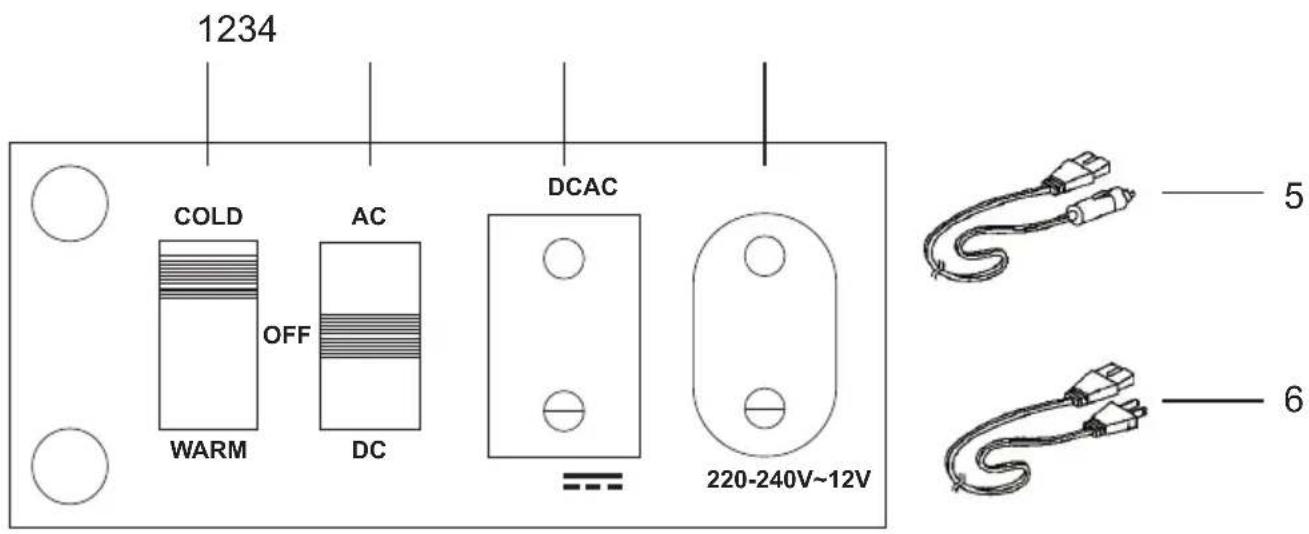

PARTS

1234 COLD ACC DCAC WARM OFF DC 5 6 220-240V~12V

1	COLD/WARM Switch
2	Power Switch
3	Car Power Socket
4	Household Socket
5	DC Power Cord (Power Cord for car)
6	AC Power Cord (Household Power Cord)

OPERATION

Work Performance

• To obtain optimized cooling effect, we suggest putting in pre-chilled foods and drinks. It will take 2-3 hours for cooling the unfrozen foods or drinks.
• The cooler and warmer is not designed to heat foods but to preserve hot foods at a warm temperature. If necessary, it can heat the foods after 2 hours.

Shift of Cooling Function and Heating Function

- First make sure the switch at the side of the cooler and warmer is in OFF state, and then insert the plug of the power cord into the socket of the unit. Insert the plug of the cigarette lighter into the cigarette lighter in the car.

Cooling:

- Set the power switch at the position of COLD. The green indicator will be on indicating the unit is in cooling mode.

Heating:

- Set the switch at the position of WARM. The red indicator will be on indicating the unit is in heating mode.

CoolingHeating

COLD OFF WARM

COLD OFF WARM

NB! Do not switch between the cool/warm function abruptly. Change function after 30 minutes of being in OFF mode.

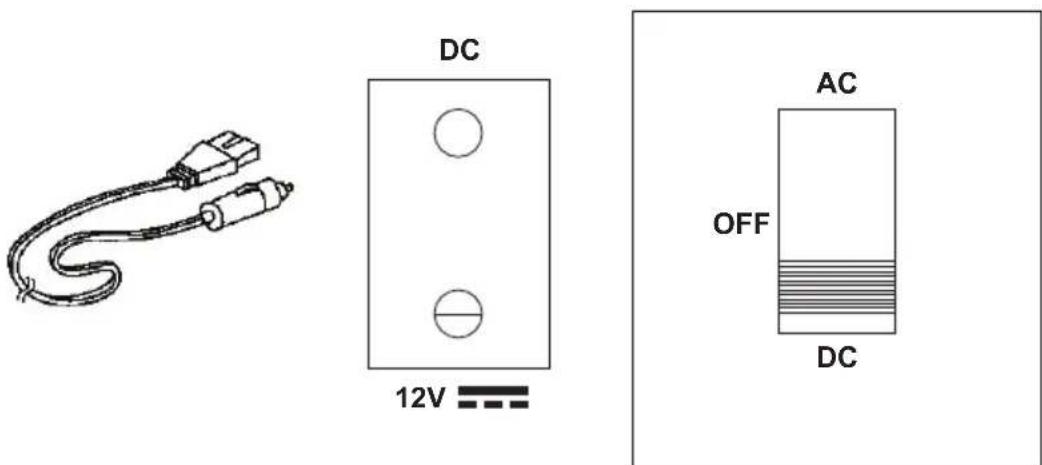

Using Car Power

1. The car engine is required.
2. Insert the plug of DC power cord into the socket of the lighter in the car.
3. Shift the power switch to the DC side.

DC 12V AC OFF DC

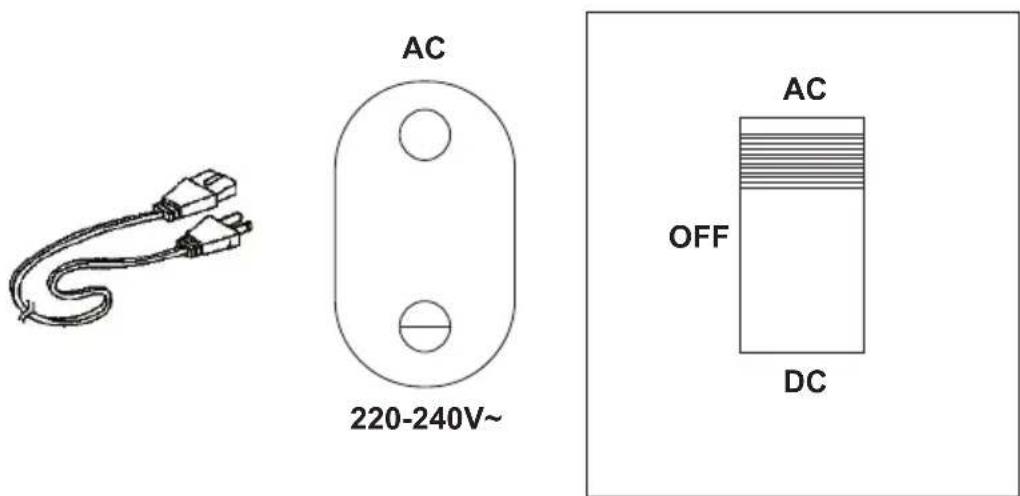

Using Household Power

1. Connect the AC power cord (household power cord) with the product.
2. Insert the power socket into the connect plug.
3. Turn the power switch to the AC side.

AC 220-240V~ AC OFF DC

SPECIFICATIONS

Volume: 24L

Voltage Mode Power Consumption
DC 12V Cool 46W
DC 12V Warm 40W
AC 220-240V Cool 54W
AC 220-240V Warm 46W

ENVIRONMENT

Waste of Electrical and Electronic Equipment (WEEE) - WEEE Directive 2012/19/EU

This symbol on the product or in the instructions means that the electrical and electronic equipment must be disposed of separately from other household waste when it does not work anymore. The EU has separate waste collection systems, contact your local dealer or authority for more information.

LAW AND SAFETY

This product has been manufactured according to current regulations for electromagnetic fields (EMF), which means that it is safe to use if used according to safety instructions.

The product is manufactured according to current regulations within the EU legislation, limiting the use of hazardous substances in electrical and electronic equipment (RoHS Directive 2011/65/EU).

RESERVATIONS

We reserve the right to correct any typographical errors, and reserve the right to make ongoing changes and improvements to the product and related materials.
