Brand	HAIER
Model	WDNS32BW
Product Type	Water Dispenser
Usage	Indoor Use Only
Power Supply	115 V ~ 60 Hz, 15 A
Bottle Capacity	3 or 5 gallons (not included)
Hot Water Temperature	88 °C - 95 °C
Cold Water Temperature	6 °C - 10 °C
Cooling Type	Compressor
Heating Type	Electrical Resistance
Child Safety Lock	Yes (for hot water)
Indicator Lights	Hot water (red), cold water (green)
Dispensing Buttons	Push button or lever depending on model
Drip Tray	Removable
Recommended Cleaning	At least twice a year
Condenser Cleaning	4 times per year
Parts Warranty	12 months
Labor Warranty	12 months
Refrigeration System Warranty	5 years
Operating Ambient Temperature	13 °C - 36 °C

Frequently Asked Questions - WDNS32BW HAIER

How to install my Haier WDNS32BW water dispenser?

Place the unit indoors, on a flat and hard surface, away from sunlight and heat sources. Let it stand upright for at least 12 hours before plugging in. Ensure a clearance of 2 inches on the sides and 4 inches at the back. Install a 3 or 5 gallon water bottle and check that water flows from both taps before plugging in the unit.

Why does the compressor not start?

Check that the power cord is properly plugged in. If the unit was transported in cold weather, let it warm up to room temperature for a few hours. The compressor may not start if the ambient temperature is too low (below 13 °C). Also ensure that the cold water switch at the back is in the ON position.

How to clean my water dispenser?

Unplug the unit before cleaning. Use a solution of 3 to 4 tablespoons of baking soda in hot water. Clean with a soft sponge, rinse with clean water and dry. Do not use abrasive products, ammonia or bleach. Clean the drip tray regularly and the condenser 4 times a year.

What to do if hot water does not flow?

Ensure that the hot water switch at the back is in ON position and the red indicator lights up. The child safety lock must be pressed while you lower the lever or press the red button. If water still does not flow, check that the bottle is full and water flows from the cold tap.

How to drain water in case of prolonged absence?

Turn off the switches and unplug the unit. Remove the water bottle. Place a container under the drain at the back. Open the drain plug by turning clockwise (by hand). Let the water drain completely, then close the plug. Clean and store the unit upright.

Why is the cold water not cold enough?

Check that the cold water switch at the back is in ON position and the green indicator lights up. Cold water may take up to 40 minutes to reach the optimal temperature (6-10 °C). If the unit is overtaxed, allow it time to cool. If the problem persists, contact an authorized technician.

What to do if water leaks on the floor?

Check that the bottle is not cracked. Ensure that the drain plug at the back is tightly closed and the rubber gasket is in good condition. Empty the drip tray if it is full. If the leak persists, contact after-sales service.

How to use the child safety lock?

To get hot water, you must simultaneously press the child safety lock (located on the lever or red button) and lower the lever or press the button. This prevents accidental burns. The lock does not affect cold water.

What is the warranty of the Haier WDNS32BW dispenser?

The warranty covers manufacturing defects for 12 months on parts and labor, and 5 years on the refrigeration system. It starts from the purchase date. A proof of purchase is required. Damages due to incorrect installation, transport or non-household use are not covered.

Can I use an extension cord?

Using an extension cord is not recommended. If necessary, use a 14 AWG or heavier extension cord with a grounded plug. Always plug directly into a grounded wall outlet of 115 V, 60 Hz, 15 A.

USER MANUAL WDNS32BW HAIER

When using this appliance, always exercise basic safety precautions, including the following:

1. Read all of the instructions before using this appliance.
2. Use this appliance only for its intended purpose as described in this use and care guide.
3. This water dispenser must be properly installed in accordance with the installation instructions before it is used. See the grounding instructions in the installation section.
4. Never unplug your water dispenser by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.
5. Repair or replace immediately, all electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length, on the plug or at the connector end.
6. Unplug your water dispenser before cleaning and making any repairs. Note: If for any reason this product requires service, we strongly recommend that a certified technician perform the service.
7. This water dispenser should not be recessed or built into an enclosed cabinet. It is designed for freestanding installation only.
8. This appliance is designed for INDOOR USE ONLY and should not be used outdoors.
9. Do not operate your water dispenser in the presence of explosive fumes.
10. Close supervision is necessary when any appliance is used by or near children.
11. To protect against electric shock, do not immerse the cord, plug, or any other part of the water dispenser in water or other liquids.

SAVE THESE INSTRUCTIONS

Thank you for purchasing our Haier product. This easy-to-use manual will guide you in getting the best use of your water dispenser.

Remember to record the model and serial number. They are on a label in back of the unit.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain warranty service.

TABLE OF CONTENTS

PAGE

SAFETY PRECAUTIONS 1

PARTS AND FEATURES 3-4

INSTALLATION INSTRUCTIONS 5

START-UP INSTRUCTIONS 6

OPERATING YOUR WATER DISPENSER 7

Cold/Hot Water Release Buttons 7

Cold/Hot Water Release Levers. 7

Cold/Hot Water Power Switches 7

Cold/Hot Water Indicator Lights. 8

ELECTRICAL CONNECTIONS 8

Grounding Instructions 8

Wiring Requirements 8

Extension Cords 8

Power Interruptions. 8

PRECAUTIONS 9

PROPER CARE AND CLEANING 9-10

General 9

Cleaning the Condenser Coils 10

For Long Vacations or Absences / Moving 10

TROUBLESHOOTING GUIDE 11

WARRANTY 12

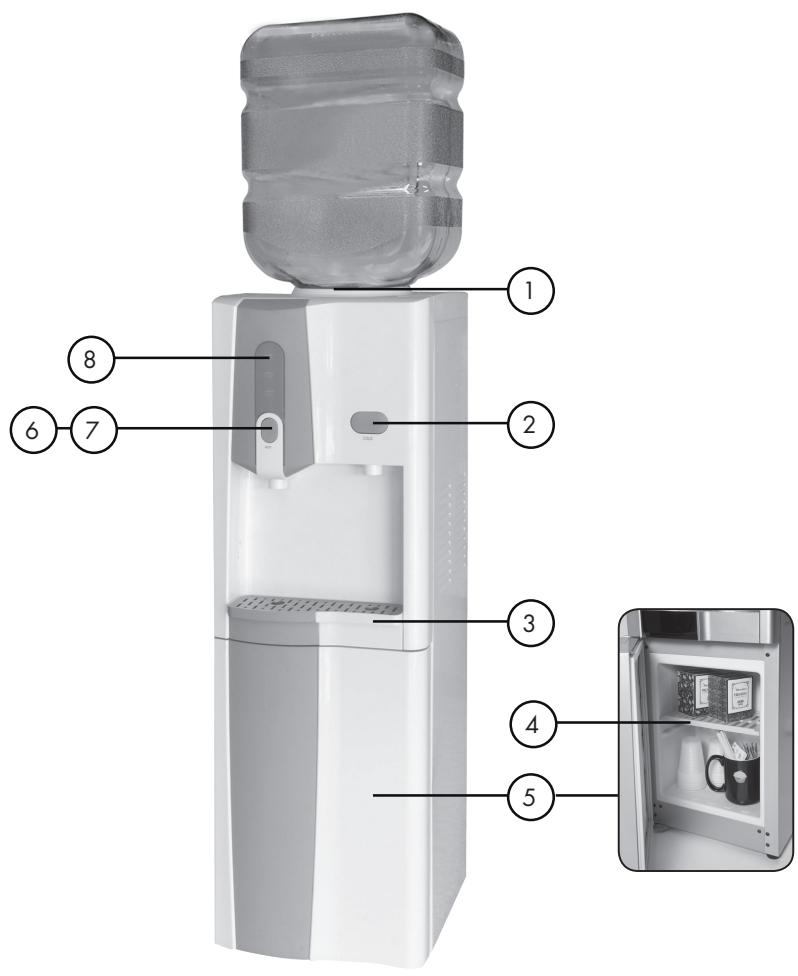

PARTS AND FEATURES -WDNS115BW

1. Water Receptacle
2. Cold Water Button
3. Removable Drip Tray
4. Removable Shelf
5. Storage Compartment

6. Hot Water Button

7. Child Safety Lock

8. Hot Water, Cold Water and Power Indicator Lights
9. Drain (not shown/back of unit)
10. Cold Water Switch (on back)
11. Hot Water Switch (on back)

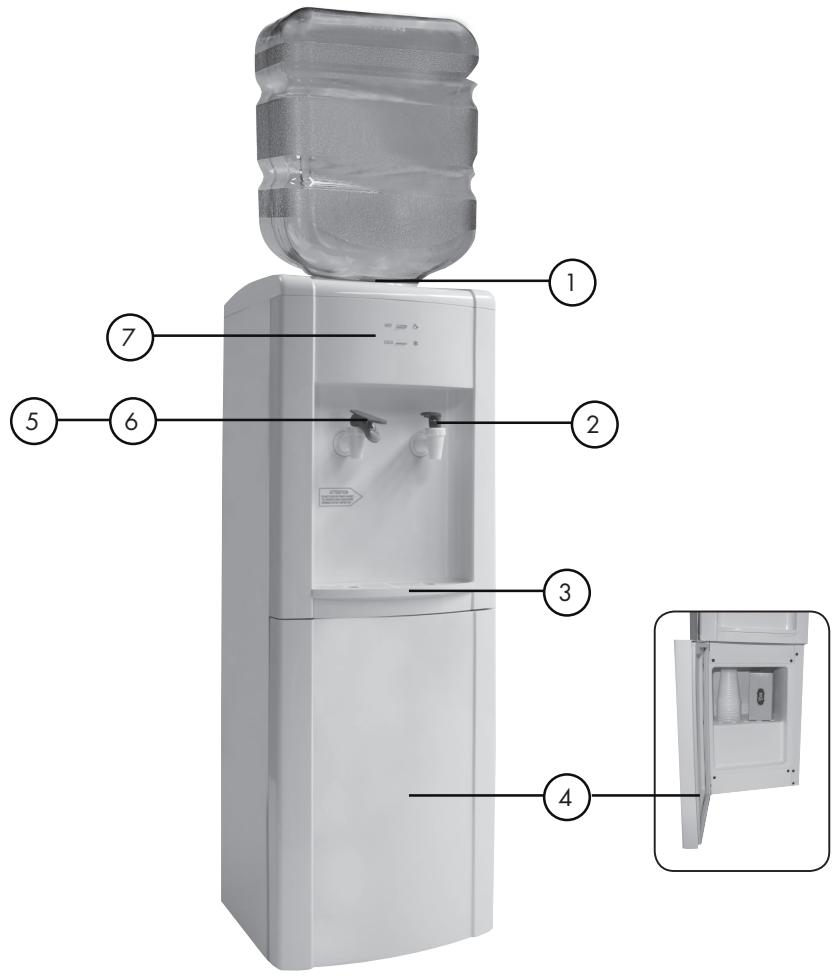

PARTS AND FEATURES - WDNS32BW

1. Water Receptacle
2. Cold Water Button (Blue)
3. Removable Drip Tray
4. Storage Compartment

5. Hot Water Button (Red)

6. Child Safety Lock

7. Hot and Cold Water Indicator Lights
8. Drain (not shown/back of unit)
9. Cold Water Switch (on back)
10. Hot Water Switch (on back)

INSTALLATION INSTRUCTIONS

1. Remove all packing materials. This includes the foam base and all adhesive tape holding the accessories inside and outside.
2. Inspect and remove any remaining packaging, tape and printed material before turning on the water dispenser.

Note: Allow the water dispenser to stand in an upright position for at least 12 hours before turning on the power.

PROPER LOCATION

• To ensure that your water dispenser works at the maximum efficiency it was designed for, you should install it in a location where there is proper air circulation and electrical connections.
• The following are the recommended clearances around the water dispenser.
  Sides 2" (50mm)
  Back 4" (100mm)
• Do not install your water dispenser in any location that is not properly insulated or heated because the unit is not designed to operate in room temperature below 55^ / 13^ . The water dispenser is for indoor use only. Room temperature should not exceed 97^ / 36^ .

Note: Thermostats maintain the hot and cold water temperatures automatically. On the compressor cooled water coolers the hot water temperature will be between 190^ - 203^ F/ 88^ - 95^ C and the cold water temperature will be between 43^ - 50^ F/ 6^ - 10^ C.

• Select a suitable location for the unit on a hard even surface away from direct sunlight and heat sources (e.g., radiators, baseboard heaters, cooking appliances, etc.).

CAUTION: DO NOT plug in the water dispenser until full bottle is installed first and water flows from both Hot and Cold water faucets.

Note: Hot and cold water will not be instantly available as the unit will need time to heat up and cool down the water.

PREPARATION BEFORE FIRST OPERATION

Before connecting the unit to the power source, Let it stand upright for approximately 12 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

The water dispenser is pre-cleaned at the factory but the reservoir and water lines should be flushed with fresh water before use as follows:

1. Do NOT plug in the water dispenser.

2. Check and make sure the drain cap on the back of the water dispenser is firmly closed.

3. Fill water tank with tap water full to capacity, wait 5 minutes until water settles.

4. Activate the child safety button and press the hot water lever until water starts to come out, then stop.
5. Plug the dispenser into the electrical socket.
6. Press the hot water switch (back of unit) to the ON position, the switch should be lit.

A. Press the cold water switch (back of unit) to the ON position, the switch should be lit.
B. Wait for the hot water to reach temperature in approximately 10 minutes
C. Wait for the cold to reach temperature in other 40 minutes approximately.
7. Press the hot and cold water switch to turn them OFF and unplug the dispenser from the electrical outlet.
8. Drain the water by pressing hot water button and then cold water button, until no more water remains (to facilitate this operation, use a large container).
9. Drain any water left in the tanks by opening the drain cap located on the back side of the dispenser, until the water drains completely. Please remember to close the drain cap firmly after the drainage.
10. Place a 5 gallon or 3 gallon bottle of water onto the water intake of the dispenser; allow water to stand for approximate one minute.
11. Push water faucet buttons to insure water flows from both faucets.
12. Plug the dispenser into the electrical socket.
13. Now you are ready to use your water dispenser.

START-UP INSTRUCTIONS

Read carefully and understand all installation instructions before installing the water dispenser.

1. Remove the cap from the water bottle first. Lift up the water bottle and quickly place it into the water receptacle. (The water bottle is not included.)
2. DO NOT plug in the water dispenser until you have checked that water flows out of both faucets when the hot and cold water release levers are pressed. Never turn on the water dispenser without water. Doing so may cause the unit to catch fire or malfunction.
3. Check that water flows out by pressing both the hot and cold water faucets one at a time.
4. Plug the power cord into an 115volt / 60 Hz outlet.
5. To activate the water heater and cooler, press the hot water and cold water switches to the ON position, the switches should be lit.

OPERATING YOUR WATER DISPENSER

This water dispenser maintains instant hot and cold water for your cooking and drinking needs. It accepts 3 or 5-gallon water bottles.

WDNS32BW COLD (BLUE) / HOT (RED) WATER RELEASE BUTTONS

• Press the button down to release the water flow.
• Pull the tap lever up to stop the water flow.

Note: The hot (red) water button is equipped with a child safety lock to prevent accidental spilling of hot water. To release the hot water flow, the tap lever must be squeezed and then pushed down.

WDNS115BW COLD / HOT WATER RELEASE LEVERS

Press the button to release the water flow.

Note: The hot water faucet is equipped with a child safety lock to prevent accidental spilling of hot water. To release the hot water flow, push the child safety lock button down and as you push in the hot water button.

Caution: Be careful when carrying hot water in your cup or container to avoid any injury or harm from spills.

COLD (GREEN) / HOT (RED) WATER POWER SWITCHES (Back of unit)

Cold Water Switch (green):

The cold water switch activates the cooling process when turned ON.

• Press the switch to the ON position. The switch should become lit.

Note: When turning on the unit for the first time, it will take some time to chill the water.

Hot Water Switch (red):

The hot water switch activates the heating process when turned ON.

• Press the switch to the ON position. The switch should become lit.

Caution! Be careful when carrying hot water in your cup or container to avoid any injury or harm from spills.

COLD (GREEN) / HOT (RED) WATER INDICATOR LIGHTS

When the green and red lights are illuminated on the front of the unit, the heating and cooling process is in progress. When the cold and hot water has reached their proper temperatures, both lights will turn off automatically. Normally, hot water reaches proper temperature first.

WDNS115BW

WDNS32BW

ELECTRICAL CONNECTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord containing a grounding wire and a grounded plug. The plug must be inserted into an outlet that is properly installed and grounded.

• Improper use of the plug may result in the risk of electric shock.

• Consult a qualified electrician or service technician if the grounding instructions are not completely understood or if in doubt as to whether the appliance has been properly grounded.

WIRING REQUIREMENTS

This appliance must be plugged into a 15Amp, 115 Volt, 60Hz GROUNDED OUTLET.

Note: Where a standard two-prong outlet is encountered, it is the personal responsibility and obligation of the consumer to have it replaced with a properly grounded three-prong outlet.

EXTENSION CORDS

We do not recommend the use of an extension cord with this unit.

POWER INTERRUPTIONS

Occasionally, there may be power interruptions due to thunderstorms or other causes. Remove the power cord from wall outlet when a power outage occurs. When power has been restored, re-plug the power cord into wall outlet.

PRECAUTIONS

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of appliance, unless they are of the type recommended by the manufacturer.
• To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

PROPER CARE AND CLEANING

Caution: Before using any cleaning product, always read and follow the manufacturer's instructions and warnings to avoid personal injury and/or product damage.

Note: It is best to clean the dispenser and its surrounding area when replacing the empty bottle with a new one. This way you can move the unit easily without the weight of the bottle.

GENERAL

• Before cleaning, place a dust cover on top of the water guard to prevent dust and debris from going into the dispenser while cleaning.
• Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. Use a sponge or a soft cloth dampened with the cleaning solution to wipe down the unit.

WARNING!

Always unplug the unit before cleaning to avoid electric shock.

Failure to do so may result in death or injury.

• Wipe with clean warm water and dry with a soft cloth.
• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or metal scouring pads. Some of these chemicals may dissolve, damage and/or discolor the unit.
• The spilled water in the drip tray must be removed regularly and cleaned properly to avoid any bacteria and residue build-up.
• We recommend that you clean the water dispenser at least twice a year. When cleaning, you do not need to take anything apart. Simply pour the baking soda/water solution through the water guard. Then rinse with plenty of water and allow the water to drain.
• Remove the accumulated water from the drip tray, and wipe the compartment clean.

CLEANING THE CONDenser COILS

We recommend that you move the dispenser away from the wall and vacuum or brush the coils on the rear of the unit at least 4 times a year. Some operating environments may require more frequent cleaning.

FOR LONG VACATIONS OR ABSENCES / MOVING

• Turn OFF water dispenser.
• Unplug the unit.
• If bottle still contains water, remove it quickly and carefully to avoid spillage.
• Put a container or bucket on the floor under the drain on the back of the unit to catch the water released from the drain tube.
• Remove the drain plug located on the side of the unit to release the water and empty both the tanks.

Note: Remove drain plug by turning it in a "clockwise direction". Please note not to use any tools to remove or install the drain plug. Use hands only.

• After completing the drain process, replace the drain plug to its original position.
• You must store the unit at room temperature.
• Avoid storing the unit where the temperature is at or below freezing.
• When moving, the unit must be moved vertically. DO NOT move the unit in horizontal position as this may cause possible damage to internal parts.
• You must cover the unit to avoid dust and debris from entering the water guard.

TROUBLESHOOTING GUIDE

If the power is switched on and the compressor will not start up:

• Make sure the power cord is plugged in properly
• If the water dispenser is brought indoors in the winter, give it a few hours to warm up to room temperature before plugging it in. Cold bottled water or the temperature of the water dispenser itself may affect the thermostat setting. If the room temperature is lower than the thermostat setting or the water dispenser itself is cold the compressor will not start up. We do not advise that you make any adjustments to the thermostat setting.

If water dispenser operation is noisy:

• Make sure the water dispenser sits on a level surface. If the dispenser is noisy after its first use, unplug it for half an hour and try again.

If the condenser becomes too hot:

• When the compressor is working, it is normal for the condenser to be hot. If you are concerned that the temperature is too high, check to see that there is enough room around the water dispenser to allow proper ventilation.

If the cold water tap doesn't work and the cold water tank freezes

• The cold water tap may freeze under extreme conditions. If the water is not being used, the cooling compartment is loaded and the compressor is running continuously, the cold water tank can freeze.
• To thaw the cold water tank, turn off the power, unplug the unit and remove the water bottle. Keep draining hot water and pouring it back into the water receptacle. Once the tank has thawed, place the bottle on the unit, plug the unit in again, and turn the hot and cold switches back on.

If the water is not cold enough:

• This is due to either a compressor malfunction or the cold water may be in the OFF position.
• Check if the cold water is in the ON position.
• Cold water is used very frequently.

If water is dripping from the dispenser onto the floor:

• The water bottle may have small pinholes or cracks and may be leaking.
• The drain plug in the rear may be improperly fastened. Check that the soft rubber seal is not torn or damaged.
• The drip tray may be full of water. Take out the drip tray and empty it before replacing it.

LIMITED WARRANTY

What is covered and for how long?

This warranty covers all defects in workmanship or materials for a period of:

12 months labor (carry-in only) 12 months parts

The warranty commences on the date the item was purchased and the original purchase receipt must be presented to the authorized service center before warranty repairs are rendered.

EXCEPTIONS: Commercial or Rental Use warranty 90 days labor (carry-in only) 90 days parts No other warranty applies

What is covered.

1. The mechanical and electrical parts, which serve as a functional purpose of this appliance, for a period of 12 months. This includes all parts except finish, and trim.

What will be done?

1. We will repair or replace, at our discretion, any mechanical or electrical part which proves to be defective in normal usage during the warranty period so specified.
2. There will be no charge to the purchaser for parts and labor on any covered items during the initial 12 month period. Beyond this period, only parts are covered in the remaining warranty. Labor is not provided and must be paid by the customer.
3. Contact your nearest authorized service center. For the name of the nearest service center please visit our website at www.HaierAmerica.com or call 1-877-337-3639 for more information.

THIS WARRANTY COVERS APPLIANCES WITHIN THE CONTINENTAL UNITED STATES, PUERTO RICO AND CANADA. IT DOES NOT COVER THE FOLLOWING:

Damages from improper installation.
Damages in shipping.
Defects other than manufacturing.
Damage from misuse, abuse, accident, alteration, lack of proper care and maintenance or incorrect current or voltage.
Damage from other than household use.
Damage from service by other than an authorized dealer or service center.
Decorative trims or replaceable light bulbs.
Transportation and shipping.
Labor (after the initial 12 months).

THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTYES, EXPRESSED OR, INCLUDING THE WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies.

This warranty does not cover incidental or consequential damages, so the above limitations may not apply to you. Some States do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

This warranty gives you specific legal rights, and you may have other rights, which vary, from state to state.

Haier America New York, NY 10018

CONSIGNES DE SECURITE

PIÉCES ET CARACTERISTIQUES - WDNS32BW

Atrás 4^ (100mm)

If you have a problem with this product, please contact the

"Haier Customer Satisfaction Center" at 1-877-337-3639.

DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE

IMPORTANT
