Product type	Laptop
Brand	Acer
Model	Aspire V5-471PG
Screen size	14 inches
Screen type	Touchscreen (estimated)
Processor	Intel Core (Ivy Bridge generation, estimated)
RAM	4 GB DDR3 (estimated)
Storage	500 GB hard drive (estimated)
Weight	Approximately 2.1 kg
Dimensions	342 x 245 x 23 mm (estimated)
Power supply	AC adapter, 4-cell lithium-ion battery
Ports	USB 2.0 (x1), USB 3.0 (x1), HDMI, network/VGA combo, headphone/microphone jack, optical drive, Kensington lock slot
Wireless connectivity	Wi-Fi, Bluetooth (estimated)
Webcam	Yes, with built-in microphone
Touchpad	Touchpad with multi-touch gesture support
Card reader	SD/SDHC/MMC card reader
Main functions	Internet browsing, office work, multimedia, video communication
Maintenance and cleaning	Clean with a soft, dry cloth, do not use solvents
Security	Kensington lock slot
Spare parts and repairability	Accessible battery and memory, replaceable hard drive

Frequently Asked Questions - ASPIRE V5-471PG ACER

How to register my Acer Aspire V5-471PG product?

To register your product, visit www.acer.com, select your country, click on REGISTER YOUR PRODUCT and follow the instructions. You can also do this during initial setup or by double-clicking the Registration icon on the desktop.

Where can I buy accessories for my Aspire V5-471PG?

Acer accessories are available on the online store store.acer.com. Availability varies by region.

How to access the full user manual?

From Windows, type "user" in the Start menu, then click on Acer User Manual.

What to do if the keyboard stops responding?

Check that nothing is blocking the keys. Try restarting the computer. If the problem persists, cleaning or a reset may be necessary. Avoid using a keyboard protector that could obstruct ventilation.

How to use the touchpad for a right-click?

The touchpad and buttons form a single surface. For a right-click, press firmly on the bottom right corner of the touchpad surface.

How to save battery?

Use the special keys to reduce screen brightness and activate Sleep mode. You can also disable Wi-Fi and Bluetooth when not in use.

How to connect to the Internet wirelessly?

Wi-Fi is enabled by default. Click on the network icon in the taskbar, select your network, enter the password if needed. You can also use the special Communication key to enable/disable wireless devices.

What types of memory cards can I use?

The card reader accepts Secure Digital (SD, SDHC) and MultiMediaCard (MMC) cards. Insert the card until it clicks, remove it by pulling gently.

How to clean the touchscreen and chassis?

Use a soft, lint-free cloth slightly damp (water only). Do not use chemicals or solvents. Turn off the computer before cleaning.

What to do if the computer does not turn on?

Check the power outlet and the AC adapter. Make sure the battery is charged. Try a reset by holding the power button for 10 seconds.

USER MANUAL ASPIRE V5-471PG ACER

Product registration

When using your product for the first time, it is recommended that you immediately register it. This will give you access to some useful benefits, such as:

• Faster service from our trained representatives.
• Membership in the Acer community: receive promotions and participate in customer surveys.
  • The latest news from Acer.

Hurry and register, as other advantages await you!

How to register

To register your Acer product, please visit www.acer.com. Select your country, click PRODUCT REGISTRATION and follow the simple instructions.

You will also be asked to register your product during the setup process, or you can double-click the Registration icon on the desktop.

After we receive your product registration, you will be sent a confirmation email with important data that you should keep in a safe place.

Obtaining Acer accessories

We are happy to inform you that Acer's warranty extension program and Notebook accessories are available online. Come and visit our online shop and find what you need at store.acer.com.

The Acer store is being progressively rolled out, and, unfortunately may not be available in some regions. Please check back regularly to see when it will be available in your country.

© 2012. All Rights Reserved.

Aspire V5 Quick Guide

This revision: 07/2012

Model number: ____

Serial number: ____

Date of purchase: ____

Place of purchase: ____

Acer recommends...

Productivity Software

Work Great with Microsoft® Office 2010 - Express your ideas, solve problems and simplify everyday projects with Office 2010.

Photo editing - Easily edit and print your photos with Windows Live Photo Gallery. Then share them on Facebook, YouTube or Windows Live.

Search & Decide with Bing - Find and organize the answers you need using Bing ^™ , so you can make faster, more informed decisions.

First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

First off, the Setup Poster helps you get started with setting up your computer.

The Quick Guide introduces you to the basic features and functions of your new computer.

For more on how your computer can help you to be more productive, please refer to the Aspire V5 User's Manual. The Aspire V5 User's

Manual contains useful information applying to your new computer. It covers basic topics such as using the keyboard and audio, etc.

This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook.

Follow these steps to access it:

1 Type "User" from Start.
2 Click on Acer User's Manual.

Your Acer notebook tour

After setting up your computer as illustrated in the setup poster, let us show you around your new Acer notebook.

Keyboard view

1 2 3

#	Icon	Item	Description
1		Power button	Turns the computer on and off.
2		Keyboard	For entering data into your computer.Caution: Do not use a keyboard protector or similar cover as the keyboard includes ventilation intakes for cooling.
3		Touchpad	Touch-sensitive pointing device.The touchpad and selection buttons form a single surface.Press down firmly on the touchpad surface to perform a left click.Press down firmly on the lower right corner to perform a right click.

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the key before pressing the other key in the hotkey combination.

Hotkey	Icon	Function	Description
	+	Communication	Enables/disables the computer's communication devices.
		Sleep	Puts the computer in Sleep mode.
	□|□	Display toggle	Switches display output between the display screen, external monitor (if connected) and both.
	⊕■	Screen blank	Turns the display screen backlight off to save power. Press any key to return.
	[WATH]	Touchpad toggle	Turns the internal touchpad on and off.
		Speaker toggle	Turns the speakers on and off.
		Brightness up	Increases the screen brightness.
		Brightness down	Decreases the screen brightness.
		Volume up	Increases the sound volume.
		Volume down	Decreases the sound volume.
		Play/Pause	Play or pause a selected media file.
		Stop	Stop playing the selected media file.
		Previous	Return to the previous media file.
	[ZZ16]	Next	Jump to the next media file.

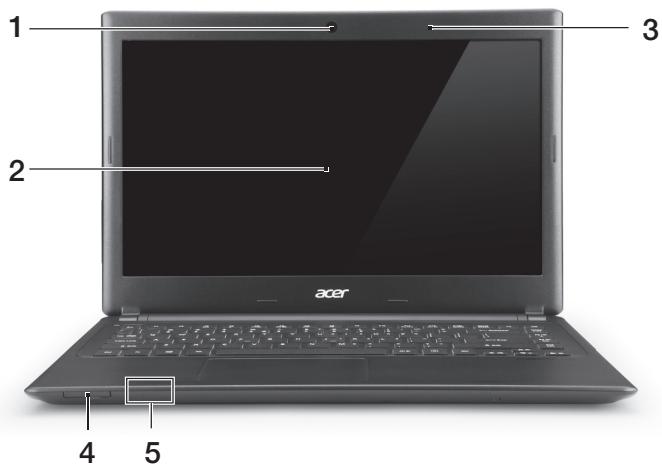

Screen view

1 2 3 4 5 acer

#	Icon	Item	Description
1		Webcam	Web camera for video communication.A light next to the Webcam indicates that the webcam is active.
2		Screen	Displays computer output.
3		Microphone	Internal microphone for sound recording.
4		2-in-1 card reader	Accepts one Secure Digital (SD or SDHC) card or MultiMediaCard (MMC).Note: To remove the card, simply pull it from the slot.
5		Power indicator	Indicates the computer's power status.
		Battery indicator	Indicates battery status.Charging: The light is amber when the battery is charging.Fully charged: The light is blue.

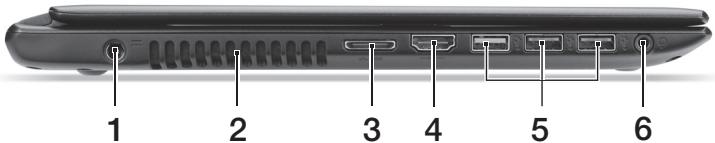

Left view

1 2 3 4 5 6

#	Icon	Item	Description
1		DC-in jack	Connects to an AC adapter.
2		Ventilation and cooling fan	Allows the computer to stay cool.Do not cover or obstruct the openings.
3		LAN/VGA combo port	Makes it easy to get online and plug in an external display, from one place.The provided LAN/VGA combo cable is hot-swappable so you can plug it in and out even when the notebook is on.
4	HDMI	HDMI port	Supports high-definition digital video connections.
5		USB ports	Connects to USB devices.If a port is black it is USB 2.0 compatible, if it is blue it is also USB 3.0 compatible (see below).
6		Headset/speaker jack	Connects to audio devices (e.g., speakers, headphones) or a headset with microphone.

Information on USB 3.0

• Compatible with USB 3.0 and earlier devices.
• For optimal performance, use USB 3.0-certified devices.
• Defined by the USB 3.0 specification (SuperSpeed USB).

Right view

1 2 3 4 5

#	Icon	Item	Description
1		Optical drive	Internal optical drive; accepts CDs or DVDs.
2		Optical disk access indicator	Lights up when the optical drive is active.
3		Optical drive eject button	Ejects the optical disk from the drive.
4		Emergency eject hole	Ejects the optical drive tray when the computer is turned off.Carefully insert a straightened paper clip to eject the optical drive tray.
5		Kensington lock slot	Connects to a Kensington-compatible computer security lock.Wrap the computer security lock cable around an immovable object such as a table or handle of a locked drawer.Insert the lock into the notch and turn the key to secure the lock.Keyless models are also available.

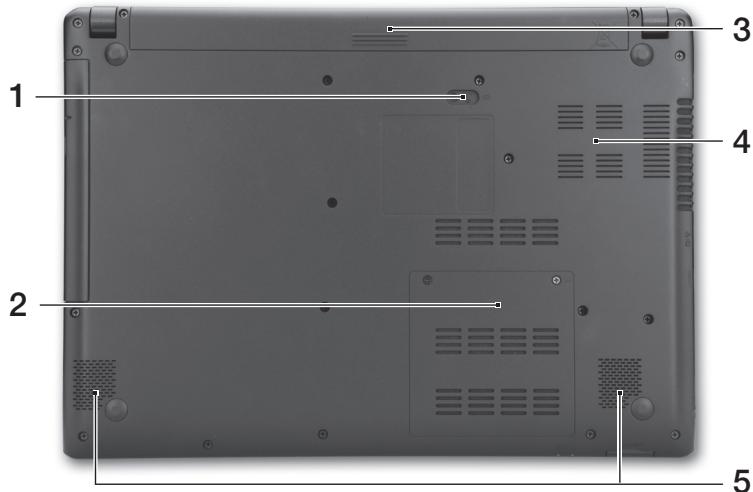

Base view

1 2 3 4 5

#	Icon	Item	Description
1		Battery release latch	Releases the battery for removal. Insert a suitable tool and slide to release.
2		Memory compartment	Houses the computer's main memory.
3		Battery bay	Houses the computer's battery pack.
4		Ventilation and cooling fan	Allows the computer to stay cool.Do not cover or obstruct the openings.
5		Speakers	Deliver stereo audio output.

Environment

• Temperature:
  • Operating: 5 °C to 35 °C
  • Non-operating: -20 °C to 65 °C
  • Humidity (non-condensing):
  • Operating: 20% to 80%
  • Non-operating: 20% to 80%

Connecting to the Internet

Your computer's wireless connection is turned on by default.

Windows will detect and display a list of available networks during setup. Select your network and enter the password if required.

Otherwise, open Internet Explorer and follow the instructions. Please also refer to your ISP or router documentation.

Power management

This computer has a built-in power management unit that monitors system activity, such as activity involving one or more of the following devices: keyboard, mouse, hard disk, peripherals connected to the computer, and video memory. If no activity is detected for a period of time, the computer stops some or all of these devices in order to conserve energy.

Aspire V5

Guide rapide

Acer notebook is bundled with the approved telecom modules for your networking. Those modules' model number and specific homologation number refers to below:

[Modem]

Modelo: RD02-D330	CNC 54-4512
Modelo: Delphi D40 (AM5)	CNC 54-5681

[Bluetooth]

Modelo: BCM92046	CNC 16-6735
Modelo: BCM92070MD_REF	CNC 16-7165
Modelo: T77H056	CNC 16-7788
Modelo: AR5BBU12	CNC 16-7946

[Bluetooth+802.11bgn]

Modelo: BCM943225HMB

CNC C-7497

[802.11AGN]

Modelo: 512AN_MMW	CNC C-6399
Modelo: 533AN_MMW	CNC C-6385
Modelo: 512AN_HMW	CNC C-7612
Modelo: 533AN_HMW	CNC C-7618
Modelo: 622ANHMW	CNC C-7682
Modelo: 633ANHMW	CNC C-7681

[802.11BGN]

Modelo: AR5B95	CNC C-7152
Modelo: AR5B93	CNC C-7151
Modelo: 112BNHMW	CNC C-7470
Modelo: 112BNMMW	CNC C-7471
Modelo: RTL8192SE	CNC C-7495
Modelo: BCM943225HM	CNC C-7395
Modelo: AR5B97	CNC C-7781
Modelo: BCM94313HMG2L	CNC C-7881

[802.11BG]

Modelo: BCM94312HMG

CNC 16-6180

[3G]

Modelo: UNDP-1	CNC 17-6334
Modelo: Gobi2000	CNC 17-7291

[Brasil] Noticia adicional de regulamento Anatel

Acer notebook is bundled with the approved telecom modules for your networking. Those modules' model number and specific homologation number refers to below:

[Modem]

Modelo: RD02-D330	COFETEL: TTDCORD06-536
Modelo: Delphi_D40 (AM5)	COFETEL: TTDAGDE07-056

[Bluetooth]

Modelo: BCM92046	COFETEL: RCPFOBC08-0472
Modelo: BCM92070MD_REF	COFETEL: RCPBRBC09-0213
Modelo: T77H056	COFETEL: RCPATT709-1049
Modelo: AR5BBU12	COFETEL: RCPATAR10-0064

[Bluetooth+802.11BGN]

Modelo: BCM943225HMB

COFETEL: RCPBRBC09-0574

[802.11AGN]

Modelo: 512AN_HMW	COFETEL:RCPIN5108-0260
Modelo: 512AN_MMW	COFETEL:RCPIN5108-0260-A3
Modelo: 533AN_HMW	COFETEL:RCPIN5108-0260-A2
Modelo: 533AN_MMW	COFETEL:RCPIN5108-0260-A1
Modelo: 622ANHMW	COFETEL:RCPIN6209-1009
Modelo: 633ANHMW	COFETEL:RCPIN6309-1010

[802.11BGN]

Modelo: AR5B95	COFETEL:RCPATAR09-0168
Modelo: AR5B93	COFETEL: RCPATAR09-0167
Modelo: 112BNHMW	COFETEL: RCPIN1109-0613-A1
Modelo: 112BNMMW	COFETEL: RCPIN1109-0613
Modelo: RTL8192SE	COFETEL: RCPRERT09-0751
Modelo: BCM943225HM	COFETEL: RCPBRBC09-0464
Modelo: AR5B97	COFETEL: RCPATAR09-1103
Modelo: BCM94313HMG2L	COFETEL: RCPBRBC09-1196

[802.11BG]

Modelo: BCM94312HMG

COFETEL: RCPBRBC08-0015

[3G]

Modelo: UNDP-1	COFETEL:RTIQUUN08-0253
Modelo: Gobi2000	COFETEL:RTIQUGO09-0555
Modelo: EM770W	COFETEL:RTIHUEM10-0096

[WiMax]

Modelo: 622ANXHMW

COFETEL: RCPIN6210-0219

Aspire V5

Guia rápido

Registo do produto

Laptop back panel diagram with numbered labels pointing to different interior compartments or features

Juhised selle avamiseks:

Laptop back panel with numbered labels pointing to different interior compartments or features

Laptop back panel diagram with numbered labels pointing to different interior compartments or features

Laptop back view with numbered annotations pointing to different interior compartments or features
