TRAVELMATE 5742ZG - Laptop ACER - Free user manual and instructions

Product type	Laptop
Brand	Acer
Model	TravelMate 5742ZG
Display	16:9 LCD screen (depending on model)
Battery	Rechargeable lithium-ion
Power supply	AC adapter 100-240 V AC
Network connectivity	Ethernet RJ-45, V.92 56 Kbps modem
USB ports	USB 2.0
IEEE 1394 port	Yes (depending on model)
HDMI port	Yes (depending on model)
ExpressCard slot	ExpressCard/54 or /34
Optical drive	DVD drive (depending on model)
Audio	32-bit HD audio, built-in speakers, Acer PureZone (depending on model)
Touchpad	Touchpad with left and right buttons (fingerprint reader depending on model)
Security	Kensington lock slot, BIOS passwords, Acer Bio-Protection fingerprint reader (depending on model)
Operating system	Windows (pre-installed)
Recovery tools	Acer eRecovery Management, disk-to-disk recovery
Warranty	International Travelers Warranty (ITW)
Maintenance	Soft, slightly damp cloth, no liquids

Frequently Asked Questions - TRAVELMATE 5742ZG ACER

How do I turn on my computer?

Press and release the power button located below the LCD screen, next to the easy-launch buttons.

What should I do if the screen remains black?

Check that the computer is not in sleep mode (press a key). If nothing happens, adjust the brightness with Fn + Up arrow or toggle the display with Fn + F5.

How do I use the touchpad?

Move your finger on the touchpad to move the cursor. Press the left button to select and the right button for the context menu. A tap is equivalent to a left click.

How do I charge the battery?

Connect the AC adapter to the computer and to a power outlet. The battery charges even when the computer is on, but charging is faster when it is off.

What should I do if the battery is low?

Connect the AC adapter as soon as possible. If you cannot, save your files, close applications, and turn off the computer to avoid data loss.

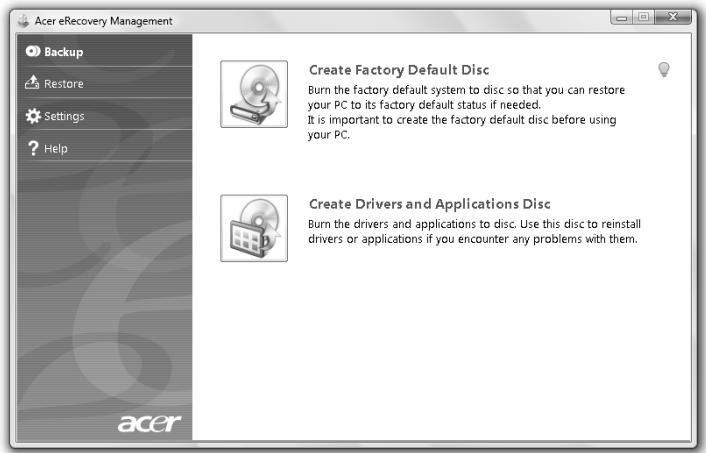

How do I restore my computer to factory settings without a disc?

Restart and press Alt + F10 at the Acer logo. Follow the on-screen instructions. Make sure D2D Recovery is enabled in the BIOS (F2 at startup).

How do I connect a USB device?

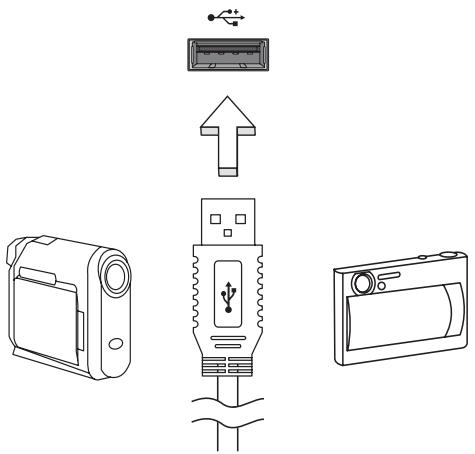

Simply plug the device into a USB 2.0 port. The system recognizes it automatically. For safe removal, click the 'Safely Remove Hardware' icon in the taskbar.

Can I use a security lock?

Yes, the notebook is equipped with a Kensington-compatible security slot. Wrap the cable around a fixed object and insert the lock into the slot.

How do I clean the computer?

Turn off the computer, remove the battery, and unplug the adapter. Use a soft, slightly damp cloth (water only). Do not use liquids or sprays.

What should I do if the keyboard stops responding?

Try connecting an external USB keyboard. If it works, the internal cable may be disconnected. Contact your dealer or an authorized service center.

USER MANUAL TRAVELMATE 5742ZG ACER

TravelMate Series Notebook PC

Model number: ____

Serial number: ____

Date of purchase: ____

Place of purchase: ____

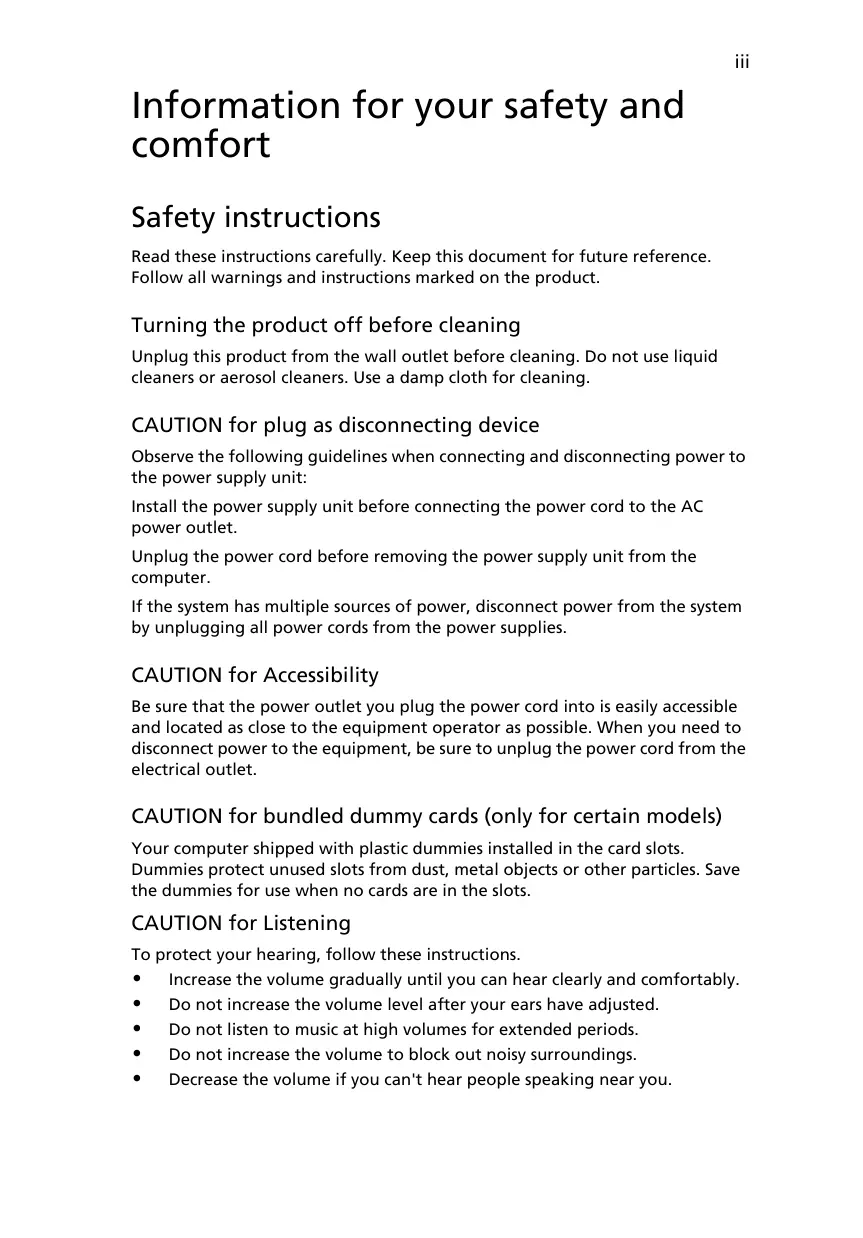

Information for your safety and comfort

Safety instructions

Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.

Turning the product off before cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

CAUTION for plug as disconnecting device

Observe the following guidelines when connecting and disconnecting power to the power supply unit:

Install the power supply unit before connecting the power cord to the AC power outlet.

Unplug the power cord before removing the power supply unit from the computer.

If the system has multiple sources of power, disconnect power from the system by unplugging all power cords from the power supplies.

CAUTION for Accessibility

Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power cord from the electrical outlet.

CAUTION for bundled dummy cards (only for certain models)

Your computer shipped with plastic dummies installed in the card slots.

Dummies protect unused slots from dust, metal objects or other particles. Save the dummies for use when no cards are in the slots.

CAUTION for Listening

To protect your hearing, follow these instructions.

• Increase the volume gradually until you can hear clearly and comfortably.
• Do not increase the volume level after your ears have adjusted.
• Do not listen to music at high volumes for extended periods.
• Do not increase the volume to block out noisy surroundings.
  • Decrease the volume if you can't hear people speaking near you.

Warnings

• Do not use this product near water.
- Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged.
- Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.
- Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.
- To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface.
- Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage rotor devices, HDD, Optical drive, and even exposure risk from lithium battery pack.
- The bottom surface, areas around ventilation openings and AC adapter may get hot. To avoid injury, ensure they do not come in contact with your skin or body.
- Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

Using electrical power

• This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
• Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.
• If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.
• Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.
• This product's AC adapter is equipped with a three-wire grounded plug. The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the AC adapter plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.

Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.

Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.

- The system can be powered using a wide range of voltages; 100 to 120 or 220 to 240 V AC. The power cord included with the system meets the requirements for use in the country/region where the system was purchased. Power cords for use in other countries/regions must meet the requirements for that country/region. For more information on power cord requirements, contact an authorized reseller or service provider.

Product servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

• the power cord or plug is damaged, cut or frayed
• liquid was spilled into the product
• the product was exposed to rain or water
• the product has been dropped or the case has been damaged
- the product exhibits a distinct change in performance, indicating a need for service
- the product does not operate normally after following the operating instructions

Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

Guidelines for safe battery usage

This notebook uses a Lithium-ion battery. Do not use it in a humid, wet or corrosive environment. Do not put, store or leave your product in or near a heat source, in a high temperature location, in strong direct sunlight, in a microwave oven or in a pressurized container, and do not expose it to temperatures over 60^ C ( 140^ F). Failure to follow these guidelines may cause the battery to leak acid, become hot, explode or ignite and cause injury and/or damage. Do not pierce, open or disassemble the battery. If the battery leaks and you come into contact with the leaked fluids, rinse thoroughly with water and seek medical attention immediately. For safety reasons, and to prolong the lifetime of the battery, charging will not occur at temperatures below 0^ C ( 32^ F) or above 40^ C ( 104^ F).

The full performance of a new battery is achieved only after two or three complete charge and discharge cycles. The battery can be charged and discharged hundreds of times, but it will eventually wear out. When the operation time becomes noticeably shorter than normal, buy a new battery. Use only the approved batteries, and recharge your battery only with the approved chargers designated for this device.

Use the battery only for its intended purpose. Never use any charger or battery that is damaged. Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object such as a coin, clip or pen causes direct connection of the positive (+) and negative (-) terminals of the battery. (These look like metal strips on the battery.) This might happen, for example, when you carry a spare battery in your pocket or purse. Short-circuiting the terminals may damage the battery or the connecting object.

The capacity and lifetime of the battery will be reduced if the battery is left in hot or cold places, such as in a closed car in summer or winter. Always try to keep the battery between 15^ C and 25^ C ( 59^ F and 77^ F). A device with a hot or cold battery may not work temporarily, even when the battery is fully charged. Battery performance is especially limited in temperatures well below freezing.

Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged. Dispose of batteries according to local regulations. Please recycle when possible. Do not dispose as household waste.

Wireless devices may be susceptible to interference from the battery, which could affect performance.

Replacing the battery pack

The notebook uses lithium batteries. Replace the battery with the same type as that which came bundled with your product. Use of another battery may present a risk of fire or explosion.

Warning! Batteries may explode if not handled properly. Do not disassemble or dispose of them in fire. Keep them away from children. Follow local regulations when disposing of used batteries.

Caution for Optical Drive Device (only for certain models)

CAUTION: This appliance contains a laser system and is classified as a "CLASS 1 LASER PRODUCT." In case of any trouble with this device, please contact your nearest AUTHORIZED service station. To prevent direct exposure to the laser beam, do not try to open the enclosure.

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D'OUVERTURE.EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

Telephone line safety

- Disconnect all telephone lines from the equipment when not in use and/or before servicing.

- To avoid the remote risk of electric shock from lightning, do not connect the telephone line to this equipment during lightning or thunderstorms.

Warning! For safety reasons, do not use non-compliant parts when adding or changing components. Consult your reseller for purchase options.

Operating environment

Warning! For safety reasons, turn off all wireless or radio transmitting devices when using your laptop under the following conditions. These devices may include, but are not limited to: wireless lan (WLAN), Bluetooth and/or 3G.

Remember to follow any special regulations in force in any area, and always switch off your device when its use is prohibited or when it may cause interference or danger. Use the device only in its normal operating positions. This device meets RF exposure guidelines when used normally, and it and its antenna are positioned at least 1.5 centimeters (5/8 inches) away from your body (refer to the figure below). It should not contain metal and you should position the device the above-stated distance from your body. To successfully transmit data files or messages, this device requires a good quality connection to the network. In some cases, transmission of data files or messages may be delayed until such a connection is available. Ensure that the above separation distance instructions are followed until the transmission is completed. Parts of the device are magnetic. Metallic materials may be attracted to the device, and persons with hearing aids should not hold the device to the ear with the hearing aid. Do not place credit cards or other magnetic storage media near the device, because information stored on them may be erased.

Medical devices

Operation of any radio transmitting equipment, including wireless phones, may interfere with the functionality of inadequately protected medical devices. Consult a physician or the manufacturer of the medical device to determine if they are adequately shielded from external RF energy or if you have any questions. Switch off your device in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF transmissions.

Pacemakers. Pacemaker manufacturers recommend that a minimum separation of 15.3 centimeters (6 inches) be maintained between wireless devices and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research. Persons with pacemakers should do the following:

• Always keep the device more than 15.3 centimeters (6 inches) from the pacemaker
- Not carry the device near your pacemaker when the device is switched o. If you suspect interference, switch off your device, and move it.

Hearing aids. Some digital wireless devices may interfere with some hearing aids. If interference occurs, consult your service provider.

Vehicles

RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles such as electronic fuel injection systems, electronic antiskid (antilock) braking systems, electronic speed control systems, and air bag systems. For more information, check with the manufacturer, or its representative, of your vehicle or any equipment that has been added. Only qualified personnel should service the device, or install the device in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty that may apply to the device. Check regularly that all wireless equipment in your vehicle is mounted and operating properly. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the device, its parts, or enhancements. For vehicles equipped with an air bag, remember that air bags inflate with great force. Do not place objects, including installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed, and the air bag inflates, serious injury could result. Using your device while flying in aircraft is prohibited. Switch off your device before boarding an aircraft. The use of wireless teledevices in an aircraft may be dangerous to the operation of the aircraft, disrupt the wireless telephone network, and may be illegal.

Potentially explosive environments

Switch off your device when in any area with a potentially explosive atmosphere and obey all signs and instructions. Potentially explosive atmospheres include areas where you would normally be advised to turn off your vehicle engine. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Switch off the device at refueling points such as near gas pumps at service stations. Observe restrictions on the use of radio equipment in fuel depots, storage, and distribution areas; chemical plants; or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), and areas where the air contains chemicals or particles such as grain, dust or metal powders. Do not switch the notebook on when wireless phone use is prohibited or when it may cause interference or danger.

Emergency calls

Warning: You cannot make emergency calls through this device. To make an emergency call you shall dial out through your mobile phone or other telephone call system.

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit http://www.acer-group.com/public/Sustainability/sustainability01.htm.

Mercury advisory

For bulb-inside projectors or electronic products containing an non-LED-backlit-LCD/CRT monito or display: Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state or federal laws. For more information, contact the Electronic Industries Alliance at www.eiae.org. For lamp-specific disposal information, check www.lamprecycle.org.

ENERGY STAR

Acer's ENERGY STAR qualified products save your money by reducing energy cost and protecting the environment without sacrificing features or performance. Acer is proud to offer our customers products with the ENERGY STAR mark.

What is ENERGY STAR?

Products that are ENERGY STAR qualified use less energy and prevent greenhouse gas emissions by meeting strict energy efficiency guidelines set by the U.S. Environmental Protection Agency. Acer is committed to offer products and services worldwide that help customers save money, conserve energy and improve the quality of our environment. The more energy we can save through higher energy efficiency, the more we reduce greenhouse gases and the risks of climate change. More information refers to http://www.energystar.gov or http://www.energystar.gov/powermanagement.

Acer ENERGY STAR qualified products: (only for certain models)

• Produce less heat and reduce cooling loads, and warmer climates.
- Automatically go into "display sleep" and "computer sleep" mode after 10 and 30 minute of inactivity respectively.
- Wake the computer from sleep mode by pushing keyboard or moving mouse.
• Computers will save more than 80% energy at "sleep" mode.

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks

Tips and information for comfortable use

Computer users may complain of eyestrain and headaches after prolonged use. Users are also at risk of physical injury after long hours of working in front of a computer. Long work periods, bad posture, poor work habits, stress, inadequate working conditions, personal health and other factors greatly increase the risk of physical injury.

Incorrect computer usage may lead to carpal tunnel syndrome, tendonitis, tenosynovitis or other musculoskeletal disorders. The following symptoms may appear in the hands, wrists, arms, shoulders, neck or back:

• numbness, or a burning or tingling sensation
  • aching, soreness or tenderness
  • pain, swelling or throbbing
  • stiffness or tightness
  • coldness or weakness

If you have these symptoms, or any other recurring or persistent discomfort and/or pain related to computer use, consult a physician immediately and inform your company's health and safety department.

The following section provides tips for more comfortable computer use.

Finding your comfort zone

Find your comfort zone by adjusting the viewing angle of the monitor, using a footrest, or raising your sitting height to achieve maximum comfort. Observe the following tips:

• refrain from staying too long in one fixed posture
• avoid slouching forward and/or leaning backward
- stand up and walk around regularly to remove the strain on your leg muscles
• take short rests to relax your neck and shoulders
• avoid tensing your muscles or shrugging your shoulders
• install the external display, keyboard and mouse properly and within comfortable reach
- if you view your monitor more than your documents, place the display at the center of your desk to minimize neck strain

Taking care of your vision

Long viewing hours, wearing incorrect glasses or contact lenses, glare, excessive room lighting, poorly focused screens, very small typefaces and low-contrast displays could stress your eyes. The following sections provide suggestions on how to reduce eyestrain.

Eyes

• Rest your eyes frequently.
- Give your eyes regular breaks by looking away from the monitor and focusing on a distant point.
- Blink frequently to keep your eyes from drying out.

xii

Display

• Keep your display clean.
• Keep your head at a higher level than the top edge of the display so your eyes point downward when looking at the middle of the display.
• Adjust the display brightness and/or contrast to a comfortable level for enhanced text readability and graphics clarity.

• Eliminate glare and reflections by:

• placing your display in such a way that the side faces the window or any light source

• minimizing room light by using drapes, shades or blinds
  • using a task light
  • changing the display's viewing angle
  • using a glare-reduction filter
• using a display visor, such as a piece of cardboard extended from the display's top front edge

- Avoid adjusting your display to an awkward viewing angle.

- Avoid looking at bright light sources, such as open windows, for extended periods of time.

Developing good work habits

Develop the following work habits to make your computer use more relaxing and productive:

• Take short breaks regularly and often.
• Perform some stretching exercises.
- Breathe fresh air as often as possible.
• Exercise regularly and maintain a healthy body.

Warning! We do not recommend using the computer on a couch or bed. If this is unavoidable, work for only short periods, take breaks regularly, and do some stretching exercises.

Note: For more information, please refer to "Regulations and safety notices" on page 36.

First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

First off, the Just for Starters...poster helps you get started with setting up your computer.

The printed TravelMate Series Generic User Guide contains useful information applying to all models in the TravelMate product series. It covers basic topics such as Acer eRecovery Management, using the keyboard, Audio, etc. Please understand that due to its nature, the Generic User Guide as well as the AcerSystem User Guide mentioned below will occasionally refer to functions or features which are only contained in certain models of the series, but not necessarily in the model you purchased. Such instances are marked in the text with language such as "only for certain models".

The printed Quick Guide introduces you to the basic features and functions of your new computer. For more on how your computer can help you to be more productive, please refer to the AcerSystem User Guide. This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in Portable Document Format (PDF) and comes preloaded on your notebook. Follow these steps to access it:

1 Click on

Start, All Programs, AcerSystem.

2 Click on AcerSystem User Guide.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not installed on your computer, clicking on AcerSystem User Guide will run the Adobe Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions on how to use Adobe Reader, access the Help and Support menu.

Basic care and tips for using your computer

Turning your computer on and off

To turn on the computer, simply press and release the power button below the LCD screen beside the easy-launch buttons. Please refre to "Quick Guide" for the location of the power button.

xiv

To turn the power off, do any of the following:

• Use the Windows shutdown command Click on Start then click on Shut Down.
  • Use the power button

You can also put the computer in sleep mode by pressing the sleep hotkey + .

Note: If you cannot power off the computer normally, press and hold the power button for more than four seconds to shut down the computer. If you turn off the computer and want to turn it on again, wait at least two seconds before powering up.

Taking care of your computer

Your computer will serve you well if you take care of it.

• Do not expose the computer to direct sunlight. Do not place it near sources of heat, such as a radiator.
• Do not expose the computer to temperatures below 0 °C (32 °F) or above 50 °C (122 °F).
  • Do not subject the computer to magnetic fields.
• Do not expose the computer to rain or moisture.
• Do not spill water or any liquid on the computer.
• Do not subject the computer to heavy shock or vibration.
  • Do not expose the computer to dust or dirt.
  • Never place objects on top of the computer.
  • Do not slam the computer display when you close it.
  • Never place the computer on uneven surfaces.

Taking care of your AC adapter

Here are some ways to take care of your AC adapter:

• Do not connect the adapter to any other device.
• Do not step on the power cord or place heavy objects on top of it. Carefully route the power cord and any cables away from foot traffic.
• When unplugging the power cord, do not pull on the cord itself but pull on the plug.
• The total ampere ratings of the equipment plugged in should not exceed the ampere rating of the cord if you are using an extension cord. Also, the total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating.

Taking care of your battery pack

Here are some ways to take care of your battery pack:

• Use only batteries of the same kind as replacements. Turn the power off before removing or replacing batteries.
• Do not tamper with batteries. Keep them away from children.
• Dispose of used batteries according to local regulations. Recycle if possible.

Cleaning and servicing

When cleaning the computer, follow these steps:

1 Turn off the computer and remove the battery pack.
2 Disconnect the AC adapter.
3 Use a soft, moist cloth. Do not use liquid or aerosol cleaners.

If either of the following occurs:

• the computer has been dropped or the body has been damaged;
• the computer does not operate normally

Please refer to "Frequently asked questions" on page 31.

Information for your safety and comfort iii

Safety instructions iii

Caution for Optical Drive Device

(only for certain models) vii

Operating environment viii

Medical devices viii

Vehicles ix

Potentially explosive environments ix

Emergency calls ix

Disposal instructions x

Mercury advisory x

ENERGY STAR x

Tips and information for comfortable use xi

First things first xiii

Your guides xiii

Basic care and tips for using your computer xiii

Turning your computer on and off xiii

Taking care of your computer xiv

Taking care of your AC adapter xiv

Taking care of your battery pack xv

Cleaning and servicing xv

Touchpad 1

Touchpad basics (with fingerprint reader) 1

Touchpad basics (with two-click buttons) 2

Using the keyboard 3

Lock keys and embedded numeric keypad* 3

Windows keys 4

Audio 5

Acer PureZone (only for certain models) 5

Video 5

16:9 display (only for certain models) 5

Using the system utilities 6

Acer Bio-Protection (only for certain models) 6

Acer Backup Manager 7

Power management 8

Acer eRecovery Management 9

Burn backup discs 10

Restore 11

Restore Windows from backup discs 12

Battery pack 14

Battery pack characteristics 14

Maximizing the battery's life 14

Installing and removing the battery pack 15

Charging the battery 16

Checking the battery level 16

Optimising battery life 16

Battery-low warning 17

Taking your notebook PC with you 18

Disconnecting from the desktop 18

Moving around 18

Preparing the computer 18

What to bring to meetings 19

Taking the computer home 19

Preparing the computer 19

What to take with you 19

Special considerations 20

Setting up a home office 20

Traveling with the computer 20

Preparing the computer 20

What to take with you 20

Special considerations 21

Traveling internationally with the computer 21

Preparing the computer 21

What to bring with you 21

Special considerations 21

Securing your computer 22

Using a computer security lock 22

Using passwords 22

Entering passwords 23

Setting passwords 23

Expanding through options 24

Connectivity options 24

Fax/data modem (only for certain models) 24

Built-in network feature 25

Universal Serial Bus (USB) 25

IEEE 1394 port (only for certain models) 26

High-Definition Multimedia Interface

(only for certain models) 26

ExpressCard (only for certain models) 27

Installing memory 28

BIOS utility 29

Boot sequence 29

Enable disk-to-disk recovery 29

Password 29

Using software 30

Playing DVD movies 30

Frequently asked questions 31

Requesting service 34

International Travelers Warranty (ITW) 34

Before you call 34

Troubleshooting 35

Troubleshooting tips 35

Error messages 35

Regulations and safety notices 36

FCC statement 36

Modem notices (only for certain models) 37

LCD pixel statement 39

Radio device regulatory notice 39

General 39

The FCC RF safety requirement 40

Canada — Low-power license-exempt radio

communication devices (RSS-210) 41

Exposure of humans to RF fields (RSS-102) 41

LCD panel ergonomic specifications 41

Touchpad

The built-in touchpad is a pointing device that senses movement on its surface. This means the cursor responds as you move your finger across the surface of the touchpad. The central location on the palmrest provides optimum comfort and support.

Touchpad basics (with fingerprint reader)

The following items show you how to use the touchpad with Acer Bio-Protection fingerprint reader.

• Move your finger across the touchpad (1) to move the cursor.
• Press the left (2) and right (4) buttons located beneath the touchpad to perform selection and execution functions. These two buttons are similar to the left and right buttons on a mouse. Tapping on the touchpad is the same as clicking the left button.

Function	Left button (2)	Right button (4)	Main touchpad (1)	Center button (3)
Execute	Quickly click twice.		Tap twice (at the same speed as double-clicking a mouse button).
Select	Click once.		Tap once.
Drag	Click and hold, then use finger on the touchpad to drag the cursor.		Tap twice (at the same speed as double-clicking a mouse button); rest your finger on the touchpad on the second tap and drag the cursor.
Access context menu		Click once.

Touchpad basics (with two-click buttons)

The following items show you how to use the touchpad with two-click buttons.

• Move your finger across the touchpad to move the cursor.
• Press the left and right buttons located beneath the touchpad to perform selection and execution functions. These two buttons are similar to the left and right buttons on a mouse. Tapping on the touchpad is the same as clicking the left button.

Function	Left button	Right button	Main touchpad
Execute	Quickly click twice.		Tap twice (at the same speed as double-clicking a mouse button).
Select	Click once.		Tap once.
Drag	Click and hold, then use finger on the touchpad to drag the cursor.		Tap twice (at the same speed as double-clicking a mouse button); rest your finger on the touchpad on the second tap and drag the cursor.
Access context menu		Click once.

Note: Illustrations for reference only. The exact configuration of your PC depends on the model purchased.

Note: When using the touchpad, keep it — and your fingers — dry and clean. The touchpad is sensitive to finger movement; hence, the lighter the touch, the better the response. Tapping harder will not increase the touchpad's responsiveness.

Note: By default, vertical and horizontal scrolling is enabled on your touchpad. It can be disabled under Mouse settings in Windows Control Panel.

Using the keyboard

The keyboard has full-sized keys and an embedded numeric keypad*, separate cursor, lock, Windows, function and special keys.

Lock keys and embedded numeric keypad\*

The keyboard has three lock keys which you can toggle on and off.

Lock key	Description
Caps Lock	When Caps Lock is on, all alphabetic characters typed are in uppercase.
Num Lock+*	When Num Lock is on, the embedded keypad is in numeric mode. The keys function as a calculator (complete with the arithmetic operators +, -, *, and /). Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.
Scroll Lock+	When Scroll Lock is on, the screen moves one line up or down when you press the up or down arrow keys respectively. Scroll Lock does not work with some applications.

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.

Desired access	Num Lock on	Num Lock off
Number keys on embedded keypad	Type numbers in a normal manner.
Cursor-control keys on embedded keypad	Holdwhile using cursor-control keys.	Holdwhile using cursor-control keys.
Main keyboard keys	Holdwhile typing letters on embedded keypad.	Type the letters in a normal manner.

* only for certain models

Windows keys

The keyboard has two keys that perform Windows-specific functions.

Key		Description
	Windows key	Pressed alone, this key has the same effect as clicking on the Windows Start button; it launches the Start menu. It can also be used with other keys to provide a variety of functions:<@>: Open or close the Start menu:<@>+: Display the desktop:<@>+: Open Windows Explore:<@>+: Search for a file or folder:<@>+: Cycle through Sidebar gadgets:<@>+: Lock your computer (if you are connected to a network domain), or switch users (if you're not connected to a network domain)<@>+: Minimizes all windows<@>+: Open the Run dialog box<@>+: Cycle through programs on the taskbar<@>+: Open Ease of Access Center<@>+: Open Windows Mobility Center<@>+: Display the System Properties dialog box<@>+: Restore minimized windows to the desktop<@>+: Cycle through programs on the taskbar by using Windows Flip 3-D<@>+: Bring all gadgets to the front and select Windows Sidebar<CTRL>+: Search for computers (if you are on a network)<CTRL>+: Use the arrow keys to cycle through programs on the taskbar by using Windows Flip 3-D ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■-Note: Depending on your edition of Windows, some shortcuts may not function as described.
[0Y3H]	Application key	This key has the same effect as clicking the right mouse button; it opens the application's context menu.

Audio

The computer also comes with 32-bit High Definition (HD) Audio and speaker(s).

Acer PureZone (only for certain models)

The system provides you whole new enthusiastic audio experience including Acer PureZone with built-in stereo microphones featuring beam forming and echo cancellation technologies. Acer PureZone technology supports Acoustic Echo Cancellation, Beam Forming and Noise Suppression for pure sound recording. To set up your microphone, run the Acer HD Audio Manager by double-clicking the Acer HD Audio Manager icon in the system tray of your Windows system. The Acer HD Audio Manager dialog box will pop up. Click the Microphone tab, and then click the Microphone Effects tab. Select Beam Forming and Acoustic Echo Canellation to set the microphone effect.

Note: Disable the beam forming to get the multi-sound source input.

Video

16:9 display (only for certain models)

16:9 display delivers Full HD movies at home like never before. Sky-high color saturation guarantees an authentic HD viewing experience. 16:9 quality means true home theater visuals have finally arrived for notebook entertainment enthusiasts.

Using the system utilities

Acer Bio-Protection (only for certain models)

Acer Bio-Protection Fingerprint Solution is a multi-purpose fingerprint software package integrated with the Microsoft Windows operating system. Utilizing the uniqueness of one's fingerprint, Acer Bio-Protection Fingerprint Solution incorporates protection against unauthorized access to your computer with centralized password management via Password Bank; and fast application/website launching and login with Acer FingerLaunch.

With Acer Bio-Protection Fingerprint Solution, you can now enjoy an extra layer of protection for your personal computer, as well as the convenience of accessing your daily tasks with a simple swipe of your finger!

For more information, refer to the Acer Bio-Protection help files.

Acer Backup Manager

Note: This feature is only available on certain models.

Acer Backup Manager is a simple three-step process that allows you to create backup copies of your entire system or selected files and folders according to a schedule or as you need to.

To start Acer Backup Manager, press the Acer Backup Manager key above the keyboard. Alternatively, you can go to Start > All Programs > Acer Backup Manager > Acer Backup Manager. This will open the Welcome screen; from this screen you will be taken through the three steps to setup scheduled back ups. Click Continue to proceed to the following screen. Click the + button and follow the onscreen instructions:

1 Select the content you want to back up. The less content you select, the quicker the process will be, but it will increase your risks of losing data.
2 Select where you want the backup copies to be stored. You will need to select an external drive or your D: drive; Acer Backup Manager cannot store a backup on the source drive.
3 Select how often you want Acer Backup Manager to create back ups.

Once you have finished these three steps, backups will be created according to the schedule. You can also create backups manually by pressing the Acer Backup Manager key.

If you wish to change your settings at any time, run Acer Backup Manager from the Start menu and go through the steps outlined above.

Power management

This computer has a built-in power management unit that monitors system activity. System activity refers to any activity involving one or more of the following devices: keyboard, mouse, hard disk, peripherals connected to the computer, and video memory. If no activity is detected for a period of time (called an inactivity timeout), the computer stops some or all of these devices in order to conserve energy.

This computer employs a power management scheme that supports the advanced configuration and power interface (ACPI), which allows for maximum power conservation and maximum performance at the same time. Windows handles all power-saving chores for your computer.

Acer eRecovery Management

Acer eRecovery Management is a tool to quickly restore the system. You can back up/restore the factory default image, and reinstall applications and drivers.

Note: All of the following content is for general reference only. Actual product specifications may vary.

Acer eRecovery Management consists of the following functions:

1 Backup:

• Create Factory Default Disc
• Create Drivers and Applications Disc

2 Restore:

• Completely Restore System to Factory Defaults
- Restore Operating System and Retain User Data
• Reinstall Drivers or Applications

This chapter will guide you through each process.

Note: This feature is only available on certain models. For systems that do not have a built-in optical disc burner, plug in an external optical disc burner before entering Acer eRecovery Management for optical disc-related tasks.

To use the password protection feature of Acer eRecovery Management, you must first set the password. The password is set by launching Acer eRecovery Management and clicking Settings.

Burn backup discs

From the Backup page of Acer eRecovery Management, you can burn the factory default image or back up drivers and applications.

1 Click on Start > All Programs > Acer > Acer eRecovery Management.
2 Acer eRecovery Management opens to the Backup page.

3 Select the type of backup (factory default or drivers and applications) you would like to burn to disc.
4 Follow the instructions on screen to complete the process.

Note: Create a factory default image when you want to burn a bootable disc that contains your computer's entire operating system as it was delivered to you from the factory. If you wish to have a disc that will allow you to browse the contents and install selected drivers and applications, create a drivers and application backup instead — this disc will not be bootable.

Restore

The restore feature allows you to restore or recover the system from a factory default image or from previously created CD and DVD backups. You can also reinstall applications and drivers for your Acer system.

1 Click on Start, All Programs, Acer, Acer eRecovery Management.
2 Switch to the Restore page by clicking Restore.

3 You can choose to restore the system from a factory default image or reinstall applications and drivers.
4 Follow the instructions on screen to complete the process.
3 You can choose to restore the system from a factory default image or reinstall applications and drivers.
4 Follow the instructions on screen to complete the process.

Restore Windows from backup discs

Note: This feature is only available on certain models.

To restore Windows from your previously burned backup discs, you will need to insert the first backup disc and enable the F12 Boot Menu via the BIOS Setup Utility.

1 Turn on your computer and insert the first system recovery disc into the optical disc drive. Restart your computer.
2 During startup when the Acer logo shows, press the F2 key to enter BIOS Setup, where you can set system parameters.
3 Use the left and right arrow keys to select the Main submenu.
4 Use the up and down arrow keys to select F12 Boot Menu
5 Use the F5 or F6 key to change F12 Boot Menu to Enabled.
6 Press the ESC key to enter the Exit submenu, press the ENTER key to Exit Saving Changes. Press the ENTER key again to select Yes. The system will reboot.
7 After rebooting, when the Acer logo shows, press the F12 key to open the Boot Menu. Here you can select which device to boot from.
8 Use the arrow keys to select the IDE1*, then press the ENTER key. Windows will be installed from the recovery disc.
9 Insert the second recovery disc when prompted, then follow the onscreen prompts to complete the restore.
10 Remove the recovery disc from the optical drive once the restore is complete. Do this before rebooting your computer.

If you prefer to set the boot priority for long-term use, you should select the Boot submenu.

1 Turn on your computer and insert the first system recovery disc into the optical disc drive. Restart your computer.
2 During startup when the Acer logo shows, press the F2 key to enter BIOS Setup, where you can set system parameters.
3 Use the left and right arrow keys to select the Boot submenu.
4 Use the up and down arrow keys to select the IDE1* device.
5 Use the F6 key to move the IDE1* device to the highest boot priority, or use the F5 key to move other devices to a lower boot priority. Ensure that the IDE1* device is the highest priority.
6 Press the ESC key to enter the Exit submenu, press the ENTER key to Exit Saving Changes. Press the ENTER key again to select Yes. The system will reboot.
7 When you reboot, Windows will be installed from the recovery disc.
8 Insert the second recovery disc when prompted, then follow the onscreen prompts to complete the restore.
9 Remove the recovery disc from the optical drive once the restore is complete. Do this before rebooting your computer.

Battery pack

The computer uses a battery pack that gives you long use between charges.

Battery pack characteristics

The battery pack has the following characteristics:

• Employs current battery technology standards.
• Delivers a battery-low warning.

The battery is recharged whenever you connect the computer to the AC adapter. Your computer supports charge-in-use, enabling you to recharge the battery while you continue to operate the computer. However, recharging with the computer turned off results in a significantly faster charge time.

The battery will come in handy when you travel or during a power failure. It is advisable to have an extra fully charged battery pack available as backup. Contact your dealer for details on ordering a spare battery pack.

Maximizing the battery's life

Like all other batteries, your computer's battery will degrade over time. This means that the battery's performance will diminish with time and use. To maximize your battery's life, you are advised to adhere to the recommendations set out below.

Conditioning a new battery pack

Before you use a battery pack for the first time, there is a "conditioning" process that you should follow:

1 Insert the new battery without turning the computer on.
2 Connect the AC adapter and fully charge the battery.
3 Disconnect the AC adapter.
4 Turn on the computer and operate using battery power.
5 Fully deplete the battery until the battery-low warning appears.
6 Reconnect the AC adapter and fully charge the battery again.

Follow these steps again until the battery has been charged and discharged three times.

Use this conditioning process for all new batteries, or if a battery hasn't been used for a long time. If the computer is to be stored for more than two weeks, you are advised to remove the battery pack from the unit.

Warning: Do not expose battery packs to temperatures below 0^ C ( 32^ F) or above 45^ C ( 113^ F). Extreme temperatures may adversely affect the battery pack.

By following the battery conditioning process you condition your battery to accept the maximum possible charge. Failure to follow this procedure will prevent you from obtaining the maximum battery charge, and will also shorten the effective lifespan of the battery.

In addition, the useful lifespan of the battery is adversely affected by the following usage patterns:

• Using the computer on constant AC power with the battery inserted. If you want to use constant AC power, you are advised to remove the battery pack after it is fully charged.
• Not discharging and recharging the battery to its extremes, as described above.
• Frequent use; the more you use the battery, the faster it will reach the end of its effective life. A standard computer battery has a life span of about 300 charges.

Installing and removing the battery pack

Important! Before removing the battery from the unit, connect the AC adapter if you want to continue using your computer. Otherwise, turn off the computer first.

To install a battery pack:

1 Align the battery with the open battery bay; make sure that the end with the contacts will enter first, and that the top surface of the battery is facing up.
2 Slide the battery into the battery bay and gently push until the battery locks in place.

To remove a battery pack:

1 Slide the battery release latch to release the battery.
2 Pull the battery from the battery bay.

Charging the battery

To charge the battery, first make sure that it is correctly installed in the battery bay. Plug the AC adapter into the computer, and connect to a mains power outlet. You can continue to operate your computer on AC power while your battery is charging. However, charging the battery with the computer turned off results in a significantly faster charge time.

Note: You are advised to charge the battery before retiring for the day. Charging the battery overnight before traveling enables you to start the next day with a fully charged battery.

Checking the battery level

The Windows power meter indicates the current battery level. Rest the cursor over the battery/power icon on the taskbar to see the battery's present charge level.

Optimising battery life

Optimizing battery life helps you get the most out of battery operation, prolonging the charge/recharge cycle and improving recharging efficiency. You are advised to follow the suggestions set out below:

• Purchase an extra battery pack.
- Use AC power whenever possible, reserving battery for on-the-go use.
- Eject a PC Card if it is not being used, as it will continue to draw power (for selected model).
- Store the battery pack in a cool, dry place. The recommended temperature is 10^ C ( 50^ F) to 30^ C ( 86^ F). Higher temperatures cause the battery to self-discharge faster.
• Excessive recharging decreases the battery life.
- Look after your AC adapter and battery.

Battery-low warning

When using battery power pay attention to the Windows power meter.

Warning: Connect the AC adapter as soon as possible after the battery-low warning appears. Data will be lost if the battery to become fully depleted and the computer shuts down.

When the battery-low warning appears, the recommended course of action depends on your situation:

Situation	Recommended Action
The AC adapter and a power outlet are available.	1. Plug the AC adapter into the computer, and then connect to the mains power supply.2. Save all necessary files.3. Resume work.Turn off the computer if you want to recharge the battery rapidly.
An extra fully charged battery pack is available.	1. Save all necessary files.2. Close all applications.3. Shut down the operating system to turn off the computer.4. Replace the battery pack.5. Turn on the computer and resume work.
The AC adapter or a power outlet is unavailable. You have no spare battery pack.	1. Save all necessary files.2. Close all applications.3. Shut down the operating system to turn off the computer.

Taking your notebook PC with you

This section gives you tips and hints to consider when moving around or traveling with your computer.

Disconnecting from the desktop

Follow these steps to disconnect your computer from external accessories:

1 Save any open files.
2 Remove any media, floppy disks or compact disks from the drive(s).
3 Shut down the computer.
4 Close the display cover.
5 Disconnect the cord from the AC adapter.
6 Disconnect the keyboard, pointing device, printer, external monitor and other external devices.
7 Disconnect the Kensington lock if you are using one to secure the computer.

Moving around

When you are just moving within short distances, for example, from your office desk to a meeting room.

Preparing the computer

Before moving the computer, close and latch the display cover to place it in Sleep mode. You can now safely take the computer anywhere you go within the building. To bring the computer out of Sleep mode, open the display; then press and release the power button.

If you are taking the computer to a client's office or a different building, you may choose to shut down the computer:

Click on Start then click on Shut Down.

Or:

You can put the computer in Sleep mode by pressing + . Then close and latch the display.

When you are ready to use the computer again, unlatch and open the display; then press and release the power button.

Note: If the Sleep indicator is off, the computer has entered Hibernation mode and is turned off. If the power indicator is off but the Sleep indicator is on, the computer has entered Sleep mode. In both cases, press and release the power button to turn the computer back on. Note that the computer may enter Hibernation mode after being in Sleep mode for a period of time.

What to bring to meetings

If your meeting is relatively short, you probably do not need to bring anything with you other than your computer. If your meeting will be longer, or if your battery is not fully charged, you may want to bring the AC adapter with you to plug in your computer in the meeting room.

If the meeting room does not have an electrical outlet, reduce the drain on the battery by putting the computer in Sleep mode. Press + or close the display cover whenever you are not actively using the computer. To resume, open the display (if closed), then press and release the power button.

Taking the computer home

When you are moving from your office to your home or vice versa.

Preparing the computer

After disconnecting the computer from your desktop, follow these steps to prepare the computer for the trip home:

• Check that you have removed all media and compact disks from the drive(s). Failure to remove the media can damage the drive head.
• Pack the computer in a protective case that can prevent the computer from sliding around and cushion it if it should fall.

Caution: Avoid packing items next to the top cover of the computer. Pressure against the top cover can damage the screen.

What to take with you

Unless you have some items at home, take the following items with you:

• AC adapter and power cord
• The printed Quick Guide

Special considerations

Follow these guidelines to protect your computer while traveling to and from work:

• Minimize the effects of temperature changes by keeping the computer with you.
• If you need to stop for an extended period of time and cannot carry the computer with you, leave the computer in the trunk of the car to avoid exposing the computer to excessive heat.
• Changes in temperature and humidity can cause condensation. Allow the computer to return to room temperature, and inspect the screen for condensation before turning on the computer. If the temperature change is greater than 10 °C (18 °F), allow the computer to come to room temperature slowly. If possible, leave the computer for 30 minutes in an environment with a temperature between outside and room temperature.

Setting up a home office

If you frequently work on your computer at home, you may want to purchase a second AC adapter for use at home. With a second AC adapter, you can avoid carrying the extra weight to and from home.

If you use your computer at home for significant periods of time, you might also want to add an external keyboard, monitor or mouse.

Traveling with the computer

When you are moving within a larger distance, for instance, from your office building to a client's office building or traveling locally.

Preparing the computer

Prepare the computer as if you were taking it home. Make sure that the battery in the computer is charged. Airport security may require you to turn on your computer when carrying it into the gate area.

What to take with you

Take the following items with you:

• AC adapter
• Spare, fully-charged battery pack(s)
  • Additional printer driver files if you plan to use another printer

Special considerations

In addition to the guidelines for taking the computer home, follow these guidelines to protect your computer while traveling:

• Always take the computer as carry-on luggage.
- If possible, have the computer inspected by hand. Airport security X-ray machines are safe, but do not put the computer through a metal detector.
- Avoid exposing floppy disks to hand-held metal detectors.

Traveling internationally with the computer

When you are moving from country to country.

Preparing the computer

Prepare the computer as you would normally prepare it for traveling.

What to bring with you

Bring the following items with you:

• AC adapter
• Power cords that are appropriate for the country to which you are traveling
• Spare, fully-charged battery packs
  • Additional printer driver files if you plan to use another printer
  • Proof of purchase, in case you need to show it to customs officials
  • International Travelers Warranty passport

Special considerations

Follow the same special considerations as when traveling with the computer. In addition, these tips are useful when traveling internationally:

• When traveling in another country, check that the local AC voltage and the AC adapter power cord specifications are compatible. If not, purchase a power cord that is compatible with the local AC voltage. Do not use converter kits sold for appliances to power the computer.
• If you are using the modem, check if the modem and connector is compatible with the telecommunications system of the country you are traveling in.

Securing your computer

Your computer is a valuable investment that you need to take care of. Learn how to protect and take care of your computer.

Security features include hardware and software locks — a security notch and passwords.

Using a computer security lock

The notebook comes with a Kensington-compatible security slot for a security lock.

Wrap a computer security lock cable around an immovable object such as a table or handle of a locked drawer. Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available.

Using passwords

Passwords protect your computer from unauthorized access. Setting these passwords creates several different levels of protection for your computer and data:

• Supervisor Password prevents unauthorized entry into the BIOS utility. Once set, you must enter this password to gain access to the BIOS utility. See "BIOS utility" on page 29.
• User Password secures your computer against unauthorized use. Combine the use of this password with password checkpoints on boot-up and resume from Hibernation for maximum security.
• Password on Boot secures your computer against unauthorized use. Combine the use of this password with password checkpoints on boot-up and resume from Hibernation for maximum security.

Important! Do not forget your Supervisor Password! If you forget your password, please get in touch with your dealer or an authorized service center.

Entering passwords

When a password is set, a password prompt appears in the center of the display screen.

• When the Supervisor Password is set, a prompt appears when you press to enter the BIOS utility at boot-up.
• Type the Supervisor Password and press to access the BIOS utility. If you enter the password incorrectly, a warning message appears. Try again and press .
• When the User Password is set and the password on boot parameter is enabled, a prompt appears at boot-up.
• Type the User Password and press to use the computer. If you enter the password incorrectly, a warning message appears. Try again and press .

Important! You have three chances to enter a password. If you fail to enter the password correctly after three tries, the system halts. Press and hold the power button for four seconds to shut down the computer. Then turn on the computer again, and try again.

Setting passwords

You can set passwords using the BIOS utility.

Expanding through options

Your notebook PC offers you a complete mobile computing experience.

Connectivity options

Ports allow you to connect peripheral devices to your computer as you would with a desktop PC. For instructions on how to connect different external devices to the computer, read the following section.

Fax/data modem (only for certain models)

Your computer has a built-in V.92 56 Kbps fax/data modem. (only for certain models)

Warning! This modem port is not compatible with digital phone lines. Plugging this modem into a digital phone line will damage the modem.

To use the fax/data modem port, connect a phone cable from the modem port to a telephone jack.

Warning! Please make sure that the cable you use is appropriate for the country in which you are working.

Built-in network feature

The built-in network feature allows you to connect your computer to an Ethernet-based network.

To use the network feature, connect an Ethernet cable from the Ethernet (RJ-45) port on the chassis of the computer to a network jack or hub on your network.

Universal Serial Bus (USB)

The USB 2.0 port is a high-speed serial bus which allows you to connect USB peripherals without taking up precious system resources.

IEEE 1394 port (only for certain models)

The computer's IEEE 1394 port allows you to connect to an IEEE 1394-compatible device like a video camera or digital camera. See your video or digital camera's documentation for details.

High-Definition Multimedia Interface (only for certain models)

HDMI (High-Definition Multimedia Interface) is an industry-supported, uncompressed, all-digital audio/video interface. HDMI provides an interface between any compatible digital audio/video source, such as a set-top box, DVD player, and A/V receiver and a compatible digital audio and/or video monitor, such as a digital television (DTV), over a single cable.

Use the HDMI port on your computer to connect with high-end audio and video equipment. Single cable implementation allows tidy setup and fast connection.

ExpressCard (only for certain models)

The ExpressCard is the newest version of the PC Card. It is a smaller and faster interface that further enhances the usability and expandability of your computer.

ExpressCards support a vast number of expansion options, including flash memory card adapters, TV-tuners, Bluetooth connectivity and IEEE 1394B adapters. ExpressCards support USB 2.0 and PCI Express applications.

Important! There are two types, ExpressCard/54 and ExpressCard/34 (54mm and 34mm), each with different functions. Not all ExpressCard slots will support both types. Please refer to your card's manual for details on how to install and use the card, and its functions.

Inserting an ExpressCard

Insert the card into the slot and push gently until it clicks into position.

Ejecting an ExpressCard

Before ejecting an ExpressCard:

1 Exit the application using the card.
2 Left-click on the remove hardware icon on the taskbar and stop the card operation.
3 Push the card gently into the slot and release to pop out the card. Then pull the card free from the slot.

Installing memory

Follow these steps to install memory:

1 Turn off the computer, unplug the AC adapter (if connected) and remove the battery pack. Then turn the computer over to access its base.
2 Remove the screws from the memory cover; then lift up and remove the memory cover.
3 (a) Insert the memory module diagonally into the slot, then (b) gently press it down until it clicks into place.

4 Replace the memory cover and secure it with the screw.
5 Reinstall the battery pack, and reconnect the AC adapter.
6 Turn on the computer.

The computer automatically detects and reconfigures the total memory size. Please consult a qualified technician or contact your local Acer dealer.

BIOS utility

The BIOS utility is a hardware configuration program built into your computer's BIOS.

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run it.

To activate the BIOS utility, press during the POST; while the notebook PC logo is being displayed.

Boot sequence

To set the boot sequence in the BIOS utility, activate the BIOS utility, then select Boot from the categories listed at the top of the screen.

Enable disk-to-disk recovery

To enable disk-to-disk recovery (hard disk recovery), activate the BIOS utility, then select Main from the categories listed at the top of the screen. Find D2D Recovery at the bottom of the screen and use the and keys to set this value to Enabled.

Password

To set a password on boot, activate the BIOS utility, then select Security from the categories listed at the top of the screen. Find Password on boot: and use the and keys to enable this feature.

Using software

Playing DVD movies

Note: This feature is only available on certain models.

When the DVD drive module is installed in the optical drive bay, you can play DVD movies on your computer.

1 Eject the DVD disk.

Important! When you launch the DVD player for the first time, the program asks you to enter the region code. DVD disks are divided into 6 regions. Once your DVD drive is set to a region code, it will play DVD disks of that region only. You can set the region code a maximum of five times (including the first time), after which the last region code set will remain permanent. Recovering your hard disk does not reset the number of times the region code has been set. Refer to the table below for DVD movie region code information.

2 The DVD movie will automatically play after a few seconds.

Region code	Country or region
1	USA, Canada
2	Europe, Middle East, South Africa, Japan
3	Southeast Asia, Taiwan, South Korea
4	Latin America, Australia, New Zealand
5	Former USSR, parts of Africa, India
6	People's Republic of China

Note: To change the region code, insert a DVD movie of a different region into the DVD drive. Please refer to the online help for more information.

Frequently asked questions

The following is a list of possible situations that may arise during the use of your computer. Easy solutions are provided for each one.

I turned on the power, but the computer does not start or boot up.

Look at the power indicator:

- If it is not lit, no power is being supplied to the computer. Check the following:

• If you are using on the battery, it may be low and unable to power the computer. Connect the AC adapter to recharge the battery pack.
• Make sure that the AC adapter is properly plugged into the computer and to the power outlet.

• If it is lit, check the following:

- Is a non-bootable (non-system) disk in the external USB floppy drive? Remove or replace it with a system disk and press + + to restart the system.

Nothing appears on the screen.

The computer's power management system automatically blanks the screen to save power. Press any key to turn the display back on.

If pressing a key does not turn the display back on, three things might be the cause:

• The brightness level might be too low. Press + <▷> (increase) to adjust the brightness level.
• The display device might be set to an external monitor. Press the display toggle hotkey + to toggle the display back to the computer.
• If the Sleep indicator is lit, the computer is in Sleep mode. Press and release the power button to resume.

No audio is heard from the computer.

Check the following:

• The volume may be muted. In Windows, look at the volume control (speaker) icon on the taskbar. If it is crossed-out, click on the icon and deselect the Mute all option.
• The volume level may be too low. In Windows, look at the volume control icon on the taskbar. You can also use the volume control buttons to adjust the volume.

- If headphones, earphones or external speakers are connected to the line-out port on the computer, the internal speakers automatically turn off.

I want to eject the optical drive tray without turning on the power.

There is a mechanical eject hole on the optical drive. Simply insert the tip of a pen or paperclip into the hole and push to eject the tray.

The keyboard does not respond.

Try attaching an external keyboard to a USB port on the computer. If it works, contact your dealer or an authorized service center as the internal keyboard cable may be loose.

The printer does not work.

Check the following:

• Make sure that the printer is connected to a power outlet and that it is turned on.
• Make sure that the printer cable is connected securely to the computer's parallel port or a USB port and the corresponding port on the printer.

I want to restore my computer to its original settings without recovery CDs.

Note: If your system is the multilingual version, the operating system and language you choose when you first turn on the system will be the only option for future recovery operations.

This recovery process helps you restore the C: drive with the original software content that is installed when you purchase your notebook. Follow the steps below to rebuild your C: drive. (Your C: drive will be reformatted and all data will be erased.) It is important to back up all data files before using this option.

Before performing a restore operation, please check the BIOS settings.

1 Check to see if Acer disk-to-disk recovery is enabled or not.
2 Make sure the D2D Recovery setting in Main is Enabled.
3 Exit the BIOS utility and save changes. The system will reboot.

Note: To activate the BIOS utility, press during POST.

To start the recovery process:

1 Restart the system.
2 While the Acer logo is showing, press + at the same time to enter the recovery process.
3 Refer to the onscreen instructions to perform system recovery.

Important! This feature occupies 15 GB in a hidden partition on your hard disk

Requesting service

International Travelers Warranty (ITW)

Your computer is backed by an International Travelers Warranty (ITW) that gives you security and peace of mind when traveling. Our worldwide network of service centers are there to give you a helping hand.

An ITW passport comes with your computer. This passport contains all you need to know about the ITW program. A list of available, authorized service centers is in this handy booklet. Read this passport thoroughly.

Always have your ITW passport on hand, especially when you travel, to receive the benefits from our support centers. Place your proof-of-purchase in the flap located inside the front cover of the ITW passport.

If the country you are traveling in does not have an Acer-authorized ITW service site, you can still get in contact with our offices worldwide. Please consult http://global.acer.com.

Before you call

Please have the following information available when you call Acer for online service, and please be at your computer when you call. With your support, we can reduce the amount of time a call takes and help solve your problems efficiently. If there are error messages or beeps reported by your computer, write them down as they appear on the screen (or the number and sequence in the case of beeps).

You are required to provide the following information:

Name: ____

Address: ____

Telephone number: ____

Machine and model type: ____

Serial number: ____

Date of purchase: ____

Troubleshooting

This chapter shows you how to deal with common system problems.

Read it before calling a technician if a problem occurs. Solutions to more serious problems require opening up the computer. Do not attempt to open the computer yourself; contact your dealer or authorized service center for assistance.

Troubleshooting tips

This notebook PC incorporates an advanced design that delivers onscreen error message reports to help you solve problems.

If the system reports an error message or an error symptom occurs, see "Error messages" below. If the problem cannot be resolved, contact your dealer. See "Requesting service" on page 34.

Error messages

If you receive an error message, note the message and take the corrective action. The following table lists the error messages in alphabetical order together with the recommended course of action.

Error messages	Corrective action
CMOS battery bad	Contact your dealer or an authorized service center.
CMOS checksum error	Contact your dealer or an authorized service center.
Disk boot failure	Insert a system (bootable) disk into the floppy drive (A:), then pressto reboot.
Equipment configuration error	Press(during POST) to enter the BIOS utility, then pressExitin the BIOS utility to reboot.
Hard disk 0 error	Contact your dealer or an authorized service center.
Hard disk 0 extended type error	Contact your dealer or an authorized service center.
I/O parity error	Contact your dealer or an authorized service center.
Keyboard error or no keyboard connected	Contact your dealer or an authorized service center.
Keyboard interface error	Contact your dealer or an authorized service center.
Memory size mismatch	Press(during POST) to enter the BIOS utility, then pressExitin the BIOS utility to reboot.

If you still encounter problems after going through the corrective measures, please contact your dealer or an authorized service center for assistance. Some problems may be solved using the BIOS utility.

Regulations and safety notices

FCC statement

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the device and receiver.
- Connect the device into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Compliant with Russian regulatory certification

ME61

Modem notices (only for certain models)

Notice for USA

This equipment complies with Part 68 of the FCC rules. Located on the modem is a label that contains, among other information, the FCC Registration Number and Ringer Equivalence Number (REN) for this equipment. Upon request, you must provide this information to your telephone company.

If your telephone equipment causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But, if advance notice is not practical, you will be notified as soon as possible. You will also be informed of your right to file a complaint with the FCC.

Your telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service.

If this equipment should fail to operate properly, disconnect the equipment from the phone line to determine if it is causing the problem. If the problem is with the equipment, discontinue use and contact your dealer or vendor.

Caution: To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord.

TBR 21

This equipment has been approved [Council Decision 98/482/EC - "TBR 21"] for single terminal connection to the Public Switched Telephone Network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact your equipment supplier in the first instance. For more information about applicable countries, please refer to "Regulations and safety notices" on page 36

Notice for Australia

For safety reasons, only connect headsets with a telecommunications compliance label. This includes customer equipment previously labelled permitted or certified.

Notice for New Zealand

1 The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has accepted that the item complies with minimum conditions for connection to its network. It indicates no endorsement of the product by Telecom, nor does it provide any sort of warranty. Above all, it provides no assurance that any item will work correctly in all respects with another item of Telepermitted equipment of a different make or model, nor does it imply that any product is compatible with all of Telecom's network services.
2 This equipment is not capable, under all operating conditions, of correct operation at the higher speeds for which it is designed. Telecom will accept no responsibility should difficulties arise in such circumstances.
3 Some parameters required for compliance with Telecom's Telepermit requirements are dependent on the equipment (PC) associated with this device. The associated equipment shall be set to operate within the following limits for compliance with Telecom's Specifications:

a There shall be no more than 10 call attempts to the same number within any 30 minute period for any single manual call initiation, and
b The equipment shall go on-hook for a period of not less than 30 seconds between the end of one attempt and the beginning of the next call attempt.

4 Some parameters required for compliance with Telecom's Telepermit requirements are dependent on the equipment (PC) associated with this device. In order to operate within the limits for compliance with Telecom's specifications, the associated equipment shall be set to ensure that automatic calls to different numbers are spaced such that there is not less than 5 seconds between the end of one call attempt and the beginning of another.

5 This equipment shall not be set up to make automatic calls to Telecom's 111 Emergency Service.
6 This device is equipped with pulse dialing while the Telecom standard is DTMF tone dialing. There is no guarantee that Telecom lines will always continue to support pulse dialing.
7 Use of pulse dialing, when this equipment is connected to the same line as other equipment, may give rise to bell tinkle or noise and may also cause a false answer condition. Should such problems occur, the user should NOT contact the telecom Fault Service.
8 This equipment may not provide for the effective hand-over of a call to another device connected to the same line.
9 Under power failure conditions this appliance may not operate. Please ensure that a separate telephone, not dependent on local power, is available for emergency use.

LCD pixel statement

The LCD unit is produced with high-precision manufacturing techniques. Nevertheless, some pixels may occasionally misfire or appear as black or red dots. This has no effect on the recorded image and does not constitute a malfunction.

Radio device regulatory notice

Note: Below regulatory information is for models with wireless LAN and / or Bluetooth only.

General

This product complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. Depending on configurations, this product may or may not contain wireless radio devices (such as wireless LAN and/or Bluetooth modules). Below information is for products with such devices.

Declaration of Conformity for EU countries

Hereby, Acer, declares that this notebook PC series is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

List of applicable countries

EU member states as of July 2009 are: Belgium, Denmark, Germany, Greece, Spain, France, Ireland, Italy, Luxembourg, the Netherlands, Austria, Portugal, Finland, Sweden, United Kingdom, Estonia, Latvia, Lithuania, Poland, Hungary, Czech Republic, Slovak Republic, Slovenia, Cyprus, Malta, Bulgaria and Romania. Usage allowed in the countries of European Union, as well as Norway, Switzerland, Iceland and Liechtenstein. This device must be used in strict accordance with the regulations and constraints in the country of use. For further information, please contact local office in the country of use. Please see http://ec.europa.eu/enterprise/rtte/implem.htm for the latest country list.

The FCC RF safety requirement

The radiated output power of the wireless LAN Mini PCI Card and Bluetooth card is far below the FCC radio frequency exposure limits. Nevertheless, the notebook PC series shall be used in such a manner that the potential for human contact during normal operation is minimized as follows:

1 Users are requested to follow the RF safety instructions on wireless option devices that are included in the user's manual of each RF option device.

Caution: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm (8 inches) must be maintained between the antenna for the integrated wireless LAN Mini PCI Card built in to the screen section and all persons.

Note: The wireless Mini PCI adapter implements a transmission diversity function. The function does not emit radio frequencies simultaneously from both antennas. One of the antennas is selected automatically or manually (by users) to ensure good quality radiocommunication.

2 This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems.
3 High power radar are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device.
4 An improper installation or unauthorized use may cause harmful interference to radio communications. Also any tampering of the internal antenna will void the FCC certification and your warranty.

Canada — Low-power license-exempt radio communication devices (RSS-210)

Exposure of humans to RF fields (RSS-102)

The notebook PC series employs low gain integral antennas that do not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada's website at www.hc-sc.gc.ca/rpb.

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0^
Design azimuth angle	90.0^
Viewing direction range class	Class IV
Screen tilt angle	85.0^
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

Gamme TravelMate

Acer Backup Manager 7

Acer eRecovery Management

9

LCD panel ergonomic specifications 42

Touchpad

Acer Backup Manager

Acer eRecovery Management

Universal Serial Bus (USB)

This Class B digital apparatus complies with Canadian ICES-003.

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level:[250 + (250cosα)] lx where α = 85°Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate Serie

CLASS 1 LASER PRODUCT

ACHTUNG: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D'OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

Acer Backup Manager 7

Energieverwaltung 8

Acer eRecovery Management 9

HDMI (High-Definition Multimedia Interface)

(disk-to-disk recovery) 31

Kennwort 31

(International Travelers Warranty; ITW) 36

Vor einem Anruf 36

Problemlösung 37

Tipps zur Problembehebung 37

Fehlermeldungen 37

LCD panel ergonomic specifications 42

Touchpad

Acer Backup Manager

Energieverwaltung

Acer eRecovery Management

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0^
Design azimuth angle	90.0^
Viewing direction range class	Class IV
Screen tilt angle	85.0^
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

Serie TravelMate

PC Notebook Serie TravelMate

Acer Backup Manager 7

Acer eRecovery Management 9

High-Definition Multimedia Interface

ITW (International Traveler's Warranty) 34

LCD panel ergonomic specifications 39

Touchpad

Acer Backup Manager

Acer eRecovery Management

Universal Serial Bus (USB)

ITW (International Traveler's Warranty)

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level:[250 + (250cosα)] lx where α = 85°Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

Serie TravelMate

CLASS 1 LASER PRODUCT

PRECAUCIÓN: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D'OUVERTURE.EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

Acer Backup Manager 7

Acer eRecovery Management

(International Travelers Warranty; ITW) 35

Antes de llamar 35

LCD panel ergonomic specifications 41

Panel táctil

Acer Backup Manager

Acer eRecovery Management

Universal Serial Bus (USB)

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0^
Design azimuth angle	90.0^
Viewing direction range class	Class IV
Screen tilt angle	85.0^
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

Série TravelMate

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D'OUVERTURE.EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

Acer Backup Manager 7

Gestão de energia 8

Acer eRecovery Management 9

High-Definition Multimedia Interface

(apenas para determinados modelos) 28

(International Travelers Warranty; ITW) 36

Antes de telefonar 36

LCD panel ergonomic specifications 41

Acer Backup Manager

Gestão de energia

Acer eRecovery Management

Universal Serial Bus (USB)

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0^
Design azimuth angle	90.0^
Viewing direction range class	Class IV
Screen tilt angle	85.0^
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate Serie

TravelMate Serie Notebook PC

Modelnummer: ____

Serienummer: ____

Aankoopdatum: ____

LASERPRODUCT KLASSE 1

VOORZICHTIG: ONZICHTBARE LASERSTRALING INDIEN GEOPEND. VOORKOM BLOOTSTELLING AAN STRAAL.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS

D'OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

Acer Backup Manager 7

Energiebeheer 8

Acer eRecovery Management 9

Backup-disk branden 10

Herstellen 11

High-Definition Multimedia Interface

ITW (International Travelers Warranty) 34

Voordat u belt 34

Problemen oplossen 35

LCD panel ergonomic specifications 39

Touchpad

Acer Backup Manager

Energiebeheer

Acer eRecovery Management

Backup-disk branden

ITW (International Travelers Warranty)

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0^
Design azimuth angle	90.0^
Viewing direction range class	Class IV
Screen tilt angle	85.0^
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate Series

TravelMate Series Notebook-PC

Modellnummer: ____

Serienummer: ____

Innkjøpsdato: ____

Innkjøpssted: ____

KLASSE 1 LASERPRODUKT

FORSIKTIG: USYNLIG LASERSTRÅLING I ÅPEN TILSTAND. UNNGÅ STRÅLEN.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D'OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

Acer Backup Manager 7

Strømstyring 8

Acer eRecovery Management 9

Lag sikkerhetskopidisk 10

Gjenoppretting 11

Sikkerhetskopiere Windows fra sikkerhetskopier 12

Batteri 14

International Travelers Warranty (ITW) 33

Før du ringer 33

LCD panel ergonomic specifications 38

Berøringsplate (Touchpad)

Acer Backup Manager

Strømstyring

Acer eRecovery Management

Lag sikkerhetskopidisk

Universal Serial Bus (USB)

IEEE 1394-port (bare for visse modeller)

Datamaskinens IEEE 1394-port lar deg koble til en IEEE 1394-enhet, f.eks. et video- eller digitalkamera. Se dokumentasjonen til video- eller digitalkameraet hvis du vil ha detaljer.

International Travelers Warranty (ITW)

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate Seriens

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D'OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

Acer Backup Manager 7

Strømstyring 8

Acer eRecovery Management 9

High-Definition Multimedia Interface

International Travelers Warranty (ITW) 34

Inden du ringer 34

LCD panel ergonomic specifications 39

Pegefelt

Acer Backup Manager

Strømstyring

Acer eRecovery Management

Universal Serial Bus (USB)

International Travelers Warranty (ITW)

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0^
Design azimuth angle	90.0^
Viewing direction range class	Class IV
Screen tilt angle	85.0^
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate-serien

KLASS 1 LASERPRODUKT

VARNING: OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPEN. UNDVIK ATT UTSÄTTA DIG FÖR STRÅLEN.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS

D'OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

Acer Backup Manager 7

Acer eRecovery Management 9

(International Travelers Warranty; ITW) 33

Innan du ringer 33

Felsöka datorn 34

Felsökningstips 34

Felmeddelanden 34

LCD panel ergonomic specifications 38

Pekplatta

Acer Backup Manager

Strömsparfunktioner

Acer eRecovery Management

IEEE 1394-port (endast för vissa modeller)

Aktivera disk-to-disk recovery

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate -sarja

Peruskäyttäjän opas

Acer Backup Manager 7

Virranhallinta 8

Acer eRecovery Management 9

Polta varmistuslevy 10

Palauta 11

High-Definition Multimedia Interface

(vain tietyille malleille) 26

ExpressCard (vain tietyille malleille) 27

"International Travelers Warranty" (ITW) 33

LCD panel ergonomic specifications 38

Kosketusalusta

Acer Backup Manager

Virranhallinta

Acer eRecovery Management

Polta varmistuslevy

USB-väylä

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0^
Design azimuth angle	90.0^
Viewing direction range class	Class IV
Screen tilt angle	85.0^
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

Серия TravelMate

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D'OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

Acer Backup Manager 7

Управление питанием

8

Acer eRecovery Management

9

High-Definition Multimedia Interface

LCD panel ergonomic specifications 40

Сенсорная панель

Acer Backup Manager

Управление питанием

Acer eRecovery Management

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

Komputer serii TravelMate

http://www.acer-group.com/public/Sustainability/sustainability01.htm.

Acer Backup Manager 7

Acer eRecovery Management 9

High-Definition Multimedia Interface

(disk-to-disk recovery) 30

Hasło 30

(International Travelers Warranty; ITW) 35

LCD panel ergonomic specifications 41

Touchpad

Acer Backup Manager

Zarządzanie energią

Acer eRecovery Management

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level:[250 + (250cosα)] lx where α = 85°Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate sorozat

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS

D'OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

Acer Backup Manager 7

Acer eRecovery Management 9

(International Travelers Warranty; ITW) 35

Mielött telefonálna 35

Hibaelhárítás 36

LCD panel ergonomic specifications 41

Érintőpad

Acer Backup Manager

Energiagazdálkodás

Acer eRecovery Management

Mentési lemez írása

Universal Serial Bus (USB)

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level:[250 + (250cosα)] lx where α = 85°Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

Řada TravelMate

Acer Backup Manager 7

Rízení spotřeby 8

Acer eRecovery Management 9

High-Definition Multimedia Interface

(International Travelers Warranty; ITW) 33

Než zavoláte 33

LCD panel ergonomic specifications 38

Zařízení touchpad

Acer Backup Manager

Řízení spotřeby

Acer eRecovery Management

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

Séria TravelMate

Acer Backup Manager 7

Správa napájania 8

Acer eRecovery Management 9

High-Definition Multimedia Interface

(len pre určité modely) 26

ExpressCard (len pre určité modely) 27

LCD panel ergonomic specifications 38

Dotyková plocha

Acer Backup Manager

Správa napájania

Acer eRecovery Management

Port IEEE 1394 (len pre určité modely)

4 Vrát'te spät' kryt pamäte a zaistite ho skrutkou.
5 Dajte batériu na svoje miesto a znova pripojte AC adaptér.
6 Zapnite počítač.

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0^
Design azimuth angle	90.0^
Viewing direction range class	Class IV
Screen tilt angle	85.0^
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

Serija TravelMate

Acer Backup Manager 7

Upravljanje z napajanjem 8

Acer eRecovery Management 9

International Travelers Warranty (ITW)

(Mednarodna potovalna garancija) 33

Preden pokličete 33

LCD panel ergonomic specifications 40

Sledilna plošča

Acer Backup Manager

Upravljanje z napajanjem

Acer eRecovery Management

Opozorilo! Prepričajte se, da je kabel, ki ga uporabljate primeren za državo v kateri delate.

4 Namestite pokrov in ga pritrdite z vijaki.
5 Namestite baterijo in priključite AC adapter.
6 Vključite računalnik.

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level:[250 + (250cosα)] lx where α = 85°Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate serija

Acer Backup Manager 7

Acer eRecovery Management 9

Snimanje diskova sa sigurnosnom kopijom 10

Povrat 11

Povrat Windows s diskova sa sigurnosnom kopijom 12

Baterijski komplet 14

Karakteristike baterijskog kompleta 14

LCD panel ergonomic specifications 41

Dodirna ploča

Acer Backup Manager

Napomena: Ova mogućnost dostupna je samo na određenim modelima.

Acer Backup Manager jednostavan je proces od tri koraka koji Vam omogućava stvaranje sigurnosnih kopija Vašeg čitavog sustava ili datoteka i mapa odabranih prema rasporedu ili vlastitom nahođenju.

Za pokretanje Acer Backup Manager pritisnite Acer Backup Manager tipku iznad tipkovnice. Isto možete napraviti ako idete na Start > All Programs > Acer Backup Manager > Acer Backup Manager. To će otvoriti prozor dobrodošlice; s tog prozora biti ćete provedeni kroz tri koraka za postavljanje rasporeda izrade sigurnosnih kopija. Pritisnite Nastavi za nastavak na sljedeći prozor. Pritisnite + tipku i pratite upute na zaslonu:

1 Odaberite sadržaj za koji želite načiniti sigurnosnu kopiju. Što manje sadržaja odaberete, to će proces biti brži, ali će povećati rizik gubitka podataka.
2 Odaberite gdje želite pohraniti sigurnosne kopije. Trebat ćete odabrati vanjski disk ili Vaš D: disk; Acer Backup Manager ne može pohraniti sigurnosnu kopiju na izvorni disk.
3 Odaberite koliko često želite da Acer Backup Manager stvara sigurnosne kopije.

Acer eRecovery Management

Acer eRecovery Management je alat za brzi povrat sustava. Takoder možete izraditi sigurnosnu kopiju/povrat standardnog tvornickog imidža i ponovno instalirati aplikacije i upravljacke programe.

Snimanje diskova sa sigurnosnom kopijom

Sa stranice Backup (Sigurnosna kopija) u Acer eRecovery Management moguće je snimiti tvornički standardni imidž ili načiniti sigurnosnu kopiju pogonskih programa i aplikacija.

1 Kliknite na Start, All Programs, Acer, Acer eRecovery Management.
2 Acer eRecovery Management se otvara na stranici Backup (Sigurnosna kopija).

3 Odaberite vrstu sigurnosne kopije (standardna tvornička, pogonski programi ili aplikacije) koju želite snimiti na disk.
4 Slijedite upute na zaslonu da biste završili postupak.

Upozorenje! Molimo, osigurajte da je kabel koji koristite odgovarajući za državu u kojoj radite.

Univerzalna serijska sabirnica (USB)

USB 2.0 priključak je serijska sabirnica velike brzine koja omogućuje povezivanja USB perifernih uređaja bez zauzimanja dragocjenih resursa sustava.

IEEE 1394 priključnica (samo za određene modele)

4 Vratite poklopac memorije i osigurajte ga vijcima.
5 Ponovno ugradite baterijski komplet i ponovno spojite AC adapter.
6 Uključite računalo.

Računalo automatski otkriva i ponovno konfigurira ukupnu veličinu memorije. Molimo, obratite se kvalificiranom tehničaru ili vašem zastupniku robne marke Acer.

BIOS uslužni program

International Travelers jamstvo (ITW)

Vaše računalo je pod International Travelers jamstvom (ITW) koje vam daje sigurnost i spokoj kada putujete. Naša mreža servisnih centara diljem svijeta je tu da vam pruži pomoć.

Napomena: Bežični Mini PCI adapter primjenjuje funkciju višestrukog odašiljanja. Ova funkcija ne emitira radiofrekvencije istovremeno iz obje antene. Jedna od antena je automatski ili ručno (od strane korisnika) odabrana kako bi se osigurala dobra kvaliteta radiokomunikacije.

2 Ovaj uređaj je ograničen na upotrebu u zatvorenom prostoru zbog njegovog rada u frekvencijskom rasponu od 5,15 do 5,25 GHz. FCC zathijeva da ovaj proizvod bude korišten u zatvorenom prostoru zbog frekvencijskog opsega od 5,15 do 5,25 GHz da bi se smanjile potencijalne štetne interferencije za mobilne satelitske sustave koji rade na istom kanalu.
3 Radarima visoke snage je dodijeljeno da budu osnovni korisnici pojasa od 5,25 do 5,35 GHz i od 5,65 do 5,85 GHz. Ove radarske stanice mogu izazvati interferenciju i/ili oštetiti ovaj uređaj.

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0^
Design azimuth angle	90.0^
Viewing direction range class	Class IV
Screen tilt angle	85.0^
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

Seria TravelMate

Ghidul general de utilizare

Computer portabil seria TravelMate

http://www.acer-group.com/public/Sustainability/sustainability01.htm.

Acer Backup Manager 7

Acer eRecovery Management 9

LCD panel ergonomic specifications 41

Zona de atingere

Acer Backup Manager

Acer eRecovery Management

Universal Serial Bus (USB)

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0^
Design azimuth angle	90.0^
Viewing direction range class	Class IV
Screen tilt angle	85.0^
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate Серия

Acer Backup Manager 7

Acer eRecovery Management

9

LCD panel ergonomic specifications 43

Тъчпад

Acer Backup Manager

Acer eRecovery Management

Universal Serial Bus (USB)

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0^
Design azimuth angle	90.0^
Viewing direction range class	Class IV
Screen tilt angle	85.0^
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate seeria

Üldkasutusjuhend

Acer Backup Manager 7

Energiahaldus 8

Acer eRecovery Management 9

Varuketaste körvetamine 10

Taastamine 11

Windows taastamine varundusketastelt 12

Aku 14

Aku omadused 14

Aku eluea pikendamine 14

Aku paigaldamine ja eemaldamine 15

Aku laadimine 16

LCD panel ergonomic specifications 40

Puuteplaat

Acer Backup Manager

Energiahaldus

Acer eRecovery Management

Universal Serial Bus (USB)

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level:[250 + (250cosα)] lx where α = 85°Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate sērija

1. KLASES LÃZERA PRODUKTS

BRĪDINĀJUMS ATVEROT RODAS NEREDZAMA LĀZERA RADIĀCIJA. IZVAIRIETIES NO PAKŁAUŠANAS IEDARBĪBAI.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D'OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

Acer Backup Manager 7

Acer eRecovery Management 9

LCD panel ergonomic specifications 39

Skārienpanelis

Acer Backup Manager

Acer eRecovery Management

IEEE 1394 ports (tikai noteiktiem modeliem)

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level:[250 + (250cosα)] lx where α = 85°Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate seriju

Bendroji naudojimosi instrukcija

TravelMate seriju nešiojamasis kompiuteris

Modelio numeris: ____

Acer Backup Manager 7

Acer eRecovery Management 9

International Travelers Warranty (ITW) garantija 33

Prieš skambinant 33

LCD panel ergonomic specifications 40

Acer Backup Manager

Energijos valdymas

Acer eRecovery Management

Universali nuoseklioji magistralè (USB)

International Travelers Warranty (ITW) garantija

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level:[250 + (250cosα)] lx where α = 85°Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

Σειρά TravelMate

Acer Backup Manager 7

Acer eRecovery Management 9

LCD panel ergonomic specifications 41

Επιφάνεια Αφής

Acer Backup Manager

Acer eRecovery Management

Universal Serial Bus (USB)

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level:[250 + (250cosα)] lx where α = 85°Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate Serisi

Acer Backup Manager 7

Güç yönetimi 8

Acer eRecovery Management 9

Exposure of humans to RF fields (RSS-102) 38

LCD panel ergonomic specifications 38

Dokunmatik yüzey

Acer Backup Manager

Güç yönetimi

Acer eRecovery Management

Exposure of humans to RF fields (RSS-102)

The notebook PC series employs low gain integral antennas that do not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada's website at www.hc-sc.gc.ca/rpb.

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level:[250 + (250cosα)] lx where α = 85°Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate シリーズ

汎用ユーザーガイド

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D'OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

Acer Backup Manager 7

パワーマネージメント 8

Acer eRecovery Management 9

バックアップディスクの書き込み 10

復元 11

(International Travelers Warranty; ITW) 32

インターネットサポート 32

カスタマーサービスセンター 32

トラブル対策 33

トラブル対策のヒント 33

エラーメッセージ 33

規制と安全通知 34

FCC 規定 34

LCD panel ergonomic specifications 38

タッチパッド

Acer Backup Manager

パワーマネージメント

Acer eRecovery Management

USB

(International Travelers Warranty; ITW)

Federal Communications Commission

各規格への準拠

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective or Acer CrystalBrite ^TM LCD:Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K(tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate 시리즈

일반 사용 설명서

Acer eRecovery Management

백업 디스크 굽기

Restore(복구)

백업 디스크에서 Windows 복구

배터리 팩

배터리 팩 특성

배터리 수명 연장

배터리 팩 설치 및 제거

배터리 충전

배터리 수준 확인

iii

iii

vii

vii

viii

viii

ix

ix

ix

ix

X

X

xiii

xiii

xiv

xiv

xiv

XV

XV

XV

1

1

2

3

3

4

5

5

5

5

6

6

7

8

9

10

11

12

14

14

14

15

15

16

배터리 수명 최적화 16

배터리 부족 경고 17

노트북 PC 휴대 18

데스크톱에서 분리 18

주변에서 이동 18

컴퓨터 준비 18

회의실에 갈 때 19

가정과 사무실 간 이동 19

컴퓨터 준비 19

함께 가져갈 부속물 19

특별한 고려 사항 20

가정에서 컴퓨터 사용 준비 20

컴퓨터를 휴대한 국내 출장 20

컴퓨터 준비 20

함께 가져갈 부속물 20

특별한 고려 사항 21

컴퓨터를 휴대한 외국 출장 21

컴퓨터 준비 21

함께 가져갈 부속물 21

특별한 고려 사항 21

컴퓨터 보안 22

컴퓨터 보호용 잠금 장치 사용 22

암호 사용 22

암호 입력 23

암호 설정 23

옵션 확장 24

연결 옵션 24

ITW (International Travelers Warranty) 34

전화하기 전에 34

문제 해결 35

문제 해결 정보 35

오류 메시지 35

규정 및 안전 고지 사항 36

FCC 고지 사항 36

LCD panel ergonomic specifications 41

터치패드

Acer Backup Manager

전원 관리

Acer eRecovery Management

백업 디스크 굽기

범용 직렬 버스 (USB)

ITW (International Travelers Warranty)

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level:[250 + (250cosα)] lx where α = 85°Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate 系列

一般使用指南

TravelMate 系列筆記型電腦

產品型號：____

產品序號：____

購買日期：____

購買地點：____

安全與舒適性的相關資訊

重要安全指示

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D'OUVERTURE.EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

Acer Backup Manager 7

電源選項

8

Acer eRecovery Management

燒錄備份光碟 10

還原 11

從備份磁碟還原 Windows 12

電池組

電池組特性 14

強化電池使用壽命 14

安裝和移除電池組 15

電池充電 16

檢查電池電量 16

最佳化電池使用壽命 16

低電量警告 17

移動您的筆記型電腦 18

移除與其他裝置的連接 18

移動電腦 18

前置作業 18

帶著電腦參加會議 19

帶著電腦回家 19

前置作業 19

攜帶物品 19

特殊考量事項 19

設置家庭辦公室 20

帶著電腦出差 20

前置作業 20

攜帶物品 20

特殊考量事項 20

帶著電腦到國外出差 20

前置作業 20

攜帶物品 21

特殊考量事項 21

保護您的電腦 22

使用電腦安全鎖 22

使用密碼 22

輸入密碼 23

設定密碼 23

透過選購品擴充 24

連線用選購項目 24

(International Travelers Warranty; ITW) 33

在您撥電話之前 33

故障排除 34

疑難排解提示 34

錯誤訊息 34

規範和安全注意事項 35

FCC 聲明 35

數據機（僅適用於特定機型） 35

LCD 像素宣告 36

無線設備管控注意事項 36

一般 36

FCC 無線電頻率安全要求 36

LCD panel ergonomic specifications 38

觸控板

Acer Backup Manager

注意：此功能僅適用於特定機型。

電源選項

Acer eRecovery Management

燒錄備份光碟

通用序列匯流排 (USB)

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0^
Design azimuth angle	90.0^
Viewing direction range class	Class IV
Screen tilt angle	85.0^
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate 系列

普通用户指南

TravelMate 系列笔记本电脑

产品型号：____

产品序号：____

购买日期：____

购买地点：____

有关安全和舒适性的信息

重要安全须知

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS

D'OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

Acer Backup Manager 7

电源管理 8

Acer eRecovery Management 9

刻录备份光盘 10

恢复 11

从备份光盘恢复 Windows 12

电池组 13

电池组特点 13

最大限度延长电池的寿命 13

安装和卸下电池组 14

给电池充电 15

检查电池电量 15

优化电池寿命 15

电量不足警告 16

随身携带笔记本电脑 17

断开笔记本电脑与桌面设备的连接 17

携带笔记本电脑 17

准备作业 17

出席会议需携带的物品 18

携带电脑回家 18

准备作业 18

携带物品 18

特别注意事项 18

布置您的家庭办公室 19

携带笔记本电脑旅行 19

准备作业 19

携带物品 19

特别注意事项 19

携带笔记本电脑进行国际旅行 19

准备作业 19

携带物品 20

特别注意事项 20

保护您的电脑 21

使用电脑安全锁 21

使用密码 21

输入密码 22

设置密码 22

使用选项扩展性能 23

连接选项 23

(International Travelers Warranty; ITW) 32

致电之前 32

疑难解答 33

疑难解答提示 33

错误信息 33

规则及安全注意事项 34

FCC 声明 34

调制解调器声明（仅限部分型号） 34

LCD 象素声明 35

无线设备规则公告 35

总则 35

FCC RF 安全要求 35

LCD panel ergonomic specifications 37

触摸板

Acer Backup Manager

注：仅部分型号具备此功能。

电源管理

Acer eRecovery Management

刻录备份光盘

通用串行总线 (USB)

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0^
Design azimuth angle	90.0^
Viewing direction range class	Class IV
Screen tilt angle	85.0^
Design screen illuminance	Illuminance level: [250 + (250)] lx where = 85^ Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

Seri TravelMate

PC Notebook Seri TravelMate

Nomor model: ____

Nomor seri: ____

Tanggal pembelian: ____

Alamat pembelian: ____

Acer Backup Manager 7

Manajemen daya 8

Acer eRecovery Management 9

Bakar cakram cadangan 10

Kembalikan 11

ITW (International Travelers Warranty) 34

Exposure of humans to RF fields (RSS-102) 41

LCD panel ergonomic specifications 42

Panel sentuh

Acer Backup Manager

Manajemen daya

Acer eRecovery Management

Bakar cakram cadangan

1 Klik Start, All Programs, Acer, Acer eRecovery Management.
2 Acer eRecovery Management membuka halaman Cadangan.

USB (Universal Serial Bus)

Port IEEE 1394 (hanya untuk model-model tertentu)

ITW (International Travelers Warranty)

Exposure of humans to RF fields (RSS-102)

The notebook PC series employs low gain integral antennas that do not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada's website at www.hc-sc.gc.ca/rpb.

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level:[250 + (250cosα)] lx where α = 85°Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II

TravelMate ซีริส์

คุ่มือผู้ใช้หวไป

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D'OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

Acer Backup Manager 7

Acer eRecovery Management 9

Acer Backup Manager

Acer eRecovery Management

เปิร์นติสก์แป็ดอัพ

Universal Serial Bus (USB)

forecasts should be done in the

forecasts support to apply:

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	Illuminance level:[250 + (250cosα)] lx where α = 85°Color: Source D65
Reflection class of LCD panel(positive and negative polarity)	Ordinary LCD: Class IProtective LCD: Class III
Image polarity	Both
Reference white:Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	Ynu'nv'n
Pixel fault class	Class II
