Product type	Laptop
Brand	Acer
Model	Aspire One 533
Dimensions (W × D × H)	258.5 × 185 × 24.5 mm
Weight	1.1 kg
Screen	10.1 inches, resolution 1024 × 600
Processor	Intel Atom N455 (1.66 GHz, single-core)
RAM memory	1 GB DDR3 (expandable up to 2 GB)
Storage	250 GB SATA hard drive
Operating system	Windows 7 Starter
Battery	3-cell Lithium-ion (48 Wh)
Battery life	Up to 7 hours
Wi-Fi connectivity	802.11 b/g/n
Bluetooth	Bluetooth 3.0 (optional)
Ethernet	10/100 Mbps
Ports	3 × USB 2.0, VGA, RJ-45, headphone/microphone jack
Webcam	Integrated 0.3 MP webcam
Card reader	SD/MMC card reader
Power supply	40 W AC adapter
Maintenance and cleaning	Clean the screen with a soft, dry cloth. Use compressed air for the keyboard. Avoid liquids.
Security	BIOS password protection, Kensington lock slot
Spare parts and repairability	Battery, hard drive, and RAM accessible via hatch. See manual for disassembly.

Frequently Asked Questions - Aspire One 533 ACER

How to reset the Acer Aspire One 533 to factory settings?

To reset your computer, restart and press Alt+F10 at startup. Follow the instructions of the Acer eRecovery Management restoration utility. Back up your data first.

What is the maximum supported RAM capacity?

The Aspire One 533 supports up to 2 GB of DDR3 RAM. It is recommended to use a PC3-8500 (1066 MHz) module.

How to replace the hard drive?

Turn off the computer, remove the battery. Unscrew the hard drive cover (located on the bottom). Disconnect the drive and replace it with a SATA 2.5-inch model with a height of 9.5 mm.

How to connect the computer to a Wi-Fi network?

Click the network icon in the taskbar, select your Wi-Fi network, enter the password, and connect. Make sure Wi-Fi is enabled (side switch or Fn+F3 key).

What to do if the screen remains black at startup?

Unplug the power and remove the battery. Press and hold the power button for 30 seconds to discharge capacitors. Reconnect and try to start. If the problem persists, check the RAM or contact support.

How to clean the keyboard without damaging it?

Use compressed air to remove crumbs. For deeper cleaning, you can gently remove the keys (except hinges) and clean with a slightly damp cloth. Never pour liquid directly.

What is the battery lifespan and how to extend it?

The battery lasts about 2 to 4 years. To extend its life, avoid full discharges, store it at 50% charge if unused for a long time, and use power saving mode.

How to enable Bluetooth?

If your model has Bluetooth, enable it via Windows Mobility Center or by pressing Fn+F3 (depending on configuration). Make sure the Bluetooth driver is installed.

Can I install an operating system other than Windows 7?

Yes, the Aspire One 533 is compatible with Windows 8, 10 (32-bit) and some Linux distributions (Ubuntu, Lubuntu). Check driver availability for the chipset and network card.

What to do if the fan makes an abnormal noise?

Turn off the computer and clean the ventilation grilles with compressed air. If the noise persists, the fan needs to be replaced. Consult the manual to access the fan, or contact a repair technician.

USER MANUAL Aspire One 533 ACER

© 2010 All Rights Reserved.

Aspire One Series Quick Guide

Original Issue: 11/2010

Aspire One Series Notebook PC

Model number: ____

Serial number: ____

Date of purchase: ____

Place of purchase: ____

First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

First off, the setup poster helps you get started with setting up your computer.

The Aspire One Series Generic User Guide contains useful information applying to all models in the Aspire One product range. It covers basic topics such as Acer's eRecovery Management, using the keyboard, audio, etc. Please understand that due to its nature, the Generic User Guide as well as the AcerSystem User Guide will occasionally refer to functions or features which are only contained in certain models, but not necessarily in the model you have purchased. Such instances are marked in the text with language such as "only for certain models".

The Quick Guide introduces you to the basic features and functions of your new computer. For more on how your computer can help you to be more productive, please refer to the AcerSystem User Guide, which contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in Portable Document Format (PDF) and comes preloaded on your notebook. Follow these steps to access it:

1 Click on

Start > All Programs > AcerSystem.

2 Click on AcerSystem User Guide.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not installed on your computer, clicking on AcerSystem User Guide will run the Adobe Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions on how to use Adobe Reader, access the Help and Support menu.

Your Acer notebook tour

After setting up your computer as illustrated in the setup poster, let us show you around your new Acer notebook.

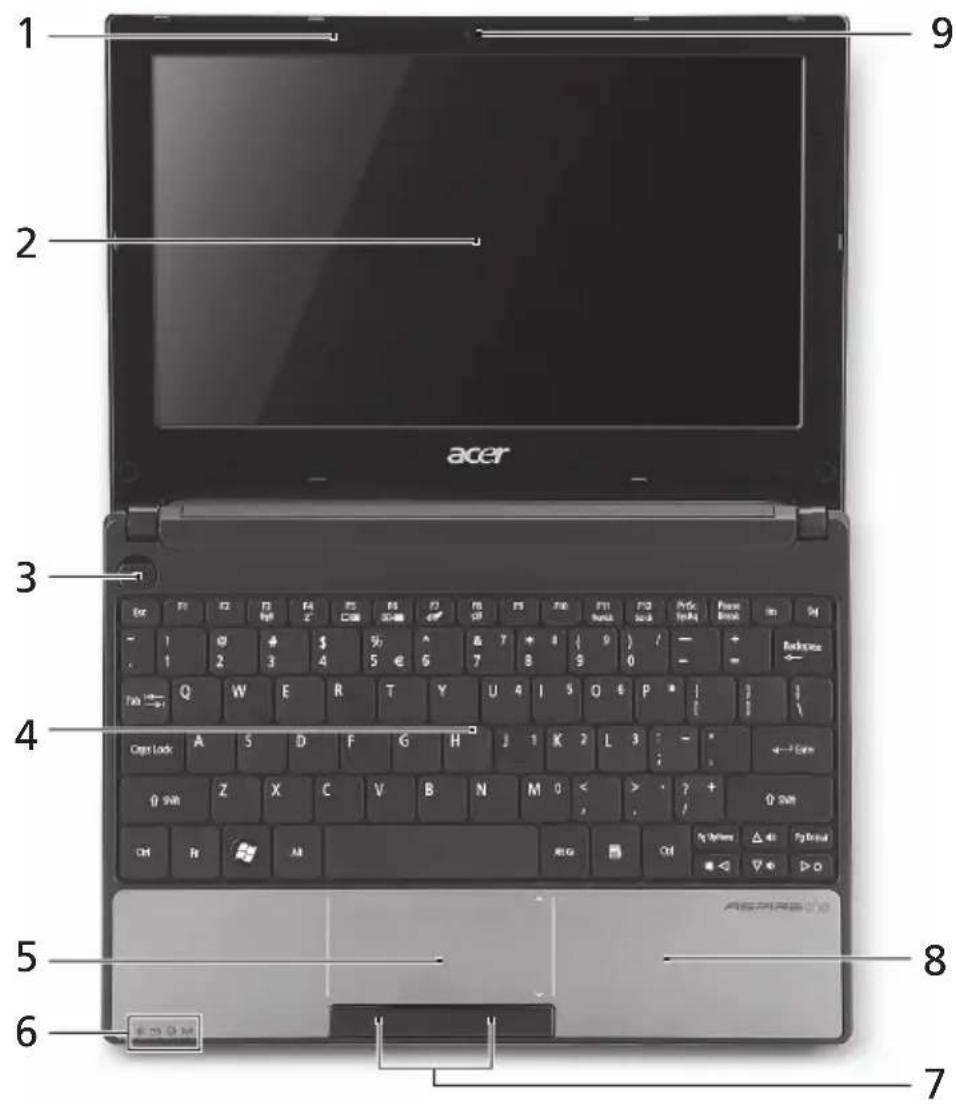

Top view

# Icon Item Description

1 Microphone Internal microphone for sound recording. 2 Display screen Also called Liquid-Crystal Display (LCD), displays computer output (configuration may vary by model). 3 Power button Turns the computer on and off.

#	Icon	Item	Description
4	Keyboard For entering data into your computer.
5	Touchpad	Touch-sensitive pointing device which functions like a computer mouse.
6		Status indicators1	Light-Emitting Diodes (LED) that light up to show the status of the computer's functions and components.
7	Click buttons (left and right)		The left and right buttons function like the left and right mouse buttons.
8	Palmrest Comfortable support area for your hands when you use the computer.
9	Acer Crystal Eye webcam		Web camera for video communication (configuration may vary by model).

1. The front panel indicators are visible even when the computer cover is closed.

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the key before pressing the other key in the hotkey combination.

Hotkey Icon Function Description
	+	C	Enables/disables the computer's communication devices.(Communication devices may vary by configuration.)
	+		Puts the computer in Sleep mode.
	+		Switches display output between the display screen, external monitor (if connected) and both.
	+		Turns the display screen backlight off to save power. Press any key to return.
	+	Touchpad	Turns the internal touchpad on and off.
	+		Turns the speakers on and off.
	+	Num Lock	When Num Lock is on, the embedded keypad is in numeric mode. The keys function as a calculator (complete with the arithmetic operators +, -, *, and /.) . Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.+only for certain models.
	+	Scroll Lock	When Scroll Lock is on, the screen moves one line up or down when you press the up or down arrow keys respectively. Scroll Lock does not work with some applications.
	+	Brightness up Increases the screen brightness.
	+ <	Brightness down	Decreases the screen brightness.
	+ <	Volume up Increases the sound volume (only for certain models).
	+ <	Volume down Decreases the sound volume (only for certain models).

Using the communication key*

Here you can enable and disable the various wireless connectivity devices on your computer.

Press + to bring up the Launch Manager window panel.

A red toggle indicates the device is off. Click On to enable wireless/Bluetooth connection. Click Off to disable connection.

* Communication devices may vary by model.

Closed front view

# Icon Item Description

1 Power indicator Indicates the computer's power status.

Battery indicator Indicates the computer's battery status.

1. Charging: The light shows amber when the battery is charging.
2. Fully charged: The light shows blue when in AC mode.

HDD indicator Indicates when the hard disk drive is active.

Communication indicator Indicates the status of 3G/Wireless LAN communication

Blue light on Orange light on Not lit
3G on / Wi-Fi on 3G on / Wi-Fi off	3G off / Wi-Fi on	3G off / Wi-Fi off

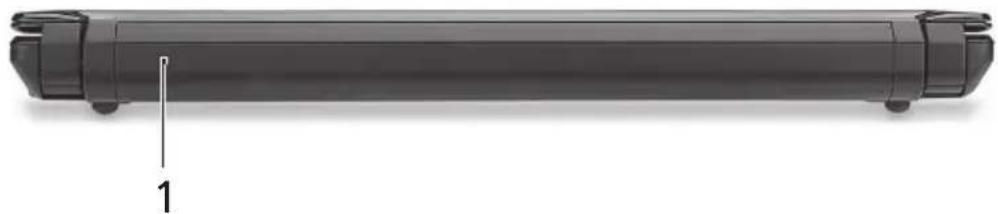

Rear view

# Item Description

1 Battery bay Houses the computer's battery pack.

Note: Your computer may be equipped with a different battery to the one in the picture.

Left view

# Icon Item Description

1 DC in jack Connects to an AC adapter.

2 External display

(VGA) port

Connects to a display device (e.g., external monitor, LCD projector).

3 USB ports Connect to USB devices (e.g., USB mouse, USB camera).

Right view

# Icon Item Description

1		2-in-1 card reader	Accepts Secure Digital (SD) and MultiMediaCard (MMC).Note: Push to remove/install the card.Only one card can operate at any given time.
2		phone/speaker/ line-out jack	Connects to audio line-out devices (e.g., speakers, headphones).
		Microphone-in jack Accepts inputs from external microphones.
3		USB port	Connects to USB devices (e.g., USB mouse, USB camera).
4	Kensington lock slot Connects to a Kensington-compatible computer security lock.
5		Ethernet (RJ-45) port	Connects to an Ethernet 10/100 based network.

Base view

Icon Item Description

1 Ventilation slots and cooling fan	Enable the computer to stay cool, even after prolonged use.Note: Do not cover or obstruct the opening of the fan.
2 Battery release latch Releases the battery for removal.
3 3G SIM card slot Accepts a 3G SIM card for 3G connectivity (only for certain models).
4 Battery bay Houses the computer's battery pack.
5 Ba lock Locks the battery in position.
6 Speaker Emits audio from your computer.

Environment

• Temperature:
• Operating: 5°C to 35°C • Non-operating: -20°C to 65°C

• Humidity (non-condensing):

• Operating: 20% to 80%

• Non-operating: 20% to 80%

Aspire One Series

Quick Guide

# Item Description

# Item Description

1 Battery Bay Contains the computer's battery.

# Icon Item Description

1 Power Indicator Indicates the computer's power status.

Battery Indicator Indicates the computer's battery status.

1. Charging: The light glows yellow when the battery is charging.
2. Fully charged: The light glows blue in AC mode.

# Item Description

1 Battery Bay Houses the computer's batteries.

# Icon Item Description

# Icon Topic Description

1 Power indicator Indicates the computer's power status.

Battery indicator Indicates the computer's battery status.

1. Charging: The lamp glows yellow when the battery is charging.
2. Fully charged: The lamp glows blue in AC mode.

Hard disk indicator Indicates that the hard disk is active.

Communication indicator Indicates the status of the wireless LAN/3G communication.

# Topic Description

1 Battery compartment Contains the computer's battery.

*Communication devices may vary between different models.

# Item Description

Icon Item Description

# Item Description

Icon Item Description

# Item Description

Icon Element Description

Icon Element Description

# Element Description

Icon Element Description

# Icon Item Description

1

# Item Description

1

Battery position

Icon Item Description

Item Description

Icon Item Description

Icon Item Description

Item Description

1

Nosilec za baterijo

Hrani baterijo računalnika.

Icon Item Description

* Communication devices vary depending on the model.

# Icon Item Description

1

# Item Description

Icon Item Description

1 Utori za provjetravanje i ventilator za hlađenje		Omogućavaju rashlađivanje računala i prilikom dugotrajne uporabe.Napomena: Nemojte prekriti ili prepriječiti otvor ventilatora.
2 Br	za oslobađanje baterije	Oslobađa bateriju radi uklanjanja.
3	Utor za karticu 3G SIM	Prihvaća 3G SIM karticu za 3G povezivanje (samo za određene modele).
4 Prostor za bateriju Sadrži baterijski komplet računala.
5 Br	baterije Zaključava bateriju u njen položaj.
6	Zvučnik	Zvuk se emitira s vašeg računala.

Environment

- Temperature:

• Operating: 5° C to 35° C • Storage: -20 °C to 65 °C

• Humidity (non-condensing):

• Operating: 20% to 80% • Storage: 20% to 80%
