BGL8PERF4 GL-80 IN'GENIUS, BGL8PERF6 GL-80 IN'GENIUS, BGL8SIL2 GL-80 IN'GENIUS - Vacuum Cleaner BOSCH - Free user manual and instructions

Product type	Canister vacuum cleaner
Brand	BOSCH
Model	GL-80 IN'GENIUS (BGL8PERF4 / BGL8PERF6 / BGL8SIL2)
Usage	Domestic
Adjustable power	Yes, from min to auto via rotary regulator
Bag type	PowerProtect Dustbag (ref. 00575069)
Bag capacity	Approx. 3.5 L
Motor protection filter	Yes, washable
Air outlet filter	Hygienic micro-filter or (H)EPA filter depending on model
Bag change indicator	LED (continuously lit when the nozzle is lifted off the floor)
Power regulator	Rotary regulator with on/off switch
Telescopic tube	Yes, with locking
Cord length	Approx. 8 m
Automatic cord rewind	Yes, by plug
Included accessories	Adaptable floor nozzle, crevice tool, upholstery nozzle, furniture brush, hard floor brush (depending on model)
Parking position	Yes, on the back
Storage position	Yes, underneath
Weight	Approx. 5 kg
Dimensions (L x W x H)	Approx. 400 x 250 x 300 mm
Supply voltage	220-240 V
Frequency	50/60 Hz

Frequently Asked Questions - BGL8PERF4 GL-80 IN'GENIUS, BGL8PERF6 GL-80 IN'GENIUS, BGL8SIL2 GL-80 IN'GENIUS BOSCH

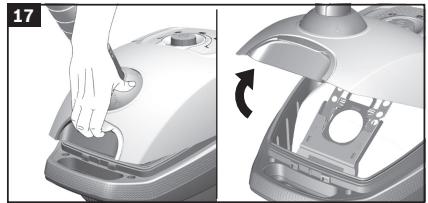

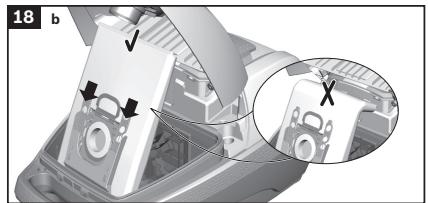

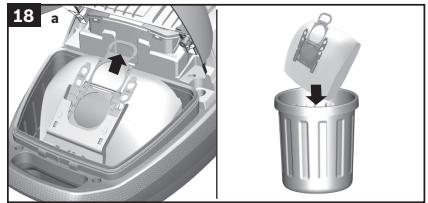

How do I change the bag of my Bosch GL-80 In'genius vacuum cleaner?

Open the dust compartment lid by operating the closure lever. Close the bag by pulling the closure tab and remove it. Insert a new PowerProtect Dustbag into the holder until it clicks into place. Close the lid.

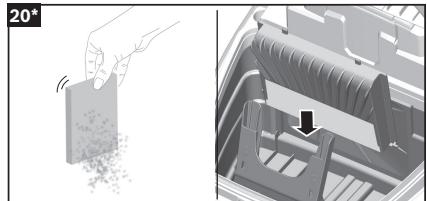

How do I clean the motor protection filter?

Open the cover, remove the filter by pulling on the side tabs. Tap it to clean. If heavily soiled, rinse with clear water and let it dry for at least 24 hours before reinserting.

What should I do if the bag change indicator stays on?

If the indicator is continuously lit when the nozzle is off the floor and power is at maximum, replace the bag even if not full. Also check that the nozzle, tube, and hose are not blocked.

Can I vacuum water or liquids with this vacuum cleaner?

No, this vacuum cleaner is designed only for vacuuming dry materials. Never vacuum liquids, hot, flammable, or sharp substances.

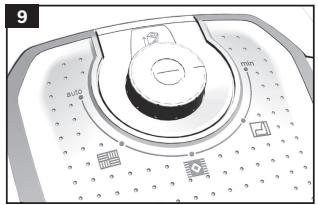

How do I adjust the suction power?

Turn the rotary regulator: position min for curtains and delicate textiles, auto for hard floors and heavily soiled carpets. Power is continuously adjustable.

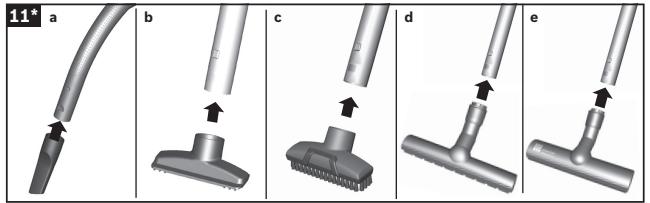

What accessories are supplied with the vacuum cleaner?

Depending on the model, you have an adaptable floor nozzle, a crevice tool, an upholstery nozzle, a furniture brush, and hard floor brushes (parquet or tiles).

How do I use the parking and storage positions?

For a short break, slide the nozzle hook into the rear recess (parking position). For storage, stand the appliance upright and hook the nozzle into the recess underneath.

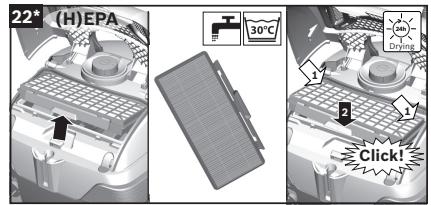

How do I maintain the (H)EPA filter?

The (H)EPA filter can be washed. Remove it by opening the rear flap, tap it, and rinse under running water. Let dry for at least 24 hours before reinserting.

Can I use the vacuum cleaner without a bag?

No, the vacuum cleaner must never be operated without a dust bag, without the motor protection filter, and without the air outlet filter, otherwise the appliance may be damaged.

What are the important safety precautions?

Do not vacuum people or animals. Do not use near sharp edges or heat sources. Always unplug before maintenance. If the cord is damaged, have it replaced by customer service.

USER MANUAL BGL8PERF4 GL-80 IN'GENIUS, BGL8PERF6 GL-80 IN'GENIUS, BGL8SIL2 GL-80 IN'GENIUS BOSCH

Technical illustration of a vehicle interior showing structural components and a magnified view of the roof structure (no text or symbols)

Diagram showing a hand pressing a component into a device, with an arrow indicating motion (no text or symbols present)

Two 3D printing machines, one with a camera icon and the other labeled 'BOSCH' (no additional text or symbols)

Diagram of a fan or vent structure with radial blades and central hub, labeled 'B' in top-left corner (no text or symbols on diagram itself)

3D rendered Y-shaped pipe fitting with textured ends, labeled 'C' in top-left corner (no other text or symbols)

3D rendered image of a gray mechanical component with a curved handle and rectangular base (no text or symbols)

Bosch Home Appliance Group

P.O. Box 83 01 01

D-81701 Munich

Germany

www.bosch-home.com

8001010663

Two rubber boots with floral patterns placed on the left and a black vacuum cleaner with a handle on the right (no text or symbols visible)

Register your new Bosch now:

www.bosch-home.com/welcome

Close-up of a textured surface with a dark curved edge and a light gray circular pattern (no text or symbols)

BGL8...

In'genius

BOSCH

Top-down view of a mechanical control panel with no visible text or symbols

Technical diagram of a mechanical component with labeled parts (no readable text or symbols)

Two-step diagram showing a hand pressing down on a white appliance with a circular component, and a close-up of the interior casing with a handle (no text or symbols)

3D rendering of a vacuum cleaner with attached pump and fan (no visible text or symbols)

Hand holding a small appliance with a handle, showing a button and control panel (no text or symbols visible)

Mechanical assembly diagram showing a plastic container with internal components and a separate view of a trash bin (no text or symbols)

Close-up of a white vacuum cleaner's lid with a black arrow pointing to the button (no text or symbols visible)

Two views of a vacuum cleaner device, one showing airflow direction and the other showing internal components (no text or symbols visible)

Mechanical assembly diagram showing a component with labeled parts and an inset view of a close-up (no text or symbols present)

de Sicherheitshinweise....2
Gerätebeschreibung 35
en Safety information .... 3
Your vacuum cleaner....38
fr Consignes de sécurité ....5
Description de l'appareil....42
Istruzioni di sicurezza....6
Descrizione dell'apparecchio....45
Veiligheidsvoorschriften....8
Beschrijving van het toestel....49
da Sikkerhedsanvisninger....9
Beskrivelse....52
Sikkerhetshenvisninger....11
Beskrivelse av apparatet....55
Säkerhetsanvisningar....12
Produktbeskrivning....58
fi Turvallisuusohjeet....14
Laitteen kuvaus....61
Consejos de seguridad ....15
Descripción de los aparatos 64
Instruções de segurança....17
Descrição do aparelho....68
Υποδείξεις ασφαλείας....18
Περιγραφή της συσκευής 71
Güvenlik bilgiler....20
Cihaz açıklaması 75
Wskazówki dotyczące bezpieczeństwa....22
Opis urządzenia....78
biztonsági útmutató....24
A készülék leírása....81
Указания за безопасност....26
Описание на уреда....84
Указания по технике безопасности.... 27
Описание прибора 88
Indicații de siguranță....29
Descrierea aparatului....91
Вказівки з техніки безпеки 30
Загальні характеристики пилососа 95

34 إرشادات الأُمان

102..... وصف الجهاز

de

Please keep this instruction manual. When passing the vacuum cleaner on to a third party, please also pass on this instruction manual.

Intended use

This vacuum cleaner is intended for domestic use and not for commercial use. Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

In order to prevent injuries and damage, the vacuum cleaner must not be used for:

■ Vacuum-cleaning persons or animals
■ Vacuuming up:

• hazardous, sharp-edged, hot or glowing substances.
• damp or liquid substances.
  – highly flammable or explosive substances and gases.
• ash, soot from tiled stoves and central heating systems.
• toner dust from printers and copiers.

Spare parts, accessories, dust bags

Our original spare parts, original (special) accessories and original dust bags are designed to work with the features and requirements of our vacuum cleaners. We therefore recommend that you only use our original spare parts, original (special) accessories and original dust bags. This will ensure that your vacuum cleaner has a long service life and that the quality of its cleaning performance will remain consistently high throughout.

Please note

- Using unsuitable or inferior-quality spare parts, (special) accessories and dust bags can damage your vacuum cleaner. Damage caused by the use of such products is not covered by our guarantee.

Safety information

This vacuum cleaner complies with the recognised rules of technology and the relevant safety regulations.

■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed on the safe use of the appliance and the have understood the potential dangers of using the appliance.
■ Children must never play with the appliance.

■ Cleaning and user maintenance must never be carried out by children without supervision.
■ Plastic bags and films must be kept out of the reach of children before disposal. =>Risk of suffocation.

Proper use

■ Only connect and use the vacuum cleaner in accordance with the specifications on the rating plate.
■ Never vacuum without the dust bag or dust container, motor protection or exhaust filter.
=> This may damage the vacuum cleaner.
■ Always keep the vacuum cleaner away from your head when using nozzles and tubes. => This could cause injury!
■ When vacuuming stairs, the appliance must always be positioned below the user.
■ Do not use the power cord or the hose to carry or transport the vacuum cleaner.
For safety reasons, if this appliance's mains power cable becomes damaged, it must be replaced by the manufacturer, their after-sales service department or a similarly qualified person.
■ If using the appliance for longer than 30 minutes, pull out the power cord completely.
■ When disconnecting the appliance from the mains, pull on the plug itself to remove it; do not pull on the power cord.
■ Do not pull the power cord over sharp edges or allow it to become trapped.
■ When the cable is being automatically rewound, ensure that the mains plug is not thrown towards persons, body parts, animals or objects.
=> Use the mains plug to guide the power cord.
■ Pull out the mains plug before carrying out any work on the vacuum cleaner.
■ Do not operate the vacuum cleaner if it is damaged. Unplug the appliance from the mains if a fault is detected.
■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
■ Protect the vacuum cleaner from the weather, moisture and sources of heat.
■ Do not pour flammable substances or substances containing alcohol onto the filters (dust bag, motor protection filter, exhaust filter, etc.).
■ The vacuum cleaner is not suitable for use on construction sites.
=>Vacuuming up building rubble could damage the appliance.
■ When not in use, switch off the appliance and pull out the mains plug.
At the end of its life, the appliance should immediately be rendered unusable, then disposed of in an appropriate manner.

Please note

- The mains socket must be protected by at least a 16 amp circuit breaker. If a circuit breaker is tripped when you switch on the vacuum cleaner, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.

To prevent the circuit breaker from tripping, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

Disposal information

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can therefore be recycled. Dispose of packaging that is no longer required at an appropriate recycling point.

■ Old appliance

Old appliances still contain many valuable materials. Therefore, please take appliances that have reached the end of their service life to your retailer or recycling centre so that they can be recycled. For current disposal methods, please enquire at a retailer or your local council.

■ Disposal of filters and dust bags

Filters and dust bags are manufactured from environmentally friendly materials. Provided they do not contain substances that are not permitted in household waste, you can dispose of them with your normal household waste.

Notes on the energy label

This vacuum cleaner is a general purpose vacuum cleaner.

To achieve the declared energy efficiency and cleaning performance class on carpet, please use the interchangeable universal nozzle.

Please use the enclosed "powerClean Stone & Co" hard-floor tool to achieve the specified energy-efficiency level and cleaning class on hard floors with joints and gaps.

These calculations are based on the delegated regulation (EU) no. 665/2013 established by the commission on 3rd May 2013 as a supplement to Directive 2010/30/EU.

All of the procedures in these instructions that are not described in more precise detail were listed based on DIN EN 60312-1:2014.

fr

وال Clubs phenomena.

= youth should be interested in the health of the people.

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Gerätebeschreibung

Congratulations on your purchase of the Bosch GL80 In'genius vacuum cleaner.

This instruction manual describes various GL80 In'genius models, which means that some of the equipment features and functions described may not apply to your model. You should only use original Bosch accessories, which have been specially developed for your vacuum cleaner, in order to achieve the best possible vacuuming results.

Please keep this instruction manual for future reference. When passing the vacuum cleaner on to a third party, also pass on this instruction manual.

Fold out the picture pages.

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

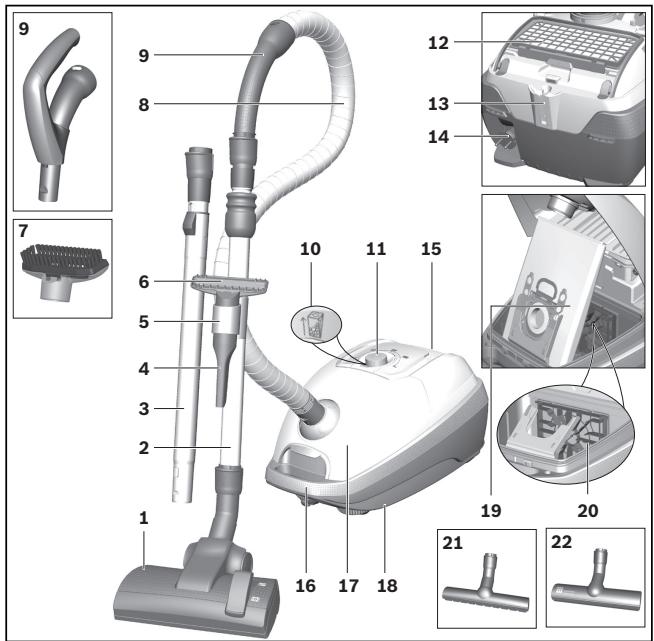

Your vacuum cleaner

1 Adjustable floor nozzle* (For the same functions, the appearance of the nozzle may differ from the picture)
2 Telescopic tube with adjusting sleeve (and accessory connection)*
3 Telescopic tube with sliding switch (and accessory connection) ^*
4 Crevice nozzle
5 Accessories holder
6 Upholstery nozzle
7 Hard furnishings brush (for fitting on the upholstery nozzle)*
8 Flexible hose
9 Hose handle

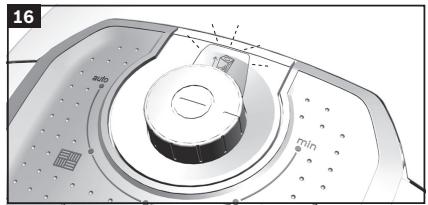

10 Dust bag change indicator
11 Power rotary control and on/off switch
12 Exhaust filter
13 Parking aid
14 Power cord
15 Rear flap
16 Carrying handle
17 Dust bag compartment lid
18 Storage aid (on the underside of the appliance)
19 Dust bag

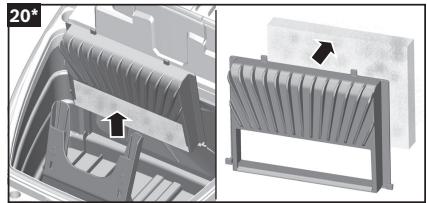

20 Motor protection filter
21 Floor tool for delicate hard floors, e.g. parquet
22 "powerClean Stone & Co" floor tool for hard floors with joints and gaps, e.g. tiles and floorboards

Replacement parts and special accessories

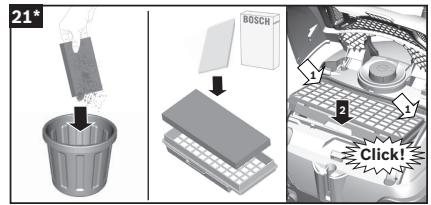

A Replacement filter pack

Type: PowerProtect Dustbag

No: 00575069

Contents:

- 4 dust bags with fasteners

- 1 micro-hygiene filter

PLEASE NOTE

We therefore recommend that you only use our original dust bags.

Your appliance is a highly efficient vacuum cleaner that achieves excellent cleaning results when used with high-quality dust bags.

Only by using high-quality dust bags (such as Bosch original dust bags) can you ensure that your vacuum cleaner is working at the energy efficiency class, dust pick-up rate and dust retention capacity listed on its EU energy label.

The use of inferior-quality dust bags (e.g. paper bags) can have a negative effect on the service life and performance of your appliance.

Using unsuitable or inferior-quality dust bags can also damage your vacuum cleaner. Such damage is not covered by our guarantee.

You can find more information about this at www.bosch-home.com/dust-bag.

You can order our original vacuum cleaner bags here.

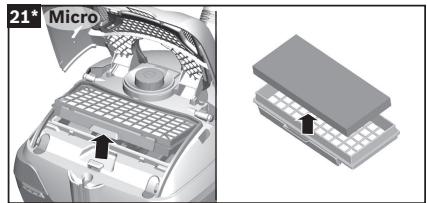

B Washable microfilter

Protects the motor of your vacuum cleaner, thus increasing its service life.

C Hard-floor nozzle BBZ123HD

For vacuuming hard floors (parquet, tiles, terracotta, etc.)

D Hard-floor nozzle BBZ124HD

Innovative "soft & roll" hard-floor nozzle:

2 rotating brush rollers made from natural hair.

Coarse dirt is not pushed away.

Before using your appliance for the first time

Fig. 1

- Push the handle onto the flexible hose and lock it in place.

Initial use

Fig. 2

a) Push the flexible hose adapter into the air intake opening in the lid until it locks in place.

b) To remove the flexible hose, press the two catches together and pull out the hose.

Fig. 3

• Push the handle into the telescopic tube until it locks into place.
• To release the connection, press the locking collar and pull out the telescopic tube.

Fig. 4

- Push the telescopic tube into the connecting piece of the floor nozzle until it locks in place.

- To release the connection, press the locking collar and pull out the telescopic tube.

Fig. 5\*

- Unlock the telescopic tube by moving the sliding switch or adjusting sleeve in the direction of the arrow, and adjust to the desired length.

Fig. 6

a) Place the accessories holder in the required position on the telescopic tube.

b) Put the hard furnishings brush on the upholstery nozzle and lock it in place.

c) Use some pressure to insert the upholstery nozzle with hard furnishings brush and the crevice nozzle into the accessories holder from above or below.

Fig. 7

- Holding the power cord by the plug, pull it out to the required length and insert the plug into the mains socket.

! If using the appliance for longer than 30 minutes, pull out the power cord completely.

=> Risk of overheating and subsequent damage.

Fig. 8 Switching on and off

- To switch the vacuum cleaner on or off, press the rotary control.

Fig. 9 Controlling the suction level

Turn the rotary control to infinitely adjust the suction level to the level required.

min - For vacuuming curtains and delicate textiles

- For vacuuming upholstered furniture and cushions

- For vacuuming delicate rugs and for daily vacuuming of lightly soiled floors

- For vacuuming durable floor coverings

auto - For vacuuming hard floors and heavily soiled rugs and carpets

Vacuuming

Caution:

- Floor nozzles are subject to a certain amount of wear, depending on the type of hard floors you have (e.g. rough, rustic tiles). You must therefore check the underside of the floor nozzle at regular intervals. Worn undersides of floor nozzles may have sharp edges that can damage sensitive hard floors, such as parquet or linoleum. The manufacturer does not accept any responsibility for damage caused by worn floor nozzles.

* Depending on model

Fig. 10

Set the adjustable floor nozzle:

■ Rugs and carpets =>

■ Hard floors/parquet =>

Fig. 11\* Vacuuming with accessories

Attach the nozzles to the suction pipe or handle as required:

a) Crevice nozzle for vacuuming crevices and corners, etc.
b) Upholstery nozzle for vacuuming upholstered furniture, curtains, etc.
c) Upholstery nozzle with attachable hard furnishings brush for vacuuming window frames, cupboards, cornicing, etc.
- After use, reinsert the crevice nozzle and upholstery nozzle into the accessories holder.
d) Floor tool for delicate hard floors, e.g. parquet
e) "powerClean Stone & Co" floor tool for hard floors with joints and gaps, e.g. tiles and floorboards

Fig. 12

• You can use the parking aid on the back of the vacuum cleaner if you want to stop vacuuming for a short time.
• After switching off the appliance, slide the hook on the floor nozzle into the recess on the back of the appliance.

Fig. 13

To overcome obstacles, e.g. steps, the appliance can also be carried by the handle on the appliance body.

After using the appliance

Fig. 14

• Pull out the mains plug.
• Briefly pull on the power cord and release it (the cable retracts automatically).

Fig. 15

• To store or transport the appliance, you can use the storage aid on the underside of the appliance.
• Stand the appliance upright on its end. Slide the hook on the floor nozzle into the recess on the underside of the appliance.

Changing the filter

! Caution: Always switch off the appliance before changing the filter.

Replacing the dust bag

Fig. 16

- If the dust bag change indicator lights up continuously when the nozzle is lifted from the floor and the highest power setting has been selected, the dust bag must be changed, even though it may not yet be full. In this case, it needs to be changed due to the type of dust which has been vacuumed.

The nozzle, suction pipe and flexible hose must not be blocked, even if this does not trigger the dust bag change indicator.

Fig. 17 Opening the lid

- Open the lid by moving the locking lever in the direction of the arrow.

Fig. 18

a) Close the dust bag by pulling on the locking tab, and remove the bag.
b) Push the new dust bag into the holder until it clicks into place. When doing so, leave the dust bag folded as it was when removed from the packaging. Do not crease or kink the dust bag, and ensure that it is not pinched when the lid is closed.

Caution: The lid will only close if a dust bag has

been inserted.

Motor protection filter

Caution: The vacuum must not be operated without
the motor protection filter.

Cleaning the motor protection filter

The motor protection filter should be cleaned regularly by tapping out the dirt and rinsing.

Fig. 19\*

• Open the dust bag compartment lid. Fig. 17
• Release the motor protection filter by pulling on the side tabs and pull it out in the direction of the arrow.
• Clean the motor protection filter by tapping out the dirt.
• If it is very dirty, the motor protection filter should be rinsed.

The filter must then be left to dry for at least 24 hours.

- After cleaning, refit the motor protection filter into the appliance and lock it in place at the top. Close the dust bag compartment lid.

Cleaning the foam filter

If your appliance is fitted with a filter frame and foam filter, the foam filter should be cleaned at regular intervals by tapping out the dust.

Fig. 20\*

• Open the dust bag compartment lid. Fig. 17
• Pull out the filter frame and foam filter in the direction of the arrow.
• Remove the foam filter from the filter frame and clean it by tapping out the dust.
• After cleaning, place the foam filter back in the filter frame, insert the filter frame with foam filter in the appliance and close the dust bag compartment lid.

Caution: The vacuum cleaner must not be operated
- without the motor protection filter.

Exhaust filter

The exhaust filter must be cleaned or replaced at least once a year.

Replacing the micro-hygiene exhaust filter

Fig. 21\*

• Open the rear flap.
• Unlock the filter holder by moving the locking tab in the direction of the arrow.
• Remove the foam filter* from the filter holder and tap it out.
  Replace the old micro-hygiene filter with a new one. (This is included in the filter pack when you purchase original dust bags).
  Insert the foam filter into the filter holder.
• Insert the filter holder into the appliance and lock it in place.

Cleaning the (H)EPA\* exhaust filter

The (H)EPA* filter is designed so that it does not need to be replaced, provided the appliance is used as intended in the household.

To ensure that the vacuum cleaner is working at its optimum power level, the (H)EPA* filter should be rinsed out after one year. The filtering action of the filter remains intact, even if the filter surface becomes discoloured.

Fig. 22\*

• Open the rear flap.
• Unlock the (H)EPA* filter by moving the locking tab in the direction of the arrow, and remove it from the appliance.
• Tap out the filter unit and rinse it under running water.
  Alternatively, the unit can be cleaned in a washing machine at max. 30 °C using a gentle programme and the lowest spin speed.
  TIP: To protect other laundry items, put the filter unit into a laundry bag.
• Once the (H)EPA* filter has dried completely (at least 24 hours), insert it back into the appliance and lock it in place.
• Close the rear flap.

After vacuuming fine dust particles (e.g. gypsum, cement, etc.), clean the motor protection filter by tapping it out or, if necessary, replace the motor protection filter and exhaust filter.

Care

Always switch off the vacuum cleaner and disconnect the power cord from the mains before cleaning the vacuum cleaner. The vacuum cleaner and plastic accessories can be cleaned with an ordinary plastic cleaner.

Do not use abrasive materials, glass-cleaning agents or all-purpose cleaning products. Never immerse the vacuum cleaner in water.

The dust compartment can, if necessary, be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or dusting brush.

Subject to technical modifications.

fr

Simple line drawing of an open book with a right-pointing arrow on the right page (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow on the cover (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow on the right page (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Beskrivelse

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Produktbeskrivning

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Laitteen kuvaus

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols present)

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Περιγραφή συσκευής

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Cihaz açıklaması

Simple line drawing of an open book with a right-pointing arrow on the cover (no text or symbols)

Opis urządzenia

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

A készülék leírása

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Описание на уреда

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Описание прибора

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow on the cover (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

وصف الجهاز

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

AERTECH SH.P.K.

Rruga Qemal Stafa

Pallati i ri perball Prokuroris se

Pergjithshme

Hyrjā C Kati 10

Tirana

Tel.: [phone]

mailto:[e-mail]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com.au

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Info-Line: 061 100 905

Fax: [phone]

mailto:[e-mail]

European Trade Center Building, 5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.bosch.home.bg

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch-home.co.uk or call

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel:. [phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests,

Spares and Accessories

Tel.: [phone]*

Fax: [phone]

www.bosch-home.co.uk

*0.03 € per minute at peak.

Off peak 0.0088 € per minute

IL Israel,

C/S/B Home Appliance Ltd.

Uliel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat, भारत

BSH Household Appliances

Mfg. Pvt. Ltd.

Arena House, 2nd Floor, Main Bldg,

Plot No. 103, Road No. 12, MIDC,

Andheri East

Mumbai 400 093

www.bosch-home.com/in

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

LB Lebanon, لبنان

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

LU Luxembourg

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]; -36

mailto:[e-mail]

www.servisacentrs.lv

MD Moldova

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

тел./факс: [phone]

mailto:[e-mail]

ME Crna Gora, Montenegro

Elektronika komerc

UI. Slobode 17

84000 Bijelo Polje

Tel./Fax: [phone]

Mobil: 069 324 812

mailto:ekobosch.servis@

t-com.me

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

PL Polska, Poland

SA Kingdom Saudi Arabia,

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.

P.O.Box 7997

Jeddah 21472

Tel.: [phone]

mailto:[e-mail]

www.aljelectronics.com.sa

SE Sverige, Sweden

www.bosch-home.com/tr

4th floor, No. 112 Sec 1

Chung Hsiao E Road

Taipei ROC 100

Tel.: [phone]

mailto:[e-mail]

UA Ukraine, Україна

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

Milutina Milankovića 11 ^4

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-sr@

bshg.com

www.bosch-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.bosch-home.com/za

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

de

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

fr

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

pt

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

FR Conditions de garantie

[e-mail]
