Product Type	Wireless Charger for Mobile Devices
Model	LÖRBY 503.887.01
Brand	IKEA
Dimensions	10 x 7 x 1 cm (3.9 x 2.8 x 0.4 in)
Weight	100 g (3.5 oz)
Input Voltage	5V DC, 2A or 9V DC, 2A
Output Power	Up to 15W (compatible with Qi devices)
Charging Standard	Qi wireless charging
Included Cable	USB-C to USB-A cable, 1 m (3.3 ft)
LED Indicator	Yes, charging status light (red/green)
Safety Features	Overcharge protection, foreign object detection, temperature control
Compatibility	Smartphones and devices compatible with Qi wireless charging
Material	ABS plastic, rubber non-slip base
Cleaning	Wipe with a dry cloth; do not use liquid cleaners
Certifications	CE, RoHS, Qi Certified
Spare Parts Availability	Not available separately; product is recyclable

Frequently Asked Questions - LÖRBY 503.887.01 IKEA

What devices are compatible with the IKEA LÖRBY charger?

The LÖRBY charger works with any device that supports Qi wireless charging, such as recent iPhones, Samsung Galaxy models, and other Qi-enabled smartphones.

Does the charger include a power adapter?

No, only a USB-C to USB-A cable is included. You need a USB power adapter (sold separately) that provides at least 5V/2A or 9V/2A for fast charging.

How fast does the LÖRBY charger charge?

It supports up to 15W fast wireless charging for compatible devices. Charging speed depends on your device and power adapter.

What does the LED indicator mean?

The LED shows red when charging and turns green when fully charged. If it flashes, it may indicate a foreign object or alignment issue.

Can I use the charger with a thick case?

It works with most cases less than 3 mm thick. Cases with metal attachments or credit cards may interfere with charging.

How should I clean the charger?

Unplug the charger and wipe with a dry, soft cloth. Do not use water or cleaning agents to avoid damage.

Is the charger safe to use overnight?

Yes, it has overcharge protection and automatically stops charging when the battery is full, making it safe for overnight use.

What if my phone doesn't charge?

Ensure your phone is Qi-compatible, remove any thick case, and place it centered on the pad. Try using a different USB adapter or cable.

Does the charger support fast charging for Samsung phones?

Yes, it supports Samsung Fast Wireless Charging (up to 15W) when used with a compatible 9V/2A adapter.

Can I recycle the LÖRBY charger?

Yes, the charger is recyclable. Dispose of it at your local electronic waste recycling facility according to local regulations.

USER MANUAL LÖRBY 503.887.01 IKEA

Design and Quality IKEA of Sweden

Technical line drawings of electrical components including a U-shaped magnet, cable, and terminal block (no text or symbols)

ENGLISH 6

中文 10

繁中 14

한국어 18

日本語 22

BAHASA INDONESIA 26

BAHASA MALAYSIA 30

عربي 34

ไทย 38

ENGLISH 6

Charger features

— Charges 3 devices simultaneously.
— One single USB outlet can provide up to 2400 mA load.

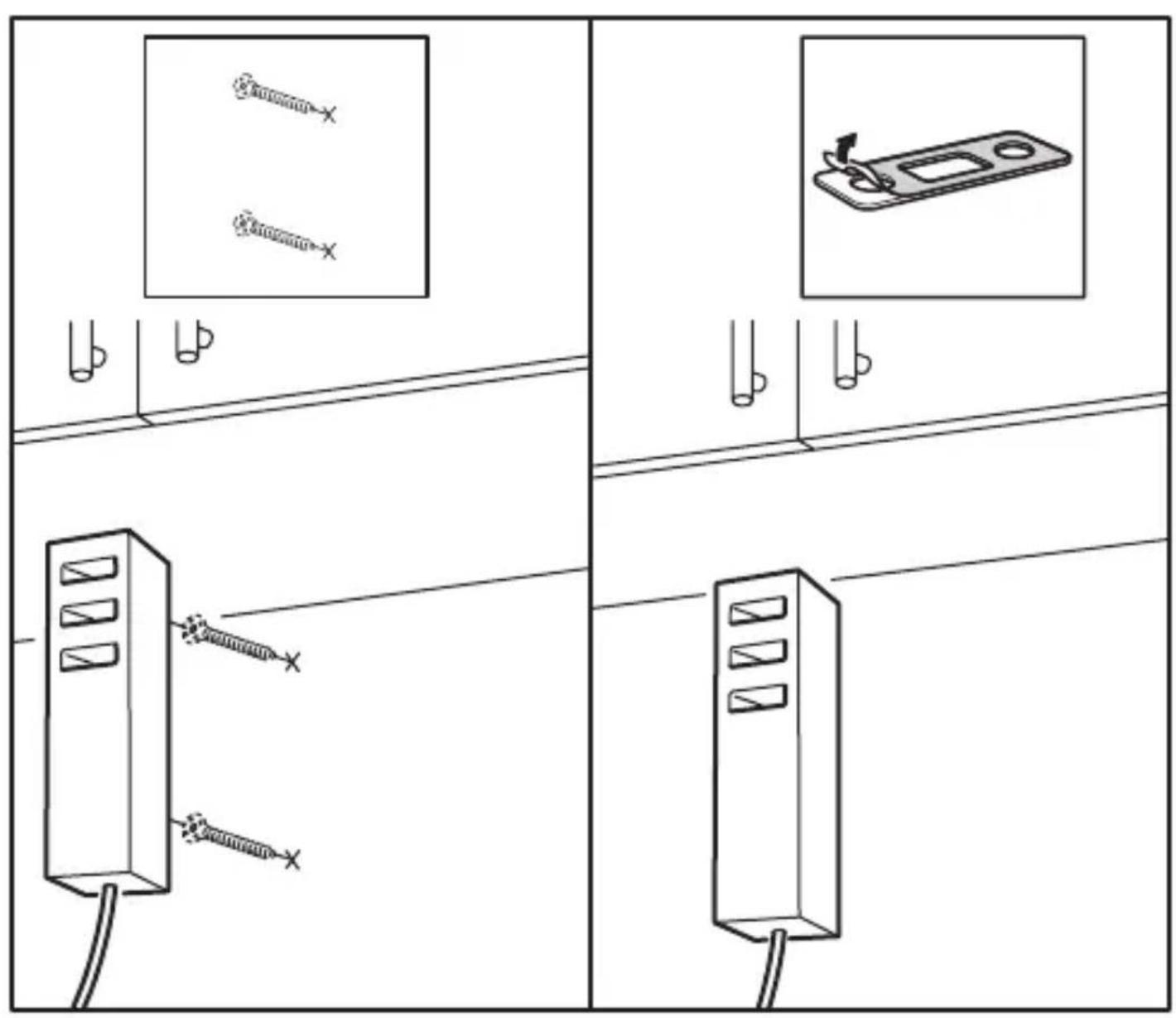

— Can be attached with the clip provided or the built-in magnetic plate or the adhesive label or screws.

Instructions for use

— Connect the power adapter into the wall socket, insert USB cable one by one into the free slots and the other end to the device you want to charge.
— If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.
— When charging only use a recommended USB cable for your device.
— Be sure to not exceed the maximum USB cable length recommended for the appliance or the device.

Good to know

— USB cable length and quality influences charging speed and performance.
— Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
- Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
— Charger storage temperature: -20^ to 25^ .
— Charger operating temperature: 0°C to 40°C.

Unplug the charger from the power source before cleaning and when it is not in use.

To clean the charger, wipe with a moist cloth. Never submerge the charger in water.

Recommended precautionary measures and technical data, see the back of the charger.

Save these instructions for future use.

WARNING:

— The wall socket must be located near the equipment and must be easily accessible.
— Only use in dry locations.
— Children should be supervised to ensure they do not play with the product.
— If the cord is damaged the appliance shall be destroyed.
— Never use a damage or faulty USB cable for charging, since this can damage the appliance and harm your device.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E1605 LÖRBY

Input: 24V DC

Output: 5V DC

Indoor use only

Max total load: 3400 mA

Max load per USB-outlet: 2400mA

Max USB cable length: 1.5 m/4'11"

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
