Product Type	Charger for mobile devices
Model	LÖRBY 503.602.74
Type Number	E1605
Input Voltage	24V DC
Output Voltage	5V DC
Total Maximum Load	3400 mA
Maximum Load per USB Port	2400 mA
Number of USB Ports	3
Attachment Options	Clip, magnetic plate, adhesive label, screws
Storage Temperature	-20°C to 25°C
Operating Temperature	0°C to 40°C
Recommended Use	Indoor only
Maximum USB Cable Length	1.5 m (4'11")
Manufacturer	IKEA of Sweden AB, Box 702, SE-343 81 Älmhult, SWEDEN
Cleaning Method	Wipe with a damp cloth; do not submerge in water
Safety Warning	Do not attempt to repair; unplug when not in use

Frequently Asked Questions - LÖRBY 503.602.74 IKEA

How many devices can I charge simultaneously?

The LÖRBY charger can charge up to three devices at the same time.

What is the maximum current per USB port?

Each USB port can deliver up to 2400 mA (2.4 A) of current.

Can I use any USB cable with this charger?

It is recommended to use a USB cable suitable for your device. The total cable length should not exceed 1.5 meters for optimal performance.

How can I attach the charger?

You can attach the charger using the included clip, the built-in magnetic plate, the adhesive label, or screws.

What is the operating temperature range?

The charger operates safely at temperatures between 0°C and 40°C.

How should I clean the charger?

Unplug the charger, then wipe it with a damp cloth. Never submerge the charger in water.

What should I do if the USB cable is damaged?

If the cord is damaged, the appliance should be destroyed. Never use a damaged or faulty USB cable for charging.

Can I use the charger outdoors?

No, the charger is designed for indoor use only and should be kept in dry locations.

Why is my device not charging?

If the battery is completely discharged, it may take a few minutes before charging begins. Wait for the battery symbol to appear. Also check the cable and connections.

Can I repair the charger myself?

Do not attempt to repair the product yourself. Opening or removing covers may expose you to dangerous voltages. Contact IKEA for service.

USER MANUAL LÖRBY 503.602.74 IKEA

Design and Quality IKEA of Sweden

Technical line drawings of electrical components including a U-shaped magnet, cable, and terminal block (no text or symbols)

ENGLISH 6

中文 10

繁中 14

한국어 18

日本語 22

BAHASA INDONESIA 26

BAHASA MALAYSIA 30

عربي 34

ไทย 38

ENGLISH 6

Charger features

— Charges 3 devices simultaneously.
— One single USB outlet can provide up to 2400 mA load.

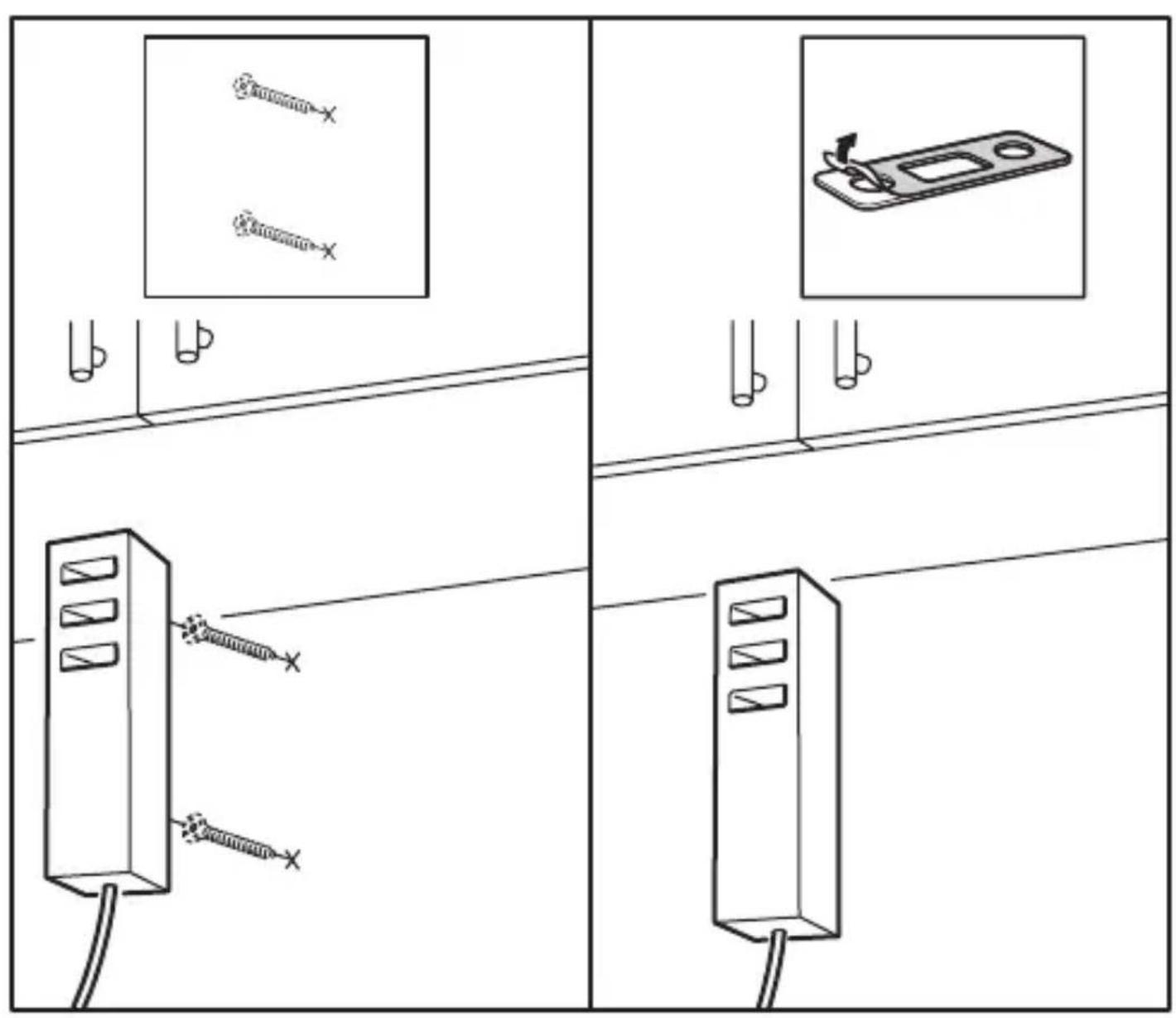

— Can be attached with the clip provided or the built-in magnetic plate or the adhesive label or screws.

Instructions for use

— Connect the power adapter into the wall socket, insert USB cable one by one into the free slots and the other end to the device you want to charge.
— If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.
— When charging only use a recommended USB cable for your device.
— Be sure to not exceed the maximum USB cable length recommended for the appliance or the device.

Good to know

— USB cable length and quality influences charging speed and performance.
— Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
- Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
— Charger storage temperature: -20^ to 25^ .
— Charger operating temperature: 0°C to 40°C.

Unplug the charger from the power source before cleaning and when it is not in use.

To clean the charger, wipe with a moist cloth. Never submerge the charger in water.

Recommended precautionary measures and technical data, see the back of the charger.

Save these instructions for future use.

WARNING:

— The wall socket must be located near the equipment and must be easily accessible.
— Only use in dry locations.
— Children should be supervised to ensure they do not play with the product.
— If the cord is damaged the appliance shall be destroyed.
— Never use a damage or faulty USB cable for charging, since this can damage the appliance and harm your device.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E1605 LÖRBY

Input: 24V DC

Output: 5V DC

Indoor use only

Max total load: 3400 mA

Max load per USB-outlet: 2400mA

Max USB cable length: 1.5 m/4'11"

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
