NORDMÄRKE 604.780.70 - Mobile Device Charger IKEA - Free user manual and instructions

Product Type	Wireless Charger
Brand	IKEA
Model	NORDMÄRKE 604.780.70
Input Voltage / Current	5.0V DC, 2.0A (10W)
Wireless Charging Standard	Qi 1.2.4 BPP
Wireless Output Power	Up to 5W
Operating Frequency	110 - 148 kHz
LED Indicator	Yes (power on: 3s, charging: on, complete: off, error: flashing)
Safety Features	Temperature and power monitoring
Compatibility	Qi-compatible mobile devices
Placement Requirement	Device must be centered on the plus sign (+)
Charging Time	Varies depending on device battery capacity, age, and temperature
Storage Temperature	-20°C to 25°C
Operating Temperature	0°C to 40°C
Cleaning Instructions	Wipe with a damp cloth; do not submerge in water
RF Exposure Distance	Keep at least 10 cm away from the device during normal operation
Indoor Use Only	Yes
Disposal	Separate from household waste; recycle according to local regulations
Manufacturer	IKEA of Sweden AB
Country of Origin	Designed in Sweden

Frequently Asked Questions - NORDMÄRKE 604.780.70 IKEA

How do I know when my device is charging?

The LED indicator on the charger lights up continuously while charging. When charging is complete, the LED turns off. At power-on, the LED lights for 3 seconds.

What does it mean if the LED is flashing?

A flashing LED indicates an error. This could be due to incompatible device, misalignment, or overheating. Remove the device and try again after ensuring proper placement on the plus sign (+).

Why is my device not charging?

Possible reasons: device not Qi-compatible, not centered on the plus sign (+), wireless charging not activated in device settings, or a thick case (remove if >3mm). Also ensure the charger is plugged into a 5V/2A adapter.

Can I use a different power adapter?

Only use a power adapter that supplies 5.0V DC, 2.0A. Using an incompatible adapter may cause damage or poor performance.

Is it safe to leave the charger plugged in when not in use?

It is recommended to unplug the charger from the power source when not in use to save energy and reduce risk.

How should I clean the charger?

Clean with a damp cloth. Never submerge the charger in water or use abrasive cleaners.

Will this charger work with my phone?

If your phone supports Qi wireless charging (standard 1.2.4 BPP), it will work. Most modern smartphones support Qi.

What is the maximum charging speed?

This charger delivers up to 5W (Qi Base Power Profile). Charging speed depends on your device's capabilities.

Can I charge through a phone case?

Yes, but the case should be thin (less than 3mm) and not contain metal. Thick or metal-embedded cases may interfere with charging.

What is the plus sign (+) on the charger for?

The plus sign (+) indicates the optimal placement area for charging. Center your device over this symbol for best charging efficiency.

USER MANUAL NORDMÄRKE 604.780.70 IKEA

Line drawing of a smartphone with a hand pointing at it, showing the screen and lens (no text or symbols)

Battery icon with a lightning bolt symbol (no text or numbers)

English 6

中文 10

繁中 14

한국어 18

日本語 22

Bahasa Indonesia 26

Bahasa Malaysia 30

عربي 34

Inu 38

Charger features

• Wirelessly charges Qi-compatible devices.
• Compatible with Qi 1.2.4BPP specification.
  • Temperature and power monitor for safety.
  • LED status indicator.

Instructions for use

• Connect the charger cable to the power adapter and plug it into the wall socket.
• For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) on the charger for the charging function to work optimally. Note that on some devices you may have to activate wireless charging in settings.
• If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.

LED indicator (see illustrations):

1. Power on: LED lights up for 3 seconds.

2. Charging: LED on.

3. Charging completed: LED off.

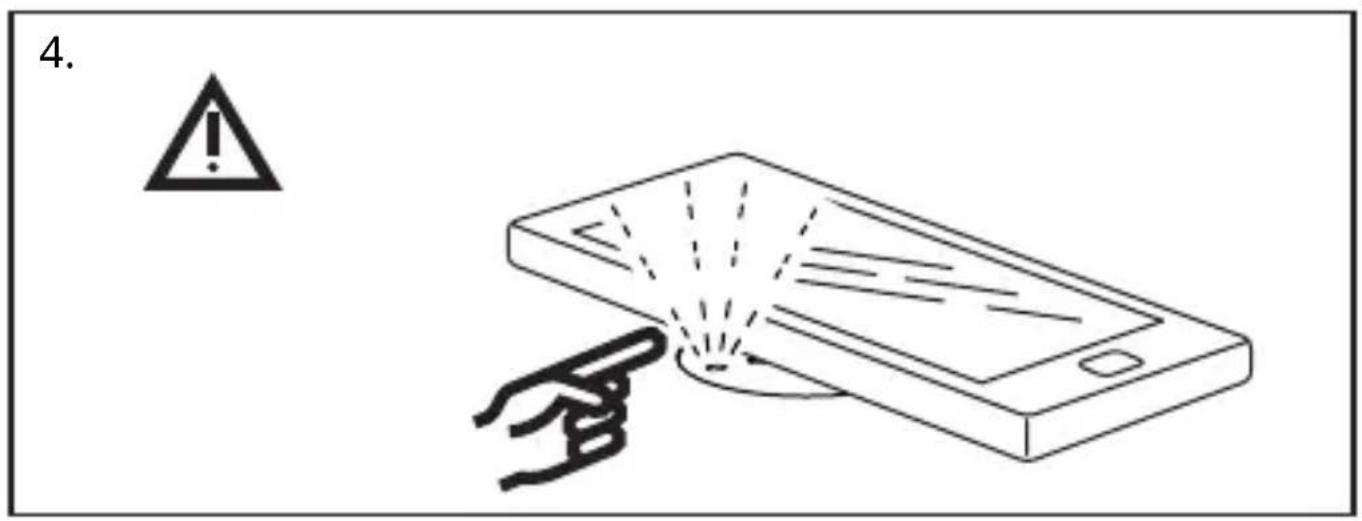

4. Error: LED flashes.

Good to know

• Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
- Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
- Charger storage temperature: -20°C to 25°C.
- Charger operating temperature: 0^ to 40^ .
- Unplug the charger from the power source before cleaning and when it is not in use.
- To clean the charger, wipe with a moist cloth. Never submerge the charger in water.

Recommended precautionary measures and technical data. See the back of the charger.

Save these instructions for future use.

WARNING:

• Only charge devices that are Qi-compatible.
• The wall socket must be located near the equipment and must be easily accessible.
• Only use in dry locations.
• Children should be supervised to ensure they do not play with the product.
• If the cord is damaged the appliance shall be destroyed.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 10 cm from the device.

The 'Qi' symbol is a trademark of the Wireless Power Consortium

TECHNICAL DATA

Type: E1905 NORDMÄRKE

Input: 5.0V DC, 2.0A, 10W

Indoor use only

Operating frequency: 110 - 148kHz

Output power: -2 dBuA/m at 10m

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
