Product Type	Sound remote (gen 2) for SYMFONISK speakers
Model	SYMFONISK 705.273.10 / E2123
Power Supply	2 x HR03 AAA 1.2V rechargeable batteries (LADDA recommended)
Operating Range	10 m (unobstructed)
Operating Frequency	2400-2483.5 MHz
Output Power	3 dBm (EIRP)
Operating Temperature	0 °C to 40 °C
Indoor Use Only	Yes
Compatibility	IKEA Home smart app, IKEA gateway/hub, SYMFONISK speakers
Primary Functions	Play/pause, repeat, skip, volume control, shortcut buttons for playlists
Battery Life	Approximately 2 years with regular use
Battery Indicator	Red LED flashes when batteries need replacement
Cleaning	Wipe with a soft moistened cloth; dry with a soft dry cloth
Safety Warnings	Risk of explosion if battery replaced with incorrect type; dispose of batteries properly
Disposal	Do not dispose with household waste; recycle according to local regulations
Manufacturer	IKEA of Sweden AB, Box 702, SE-343 81 Älmhult, SWEDEN

Frequently Asked Questions - SYMFONISK 705.273.10 IKEA

How do I set up the SYMFONISK sound remote?

Insert 2 HR03 AAA 1.2V batteries with correct polarity. Download the IKEA Home smart app from the App Store or Google Play. Follow the in-app instructions to pair the remote with your IKEA gateway/hub and assign scenes to shortcut buttons.

Can I use the sound remote without an IKEA gateway?

No, the SYMFONISK sound remote requires an IKEA gateway or hub to communicate with your SYMFONISK speakers. It cannot control third-party devices.

What type of batteries does the remote use?

It uses 2 HR03 AAA 1.2V rechargeable batteries. IKEA recommends using LADDA rechargeable batteries (sold separately). Do not mix different battery types or capacities.

How long do the batteries last?

With regular use, the batteries last approximately 2 years. When the red LED on the back flashes, it is time to replace them.

What is the range of the remote?

The operating range is up to 10 meters in open air. Actual range may vary due to building materials and placement.

How do I clean the sound remote?

Wipe the remote with a soft, moistened cloth, then dry it with a soft, dry cloth. Do not use harsh chemicals or immerse in water.

Can I use the remote with multiple speakers?

Yes, you can control multiple SYMFONISK speakers through the IKEA Home smart app. The shortcut buttons on the remote can switch between different playlists or scenes.

What should I do if the remote stops working?

First, check the batteries and replace them if needed. Ensure the remote is within range of the gateway and that the gateway is powered on. If issues persist, try re-pairing the remote via the IKEA Home smart app.

Is the remote waterproof?

No, the remote is for indoor use only and should not be exposed to water or moisture. Keep it away from direct sunlight and heat sources.

Can I replace the batteries myself?

Yes, open the battery lid and replace with 2 new HR03 AAA 1.2V batteries. Ensure correct polarity. Dispose of old batteries according to local regulations.

USER MANUAL SYMFONISK 705.273.10 IKEA

Design and Quality IKEA of Sweden

2

1

2

3

Line drawing showing a hand pressing down on a small object with a downward arrow (no text or symbols)

4

Two-panel diagram showing wood grain patterns and a rectangular object, no text or symbols present

Pure electrical circuit lines without any symbols

5

4

Three abstract geometric diagrams with lines and shapes, no text or symbols present

Illustration of a mechanical component with a curved arrow indicating rotation or motion (no text or symbols)

5

Illustration of a hand pressing down on a 3D keyboard with a downward arrow indicating compression (no text or symbols)

6

Illustration of a wallet with a circular arrow indicating rotation (no text or symbols)

7

8

Simple line drawing of a door with a double button and arrow indicating left motion (no text or symbols)

9

Diagram showing a computer interface with an arrow pointing to a screen and a play button (no text or symbols)

24

English 28

Español 35

Portugues 42

中文 49

繁中 56

한국어 63

日本語 70

Bahasa Indonesia 77

Bahasa Malaysia 84

عربي 91

Inu 98

Tiếng Việt 105

English

IMPORTANT

SYMFONISK sound remote is made to work together with IKEA gateway or hub and control your SYMFONISK speakers.

Use the IKEA Home smart app to add more functions to your sound remote.

You cannot add "Works with IKEA Home smart" marked products directly to your sound remote.

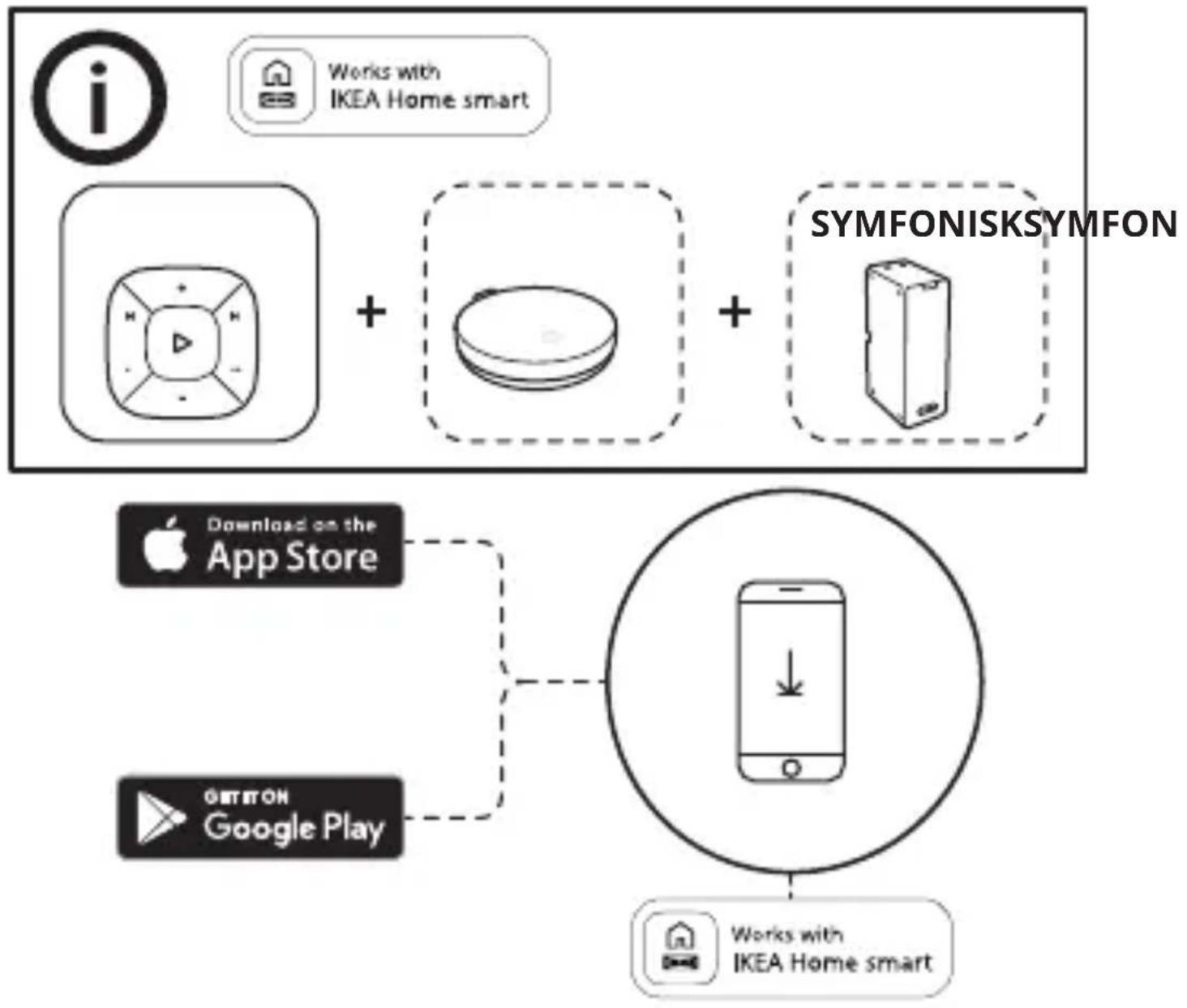

If you have an Apple device

Go to the App Store and download the IKEA Home smart app. The app will take you through the process of installing your SYMFONISK sound remote and other "Works with IKEA Home smart" devices.

If you have an Android device

Go to the Google Play store and download the IKEA Home smart app. The app will take you through the process of installing your SYMFONISK sound remote and other "Works with IKEA Home smart" devices.

Getting started

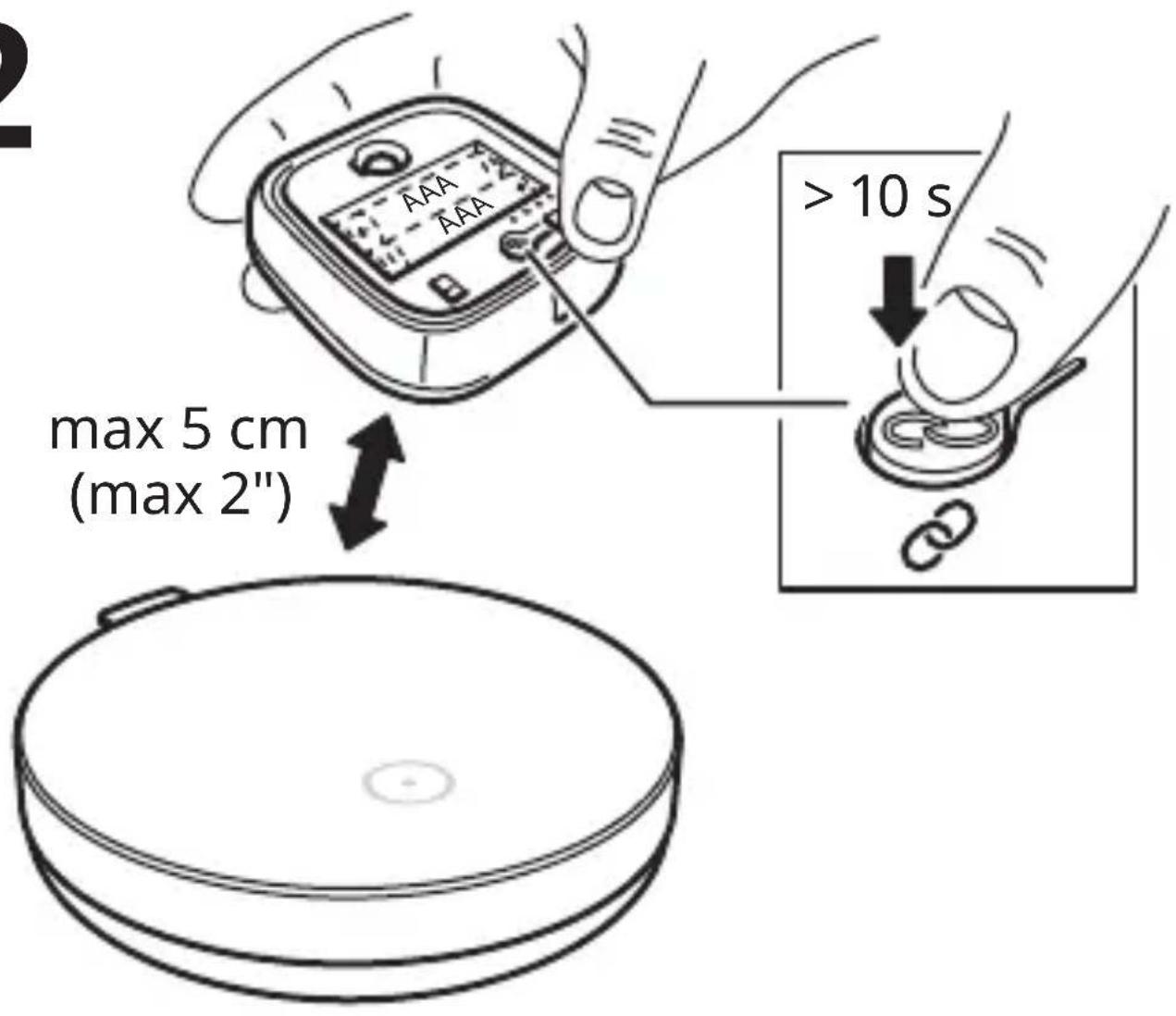

Insert 2 HR03 AAA 1.2V batteries with correct polarity. Start the IKEA Home smart app and follow the instructions in the app on how to set up your device and add scenes to the shortcut buttons.

Close the battery lid and your sound remote is now ready for use.

Sound remote functions

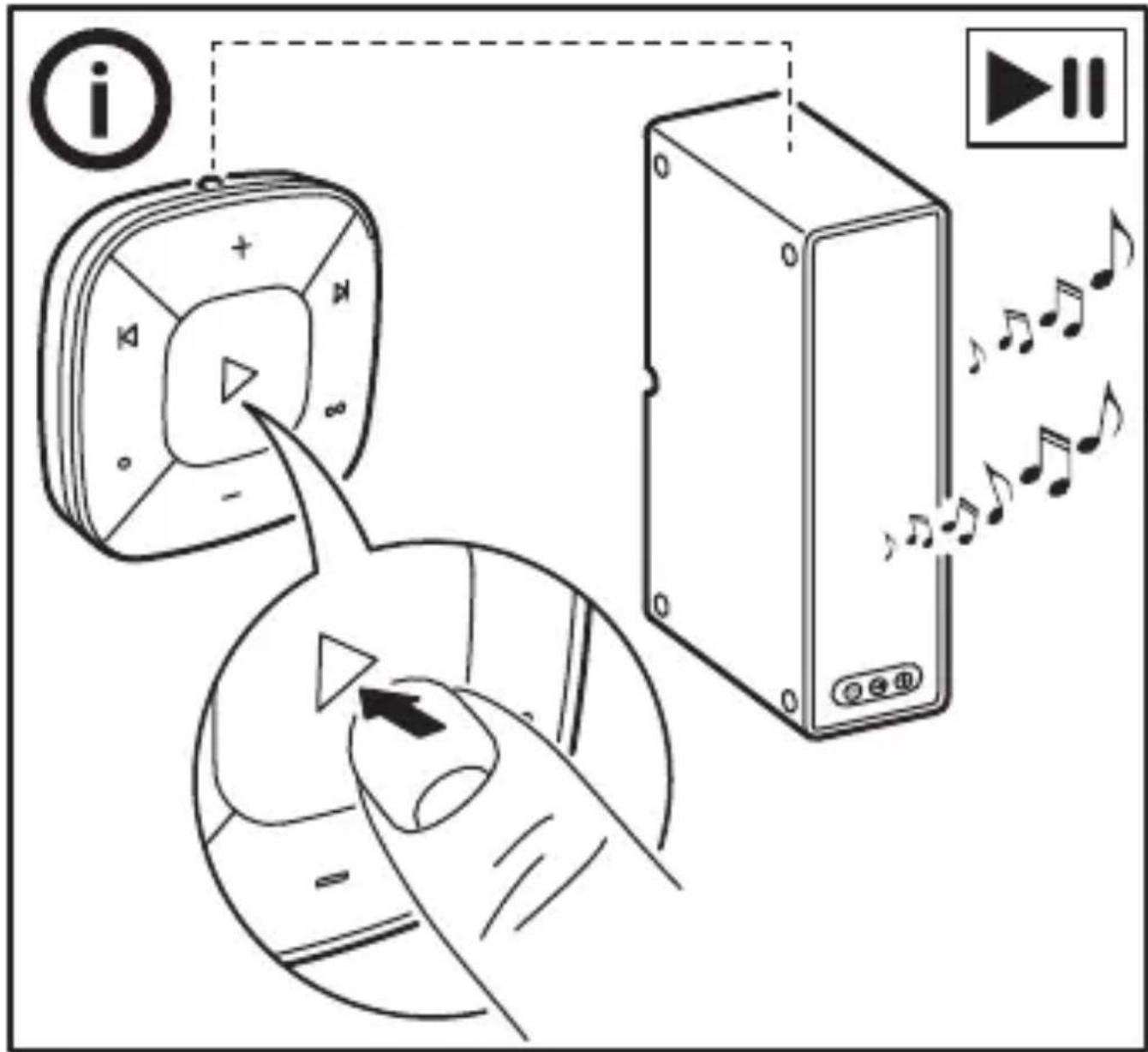

Play/pause

Press once to start or stop the music.

Repeat

Press once to repeat the most recently played music.

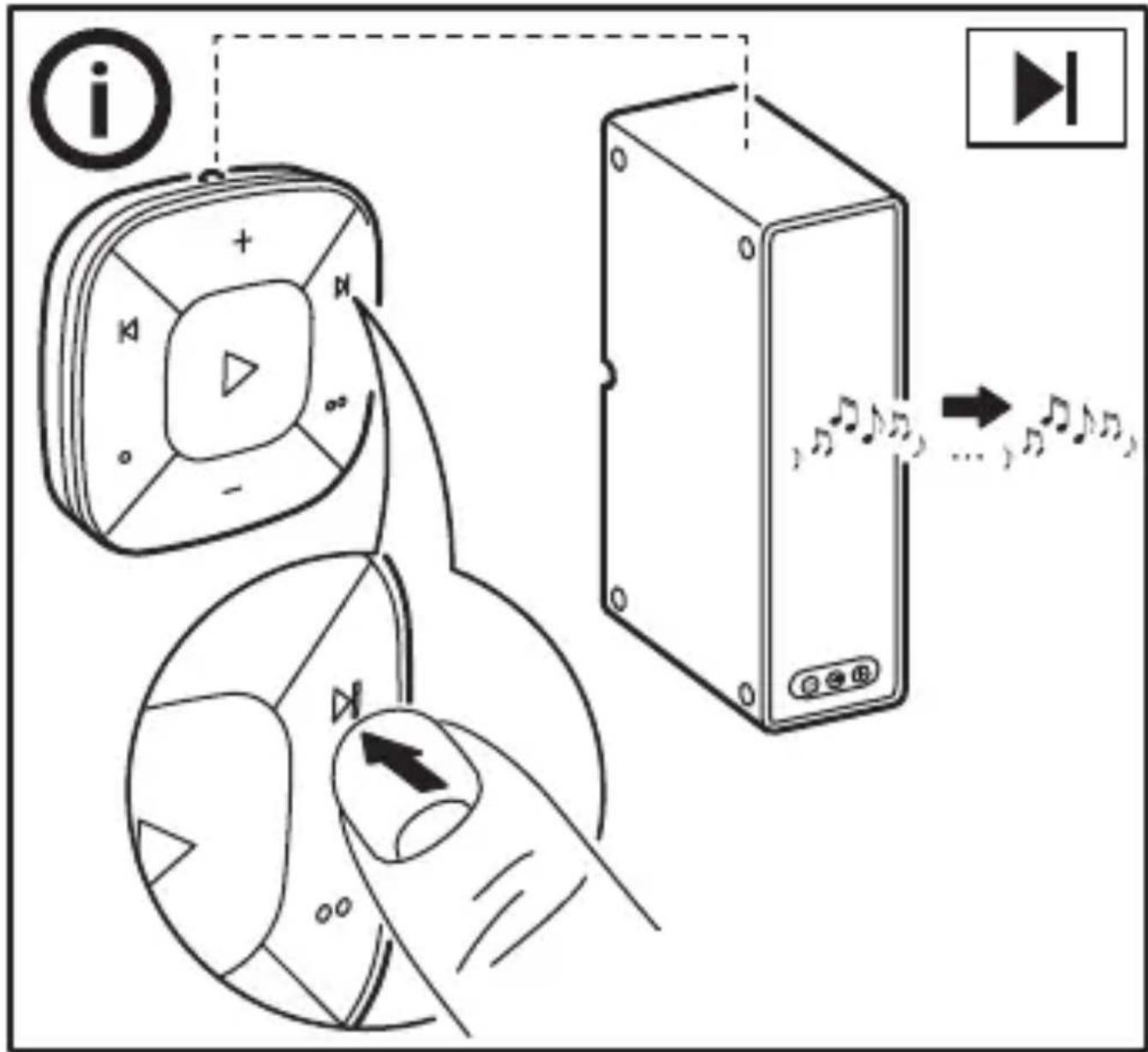

Skip

Press once to skip to the next track.

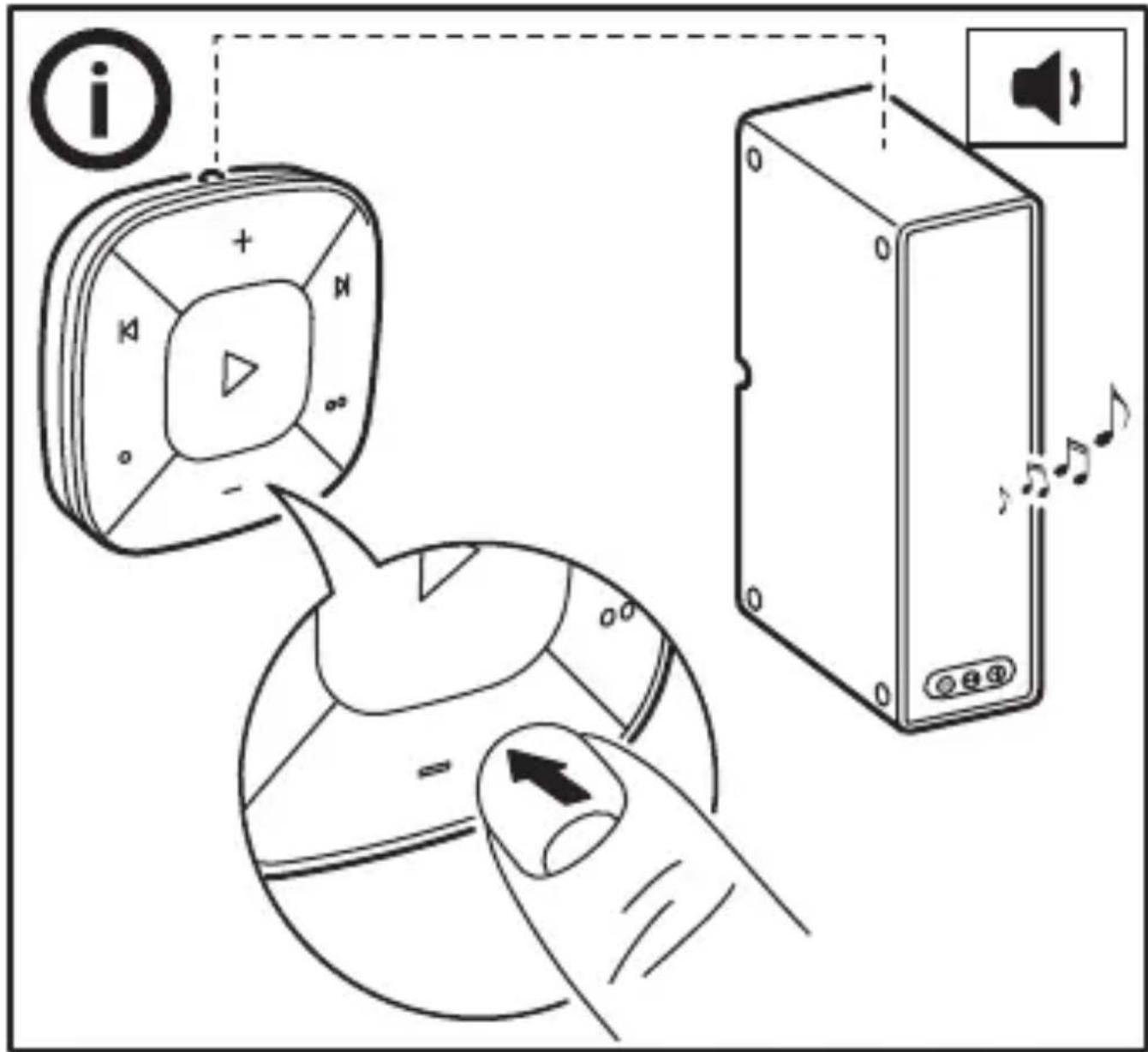

Raise and lower volume

Press and hold to change the volume rapidly.

Shortcutbuttons

Used to change the playlist being streamed to the speakers.

Care instructions

To clean the sound remote, wipe with a soft moistened cloth, Use another soft, dry cloth to wipe dry.

Changing the batteries

When SYMFONISK sound remote is used regularly and as intended, the batteries will last for approximately 2 years.

When it's time to replace the batteries, the red LED indicator on the back of the sound remote will flash when you use it.

Open the battery lid and replace the batteries with 2 new HR03 AAA 1.2V batteries.

WARNING!

Risk of explosion if either battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

IMPORTANT!

• SYMFONISK sound remote is for indoor use only and can be used in temperatures ranging from 0 °C to 40 °C.
• Do not leave SYMFONISK sound remote in direct sunlight or near any heat source, as it may overheat.
• The range between SYMFONISK sound remote and the receiver is measured in open air.
• Different building materials and placement of the units can affect the wireless connectivity range.

Recommended batteries:

Batteries are sold separately. We recommend 2 x LADDA rechargeable batteries HR03 AAA 1.2V

Do not mix batteries of different capacities, types or date stamps.

Save these instructions for future use.

Technical data

Model: SYMFONISK sound remote gen 2

Type: E2123

Input: 2.4V, 2 x LADDA batteries HR03 AAA 1.2V

Range: 10 m unobstructed

For indoor use only

Operating frequency: 2400-2483.5 Mhz

Output power: 3 dBm (EIRP)

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

Simple line drawing of a trash bin with no text or symbols

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Español

IMPORTANTE

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

제조업체 : IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Pabrikan: IKEA of Sweden AB

Alamat: Box 702, SE-343 81 Älmhult, SWEDEN

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Model: SYMFONISK sound remote gen 2

Jenis: E2123

Input: 2.4V, 2 x bateri LADDA HR03 AAA 1.2V

Julat: 10 m tak terhalang

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Complies with IMDA Standards DA106634
