VAPPEBY 805.176.12 - Loudspeaker IKEA - Free user manual and instructions

Brand	IKEA
Model	VAPPEBY 805.176.12
Product Type	Portable Bluetooth Speaker
Dimensions (W x D x H)	10.5 x 10.5 x 10.5 cm
Weight	0.5 kg
Power Supply	USB-C cable (included)
Battery	Built-in rechargeable lithium-ion, 12 hours playback
Bluetooth Version	5.0
Wireless Range	Up to 10 meters
Water Resistance	IPX7 (waterproof up to 1 meter for 30 minutes)
Speaker Type	Full-range driver, 1 x 5W
Frequency Response	100 Hz – 20 kHz
Multi-Room	Yes, via IKEA Home smart app (up to 8 speakers)
Built-in Microphone	Yes, for hands-free calls
Material	ABS plastic, silicone cover
Color	Black / white (depending on variant)
Included Accessories	USB-C cable, quick start guide
Cleaning	Wipe with a damp cloth; do not use abrasive cleaners
Repairability	Battery not replaceable by user; product should be recycled properly

Frequently Asked Questions - VAPPEBY 805.176.12 IKEA

How do I pair VAPPEBY with my phone?

Press and hold the Bluetooth button (located on the back) for 2 seconds until the indicator light flashes. Then select 'VAPPEBY' from your device's Bluetooth settings.

Can I use VAPPEBY while charging?

Yes, you can use the speaker while it is connected to a power source via USB-C.

Is VAPPEBY waterproof?

Yes, it is rated IPX7, meaning it can be submerged in up to 1 meter of water for 30 minutes. However, the USB-C port must be fully closed with the cover.

How long does the battery last?

Up to 12 hours of continuous playback at moderate volume. Actual battery life may vary with volume and usage.

Can I connect multiple VAPPEBY speakers together?

Yes, you can pair up to 8 VAPPEBY speakers using the IKEA Home smart app for multi-room audio.

How do I reset VAPPEBY?

Press and hold the Bluetooth and volume down buttons simultaneously for 5 seconds until the speaker turns off and restarts.

What is the wireless range?

The Bluetooth range is up to 10 meters in open space. Walls and obstacles may reduce the range.

Does VAPPEBY have a built-in microphone?

Yes, it has a built-in microphone for hands-free calling. Press the Bluetooth button to answer or end a call.

How do I clean VAPPEBY?

Wipe with a soft damp cloth. Avoid using solvents or abrasive cleaners. Make sure the USB port cover is closed.

What power adapter should I use?

VAPPEBY is powered via USB-C. Use a standard 5V/1A USB charger (not included) or a computer USB port.

USER MANUAL VAPPEBY 805.176.12 IKEA

Line drawing of a simple water dispenser with a handle and fruit inside (no text or symbols)

i

English 8

Español 12

Português 16

中文 20

繁中 24

한국어 28

日本語 32

Bahasa Indonesia 36

Bahasa Malaysia 40

عربي 44

Inu 48

Tiếng Việt 52

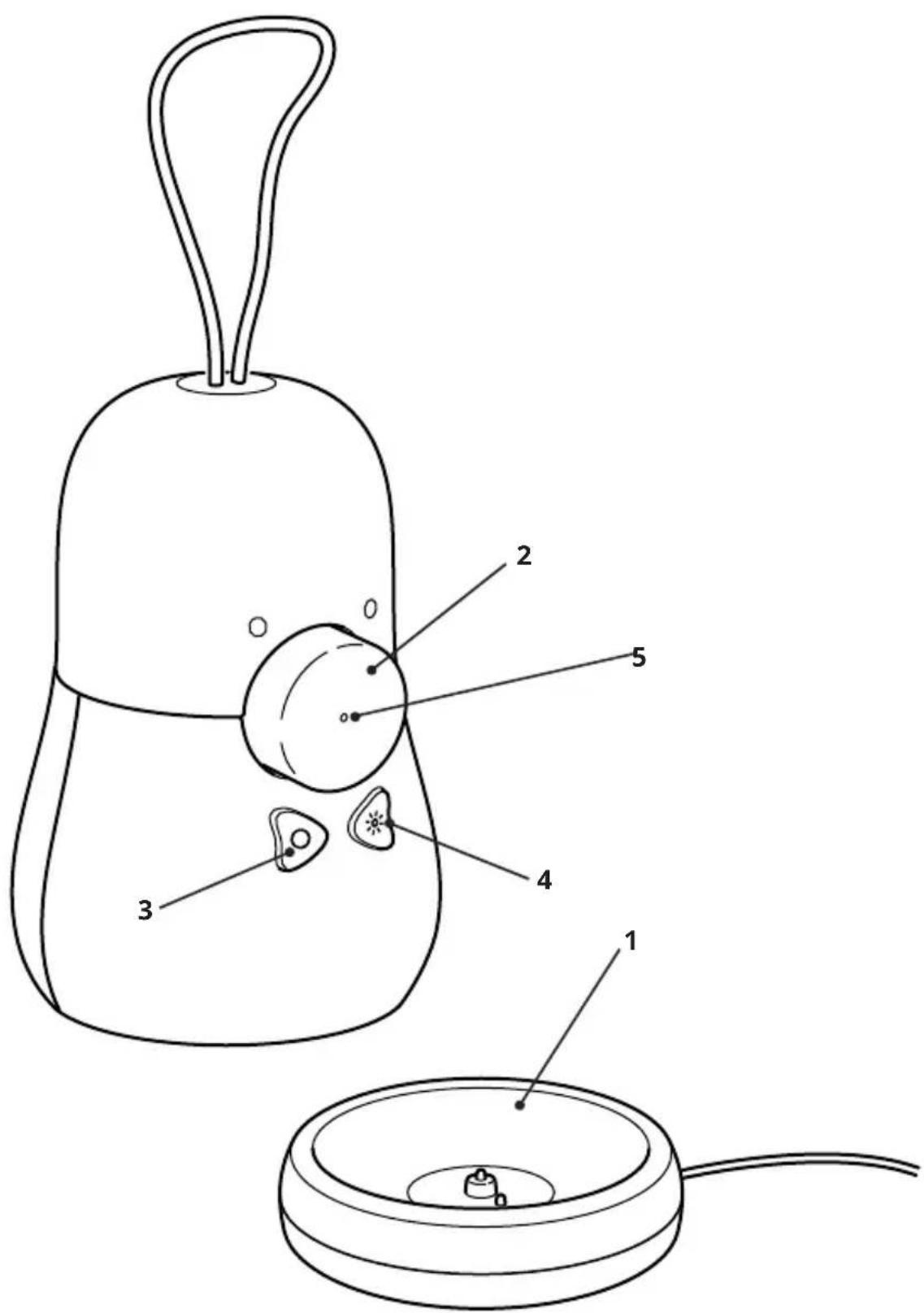

1. Charging dock.
2. Dial for Play/Pause/Volume.
3. Speaker Power On button and skip track.
4. Lamp Switch button.
5. LED status light

LED status
Flashing white: Bluetooth is pairing.
Solid white: Paired to a device.
Flashing red: Low battery.
Solid red: Charging (when speaker is off)

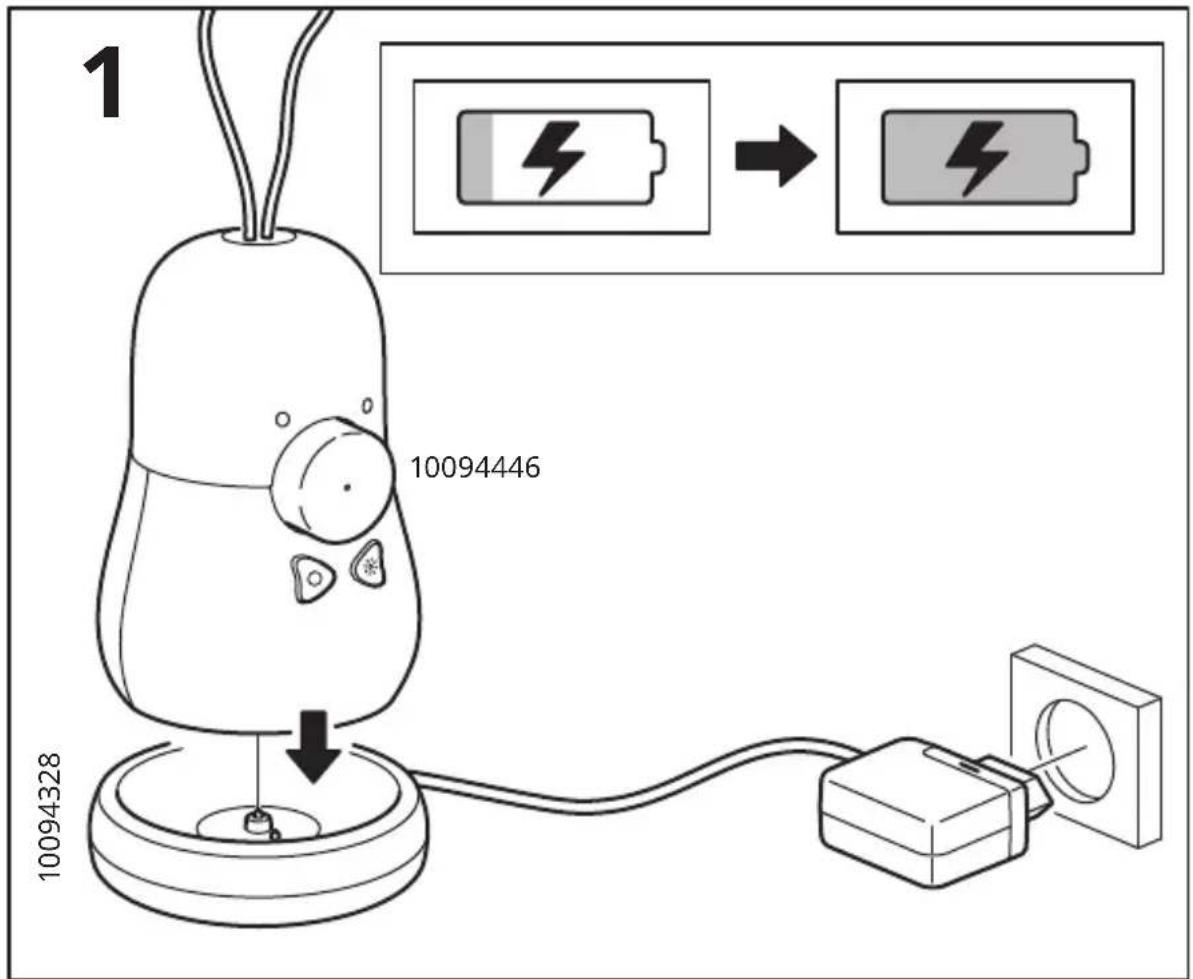

Getting started

Connect the charging dock to a wall outlet and place the speaker in the charging dock (1) for charging your product before the first use and whenever the LED is blinking red to indicate low battery. When charging, the LED will remain red if the speaker is off, and turn off when the battery is fully charged.

Lamp functions

Turning ON/OFF. Press the Lamp switch (4) once to turn it on the disco light function. The light will pulse in different colours when music is played from the speaker. Press the Lamp switch a second time to switch the light to night light mode, and a third time to TURN OFF.

Speaker functions

Turning ON/OFF.

Press and hold the Power button (3) to turn ON and OFF your speaker.

Skip. A short press on the Power button will skip to next song.

Play/Pause. Press the dial (2) to play or pause music.

Volume. Rotate the dial (2) clockwise to increase volume and anticlockwise to reduce volume.

Auto-off. If the speaker is not paired to any device, it will turn off automatically after 5 minutes. In case the speaker is paired but no music is playing, it will turn off automatically after 20 minutes.

Bluetooth Pairing

To pair your speaker to a source device, the speaker will have to be in Bluetooth pairing mode. To pair, open Bluetooth setting on your source device and connect to "VAPPEBY Peanut".

The speaker will enter Bluetooth pairing mode automatically when powered on the first time, and any time a previously paired device cannot be found.

To remove previously made Bluetooth pairings, reset

the speaker by pressing and holding the volume knob for more than 5 s. Successful factory reset is confirmed by red LED flashing and sound feedback.

Alternatively, go to the Bluetooth menu on your source device and un-pair.

Good to know

• The speaker is protected against dust and water according to IP54.
  • Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
• Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
• Storage temperature: -20°C to 25°C (-4°F to 77°F).
• Unplug the product from the power supply before cleaning and when it is not in use.
• It is normal for the battery to become hot during charging and it will gradually cool down after charging.
• Battery should not be left discharged for a longer period.
• Battery should not be charged while in contact with flammable material like textiles.

WARNING:

• Too high volume can damage your hearing
• Only use the included 24V adapter for charging.
• Do not charge product when wet.
• Only charge the product indoors.
• Do not use a defective power supply when charging the product.
• Never install the product in a confined space.
  • Always leave a space of at least 5 mm around the product for ventilation.
• Children should be supervised to ensure they do not misuse the product.
• Do not modify, disassemble, open, drop, crush, puncture, or shred battery.
• Do not expose the battery to rain or water.
• Risk of fires and burns. Do not open, crush, heat above 60 °C (140 °F), or incinerate.
• Keep battery away from open flame or sunlight to prevent heat build-up.
• Keep battery away from high voltage devices.
• This product is not a toy, ensure that all persons who use this product read and follow these warnings and instructions.
• Do not short-circuit the battery or its cells.
• In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes.

Save these instructions for future use.

Care instructions

To clean the product, wipe with a soft moistened cloth. Use another soft, dry cloth to wipe dry.

Note!

Never use abrasive cleaners or chemical solvents as this can damage the product.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

Disassembly of product and removal of battery is only intended at product end of life and shall be performed by a skilled professional.

Technical data

Model Name: VAPPEBY peanut

Type Number: E2125

Battery capacity: 3.6V DC, 3300 mAh, 12 Wh, Li-ion

Input: 24.0V DC, 0.29A,

Estimated battery play time at 50% volume: 11 - 13 h

Operating temperatures: 0°C to 40°C (32°F to 104°F)

Operating humidity: 0 to 95%RH

Operating Frequency: 2400-2483.5 MHz

Radio output power: 3 dBm (EIRP)

Decorative light: 2 lm, 2600 K

IP Class: IP54

Power Supply unit:

Type: ICPSW24-7-3

Input: 100-240 VAC, 50/60 Hz, 0.11A

Output: 24.0V DC, 0.29 A, Max 7.0W

Indoor use only

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by IKEA is under license. Other trademarks and trade names are those of their respective owners.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
