Product type	Convector heater
Brand	Listo
Model	CHC L4
Maximum power	2000 W
Supply voltage	230 V ~ 50 Hz
Electrical class	Class I
Power ranges	750 W (I), 1250 W (II), 2000 W (I+II)
Temperature control	Adjustable mechanical thermostat
Safety device	Thermal protection against overheating (automatic shutdown)
Number of switches	2 power switches
Handles	2 side handles
Feet	4 removable feet (screw attachment)
Usage	Indoors only, on a flat and stable surface
Safety distance	At least 1 m from walls, furniture and curtains
Maintenance	Clean with a damp cloth, do not use detergents or chemicals
Storage	Unplug and store in packaging after cleaning
Environmental protection	Recycling at end of life (WEEE)

Frequently Asked Questions - CHC L4 LISTO

How to turn on the Listo CHC L4 heater?

Check that the switches are set to 0 and the thermostat to MIN. Plug the appliance into a 230 V socket. Press one or both switches to select the power: I (750 W), II (1250 W) or I+II (2000 W). Turn the thermostat clockwise to increase the temperature.

Which power to choose to heat a room?

For a small room (10-15 m²), use 750 W power. For a medium room (15-20 m²), choose 1250 W. For large spaces (20-30 m²), use both switches for 2000 W. Adjust according to the room's insulation.

How to adjust the thermostat?

Turn the thermostat knob clockwise to increase the desired temperature. When the room reaches this temperature, slowly turn the knob counterclockwise until you hear a click. The thermostat then maintains the temperature automatically.

What to do if the heater turns off by itself?

This is normal: the thermal safety device cuts off the power in case of overheating. Unplug the appliance, let it cool down for at least 30 minutes, then plug it back in. If the problem persists, contact after-sales service.

Can I leave the heater unattended?

It is not recommended to leave the appliance unattended while it is operating. Make sure not to cover the appliance and keep a distance of at least 1 meter from flammable objects.

How to clean the CHC L4 heater?

Always unplug the appliance before cleaning. Use a slightly damp cloth to wipe the outer surface, then dry with a soft cloth. Never use detergents, chemicals, wax or polishing products.

Can I use an extension cord with this heater?

No, the use of an extension cord is prohibited. Always plug the heater directly into a wall outlet. If the cord is too short, have the outlet moved by a qualified electrician.

What to do if the cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person to avoid any danger. Do not use the appliance until the cord is repaired.

Can the heater be used in a bathroom?

No, the appliance should not be used near a bathtub, shower or swimming pool. It is intended for dry indoor use only. Never expose it to humidity or water.

How to store the heater in summer?

Unplug the appliance, clean it as indicated, then place it in its original packaging to protect it from dust. Store it in a dry place and away from impacts.

USER MANUAL CHC L4 LISTO

This product may only be used in well-insulated rooms or occasionally.

Read these instructions carefully before using the appliance and retain them for future reference.

WARNING: DO NOT COVER. To avoid overheating, do not cover the heater.

• Never place the appliance near a source of radiant heat or immediately below a power socket.
• For safety reasons, if the power cord is damaged, it must be replaced by the manufacturer, their customer service department or a similarly qualified person.
• Do not use this heater with a programmer, timer, separate remote control system or any other device which automatically switches on the heater, as there is a risk of fire if the heater is covered or positioned incorrectly.

V.8.0

12

13

V.8.0

• This appliance can be used by children aged 8 and above and by persons with physical, sensory or mental impairment, or people with no knowledge or experience as long as they are properly supervised or given instructions on how to use the appliance safely and they understand the dangers involved. Children must not play with this appliance. Cleaning and user maintenance must not be carried out by children unless they are more than 8 years old and supervised.
  • Children under 3 years of age should be kept away unless they are under continuous supervision.
• Children aged 3 to 8 should only be allowed to switch the appliance on or off provided that the appliance has been placed or installed in the normal intended position, and that these children are supervised or have been given instructions on how to use the appliance safely and understand the potential hazards. Children aged 3 to 8 should not connect, adjust or clean the appliance, nor should they carry out user maintenance.

• WARNING: Some parts of this product can become very hot and cause burns. Special attention must be paid to children and vulnerable persons.

• Do not use this heater near a bathtub, shower or swimming pool.

• WARNING: This heater is not equipped with a room temperature control device. Do not use this heater in small rooms, when they are occupied by persons unable to leave the room alone, unless constant supervision is provided.
• Before plugging in the heater, make sure that the voltage in your home is the same as the voltage indicated on the appliance's rating plate and that the power cord plug is suitable for the power socket.
• Keep a distance of 1 metre between the appliance and any objects (walls, curtains, etc.) when in use.
• Never use the appliance in areas where flammable liquids are stored.
• Do not use the appliance to dry clothing.
• Never insert objects into the appliance and do not block the air vents.
• Never operate the appliance if the cord or plug are damaged. Consult the manufacturer's authorised repair service or an electrician for any work.
• This appliance is intended for household use only.
• Only use the appliance as specified in the manual. Any other use may cause accidents.

V.8.0

14

• The most common cause of overheating is dust deposit in the appliance's ventilation grilles. Clean it regularly (see maintenance section).
  • To avoid any risk of burns, never touch hot surfaces on the appliance.
• To move the appliance, set the switches to position 0 and use the handle.
• Use the appliance on a horizontal surface. Never use the appliance in an inclined or lying position.
  • Fully unwind the power cord before use.
• The appliance should never be used with an extension cord.
• Never unplug the appliance from the power socket by pulling on the power cord.
  • Always unplug the appliance when not in use.
• The power cord must not come into contact with the hot surfaces of the appliance.
• Never slide the power cord under a carpet or rug. Keep it away from high traffic areas.
• Never twist, knot or wrap the power cord around the appliance as this may damage it.
• Never store the appliance while it is still warm.
• Never leave your appliance unattended during operation.

15

V.8.0

• Do not use this appliance outdoors or on damp surfaces. Never allow liquid to enter the appliance.
• To prevent electric shock, never immerse the cable, plug or appliance in water or any other liquid (bath, shower, swimming pool).
• Never touch the appliance with wet hands.
• Thermal safety: In the event of overheating, a safety device automatically switches off the appliance. In this case, unplug the appliance from the power socket and plug it back in once it has cooled down. If your appliance still does not work, take it to your retailer's customer service department to be inspected and repaired. The user may not perform any repairs.
• WARNING: To guard against accidentally rearming the thermal cut-out and the risk this poses, this appliance must not be powered by externally-switched circuits containing devices like timers or be connected to supplies that are regularly switched on and off by the power company.
• Please refer to the end of this manual for further information on cleaning and maintaining this appliance.

TECHNICAL FEATURES

• Maximum power: 2000 W (750 W + 1250 W)
• Supply voltage: 230 V\~ 50 Hz
- Class 1
• 3 heating powers (Mode I): 750 W

(Mode II): 1250 W (Mode I+II): 2000W

- Thermal safety

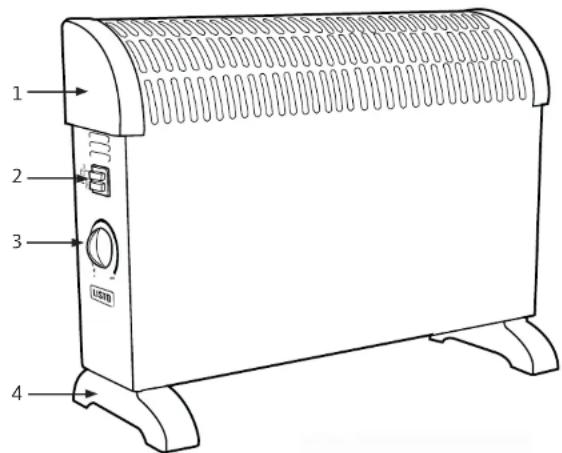

APPLIANCE DESCRIPTION

1 - Side handle (x 2)
2 - On/Off switches and power selector knobs
3 - Thermostat
4 - Feet

PRODUCT DATASHEET

Model reference:	153424_RADIATEUR CONVECTEUR CHC L4
Feature Symbol	Value Unit	Feature Unit
Thermal power				Type of heat supply, for electric decentralised storage heaters only (select one type only)
Rated thermal input	RTI 2.1	/2.8 kW	Manual thermal load control with integrated thermostat	no
Minimum thermal power (indicative)	Pmin 0	kW Manual thermal load control with information received on room and/or outdoor temperature		no
Maximum continuous thermal power	Imax,c 2.1	/2.8 kW	Electronic thermal load control with information received on room and/or outdoor temperature	no
Electricity consumption from auxiliary equipment				Fan-controlled thermal power	no
In rated thermal input mode	elmax	N/A	kW	Type of thermal power/room temperature control (select one type only)
In minimum thermal power mode	elmin	N/A	kW	Single-level thermal power control, no room temperature control	no
In standby mode	eISB	N/A	kW	Control with two or more manual levels, no room temperature control	no
				Room temperature control with mechanical thermostat	yes
				Electronic room temperature control	no

Model reference:	153424_RADIATEUR CONVECTEUR CHC L4
Feature	Symbol	Value Unit	Feature	Unit
				Electronic room temperature control and daily timer	no
				Electronic room temperature control and weekly timer	no
				Other control options (select one or more options)
				Room temperature control with presence detector	no
				Room temperature control with open window detector	no
				Remote control option	no
				Adaptive activation control	no
				Limitation of activation time	no
				Black globe sensor	no
Contact details:	Sourcing&Creation, Avenue de la Motte 59810 Lesquin - FRANCE

V.8.0

18

19

V.8.0

ASSEMBLY

1. Unpack the radiator and accessories.
2. Turn the radiator over.
3. Attach the feet under the base by inserting the screws on the inside of the feet.
4. Tighten the screws.
5. Straighten up the radiator.

USE

SAFETY PRECAUTIONS

1. Before using this appliance, please make sure it is placed on a flat and stable surface.
2. Place the radiator at least 1 m away from the wall, furniture and curtains.
3. Check that the appliance's voltage matches the mains voltage (230 V\~50 Hz wall socket).
4. Allow the radiator to cool down before moving it, and use the handles to carry it.

USE

1. Check that the power switches are in position "0" (to the right, lights off) and the thermostat knob is in "MIN" position.
2. Plug the radiator into a wall socket.

3. Turn on the radiator in one of the following positions:

4. Press the switch (I): 750 W

5. Press the switch (II): 1250 W
6. Press the switches (I+II): 2000 W
7. Room temperature can be adjusted by means of the thermostat. Turn the thermostat knob clockwise to increase the temperature or anticlockwise to decrease it.

The lights on the power switches come on when the heater is running and the thermostat has been activated.

V.8.0

20

21

V.8.0

1. Once the desired temperature has been reached, slowly turn the thermostat knob anticlockwise until you hear a "click". The indicator light(s) go(es) out. The desired temperature will be kept constant by the thermostat function.
2. When you have finished, return the switches to their initial position "0" and the thermostat knob to "MIN" position, then unplug the radiator.

Note: The heater is equipped with an overheating protection system

Warning! Never cover or place any type of object on the radiator when in operation.

MAINTENANCE AND CLEANING

1. Always unplug the appliance and keep it away from the socket before cleaning it.
2. To clean the exterior surface of the appliance, use a slightly damp cloth. Then dry it thoroughly with a soft, dry cloth before using it again.
3. Do not use any detergents or chemicals. Do not use wax or shine products as they may react to heat and cause discolouration.
4. If you do not use the appliance for a certain period of time, make sure it is unplugged from the socket, and put it in its package for easy storage and later use. Clean your radiator as previously mentioned.

BESCHRIJVING VAN HET APPARAAT

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste and must be subject to a specific type of removal for this type of waste. Recycling and recovery systems are available in your area (waste removal) and by distributors. By taking your appliance at its end of life to a recycling facility, you will contribute to environmental conservation and prevent any harm to your health.

Atención:

All information, designs, drawings and pictures in this document are the property of SOURCING & CREATION. SOURCING & CREATION reserves all rights to its brands, designs and information. Any copy and reproduction through any means shall be deemed and considered as counterfeiting.

Warranty conditions:

This product is under warranty against any failure resulting from any manufacturing or material defects. This warranty does not cover defects or damage caused by improper set up, incorrect use, or normal wear and tear of this product. The warranty period is specified on the receipt of the purchase.

Please behave responsibly towards the environment.

Recycle this product at the end of its life.
