Product type	Ultrasonic aroma diffuser
Brand	Oregon Scientific
Model	Muse WA338
Dimensions (approx.)	12 x 12 x 15 cm
Weight (approx.)	300 g
Power supply	AC adapter 100-240 V AC, 50/60 Hz
Tank capacity	100 ml
Runtime	Up to 8 hours
Diffusion technology	Ultrasonic (frequency 2.4 MHz)
LED lighting	7 colors, cycle and fixed mode
Auto shut-off	Yes, when water runs out
Coverage area	Up to 30 m²
Noise level	Quiet (< 25 dB)
Maintenance	Weekly cleaning of the tank with a soft cloth
Safety	Auto shut-off, protected circuit
Spare parts available	Tank, AC adapter
Warranty	1 year

Frequently Asked Questions - Muse WA338 OREGON SCIENTIFIC

How does the Oregon Scientific Muse WA338 aroma diffuser work?

The diffuser uses ultrasonic technology to vaporize water mixed with essential oils. It creates a fine mist that disperses into the air, humidifying and scenting the room.

What is the water tank capacity?

The tank has a capacity of about 100 ml, providing a runtime of approximately 8 hours in continuous operation.

How to clean the diffuser?

Unplug the device and empty the tank. Clean it with a soft cloth and a little diluted white vinegar. Rinse thoroughly before reuse. Avoid abrasive products.

Can I use any essential oil?

Yes, you can use pure essential oils or blends. Do not exceed 5 to 10 drops per filling to avoid damaging the device.

How to turn the diffuser on and off?

Plug in the AC adapter, then press the power button. To turn off, press and hold the button for 2 seconds.

What to do if the diffuser does not produce mist?

Check the water level: if too low, auto shut-off is activated. Make sure the output nozzle is not blocked. Clean the ultrasonic membrane with a soft brush.

How to activate the LED color change?

Press the dedicated LED button to switch to color cycling mode. Each press changes the mode: fixed, cycle, or off.

Is the diffuser noisy?

No, it is virtually silent (less than 25 dB), ideal for nighttime use or in an office.

What safety precautions should be followed?

Never immerse the device in water. Unplug it before cleaning. Use only the provided adapter. Place the diffuser on a stable surface and out of reach of children.

Where can I find spare parts?

Spare parts such as the tank or AC adapter are available from Oregon Scientific customer service or authorized retailers.

USER MANUAL Muse WA338 OREGON SCIENTIFIC

Care and Maintenance.... 5

Specicaons.... 5

About Oregon Scienc.... 5

EU-Declaraon of Conformity.... 6

FCC Statement.... 6

INTRODUCTION

Thank you for your purchase of the Muse Aroma Diuser. Please read these instrucons carefully and save this manual for future reference. By breaking up a mixture of water and essenal oils into millions of micro-parcles, this aroma diuser helps you relax at home. Oregon Scienc designed this product to provide you with three well-known holisc relaxaon methods: aromatherapy, color therapy and sound therapy.

IMPORTANT SAFETY INSTRUCTIONS

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WITH CHILDREN PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

DANGER

• Always follow instrucons in Care and Maintenance when cleaning the unit.
• To avoid electric shock and/or a r hazard, do not immerse the unit in liquid.
- Do not pull the electrical cord to move or unplug the unit.
• Do not disassemble the unit when it is plugged into a power supply or in operaon.
- To avoid electric shock and/or a re hazard, do not clean the power jack with water detergent or any other liquid.
- Do not plug or unplug the power cord with wet hands.

WARNING

• Do not operate this unit in a manner other than its intended use or beyond the technical data specified. Improper use can be a danger to health or life.
• This product is not intended for use by children or persons with diminished physical, sensory or mental capabilities, unless they receive supervision or instrucon concerning use of the unit by a person responsible for their safety.

Read all instrucons before using this product.

PRECAUTIONS

DOs

• Handle the unit and porcelain cover with care
  • Use with Itered tap water rather than disllled water. Add suicient water before adding essenal oil
  • Pour maximum 160ml of room temperature tap water into the water tank.
• Remove dust regularly with a dry cloth. Accumulated dust poses a potenal re hazard.
• Place the unit on a dry, level, stable and water-resistant surface with safe surroundings.
• For beer mist distribuon in the room, place the unit on a raised surface with the mist directed into an open area.
• Children and pets should be supervised to ensure that they do not play with the unit or its components.
  • Use only a few drops of essenal oil. DO NOT exceed the suggested amount.
• When disposing of this product, ensure it is collected separately for special waste treatment.
• The contents of this manual may not be reproduced without the permission of the manufacturer.
  • Use only with essenal oil. Add sucient water before adding essenal oil.

DON'Ts

• DO NOT turn the unit upside down without removing the porcelain cover, plasc cover and

liquid content from the water tank

• DO NOT let water, detergent or any other liquid enter the opening to the fan
- DO NOT block the venlaon inlet at the boom by placing the unit on so surface such as cushions, or carpet.
DO NOT tamper with the unit's internal components. This invalidates the warranty.
• DO NOT subject the unit to excessive force, shock, dust, temperature or humidity.
• DO NOT cover the unit with newspaper, curtains etc. when in operaon.
• DO NOT direct the mist towards any electrical appliance, furniture, plant, paint or heat source.

- DO NOT inhale mist directly from the mist outlet.

• DO NOT clean or touch the diusing plate during operaon.

- DO NOT obstruct the air inlet or air outlet of the unit.

- DO NOT use water from which people have been drinking.

- DO NOT place the unit directly on the oor. Flooring may be damaged if in direct contact with the mist for a prolonged period.

• DO NOT use in humid locaons.

- DO NOT II the water container beyond the maximum mark indicated.

• DO NOT immerse the unit in water. If you spill liquid on the unit, dry it immediately with a so, lint-free cloth.

- DO NOT clean the unit with abrasive or corrosive materials.

• DO NOT use water over 40 °C.

NOTE

• Images in the manual may dier slightly from actual product.
• When the water level is low, the unit automacally stops and the LED light ashes regardless of any me remaining on the mer.

OVERVIEW

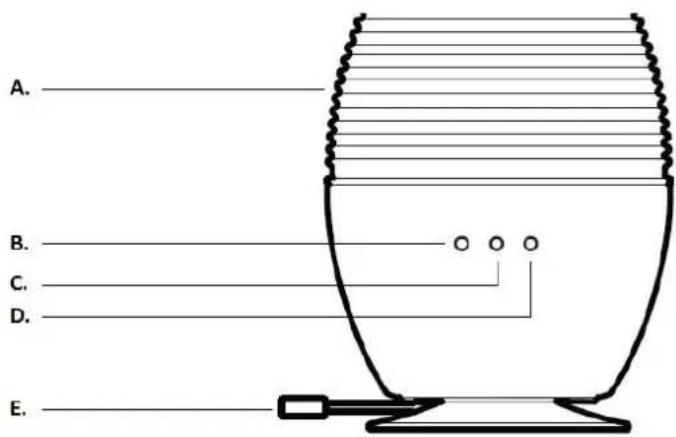

MAIN UNIT

A. Porcelain Cover
B. 2-hour mer indicator
C. Power indicator
D. 1-hour mer indicator
E. DC power socket

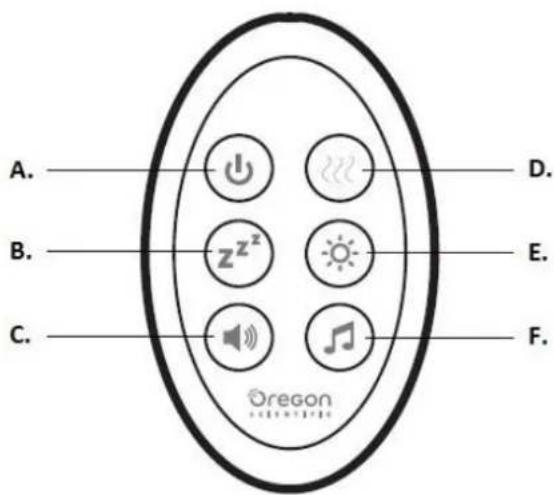

REMOTE CONTROL

A. Power buon

B. Sleep mer buon

C. Volume buon

D. Diuse buon

E. Lighng buon

F. Sound buon

FEATURES

1. Diuses soothing aromac mist for a relaxing ambience.
2. Natural porcelain creates a sophisticated natural design.
3. Applies ameless and whisper-quiet ultrasonic diffusion technology.
4. LED ickering candle light eect.
5. 6 soothing sound opons.
6. Automacally shuts o when water level drops too low.
7. Oponal mer allows for 1 or 2 hours of connuous mist.
8. Infra-red remote control.
9. Powered by AC/DC adaptor (included).

GETTING STARTED

TO FILL AND CONNECT TO POWER SOURCE

1. Remove the porcelain cover and the plasc cover from the unit.

Three line drawings of laboratory glassware: a jar, a conical flask, and a fluted flask with internal structure (no text or symbols)

Main Unit
Plasc Cover
Porcelain Cover

1. Plug the power adaptor into the DC socket.
2. Place the unit on a stable and level surface.
3. Pour a maximum of 150ml of room temperature tap water into the water tank.
4. Add a few drops of essenal oil into the water tank as illustrated.

5. Put the plasc cover and porcelain cover back on the unit.

6. Connect the power adaptor to the mains power supply.

7. Press the POWER buon ⏻ on the remote control to turn on the unit.

NOTE

• Do not use dislled water.
• Do not use water over 40 °C.
• Use water soluble essenal oils only.
• Switch o and unplug the unit from the mains before moving or cleaning the unit.
• Do not overll the water tank. Always keep the unit body dry.
• Do not turn the unit upside down without removing the porcelain cover, plasc cover and liquid content from the water tank.

TO EMPTY THE WATER TANK

1. Press the POWER buon on the remote control to turn o the unit. Unplug from the mains.
2. Remove the porcelain cover and plasc cover from the unit.
3. Pour out the water from the tank.
4. Put the covers back on the unit when nished.

NOTE

• Do not pour water through the diuser outlet.
• If water spills onto the unit body, the power cable or the power plug, immediately wipe with a so lint-free cloth to remove all moisture.

USING THE AROMA DIFFUSER

DIFFUSION

• Press the DIFFUSE buon repeatedly to select the desired dispersal mode.
  • The order of seng choices is high, low, and o.
• When there is insucient water, the blue LED indicator will ash unl the water tank is lled. You should turn o the unit by press the POWER buon , rel the water tank and then turn on the unit and select the diusion funcon again.
• When the two orange LEDs ash simultaneously, please contact your local customer service.

NOTE

- Do not direct the aromac mist towards furniture or electrical appliances.

LIGHTING SETTINGS

• Press the LIGHTING buon repeatedly to select the desired lightng mode.
  • The order of seng choices is on, candle light eect and o.

SLEEP TIMER SETTINGS

• Press the SLEEP TIMER buon z^z repeatedly to toggle mer sengs or to turn o the mer.
  • The order of seng choices is 60 minutes, 120 minutes, and o.

- When the 60 minute mer is selected, one orange indicator light will turn on and the countdown will start. When the 120 minute mer is selected, two orange indicators light will turn on and the countdown will start.

NOTE

- The unit will switch o when the mer ends. Press the POWER buon unit and select funcons.

again to turn on the

SOUND SETTINGS

repeatedly to toggle between different sounds.

• The order of seng choices is #1, #2, #3, #4, #5, #6, and o.

VOLUME SETTINGS

- Press the VOLUME buon

repeatedly to adjust the sound volume.

• The order of seng choices is low, medium and high.

CARE AND MAINTENANCE

• Always unplug the unit before cleaning.
  • To avoid electric shock and/or re hazard, do not immerse the unit or the power dock in liquid or allow detergent enter the unit.
• Clean the unit regularly with a dry so cloth to prevent dust accumulation.
• Clean the diusing plate regularly.
• Do not let water, detergent or any other liquid enter the fan opening.
• Pour out remaining water before storing or transporting the unit.

SPECIFICATIONS

Type	Descripon
Main Unit Dimension(L x W x H)	12 x 12 x 33cm(4.7 x 4.7 x 13 inches)
Weight	790g
Operaon temperature
Temperature range (operaon)	10 °C to 40 °C
Temperature range (storage)	-20 °C to 60°C
Power
Input	100-240V 50-60HZ
Output	DC24 V 800mA

ABOUT OREGON SCIENTIFIC

Visit our website www.oregonscienc.com to learn more about Oregon Scienc products.

For any enquiry, please contact our Customer Services at [e-mail].

Oregon Scienc Global Distribuon Limited reserves the right to interpret and construe any contents, terms and provisions in this user manual and to amend it, at its sole discreon, at any me without prior noce. To the extent that there is any inconsistency between the English version and any other language versions, the English version shall prevail.

EU-DECLARATION OF CONFORMITY

Hereby, Oregon Scienc, declares that Muse Aroma Diuser (model: WA338) is in compliance with the essenal requirements and other relevant provisions of Direcve 2004/108/EC. A copy of the signed and dated Declaraon of Conformity is available on request via our Oregon Scienc Customer Service.

FCC STATEMENT

The following informaon is not to be used as contact for support or sales. Please call our customer service number (listed on our website at www.oregonscienc.com), or on the warranty card for this product) for all inquiries instead.

We

Name: Oregon Scienc, Inc.

Address: 19861 SW 95th Ave., Tualan, Oregon 97062 USA

Telephone No.: 1-800-853-8883

declare that the product

Product No. & Name: WA338 Muse Aroma Diuser

Manufacturer: IDT Technology Limited

Address: Block C, 9/F, Kaiser Estate, Phase 1,41 Man Yue St., Hung Hom, Kowloon, Hong Kong.

This device complies with Part 15 & 18 of the FCC Rules. Operaon is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operaon.

WARNING Changes or modicaons not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 & 18 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference in a residential installaon.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instrucons, may cause harmful interference to radio communicaons.

However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does cause harmful interference to radio or television recepon, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separaon between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This ISM device complies with Canadian ICES-001.

This Class B digital apparatus complies with Canadian ICES-003.
