FDS 10100-A - Screwdriver Fieldmann - Free user manual and instructions

Product type	Screwdriver
Brand	Fieldmann
Model	FDS 10100-A
Power source	Cordless, Li-Ion battery
Battery voltage	12 V DC
Battery capacity	1.5 Ah
Chuck type	Hexagonal (1/4")
Chuck size	6.35 mm
Maximum torque	10 Nm
Speed range	0 – 600 rpm (variable)
Weight (with battery)	1.2 kg
Dimensions (L x W x H)	200 x 180 x 60 mm
LED work light	Yes
Forward/reverse switch	Yes
Handle design	Soft-grip, ergonomic
Bit holder	Magnetic bit holder
Charger included	Yes
Overload protection	Electronic overload protection
Safety features	Auto shut-off, lock-on button
Maintenance	Clean with dry cloth; store in dry place
Spare parts availability	Through authorized service centers
Reparability	Replaceable battery and chuck
Warranty	2 years

Frequently Asked Questions - FDS 10100-A Fieldmann

How long does the battery last?

The 1.5 Ah battery provides approximately 30–45 minutes of continuous use under normal load. Battery life varies based on torque and speed settings.

What is the charging time?

It takes about 1 hour to fully charge the 12V battery using the included charger. The charger has an LED indicator that turns green when charging is complete.

Can I use it as a drill?

This screwdriver is designed primarily for driving screws. For drilling, it has limited capability: it can handle small-diameter holes in soft materials like wood. Use the highest speed setting for drilling.

What bits are compatible?

It accepts standard 1/4-inch hexagonal bits (6.35 mm). Many screwdriver bits, nut setters, and impact-rated bits are compatible.

How do I adjust the torque?

Torque is controlled by the variable-speed trigger; higher pressure increases speed and torque. There is no mechanical torque ring. For precise screw driving, practice with the trigger.

How to clean and maintain the screwdriver?

Wipe the exterior with a dry or slightly damp cloth. Do not use solvents. Keep ventilation slots clear of dust. Charge only with the provided charger and store in a dry place.

Is it safe to use?

Yes, it has overload protection and an auto shut-off feature. Always wear safety glasses. Ensure the bit is securely locked before use. Do not expose to moisture.

What is the warranty period?

Fieldmann offers a 2-year warranty against manufacturing defects. Keep your purchase receipt for warranty service.

Where can I buy spare parts?

Spare parts (battery, charger, chuck, carbon brushes) are available through Fieldmann authorized service centers. Check the Fieldmann website for local service points.

Can I use it while charging?

No, the screwdriver cannot be used while the battery is charging. Wait until fully charged before use.

USER MANUAL FDS 10100-A Fieldmann

Abstract black and white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

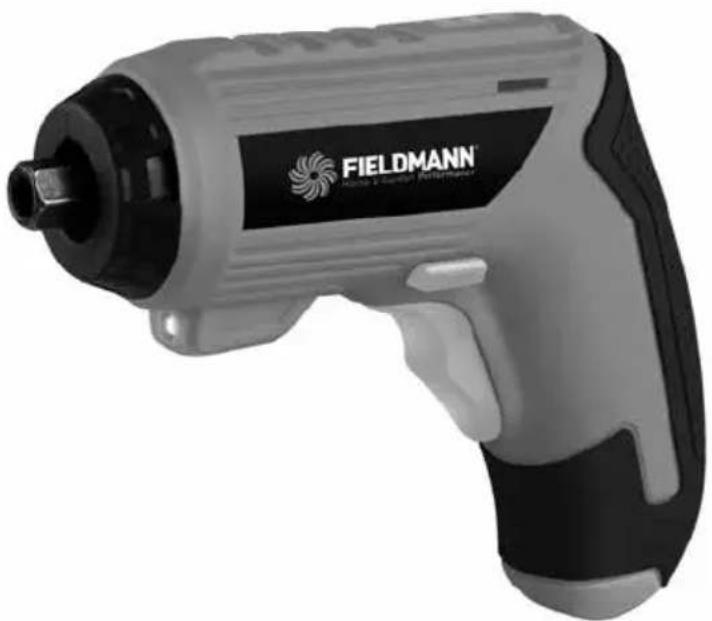

Exterior view of a Fieldmann handheld electric drill (no visible text or symbols on body)

FDS-10100-A

English 3-18

Češťina....19-34

Slovenština 35-50

Magyarul....51-66

Polski 67-84

A

B

Product photo showing a USB cable, screwdriver, and two labeled screw terminals (no text or symbols visible)

Cordless Screwdriver INSTRUCTION MANUAL

Thank you for your purchase of the Screwdriver. For your personal safety, read and understand the Instruction Manual before using. Keep the Instruction Manual in a safe place for future reference.

CONTENTS

1. GENERAL SAFETY INSTRUCTIONS ....4
2. SYMBOLS 8
3. MACHINE COMPONENTS....9
4. INTRODUCTION....9
5. SAFETY INSTRUCTIONS....9
6. HOW TO USE....13
7. MAINTENANCE AND STORAGE 15
8. TECHNICAL PARAMETERS....16
9. DECLARATION OF CONFORMITY 17
10. DISPOSAL 18

1. GENERAL SAFETY INSTRUCTIONS

⚠ WARNING! Carefully read the instruction manual before use.

IMPORTANT SAFETY WARNINGS

* Unpack the product carefully and be sure not to throw away any part of the package before having found all components of the product.
* Keep the product in a dry place out of reach of children.
Read all cautions and instructions. The failure to adhere to warning cautions and instructions may result in an accident, fire and/or a serious injury.

PACKAGING

The product is placed in a package preventing damage during transport. This package is a raw material therefore it can be handed-over for recycling.

INSTRUCTIONS FOR USE

Before beginning to work with the machine, read the following safety rules and instructions for use. Familiarize with operating elements and the proper use of the device. Keep the manual in a safe place for future reference. We recommend keeping the original package including the inner packaging materials, cash voucher and guarantee card for a period of warranty at minimum.

For a case of transportation, pack the machine into the original box from the manufacturer, thus ensuring a maximum protection of the product during a possible transport (e.g. moving or sending into a service station).

Note: If you hand the machine over to next persons, hand it over together with the manual.

Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs.

THE MANUFACTURER DOES NOT TAKE ANY RESPONSIBILITY FOR ACCIDENTS OR DAMAGES RESULTING FROM THE FAILURE TO ADHERE TO THIS MANUAL.

CAREFULLY READ, REMEMBER AND KEEP THESE SAFETY INSTRUCTIONS

⚠ WARNING! In the use of electric machines and power tools, it is necessary to respect and follow the following safety instructions for the reasons of protection against electric shock, personal injury and danger of fire. The term "power tool" in the instructions below refers both to mains-operated (corded) power tool or battery-operated (cordless) power tool. Save all warnings and instructions for future reference.

WORKPLACE

• Keep the work area clean and well lit. Cluttered or dark areas in the workplace invite accidents. Store power tools that you don't currently use.
  Do not operate power tools in environments with danger of occurrence of a fire or explosion, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep unauthorised persons, especially children, away from the work area while operating a power tool! Distractions can cause you to lose control over the performed activity. In no event leave your power tool unattended. Keep the equipment away from animals.

ELECTRICAL SAFETY

Power tool plugs must match the mains socket outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Undamaged plugs and matching outlets will reduce risk of electric shock. Damaged or fouled supply cables increase the risk of electric shock. If the power cord is damaged, it must be replaced by a new power cord which is available at the authorised service centre or the importer.
- Avoid body contact with earthed or grounded surfaces such as pipes, radiators, cooking ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Never touch the power tool with wet hands. Never wash the power tool under running water or immerse it in water.
- Never use the supply cable for other than intended purposes. Never use the cord for carrying or pulling the power tool. Never unplug the plug from the outlet by pulling the cable. Keep electric cables away from sharp or hot objects to prevent mechanical damage.
* The power tool was designed to be powered solely by alternating electric current. Always check if the electric voltage matches the information specified in the type label of the power tool.
- Never use power tool with damaged electric cable or plug or which has been dropped or is in any way damaged.

If an extension cord is used, always check whether its technical parameters match the information specified in the type label of the power tool. When operating a power tool outdoors, use an extension cord suitable for outdoor use. If extension drums are used, these must be rolled out to prevent overheating of the cord.
* If a power tool is operated in a damp location or outdoors, its operation is only permitted if connected to an electric circuit protected by a residual current device <30 mA. Use of residual current device (RCD) reduces the risk of electric shock.
* Hold the power tool by insulated gripping surfaces only as the cutting or drilling tool may contact hidden wiring or its own power cord during operation.

PERSONAL SAFETY

* Be careful, stay alert and watch what you are doing when operating a power tool. Concentrate on your work. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Do not eat, drink and smoke while operating a power tool.
* Use personal protective equipment. Always wear eye protection. Use protective equipment corresponding to the type of work you are doing. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used in accordance with the working conditions will reduce the risk of personal injury.
* Prevent unintentional starting. Do not carry the power tool while it is energised or with your finger on the switch or trigger. Ensure the switch or trigger is in the "off" position before connecting to power source. Carrying power tools with your finger on the switch or energising power tools that have the switch on may result in serious injuries.
* Remove any adjusting key or wrench before turning the power tool on. An adjusting wrench or a key left attached to a rotating part of the power tool may result in personal injury.
* Keep proper footing and balance at all times. Do not overreach. Never overestimate your own capabilities. Never use power tools while you are tired.
* Dress properly. Wear work clothes. Do not wear loose clothing or jewellery. Keep your hair, clothing, gloves and other part of your body away from moving or hot parts of the power tool.
* Connect the equipment to dust exhaustion. If the tools are provided for the connection of dust collection or exhaustion devices, ensure these are properly connected and used. Use of such devices can reduce dust-related hazards.
* Fix the work-piece tightly. Use a cabinet clamp or a cramp to fix the work-piece you are about to machine.
* Never use power tools if you are under the influence of alcohol, drugs, medication or other narcotic or addictive substances.
* This equipment is not intended for use by persons (including children) with limited physical, sensual or mental capacities or lack of experience or knowledge unless they are supervised or instructed about the use of the equipment by a person responsible for their safety. Children must be supervised to make sure they are not playing with the equipment.

* Always disconnect the power tool from the mains in case of any problem during the work, before cleaning the power tool or its maintenance, during each transportation and after the completion of the work! Never operate a power tool if it is damaged in any way.
* Immediately stop working if the power tool generates abnormal noise or smell.
Do not overload the power tool. The power tool will operate better and safer if it is used at the rate for which it was designed. Use correct power tool which is intended for the given activity.
The correct power tool will do the job it was designed for better and safer.

Do not use the power tool if it cannot be safely turned on and off using the control switch. Use of such power tool is dangerous. Defective switches must be repaired by a certified service provider.

* Disconnect the tool from the power source before making any adjustments, changing accessories or maintenance. Such preventive safety measure prevents the risk of starting the power tool accidentally.

- Store idle power tools out of the reach of children and unauthorised persons. Power tools can be dangerous in the hands of untrained users. Store the power tools in a dry and safe place.

- Keep the power tool in good condition. Check the adjustment of moving parts and their mobility. Check for any damage to the protective guards or other parts which could affect safe operation of the power tool. If damaged, have the power tool properly repaired before further use. Many accidents are caused by poorly maintained power tools.

- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges facilitate work, reduce the risk of injury and are easier to control. Use of accessories other than those specified in the instructions for use could result in damage to the power tool and cause injuries.

Use the power tool, accessories and tool bits etc. in accordance with these instructions and in the manner intended for the particular type of power tool taking into account the working conditions and the work to be performed. Use of the power tool for purposes other than those the power tool was intended for could result in hazardous situations.

USE OF CORDLESS POWER TOOLS

Before inserting the battery, make sure the switch is in the "0-OFF" position. Inserting a battery into a switched-on power tool could result in hazardous situations.
- Charge batteries only using the chargers prescribed by the manufacturer. Using a charger intended for other battery type could result in its damage and occurrence of fire.
- Use only batteries intended for particular power tool. Use of different batteries could cause injury or occurrence of fire.
- If the battery is not used, keep it separately from metal objects such as clamps, keys, bolts and other small metal items which could cause connection of one battery contact with the other. Short-circuiting the battery could result in injury, burns or occurrence of fire.

- Handle the batteries with care. Rough handling could result in leak of chemical substance from the battery. Avoid contact with such substance and if, nonetheless, any contact occurs wash the affected area under running water. If eyes get into contact with the chemical substance seek immediately medical aid. Chemical substance from the battery can cause serious injuries.

SERVICE

Do not replace parts of the power tool, do not make any repairs or interfere in any way with the construction of the power tool. Have your power tool repaired by qualified repair persons.
* Any repair or modification of the product without our company's authorisation is impermissible (it could cause injury or damage to the user).
* Always have your power tool repaired in a certified service centre. Use only original or recommended replacement parts. This will ensure that your safety and the safety of your power tool is maintained.

2. SYMBOLS

The product complies with the standards and regulations.

Read the Instruction Manual attentively prior to use.

Double-insulated.

Use eyes protective equipment.

Subjected to recycling.

3. MACHINE COMPONENTS (FIG. A IN B)

1. Chuck for screw/drill bit
2. Battery charge level indicator / Charge indicator button
3. Charger adapter connection
4. ON/OFF switch
5. Left-right selector
6. LED
7. Charging USB cable
8. Bit holder
9. Set of bits

4. INTRODUCTION

Before using this electrical device, carefully read the safety guidelines and instructions below, so that you can use, maintain, start and stop the device correctly. They are indispensable for thorough knowledge of the device's controls and for correct use. Any inappropriate usage can cause severe injury. Take the necessary measures for ensuring everyone's safety.
*This device is designed for home use. It is not suitable for industrial or professional use.
* Carefully store the operating manual.
The seller accepts no responsibility for injuries or material damage caused by failure to follow the instructions for use.

5. SAFETY INSTRUCTIONS

Attention! Very important! Use this device and its accessories in keeping with these safety instructions and only for the intended purposes. Using the device for other purposes can cause extremely dangerous situations.

Wear safety gloves each time you use the equipment.

Wear safety goggles and hearing protection.

Wear close-fitting clothing when using the equipment.

Tie up long hair or wear appropriate headgear to prevent hair from being caught by moving parts.

Use the battery charger only indoors.

Maintain adequate safety distance between the equipment and people (especially children) or animals that might be nearby.

The electrical tool belongs to protection class II. This logo indicates that the equipment conforms to protection class II.

Never use the device in the rain or in a damp or wet environment. Never leave the device outside overnight.

Never expose the battery to sun or high temperatures!

Never put the battery into water!

Never discard the battery with household waste!

Do not put the battery into fire!

When its useful life is over, the battery must be taken to a collection facility. Do not throw it into household waste.

When its useful life is over, the battery must be taken to a collection facility. Do not throw it into household waste.

VERY IMPORTANT:

* Make sure the voltage shown on the charger is 230 V.
After turning off the device, never try to stop the movement of a part by pressing the accessory in the chuck against an object.
Do not drill into floors, walls or ceilings where water, gas or electrical lines may be present. Use a suitable detector to identify the presence of pipes or get advice from the utility

company. Gas causes a real risk of explosion, water may cause short circuits, and sawing electrical conduits may cause short circuits or loss of current.

* Never drill into materials that contain asbestos.
- When drilling into cellular concrete or drywall, follow legal requirements and the instructions of the product supplier.
- Stop the device immediately if it starts to vibrate abnormally and check it to determine the cause.
* To prevent accidents, repairs must be done only by a qualified technician and with original parts.

MAKE SURE THAT THE WORKPLACE IS SAFE AND SUITABLE.

* Keep the workplace orderly. Disorder increases the risk of accidents.
The dust produced by drilling wood or metal can be harmful to health, flammable or explosive. Keep your work environment clean — mixtures of materials can be especially dangerous.
Do not expose the device to rain.
* Never use the device in a damp or wet environment.
* Ensure adequate lighting.
- Never use the device near flammable liquids or gases.

KEEP INCOMPETENT PEOPLE AWAY.

Do not let other people tamper with the device, the charger or the cord — keep them away from the work zone.
- Keep people and flammable materials away when you work on metal. There is a risk of sparks.
- Use of this device is forbidden to children under 16 and to people suffering from a physical or mental disability, as described in this operating manual.

STOPPING WORK.

Before storing the device, shut off the motor and wait for the moving parts to stop.

DO NOT OVERLOAD THE DEVICE.

* This device will be safer and more efficient within the specified power range.
Do not tamper with the left-right selector while the device is operating.

WEAR APPROPRIATE WORK CLOTHING.

* Always wear safety goggles and work gloves.
* Tie up long hair and do not wear loose clothing or jewellery — those can be caught in the device's moving parts.
* Wear a dust mask if your activity releases dust.
* Wear hearing protection if the sound level exceeds 85 dB(A).

USE THE CHARGER CORD CORRECTLY.

* Never carry or move the charger by pulling on its cord.
* Do not pull the cord to remove the plug from the socket.
- Protect the cord from heat, oil and sharp edges.
* Always keep the cord far from the device's moving parts.
* If the cord is damaged, it must be replaced by an authorized service centre to prevent any danger during use.

SECURELY CLAMP THE WORKPIECE.

Use clamps or a vise to secure the workpiece; this procedure is safer than holding it by hand. It also leaves both hands free to work.
* Be safety-minded.
* Avoid abnormal posture and ensure you are balanced.
* Always handle the tool with two hands.
* Never work holding the tool above your head — you won't have enough control.
* Wear anti-slip shoes and be sure to work on a stable floor.
* Maintain the device carefully.
* Keep the device clean to ensure safe, efficient work.
- Check the cord and charger regularly and have a qualified technician replace them if they are damaged.
- Keep the handles dry and free of oil and grease.

AVOID STARTING THE DEVICE BY ACCIDENT.

Do not carry the device with your finger on the switch.
* After use, put the switch back into locked position.
Make sure the device is switched off before inserting the charger plug into the socket.
* Never put the device into the pocket of your trousers of jacket.
* Always be vigilant.
* Always keep your eye on the work.
* Work sensibly.
- Never use the electrical device if you can't concentrate, or if you're tired or under the influence of drugs, alcohol or medication.
* Check that the device is not damaged.
Before using the device, make sure the moving parts function well and that no part is defective.
* All components of the device must be correctly installed to ensure proper functionality.
* Damaged or defective parts must be repaired or replaced by an authorized technician.
* Regularly check the electrical cable and charger. If the cord or charger is damaged, it must be replaced by an authorized service centre to prevent any danger during use.
* Never use the device if the ON/OFF switch is not working properly.

STORE THE DEVICE IN A SECURE LOCATION.

* When it is not being used, store the device in a closed, dry place out of the reach of children.
* Never leave the device in a place where the temperature is above 50°C (such as in a vehicle exposed to the sun).

IMPORTANT SAFETY INSTRUCTIONS FOR CORDLESS SCREW GUNS

Do not use the charger if it is damaged.
The charger and device are to be used only with each other. Do not use the charger for other types of devices or for other purposes.
Do not use another charger for this device.

IMPORTANT SAFETY INSTRUCTIONS FOR THE BATTERY

* Never recharge a cracked device where the battery is visible.
* Never leave the device in a place where the temperature is above 50°C (such as in a vehicle exposed to the sun). A battery can explode if overheated. Therefore, be careful never to heat or incinerate the device.
* If the battery leaks, wipe the fluid up with a cloth. Prevent any contact with the skin or eyes. If the fluid comes into contact with skin or eyes, rinse them in running water for no more than 10 minutes and immediately contact a doctor.
* Never use the battery charger in a damp or wet environment.
- Never use the charger on an easily flammable surface (paper, textile, etc.) or in an place where there is a risk of combustion.
- Batteries are chemical waste. Never throw away used devices containing a battery — take them to an appropriate collection point.

6. HOW TO USE

Components See fig. A and B, and see page 2

CHARGE THE BATTERY (FIG. A AND B).

The integrated battery is only partially charged. Before first use, we advise charging the battery for 3 hours.
* While charging, the battery will warm up a little. This is normal.
* Insert the adapter plug into the socket.
* Connect the adapter (8) to the screw gun (3).
* The red signal light (4) goes on.
It normally takes a completely empty battery 3 hours to charge. We advise recharging the battery after each use, so that the device will always be ready to use.
* Once the battery is fully charged (green signal light (4) goes on), charging stops automatically.
If you are not going to use the screw gun for an extended time, disconnect the charger from the electrical socket. This prolongs the battery life.
The battery integrated into the screw gun IS NOT DESIGNED to be charged with any charger other than the original one.
* The charger is not designed to supply other devices.

Attention! It is advised never to fully discharge the battery. This extends its life.

Therefore, avoid holding down the ON/OFF switch when the device shuts down due to low charge.

CHANGING SCREWDRIVER BITS AND DRILL BITS (FIG. A)

- Put the left-right selector (5) in central position to prevent the device from starting at the wrong time.

- Insert a bit or drill bit into the chuck (1) and push it in as far as it will go.

* Put the left-right selector (5) into the desired position.

ON/OFF (SEE FIG. A)

* To start the device, push the ON/OFF switch all the way (2).

* To stop the device, let up on the ON/OFF switch (2), which also controls the LED indicator (2). Gently push the ON/OFF switch (8) to turn on the LED (2). If you push the ON/OFF switch (4) in all the way, the screw gun will start and the LED (2) will stay on.

* Attention! If you cannot push the ON/OFF switch (4) completely, it is because the left-right selector (5) is in lock position (see "Changing the rotation direction").

CHANGING THE ROTATION DIRECTION

* Push the left-right selector (5) to the left to drill or drive screws.

* Push the left-right selector (5) to the right to remove screws.

* Once the selector is in central position, the ON/OFF switch (4) is locked.

Attention! Let up on the ON/OFF switch (4) before pressing the left-right selector (5).

Attention! The device is equipped with overload protection.

When the axis (1) is blocked (such as after driving a screw, with the torque adjustment ring in drilling position), the electrical feed to the motor shuts off automatically. The motor will remain locked as long as you hold down the ON/OFF switch (8). A few seconds after you have let up on the switch (8), the device will be operational again. If you try to restart the device too fast, the motor will not react until you have released the switch (8) for a few seconds.

TIPS:

* To drive long screws into hard material, we advise first drilling a hole with a lightly smaller diameter than the screw.

* Never start driving while the motor is still running. If the motor is still running, it may cause the device to slip and skid.

OTHER FUNCTIONS (FIG. A)

* The battery charge indicator (2) is for checking the battery status. This lets you charge the battery in time to avoid having to stop work.

* Press the ON/OFF switch (4) lightly to read the charge level from the coloured diodes (2): green (full charge) - yellow (half charge) - red (charge required).

* When the battery is completely charged, all 3 lights are on. As the battery loses its charge, the number of glowing lights decreases.

* When you let up on the button (4), the screen shuts off.

7. MAINTENANCE AND STORAGE

MAINTENANCE

ATTENTION: Disconnect the charger if you will not be using it for a longtime, if you are changing the tool or performing maintenance on the tool.

This tool does not require any special maintenance. The same applies to the electrical parts of the tool.
* Check whether the device is not showing signs of wear.
* If the charger is damaged (cover, conductors or connector), Immediately arrange their replacement at a service centre or from the vendor.
* Regular care for the machine will ensure not only a long lifetime and performance
* Before use always visually check for worn or damaged parts.
- Replace damaged or worn parts. To ensure that the machine always remains balanced, always replace the entire set of the worn or damaged tools.
* Worn or damaged machine parts may only be replaced at an authorised service centre or arranged by the vendor.
* Before cleaning disconnect this appliance from the power source.
To clean the plastic parts of the appliance, use a soft cloth dipped in lukewarm water. Do not use aggressive cleaning products and solvents as this could damage the surface of the appliance.
* Do not clean the machine under running water or submerge under water.
After changing the working tool, check that the working tool is secured in its storage position. Do not use working tools that cannot be inserted into the holders in the magazine.

STORAGE

• Store the tool in a dry location at a sufficient distance from heat sources or dangerous vapours.
  * Do not place any other items on the machine.

8. TECHNICAL PARAMETERS

Type FDS-10100-A
Voltage	1,500 mAh
Battery capacity	USB-C
Max. torque	5 Nm
Battery type	Na-ion
Charger	230 V. AC 0.2 A
Battery size	5 V. DC / 600 mA
Charging time	max. 3 hours
Speed (rpm)	6.35 mm ( 14 ")

9. DECLARATION OF CONFORMITY

FAST®

FAST ČR, a.s.

U Sanitasu 1621, 251 01 Řičany, Czech Republic

tel.: [phone], fax: [phone]

EU DECLARATION OF CONFORMITY

Product / brand: Cordless Screwdriver / FIELDMANN

Type / model: FDS 10100-A as factory model S038N

DC 3,6V (battery powered 1500mAh)

L_PA = 63,5 dB(A), L_WA = 71,5 dB(A)

Manufacturer: FAST ČR, a.s.

U Sanitasu 1621, 251 01 Říčany, Czech Republic

VAT no: CZ24777749

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above is in conformity with the relevant Union harmonization legislation:

Directive MD 2006/42/EC Directive EMC 2014/30/EU

Directive NEOE 2000/14/EC Directive RoHS 2011/65/EU+(EU)2015/863

The relevant harmonized standards and the other technical specifications:

EN 62841-1:2015+A11

EN 62841-2-2:2014

EN IEC 55014-1:2021 EN IEC 61000-3-2:2019+A1

EN IEC 55014-2:2021 EN 61000-3-3:2013+A1+A2

Place of issuance: Prague

Date of issuance: 18.03.2024

Name: Miroslav Vácha - Responsible Person

Signature:

10. DISPOSAL

INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING

Put any used package material to the place determined by the municipality for waste disposal.

DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMEN

This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste. Hand over such products to determined collection points for proper disposal, restoration and recycling. Alternatively, in some countries of the European Union or other European countries you can return your products to your local dealer when you buy an equivalent new product. By dutiful disposal of this product you can preserve precious natural resources and you help prevent any potential adverse effects on the environment and human health which could be the results of wrong waste disposal. Ask your local authority or the nearest collection point for additional details.

In case of improper disposal of this waste kind penalties can be imposed in accordance with national regulations.

For companies in the European Union countries

Should you want to dispose of electric and electronic devices, ask your dealer or vendor for necessary information.

Disposal in other countries outside the European Union

Should you want to dispose of this product, ask your local authorities or your dealer for necessary information about disposal method

This product fulfils all basic requirements of the EU directives that apply to it.

Text, design and technical specifications can change without prior notice and we reserve the right for their change.

U Sanitasu 1621, 251 01 Ričany, Czech Republic

tel.: [phone], fax: [phone]

EU PROHLÁŠENÍ O SHODĚ

U Sanitasu 1621, 251 01 Říčany, Czech Republic

VAT no: CZ24777749

POUŽÍVAJTE VHODNÉ PRACOVNÉ OBLEČENIE.

U Sanitasu 1621, 251 01 Říčany, Czech Republic

VAT no: CZ24777749

EU DECLARATION OF CONFORMITY

Product / brand: Cordless Screwdriver / FIELDMANN

Type / model: FDS 10100-A as factory model S038N

DC 3,6V (battery powered 1500mAh)

L_PA = 63,5dB(A),L_WA = 71,5dB(A)

Manufacturer: FAST ČR, a.s.

U Sanitasu 1621, 251 01 Říčany, Czech Republic

VAT no: CZ24777749

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above is in conformity with the relevant Union harmonization legislation:

Directive MD 2006/42/EC Directive EMC 2014/30/EU

Directive NEOE 2000/14/EC Directive RoHS 2011/65/EU+(EU)2015/863

The relevant harmonized standards and the other technical specifications:

EN 62841-1:2015+A11

EN 62841-2-2:2014

EN IEC 55014-1:2021 EN IEC 61000-3-2:2019+A1

EN IEC 55014-2:2021 EN 61000-3-3:2013+A1+A2

Place of issuance: Prague

Date of issuance: 18.03.2024

Name: Miroslav Vácha - Responsible Person Signature:

10. MEGSEMMISÍTÉS

A HASZNÁLT CSOMAGOLÓANYAGOKRA VONATKOZÓ MEGSEMMISÍTÉSI UTASÍTÁSOK ÉS TÁJÉKOZTATÓ

EU DECLARATION OF CONFORMITY

Product / brand: Cordless Screwdriver / FIELDMANN

Type / model: FDS 10100-A as factory model S038N

DC 3,6V (battery powered 1500mAh)

L_PA=63,5 dB(A),L_WA=71,5 dB(A)

Manufacturer: FAST ČR, a.s.

U Sanitasu 1621, 251 01 Říčany, Czech Republic

VAT no: CZ24777749

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above is in conformity with the relevant Union harmonization legislation:

Directive MD 2006/42/EC Directive EMC 2014/30/EU

Directive NEOE 2000/14/EC Directive RoHS 2011/65/EU+(EU)2015/863

The relevant harmonized standards and the other technical specifications:

EN 62841-1:2015+A11

EN 62841-2-2:2014

EN IEC 55014-1:2021 EN IEC 61000-3-2:2019+A1

EN IEC 55014-2:2021 EN 61000-3-3:2013+A1+A2

Place of issuance: Prague

Date of issuance: 18.03.2024

Name: Miroslav Vácha - Responsible Person

Signature:

10. UTYLIZACJA

WSKAZÓWKI I INFORMACJE DOTYCZĄCE UTYLIZACJI OPAKOWAŃ

Exterior view of a Fieldmann handheld electric drill (no visible text or symbols on body)

FIELDMANN®

Home & Garden Performance
