FDS 10155-A - Screwdriver Fieldmann - Free user manual and instructions

Product Type	Cordless Screwdriver
Brand	Fieldmann
Model	FDS 10155-A
Voltage	3.6 V
Battery Type	Lithium-Ion
Chuck Type	1/4 inch Hex
Max Torque	5 Nm
No-Load Speed	200 rpm
Weight	0.35 kg
Dimensions (L x W x H)	20 x 5 x 5 cm
Charging Time	3-5 hours
Battery Capacity	1.5 Ah
Included Bits	6 pcs screwdriver bits
LED Light	Yes
Forward/Reverse	Yes
Charger Included	Yes (USB cable)
Housing Material	Plastic with soft grip
Safety Features	Overcharge protection
Repairability Index	6/10
Spare Parts Availability	Battery, charger, chuck

Frequently Asked Questions - FDS 10155-A Fieldmann

How long does the battery last on a full charge?

The battery lasts approximately 1 hour of continuous use, enough for around 50-60 screws in softwood. This depends on the torque and frequency of use.

Can I use the screwdriver while it is charging?

No, the screwdriver should not be operated while connected to the charger. Always disconnect the charger before use to avoid damage or electrical hazard.

What type of bits does the FDS 10155-A use?

It uses 1/4 inch hex shank bits, commonly available in sets for screwdriving and drilling.

How do I charge the screwdriver?

Connect the included USB cable to the charging port on the screwdriver, then plug into a standard USB power adapter (5V, 1A). The LED indicates charging status.

Is the battery replaceable?

Yes, the battery is replaceable. You can purchase a compatible lithium-ion battery from Fieldmann or a third-party supplier.

What is the maximum screw size I can drive?

For wood, up to 4mm diameter x 35mm length screws can be driven. For softer materials, larger screws may be possible.

How do I clean the screwdriver?

Wipe the housing with a slightly damp cloth. Avoid solvents. Keep the chuck and ventilation slots free of dust using a brush.

Does it have a reverse function?

Yes, it has a forward/reverse switch for driving and removing screws.

What does the LED light indicate?

The LED light provides illumination when working in dim areas. A blinking LED may indicate low battery or charging mode.

Can I use this screwdriver for drilling?

It is designed for screwdriving only, not for drilling holes. For drilling, use a drill with adjustable clutch.

USER MANUAL FDS 10155-A Fieldmann

Home & Garden Performance

Collection of electric drill bits and screwdrivers with green and black components (no text or symbols visible)

FDS 10155-A

English 4-18

Čeština....19–34

Slovenčina 35–50

Magyarul....51-64

Polski 65-80

Technical line drawing of two types of electric drillers, one with a pointed tip and the other with a flat blade (no text or symbols)

Cordless Screwdriver With Flashlight USER'S MANUAL

Thank you for purchasing this Cordless Screwdriver with fl ashlight. Before you start using it, please carefully read this user's manual and save it for possible future use.

CONTENTS

1. GENERAL SAFETY INSTRUCTIONS....5
2. SYMBOLS....6
3. DESCRIPTION....7
4. OPERATION....8
5. OPERATING INSTRUCTIONS....10
6. MAINTENANCE AND STORAGE....13
7. TECHNICAL DATA....15
8. DISPOSAL....16
9. DECLARATION OF CONFORMITY 17

1. GENERAL SAFETY INSTRUCTIONS

WARNING!

Carefully read the instruction manual before use.

Important safety warnings

* Unpack the product carefully and be sure not to throw away any part of the package before having found all components of the product.
* Keep the product in a dry place out of reach of children.
Read all cautions and instructions. The failure to adhere to warning cautions and instructions may result in an accident, fire and/or a serious injury.

Packaging

The product is placed in a package preventing damage during transport. This package is a raw material therefore it can be handed-over for recycling.

Instructions for use

Before beginning to work with the machine, read the following safety rules and instructions for use. Familiarize with operating elements and the proper use of the device. Keep the manual in a safe place for future reference. We recommend keeping the original package including the inner packaging materials, cash voucher and guarantee card for a period of warranty at minimum.

For a case of transportation, pack the machine into the original box from the manufacturer, thus ensuring a maximum protection of the product during a possible transport (e.g. moving or sending into a service station).

Note:

If you hand the machine over to next persons, hand it over together with the manual. Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs.

The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual.

2. SYMBOLS

The product complies with the applicable standards and regulations.

Icon of a person using a laptop inside a black circle (no text or symbols)

Read the Instruction Manual attentively prior to use.

Use eyes protective equipment

Use ears protective equipment

3. DESCRIPTION

Before attempting to use this product, familiarize yourself with all operating features and safety rules.

1. On/Off Trigger Switch
2. Forward/Reverse Switch
3. Screwdriver Bit Collet
4. Work Light
5. Battery Capacity Indicator
6. Two Position Adjustment Switch
7. Flash Light

SUPPLIED CONTENTS

Cordless screwdriver
Charger
45 PCS OF ACCESSORIES

- 8pcs 1/4" sockets 5/6/7/8/9/10/11/12 mm

- 28pcs 25mm bits:

- PZ0/PZ1/PZ2/PZ3

- PHO/PH1/PH2/PH3

• T10/T15/T20/T25/T27/T30/T40/T45

• H2/H2.5/H3/H3.5/H4/H5/H6

- SL3/SL4/SL5/SL6/SL7

• 4pcs 50mm bits: SL4/SL6/PH1/PH2

• 2pcs twist drills: 2mm/3mm

• 1pc 60mm magnetic bit holder

- 1pc coupling shaft

- 1pc socket adaptor

4. OPERATION

TO CHARGE

Make sure your screwdriver has completely stopped before attempting to charge it. Insert the power unit jack into charging socket, making sure they are properly connected.

Power unit can be used with normal house voltage of 230V / 50 Hz, AC only.

1. After normal usage, the battery requires approximately 3-5 hours charging time to reach full capacity.
2. Connect the power unit to the power supply.
3. During the charge, the battery indicator (red light) will turn on.
4. After 3-5 hours charging time, pull out from power supply and start the screwdriver, if 3 battery indicator lights are on, the screwdriver is full charged.
   Do not place the power unit in an area of extreme heat or cold. It works best at normal room temperature. The base of the tool or power unit may become warm during charging.

WARNING!

Only use the original power unit to charge the tool; use of other power units may cause fire, explosions, and serious injury.

Note: During the charge, the tool can't be turned on.

WARNING!

Charging time must not exceed 15 hours; the battery may be damaged with excessive charging. Avoid charging your screwdriver in freezing conditions. The power unit provided must only be used with this screw-driver and not with any other products.

Do not insert metal objects into the power unit.

Never change the forward/reverse switch while the screwdriver is rotating, as this will damage the screwdriver.

LED Battery Capacity Indicator

The battery capacity is indicated by 3 lights:

• Red LED is on - <20%
  • Red & yellow LED's are on - 20-70%
• Red & yellow& green 3 LED's are on - >70%

Once only the red LED is lit, the screwdriver must be re-charged.

FITTING SCREWDRIVER BITS

Place a 1/4" bit into the magnetic bit holder and then insert the bit holder into the screwdriver collet.

Note: Your drill is intended for light-duty use. For best results, 1/4" screwdriver bits are recommended.

Never engage the trigger switch when changing screwdriver bits.

Always lock the trigger switch when changing drill bits. (See forward/reverse switch instructions.)

FORWARD/REVERSE SWITCH

The forward/reverse switch determines the running direction of the tool and also serves as a trigger switch lock.

To select the "forward" motion, release the trigger switch and push the forward/reverse lever to the right side of the tool. To select the "reverse" motion, push the forward/reverse lever to the left side of the tool.

The center position of the switch locks the tool in the "OFF" position.

When changing the position of the switch, be sure the trigger is is not depressed.

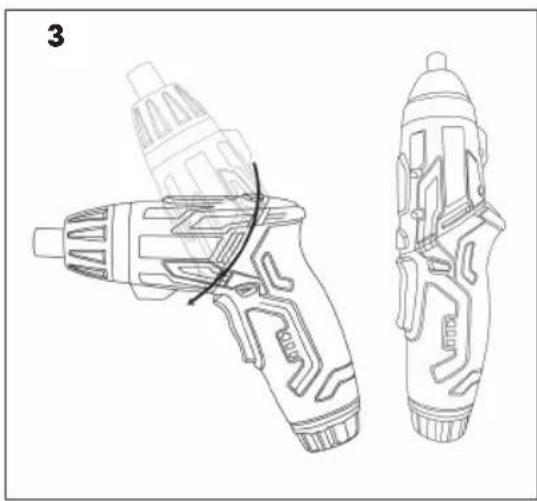

Two Position Adjustment (Fig. 3)

The driver can be used as one straight driver.

First press the rotation button, turn the front section in an anticlockwise direction and then release the button when can not turn it again.

Notice: Do not use screwdriver as a pry bar in either position.

CAUTION: To avoid screwdriver being turned on accidentally, keep switch locked in center position

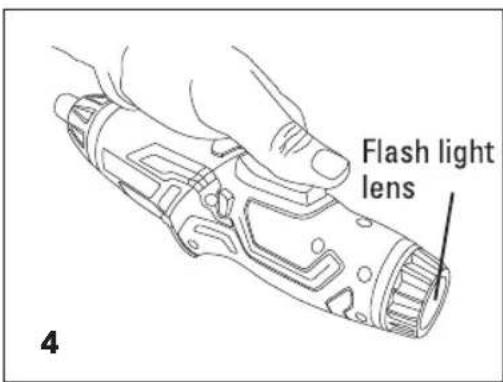

Flash light (Fig. 4)

Push on the lens to turn the light on; Push on the lens again to turn it off. Flash light lens {Flash light lens}

5. OPERATING INSTRUCTIONS

Operation

This product must not be used by children and persons with physical or mental impairments or by inexperienced persons, unless properly trained or schooled in the safe use of the product, or unless they have been properly supervised by a qualified person who will be responsible for their safety.
Use extra care if the product is used near children. Always keep the appliance out of reach of children. Children must be supervised to ensure that they do not play with the product.
Never allow children or persons who do not know the contents of this user's manual to work with the device. Local regulations may set the minimum age of the user. The user is responsible for damages caused to third parties in the machine's working area as a result of its use.
Do not use the machine if your are tired, under the influence of alcohol or narcotics.
If necessary, use personal protection aids (gloves, work footwear, eye protection, respirators, etc.). Personal protection aids reduce the risk of injury to persons.
* Dress appropriately. Do not wear loose clothing or jewellery and make sure that your hair, clothing or gloves do not come dangerously close to moving parts. Loose clothing, jewellery or long hair may become caught in the moving parts.
Pay constant attention, watch what your are doing and think when working with power tools. Do not use power tools if you are tired or under the influence of drugs, alcohol or medication. A moment of carelessness when working with power tools may lead to serious injury.
* Prevent the situation where the tool is turned on accidentally. Ensure the trigger switch is in the Off position before connecting the power cord to the power socket. Carrying power tools with the fi nger on the main trigger switch or connecting the power cord to the power socket when the main trigger switch is in the On position may cause injury.
Do not get in your own way. When working, always maintain a firm posture and balance. This will make it possible to better control the power tool in unexpected situations.
Use clamps or a vice to fasten the workpiece. It is safer than holding the workpiece in your hand and at the same time you have both hands free to operate the tool.
Keep the working area tidy and well illuminated. A cluttered and badly lit work area may lead to injury.
Do not work with the power tool in an explosive environment, such as for example areas where there are flammable liquid, gas or powder substances. Sparks are made inside the power tool, which may cause the ignition of flammable powder or vapour.
Do not work with materials containing asbestos. Use a dust mask. When working with the tool ensure there is a safe distance from children and other persons. Distractions may lead to a loss of control over the tool.

Purpose of use

This tool is not designed for professional use.
Do not use the product for purposes other than those intended.
For safety reasons the machine must not be used as a drive engine for any other work tools and tool sets, unless expressly permitted by the manufacturer.

Instructions for use

Turn on and operate the machine as described in the user's manual, carefully follow all instructions.
Before carrying out any kind of inspection, maintenance or repairs disconnect the charger power cable from the mains power supply.

Use tools in good working condition for tasks for which they are designed.
Work only during good visibility or ensure sufficient artificial lighting.
* Work in a clean and tidy working environment.
Make sure that while working you maintain a firm and stable stance. Do not forget that falls represent one of the major causes of injuries during accidents.
When drilling metal sheets use a vice and place a piece of wood underneath the sheet. A rotating metal sheet presents a serious risk.
Make sure that the drill or screwdriver are not used for work on items under live current, to prevent injury by electrical shock. Before using this tool, check that you know the location of all electrical conductors or cables in the wall (use a metal detector for this purpose).
Only store and use the product away from fl ammable or volatile materials and solutions.
- Keep the product away from extreme temperatures, direct sunlight and excessive humidity. Do not use in a dusty environment.
Do not place the product near heaters, open fi res or other appliances or equipment that are sources of heat.
Do not spray the product with water or any other liquid. Do not pour water or any other liquids into the appliance. Do not submerge the appliance in water or any other liquid.
Never leave the appliance switched on without supervision.
Do not touch machine parts until they have come to a complete stop.
Allow the motor to cool down before storing the machine in a closed room.
Under no circumstances should you repair or alter the product yourself. Entrust all repairs and adjustments of this product to an authorised service centre or the vendor. Tampering with the appliance during the warranty period may void the warranty.
The manufacturer is not responsible for damages caused by incorrect use of this product or its accessories. Such damages include food spoilage, injuries, burns, scalding, fire, etc.

Electrical safety

ATTENTION!

Read all the safety warnings and all instructions. If you fail to follow the provided warnings and instructions an injury caused by electrical shock could occur as well as fire or serious injuries.

Note:

Keep these warnings and instructions for future use. The term "electric power tool" in all warnings relates to your tool powered from the mains (it has a power cord installed) or cordless tools (without a power cord).

The charger of the cordless device can be connected to any power plug, preventing discharge, that is installed according to norms in force.
The plug must be powered at 230V 50Hz.
* Disconnect the charger if you will not be using it for a long time, if you are changing the tool or performing maintenance on the tool.
The power plug on the tool's charger cord must correspond to the power socket. Never modify the power plug in any way. Do not use any power plug adapters for tools protected by grounding. Unmodified power plugs and corresponding power sockets reduce the risk of injury by electrical shock.
Do not touch grounded surfaces such as pipes, heaters, electrical stoves and refrigerators when working with the machine. When your body is grounded the risk of injury by electrical shock is increased.

Do not expose the electrical tool to rain or a moist environment. The entry of water into the electrical tool increases the risk of injury by electrical shock.
* Handle the power cord with care. Never use the power cord to carry or move the tool and do not pull on it when you want to disconnect the tool from the power grid. Prevent the tool coming into contact with greasy, hot and sharp items or moving parts. A damaged or tangled up power cord increases the risk of injury by electrical shock.
When working with electric power tools in a moist environment, the power circuit must have current protection installed (RSD - Residual Current Device). The use of a residual current device reduces the risk of injury by electrical shock.

Safety instructions for the battery and charger

Use only the battery and charger supplied with this tool.
Connect the charger only to a mains power socket with a voltage of 230V.
Protect the battery and charger from moisture. Do not use the device in an outdoor environment.
* Disconnect the charger from the mains power socket when the charger is not being used, before cleaning the charger or before performing repairs on it.
Take special care of the battery. Prevent the battery from falling on to a hard surface and do not expose the battery to the effects of pressure or other excessive mechanical stress. Keep the battery at a safe distance from excessive heat or cold.
Do not attempt to repair or disassemble the battery or the charger. If any part is damaged, have it repaired by a qualified technician or send it for repair to an authorised service centre or the vendor.
Charge the battery only when the ambient air temperature is between 10°C and 40°C. A charged battery may be used to power tools in operating conditions at a temperature between 0°C and 50°C. If the battery is not being used store it in a dry place at a temperature between 10°C and 30°C.

IMPORTANT! DANGER!

Never short circuit the battery contacts and do not expose the battery to moisture. Do not store the battery together with metal items and parts, which could cause a short circuit of the battery contacts. The battery could overheat, catch on fire or explode.

If any person comes into contact with the electrolyte or another liquid or substance found in the battery, they must immediately wash this substance away with large amounts of water. If these substances come into contact with eyes, flush the eyes out with large amounts of water and immediately seek medical treatment.
Do not throw rechargeable batteries into a fire or into water. Otherwise an explosion could occur.
A rechargeable battery should not be thrown out with ordinary household waste, regardless of the fact whether it has or has not been used. In accordance with valid regulations you should take the battery to a collection point or put it into the container labelled "Used Batteries" in our store.
Only charge the battery in a charger designated by the manufacturer. A charger appropriate for one type of battery creates a fi re hazard when used with another type of battery.
Only use the electric power tool with a battery intended to be used in it. The use of different batteries may lead to a risk of injury or a fire hazard.
If you are not using the battery, store it away from metal items, such as paper clips, coins, keys, nails, screws or other small items, which could lead to the short circuit of the battery contacts. Short circuiting the battery contacts may cause burns or a fire.

6. MAINTENANCE AND STORAGE

Maintenance

WARNING!

It is recommended that all the repair or replacement for this tool shall be performed by a qualified service technician. Contact or visit the nearest Menards store for more information.

WARNING!

Always use only a soft, dry cloth to clean your screwdriver, never use any detergent or alcohol.

Disconnect the power unit from the main supply before cleaning.

CAUTION!

No chemical agents are approved for use in cleaning this power tool. Clean with a dry cloth or towel only.

ATTENTION!

Disconnect the charger if you will not be using it for a long time, if you are changing the tool or performing maintenance on the tool.

This tool does not require any special maintenance. The same applies to the electrical parts of the tool.
* Check whether the device is showing signs of wear.
If the charger is damaged (cover, conductors or connector), immediately arrange its replacement at the vendors service centre.
* Regular care for the machine will ensure not only a long lifetime and performance.
Before use always visually check for worn or damaged parts.
Replace damaged or worn parts. To ensure that the machine always remains balanced, always replace the entire set of the worn or damaged tools.
Worn or damaged machine parts may only be replaced at an authorised service centre or the vendor.
Before cleaning disconnect this product from the power source.
To clean the plastic parts of the product, use a soft cloth dipped in lukewarm water. Do not use aggressive cleaning products and solvents as this could damage the surface of the appliance.
Do not clean the machine under running water or submerge under water.
After changing the working tool, check that the working tool is secured in its storage position.
Do not use working tools that are not proportioned for placement into the tang in the magazine.
Do not overload the electric power tool. Use the right type of electric power tool for your work. When the correct electric power tool is used, the work result will be performed better and more safety.
If it is not possible to turn the main trigger switch on or off, do not work with the tool. All electric power tools with a trigger switch that do not work are dangerous and must be repaired.
If you are not working with the tool, store it out of the reach of children and prevent persons not informed about the operation of the tool or this user's manual to work with the tool. An electric power tool in the hands of an unqualified person is dangerous.
Perform maintenance on the tool. Check for deviation or blockage of the moving parts, damage of individual parts and other factors which could affect the operation of the tool. If the tool is damaged, have it repaired

before using it. Many accidents are caused by neglected maintenance of a tool. Properly maintained cutting tools with sharp cutting edges are less prone to jamming in a workpiece and are easier to handle.

• Maintain cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less prone to jamming in a workpiece and are easier to handle.
  Use electric power tools, accessories, working tools, etc. according to these instructions in a manner appropriate for the given type of electric power tool and take into consideration the work conditions and the type of work that you will be performing. Using electric power tools for purposes other than those for which they were designed may be dangerous.
  Damaged switches must be replaced at an authorised service centre or the vendor. Do not use electric power tools that cannot be turn on and off.
  Do not leave electric power tools turned on without supervision. Always turn the tool off and wait for it to come to a complete stop before putting it down.
  Use hearing protection. Excessive noise levels may cause hearing damage.
  When performing tasks, where the working tools may come into contact with hidden electrical conductors, hold the electric power tool by the insulated part that is intended to be held. A work tool that comes into contact with a "live" electrical conductor, will cause the uninsulated parts of the tool to become live and may subsequently cause injury by electrical shock to the operator.
  For repairs contact an authorised service centre or vendor who will use original spare parts. This will ensure the correct operation of the electric power tool.

ATTENTION!

Using any accessories or tools not recommended in this user's manual may increase the risk of injury. Always use only original spare parts.

Clean the tool after the completion of every work task.
Do not use worn or damaged drill bits and drilling extension pieces. Such tools may overload the motor and lower effectiveness.
Take proper care to prevent the motor from damage by oil or water.
- Regularly check that the tool has not been damaged during the course of standard operation. Make sure that all parts are correctly connected and do not use this product if any of its parts has been damaged or lost.
When inserting the battery into the charger, ensure that the battery is inserted in the correct manner and that there are no materials between the battery contacts, e.g. soils.
The battery and the charger should be protected from heat and the sun. Do not expose these products to extreme temperatures.
Do not use the device in an outdoor environment.
Use only the charger supplied with this tool.
If the product is damaged or malfunctions, contact an authorised service centre or the vendor.

Storage

Store the tool in a dry location at a sufficient distance from heat sources or dangerous vapours.
Do not place any other items on the machine.

7. TECHNICAL DATA

Model FDS 10155-A
Power 3,6 V / 1 300 mAh Li-Ion battery
Normal Charging Time 3 – 5 Hours
No Load Speed 230 RPM
Chuck Size 1/4" Hex Collet
LED light yes
Torque setting 6+1

8. DISPOSAL

The machine, rechargeable batteries, accessories and packaging should be sorted for environmentalfriendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EC countries:

According to the European Guideline 2012/19/EU, power tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERIALS

Put any used package material to the place determined by the municipality for waste disposal.

DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT

This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste. Hand over such products to determined collection points for proper disposal, restoration and recycling. Alternatively, in some countries of the European Union or other European countries you can return your products to your local dealer when you buy an equivalent new product. By dutiful disposal of this product you can preserve precious natural resources and you help prevent any potential adverse effects on the environment and human health which could be the results of wrong waste disposal. Ask your local authority or the nearest collection point for additional details. In case of improper disposal of this waste kind penalties can be imposed in accordance with national regulations.

For companies in the European Union countries

Should you want to dispose of electric and electronic devices, ask your dealer or vendor for necessary information. Disposal in other countries outside the European Union. Should you want to dispose of this product, ask your local authorities or your dealer for necessary information about disposal method.

This product fulfi is all basic requirements of the EU directives that apply to it.

Text, design and technical specifications can change without prior notice and we reserve the right for their change.

User manual in the original language.

9. DECLARATION OF CONFORMITY

FAST®

FAST ČR, a.s.

Černokostelecká 1621, 251 01 Ričany, Czech Republic tel.: [phone], fax: [phone]

EU DECLARATION OF CONFORMITY

Product / brand: Battery powered Impact Wrench / FIELDMANN

Type / model: FDS 10155-A as factory model S019

DC 3,6V (Li-ion battery powered), 230 rpm, Class III, IPX0, Light 0,3W

L_PA = 62dB(A), L_WA = 73dB(A)

Manufacturer: FAST ČR, a.s.

Černokostelecká 2111, 100 00 Praha 10, Czech Republic

VAT no: CZ26726548

The product is inline with directives and regulations listed below:

Directive MD 2006/42/EC

Directive EMC 2014/30/EU

Directive NEOE 2000/14/EC

Directive RoHS 2011/65/EU

and norms:

EN 62841-1:2015+AC

EN 62841-2-2:2014

EN 55014-1:2017

EN 55014-2:2015

CE

Place of issuance: Prague

Chairman of the Board

Name: Ing. Zdeněk Pech

Date of issuance: 9.6.2020

Signature:

FAST FAST CR, a.s.
