USER MANUAL FDUZ 79110 Fieldmann
Home & Garden Performance
20V _Li-H
FASTPOWER
English 4-12
Čeština....13-20
Slovenčina 21-28
Magyarul 29-36
Polski 37-44
1
2
Fast Dual Charger 20V FASTPOWER USER'S MANUAL
Thank you for purchasing this Fast Dual Charger. Before you start using it, please carefully read this user's manual and save it for possible future use.
TABLE OF CONTENTS
- INTENDED USE 5
- GENERAL SAFETY INSTRUCTIONS ....5
- BATTERY TOOL USE AND CARE 5
- SYMBOLS AND PICTOGRAMS....7
- CHARGING THE BATTERY PACK....8
- DISPOSAL....9
- TECHNICAL DATA 10
- DECLARATION OF CONFORMITY....11
1. INTENDED USE
This product is not intended for commercial use. Generally acknowledged accident prevention regulations and enclosed safety instructions must be observed.
Only perform work described in these instructions for use. Any other use is improper. The manufacturer will not assume responsibility for damage resulting from such use.
2. GENERAL SAFETY INSTRUCTIONS
To operate this device safely, the user must have read and understood these instructions for use before using the device for the first time.
Observe all safety instructions! Failure to do so may cause harm to you and others.
Retain all instructions for use, and safety instructions for future reference.
If you sell or pass the device on, you must also hand over these operating instructions.
3. BATTERY TOOL USE AND CARE
Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
Additional safety notes
Do not open the battery. The battery may be damaged as a result of improper actions.
Do not expose the battery to heat, fire, water and damp. There is a risk of explosion.
In the event of damage or incorrect use of the battery, vapours may escape. Make sure that the ventilation is good and, if you have any medical complaints, consult a doctor. These vapours may irritate the air passages and cause illness.
* Never attempt to recharge batteries that are not designated rechargeable. There is a risk of fire and explosion.
The battery may only be used in conjunction with this power tool. Other power tools may overload the battery and thus damage it.
Only batteries authorised by the manufacturer with the values listed on the type plate of this power tool may be used. The use of a different battery may cause a risk of injuries and property damage as a result of an exploding battery.
* Only chargers authorised by the manufacturer with the values listed on the type plate of this battery may be used. The use of a different charger may cause a risk of injuries and property damage as a result of an exploding battery.
Symbols affixed to your unit may not be removed or covered. Information on the unit that is no longer legible must be replaced immediately.
4. SYMBOLS AND PICTOGRAMS
Before putting the unit into operation, read and observe the instructions for use.
Only re-charge the battery pack indoors.
Do not dispose of a battery pack with the household waste!
Do not dispose of a battery pack in water!
Do not burn the battery pack!
Do not expose the battery pack to sunlight or increased temperatures!
5. CHARGING THE BATTERY PACK
Note: The rechargeable battery is not included and is available as an option.
Note: The actual appearance of your product may differ from the illustrations.
WARNING!
Risk of injury! Comply with all safety instructions when handling rechargeable devices.
NOTICE!
Risk of damage to the unit! Do not allow the battery pack to deep discharge.
Note: If the battery is fully loaded, the charger automatically switches over to the maintenance charge function. The battery can thus remain in the charger permanently.
The battery pack must be charged prior to the first start-up.

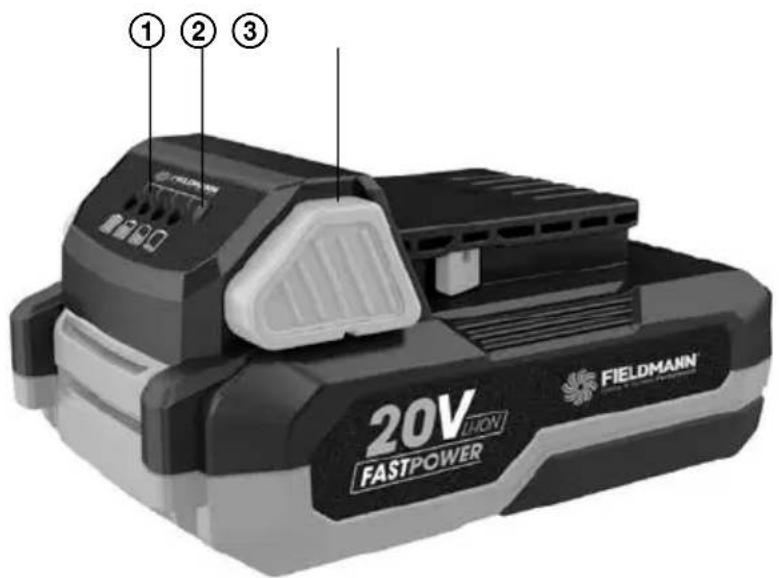

- Press in the locking button (3) and remove the battery from the device.

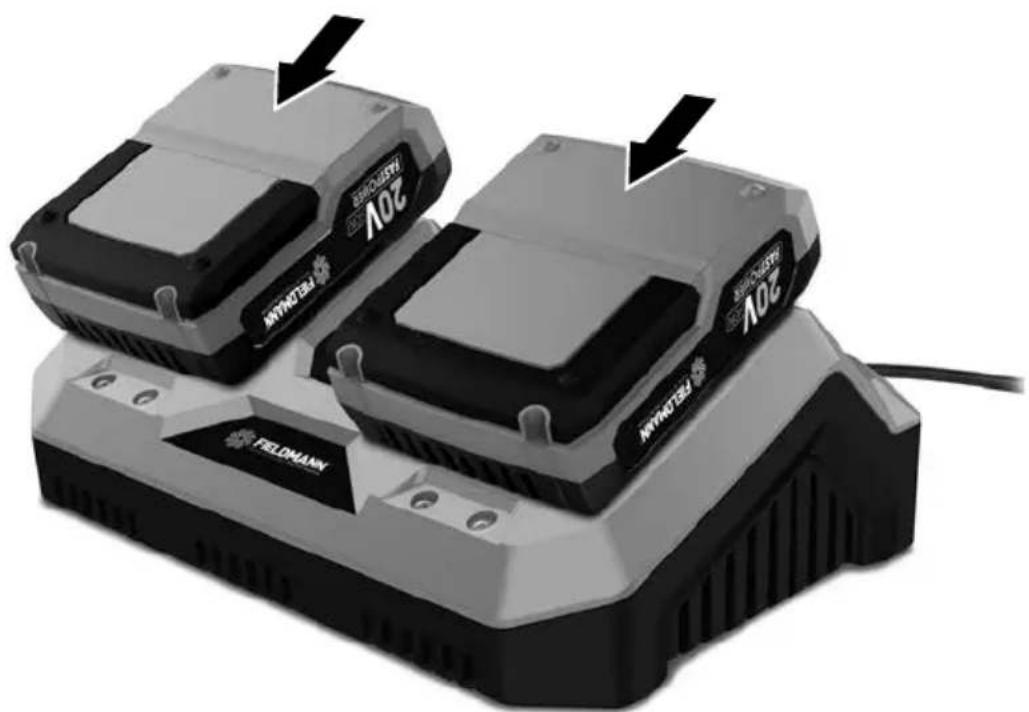

- Insert the battery pack into the charger.
– Plug the charger into the power supply.
The charging status is displayed by the control lights (4).
- Slot the battery pack into the device and make sure it clicks into place correctly.
Control lights (4)
Green light fl ashing - charging
Green light shine - fully charged battery
Red light flashing - problem with battery, please carefully check proper insertion of the battery into the charger. If the problem will continue, please contact the nearest service point
* Red light shine - high temperature of battery, please wait at least 60 mins and try again
Checking the remaining capacity of the battery
- Press the button (2).
The remaining capacity of the battery is displayed by the control lights (1).
6. DISPOSAL
INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERIALS
Dispose of used packaging material at a site designated for waste in your municipality.
The appliance and its accessories are manufactured from various materials, e.g. metal and plastic.
Take damaged parts to a recycling centre. Inquire at the relevant government department. A crossed-out wheelie bin icon means: Batteries and rechargeable batteries, electrical or electronic devices must not be disposed of with household waste. They may contain substances that are harmful to the environment and human health.
Consumers must dispose of waste electrical devices, spent portable batteries and rechargeable batteries separately from household waste at an offi cial collection point to ensure that these items are processed correctly. Information on returning these items is available from the seller. Sellers are required to accept these items free of charge. Batteries and rechargeable batteries, which are not permanently installed in waste electrical devices, must be removed prior to disposal and must be disposed of separately. Lithium batteries and battery packs in all systems must only be retuned to a collection point when discharged. Batteries must always be protected against short circuits by covering the poles with adhesive tape.
All end users are responsible for deleting any personal data stored on waste devices prior to their disposal.
This appliance meets all the basic requirements of the EU directives.
Changes in the text, design and technical specifications may be made without prior notice and we reserve the right to make these changes.
User manual in the original language.
7. TECHNICAL DATA
| Item number FDUZ 79110 Fast dual charger | |
| Rated voltage 230 V | ~, 50 Hz |
| Rated power 140 W | |
| Charge voltage 20,9 V | == |
| Charge current 2,4 A | |
| Protection class II | |
| Charging time 2 x 2 Ah / 60 min, 2 x 4 Ah / 120 min |
Accessories
| Item number Accessory | |
| FDUZ 79020 Battery pack 2 Ah | |
| FDUZ 79040 Battery pack 4 Ah | |
| FDUZ 79100 Fast charger | |
| FDUZ 79110 | Fast dual charger |
8. DECLARATION OF CONFORMITY
FAST®
FAST ČR, a.s.
Černokostelecká 1621, 251 01 Ričany, Czech Republic
tel: +420 323 204 111, fax: +420 323 204 110
EU DECLARATION OF CONFORMITY
Product / brand: Battery and Charger / FIELDMANN
Type / model: FDUZ 79020 as factory model D01102700 (Lion battery)
DC 20V, 2000mAh, 40Wh
FDUZ 79100 as factory model D02103000 (charger)
Input AC 200-240V, 50/60Hz, 70W, Class II
Output DC 20V, 2,4A
FDUZ 79040 as factory model D01202900 (Lion battery)
DC 20V, 4000mAh, 80Wh
FDUZ 79110 as factory model D02103001 (charger)
Input AC 200-240V, 50/60Hz, 140W, Class II
Output DC 20V, 2x 2,4A
Manufacturer: FAST ČR, a.s.
Černokostelecká 2111, 100 00 Praha 10, Czech Republic
VAT no: CZ26726548
The product is inline with directives and regulations listed below:
Directive MD 2006/42/EC
Directive LVD 2014/35/EU
Directive EMC 2014/30/EU
Directive RoHS 2011/65/EU + (EU) 2015/863
and norms:
EN 603335-1:2012+A11+A13 EN 55014-1:2017
EN 60335-2-29:2004+A2+A11 EN 55014-2:2015
EN 62233:2008 EN IEC 61000-3-2:2019
EN 62841-1:2015 EN 61000-3-3:2013
+A1
Place of issuance: Prague
Name: Ing. Zdeněk Pech
Chairman of the Board
Date of issuance: 22.7.2020
Signature:
FAST FAST CR, a.s.
Cernokostelecka 1021, 251 01 Řičany
ICO: 26726548 tel.: +420/323 204 111
DIC: CZ26726548 fax: +420/323 204 110
ICO: 26 72 65 48, DIC: 02-26 72 65 48
Directive MD 2006/42/EC
Directive LVD 2014/35/EU
Directive EMC 2014/30/EU
Directive RoHS 2011/65/EU + (EU) 2015/863
a normami:
EN 603335-1:2012+A11+A13 EN 55014-1:2017
EN 60335-2-29:2004+A2+A11 EN 55014-2:2015
EN 62233:2008 EN IEC 61000-3-2:2019
EN 62841-1:2015 EN 61000-3-3:2013
+ A1
Vydáno v: Praze
Chairman of the Board
Directive LVD 2014/35/EU
Directive EMC 2014/30/EU
Directive RoHS 2011/65/EU + (EU) 2015/863
a normami:
EN 603335-1:2012+A11+A13 EN 55014-1:2017
EN 60335-2-29:2004+A2+A11 EN 55014-2:2015
EN 62233:2008 EN IEC 61000-3-2:2019
EN 62841-1:2015 EN 61000-3-3:2013
+A1
Vydáno v: Prahe
Meno: Ing. Zdeněk Pech
Chairman of the Board
Directive MD 2006/42/EC
Directive LVD 2014/35/EU
Directive EMC 2014/30/EU
Directive RoHS 2011/65/EU+ (EU) 2015/863
és szabványoknak:
EN 603335-1:2012+A11+A13 EN 55014-1:2017
EN 60335-2-29:2004+A2+A11 EN 55014-2:2015
EN 62233:2008 EN IEC 61000-3-2:2019
EN 62841-1:2015 EN 61000-3-3:2013 + A1
Kiadva: Prágában
Név: Ing. Zdeněk Pech
Directive MD 2006/42/EC
Directive LVD 2014/35/EU
Directive EMC 2014/30/EU
Directive RoHS 2011/65/EU + (EU) 2015/863
i norm:
EN 603335-1:2012+A11+A13 EN 55014-1:2017
EN 60335-2-29:2004+A2+A11
EN 55014-2:2015
EN 62233:2008
EN IEC 61000-3-2:2019
EN 62841-1:2015
EN 61000-3-3:2013+A1
Home & Garden Performance
Model /Modell /Modelis:
Conditions of guarantee
This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty is limited to the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim for service can be applied either at dealer's shop where the product was bought, or at below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end of warranty period. The end-user is obligated to cooperate to certify the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim application till the date of taking over the product by end-user, or the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation...
This warranty is void especially if apply as follows: ■ Defects which were put on sale. ■ Wear-out or damage caused by common use. ■ The product was damaged by unprofessional or wrong installation, used in contrary to the applicable instruction manual, used in contrary to legal enactment and common process of use or used for another purpose which has been designed for. ■ The product was damaged by uncared-for or insufficient maintenance. ■ The product was damaged by dirt, accident of force majeure (natural disaster, fire, flood, ...). ■ Defects on functionality caused by low duality of signal, electromagnetic field interference etc. ■ The product was mechanically damaged (e.g. broken button, fall...). ■ Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working conditions (e.g. high temperatures, high humidity, quakes,...). ■ Repair, modification or other failure action to the product by unauthorized person. ■ End-user did not prove enough his right to claim (time and place of purchase). ■ Data on presented documents differs from data on products. ■ Cases when the claiming product can not be identified according to the presented documents (e.g. the serial number or the warranty seal has been damaged).
fasthungary@fasthungary.hu
www.fasthungary.hu
Fast Poland, Sp. z o.o.
Sokołowska 10
PL 05-090 Puchaly
Poland
Tel.: +48 500 116 777
Fax: +48 22 869 96 13
fastpoland@fastpoland.pl
www.fastpoland.pl
20V LiHON FASTPOWER
