USER MANUAL PG60G LG

Please read this manual carefully before operating your projector and retain it for future reference.

PG60G

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories.

"Dolby "and the double-D symbol are trademarks of Dolby Laboratories.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

"DivX Certified® to play DivX® video up to HD 1080p, including premium content."

"DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license."

"Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274"

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

This device meets the EMC requirements for home appliances (Class B) and is intended for home usage. This device can be used in all regions.

NOTE

• Image shown may differ from your projector.
• Your projector's OSD (On Screen Display) may differ slightly from that shown in this manual.

SAFETY INSTRUCTIONS

Please take note of the safety instructions to prevent any potential accident or misuse of the projector.

• Safety precautions are given in two forms, i.e. Warning and Caution as detailed below.
  WARNING: Failure to follow the instructions may cause serious injury and even death. CAUTION: Failure to follow the instructions may cause injury to persons or damage to the product.
• Read the owner's manual carefully and keep it to hand.

WARNING/CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user

to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING/CAUTION

• TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Indoor Installation

WARNING

• Do not place the projector in direct sunlight or near heat sources such as radiators, fires, stoves, etc.

• This may cause a fire.

• Do not place flammable materials such as aerosols near the projector.

• This may cause a fire.

• Do not allow your children to cling to or climb up to the projector.

• The projector may fall down and cause personal injury or death.

• Do not place the projector directly on a carpet, rug or place where ventilation is restricted such as a book shelf or closet.

• This may cause the projector's internal temperature to rise and cause a fire.

• Do not place the projector close to sources of steam or oil such as a humidifier or kitchen counter.

• This may cause a fire hazard or an electric shock.

• Do not place the projector where it might be exposed to excessive dust. - This may cause a fire.

• Do not use the projector in a damp place such as a bathroom where it is likely to get wet.

• This may cause a fire or an electric shock.

• Do not allow a tablecloth or curtain to block the vents.

• This may cause the internal temperature of the projector to rise and cause a fire.
• The distance between the projector and the wall should be more than 30 cm for ventilation purposes.
• Otherwise, this may cause the internal temperature of the projector to rise and cause a fire.

CAUTION

• When installing the projector on a table, be careful not to place it near the edge.
• The projector may fall causing injury to persons or damage to the projector. Make sure that you use a stand suitable for the size of projector.
• Turn off the projector, disconnect the power supply and remove all connections before moving the projector.
• A damaged cord may cause a fire or an electric shock.
• Do not install the projector on an unstable or vibrating surface such as a vibrating shelf or tilted surface.
• It may fall and cause injury.
• Be careful not to tip the projector over when connecting external devices to the projector.
• This may cause injury to persons or damage to the projector.

Power

WARNING

• The ground wire should be connected.
• Inappropriate earth grounding may cause damage to the projector or an electric shock when there is an electrical surge.
  If the projector must be installed at a place where earth grounding is not possible, purchase a circuit breaker and connect the projector to its wall outlet.
  Do not ground the projector to the gas pipe, water pipe, lightning rod or telephone line, etc.
• The power plug should be fully inserted into the wall outlet.
• Unstable connection may cause a fire.
• Do not place heavy objects on the power cord or place the cord underneath the projector.
• This may cause a fire or an electric shock.
• Never touch the power plug with a wet hand.
• This may cause an electric shock.
• Do not connect too many devices to the same power extension.
• Overheating may cause a fire.
• Remove dust or contaminants around power plug pins or wall outlets.
• This may cause a fire.
• To turn off the main power, remove the power plug, which should be positioned so it is easy to access for operation.

CAUTION

• Hold the plug firmly when unplugging.

• A broken wire in the cord may cause a fire.

• Ensure the power cord or plug is not damaged, modified, severely bent, twisted, pulled, sandwiched or heated.

Do not use a loose wall outlet.

• This may cause a fire or an electric shock.

• Keep the power cord away from any heating devices.

• The cord coating may melt and cause an electric shock.

• Place the projector where people will not trip over or tread on the power cord or plug to protect the power cord and plug from any damage.

• This may cause a fire hazard or an electric shock.

• Do not turn the projector on or off by plugging in the power plug or unplugging it from the wall outlet.

(Do not use the power plug as a switch.)

• This may cause an electric shock or damage to the projector.

• Do not insert a conductor into the other side of the wall outlet while the power plug is inserted into the wall outlet.

In addition, do not touch the power plug immediately after it is disconnected from the wall outlet.

• This may cause an electric shock.

• Use only the official power cord which is provided by LG Electronics, Inc. Do not use other power cords.

• This may cause a fire or an electric shock.

When in Use

WARNING

• Do not place anything containing liquid, such as a vase, flowerpot, cup, cosmetics, chemicals, decorations or candles, etc., on top of the projector.

• Possible fire, electric shock or falling may cause physical injury.

• In the event that there is a big impact to the projector or the cabinet is damaged, switch it off, unplug it from the wall outlet and contact an authorized service center.

• Otherwise, this may cause a fire or an electric shock.

• Do not insert pieces of metal such as coins, hairpins or metal debris, nor flammable materials such as paper or matches into the projector.

• This may cause a fire or an electric shock.

• In the event that liquid or a foreign object falls into the projector, please switch it off and unplug it from the wall outlet and contact an LG Electronics Service Center.

• Otherwise, this may cause a fire or an electric shock.

• When replacing a battery of the remote control, make sure a child does not swallow the battery. Keep the battery out of reach of children.

• In the case of a battery being swallowed by a child, please consult a doctor immediately.

• Do not remove any covers except for the lens cap. There is a high risk of electric shock.

• Do not look directly into the lens when the projector is in use. The strong light may damage your eyes.

• When the lamp is on or has just been turned off, avoid touching the air vent or lamp because these will be very hot.

• If there is a gas leak, do not touch the wall outlet. Open the window for ventilation.

• A spark may cause a fire or burn.

• Never touch the projector or power cord during thunder or lightning.

• This may cause an electric shock.
• Do not use the projector near an electronic device which generates a strong magnetic field.

• Store the vinyl envelope used to pack the projector in a safe place away from children.

• It could cause suffocation if used improperly.

• Do not keep your hand on the projector for a long time when it is running.

• When you play a game by connecting a game console to a projector, it is recommended that you maintain a distance of more than four times the diagonal length of the screen.
• Make sure that the length of connecting cable is long enough. Otherwise, the product may fall causing personal injury or damage to the product.

CAUTION

• Do not place a heavy object on the projector.
• It may fall down and cause physical injury.
• Be careful to prevent the lens from heavy impact during transportation.
• Do not touch the lens. The lens may be damaged.
• Do not use any sharp tools on the projector such as a knife or hammer, because this may damage the casing.
• In the event that no image appears on the screen, switch the projector off, unplug it from the wall outlet and contact an authorized service center. - Otherwise, this may cause a fire or an electric shock.

• Do not drop an object onto the projector or apply heavy pressure to it.

• This may cause injury to persons or damage to the projector.

• The distance between your eyes and the screen must be around 5 - 7 times the diagonal length of the screen.

• If you watch the screen at a close distance for a long time, your eyesight may become worse.

Cleaning

WARNING

• Do not spray the projector with water when cleaning. Do not allow water to go into the projector or do not allow it to get wet.
• This may cause a fire or an electric shock.
• When there is smoke or a strange smell coming out from the projector or a foreign object falls into the projector, please switch it off and unplug it from the power outlet and contact an LG Electronics Service Center.
• If not, this may cause a fire or an electric shock.
• Use an air spray or soft cloth or cotton swab moistened with a lens cleaning chemical or alcohol to remove dust or stains on the front projection lens.

CAUTION

• Contact your seller or the Service Center once a year to clean the internal parts of the projector.
• If you do not clean the contaminated interior of the projector for a long time, there may be a fire or damage to the projector.
• When cleaning plastic parts such as the projector case, unplug the power first and wipe with a soft cloth. Do not spray with water or wipe with a wet cloth. When cleaning the plastic parts, such as the projector case, do not use cleanser, automobile or industrial shiner, abrasive or wax, benzene, alcohol, etc., which can damage the product.
• This can cause fire, electric shock or product damage (deformation, corrosion and damage).

OTHERS

WARNING

• Only a qualified technician can disassemble or modify the projector. For inspection, adjustment or repair, contact your seller or the Service Center. - Otherwise, this may cause a fire or an electric shock.
• Dispose of the used battery properly.
• Otherwise, this may result in explosion or fire.
• The correct method of disposal may vary depending on your country or region. Dispose of the battery pack according to the appropriate instructions.
• Do not throw or disassemble the battery.
• Otherwise, this may result in fire or explosion due to damage to the battery.
• Always use batteries approved and certified by LG Electronics.
• Otherwise, this may result in fire or explosion.
• Store the battery away from metallic objects, such as keys and paper clips.
• Excess current may cause a rapid increase in temperature, resulting in fire or burns.
• Do not store the battery near any heat source, such as a heater.
• This may result in fire or damage the product.
• Do not store it at temperatures higher than 60^ or in high humidity.
• Keep the battery out of reach of children.

• This may result in personal injury or damage to the product.

• Make sure that the battery is installed correctly.

• Incorrect battery replacement may cause fire.

CAUTION

• Unplug the power cord if the projector is not used for a long period. - Accumulated dust may cause overheating, an electric shock from corroded insulation and a fire from an electrical surge.
• Only use the specified type of battery. - Otherwise, this may cause an electric shock caused by overheating and leakage.

Additional information of the manual

The owner's manual in a PDF file format is supplied on a CD. Install the Adobe Acrobat Reader to view the owner's manual on your PC.

1 Insert the supplied CD. The web page appears automatically.
2 Select language on the web page.
3 Click Model name on the web page.
4 View the owner's manual.

NOTE

• If the web page does not appear automatically, access My computer and then click LG and index.htm to view

• This DLP Projector is a Risk Group 2 device that meets safety standard IEC 62471 standard.

Risk Group 2

CAUTION. Possibly hazardous optical radiation emitted from this product. DO not stare at operating lanp. May be harmful to the eye.

TABLE OF CONTENTS

LICENSES 2

SAFETY INSTRUCTIONS 3

ADDITIONAL INFORMATION OF THE MANUAL 9

PREPARATION 11

Accessories 11

Optional Extras 12

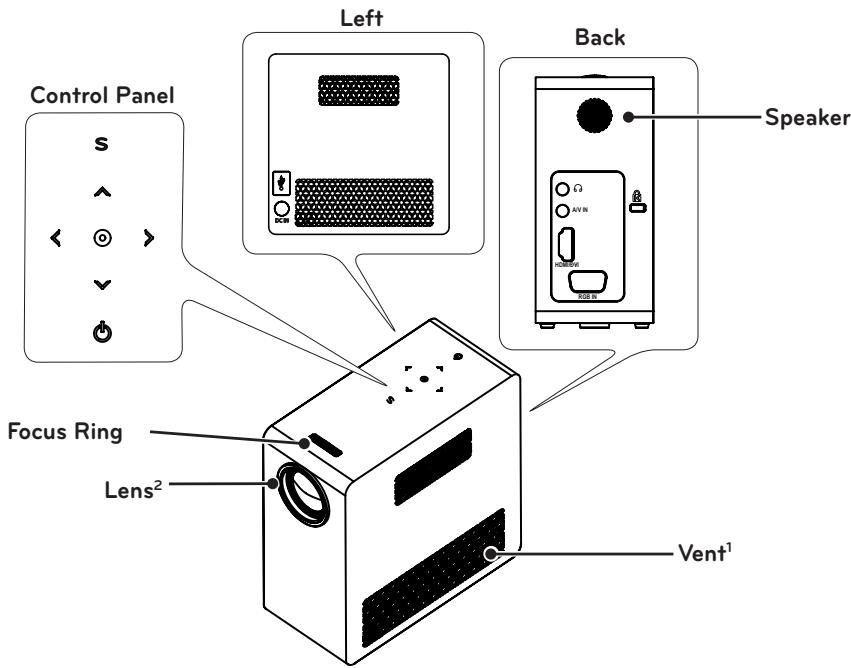

Parts and Components 13

Installation 14

• Installation Precautions 14
• Connecting an adapter 14

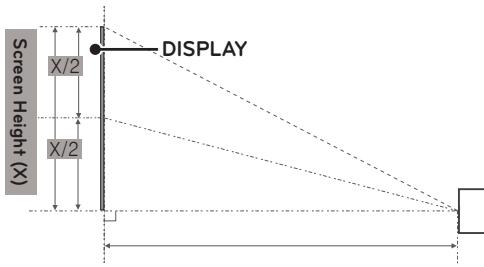

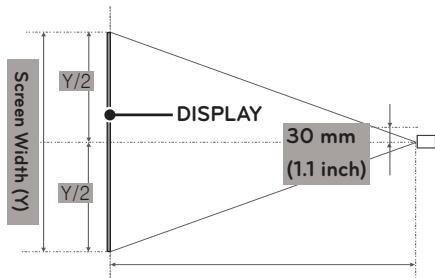

  Projection Distance per Screen Size 15

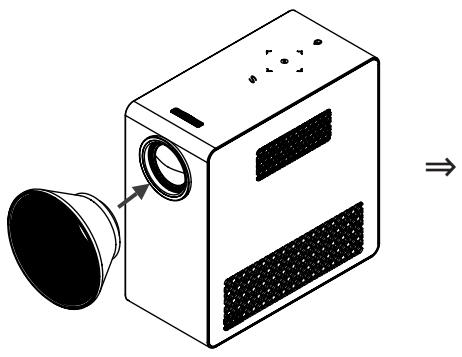

  -Using the Lens Hood 16

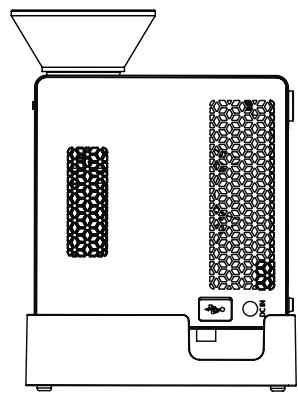

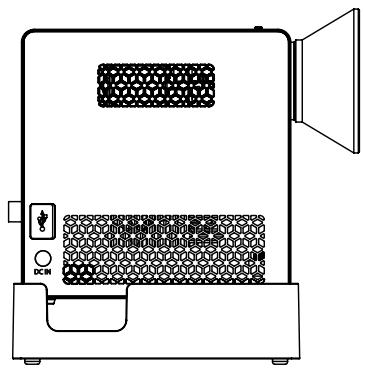

  -Using the Cradle scene 16
• Connecting a battery 17

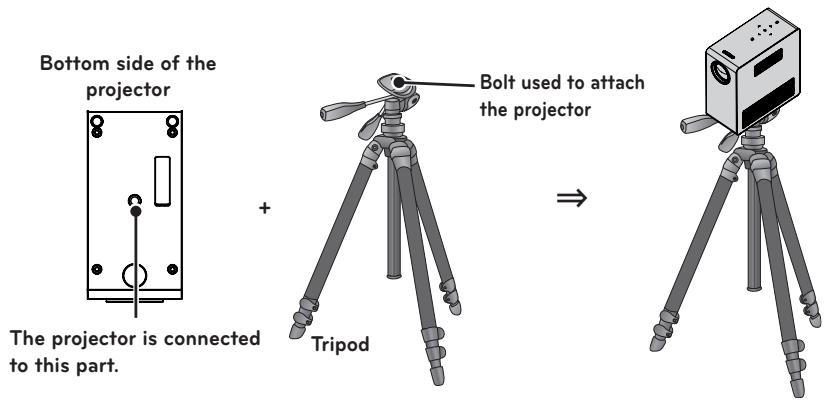

• How to Install the Projector On a Tripod 18

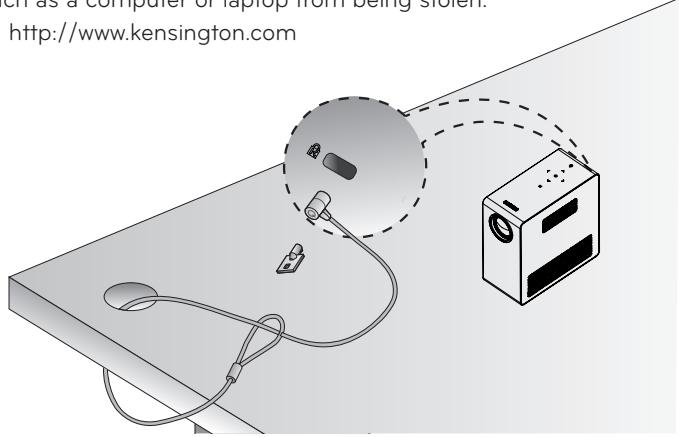

• Kensington Security System 18

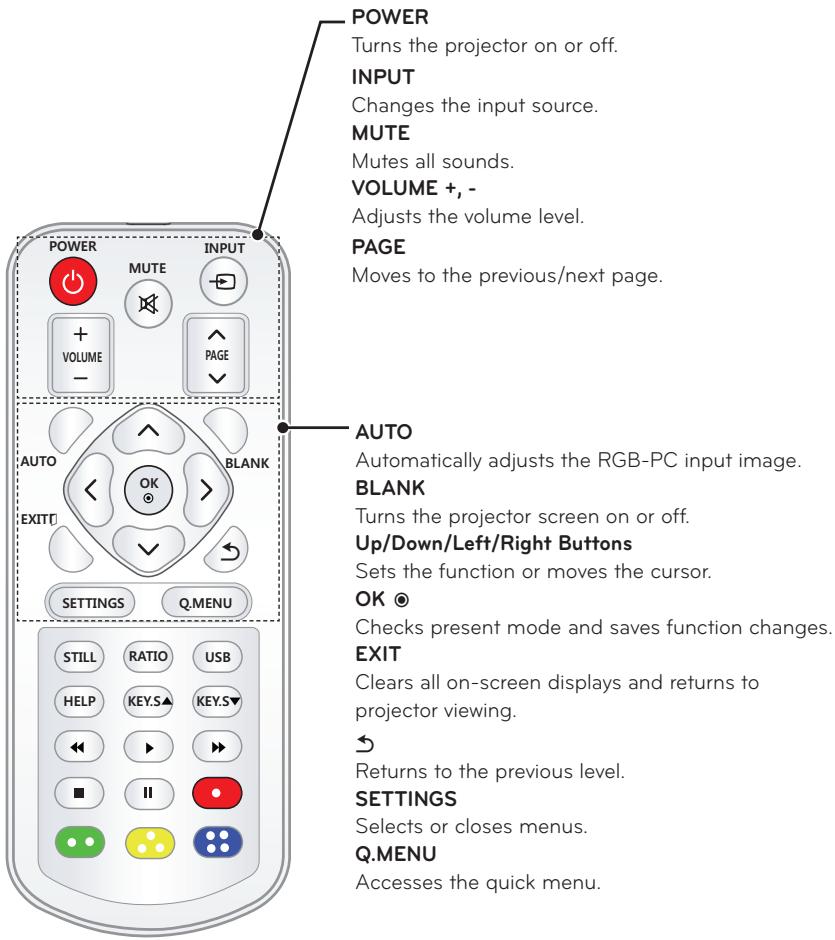

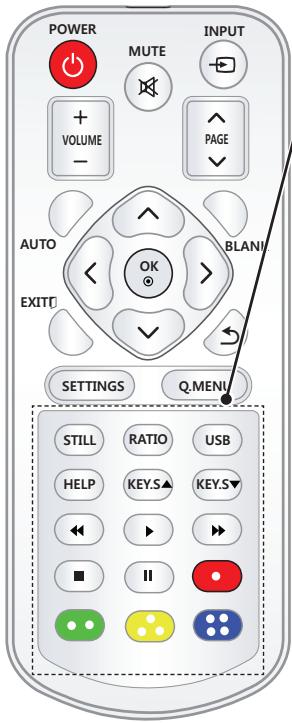

REMOTE CONTROL 19

USING THE PROJECTOR 21

Watching the Projector 21

• Turning on the Projector 21
• Focus and Position of the Screen Image 21
• Watching the Projector 21
  -Using the battery 22
• Battery using time information 22

Using Additional Options 24

• Adjusting Aspect Ratio 24
  Using the Keystone Function 25

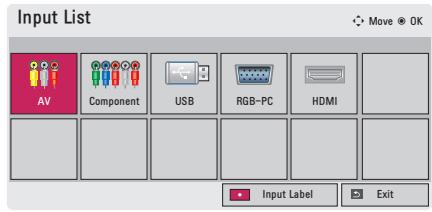

-Using the Input List 25
- Blank Function 26

Using the Quick Menu 26

ENTERTAINMENT 27

Wireless Display Setup (Notebook) 27
Wireless Display Setup (Moblie phone) 27
MY MEDIA 28

• Connecting USB Storage Devices 28
• MOVIE LIST 30

CUSTOMIZING SETTINGS 31

SETUP Menu 31

MAKING CONNECTIONS 32

Connecting to an HD Receiver, DVD
Player or VCR 33

• HDMI Connection 33

Connecting to a PC 33

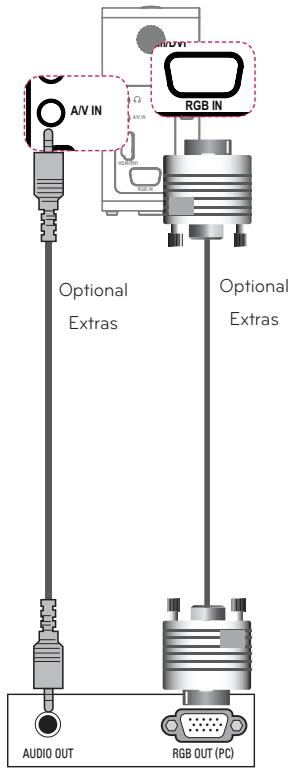

- RGB Connection 33

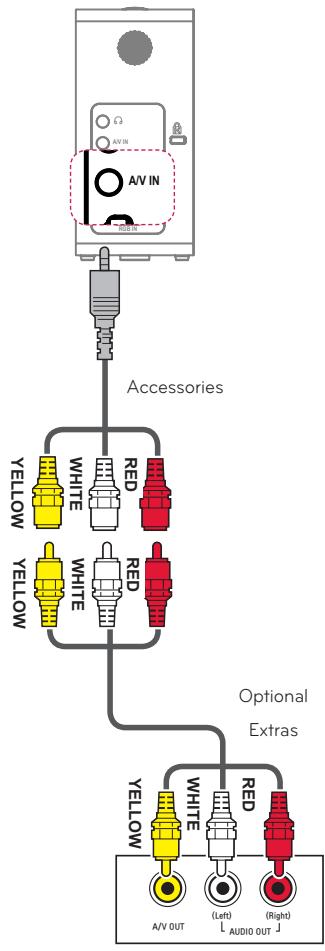

Connecting to the AV INPUT 34

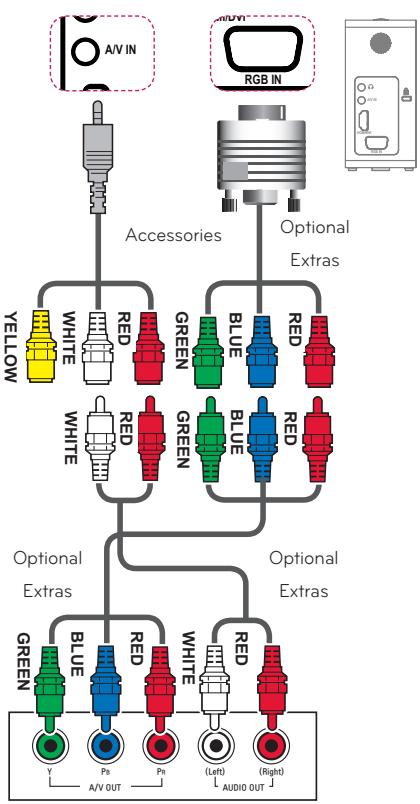

- Component Connection 35

Connecting to Headphones 35

MHL Connection 36

MAINTENANCE 36

Cleaning the Projector 36

• Cleaning the Lens 36
• Cleaning the Projector Case 36

SPECIFICATIONS 37

PREPARATION

Accessories

Check enclosed accessories.

The picture may be different from an actual product.

Remote Control

Coin Battery

(CR 2032)

Adapter

Hood
Composite video cable

Owner's Manual

Power Cord

Battery
Bag

RGB Cable
Owner's Manual CD

Cradle

• When connecting a cable to the HDMI or USB port, it may not be connected properly if the size of jack to the USB/HDMI port is too big. Use a standard sized jack.

A≤10mm, B≤24mm

Optional Extras

To purchase optional extras, visit an electronics store or online shopping site or contact the retail store where you purchased the product.

Without prior notice, optional extras are subject to change in order to improve the performance of the product, and new accessories may be added.

Projector Screen

Tripod

HDMI Cable

Video Cable

Audio Cable

MHL Cable

RGB to Component Cable

Parts and Components

• The projector is manufactured using high-precision technology. You may, however, see tiny black dots and/or bright colored dots (red, blue or green) that continuously appear on the projector screen. This is a normal result of the manufacturing process and does not indicate a malfunction. When powered on, the LED of the control panel turns on.

Button	Description
© (Power)	Turns the projector on or off.
S (Settings)	Selects or closes menus.
Λ, V, <, >	Moves between menus and changes the settings. (<, > button: The volume can be adjusted according to the input mode)
© (OK)	Checks present mode and saves function changes.

1 Due to the high temperature air coming out of the vents, do not get close to the vents.
2 Do not touch the lens when using the projector. The lens may be damaged.

Installation

Installation Precautions

• Place the projector in a well-ventilated environment.
• To prevent internal heat from building up, install the projector in a well-ventilated place.

Do not place anything near the projector as this may block the air vents. If the air vents are blocked, the internal temperature will increase.

• Do not place the projector on a carpet or rug. Do not block any vents on the bottom and use the projector on a leveled solid surface.

• Be sure to prevent foreign objects such as paper debris from entering the projector.

• Leave an adequate open area (30 cm, 11.8 inch or more) around the projector.

• Do not place the projector in a hot or humid environment.
• Do not place the projector in a hot, cold or humid environment.
• Do not place the projector in a place where it will easily attract dust.
• This may cause a fire.
• Do not remove any covers except for the lens cap. There is a high risk of electric shock.
• The projector is manufactured using high-precision technology. You may, however, see tiny black dots and/or bright colored dots (red, blue or green) that continuously appear on the projector screen. This is a normal result of the manufacturing process and does not indicate a malfunction.
• The remote control may not work in an environment where a lamp equipped with electronic ballasts or a three-wavelength fluorescent lamp is installed. Replace the lamp with an internationally standardized lamp for the remote control to work normally.

Connecting an adapter

Connect the DC adapter plug to the power input jack on the projector.

Projection Distance per Screen Size

1 Place the projector on a sturdy, level surface, together with the PC or audio/video source.
2 Place the projector at an appropriate distance from the screen. The distance between the projector and the screen determines the actual size of the image.
3 Position the projector so that the lens is set at a right angle to the screen. If the projector is not set at a right angle, the image on the screen will be tilted and the image quality will be poor. If the screen image is crooked, use the Keystone function.
4 Connect the power cords of the projector and the connected devices to the wall outlet.

Ratio of upward projection: 100%
Projection distance (D)

Projection distance (D)

16:10 Screen
Screen Size (mm)	Screen Size (inch)	Screen Width (Y) (mm)	Screen Width (Y) (inch)	Screen Height (X) (mm)	Screen Height (X) (inch)	Projection Distance (D) (mm)	Projection Distance (D) (inch)
635	25	538	21.1	337	13.2	803	31.6
762	30	646	25.4	404	15.9	966	38.0
889	35	754	29.6	471	18.5	1130	44.4
1016	40	861	33.8	539	21.2	1293	50.9
1143	45	969	38.1	606	23.8	1456	57.3
1270	50	1077	42.4	673	26.4	1619	63.7
1397	55	1185	46.6	741	29.1	1783	70.1
1524	60	1292	50.8	808	31.8	1946	76.6
1651	65	1400	55.1	875	34.4	2109	83.0
1778	70	1508	59.3	943	37.1	2272	89.4
1905	75	1615	63.5	1010	39.7	2436	95.9
2032	80	1723	67.8	1077	42.4	2599	102.3
2159	85	1831	72.1	1145	45.0	2762	108.7
2286	90	1938	76.2	1212	47.7	2925	115.1
2413	95	2046	80.5	1279	50.3	3089	121.6
2540	100	2154	84.8	1347	53.0	3252	128.0

Using the Lens Hood

Turn the lens hood as shown by the arrow.

NOTE

• Be careful not to use excessive force when mounting the lens hood. Failure to do so may damage the product.

Using the Cradle scene

Normal Scene

Top Scene

NOTE

• When projecting images onto the ceiling, you must only use the provided angle-type antenna cable and USB storage device.

Connecting a battery

1. Assemble the projector as shown.

1. Turn the knob as shown by the arrow.

How to Install the Projector On a Tripod

• You can install this projector on a camera tripod as shown below.
• When stabilizing the tripod, we recommend using a locking bolt of standard size 4.5 mm (0.1 inch) or less. The maximum size allowed for the locking bolt is 5.5 ~mm (0.2 inch). (If it is longer than the maximum allowed size, it may damage the projector.)

Kensington Security System

• This projector has a Kensington Security System Connector on the panel. Connect a Kensington Security System cable as below.
• For detailed installation and use of the Kensington Security System, refer to the user's guide included with the Kensington Security System set.
• The Kensington Security System is an optional item.
  What is Kensington?

Kensington is a company that sells security systems that prevent expensive electronic equipment such as a computer or laptop from being stolen.

Internet Homepage: http://www.kensington.com

REMOTE CONTROL

Open the battery cover on the back of the remote control and insert the specified batteries as per instructions The same type of batteries must be used.

STILL

Freezes the moving image.

(Available in any mode other than USB mode.)

RATIO

Resizes an image.

USB

Accesses USB mode.

HELP

Enables the self-diagnosis.

KEY.S ▲,

Adjusts Keystone.

Playback Control Buttons

Controls playback of MY MEDIA.

Color buttons

Access special functions in some menus.

NOTE

• When using the remote control, the optimal remote range is less than 3 meters (9.8 feet) (left/right) and within a 30 degree arc of the IR receiver.
• For seamless operation, do not block the IR receiver.
• When you carry the remote control in the portable bag, make sure that the buttons on the remote control are not pressed by the projector, cables, documents or any other accessories in the bag. Otherwise, it may significantly reduce the battery life.

USING THE PROJECTOR

Watching the Projector

Turning on the Projector

1 Connect the power cord correctly.
2 After waiting for a moment, press the POWER button on the remote control or the control panel. (The light on the control panel will be turned on.)
3 In the Language Selection screen, select a language.
4 Select an input signal by using the INPUT button on the remote control.

Focus and Position of the Screen Image

When an image appears on the screen, check if it is in focus and fits the screen properly.

• To adjust the focus of the image, rotate the focus ring.
• To adjust the focus ring, be careful not to touch the keys on the control panel.

Watching the Projector

1 In Standby mode, press the POWER button to turn the projector on.
2 Press the INPUT button and select the input signal you want.
3 Control the projector using the following buttons while watching projector.

Button	Description
VOL -, +	Adjusts the volume level.
MUTE	Mutes all sounds.
Q.MENU	Accesses the quick menu.
RATIO	Resizes an image.
KEY.S ▲, ▼	Adjusts Keystone.

4 To turn the projector off, press the POWER button.

Using the battery

• It is displayed when the battery is running out..
• As your bettery is low, the projector will be turned off in a minute.

Battery using time information

Status	Time and Display
Charging	About 3 hours
Standard Usage Hours	About 2 hour (Available battery using time approximately 1 hour 30 mins when Energy Saving mode set to Max)
Battery Level Indicator	Step 1 Step 2 Step 3 Step 4

• If you do not use the projector for long periods of time, remove the battery from the projector and store it separately.
  It is recommended to charge the battery to 40 - 50 percent for long-term storage.
• The battery is automatically recharged when the projector is connected to a power supply.
• Charge the battery fully when you first use the projector.
• The battery standard usage time given in the manual is based on measurements taken by LG; the actual time may vary depending on usage.
• Battery usage time may vary depending on broadcast type, operating temperature, period of use, and user preferences.
• As the battery is consumable, its lifetime gradually decreases. When the battery's life is reduced by half, replace it with a new battery from an LG Electronics customer center.
• In battery mode, energy saving mode is disabled.

• Do not charge the battery using any equipment other than that supplied with the product. This may damage the battery or cause a fire.

• Dispose of the used battery appropriately. Failure to do so may result in an explosion or fire. Methods for disposing of batteries vary depending on your country or region. Ensure the battery is disposed of in accordance with applicable laws and regulations.

• Do not throw or disassemble the battery. Damage to the battery may result in fire or an explosion.
• Always use a battery that is approved and certified by LG Electronics, Inc. Failure to do so may result in an explosion or fire.
• Store the battery away from metallic objects, such as keys and paper clips. Overcurrent may cause a rapid increase in temperature, resulting in fire or burns.
• Do not store the battery near any heat source, such as a heater. This may cause a fire or malfunction.
• Do not store the battery in temperatures higher than 60^ or in a humid place. Failure to do so may result in an explosion or fire.
• Keep away from children. Failure to do so may result in personal injury and damage to the product.
• Make sure that the battery is connected correctly. Failure to do so may result in an explosion or fire.
• If the battery leaks or smells, remove it from the projector immediately and contact an LG Electronics customer center.
• The battery contains lithium-ion, so please handle with care. Failure to do so may result in an explosion or fire.
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Using Additional Options

Adjusting Aspect Ratio

You can adjust the aspect ratio of the picture by pressing RATIO while watching projector.

NOTE:

• Available options may vary depending on the input signal.
• You can also change the image size by pressing Q.MENU or SETTINGS.

16:9: Resizes images to fit the screen width.

FULL: Changes to the full screen regardless of the aspect ratio.

Just Scan: Displays video images in the original size without cutting off the edges.

NOTE

• If you select Just Scan, you may see image noises at the edge or edges of the screen.

• Set By Program: Displays images in the same aspect ratio as the original image.

4:3: Resizes images to the 4:3 aspect ratio.

• Zoom: Enlarges an image to fit the screen width. The top and bottom of the image may be truncated.

• Press the < or > button to zoom in or out of the image.

• Press the or button to move the image.

• Cinema Zoom 1: Formats an image to the cinematoscope ratio, 2.35:1. It ranges from 1 to 16.

• Press the < or > button to zoom in or out of the image.

• Press the or button to move the image.

NOTE:

• If you enlarge or reduce an image, the image may be distorted.

Using the Keystone Function

To prevent the screen image from becoming trapezoidal, Keystone adjusts the top and bottom width of the image if the projector is not set at a right angle to the screen.

Because the Keystone function may cause inferior screen image quality, use this function only when it is not possible to set up the projector at an optimal angle.

1 Press the SETTINGS button.
2 Press the , , < or > button to select OPTION and press the OK button.
3 Press the , , < or > button to select Keystone and press the OK button.
4 Press the < or > button to adjusted Keystone.

• Keystone can be adjusted from -40 to 40.

5 Press the OK button after adjustment.

Using the Input List

Using the Input List

1 Press the INPUT button to access the input sources.

• The connected input mode appears first. However, AV / Component input is always activated.

2 Select an input signal using the INPUT button and the projector is switched only to the connected input mode. You can use the , , <or> button to switch between all the input modes.

Adding an Input Label

Displays which devices are connected to which input ports.

1 Press the INPUT button to access the input sources.
2 Press the RED button.
3 Use the or button to scroll to one of the input sources.
4 Use the < or > button to select one of the input labels.

Blank Function

Using the Blank Function

This function may be effective when you need to draw attention during a meeting or training.

1 Press the BLANK button, and the screen is covered by the background color.

You can change the background color by referring to "Selecting a Blank Image".

2 Press any button to clear the blank function.

To cover the screen temporarily, press the BLANK button on the remote control.

Do not block the lens with any object while the projector is running.

It may become overheated and deformed or even cause a fire.

Selecting a Blank Image

1 Press the SETTINGS button.
2 Press the , , <or> button to select OPTION and press the OK button.
3 Press the , , < or > button to select BLANK IMAGE and press the OK button.
4 Use the or button to move to the setting or option you want and press the OK button.

Using the Quick Menu

You can customize frequently used menus.

1 Press Q.MENU to access the quick menus.
2 Press the < or > button to scroll through the following menus and press OK.

Menu	Description
Aspect Ratio	Changes the aspect ratio (see 24 page)
Picture Mode	Changes the picture mode.
Energy Saving	Adjusts the brightness.
Clear Voice II	Makes the voice from the projector crisp and clear.
Sound Mode	Sets the sound mode.
Sleep Timer	Sets the Projector to be turned off at the specified time.
PJT Mode	Turns the projected image upside down or flips it horizontally.
USB Device	Disconnects a USB device.

3 Press the , , < or > button to scroll through the following menus.

ENTERTAINMENT

Wireless Display Setup (Notebook)

1 Run the WiDi program on your notebook.
2 After running the WiDi program on your notebook, a list will show all available devices that were detected. In the list, select the Projector you want and click Connect. Enter the number shown(a) on the screen (b) and then click Continue.

Projector Screen

Notebook Screen

3 The Notebook screen will appear on the projector screen soon. Note that the wireless connection speed will affect the quality of the video displayed on the notebook.

If the connection is poor, the Wireless Display connection may be lost or quality of the video may be poor.

Wireless Display Setup (Moblie phone)

1 Run the Wireless Display program on your mobile phone.
After running the Wireless Display program on your mobile phone, a list will show all available devices that were detected.
3 In the list, select the Projector you want and click Connect. If you need to enter the PIN number, Enter the number on the screen and then click Continue.
4 The mobile phone screen will appear on the projector screen soon. Note that the wireless connection speed will affect the quality of the video displayed on the mobile phone. If the connection is poor, the Wireless Display connection may be lost or quality of the video may be poor.

• For more information on Intel WiDi, visit http://intel.com/go/WiDi.
• If you change the input signal while watching in Wireless Display mode, the Wireless Display connection will be disabled.
• Some menus may not work while Using Wireless Display.

MY MEDIA

Connecting USB Storage Devices

Connect a USB flash drive as shown below.

When a USB storage device is connected, the USB adjustment screen appears.

You cannot write or delete data on the USB storage device.

USB flash drive

To disconnect the USB storage device,

1 Press the Q.MENU button.
2 Use the < or > button to move to USB Device and press the OK button.
3 Remove the USB device.

NOTE

After the USB storage device is disconnected, it cannot be read. Remove the USB storage device and connect it again.

Tips for Using USB Devices

• Only a USB storage device is recognizable.
• USB hubs are not supported.
• A USB storage device which uses its own driver may not be recognized.
• The recognition speed of a USB storage device will depend on each device.
• If a normal USB device does not work, disconnect and reconnect it. Please do not turn off the projector or unplug the USB device when the connected USB device is working. The USB device or stored files may be damaged.
• Please do not connect the USB storage device that has been manipulated on the PC. The projector may not operate properly or fail to play files. Use a USB storage device which contains normal music, photo, video or document files.
• Please only use a USB storage device formatted as a FAT16, FAT32 or NTFS file system provided by Windows. In case a storage device formatted as a different utility program is not supported by Windows, it may not be recognized.

• Please connect power to a USB storage device which requires an external power supply. If not, the device may not be recognized.

• Please connect a USB storage device with a cable provided by the USB manufacturer. When you use a cable that is not provided by a USB manufacturer or an excessively long cable, the device may not be recognized.

• Some USB devices may not be supported or will not work properly.
• If the length of a folder or file is too long, the folder or file may not be recognized properly.
• The files in a USB storage device are sorted in the same way as Windows XP. Up to 100 English characters for a file name are allowed.
• The data of a USB device may be damaged, so it is recommended to backup any important files. Because a user is responsible for data management, the manufacturer is not responsible.
• It is recommended to use a USB flash drive which is 32 GB or less and a USB hard disk which is 1 TB or less. Any device with more than the recommended capacity may not work properly.
• If a USB storage device is not working properly, disconnect it and connect it again.
• If a USB external hard disk with the power saving function does not work, turn the hard disk off and on again to make it work properly.
• USB storage devices below USB 2.0 are supported as well. However, they may not work properly in the movie list.

MOVIE LIST

In the Movie List, you can watch movies stored on the connected USB device.

Tips for Playing Video Files

• Some subtitles created by a user may not work.
• Some special characters are not supported in subtitles.
• HTML tags are not supported in subtitles.
• Time information in a subtitle file should be arranged in ascending order to play the subtitle properly.
• Changing font and color in subtitles is not supported.
• A language which is not specified in the subtitle languages is not supported.
• Subtitle files of 1 MB or larger are not supported.
• The screen may suffer temporary interruptions (image stoppage, faster playback, etc.) when the audio language is changed.
• A damaged video file may not be played properly or some functions may not be available.
  Video files created with some encoders may not be played properly.

• Either audio or video may only be supported depending on the video or audio packet structure of a video file.
  Video files with higher resolution than the maximum supported for each frame may not be played properly.
  Video files in formats other than the ones specified above may not be played properly.

• Streaming files which include GMC (Global Motion Compensation) or Qpel (Quarterpel Motion Estimation) is not supported.

• Up to 10,000 sync blocks are supported in the subtitle file.
• Seamless playback is not guaranteed for files encoded level 4.1 or higher in H.264/AVC.
• DTS audio codec is not supported.
  Video files larger than 30 GB (Gigabytes) are not supported.
• Playing a video via a USB connection that does not support high speed may not work properly.
• A video file and its subtitle file must be located in the same folder. A video file name and its subtitle file name must be identical in order to display the subtitle properly.
  While watching a video using the movie list function, you cannot adjust the picture mode.
• Trick Mode does not support other functions than if video files do not have index information.
• When playing a video file using network, the Trick mode is limited to 2X speed.
• Video file names that contain special characters may not be playable.

CUSTOMIZING SETTINGS

SETUP Menu

1 Press the SETTINGS button.
2 Use the , , < or > button to select a desired item and press the OK button.
3 Use the , , < or > button to set up a desired item and press the OK button.
4 When you finished, press EXIT.

Menu		Description
	PICTURE	Adjusts the image quality for optimal viewing.
	AUDIO	Adjusts the sound quality and volume level.
	TIME	Sets the time and time-related features.
	OPTION	Customizes the general settings.
	INPUT	Selects the desired input source.
	MY MEDIA	Accesses photo, music, movie, and document files.

MAKING CONNECTIONS

You can connect various external devices to the ports on the projector.

Connecting to an HD Receiver, DVD Player or VCR

Connect an HD receiver, DVD Player or VCR to the projector and select an appropriate input mode.

HDMI Connection

With an HDMI cable, you can enjoy high quality picture and sound. Press the INPUT button on the remote control to select HDMI.

Connecting to a PC

The projector supports Plug & Play. A PC will automatically recognize the projector and requires no driver to be installed.

RGB Connection

Connect the PC output and the PC video input port of the projector with the RGB cable.

For audio signal, connect the PC and the projector with an optional audio cable.

RGB Connection

You can connect the audio cable without using a gender as shown in the illustration above.

Connecting to the AV INPUT

Connect the output ports of an external device and the AV INPUT port of the projector. Press the INPUT button to select AV.

Component Connection

You can enjoy vivid images when you connect an external device with a RGB IN port to the component port of the projector. Press the INPUT button on the remote control to select Component.

Connecting to Headphones

You can listen to the audio through a.
headphone.

MHL Connection

Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile phones to television sets.

Mobile phone

NOTE

• Connect the mobile phone to the HDMI IN port to view the phone screen on the Projector.
• The MHL passive cable is needed to connect the Projector and a mobile phone.
• This only works for the MHL-enabled phone.

MAINTENANCE

Clean your projector to keep it in optimum condition.

Cleaning the Projector

Cleaning the Lens

If there is any dust or staining on the lens surface, you must clean the lens. Use an air spray or a cleaning cloth to clean the lens.

To remove dust or stains, use an air spray or apply a small amount of cleaning agent onto a swab or soft cloth to lightly rub the lens.

Please be aware that liquid may flow onto the lens if the product is sprayed directly onto the lens.

Cleaning the Projector Case

To clean the projector case, first unplug the power cord.

To remove dust or stains, use only a dry, lint-free, nonabrasive cloth to polish the lens.

Do not use alcohol, benzene, thinners or other chemicals, which may damage the case.

SPECIFICATIONS

MODELS	PG60G (PG60G-JE)
Resolution (Pixel)	1280 (Horizontal) × 800 (Vertical)
Aspect ratio	16:10 (Horizontal:Vertical)
Panel size (mm)	11.623 (0.4 inch)
Projection distance (Video size)	0.80 m - 3.25 m (63.5 cm - 254.0 cm) 31.4 inch - 127.9 inch (25 inch - 100 inch)
Ratio of upward projection	100 %
Working range of the remote control	3 m (118.1 inch)
Video input	NTSC M / PAL-B, D, G, H, I / PAL M / PAL N / PAL 60 / SECAM
AC-DC Adaptor	19.5 V---, 4.62 A (Adaptor Input 100 ~ 240 @ 50 Hz/60 Hz)
Audio Output	3 W MONO
Height (mm)	125 (without foot) (4.9 inch) 127.5 (with foot) (5.0 inch)
Width (mm)	60 (2.3 inch)
Depth (mm)	125 (without foot) (4.9 inch) 131 (with foot) (5.1 inch)
Weight (kg)	0.68 (1.4 lbs)
USB Device	5 V, 0.5 A (Max.)
Operation environment	Temperature
	Operation	0 °C - 40 °C (32 °F - 104 °F)
	Storage	-20 °C - 60 °C (-4 °F - 140 °F)
	Relative Humidity
	Operation	0 % - 80 %
	Storage	0 % - 85 %

Supported Monitor Display

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640 x 350	31.468	70.09
720 x 400	31.469	70.08
640 x 480	31.469	59.94
800 x 600	37.879	60.31
1024 x 768	48.363	60.00 119.99
1152 x 864	54.348	60.053
1280 x 800	49.68	60
1360 x 768	47.712	60.015
1280 x 1024	63.981	60.020
1400 x 1050	65.317	59.979
1680 x 1050	65.3	60

• If an invalid signal is input into the projector, it will not be displayed properly on the screen or a message such as No Signal or Invalid Mode will be displayed.
• The projector supports the DDC1/2B type as the Plug & Play function (Auto-recognition of PC monitor).
• PC synchronization signal types supported: Separate type synchronization.
• In PC mode, 1280 × 800 is recommended for the best picture quality.

HDMI/DVI-DTV/WiDi

supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
720 x 480	31.469	59.94
	31.5	60
720 x 576	31.25	50
1280 x 720	37.5	50
	44.96	59.94
	45	60
1920 x 1080	33.72	59.94
	33.75	60
	28.125	50
	26.97	23.97
	27	24
	33.716	29.976
	33.75	30.00
	56.25	50
	67.43	59.94
	67.5	60

Open Source Software Information

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution

(such as the cost of media, shipping and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

Wireless Specifications

(TWFM-B006D)

Standard	IEEE802.11a/b/g/n
Frequency Range	2400 MHz to 2483.5 MHz 5150 MHz to 5250 MHz 5725 MHz to 5850 MHz (For Non EU)
Output Power (Max.)	802.11a: 11 dBm 802.11b: 14 dBm 802.11g: 10.5 dBm 802.11n - 2.4 GHz: 11 dBm 802.11n - 5 GHz: 12.5 dBm

• Because the band channel used by the country could be different, the user cannot change or adjust the operating frequency and this product is set for the regional frequency table.

C∈0197①

Component port connecting

information

Signal	Component
480i / 576i	o
480p / 576p	o
720p / 1080i	o
1080p	o (50 Hz / 60 Hz only)

LG

Life's Good

The model and serial number of the projector are located on the back or on the side of the projector. Record them below should you ever need service.

MODEL

SERIAL

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

CAUTION. Possibly hazardous optical radiation emitted from this product. DO not stare at operating lanp. May be harmful to the eye.

Sommaire

LICENCES 2

CONSIGNES DE SECURITÉ 3

AFFICHAGE DU MANUEL D'UTILISATION 9

PREPARATION 11

Accessoires 11

Supplémentes en option 12

CAUTION. Possibly hazardous optical radiation emitted from this product. DO not stare at operating lanp. May be harmful to the eye.

INHALTSVERZEICHNIS

LIZENZEN 2

Wireless Display Setup (Notebook)

CAUTION. Possibly hazardous optical radiation emitted from this product. DO not stare at operating lanp. May be harmful to the eye.

INDICE

LICENZE 2

Low battery! The projector will turn off soon

7,295,673; 7,460,668; 7,515,710; 7,519,274"

CAUTION. Possibly hazardous optical radiation emitted from this product. DO not stare at operating lanp. May be harmful to the eye.

CONTENIDO

LICENCIAS 2
