Brand	Cotech
Model	M1Q-65D / M1Q-65D-UK
Product Type	Jig Saw
Power Supply	230 V ~ 50 Hz
Power Consumption	600 W
No-load Speed	500-3000 rpm
Max Cutting Depth in Wood	65 mm
Max Cutting Depth in Metal	6 mm
Sound Pressure Level (Lpa)	90.4 dB(A)
Sound Power Level (Lwa)	101.4 dB(A)
Vibration Level	3.3 m/s²
Blade Holder	Allen key (hex key) fixing
Footplate Adjustment	Tilts up to 45° left/right
Parallel Stop	Included, adjustable
Pendulum Action	4 settings (0-3) for different materials
Speed Adjustment	Variable speed wheel
Continuous Operation Lock	Yes, via locking button
Vacuum Adapter	Included
Safety Equipment	Protective goggles, ear plugs recommended
Accessories	Allen key, saw blades (set)
Maintenance	Keep ventilation slots clean; clean with soft cloth and mild detergent

Frequently Asked Questions - M1Q-65D Cotech

What is the maximum cutting depth in wood for the Cotech M1Q-65D jig saw?

The maximum cutting depth in wood is 65 mm.

Can the footplate be tilted for bevel cuts?

Yes, the footplate can be tilted up to 45° to the left or right by loosening the Allen head screws.

How do I change the saw blade on the M1Q-65D?

Unplug the tool, loosen the Allen head screws holding the blade, insert the new blade into the groove, and tighten the screws securely.

What is the purpose of the pendulum action?

The pendulum action lifts the blade on the return stroke to improve chip removal and cooling. It can be adjusted via the lever for different materials (0 for metal, 1 for non-ferrous metals/hardwood, 2 for wood, 3 for fast cuts in wood).

How do I adjust the cutting speed?

Rotate the wheel on the tool to set the desired speed. This can be done while the tool is running. After prolonged low-speed use, run at maximum speed for 3 minutes to cool the motor.

What safety precautions should I take when using the jig saw?

Always wear protective goggles and ear plugs. Keep hands away from the blade. Do not saw into walls where hidden wires may be present; turn off power at the mains and use only plastic parts of the saw.

Why is the motor sparking or running slowly?

Sparks may indicate worn carbon brushes or a dirty commutator; contact customer service. Slow running can be due to a dull blade or low speed setting. Sharpen or replace the blade and increase speed.

How do I use the parallel stop?

Insert the parallel stop into the slots on the footplate, adjust to the desired distance, and tighten the screws. This allows straight cuts parallel to an edge.

What accessories are included with the M1Q-65D?

The package includes an Allen key and a set of saw blades.

Is the tool suitable for cutting metal?

Yes, with a maximum cutting depth of 6 mm in metal. For metal cutting, set the pendulum action to 0 and use a suitable metal-cutting blade.

USER MANUAL M1Q-65D Cotech

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Exterior view of a CoTech J-shaped tool (no text or symbols on body)

ART.NO. MODEL

18-3017 M1Q-65D-UK

30-8626 M1Q-65D

Ver. 200809

Jig saw

ART.NO.: 18-3017 MODEL: M1Q-65D-UK 30-8626 M1Q-65D

Please read the entire instruction manual before using and save it for future use. We apologise for any text or photo errors and any changes of technical data. If you have any questions concerning technical problems please contact our Customer Service Department (see address on reverse.)

General safety instructions

Warning! Read all the instructions. Failure to adhere to the following instructions may lead to electric shocks, fires and/or serious injury. The term “electrical hand tools” in the warning text below is referring to your mains operated or battery operated hand tool. SAVE THE INSTRUCTIONS.

1) The work space

a) Keep the work space clean and well illuminated. Cluttered and poorly lit areas invite accidents.
b) Do not use electrical hand tools in explosive environments, i.e. nearby flammable liquids, gas or dust. Electrical hand tools generate sparks that could easily ignite dust or fumes.
c) Keep away from children and other spectators while using the electrical hand tool. Distractions can make you lose your concentration and control.

2) Electrical safety

a) The electrical hand tool's plug must fit correctly in the wall socket. Never modify the plug in any way. Never use an adaptor together with earthed electrical hand tools. Unmodified plugs and suitable wall sockets decrease the risk of electric shock.
b) Avoid body contact with earthed objects, such as pipes, radiators, ovens or refrigerators. There is an increased risk of electrical shock if your body is earthed.
c) Do not expose the electrical hand tool to rain or other wet conditions. If water gets inside an electrical hand tool it increases the risk of electrical shock.
d) Do not misuse the lead. Never use the lead to carry, drag or pull the plug out of the wall socket. Keep the lead away from heat, oil, sharp edges and movable parts. Damaged or tangled leads increase the risk of electrical shock.
e) When you use an electrical hand tool outdoors; use an extension cord suitable for this purpose. Use of an extension cord for outdoor use decreases the risk of electrical shock.

3) Personal safety

a) Pay attention to what you do and use common sense when using electrical hand tools. Never use an electrical hand tool if you are tired or under the influence of drugs, alcohol or medication. One moment of not paying attention while using an electrical hand tool may result in serious injury.
b) Use protective equipment. Always use safety glasses. Using protective equipment such as a face mask, slip resistant protection shoes, a helmet and ear defenders when needed decreases the risk of injury.
c) Avoid unexpected start. Make sure that the switch is set to OFF before you connect the device to the wall socket. Never carry an electrical hand tool with one finger on the trigger or never connect the hand tool to a wall socket when the switch is set to ON, since it may result in injury.
d) Remove all service tools/keys before switching on the hand tool.
A forgotten service tool on a rotating part of the electrical hand tool may result in injury.
e) Do not overreach. Make sure you stand steady and well balanced at all times. This gives better control in unexpected situations.
f) Wear suitable clothing. Do not wear loose fitting clothes or jewellery. Keep hair, clothes and gloves away from movable parts. Loose fitting clothes, jewellery or long hair could get caught in movable parts.
g) If the equipment for suctioning or collecting dust is available make sure it is connected and used properly. Using technical aids may reduce dust related hazards.

4) Use and maintenance of the electrical hand tools.

a) Do not overdrive the hand tool. Use a hand tool suitable for the work you are to perform. At the correct rate of feed, the correct tool will carry out the work better and more safely.
b) Never use the electrical hand tool if the switch does not work properly to turn on and shut off the tool. All electrical hand tools that can not be operated by the switch are dangerous and must be repaired.
c) Unplug the lead from the wall socket before making any adjustments, changes of accessories or storing the electrical hand tool away. These precautions reduce the risk of unexpected start of the electrical hand tool.
d) Store electrical hand tools that are not being used out of reach from children. Do not let people unfamiliar with the electrical hand tool or its instructions use it. Electrical hand tools can be dangerous if they get into the hands of inexperienced users.

e) Maintenance of electrical hand tools. Check if something is incorrectly set, if movable parts are getting jammed, or parts are broken or something else that might cause the electrical hand tool to malfunction. If something is damaged it must be repaired before use. Many accidents are caused by poorly maintained electrical hand tools.
f) Keep the tools sharp and clean. Properly maintained cutting tools with sharp blades are less likely to jam and are easier to control.
g) Use the electrical hand tool, accessories and such according to the instructions and in a way suitable for the type of electrical hand tool used. Using the electrical hand tool for work other than that for which it is intended could result in a dangerous situation.

5) Service

a) Repairs and service should only be performed by qualified persons, and only with original spare parts. This guarantees the safety of the electrical hand tool.

Safety Instructions for Jig saw EN 60745-2-11

Caution: Always unplug the main electric line before adjustment, service, or maintenance of the machine.

1. If the main electric cord is damaged, it may only be replaced by a retailer.
2. Keep your hands away from the blade and other movable parts. Do not reach under the material being sawed. The blade or your hand may be out of sight.
3. Never hold a hand or a finger between the pendulum arm and the gear casing. There is a risk that they will get caught in the machine.
4. Do not saw in walls or elsewhere where there may be hidden electric cables. If you still have to saw: Remove all fuses and turn off all power switches that may connect to the electric cables. Only touch the plastic parts of the jig saw. Do not touch any metal part when the jig saw is used on an area where there may be hidden electric cables.
5. Do not use dull or damaged saw blades. Bent saw blades can easily break or cause kick-backs.
6. Start the motor and allow it to rev up before sawing.
7. Attach smaller work pieces with clamps, screw clamp, etc. before beginning to saw. Otherwise, if it bends or begins to vibrate, you may lose control of the tool.
8. Make sure that the settings are correct and that the blade is locked firmly in place before beginning to saw.

Product labelling with safety symbols

Three circular icons representing head, ear, and open book symbols (no text or labels)

• Read the entire operations manual.
  • Always use ear plugs.
  • Always use protective goggles.

Technical specifications

Voltage 230 V \~ 50 Hz

Power 600 W

No-load speed 500-3000 rpm

Max. sawing depth in wood 65 mm

Max sawing depth in metal 6 mm

Lpa (sound pressure) 90.4 dB (A)

Lwa (sound power) 101.4 dB (A)

Vibration rate 3.3 ~m / s^2

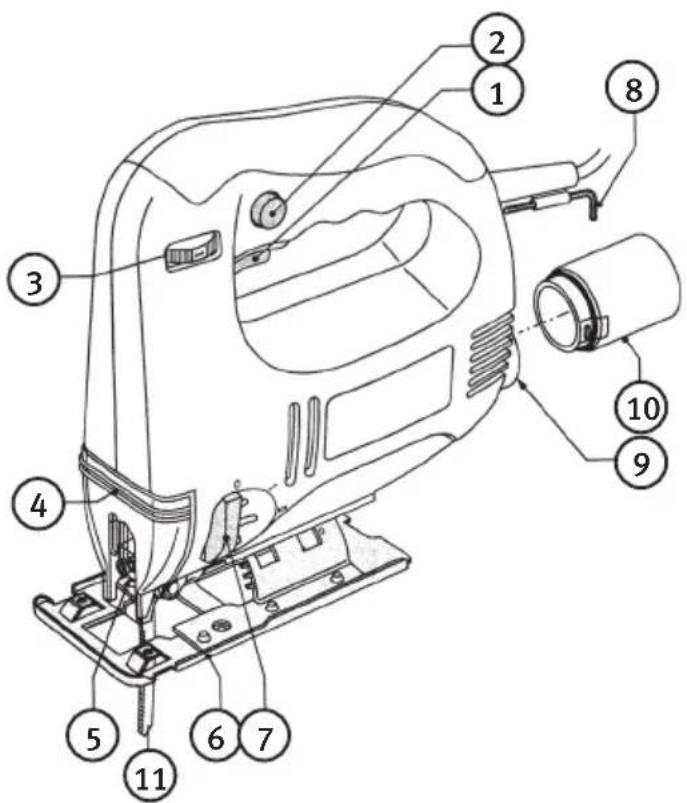

Product description

1. Power switch
2. Locking button
3. Wheel for setting rpm's
4. Saw blade cover
5. Blade holder
6. Footplate
7. Lever for adjustment of pendulum movements
8. Holder and Allen key
9. Connection for vacuum adapter
10. Vacuum adapter
11. Saw blade

Accessories

- Allen key

- Saw blades

- Allen key - Saw blades

Assembly and adjustment

Important!

Unplug the cord before all types of servicing.

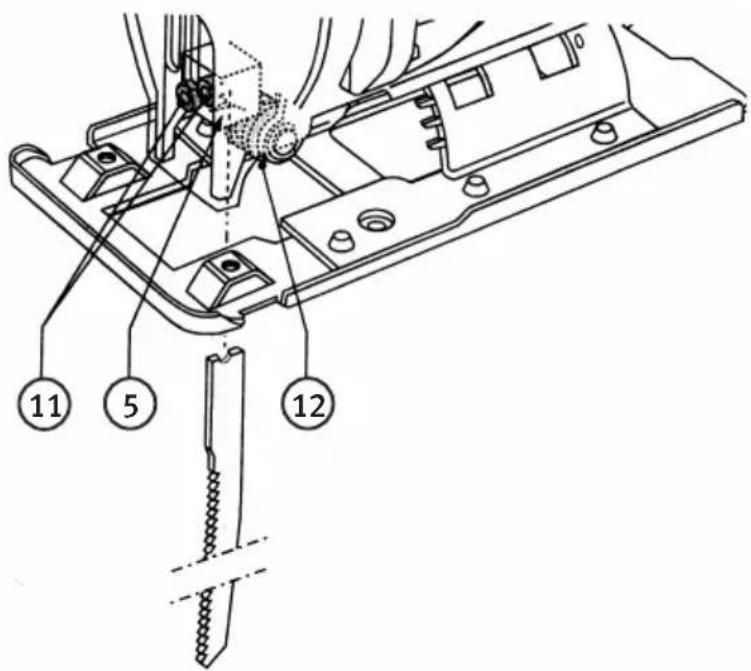

Replacement of saw lades

• Loosen the Allen head screws (11) holding the saw blade in place.
• Insert the saw blade into the groove (5).
• Tighten the screws (11).
• Check that the blade is correctly installed.

Adjusting the footplate

• The footplate (6) can be tilted up to 45^ to the right or left.
• Loosen the Allen head screws (13).
• Adjust to the desired angle.
• Tighten the screws (13).

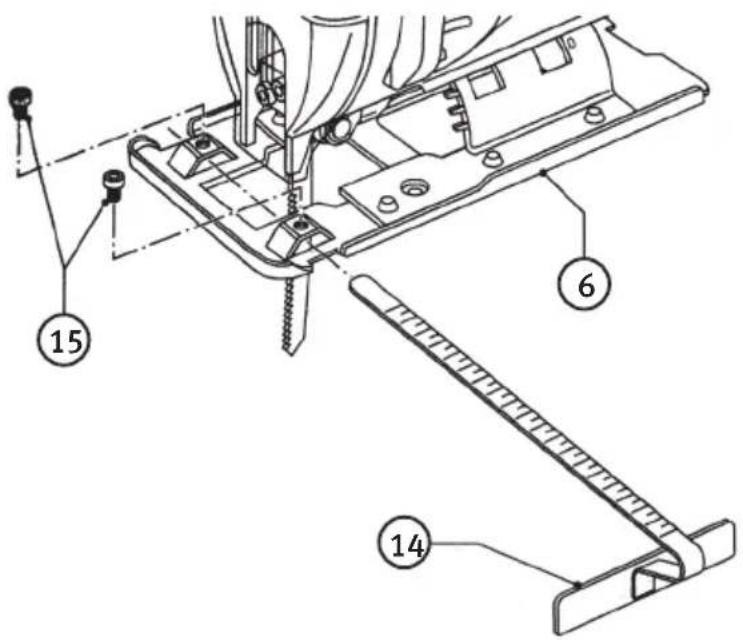

Sawing with parallel stops

• Insert the parallel stop (14) into the slots.
• Adjust to the desired measurement.
• Tighten the screws (15).

Turning on/off

Start: Press the power switch (1).

Off: Release the switch.

• To lock the power switch in the set position, press the locking button (2) and the power switch (1) (at the same time).
  • To release the lock, press the power switch and then release.

Adjusting the speed setting

Set the speed by rotating the wheel (3). This can be done also while running. After sawing for an extended period of time at a low speed setting, the motor should be allowed to run at maximum for about 3 minutes to cool down the motor.

Adjusting the pendulum

The saw can be adapted to different materials by adjusting the pendulum movement. When the saw blade moves outwards, it is also lifted from the workpiece, which improves the dust extraction and the cooling of the workpiece.

1. Plate, steel, or rubber.
2. Non-ferrous metals, hardwood, plastics.
3. Wood.

Troubleshooting

The following table contains information that may be of help when troubleshooting.

Symptom Possible cause	Measure
The machine does not run.	No power. Check that the	wall socket is functioning.
	Worn carbon brushes. Contact us	us if you have a motor or electrical problem.
	Short circuit.
	Defective power switch.
The machine runs slowly.	Dull or damaged tool. Sharpen or replace.	replace.
	Speed to low. Increase the speed with the wheel.
	The motor is overheated. Do not feed too fast.
Unusual sounds.	Mechanical problem. Contact us.	the blade and make sure that it is correctly assembled.
	A partial short in the winding.
Strong vibrations. The blade is loose. Tighten
Sparks in the motor.	Carbon brushes are caught.	Contact us.
	A short in the winding.
	The commutator is dirty.

Care and maintenance

• Always keep the ventilation opening free of sawdust and debris.
• Clean the machines regularly with dishwashing detergent and a soft cloth.
• Do not use dissolvents.

Disposal

Follow local ordinances when disposing of this product. If you are unsure about how to dispose of this product contact your municipality.

Pendelsticksåg

ART.NR: 18-3017 MODELL: M1Q-65D-UK

30-8626 M1Q-65D

Three circular icons showing a person wearing sunglasses, a person with headphones, and an open book with an 'i' symbol (no text or numbers present)

Till-/fränkoppling

Start: Tryck in strömbrytaren (1).

Av: Släpp knappen.

Three circular icons showing a person wearing sunglasses, a person with headphones, and an open book with an 'i' symbol (no text or numbers present)

• Les hele bruksanvisningen før du bruker produktet og spar den for framtidig bruk.
• Bruk alltid vernebrille.
• Bruk alltid hørselvern.

Til- og frakobling

Three circular icons showing a person wearing sunglasses, a person with headphones, and an open book with an 'i' symbol (no text or numbers present)

Asennus ja säädöt

Tärkeä tieto!

Jalan säätö

Käynnistys/Sammutus

Kierrosluvun asetus

Declaration of Conformity

CE

Hereby, Clas Ohlson AB declares that the machinery:

JIG SAW

CO/TECH 18-3017 / 30-8626

M1Q-65D-UK / M1Q-65D

Complies with the following Directive:

98/37/EC MACHINERY

2006/95/EC LOW VOLTAGE EQUIPMENT

89/336/EEC EMC

Insjön, Sweden, September 2008

K. Balkow

President

Clas Ohlson, 793 85 Insjön, Sweden
