USER MANUAL DB5013 Cotech

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Technical line drawing of a mechanical device with a mounted tool and control panel (no text or symbols)

ART.NO

18-4456

31-5053

MODEL

DB5013-UK

DB5013

Ver. 20140428

Original instructions

Bruksanvisning i original

Please read the entire instruction manual before using the product and save it for future reference.

We reserve the right for any errors in text or images and any necessary changes made to technical data.

If you have any questions regarding technical problems please contact our Customer Services.

Safety

Double insulated for additional protection

Conforms to relevant safety standards.

Read the entire instruction manual before use.

General hazard warning symbol. Specific safety precautions are required by the user.

Keep children and pets a safe distance away from the machine.

Beware of flying objects. Make sure onlookers are kept at a safe distance.

This product should be disposed of in accordance with local regulations. If you are unsure how to proceed, contact your local authority.

Never insert your hands into the discharge chute.

Danger – rotating feed screw.

Danger – risk of electric shock (machines with electric start). Never start the machine from the mains (230V) under rainy conditions.

General safety precautions

• The snow blower must not be used by anyone (including children) suffering from physical or mental impairment. This product should not be used by anyone that has not read the instruction manual unless they have been instructed in its use by someone who will take responsibility for their safety.
• Read carefully through the instructions and inform yourself about all controls and functions and how to correctly use the snow blower.
• Never let children or others who do not have the adequate knowledge of these instructions use the snow blower. Local ordinances can have restrictions regarding the user's age.
• Remember that the user/driver is always ultimately responsible for accidents caused by use of the snow blower.
• Be careful not to fall or slip, especially when the snow blower is in reverse.
• Never use the snow blower whilst under the influence of drugs, alcohol or medicine. Do not use the product if you are tired or sick.
• The snow blower must only be repaired by qualified staff and only using original parts.
• Never use accessories not approved for use by the manufacturer or the retailer where the snow blower was purchased.

Preparations

• Make sure that the area being cleared is free from loose and foreign objects.
• Remove all service tools/keys before switching the snow blower on. A spanner or other tool which has been left on a rotating part of the blower could result in an injury.
  • Make sure that the controls are easily manoeuvrable and that they return to their original position when released.
• Pre-plan the area to be cleared in order to avoid personal or property damage by flying objects.
• Never use the snow blower without proper clothing. Use appropriate footwear with solid traction especially in slippery conditions.
• Under no circumstances may maintenance and service be performed when the engine is on (unless otherwise instructed in the instruction manual).
  • Always use safety glasses or a visor when operating or carrying out maintenance on the snow blower.
• Let the snow blower adjust to outdoor temperatures before use.

Electrical safety

• If using an extension lead, make sure that it is designed for outdoor use.
• Never modify an extension lead or its plug in any way. Unmodified plugs and suitable wall sockets minimize the risk of electric shocks.
• Do not abuse the mains lead. Never use the mains lead or extension lead to pull or jerk the plug from the wall socket. Keep electrical leads away from heat, oil, sharp edges and moving parts. Never use a damaged mains or extension lead.
• Never use the snow blower if its on/off switch is damaged or malfunctioning. Make sure that it is repaired by a qualified electrician before using it.

Safety precautions during use

• Make sure to keep hands and feet away from rotating parts. Avoid the discharge chute.
• The snow blower cannot be used for any other purpose than for removing snow.
• Be careful when using on gravel paths, pavement and roads. Be attentive for possible hazards and nearby traffic. Avoid steep inclines.
• Never point the discharge chute towards public roads or traffic.
• Stop the engine immediately if you have struck a foreign object. Inspect the machine carefully after such an incident. Do not reuse the snow blower until any possible damage has been repaired.

• If the snow blower begins to vibrate abnormally, turn off the engine immediately and find the cause. Vibrations are normally a sign of problems.

• Existing safety features may not be disconnected or made inoperative.

• Never use the snow blower in the vicinity of fences, cars, windows, inclines, etc. without properly adjusting the discharge chute.
  • Always keep children and pets away from the areas to be cleared of snow.
• Never overload the blower by driving it too fast.
• Be very careful when reversing. Always look behind you for possible obstacles.
• Never point the chute towards onlookers. Never let anyone stand in front of the snow blower.
• Never use the snow blower in conditions of inadequate visibility or improper lighting.
• Make sure you are well-balanced and have a firm grip on the handles while using the snow blower.
• Never use the snow blower on roofs.

Safety instructions specific to snow blowers

• Read the instruction manual thoroughly. Familiarize yourself with all the controls and functions of the snow blower before attempting to use it. It is very important that you know how to switch the snow blower on and off and how to disengage the drive.
• Make sure that the discharge chute is fitted correctly and undamaged and that all the controls move smoothly and return to their original positions when released. If any part of the snow blower is missing or damaged, it must be repaired/replaced before use.
• Pre-plan the area to be cleared in order to avoid personal or property damage by flying objects.
• Always unplug the mains lead before clearing snow blockages from the feed screw, impeller housing or discharge chute. Note: Use a suitable tool such as a plastic or wooden stick - never your hands.
• Never leave the snow blower unsupervised when it is connected to an electrical socket. Unplug the mains lead and remove the ignition key before leaving the snow blower.
• All safety devices and guards must be in place and working properly before the snow blower is used.
• If the mains and/or extension lead is damaged in any way during use, stop work immediately and unplug it. Have the lead replaced or repaired before continuing work.
• If any part of the snow blower has been replaced, all the functions of the snow blower should be tested before snow clearing is commenced.
  • Always unplug the mains lead and remove the ignition key before relocating the snow blower.
• Always respect local regulations regarding noise and exhaust emissions. Show consideration for your neighbours and choose a reasonable time to begin work.

Contents

The snow blower comes with the following accessories:

• 3 cable clips
• Chute crank, upper and lower part
  • Key

Buttons and functions

1. [On/off] switch
2. Key
3. Chute

4. Rubber bladed feed screw

5. Feed screw starting handle

6. Handle
7. Chute direction crank
8. Carrying handle
9. Drive belt cover

Assembly

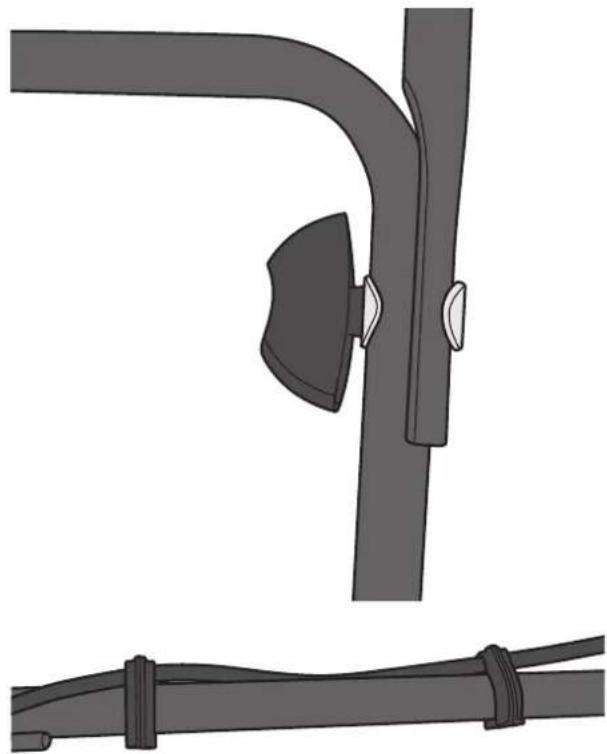

Handle

Join the parts of the handle together using the 4 bolts, wing nuts and washers. If the nuts and bolts were fastened to the handles upon delivery, they will need to be removed first.

Technical illustration of a mechanical device with a handle and lever mechanism (no text or symbols)

1. Hold the middle part of the handle so that the holes line up with the holes in the lower part. Fasten them together using bolts, washers and wing nuts. The wing nuts should be on the outside of the handle.

2. Hold the upper part of the handle so that its holes line up with the holes in the middle part. Fasten them together using bolts, washers and wing nuts. The wing nuts should be on the inside of the handle.

3. Fasten the cable to the handle using two of the included cable clips.

Technical illustration of a mechanical linkage assembly with two views (top and side), no text or symbols present.

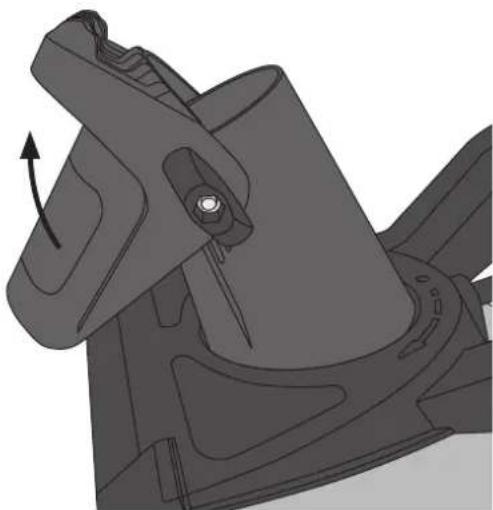

Chute

Mechanical component diagram showing a rotating assembly with an arrow indicating rotation (no text or symbols present)

1. Undo the wing nuts holding the upper part of the chute in place just enough to enable you to lift the top of the chute.

Note: Make sure that there is no gap between the upper part and lower parts of the chute.

Mechanical component diagram showing a lever mechanism with mounting flanges and a central hub (no text or symbols)

1. Set the top of the chute in the desired position and lock it in place using the wing nuts.

Chute direction crank

1. Slot the two parts of the crank together and fasten using the included nuts and bolts.

Mechanical component diagram showing a piston and lever mechanism (no text or symbols)

1. Slot the crank into its hole at the base of the chute and fasten it.

Technical illustration of a mechanical component with crosshair lines, no visible text or symbols

Mechanical assembly diagram showing a cable with attached components and connectors (no text or symbols)

1. Mount the crank's eyelet through the hole in the middle handle and tighten its retaining nut to secure it.

Operation

Note: Knot the extension lead loosely around the middle of the handle to prevent it from accidentally disconnecting during operation.

Illustration of a rope knot and knot tied with a string (no text or symbols)

Starting

1. Make sure that the safety lever for the feed screw drive is released so the blower is in neutral.
2. Insert the ignition key. Make sure that it is pushed all the way in.
3. Connect an extension lead approved for outdoor use to the mains lead of the snow blower and to an earthed wall socket.
4. Press and hold the [on/off] switch.
5. Pull the safety lever in towards the handle to start the feed screw. Release the [ on/off ] switch.
6. Release the safety lever to stop the feed screw.

Care and maintenance

• Always disconnect the mains lead from the power before servicing or adjusting the snow blower.
• Regularly check that all the nuts and bolts are tight and that the snow blower is undamaged and working properly.
- Ensure that any safety/warning labels are visible and legible. Replace any damaged or illegible labels.
- Always unplug the mains lead after use and before cleaning snow off the feed screw, impeller housing or discharge chute.
- Store the snow blower in a dry, sheltered place out of the reach of children.
- Never store the snow blower with the mains lead plugged into a wall socket.

Changing the feed screw blades

1. Unplug the mains lead from the wall socket.
2. Undo the nuts and bolts and remove the rubber blades.
3. Replace the blades with new ones, refit the nuts and bolts and tighten them.

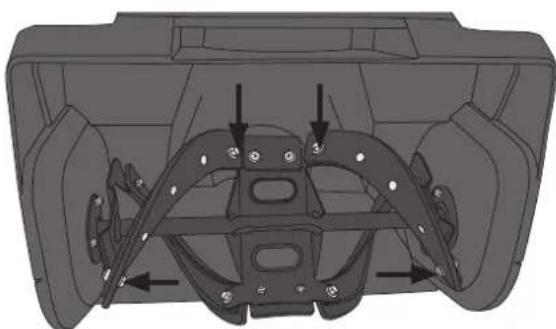

Replacing the scraper blade

1. Unplug the mains lead from the wall socket.
2. Lay the snow blower handle down on the ground.
3. Detach the worn scraper by removing the 3 screws holding it in place.
4. Screw the new scraper into place.

Technical diagram of a vehicle's rear dashboard and steering wheel assembly (no text or labels)

3D diagram of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

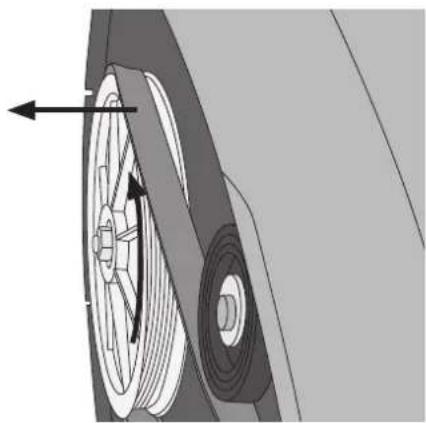

Changing the Drive Belt

1. Unplug the mains lead from the wall socket.

2. Remove the 4 screws from the left side of the belt cover and remove the cover.

3. Lift the belt tensioner and remove the drive belt from the large pulley.

4. Install a new belt as shown in the picture, turning the pulley until the belt sits into its groove.

5. Refit the belt cover and the 4 screws.

Diagram of a car interior showing ventilation grating and exhaust pipe (no text or labels)

Mechanical diagram showing a wheel and pulley assembly with directional arrows (no text or symbols)

Technical illustration of a vehicle wheel assembly with pulleys and wheels (no text or symbols)

Troubleshooting guide

The snow blower does not start. •	Make sure that the extension lead is connected correctly.• Check to see if there is power at the wall socket• Is the on/off button pushed in?• Is the safety lever pulled in against the handle?
Snow does not exit the chute. •	Unplug the extension lead and make sure that the chute is not clogged with snow.

Disposal

Follow local ordinances when disposing of this product.

If you are unsure how to proceed, contact your local authority.

Specifications

Rated voltage 230 V, 50 Hz

Wattage 1800 W

No-load speed 2100 rpm

Capacity max 200 m²/h

Clearing width 46 cm

Max snow depth 25 cm

Discharge range 10 m

Snöslunga

ART.NR 18-4456 MODELL DB5013-UK

31-5053

DB5013

Technical illustration of a mechanical device with a handle and lever mechanism (no text or symbols)

Technical illustration of a mechanical clamp or bracket assembly with two separate views (no text or symbols)

Utkast

Mechanical component diagram showing a rotating assembly with an arrow indicating rotation (no text or symbols present)

Mechanical component diagram showing a lever mechanism with mounting flanges and a central hub (no text or symbols)

Technical illustration of a mechanical component with crosshair lines, no visible text or symbols

Vev till utkast

Mechanical component diagram showing a piston and lever mechanism (no text or symbols)

Mechanical assembly diagram showing a cable with clamping and mounting bracket (no text or symbols)

Illustration of a rope knot and a hanging object (no text or symbols)

Start

Technical diagram of a vehicle chassis frame with mounting brackets and structural elements (no text or labels)

Byte av skrapskär

3D diagram of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Byte av drivrem

Technical diagram of a vehicle intake manifold with ventilation grilles and mounting points (no text or labels)

Mechanical component diagram showing a wheel and gear assembly with directional arrows (no text or symbols)

Mechanical component diagram showing wheel assembly and pulley mechanism (no text or symbols)

Felsökningsschema

Technical illustration of a mechanical device with a handle and bracket, shown from two different angles (no text or symbols present)

Technical illustration of a mechanical clamp or bracket assembly with two separate views (no text or symbols)

Utkast

Mechanical component diagram showing a rotating assembly with an arrow indicating rotation direction (no text or symbols present)

Mechanical component diagram showing a lever mechanism with mounting flanges and a central hub (no text or symbols)

Mechanical component diagram showing a lever mechanism with no visible text or symbols

3D rendered mechanical component with intersecting black lines indicating alignment (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Illustration of a rope knot and a hanging object (no text or symbols)

Start

Technical diagram of a vehicle's rear dashboard and steering wheel assembly (no text or labels)

3D diagram of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Skifte av drivrem

Diagram of a car interior showing ventilation grating and exhaust pipe (no text or labels)

Mechanical diagram showing a wheel and gear assembly with directional arrows (no text or symbols)

Mechanical component diagram showing wheel, pulley, and shaft assembly (no text or symbols)

Feilsøking

Technical illustration of a mechanical device with a handle and bracket, shown from two different angles (no text or symbols present)

Technical illustration of a mechanical clamp or bracket assembly with two separate views (no text or symbols)

Ulossyöttö

Mechanical component diagram showing a rotating arm mechanism with an arrow indicating rotation direction (no text or symbols present)

Mechanical component diagram showing a lever mechanism with mounting flanges and a central hub (no text or symbols)

Technical illustration of a mechanical component with crosshair lines, no visible text or symbols

Ulossyötön kampi

Mechanical component diagram showing a piston and lever mechanism (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Illustration of a rope knot and a hanging object (no text or symbols)

Käynnistys

Technical diagram of a vehicle chassis frame with structural components and directional arrows indicating movement (no text or labels)

3D diagram of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Vetohihnan vaihto

Technical diagram of a vehicle's internal structure showing ventilation grating and mounting points (no text or labels)

Mechanical diagram showing a wheel and gear assembly with directional arrows (no text or symbols)

Technical illustration of a vehicle wheel assembly with pulleys and wheels (no text or symbols)

Vianhakutaulukko

Declaration of Conformity

Klas Balkow President

Insjön, Sweden, 2012–06-15

CO TECH®

SVERIGE

KUNDTJÄNST

Tel:

0247/445 00

Fax:

0247/445 09

E-post: [e-mail]

INTERNET

www.clasohlson.se

BREV Clas Ohlson AB, 793 85 INSJÖN

NORGE

KUNDESENTER

Tlf.:

23 21 40 00

Faks:

23 21 40 80

E-post: [e-mail]

INTERNETT

www.clasohlson.no

POST

Clas Ohlson AS, Postboks 485 Sentrum, 0105 OSLO

SUOMI

ASIAKASPALVELU

Puh.: 020 111 2222

10 – 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ
