FH25SM-TM000F1 - Freezer Snaigė - Free user manual and instructions
Find the device manual for free FH25SM-TM000F1 Snaigė in PDF.
| Product Type | Chest Freezer |
| Brand | Snaigė |
| Model | FH25SM-TM000F1 |
| Energy Supply | 220-240 V ~ 50 Hz |
| Climate Class | SN (10°C to 32°C), N (16°C to 32°C), ST (16°C to 38°C), T (16°C to 43°C) |
| Thermostat Control | Rotary knob with 6 positions (1=warmest, 6=coldest); position 0 turns off compressor but not power |
| Indicators | Power (green), Run (green, compressor running), Alarm (red, high temperature) |
| Interior Accessories | Shelving basket |
| Defrosting | Manual defrost required; drain holes provided |
| Refrigerant | R600a (isobutane), flammable |
| Insulation Blowing Agent | C-Pentane (flammable) |
| Maximum Freezing Capacity (per 24h) | Refer to product fiche (not specified in manual) |
| Recommended Clearances | Top >70 cm, sides and back >20 cm |
| Cleaning | Use soft cloth with water and neutral detergent; do not use abrasives or organic solvents |
| Safety Warnings | Do not use mechanical devices for defrosting; do not store flammable substances; keep ventilation clear; do not damage refrigeration circuit |
| Repair | Only by authorized technician; do not attempt self-repair |
| Warranty | Void if capillary tube damaged by user |
Frequently Asked Questions - FH25SM-TM000F1 Snaigė
User questions about FH25SM-TM000F1 Snaigė
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Freezer in PDF format for free! Find your manual FH25SM-TM000F1 - Snaigė and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FH25SM-TM000F1 by Snaigė.
USER MANUAL FH25SM-TM000F1 Snaigė
No.5, Xinguangsi Road, Zhujiang Management District, Nansha District, Guangzhou
RO
MD
STIMATI DOMNI ŞI DOAMNE!
No.5, Xinguangsi Road, Zhujiang Management District, Nansha District, Guangzhou
CZ
VÁŽENÍ KLIENTI!
Some provisions in this user manual are unified for refrigerating products of different types (for a refrigerator, refrigerator-freezer or freezer). CAREFULLY READ THE INSTRUCTION MANUAL.
The Manufacturer shall not be held liable for damage arising from the failure to observe the instructions contained in this manual.
Keep this manual for future reference, or to pass it over to the next user.
General information:
The appliance is a chest freezer. The freezer is intended for freezing and long-term storage of foodstuffs.
This appliance is intended to be used in household and similar applications. This appliance is not for professional use. Donot use the appliance outdoors.
GUIDELINES CONCERNING THE SAFETY OF USE
General safety requirements:
- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
- WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
- WARNING: Disposal of the appliance should be according to national rules.
WARNING: Do not damage the appliance refrigeration system. It contains the refrigerant gas R600a. If the refrigeration system is damaged:
- Do not use any open flame.
- Avoid sparks-do not turn on any electrical appliances or lighting fixtures.
- Immediately ventilate the room: air the room in which the appliance is placed for a few minutes (the size of the room for a product containing isobuthane / R600a must be at least 4m^3 ) to avoid damage to the cooling system.
C-Pentane is used as blowing agent in the insulation foam and it is a flammable gas.
- The appliance should be used only for freezing and storing foodstuffs.
- This appliance is not designed for the storage of explosive substances such as aerosol cans with a flammable propellant.
- It is prohibited to store petrol and other flammable liquids near the appliance.
Children and vulnerable people safety:
- Do not allow children to play with the appliance or to plug it in or unplug from the electricity supply socket. Do not allow children to play with the packaging material from the appliance. Cleaning and user maintenance shall not be made by children without supervision
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
Requirements for the connection to the mains:
- The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives. The earthed electrical socket by which the appliance is connected to the mains should be in an accessible place. The appliance must be earthed in conformity with national electrical safety standards.. The manufacturer will not be held liable for any damage or injury which may result from the failure to fulfil this requirement.
- To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
- It is forbidden to readjust or modify any parts of the unit. It is crucial not to damage the capillary tube visible in the compressor recess. The tube may not be bent, straightened or wound. If the capillary tube is damaged by the user the guarantee will be void.
- Do not use adapters, multiple sockets and two-wire extension leads. If it is necessary to use the extension lead, it must be equipped with a protection ring and a single socket and must have a VDE/GS safety certificate. If an extension
lead is used (with a protection ring and safety certificate), its socket must be located at a safe distance, away from the sinks, and must not be in a place where it could be flooded by water or waste water.
- When positioning the appliance, be careful that the electrical cord isn't squeezed in order to avoid its damage. Do not store heavy objects such as cooling devices, furniture or other domestic devices next the appliance in such a way that they could squeeze and damage the electrical cord. This can cause a short circuit and a fire.
- Make sure that the plug of the electrical cord is not squeezed by the back wall of the appliance or otherwise damaged. A damaged plug can be the cause of a fire!
Do not try repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person whit a cable of same type
Requirements for safe use:
– It is forbidden to use a technically damaged appliance.
- If the appliance is unplugged (for cleaning, moving to another place, etc.), it may be repeatedly switched on after 10 min.. This is to allow the oil to flow back in the compressor
- Do not put frozen products, taken out directly from the freezer (lollies, ice cubes, etc.) into your mouth; their low temperature may cause severe frost-bite.
- When performing activities, such as cleaning, maintenance or moving, the appliance must be completely disconnected from power supply (by pulling the plug out from the socket). Do not pull on the cord, but hold the body of the plug instead.
- Do not place heavy objects on the top of the freezer
- Do not place any switched on electrical devices on top of the appliance.
- Do not place any dishes with liquids on top of the appliance and do not keep flowers in vases or other liquid-filled vessels on the appliance.
- Do not climb on or sit on the appliance, do not lean on or hang on the appliance doors and do not allow children to do this.
- The gaps between freezer doors and between doors and freezer body are small, be noted not to put your hand in these areas to prevent squeezing the finger. Please be gentle when switching off the freezer door to avoid falling articles.
- Do not remove or touch items from the freezer compartment if your hands are wet or damp.
- Do not use water spray and steam to clean the appliance.
The manufacturer guarantees reliable operation of the refrigerator when the relative air humidity not greater than 70 per cent and the ambient temperature is:
+10 TO +32 DEGREES CELSIUS - the appliance climate class is SN;
+16 TO +32 DEGREES CELSIUS - the appliance climate class is N;
+16 TO +38 DEGREES CELSIUS - the appliance climate class is ST.
+16 TO +43 DEGREES CELSIUS - the appliance climate class is T.
DESCRIPTION OF THE APPLIANCE, BASIC PARTS
APPLIANCE ACCESSORIES LISTED BELOW MAY DIFFER FROM THE ACCESSORIES OF THE APPLIANCE YOU HAVE BOUGHT IN QUANTITY AND IN DESIGN. This description is adapted for entire group of chest-freezers.

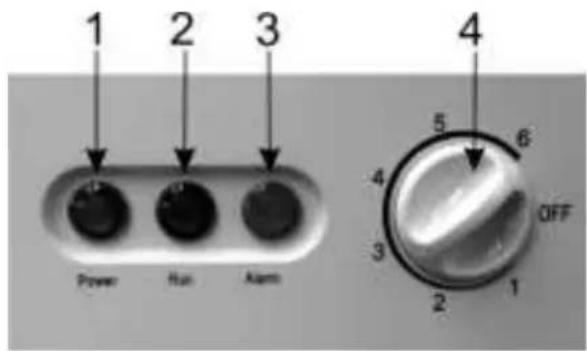

| 1 | Electric supply indicator „Power” |
| 2 | Indicator „Run” |
| 3 | Temperature rise indicator „Alarm” |
| 4 | thermostat knob |
| 5 | Shelving basket |
| 6 | Drainage holes |
FH10SM, FH20SM, FH25SM, FH30SM
The temperature in the appliance is controlled using the thermostat knob 4 (fig. 1, page 1) by turning it to one side or the other. When the thermostat knob turn to "OFF", the freezer will be not inoperation.
FH10SM, FH20SM, FH25SM, FH30SM:
0 = Compressor is switched off. WARNING! Electric current is not switched off.
1 = highest temperature (lowest cooling)
6 = lowest temperature (highest cooling)
The number "1, 2, 3, 4, 5, 6," do not mean a specific temperatures, the lower the number is, the higher the temperature inside will be and verse versa
FH40SM:
0 = Compressor is switched off. WARNING! Electric current is not switched off.
1 = highest temperature (lowest cooling)
8 = lowest temperature (highest cooling)
The number "1, 2, 3, 4, 5, 6, 7, 8" do not mean a specific temperatures, the lower the number is, the higher the temperature inside will be and verse versa.
"1, 2, 3" stands for cooling
"4, 5, 6, 7, SUPER" stands for freezing
When turn to SUPER the freezer enters into fast freeze mode, and the compressor will not stop until you turn the knob to the other position.
INSTALLATION AND OPERATING CONDITIONS
Positioning:
- The appliance operates properly at the ambient temperature (see product fiche). Do not use it in the cellar, unheated summer cottage during autumn and winter. Place the appliance in a dry, well ventilated room.
WARNING! The appliance should not be operated in an unheated room or porch. Place the appliance away from heat sources such as kitchen stove/oven, radiators, or direct sunlight. The appliance must not touch any pipes for heating, gas or water supply, or any other electrical devices.
The refrigerator adopts 220\~240V/50Hz AC power, voltage fluctuations over the range of 220\~240V±10% will cause malfunction or even damage, so a 750 W automatic voltage regulator must be installed in concert with the AC power.
- The appliance must stand on a level surface.
- The top space of the freezer shall be greater than 70cm, and the distances from both sides and backside shall be more than 20cm to facilitate the opening and closing and heat dissipation.
Preparing the appliance for operation:
- It is recommended to prepare the appliance for operation with a helper.
- Before using the freezer, remove all packaging materials including bottom cushions and foam pads and tapes inside the freezer, tear off the protective film on the door and the freezer body.
- Be careful not to damage the floors (e.g.parquet) when moving the appliance. Install the appliance on a floor or support strong enough to take its weight and in a place suitable for its size and use
- Do not turn upside, horizontally place or vibrate the refrigerator, the carrying angle can not be greater than 45^ . Please hold the door and hinge when moving.
First use:
- When the unit is first switched on, a slight 'new' smell may be noticed. However, this will disappear once the cooling process has begun.
The freezer shall stay for half an hour before connecting
220\~240V/50Hz power when it is firstly started. This is to allow the oil to flow back in the compressor
- The freezer shall run 2 to 3 hours before loading fresh or frozen foods; the freezer shall run for more than 4 hours in summer in advance considering that the ambient temperature is high.
- Connect the freezers FH10SM, FH20SM, FH25SM, FH30SM to power supply and "Power" indicator will shine. "Run" indicator will shine in operation. "Alarm" indicator will shine when the temperature inside the chamber is too high.
- Connect the freezers FH40SM to power supply and "Power" indicator will shine. "Run" (the red loght) indicator will shine when the compressor is running
FREEZING OF FOODSTUFFS
To avoid contamination of food, please respect the following instructions:
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours.
The freezing process takes 24 hours. During this period do not put other food in the freezer. The maximum quantity of foods to freeze in 24 hours is shown in the Product Fiche.
- DO NOT EXCEED THE MAXIMUM AMOUNT OF FROZEN FOOD INDICATED IN THE PRODUCT FICHE.
- Do not refreeze partly thawed products.
- Do not place unwrapped foodstuffs in the freezer sections.
- Fresh food for freezing should not touch already frozen foodstuffs.
- Do not freeze foodstuffs that are warmer than the room temperature.
- WARNING! Do not freeze liquid foodstuffs in glass vessels or bottles.
- Do not consume ice made in the freezer compartment straight away.
- Products will freeze more quickly if they are divided up and packed in small portions.
- Strictly observe the foodstuff validity time indicated by the manufacturer on the product packaging.
- Do not consume ice made in the freezer compartment straight away.
- Products will freeze more quickly if they are divided up and packed in small portions.
CAUTION! In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then refrozen (after cooling).
DEFROSTING, CLEANING AND CARE
Freezer shall be manually defrosted. Dusts behind the freezer and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the freezer should be cleaned regularly to avoid odor.
Do the actions below in the order they are listed:
Before cleaning the cooling device and its rear compartment part, the device must be disconnected from the mains by unplugging.
- Unplug the freezer and open the freezer door, remove foods and drawers before defrosting; The frozen foodstuffs will not warm up too much while you are thawing the freezer compartment if you cover them with a thick cloth and keep them in a cool place.
- Open the outflow holes and drainage holes (and place water container at the outflow holes); indoor frost will naturally melt, wipe the defrost water with a dry, soft cloth.
- Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on.
Regularly clean the hermetic gaskets of the doors. Wipe dry.
- Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the freezer surface and interior.
- Do not rinse with water so as not to affect the electrical insulation properties. Please use a dry cloth when cleaning temperature control knob and electrical components.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
ENVIRONMENTAL PROTECTION INFORMATION
This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
This symbol indicates that once the appliance is no longer needed, it cannot be disposed together with other miscellaneous municipal waste. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product.
If you decided to scrap the appliance, make it impossible to use in order to prevent possible misadventure. Pull out the electric plug from the electricity supply socket and then cut off the cord. Tear off the gasket. Break the door lock if any.
Do not dismantle the appliance yourself. Pass it on to recycling companies
Frequently asked questions
The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.
| Inoperation | Whether the freezer is plugged and connected to power;Low voltage; Whether temperature control knob is in the work areaFailure power or tripping circuit |
| Odor | Odorous foods should closely wrapped; Whether foods are rotten;Whether the interior shall be cleaned. |
| Long-term operation of compressor | It is normal that freezer operates for longer time in summer when the ambient temperature is higher:Do not put too much food in the freezer at one time; Do not put foods until they are cooled; Frequent opening of freezer door.Thick frost layer (defrost is needed) |
| Illuminating light does not shine | Whether the freezer is connected to power, whether the indicator light is damaged. |
| The freezer door can not be properly closed. | The freezer door is stuck by food packages;Too much food;Tilt freezer. |
| Loud noises | Whether the food is leveled, whether the freezer is balanced;Whether the freezer parts are properly placed. |
| Transient difficulty in door opening | After refrigeration, there will be pressure difference between the inside and outside of the refrigerator to result in transient difficulty in door opening. This is a normal physical phenomenon. |
Warm tips:
- The freezer enclosure may emit heat during operation specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon.
- Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel.
- Airflow sound: Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal does not affect the cooling effect.
Buzz: Buzz will be generated by running compressor specially when starting up or shutting down.
Clatter: The solenoid valve or electric switch valve will clatter which is a normal phenomenon and does not affect the operation.
2020-07-22 / Version II
