Product Type	Mini Food Chopper
Brand	VOX
Model	MC353
Power	200 W (estimated)
Voltage	220-240 V ~ 50/60 Hz (estimated)
Bowl Capacity	300 ml (estimated)
Max Food Quantity	120 g for meat/fruits; variable for other foods
Blade Material	Stainless steel
Bowl Material	Plastic (dishwasher safe)
Motor Unit Material	Plastic
Operation	Pulse action (press and hold button)
Safety Features	Lid locking system; motor stops when lid not locked; blade guard
Cord Length	1 m (estimated)
Weight	1 kg (estimated)
Dimensions (approx.)	20 x 20 x 15 cm (estimated)
Dishwasher Safe Parts	Bowl and blade assembly; motor unit not dishwasher safe
Special Features	Pulse function for coarse/fine chopping; suitable for bread, fruits, vegetables, nuts, meat, cookies
Usage	Household only

Frequently Asked Questions - MC353 VOX

How do I use the VOX MC353 food chopper?

Place the bowl on a flat surface, slide the blade onto the shaft, add food (max 120g for meat), lock the motor unit onto the bowl until it clicks, then press and hold the pulse button to chop. Release to stop. Wait for blades to stop before removing the motor unit.

What foods can I chop with this mini chopper?

You can chop bread (1 slice at a time), fresh or cooked fruits/vegetables (up to 120g), parsley and leafy herbs, nuts, beef (cut into small pieces), cookies or crackers. Refer to the chopping guide for specific timings and preparation.

Is the VOX MC353 dishwasher safe?

The bowl and blade assembly are dishwasher safe. However, the motor unit should only be wiped with a damp cloth; do not immerse it in water.

Why won't my chopper turn on?

Ensure the motor unit is properly locked onto the bowl. The lid locking system prevents operation if the tabs are not aligned. If it still doesn't work, check that the power cord is plugged in and the outlet is functioning. Contact support if the problem persists.

What is the maximum capacity for chopping meat?

For meat, do not add more than 120g to the bowl. Cut the meat into small pieces before chopping for best results.

Can I use the chopper for other purposes?

No, the appliance is intended only for chopping and mincing food as described in the manual. Using it for other purposes may cause damage or injury.

How do I clean the VOX MC353?

Unplug the chopper. Remove the motor unit and blade. Wash the bowl and blade immediately after use in warm soapy water or the dishwasher. Wipe the motor unit with a damp cloth. Do not use abrasive cleaners.

Is it safe to open the chopper while it's running?

No. Never open the lid until the blades have completely stopped. The manual instructs: 'Do not open until blades stop.' Always wait for full cessation of movement.

What safety features does the MC353 have?

The chopper has a lid locking system that prevents operation unless the motor unit is securely locked. It also warns against touching the sharp blade and recommends unplugging before cleaning.

Can I chop hot foods?

Yes, but let cooked foods cool slightly before chopping. The manual allows up to 120g of cooked food with cooking liquid. Avoid overfilling or processing extremely hot items to prevent splashing or damage.

USER MANUAL MC353 VOX

IMPORTANT SAFETY INSTRUCTIONS

1. Read all instructions before using.

2. Do not open until blades stop.

3. The attached motor unit can not be used for other than intended use.

4. Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

5. Do not let the cord hang over the edge of a table or counter or touch a hot surface.

6. Do not place on or near a hot gas or electric burner or in a heated oven.

7. Keep hands and utensils away from the cutting blade while chopping food to reduce the risk of severe injury to persons or damage to the food chopper. A scraper may be used but only when the food chopper is not running.

8. To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs, or motor unit in water or other liquids.

9. Close supervision is necessary when any

appliance is used by or near children.

1. The appliance is not a toy. Do not let the children play it.

2. Avoid contacting moving parts.

3. The use of attachments not recommended or sold by manufacturer may cause fire, electric shock or injury.

4. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner, Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.

5. Do not use the appliance for other than intended use.

6. Be sure motor unit is locked securely in place before operating appliance.

7. Do not attempt to defeat the lid interlock mechanism.

8. Do not use outdoors.

9. Save these instruction.

10. Do not open until blades stop.

HOUSEHOLD USE ONLY.

KNOW YOUR FOOD CHOPPER

BEFORE THE FIRST USE

Before using this appliance for the first time, wash the bowl and blade assembly in sudsy water and dry thoroughly, all of these parts are safe in dishwasher, wipe the motor unit with a damp cloth, do not immerse the motor unit in water.

HOW TO CHOP OR MINCE FOOD

1. Place the bowl on a counter or other flat surface, then slide the blade down over the shaft in the bowl. Be careful not to touch the blade as it is extremely sharp.
2. Place dry food in the bowl, the desired food refers to the chopping guide.
3. Position the motor unit onto the bowl, lining up the motor unit locking tabs to the bowl locking slots till the motor unit locks.

Note: For your protection, this unit has a lid locking system, the unit will not operate unless the tabs in the motor unit and slots in the bowl align. Do not attempt to operate the unit without locking the motor unit in place.

1. Depress and hold the pulse button to process.

Note: This product has a "pulse action" feature. Avoid running the motor continuously in this mode for period over 1 minutes. the longer the continuous pulse, the finer the texture. For coarsely chopped foods, use short pulses.

1. Be sure the blade stops rotating completely before removing the motor unit. Unplug the unit. Remove the motor unit and grasp the plastic blade hub. careful-ly pull the blade assembly out. Remove the bowl and empty the processed food. Do not use bowl for storing food.

2. If using to chop meat cut the meat into small pieces before chopping and do not add more than 120g to the chopping bowl.

CLEANING AND MAINTENANCE

Always disconnect the appliance from the power outlet before cleaning. Wash the bowl, blade assembly immediately after use either with warm/sudsy water or in the dishwasher. Wipe off the motor unit

with a damp cloth - do not immerse in water. Note: Do not use chemical, steel, wooden or abrasive cleaners to clean the unit to prevent the gloss loss.

CHOPPING GUIDE

FOOD TYPE	PREPARATION HINTS
Bread fresh, toasted or stale	Use 1 slice at a time, torn into several pieces.
Fruits and vegetables:
Canned	Drain up to 120g and process 30 seconds On 1min OFF until pureed as desired.
Cooked	Use up to 120g plus cooking liquid as needed and process ON 30 seconds OFF 1 min until pureed is desired.
Fresh	Pulse or process up to 120g chunked fruits or vegetables ON 30seconds OFF 1min until desired chop is reached.
Parsley and other leafy herbs	Wash and dry thoroughly then pulse or process up to 120g ON 30seconds OFF 1min until desired chop is achieved.
Nuts	Pulse or process up to 120g ON 30 seconds OFF 1 min until desired chop is reached.
Beef	Pulse or process up to 120g ON 30 seconds OFF 1 min until desired chop is reached.
Cookies, crackers	Pulse or process up to 12 cookies or crackers ON 30seconds OFF 1min until desired chop is reached.

ENVIRONMENT FRIENDLY DISPOSAL

You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.

UPUTSTVO ZA UPOTREBU

MINI ČOPER

Model: MC-353

VAŽNA BEZBEDNOSNA UPUTSTVA

1. Pročitajte sva uputstva pre upotrebe.
2. Ne otvarajte dok sečivo ne prestane da se vrti.
3. Motorna jedinica se ne sme koristiti ni u jednu drugu svrhu osim propisane.
4. Iskopčajte kabl za napajanje iz utičnice kad uređaj nije u funkciji i pre čišćenja. Ostavite uređaj da se ohladi pre skidanja delova ili postavljanja dodataka, kao i pre čišćenja uređaja.
5. Paziti da kabl za napajanje tokom upotrebe ne visi sa ivice stola, radne površine ili blizu bilo kakvog grejnog tela.
6. Nemojte nikad postavljati ovaj uređaj na ili u blizini električnog ili plinskog šporeta niti bilo kog drugog uređaja koji se zagreva.
7. Ne stavljajte ruke ili kuhinjska pomagala u čoper dok je u funkciji kako biste smanjili rizik od ozbiljnih povreda ili nanošenja štete čoperu. Unutrašnje stranice čopera možete očistiti samo kada čoper nije u funkciji.

8. Kako biste izbegli rizik od požara, strujnog udara ili povrede, ne potapajte kabl, električne delove ili motornu jedinicu u vodu ili druge tečnosti.

9. Potreban je blizak nadzor ukoliko uređaj koriste deca ili ukoliko su deca u blizini uređaja koji radi.

10. Ovaj uređaj nije igračka. Ne dozvolite deci da se igraju sa njim.
11. Izbegavajte kontakt sa delovima koji se pomeraju.
12. Upotreba neoriginalnih nastavaka ili delova koje ne preporučuje proizvođač mogu izazvati požar, strujni udar i povrede.
13. Ne koristite uređaj sa oštećenim kablom za napajanje ili ako je uređaj prestao da radi, ako vam ispadne ili se ošteti na bilo koji način. Vratite uređaj u najbliži ovlašćeni servis na pregled, popravku ili električna ili mehanička podešavanja.
14. Koristiti uređaj samo u skladu sa njegovom predviđenom namenom.
15. Uverite se da je motorna jedinica čvrsto pričvršćena pre uključivanja uređaja.
16. Ne pokušavajte da nadjačate sigurnosni zaptivni mehanizam na poklopcu.
17. Ne otvarajte poklopac dok sečiva ne prestanu da se okreću.
18. Ne koristite napolju.
19. Sačuvajte ova uputstva.

SAMO ZA KUĆNU UPOTREBU

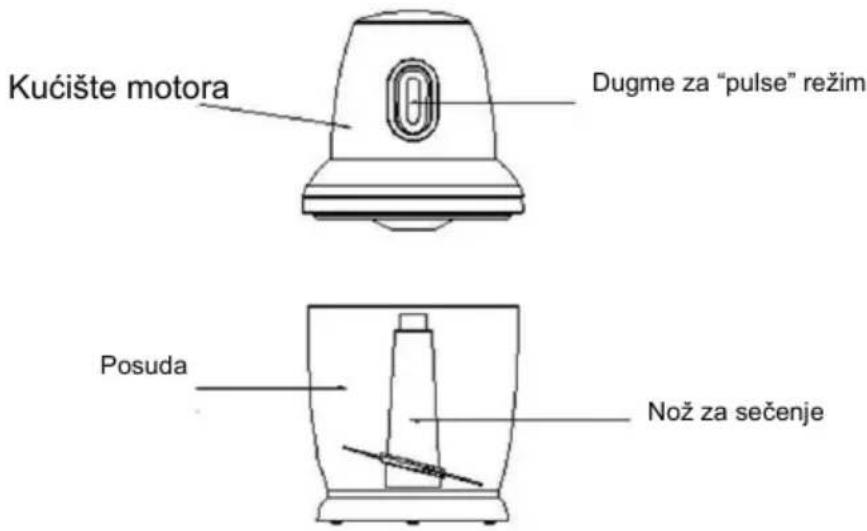

UPOZNAJTE VAŠ ČOPER

VAŽNE SIGURNOSNE UPUTE

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

MANUAL DE INSTRUÇÕES

MINI PICADOR

Modelo: MC-353

INSTRUÇÕES DE SEGURANÇA IMPORTANTES
