HA-260WH - Range hood Star-Light - Free user manual and instructions

Product Type	Range Hood
Brand	Star-Light
Model	HA-260WH
Color	White
Installation Type	Under-cabinet / Wall-mounted
Width	60 cm
Depth	50 cm
Height	15 cm
Weight	10 kg
Power Supply	220-240 V, 50/60 Hz
Motor Power	150 W
Extraction Rate	600 m³/h
Noise Level	55 dB (normal speed)
Number of Speeds	3
Control Type	Mechanical push buttons
Lighting	LED, 1.5 W
Grease Filter	Aluminum mesh, washable
Duct Diameter	150 mm
Energy Class	A
Annual Energy Consumption	100 kWh
Fluid Dynamic Efficiency Class	A
Grease Filter Efficiency Class	B
Accessories Included	Installation kit, user manual

Frequently Asked Questions - HA-260WH Star-Light

How do I install the Star-Light HA-260WH range hood?

Installation must be performed by a qualified technician. Ensure the hood is mounted at least 65 cm above electric cooktops or 75 cm above gas cooktops. Secure the hood to the wall using the provided mounting bracket and screws. Connect the ducting to the exhaust outlet (diameter 150 mm). Finally, connect the power supply to a properly grounded outlet.

How often should I clean the grease filter?

Clean the aluminum mesh filter every month under normal use. Remove it by pressing the latch, wash with warm soapy water or in a dishwasher, and let it dry completely before reinstalling. A clogged filter reduces suction and increases noise.

Do I need a carbon filter for recirculation mode?

Yes, if you wish to use the hood in recirculation mode (without external ducting), you must install a carbon filter (sold separately). The carbon filter should be replaced every 3-6 months depending on usage.

What is the correct duct size and material?

Use rigid or flexible duct with a diameter of 150 mm. Avoid sharp bends to maintain maximum airflow. The duct should be as short as possible and made of non-flammable material.

How do I change the LED light?

The LED light is built-in and should be replaced by a qualified technician. Do not attempt to open the light assembly yourself. Contact customer support for assistance.

Why is my range hood making excessive noise?

Excessive noise can be due to a clogged grease filter, loose installation, or unbalanced fan. First, clean or replace the filter. Ensure the hood is securely mounted. If noise persists, contact service.

How do I reset the filter alarm?

After cleaning the grease filter or replacing the carbon filter, press and hold the speed button for 3-5 seconds until the indicator light turns off. This resets the maintenance reminder.

Can I operate the hood without ducting?

Yes, in recirculation mode, the hood filters air through a carbon filter and releases it back into the kitchen. You must install the carbon filter and ensure the optional recirculation kit is used.

What maintenance does the hood require?

Regular maintenance includes cleaning the grease filter monthly, replacing carbon filter (if used) every 3-6 months, wiping the exterior with a damp cloth, and checking the duct for obstructions annually.

How can I contact Star-Light customer support?

For support, refer to the contact information in the user manual or visit the Star-Light website. Have your model number (HA-260WH) and proof of purchase ready for faster service.

USER MANUAL HA-260WH Star-Light

We are family

Cooker Hood

HA-260SS/HA-260WH

Exterior view of a modern stainless steel kitchen air purifier with ventilation grilles (no visible text or symbols)

1. INTENDED USE

The appliance has been designed as a exhausting version (external exhaust) or as a carbon filter version (internal air recycle) cooker hood.

2. GENERAL SAFETY INSTRUCTION

2.1 Read all instructions carefully before using.
2.2 Make sure use the rated voltage 220-240V\~
2.3 Do not operate this appliance if the cable or plug becomes damaged.
2.4 Ensure a suitably qualified technical person assembles this hood.
2.5 Switch off the power supply when not in use, before maintenance or changing accessories.
2.6 Never let children operate the machine.
2.7 The cooker hood is for home use only and is not suitable for barbecue, and other commercial premises.
2.8 The cooker hood and its filter mesh should be cleaned regularly in order to keep a good suction effect.
2.9 Clean the cooker hood according to the instruction manual and ensure the cooker hood is in no danger of burning.
2.10 The exhaust should not mix the waste gas with gas of other extracting appliance.
2.11 Repair malfunction machine or damaged cable only by authorized service representative. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
2.12 cut the power off and unplug the appliance before you change the accessories or do the cleaning and maintenance.
2.13 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2.14 Children should be supervised to ensure that they do not play with the appliance.

2.15 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision

2.16 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The instructions shall state the substance of the following:

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);

– The details concerning the method and frequency of cleaning;

- There is a fire risk if cleaning is not carried out in accordance with the instructions

- Do not flambé under the range hood

- CAUTION: Accessible parts may become hot when used with cooking appliances.

2.17 The installation instructions shall include the substance of the following:

– the air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);

– the minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. (When the range hood is located above a gas appliance, this distance shall be at least 65 cm.

– regulations concerning the discharge of air have to be fulfilled.

2.18 The installation instructions for range hoods with accessible metallic enclosures of class II construction shall include details that indicate the location and maximum permitted lengths for any fixing or mounting screw or other fixing device that penetrates into the range hood to attach an accessory such as a fascia or duct fitting.

2.19 Where fixing or mounting screws, or other fixing devices are used, that penetrate into the range hood with an accessible metallic enclosure of class II

construction, to attach an accessory, the instructions shall indicate the required location of these screws or fixing devices and include the substance of the following warning.

2.20 Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

3. Installation:

3.1 Finding a suitable location:

The hood should be placed at a distance of 65-75cm from the cooking surface for best effect. (See PIC. 1)

Pic. 1

3.2 Connecting suction or filter hoods:

Connecting suction hoods (air is discharged into the atmosphere):

Turn the lever to ducting mode position (PIC 2A), install the one-way-valve and pipe on the chosen outlet, cover the other outlet with plastic cover, remove charcoal filter, if any.

Connecting filter hoods (air is filtered and re-circulated inside the room):

Turn the lever to the filter mode position (PIC 2B), install the outlet covers, and insert the charcoal filter.

Pic. 2

3.3 Horizontal / vertical suction:

The hood comes with two air outlets, a plastic cover to be fitted in the not-used hole and an one-way-valve to be fitted in the other outlet according to the solution chosen: rear discharge see Pic 3 A; top discharge see Pic 3 B).

Pic. 3

3.4 Wall installation:

1. To install the hood onto the wall, drill two holes of 8mm on a suitable place according to the centre distance of hole in back side of the hood. (Detailed dimension see below Pic 4A)
2. Insert the anchors into the two holes.
3. Insert two ST4*30 screws into anchors and tighten them (please use screws with washers).
4. Put up the hood onto the fixed screws.
5. Then fix the hood to the wall with the other two anchors and two ST4*30 screws. (see Pic 4B)

Pic. 4A
Pic. 4B

3.5 Cabinet installation:

1. Drill 4 holes of 6 mm at the bottom of the hanging cupboard. (Detailed dimension see below PIC 5A)

Pic. 5A

1. Put the one-way-valve on the hood.
2. Then install the hood to the bottom of the cupboard, tighten it with enclosed 4*35mm screws (screws have to be used together with washers and nuts).

Simple line drawing of a laboratory apparatus with a cylindrical container and base (no text or symbols)

Diagram of a building interior with brick walls and a curved pipe, no text or symbols present

Diagram of a mechanical or structural assembly with brick walls and a curved arrow indicating motion (no text or symbols)

Pic. 5B

3.6 Electrical connection:

Connect the hood to safety socket.

4. Operation:

Pic. 6

The switch is operated as below (see PIC 6):

- Press the button to “”, “” and “”, the motor will be turned on at “Low”, “Middle” and “High” speed respectively.

- Press "0", then motor will be off.

- Press "💡", the light will be on. Press it again, the light will be off.

5. Maintenance:

Warning:

Always disconnect the hood and leave it completely cool before any maintenance.

- Clean the appearance of hood with a damp cloth and then dry it with a dry cloth. Never immerse the hood in water, nor let water drip into it.

Diagram of a device interior with labeled components and directional arrows indicating flow or movement (no text or symbols present)

- Cleaning the aluminum filter:

1. Put the filter into the water of 40-50°C, put in some detergent, and leave it for 2-3 minutes. Then use a soft brush to clean it with proper strength, in order not to damage it.

2. The filter can be cleaned by dish washer. Put it into the dish washer, also put in some detergent, then set the temperature to 60^irc C. All the filters are made of metal. Please do not use any corrosive detergent when cleaning.

3. Return the filter to its original position after fully dry.

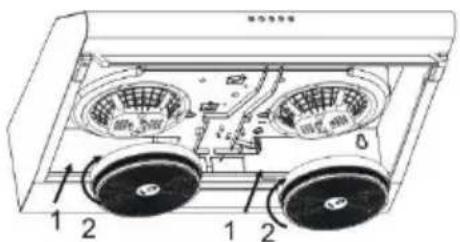

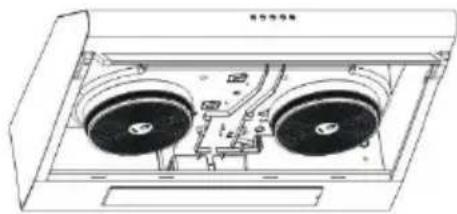

- Changing the charcoal filter (not supplied):

1. Remove the aluminum filter from the hood.
2. Remove the old charcoal filters and change to new ones.
3. Return the filter to its original position.

Note: Replace charcoal filter by each 3-4 months.

Technical line drawing of a ceiling-mounted air conditioner unit with two wheels and internal components (no text or symbols)

- Changing light bulbs

1. Remove the aluminum filter from the hood.
2. Change the olive-shaped bulb with new ones.
3. Return the filter to its original position.

Information for cooker hood

Model Star-Light HA-260SS / HA-260WH	Symbol	Value	Unit
Annual Energy Consumption	AEChood	101	kWh/a
Time increase factor	f	1.8
Fluid Dynamic Efficiency	FDEhood	5.9
Energy Efficiency Index	EEIhood	101.3
Measured airflow rate at the best efficiency	QBEP	191.1	m3/h
Measured air pressure at best efficiency point	PBEP	168	Pa
Maximum airflow	Qmax	347.4	m3/h
Measured electric power input at best efficiency point	WBEP	151	W
Nominal power of the lighting system	WL	2.5	W
Average illumination of the lighting system on the cooking surface	Emiddle	78	lux
Measured power consumption on standby mode	PS	-	W
Measured power consumption on off mode	PO	0	W
Sound power level	LWA	70	dB

The measurement and calculation method of the above table was done in accordance with commission regulation (EU) No 65/2014 & 66/2014.

Note:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

ENVIRONMENTAL PROTECTION

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
