Brand	MOULINEX
Model	DAB147
Product type	Immersion blender with bowl and accessories
Power supply	220-240 V, 50/60 Hz
Bowl capacity	1.25 L (very liquid preparations) / 1.5 L (max)
Speeds	1 speed + Pulse + AutoClean
Main functions	Mixing, Chopping, Grating, Grinding, Straining
Included accessories	Mixing bowl, pouring lid with measuring cap, mini chopper, grater, grinder, filter
Cleaning of bowl and accessories	Dishwasher safe
Cleaning of motor unit	Damp cloth, do not immerse
Safety	Safety cover on accessories, automatic stop if bowl is incorrectly positioned
Blade type	Stainless steel (not specified, reasonable estimate)
Approximate weight	1.5 kg (estimate)
Dimensions (L x W x H)	Not specified in the manual

Frequently Asked Questions - DAB147 MOULINEX

How do I clean the MOULINEX DAB147 immersion blender?

The mixing bowl and accessories (mini chopper, grater, grinder, filter) are dishwasher safe. The motor unit must be cleaned with a damp cloth and dried thoroughly; never immerse it in water. Use the AutoClean function for easy cleaning of the blades and bowl: pour warm soapy water, give a few pulses in AutoClean mode, then rinse.

Can I blend hot or boiling liquids?

No, never pour boiling liquids into the mixing bowl. Wait for them to cool before blending. Thermal shock could damage the bowl and blades.

What should I do if the appliance does not start?

Check that the plug is connected and the voltage matches. Ensure the bowl or accessory is correctly positioned on the motor unit and the lid is properly locked (turn clockwise). If the problem persists, contact an authorized MOULINEX service center.

How do I use the filter (K)?

Place the filter in the mixing bowl aligning the slots with the internal ribs. Secure it with the pouring lid. Introduce food or liquids into the filter through the measuring cap opening, then close. Blend at speed 1 or in Pulse mode. The filter retains seeds and skins, ideal for making soy milk, sauces, or fruit juices.

Can I blend dry foods without liquid?

No, never run the mixing bowl empty or with dry products only. Always add some liquid to avoid damaging the blades. For accessories (mini chopper, grinder), they can process dry foods in small quantities (max 80 g).

Are the blender blades removable?

The blades are not removable for safety reasons. They are integrated into the bowl or accessory. Clean them carefully with a brush or using the AutoClean function.

How do I use the Pulse function?

The Pulse button (C) allows blending in short bursts. Press briefly to control the texture of food. Ideal for chopping onions or herbs without turning them into a purée. Release to stop.

What is the maximum bowl capacity for thick preparations?

For thick preparations, do not exceed 1.5 liters. For very liquid preparations, the maximum capacity is 1.25 liters to avoid overflowing.

Can I grate cheese with the blender?

Yes, use the grater accessory (I) to grate hard cheeses like Parmesan, coconut, or nutmeg. Cut food into cubes before placing in the bowl (max capacity 80 g). Lock the safety cover (L) before blending.

What to do in case of excessive vibrations?

Place the appliance on a flat, clean surface. Check that the bowl or accessory is correctly positioned on the motor unit. If vibrations persist, reduce the amount of food or cut it into smaller pieces.

USER MANUAL DAB147 MOULINEX

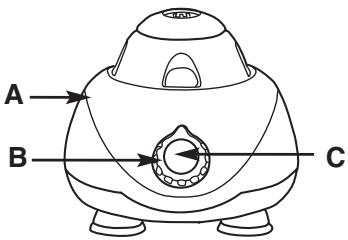

Description

Accessories (according to model):

H Mini-chopper bowl I Grater jug J Grinder bowl K Filter L Lid

Safety advice

• Carefully read the instruction leaflet before first using your appliance: MOULINEX cannot be held responsible for any incorrect use of the appliance.
• This appliance has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Stop the appliance and disconnect from the mains before changing any accessories or coming close to moving parts.
• Check that your appliance's power supply rating corresponds to your mains electrical supply. Any error in connection will cancel the terms of your warranty.
• This product has been designed for

domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• Never put your fingers or any other object inside the mixer jug while it is working.
• Always disconnect your appliance when you stop using it, when cleaning it or if there is a power failure.
• Handle blades with great care when emptying the mixer jug; they can cause injury.
• Do not use your appliance if it does not run correctly, if it has been damaged or if the power supply cord or plug have been damaged.
• To avoid any risk of danger, be sure to have these items replaced by an approved MOULINEX service centre (see list in the service handbook).
• Any intervention other than normal cleaning by the customer must be performed by a MOULINEX approved service centre.
• Do not put the appliance, the power supply cord or the plug in water or any other liquid.
• Do not let the power supply cord hang in reach of children, close to or in contact with the hot parts of your appliance or close to a source of heat or a sharp edge.
• In the interests of safety, only use MOULINEX accessories and spare parts designed for your appliance.
• Never run the mixer jug without ingredients or with dry products only and never pour boiling liquids into it.
• Use your appliance on a stable, smooth, clean, dry surface.
• Do not put accessories into the microwave oven and do not sterilise them.
• Do not let long hair, scarves, ties, etc. hang over accessories when in operation.

Practical hints

• Important: Make certain that the pouring lid (E and F) is correctly assembled and in the closed position before running the appliance. Wait for the appliance to come to a complete stop before removing the mixer jug or accessory.

Bringing into service

• Before first use, clean the mixer jug and accessories in hot, soapy water.

Important:

• Set selector switch (B) to position "0" before placing the mixer jug or accessories on the motor unit (A).

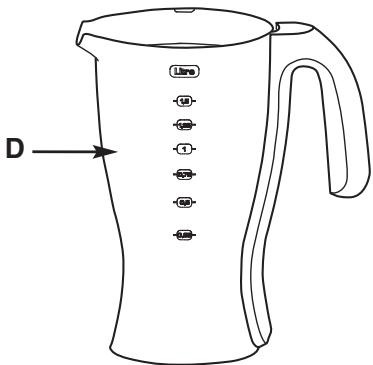

1. MIXER JUG

• Place the mixer jug (D) on the motor unit (A); there are 4 possible positions.
• Introduce the food to be mixed into the jug (D) without going over the maximum level:

1.5 litres for thick mixes 1.25 litres for very liquid preparations.

• Place the pouring lid (E + F) on the mixer jug (D) and lock in position.
• Connect the appliance and start it by turning button (B) to position "1" or by giving a few bursts with the "pulse" key (C).
• To stop the appliance, return the selector (B) to position "0".
• Select the appropriate filtering position to pour your preparation without removing the lid:
• wide open for thick preparations,
• filter position for frothy preparations with pulp.

2. ACCESSORIES (according to model)

Grinding accessories (H, I or J):

• Use the mini-chopper (H) to chop the following in a few seconds: garlic cloves, fresh herbs, parsley, dried fruit, rusk for breadcrumbs, meat (pork chops)... and prepare purees for baby.
• The grater (I) grates hard cheeses (e.g., parmesan, etc.), coconut (first cut into cubes) and nutmeg.
• The grinder (J) mills both dried fruit and spices.
• The maximum capacity of these accessories is 80 g.
• These accessories are equipped with a safety lid (L) that prevents access to the moving blades.
• Put the ingredients into the jug (H, I or J). Lock the lid (L) to the accessory jug, then place the assembly on the body of the appliance (A) (see diagram I).
• Connect the appliance and turn the speed selector (B) to position "1" or give a few bursts by pressing the "pulse" key (C).
• During operation, press down on the lid to keep the accessory in position.
• To stop the appliance, bring the selector (B) back to position "0".
• Return the complete accessory to the work surface before unlocking the lid (L).
• You can then recover the preparation directly in the lid, using it as a recipient.

Recipes	Quantities	Running time
Apricots	80 g	6 s
Bread crumbs	2 rusks	30 s
Onions	50 g	by pulses
Skinned hazelnuts	80 g	by pulses
Parsley	10 g	by pulses
Meat	80 g	6 s

• Use the filter (K) to remove the pips and skin and obtain smoother sauces, soya milk, fruit juices or cocktails.
• Position the filter in the mixer jug (D), making certain that you place the filter slots on the inner ridges of the jug.
• Place the pouring lid (E + F) on the mixer jug to secure the filter.
• Put the food or liquids into the filter through the opening of the measure-stopper.
• Replace the measure-stopper and turn the selector (B) to position "1" or give a few bursts by pressing the "pulse" key (C).

Cleaning

Handle the blades with caution when cleaning as they can cause injury.

Use the Auto Clean position to clean the jug and blades easily and safely.

• Pour hot water with a few drops of washing up liquid into the mixer jug (D). Close the lid.
• Give a few pulses by turning the selector (B) to the "Auto Clean" position.
• Disconnect the appliance.
• Remove the jug and rinse it and its lid under running water. For more effective cleaning, you can separate the two elements of the pouring lid (E and F) by turning the lid to position (see diagram II).
• You can put the mixer jug and accessories in the dishwasher.
• Clean the motor unit (A) with a damp cloth. Dry carefully.
• Never immerse the motor unit (A) in water or under running water.

What to do if your appliance does not work?

Get in touch with a MOULINEX approved service centre (see list in service handbook).

You can customise your appliance and get the following accessories from your usual retailer of a MOULINEX approved centre:

Fines herbs accessories, grater accessory, grinder accessory, filter.

Electrical or electronic product at the end of its lifetime.

Do your part to protect the environment!

Your appliance contains valuable materials which can be recovered or recycled.

Take it to a local civic waste collection point.

Disposal of the appliance's packaging waste

The packaging is comprised exclusively of materials that present no danger for the environment and which may therefore be disposed of in accordance with the recycling measures in force in your area. For disposing of the appliance itself, please contact the appropriate service of your local authority.

PROBLEMS	POSSIBLE CAUSES	SOLUTIONS
Product does not operate.	Plug is not connected.	Connect the appliance to a socket with the same voltage.
	Accesory jug is not correctly fitted to motor unit.	Check for correct positioning of the jug or accessory.
	The lid of the jug or the accessory is not correctly locked.	First position the lid on the jug or the accessory and then turn it clockwise.
Excessive vibration.	The product is not set on a level surface.	Place the product on a level surface.
	The mixer jug or accessory is incorrectly positioned on the motor unit.	Check for correct positioning of the jug or accessory.
Leaks from lid.	Too great a volume of ingredients.	Do not exceed maximum level of jug: 1.5litres for thick mixes and 1.25L. for very liquid preparations.
	Pouring lid in open position.	Place pouring lid in closed position.
Blade does not turn easily.	Pieces of food too big or too hard.	Reduce size or quantity of food. Add liquid.

Recipes

Fruit cocktail

4 oranges, 2 mangoes, 1 kiwi fruit, 1/2 lemon, 8 ice cubes

Peel the mangoes and the kiwi fruit.

Remove the stones from the mangoes.

Put them into the mixer jug with the orange and lemon juice.

Run for 10 seconds.

Add the ice cubes and run the appliance for 30 seconds

Serve chilled.

Griddle cake batter

3 eggs, 1/2 I milk, 250 g flour, 150 g sugar, 1 packet of baker's yeast, 125 g butter.

Put all the ingredients except the flour into the blender. Add the flour through the hole of the measure-stopper during operation.

Mix for 2 min.

Pancake batter

3 eggs, 1/2 I milk, 300 g flour, 75 g butter Put all the ingredients except the flour into the blender. Add the flour through the hole of the measure-stopper during operation. Mix for 2 min.

Humus

400 g cooked chick peas, 1/2 glass lemon juice, 4 garlic cloves

A few strands of parsley, 4 tbsp oil, 50ml water. A few pinches of chilli powder.

Salt, pepper

Put half the chick peas and all the other ingredients (except the parsley) into the blender and mix for 10 seconds, then add the rest of the chick peas through the hole of the measure-stopper on the lid and mix for a further 30 seconds. Garnish with parsley.

Guacamole

2 ripe avocado pears, 1 peeled and piped tomato, 1 small onion, 3 tubsp fresh coriander, 2 small chilli peppers, 50ml water and 3 tubsp lemon juice. Salt, pepper.

Remove the stones from the avocado pears and peel them.

Put half the avocado pears with all the other ingredients into the blender and mix for 20 seconds, then add the rest of the avocado pears through the hole of the measure-stopper and mix for a further 30 seconds.

Description

A Bloc moteur

4 pomerance, 2 manga, 1 kiwi,

1/2 citronu, 8 kostek ledu,

Olupejte manga a kiwi. Z mang odstraňte jádra.

(Depending on the model)

Attachments for chopping (H, I or J)

The chopper attachment (H) can chop in a few seconds: garlic cloves, fresh herbs, parsley, meat (raw or cooked), breadcrumbs for breading... and prepare puree for babies. - The grater (I) grates into powder: hard cheeses (e.g., Parmesan...), pre-cut coconut cubes, nutmeg. - The chopper (J) can grind dried fruits, etc. - The maximum capacity of these attachments is 80 g. - These attachments have a safety lid (L) which covers the working bowl. - Put the ingredients in the bowl (H, I or J). Close the lid (L) of the attachment, then place the bowl on the motor unit (A) (see diagram 1). - Plug the appliance into the mains, switch the switch (B) to position "1" and press the pulse button (C) several times. - During operation, hold the attachment in place by pressing on the lid. - To stop the appliance, move the switch (B) to position "0". - Remove the attachment, place it on the counter, then open the lid (L). - Now you can pour the prepared food directly into the lid, which can be used as a container.

What to do if your appliance does not work?

Contact the MOULINEX service center (see list in the service booklet).

You can purchase the following accessories for your appliance from shops or the Moulinex service center:

- Chopper attachment: 5927600 - Grater: 5927601 - Chopper bowl: 5927602 - Filter: 5927603

Electrical or electronic appliances at the end of their service life.

Participate in protecting the environment!

Your appliance contains many valuable materials, made from recycled or recyclable materials.

At the end of the appliance's service life, take it to a collection point or, if there is none, to a service center for its subsequent recycling.

Dispose of the packaging materials of the appliance.

The device contains only materials that do not pose a danger to the environment and can be recycled in accordance with current regulations on the reuse of materials. To dispose of the device, you must obtain information from the relevant service in your municipality.

Turn on the device for 10 seconds.

Add the cubes of ice and turn on the device for 30 seconds.

Serve chilled.

Waffle batter

3 eggs, 1/2 liter of milk, 250 g of flour, 150 g of sugar, 1 packet of baking powder, 125 g of butter.

Put all ingredients in the mixer, except the flour, which you will add through the opening in the dosing cap while the device is running.

Mix for 2 minutes.

Pancake batter

3 eggs, 1/2 liter of milk, 300 g of flour, 75 g of butter.

Put all ingredients in the mixer, except the flour, which you will add through the opening in the dosing cap while the device is running.

Mix for 2 seconds.

Hummus

400 g of roasted chickpeas, 1/2 cup of lemon juice, 4 cloves of garlic,

A few sprigs of parsley, 4 tablespoons of oil, 5 ml of water, a few pinches of red pepper powder, salt, pepper.

Pour the remaining ingredients (except the pepper) into the mixer and blend for 10 seconds, then pour the rest of the powder through the opening in the lid and blend for another 30 seconds. Garnish with pepper.

Remove the pit and peel the avocado. Place half of the avocado and all other ingredients into the mixer and blend for 20 seconds, then add the remaining avocado through the opening in the lid and blend for another 30 seconds.

2 ripe avocados, 1 lime (juice and zest), 1 small onion, 3 tablespoons fresh cilantro, 2 green chili peppers, 5 ml water, 3 tablespoons lemon juice, salt, pepper.

Remove the pit and peel the avocado. Place half of the avocado and all other ingredients into the mixer and blend for 20 seconds, then add the remaining avocado through the opening in the lid and blend for another 30 seconds.

Description

A Power cord with plug "YbIMK." / Plug "AutoClean" with plug "Pulse" D Capacity of the mixer E+F Lid with pouring opening G Measuring cup

Accessories according to type:

H Capacity of the bowl Capacity of the jug J Capacity for chopping K Lid

Safety instructions

Before using this electrical appliance, please read the instructions carefully. Use of the appliance not in accordance with the instructions will void the warranty from "MOULINEX". Persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, may use the appliance only under supervision or after receiving instructions concerning safe use and understanding of the hazards involved. Children must not play with the appliance. Before changing accessories or touching moving parts, unplug the appliance and disconnect it from the power supply. Make sure that the voltage of the power supply matches the rating of the appliance. Any connection to an incompatible power supply will void the warranty. This appliance is intended for household use only.

- Before using the appliance, make sure to remove any foreign objects from the mixing bowl. - After use, before cleaning or when reducing voltage, disconnect the appliance from the power supply. - When handling the bowl, be careful to avoid injury. - It is forbidden to use the appliance if it has been dropped or damaged, or if the power cord or plug is damaged. - For safety reasons, any repairs must be carried out by an authorized service center "MOULINEX" (see the list in the service booklet). - Any maintenance other than cleaning must be performed by an authorized service center "MOULINEX". - Do not immerse the appliance, power cord, or plug in water or any other liquid. - Do not leave the power cord within reach of children or in contact with hot parts of the appliance, near heat sources, or on sharp edges. - For your safety, use only original accessories and spare parts "MOULINEX" designed for this appliance. - Do not use the mixer with an empty bowl or when the bowl contains only dry products. It is forbidden to pour liquid into the bowl while the appliance is running. - When using, place the appliance on a level, clean, and dry surface. - It is forbidden to place the appliance in a microwave oven or to sterilize it. - Do not allow the appliance to come into contact with hair, scarves, ties, etc. during operation.

Practical advice

With the whisk attachment.

Together with the citrus juice, pour into the mixing bowl. Run the appliance for 10 seconds.

Add the blades again and run for 30 seconds.

Serve well chilled.

Waffle batter

3 eggs, 1/2 liter of milk, 250 g of flour, 150 g of sugar, 1 packet of vanilla sugar, 125 g of butter.

Put all ingredients, except the flour, into the mixer. Add the flour gradually through the opening in the lid while the mixer is running. Mix for 2 minutes.

Pancake batter

3 eggs, 1/2 liter of milk, 300 g of flour, 75 g of butter.

Put all ingredients, except the flour, into the mixer. Add the flour gradually through the opening in the lid while the

mixer is running.

Mix for 2 minutes.

"Hummus"

400 g pumpkin, 1/2 cup lemon juice, 4 garlic cloves, a few parsley sprigs, 4 tablespoons oil, 50 g water, a couple of mint leaves. Salt, pepper. Blend the pumpkin with the other ingredients (except parsley) in a blender for 10 seconds. Then through the blender's feed tube, gradually add the pumpkin pieces and blend for another 30 seconds. Garnish with parsley.

2 avocados, 1 onion without skin, 1 small onion, 3 tablespoons fresh coriander, 2 small peppers, 50 g water and 3 tablespoons lemon juice. Salt, pepper.

Wash the avocado and remove the pit. Put the avocado with the other ingredients in a blender and blend for 20 seconds. Then through the blender's feed tube, gradually add the avocado pieces and blend for another 30 seconds.

Description

A Motor base with On/Off button B AutoClean C Pulse button D Control knob E+F Speed settings for different positions G Start button for dosing

Accessories depending on model:

H Control knob for mincing I Control knob for blending J Control knob for whisking attachment K Grid L Knob

Safety instructions

- Before using your electrical appliance, read these instructions carefully: for any use of other MOULINEX accessories, we accept no liability. - The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Supervise children to ensure they do not play with the appliance. - Switch off and unplug the appliance before changing accessories or approaching parts that move in use. - Ensure that the voltage of your electrical appliance matches the voltage of your electrical supply. Any error in the connection will void the warranty. - Your electrical appliance is designed for household use and for indoor use. - When the appliance is operating, do not insert fingers or other objects into the feed tube.

- Before plugging in the appliance, make sure to remove it from the electrical outlet, unplug it, and allow it to cool down before cleaning or storing. - When using the appliance, be careful of the sharp blades; you may get injured. - Work carefully with the sharp blades; they can cause injury. - If the appliance does not work as it should, if it is damaged or if the cable or plug is damaged, do not use it. - Always ensure safety; have the appliance serviced by an authorized MOULINEX service center (see list in the brochure). - Any maintenance other than the usual cleaning of the surfaces must be carried out by an authorized MOULINEX service center. - Never immerse the appliance, the plug, or the cable in water or any other liquid. - Do not leave the cable hanging within reach of children, or in contact with hot parts of the appliance, near heat sources, or on sharp edges. - For your own safety, only use original MOULINEX spare parts and accessories designed for your appliance. - Never use the container if it is cracked or damaged, and do not pour hot liquids into it. - Use the appliance on a flat, clean, and dry surface. - Do not place the accessories in a microwave oven and do not sterilize them. - While the appliance is operating, do not leave it unattended and keep children away from it.

Practical Tips

- Important: Before using the appliance for the first time, make sure the lid (E+F) is correctly positioned and locked. - Attach the accessories or the lid only when the appliance is unplugged.

Switching On

• Before using the appliance for the first time, fill the container with water up to the maximum level and add a little vinegar, then let it operate.

Important note:

- Before attaching or removing the accessories, make sure the appliance is unplugged and the switch (B) is in the "0" position.

1. Filling the container

• Place the container (D) on the motor unit (A); there are 4 possible positions. Insert the container (D) without pressing it down to the maximum.
• For steaming: 1.5 L. For cooking very thick sauces: 1.25 L.
• Close the lid (E+F) on the container (D) and lock it.
• Plug the appliance into the electrical outlet and switch it on by turning the switch (B) to position "1" or by pressing the "pulse" button (C) several times. - To switch off the appliance, return the switch (B) to position "0". - You can add ingredients without removing the lid by pressing the corresponding position on the filter.
• LARGE OPENING FOR THICK SLICES,
• POSITION FOR GRATING HARD CHEESE, NUTS, ETC.

2. ATTACHMENTS (with cord) Attachment for squeezing (H, I or J):

-The mincer (H) can be used for a few seconds to grind meat, vegetables, fruits, dried fruits, meat (pork), crackers for soup, etc., and to prepare baby food. -The squeezing (I) converts hard ingredients (e.g., Parmesan), nuts, and coconut flakes, previously cut into cubes, into powder. -The attachment for grating (J) can be used for fine grating, e.g.,

77 8,117 xn,117 1,1n 2,119n4

1. 1.

150.7 250.7 Vn Vn,3

125.9 X J7 X J7 U1,1 IO

n277

（）n

75.7n 300.7n 7n,0n,3

nnnnn nn nnnnnn nn nn

n nn nn nnn nn nn nn nn nn nn

ywnnyn y

2 7

Jn n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn.

17

Press the "Auto Clean" button (B).

Press the "0" button (B).

Press the "L" button to select the cleaning mode.
