USER MANUAL COMPACT MOULINEX

Installing the appliance 13

Preparation 13

Connecting 13

Position 13

Safety instructions 14

Instructions for use 14

Foods 14

Containers and materials 14

Cooking time 16

Resting time 16

The various cooking modes 16

microwave mode 16

grill mode * 16

Combined microwave ^+ grill mode * 17

Adjusting time and power 18

Stopping the oven 18

Cooking guide 18

Cooking with microwaves 18

Reheating 18

Defrosting 18

Cooking with the grill alone / combined microwave + grill * . . . . 19

Cleaning 19

Technical problems 20

Waste disposal requirements 20

Performance testing data 21

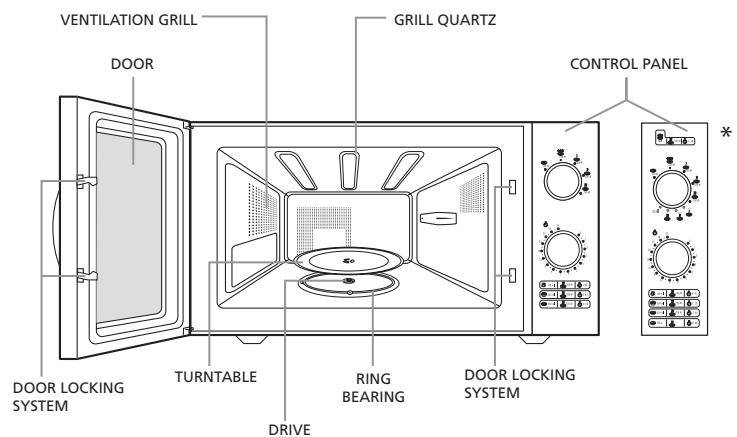

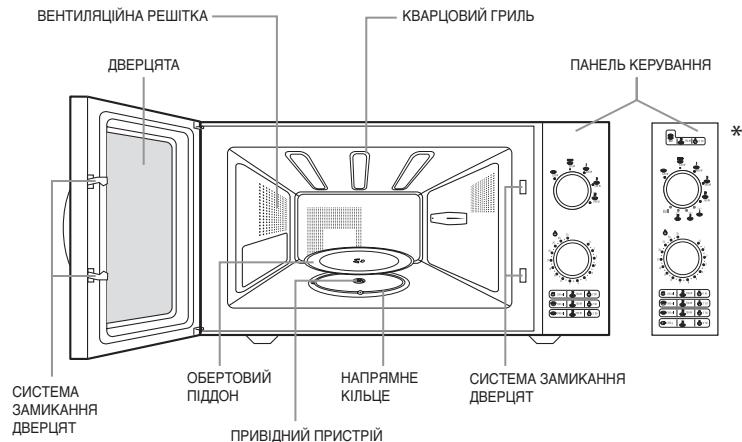

Appliance description

Accessories

Drive

This fixture is located in the middle of the oven, beneath the turntable. It is connected to the motor and drives the turntable round.

Ring bearing

This component is placed in the middle of the oven, beneath the turntable. It has rollers to support the turntable while leaving it free to rotate.

Turntable

This glass plate is placed on the ring bearing in the middle of the oven and must be engaged with the drive. It can be used for all types of cooking. Containers containing food to be cooked or to collect particles and juices produced by food during cooking are placed on the turntable. It is easily removed for cleaning.

DUO rack *

• The DUO function rack can be used to reheat two plates at the same time. Place the first plate under the rack and the second on top.

• In grill or combined cooking mode, this accessory can be used for browning flat dishes. It must be carefully centred on the turntable.

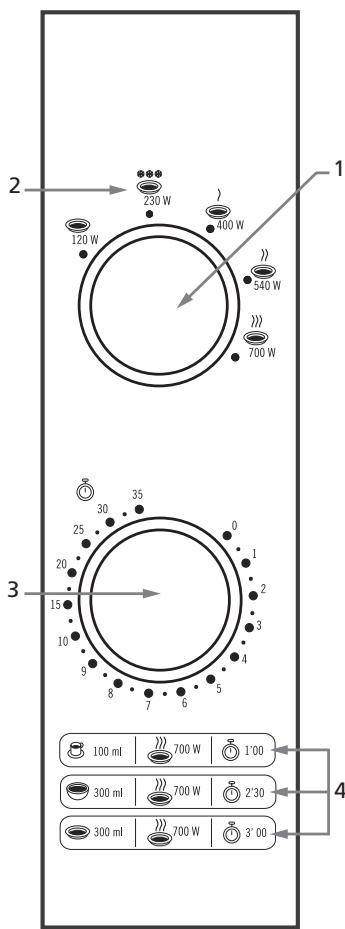

1- Power/Mode selector switch
2- Defrost position
3-Time selector switch
4-3 reheating guides:
- Cup
-Bowl
- Soup plate

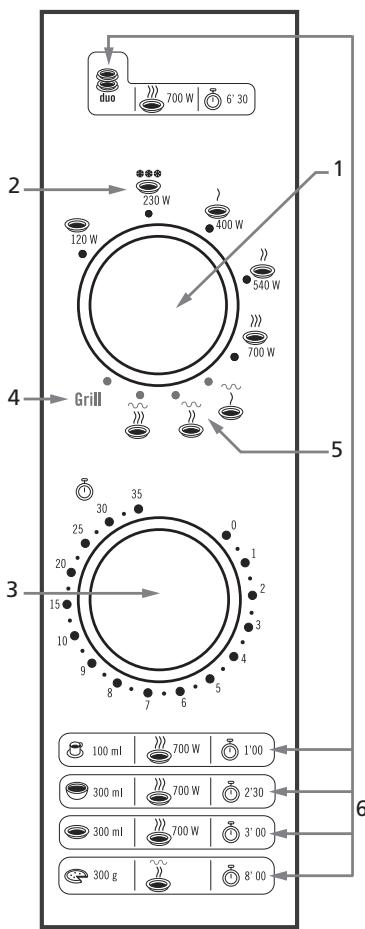

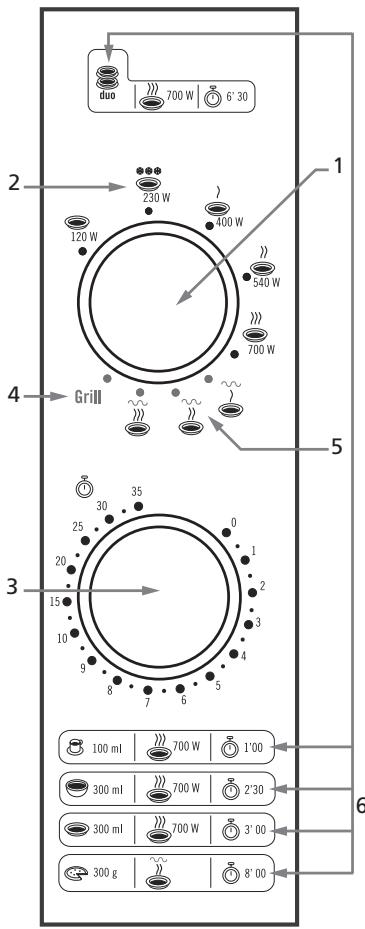

1- Power/Mode selector switch
2- Defrost position
3-Time selector switch
4- grill position
5-3 combined microwave
+grill cooking positions
6-5 reheating guides:
- DUO reheating on 2 levels
- Cup
-Bowl
- Soup plate
- Pizza

Installation

Preparation

Unpack the accessories, wash them and wipe them off carefully.

Position the ring bearing and then the turntable in the centre of the oven.

The turntable must be properly engaged with the drive.

Connecting

Check that the supply voltage marked on the type label glued on the rear of the appliance matches the voltage of your supply. The label indicates the nominal supply voltage of the appliance, e.g. 220-230 V.

Ensure that the current marked on your electricity meter and circuit breaker/fuse is at least 16 Amperes.

Finally, for proper safety, it is essential to connect your appliance to an outlet socket with an earth connection in accordance with electrical installation regulations and standards.

Position the appliance in such a way that the supply socket is readily accessible so that it can be easily disconnected.

You should also ensure that you can gain access to your circuit breaker/fuse.

It is imperative to comply with the above instructions regarding the electrical supply.

Position

Your appliance can be installed in one of two ways :

• On a work-top : position the appliance on a flat and stable surface, capable of supporting the oven and its contents. The oven must be handled with care, remembering that the control panel side is the heavier.
• In a niche : The niche must be at least 85 cm above floor-level. Centre the appliance in the niche so that it does not touch the sidewalls.

Adequate ventilation is essential: the minimum clearances are 20~cm above the oven and 10~cm at the sides and rear.
Install the appliance away from any source of heat such as a traditional oven or radiator. It has been design and tested for use in ambient temperatures up to 35^ .
Ensure that the ventilation holes of the appliance are not obstructed.

Important safety instructions

Read carefully and keep for future reference.

1. Your appliance is for domestic use. It is intended only for cooking, heating and defrosting foods and drinks. Use it only for these purposes.
2. This appliance is not designed to be used by persons (including children) of reduced physical, sensorial or mental capacity or persons with no experience or knowledge, unless they are instructed and supervised in the use of the appliance by a person responsible for their safety, supervision or instruction prior to use of the appliance.
3. Young children must be supervised to ensure that they do not play with the appliance. Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

Beware of the risk of burns.

The accessible parts may become hot during use. It is recommended to keep them out of reach of young children.

1. During use, the appliance becomes hot. Be careful not to touch the heating elements inside the oven. The same also applies to the door, the grill element, the inner (cavity) walls, the top surface.
   In order to avoid burns when removing containers and accessories from the oven, always use oven gloves.
2. This appliance is not intended to be operated using an external timer or separate remote control system.
3. Do not operate your appliance when empty. This can cause damage. To try out programming the appliance, place a glass of water in the oven. This will absorb the microwaves and protect your oven against damage.
4. The door must be free to close properly :

Do not obstruct the door in any way (with oven cloths, oven gloves, over-size dishes etc.). If the door of your appliance is not properly closed, a safety mechanism will prevent its being turned on.

1. When cooking in grill mode, any fat splashing the grill element may catch fire. These flames will extinguish themselves and will not have any adverse effect on your appliance if it is regularly maintained.

To avoid fat spitting during cooking, especially when cooking meats and poultry, use dishes in glazed earthenware. Always maintain a minimum gap of 2 cm between the food and the grill element.

1. Never obstruct the ventilation holes. This can cause the oven to overheat. If this happens, your appliance will stop automatically and will not start again until it has cooled sufficiently.
2. Precautions against exposure to microwaves :

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

• Never attempt to operate your appliance with the door open, to interfere with the safety door-locking mechanism or to insert anything in this mechanism.
• Never place anything in the way of opening and closing the door.

• Never allow food or cleaning product residues to accumulate on the door seals. Ensure that the door and its seals remain clean. After use, wipe them with a damp cloth and dry them carefully.

• It is particularly important that the oven door should close correctly and that there is no defect in :

• the door, the seals, the hinges,

• the supply cable.

If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
If the supply cable is damaged, it must be replaced by the manufacturer, its after sales service or some other competent persons in order to avoid any hazard.

1. For your safety, this appliance is compliant with the applicable standards and regulations (Low Voltage, Electromagnetic Compatibility, Materials in Contact with Foodstuffs and Environmental Directives).

Never use your oven if it is damaged.
In no case should your oven be adjusted or repaired by anyone other than a qualified microwave appliance repair technician, trained by the manufacturer.

Instructions for use

These instructions have not been devised for the UK market. The recipes have also been devised using flour, yeast and food ingredients not available in the UK. Recipes made using flour and yeast available in the UK may give significantly different results and be unsuccessful.

The following recommendations will help you get the greatest benefit from using your oven. Please read them carefully.

Foods

Forbidden foods

You should never :

• Attempt to fry food – it is impossible to control the temperature of the oil and other fats – fire-risk,
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• Attempt to cook food in an intact shell (e.g. chestnuts) or hard skin (tomatoes, potatoes, sausages) – always make a slit.

Food temperatures

The action of microwaves is such that only the food is heated. The container may, therefore, remain cold or cool while the food that it contains is burning hot.

The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. Shake feeding bottles well and try a few drops on the back of your wrist to check the temperature.

Preparing food for cooking

Before warming feeding bottles and small pots, remove teats and covers.

Remember to cover the food in order to :

• Avoid any splashing of the oven cavity,
• Retain sufficient moisture for cooking.

Heating liquids

Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. In fact, when the temperature reaches boiling point, steam tends to remain trapped in the liquid until it is disturbed.

To avoid this superheating effect and the consequent risk of scalding, always place a plastic spoon in the liquid to be heated.

Containers and materials

Only use ustensils that are suitable for use in microwave ovens.

Below, you will find details of the various types of containers, which can be or must not be used for the chosen cooking method.

microwave mode

Use containers suitable for microwave cooking.

A container can easily be tested for microwave "transparency".

Place the empty container on the turntable together with a glass of water and run the oven for one minute at maximum power.

After one minute:

• If the container is cold, it is "transparent" and can be used for microwave cooking,
• If the container is warm or hot it is absorbent and must not be used for microwave cooking.

Never use hermetically sealed containers.

Liquids and other foods must not be heated in sealed containers since they are liable to explode.

Remember to remove covers and stoppers from feeding bottles, jars, bottles and plastic containers.

Disposable containers

When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

Metal containers

Never use metallic materials and containers for microwave cooking. You can, however, use your appliance to heat or defrost certain preparations in metallic trays, provided the height of the tray does not exceed 4cm , not including the cover.

With regard to the cover, follow the instructions on the package. It will have to be removed or left in place, as the case may be. If not indicated otherwise, play safe and remove it.

Centre the tray(s) on the turntable, leaving at least 1 cm clearance from the oven walls. If there are several trays, space them at least 2 cm apart.

grill mode *

This cooking mode does not require the use of special containers. Use the same kind of heat-proof containers as you would use in a conventional oven.

Never use plastic containers (they may melt) or containers in paper or cardboard (fire-risk).
① Maintain a minimum clearance of 2 cm between the food and the grill element.

Combined microwave + grill mode *

• Containers not permitted in microwave mode are also not permitted in combined mode. Containers not permitted in grill mode are also not permitted in combined mode.

Use only containers that can withstand both microwaves and high temperatures.

Summary of containers and materials permitted and not permitted in microwave mode.

Materials Containers	Suitable for micro-waves	Remarks
METAL
Aluminium foil	In certain cases	May be used in small quantities to protect certain parts of the food from overcooking. Risk of elec- tric arcing if the foil is too close to the oven walls or you have used too much.
Aluminium tray	In certain cases	See “Metal containers”, above
Metal sheet	No	Risk of electric arcing and fire
Freezer bag ties	No	Risk of electric arcing and fire
GLASS
Heat-resistant glass	Yes	Perfectly suitable
Glass with metal-based decora- tion (gold, lead etc.)	No	Risk of electric arcing
Fine glassware	No	May break or crack if heated suddenly
PLASTIC
Plastic containers	Yes	Perfectly suitable if the plastic is heat-resistant. Certain plastics may be prone to deformation or discoloration after repeated use. Do not seal closed.
Plastic film	Yes	Can be used to retain moisture and prevent spit- ting. The plastic must not touch the food during cooking. Puncture the plastic to allow excess vapour to escape. Use oven gloves to remove the plastic film after cooking (risk of burns from hot vapour escaping from the container).
DISPOSABLE CONTAINER MATERIALS FORBIDDEN IN GRILL
Polystyrene cups or packaging	Yes	Can be used for heating liquids and foods for a short time. Overheating could melt the polystyre- ne, which would then become mixed with the food.
Paper bag	No	Fire-risk
Paper plates, cups, napkins or absorbent paper.	Yes	May be used for heating and brief cooking
Grease-proof paper	Yes	Can be used to retain moisture and prevent spit- ting. Short times cooking.
Recycled paper	No	Risk of electric arcing
PORCELAIN
Porcelain containers	Yes	Perfectly suitable except with metal-based deco- ration (gold, lead etc.).

Cooking time

To determine the right cooking time for your foods, follow the instructions on the packaging of ready-made dishes and deep-frozen products.

In the absence of any precise indication, divide the cooking or reheating time given for a conventional oven by at least three.

In any case, refer to the cooking guide included in these instructions.

Do not programme a cooking time longer than necessary. You will then avoid any risk of overcooking or setting fire to your food.

Resting time

Microwaves act close to the surface and penetrate food to a depth of 2 to 3cm . Once the surface layers are hot, heat penetrates to the centre of the food by conduction, i.e. the hot parts heat the cold parts. This makes it a good idea to allow the food to rest after removing it from the microwave so that the heat can penetrate to the centre.

This makes it a good idea to allow the food to rest after removing it from the microwave so that the heat can penetrate to the centre.

The various cooking modes

Your oven can be used to cook, reheat or defrost all kinds of food. You have the choice of 3 cooking modes:

• microwave mode for
• cooking - reheating,
  defrosting,
• automatic heating,
• grill mode *,
  combined microwave ^+ grill mode *

To select the desired cooking mode use the power/module selector switch.

microwave mode

Use this mode for cooking, heating or defrosting your food.

Only use containers suitable for microwaves.

Cooking - reheating

1. Place the food at the centre of the turntable and close the door.

2. Set the power with the power/model selector switch.

120 W	400 W
( defrosting )	540 W
	700 W

1. Set the cooking time with the time selector switch.

① To set times under 1 minute, turn the times knob to 2 minutes and then back to the desired time.

1. When the cooking time is selected, the oven will start automatically. The internal lighting will be switched on and the turntable will rotate.

Defrosting

1. Place the food at the centre of the turntable and close the door.
2. Set the power selector switch to the Defrost position.
3. Set the cooking time with the time selector switch.
4. Defrosting will start.

Reheating guide:

	Quantity	Mode	Time	Resting time
Cup	100 ml	700 W	1' 00	1 minute
Bowl	300 ml	700 W	2' 30	1 minute
Soup bowl	300 ml	700 W	3' 00	2 minutes
Pizza *	300 g	700 W	8' 00	2 minutes
DUO *	2 x 300 g	700 W	6' 30	2 minutes

1. Place the food at the centre of the turntable and close the door.

i In the DUO position, place the first plate in the centre of the turntable. Place the DUO rack over this plate and place the second plate on the DUO rack *.
Make quite sure that both plates are of the same weight and the same type of food.

1. Set the power to maximum (700 W) with the power/mode selector switch.
2. Set the cooking time with the time selector switch.
3. The oven will start.

grill mode *

Use this mode to brown food such as gratins or meat by means of your oven's grill element. This cooking mode does not use microwaves.

It is preferable to use the DUO rack when you select grill mode (see details of accessories, p. 12).
In grill mode, use only heat-resistant containers.
Always use oven gloves to handle dishes and accessories in grill mode. Risk of burns.

1st step: preheating the grill

1. Turn the power/module selector switch to grill mode.
2. Set the preheat time with the time selector switch.
3. The oven will start.
4. After the preheat time, the oven will stop. You can now start cooking.

2nd step: cooking in grill mode

1. Place the food on the DUO rack and place this in the centre of the turntable. Close the door.

duo

Grill

1. Set the cooking time with the time selector switch. The oven will start.
   ① The grill element may turn on and off during cooking. This is quite normal and prevents overheating.

Combined microwave + grill mode *

Use this mode for rapidly microwave-cooking or reheating food, while it is browned and crisped by the grill.

In combined mode, 3 power levels are available:

Symbol	Mode	Microwave power
~	strong grill + gentle microwaves	800 W - 150 W
~	medium grill + medium microwaves	700 W - 200 W
~	gentle grill + strong microwaves	600 W - 300 W

① To be used, preferably, with the DUO rack (details of accessories, p. 12)
Use only containers that can withstand both microwaves and high temperatures.
Always use oven gloves to handle dishes and accessories in combined mode. Risk of burns.

1. It is not necessary to preheat the grill in combined mode.

2. Place the food on the DUO rack and place this in the centre of the turntable.

3. Set the power/mode selector switch to the desired combination of grill + microwaves: gentle / medium / strong.

4. Set the cooking time with the time selector switch.
5. The oven will start.

① The grill element may turn on and off during cooking. This is quite normal and prevents overheating.

ENG

Adjusting time and power

You can change the power or cooking time during cooking time by means of the appropriate selector switch. The oven will automatically use the new setting for the remaining cooking time.

Stopping the oven

Your oven will stop automatically when the time selector switch has finished counting down.

During cooking you can :

• Interrupt cooking by opening the oven door, the oven will stop and will restart when you close the door again,
• Cancel cooking by turning the time selector switch back to 0.

Cooking guide

The times indicated in the cooking tables are given for guidance only. The correct cooking time can vary with the shape, thickness and temperature of the food. The resting times are for use after cooking, heating or defrost- ting.

Cooking with microwaves

Cooking guide for fresh vegetables

Use a Pyrex container, suitable for microwaves. Pour in 2 to 3 tablespoons of cold water for every 250g of vegetables (unless otherwise indicated in the table below). Add the vegetables and cover. Stir once during cooking. At the end of cooking, stir thoroughly, add salt, herbs or butter and cover while resting.

For best results, chop the fresh vegetables.

Food	Quantity	Power	Cooking time (minutes)	Resting time (minutes)	Instructions
Carrots	250 g	700 W	7	3	Cut the carrots evenly into discs.
Courgettes	250 g	700 W	7	3	Cut them into discs. Add 2 tablespoons of water or a knob of butter.
Potatoes	250 g 500 g	700 W	8 13	3	Peel and cut in two.

Reheating

After heating liquids, it is advisable to leave the container to stand in the oven for at least 20 seconds. This allows the heat to spread through the liquid and minimised any risk of overflow and scalding. Stir the liquid during and after heating.

Warming guide for baby food.

Before serving, carefully check the temperature of the food.

Food	Quantity	Power	Cooking time (minutes)	Resting time (minutes)	Instructions
Baby food (vegetables and meats)	190 g	540 W	1	1 - 2	Place the food in a ceramic bowl. Cover. After cooking, leave to rest.

it is possible to heat baby bottles in the microwave, taking care to respect the instructions given on the milk cartons.

Defrosting - power at position

Place the frozen food in a dish. Do not cover.

Ensure that the food does not start to cook during defrosting. If any part of the food should begin to cook, cover it with a small piece of aluminium foil to screen it from the microwaves. If the surface of poultry becomes warm, stop defrosting, leave to stand for 20 minutes before recommencing.

The table below applies for frozen food at a temperature between -18^ and -20^ .

Leave to stand for the full resting time to be sure that defrosting is complete.
At regular intervals during defrosting, turn the food and pour off any water.
Defrosting must be carried out at a power setting : defrosting

Food	Quantity	Cooking time (minutes)	Resting time (minutes)	Instructions
Meat : minced beef	500 g	14	2	Place the food on a flat ceramic plate. Protect thin slices with alumi- nium foil.
pork steak	250 g	9 - 10
Fish fillet	250 g	7 - 8	2	Place the fish in the middle of a ceramic plate. Place the more fragile pieces under the thicker pieces. Cover the ends with alumi- nium foil.
	400 g	13 - 15
Chicken pieces	500 g	16 - 19	2	Place them on a plate. Protect fragile parts with aluminium foil.
	(2 pieces)

Cooking with grill alone or with combined microwaves ^+ grill *

• Cooking guide for "grill" / "micro grill mode": fresh food

Food	Quantity	Mode + power	Side 1 Time (min.)	Side 2 Time (min.)	Instructions
Sliced bread	4 slices (25 g)	“grill” mode	4	4	Place the slices on the DUO rack.
Chicken pieces	500 g	~ ~	15	13	Brush with oil and sprinkle with spices. Place the pieces on a plate on the DUO rack. Leave to stand for 2-3 minutes.

Cooking guide for "micro grill" mode: frozen food

Food	Quantity	Mode + power	Cooking time (min.)	Instructions
Fish gratin	400 g		18	Use a round, Pyrex dish Place it on the DUO rack. Leave to stand for 2-3 minutes.
Lasagne / Cannelloni / Macaroni	400 g		19	Use a round, Pyrex dish. Place it on the DUO rack. Leave to stand for 2-3 minutes.

Cleaning

The oven should be cleaned regularly and any food deposits removed.

Cleaning the oven

The following parts of your microwave must be cleaned regularly to avoid any accumulation of food particles and grease :

• The inner and outer surfaces of your appliance,
• The door and its seals,
• The drive, the ring bearing and the turntable.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation..
Make sure that the door closes correctly.
① Do not use abrasive cleaning products or stiff metal scourers to clean the glass door of the oven, as this could scratch the surface and cause the glass to break.

Clean the outer surfaces with a soft cloth and soapy water. Rinse and dry carefully.

Remove any particles or stains inside your appliance or on the ring bearing with a soapy cloth. Rinse and dry carefully.

To help dislodge food particles and eliminate bad smells, put a glass of lemon juice diluted in water on the turntable and run your appliance for 2 minutes at maximum power. The steam will soften the dirty marks. Rince and dry.

The grill element hinges down to make it easier to clean the roof of the oven.

Take care not to allow water to run into the ventilation holes.

Never use abrasive or solvent cleaners.

Clean the door seals carefully, making sure that :

• There is no accumulation of particles,
• Nothing prevents the door from closing properly.

Clean the inside of your appliance after every use with a suitable detergent.

Do not use any steam cleaning equipment.
Always allow your oven to cool down before cleaning it.

Cleaning the accessories

• The glass turntable
• The DUO rack *

Technical problems

Your appliance must not be used if the door or door seals are damaged, for example :

• broken hinges
• damaged seals
• internal deformation

Please contact the after-sales service for any repairs (cf : attached list).

It always takes time to become familiar with a new appliance. If you have one of the problems listed below, try the solutions suggested.

• The following occurrences are perfectly normal and should give no cause for alarm :

• condensation inside the oven,

• the escape of air around the door and the outer walls,
• light reflections around the door and on the outer walls,

• steam escaping from the door or the ventilation holes.

• If you find that the food is not cooked at all :

• make sure that you have programmed the timer correctly and have pressed the "Start + 30 s" button,

• make sure that the door closes correctly,

• make sure that the circuit breaker is not tripped or the fuse blown.

• The food is overcooked or undercooked :

• make sure that the programmed cooking time is correct for the food you are cooking,

• make sure that you have chosen the right power level,
• make sure that you have not forgotten to remove the aluminium foil covering the food tray,
• make sure that you are not using an "absorbent" container,

• make sure that the rear ventilation holes of the appliance are not obstructed.

• Cracks can be heard or sparks can be seen inside the oven :

• make sure that you have not used containers with metallic decoration,

• make sure that you have not left a metal utensil (fork etc.) inside the oven,

• make sure that you have not positioned aluminium foil too close to the oven walls, positioned a metal tray badly or too close to another metal tray or forgotten to remove the metal fastener from a freezer bag.

• A beep sounds if you press any button on the control panel :

• make sure that the Child Safety feature is not activated, if it is, deactivate it.

• The interior lighting does not work, although your oven works normally :

• the bulb is probably blown, your appliance nevertheless remains usable.

If these suggestions do not solve your problem, collect the following information:

• the model and serial number printed on the rear of the oven,
• your guarantee,
• a clear description of your problem.

You should then contact your local dealer or the after-sales service.

Waste disposal requirements

Moulinex endeavours to respect the environment as far as is possible in the manufacture of its packaging. The package is made of 100% recyclable corrugated cardboard.

The plastic parts of the appliance have a marking that indicates the type of material. This enables the parts to be recycled.

You can obtain more detailed information on the disposal of each material from your local authority department with responsibility for waste disposal. This department can also advise you on the disposal of any waste, including used appliances.

Your questions regarding disposal can be addressed to your local waste disposal service or to your Moulinex approved service centre.

Performance testing data

According to standard IEC 60705

The sub-committee of the International Electrotechnical Commission, SC 59H, has developed a standard for comparative heating performance testing of various microwave ovens.

We recommend the following for the model in your possession.

Test	Load	Approximativetime(minutes)	Power level	Container
Egg custard	750 g	11	700 W	IEC 60705RecommendedContainer
Sponge Cake	475 g	12	540 W
Meatloaf	900 g	20 - 22	700 W
Defrost	500 g	15 - 17	180 W

These data are given for an appliance with a nominal power rating of 700 W.

Technical characteristics

Model	Compact
Supply rating	230 V ~ 50 Hz
Power Consumption :
Maximum power	1150 W
Microwaves	1150 W
Grill	1000 W
Output power	700 W
Frequency	2450 MHz
Dimensions (L x D x H) mm
Outside	440 x 360 x 260
Inside	306 x 274 x 208
Weight
gross	12,3
net	10,5

Índice

• Cup
  -Bowl
• Soup plate

• DUO reheating on 2 levels.
• Cup
• Bowl
• Soup plate
• Pizza

Instalación

Preparación

No实用性: No utility, no use of the product.

Technical characteristics

Modelo	Compact
Tension nominal	230 V ~ 50 Hz
Consumo de potencia
Potencia máximo	1150 W
Microondas	1150 W
Grill	1000 W
Potencia de salute	700 W
Frecuencia	2450 MHz
Dimensiones (L x D x H) mm
Exterior	440 x 360 x 260
Interior	306 x 274 x 208
Peso
Bruto	12,3
Neto	10,5

Summario

Descrizione 32

Pannello comandi 32

Accessori 33

PykoBoDCTBO no npiroToBJeHnIO 57

PpiroTOBJIeHne BpeXmme MmKPOBOH 58

PoiDorpeB 58

Pa3mopaxnBaHne 58

PpiroTOBHeHnToBkoHa rpiJne/BcoUeTaHHMmKpOBoJHbI+rpNJb*..58

YnCTka 59

Texnueckne npo6nembl 60

CobetbI no ytni3aun 60

-yaawka
-yaasa
- rny6okar tapenka

1- IpekeIIOUaTeIb MoOIOHOCn/ peKIMa
2-Функцуразмораьань.
3-TaMep
4-Γpnlb
5-ФункягКOMбИнрованогорежma; MKNKPOBOJHbl+rgnlb
6-5 PeKIMbI abTOMaTHueCKOro pa3orpeBa: -fYHKUIN DaOHorO pa3orpeBa I no3BOnJrE 6bICrpo pa3orpeBaT b 2 6Kn OohOBpemehHo
-yaaoka
-yaasa
- rny6okar tapenka
-Пица

YctaHOBka

IoproToBka

Ocbo6oIte Bce npHaJnEJXHocTn npIbopa O T ypaKOBKn, BbIMOnTe N TuaTeJIbHO BbCyuHTe INX.

YcTaHOBInTe BHeue, a 3aTeM BpaUaIOuINsCn IOdHoc B cHTpe NeuN.

BpaaoouinocnoHocdoJXeHNnOHTHOKacatbcnpbOda.

Iopdkluoyehne

Y6eIntecb, yTO HAnpJxHeHne nHTaHnI pIn6opa COOTBeTCTByET pa6OeMy HAnpJxHeHIO BaSeI 3JeKTPocEtN (CM. 3TNIkETky, HAKJIeEHHyO Ha 3aJHeI NaHEI np6opa, HA KOTOpOy kA3aHO HOMHaJIbHoe HAnpJxHeHne: HAnpIMep, 220-230 B).

Y6eIntecb, yTO BaI 3JIeKTPoCteTcIK N BblKIIIOuTaTeIb paCCHTaHbI Ha CINy TOKa He MeHee 16 A.

Дяп понов 6e3oNaChocTи npi6bop DoJiKeH B O6BaTeIbHOM nopRJaKe BKJIouaTcB CteByIO pO3eTKy C 3a3eMJIeHnEM, COOTBeTCTByIOUyIO CTaHdApTaM Ha 3JIeKtpoO6OpyOboHnE.

YctaHabnBbA npi6Op, o6cepebTe Cbo6oHbI DoCTyn K po3etke, yTo6bl npi6Op MoXHO 6bIIO JeKo BvIKNoHTb B IIO6OIMoment.

Obecneuthe TaKke Cbo6oHbI DoCTyn K BblKnIOHaTeJIIO.

Bce peKomeHdaaun OTHoCteIbHO 3JeKtpOnuTahn np6opa DoJXhbo co6NIOdaTbc HeyKoCHnteIbHO.

Pazmeuenie

BbIMoKeTe yCTaHOBnTb npu6Op:

Ha paoboun cTol: UcTaHOBuTe npBop Ha npOHyU yToUHyU IOBepxHOCTb, cnOCo6HyU BblEpeKATb BEc neu n ee coDEpXmoro. ObaaunTeCb C neybuocctopoxkHoCTb. ObpaTne BHMaHne, UTO Ta cTOpoha npBopa, HA KOTOPOHaxoNTc naHeIb ynpBaJIeHn, TAgKeJee.
-Bo BCTpoeHHyO Me6JIb:Me6JIb DoJXHa 6bITb pacNoJoxHe Ha BbICote He MeHee 85 cm OT nona. YcTaHOBtpe npIbOp B cHTpe OTBeJeHOro dIra Hero npocTpaHCTBa TAK, YTO6bl OH He KacalC rTeHOK Me6JIi.

ObecneyBc Bc06oHbI OTBOD TENa: MNHMmaJIbHOe pacCTOHNHe Na neybo DOJXHO COCTABJIbT He MeHee 20 cm, a y 6OKOBbIX n 3aDHei CTeHOK - He MeHee 10 cm.

UctaHabnBaIte np6op DoCTaTOH0 daJIeKO OT nCTOHTNIOB TeNla (TaKIN KAK ObHuHaJ DyXOBaI neHb nn 6batape), NocKoJIbKy OHa 6blJa cKOHCTpyuPObaHa Hn3rOToBHeA dIra pa6Otbl pRn Tempeatype OkpXaIOSeI cpebl, He npeBbIshaIOSeI 35^

He 3acnoHnIte NoctopOHnMn npedMeTAMN BeHTnJIauHOHHbIe OTBepCTn npnbopa.

BaxkhbIe HnHCTpykCnn n6e3OpaCHOCTn

BhmuTeIbHIO npOuHTte n COxpaHnTe dIy IcNoIb3ObaHnB D aJIbHeIeM.

1. Мкрволновая песь Альятсп римбором ИСКЛЮЧТЕВно 6БТОВО Г ИЗHAЧЕНИNYI p佩徳нэнчehа дд пиготовлини, pa3огревани И раморжавениnpodkyTOK ПИТАПИ.
2. Heo6xOJIMMO NCKJIQUHTb BO3MOXHOCTb NCIOJIb3OBAHnM MKNPOBOLHOBOI neu IIOJBMN (BKJIOUHae JTei) C ORPAHNUeHbIMN ΦNIHNECKIMN, CEHCOPNAJIbHbIMN UYMCTBEHHbIMN CNOCO6HOCTaMn, A taKke IIOJbMbN 6e3 ONbITA NOJIb3OBAHnM KNOBOLHOBOI NECbIO NMOOTBETCTBYUONX 3HAHIN D IO NOLUYeHnIMM COOTBeTCTBYUONX INHCTpyKcN OT YELOBeka, OTBeauHOJero 3a INX 6e3OnaCHOCTb.
   3.ДeTN MOrYT nonb3OBaTbCA neyBIO 6e3 Ha6nIOJeHnco CTOpOHbI B3PocNbIX ToNb-KO pR NcNoBm nOnyuEHHa COOTBeCTBHyOuXIN HcTpyKcH, TAK YTObI pe6EHOK yEm nONb3OBaTbCA neyBIO 6e3OnaCHO INoHmAl ONaCHOCb HEnpaBnblHoro eNcNoBtOBAHn.

Bo n36ekaHne pncka noJyehnOxorOB

B npoucece paobtbl MnKPOBONHOB O Neu HekOTOpbIe ee KOMNHOENTbl MOrYT CUNHbHO HaRpeBaTcN, NO3ToM y peKOMEHyEaTc MaKcMmaHbHO ORpAunHT b K HmDocTJTeH.

1. B npouecce pasobI MKNPOBONHOBAI neb HArpeBaTeCn, no3OMy n36eAraIte KOtakKa Tc HArpeBaTeNbHbIMN 3NeMHTAMn BHyTpN neu. Te je MepbI npedocToPoxHoCTN OTHOCrTaN K DBePeU MKNPOBONHOBAI neu HArpeBaTeNbHOMy 3NeMeHTy rpnla, a TAKKe K BePxHeN BHyTpeHNm N CteHKam Neu.

Bo n36exaHne nOyuEHN OXOROB npn n3BNeueHHN KOHTeHepOB n Dpyrnx npnHaJnEeKHOCTe, BXoJaunx B KOMPNeKT M, n3 neu, Bcerda Nolb3yITeCb npedHa3NaueHHbIMN dner 3TOrO pykabucaMn.

1. MkhpoBolHOBaey neh Be nped3HaNeHa dIЯ pa6OtbI c BHeuHHMM cpeCTBaMn ynpabJIeHN pexKIMAm pa6OtbI neH, Hapmep He BXoJaIne B KOMTJIeKT neH TaJI-Mep IJn pn6Op DnctaHcUHOHoro ynpaBJIeHN (II.DY).
2. He BkIIOUaTe MmKPOBONHOBy Neeb NopoJXHeN, NocKoJIbky 3To MOKeT pINBeCTn Kee nolomke. NocToHHo DepXHte B neu cTaKaH c BOdo. Boda nOrIOTn MmKPOBONHb, ecn Bbl CnyauHBO KBIQUHTe Neyb, KOrDa OHa NyCTa.
3. HeIb3a nonIb3ObaTcBcM MKNpOBoNHOBo NcebI np OTKpbITOn DBepe. He ocTaBnJIe KaKnx-JIb6 PnpMeTOB MeJy DBepeI Npeu I nepeHne NaHeIbU. B TOM ClyueA, eCIN DBePc4a Neu H ZeKpbIta DoJHKbIM 0bpa3OM, CneuaNaHbO npeDyCMOTpeHHbI MexAH3M 6e3OnaChocTn 3abloKnpyet pexm BKIOUeHnM KNOBOHO BO Neu.
4. Пп рпготовлении пиши в ржиме "ргь" 6рьзгхира, пп поданин Ha harpebaetlbhni злелметргь, могут BOSTropаьсь. Таду ВОЗраня ratcHyt camn no cebe n He okakayt He6laIaropnrayTHORO BO3dEiCTNBa MHKPOBOHOBYIO neych, ecIn BHUTpeHHIO Kamepy neu NOCTOHNO NOДeprKbA b YHCTOTE.

Bo n36bexaHne pa36pbI3rNaBHaJxnpa npn npnroTOBHeHHn HnU, oO6eHHo npn npnrTOBHeHHn 6HIOd n3 Kpyu bI mca, hCnoNb3yTe Kepamueckyo nn TcKJIHNHYO NOCydu, 3aKpbIbAeMyo KpblIKoJ. Pn yCTaHOBKe B KaMepy neuKn 6HIOda, npedHa3NaYeHHOrO dJa npnr TOBHeHH, Heo6xoIMo npedYCMOTpeb MmHImaIbHOe pacCTOHHe (2cm) Mejdy o6paTaIBaEBMIM npOyKToM n HarpeBaTeNBbIM 3NeMeHTOM rPnIA.

9.He 3akpbIbAte BeHTnJIaUIOHbIe OTBepCTn, NocKoJIbky MmKpOBoJHOBaI neYb MoXeT pepePbCry n ABTOMaTHueCKN OTKlnOHuTbc. OHa 6yDet B Hepa6ooyem COCTOHHN, NOKa DOCTaTOUHO He OXlaDITcR.
10. 3aunTa OT BozdeiCTBnM NkpoBoHN (CBY):

I JnLHcHe ABJIOUxCScneuaJICTAMN,IpOn3BOaNTbO6CnyKbAHne Hn peMOHT MKNPOBONHOBNeu, BKNIOUaIOUs CHrTne KpbIiKu, 3aunuaIOSe ot BO3JeCTBn3Heprn CBU, onaCHO/

Hn npn KaKnx O6cToaTeBCTbax HeIb3n N0bn3ObaTbCn NebIOp npn OTkpblTOB dBePcne, npntb 6IoKINPOBOHbHe KOHTaTb (3aueJIKN DBePcbl) nJI BCTABTb YTO-1N60 B OTBcPTb 6IoKINPOBOHbX KOHTaKOB.
- He BCTabJIaTe KaKHX-JIbO ppeMeTob Mekdy DBepee N pepeHne IaHeIbIO MKNPOBONHOBO neu.
He N03B0JIe OCTaTkam NiuN IIN OCAdkam YNCTaIINx CpeDCTB HkaJIINBaTbCn Ha yIIOTHNoOIIIN NOBEXHOCTX. PIOIdepKJBMaIte DBePcUy eE yIIOTHHOUme NOBEXHOCHTB V NCTOM COCTOHIN, POTOpIaR IN NCIOE IICNOJIb3OBaHNIE ChauHa BLaXHON, a 3ATEM MARGK OYXOI TPRIKKO.
- Oco6eHNO BaxHo, yTo6bl Dbepua neu HndexHo 3akpbIbIaIacb, n YTO6bl He 6bln nobpeKdEhbl:

-Dbepca,ynlnotteiNneTn DBepubl
- cTeB0n 乌Hyp.

B cnyae kaKnx-1n6o nobpeKeHn DBepu bnn yNnOTHTeNei DBepu b, nCNoIb3OBAHHe MKNpOBONHOBOn neu 3aPpeaaetc, noka e He OTpeMOHTnpuy KBAJINΦuNUPoBaHHb CneuaJIncT.
Bo n36exaHne onaCHOCTn, 3aMeHa NOBpeXeHHORo Ka6eIaONJHc OcyueeCTbTbCpOn13BOOHTeJIem, ero rapaHTnHOJ Cnyx6o nn MaCTepOM, IMeU0m COOTBeTCTBYUOy KBaIINΦKauuio.
Hb Kcem Cnyae He NpIb3yIeTcB HeuCnpaBHO neybIO.
I Neuchonk HenactpaBaTb HnpeMOHTnpoBaTb TOnBko KBAaHnHnIpObaHHb CneuaNCT no CBY 6OpUyOBaHNIO, NOdTOTOBHeHHOro npOn3BOAnTeJe MmKpOBoHOBo neu.

Ihctpykunno3KcnpyaTaun

BHNMaTeJbHO O3HaKOMbTeCb C peKOMeHdaaunMIM, KOToPbI NOMOryt Bam I3BNeYb MaKcMym BblOdbOT INCNoJIb3OBAHnI DnI PnIroTOBHeHnI nIuN MKNPOBOHOBO neu.

PpIMHeHneM NmKPOBOLHOBOI Neu 3NaUHTeNbHO COKpaUaET BpEMr, Tpe6yEmoe dJa pa3MOpO3KN, MIOgOrpeBa n DaJIbHeNeW eOpa6OTKn pOdoYkTOb npn IcNoIb3OBAHnn TpaDINOnHbIX CnOc6OB pnproTOBJeHH NIIu.

Ipoodykbl

3aIpeHHeK 6bA6oTKe B MmKpOBoJHOBOJ Peu npOdykTbI PtTaHnI n CnoCobI npIroTOBLeHnI.

EcnnepeD Bamn CTouT 3aadaa Bb6opa cnocoba npiroTOBHeHn PnIc n cncnonb3o-BAHNEM MKNPOBOH, Bam He CneDuYt:

• nItaTbCn POJxAPBbTb PPOyKbTb NITaHn, NOCKoIbKy I3-3a BO3MOxHOCTN B03rOpAHn HEOB3MOxHO KOHTpOJIuPObaTb TempePaTy pMa cNa IIN JxNpOB, NCIOJIb3yeMbX npi XapKe.
  pa3ORpeBaTbIaIaB CkOpNyIe KaK CbIpIbe,Tak N yXe CBapeHbIe BkpyTuO I3- 3a ONaCHOCTn INB3pIbAHnB TOM YNCle N POCNe OOKHuHaHn HeNOCpeD CTBEHORo BO3dEChTBn HA HN CCBY.
• pItaTbca ObpaTaBbTaB npOdykTb, KOtOpbe MeHOT Bo3dYxHOHePOnHuaeMyo CkOpny, nIOthyO KoKypy uNn OboIoQHy (TomaTb, KapTopeJb, K0JIbAc bI T.n.) - He 3a6BaBnte DeNaTb B HNX HaDepe3b Nn IpNoKOnbI.

IpoDorpeB npOdyKTOB nHTaHn

I JeCTBnE MKNPOBOHn XapaKTePn3YeTCaTeM, YTO OHN Bb3bBAOT HargBaHHe HENOpCEdCTBEHNO NOBpeRAeMOrO 6pb60TKe npOyKtA. Cam KOHTeHep, B KOTOpOM HaxoJITcpa3OrgPeBaEMBI npOdyKT, MoKet PpN 3TOM He HargPeBaTcB,

Hnkorga He HaponnIte Nocdy C codepKmbIMdo KpaEBN BbIbpaIte Nocdy c paCswnpauimcK Berpyx yCTbEM IyI pyeDOTBpaueHry BblneckBaHry JxIKOCTN HApxy npn KIneHH. Kpme TOrO, 6yTbIKn C y3KM rOpIbXkOM npn nepepeBeM MOrTy B3OPBaTbc.

Bcerda npobepaTe TmepaTy DeTCKOro NITaHnI MOnoka nepeTd Tem, KaK daBaTb erO pe6eHky.

HnkOrda He HargpeBaIte 6byTbIKy dIe pe6eHka C HaeTeOHa Hee COCKo, TaK KaK 6byTbIka MoKet B3OpBaTbc npi nepeIpeBe.

PazorpeBaHne XnKoTei

Ipi pa3orpeBaHHn HAnHTKOB cyuEc7BcyT onaChOCTb 3aepKaHHORo 6yphORo BCKHnn HAJIKOCTN. IJI npEoTbPAaeeHH3aDePkAAHHORo 6yphORo BCKnAHn IN BO3MOxHORO OOKORA, B HAnTEKn CJeDyeT NOMeAaTb PIACTMaccBOy IOXky NIN CTKeKNHHyIO NaONKY, IN PepeMeHNbTa IN PepeB, BO BPEm n Nocle HarpeBaHH.

PnIroTOBJIeHne IpOn3BOJNTcC NlOMOuBIOpeyIaTOpA MoUHOCTN

PexkIM MmKpOBoJH

IcnoIb3OBAbT 3OT peXIM IJI npriROToBHeHn, pa3OrpeBaHn IJI pa3MOpO3KII nIeBbIX IpOdyKTOB

I IcnoIb3OBAt Tb TOLbKO NocyU, CToIkyu K Bo3eJeCTBnIO MNIKPOBOIH.

PnroToBJIeHne - pa3OrpeBaHne

2.YCTaHOBnTb MOUHOCb C NOMOuIbOperyJITopApMOUHOCTN.

2.YCTAHOBNTb MaKCMMaJIbHyIO MOUHOCTb (700BT)cNOMOUIbIOpeyIaTOpaMOUHOCTN.

3.YctahOBtB Bpemc N pOMOuBopeyIaTopa BpeMeHn.
4.ПeчБВКЛIOuaTeTcA.

Pexkim rpnjra

IcnoIb3ObaTb 3ToT pexnIM IJI NIOJxapnBaHnI Do 30oNTocT KOpOuKn TaKIN NIIeBbIX npOyKTOB, KaN HnPobBaHbIe POnyKtbl ININ MACO, C NOMOuHrpnIa Neu. B 3tOM pexnme npiroTOBHe nIKpOBONHbI He IcNoJIb3yOTcR.

I Ipn npriroTOBHeHn B peXHMe rpnI npEiNoHTeIbHO nCNOJb3ObaTb rpInb DUO (noApO6Hee cm. Ctp. 56).
BpeXmme rpnIa HcNoIb3ObaTb ToIbKO JapocToKyu NocuLy.
I Ipn pa6oBe B pexnme rpnJra dna MaHnynpaun C nocdyon npncno6bneHMn noJIb3ObaTbcN 30nnpuyuumn nepaatkamn. IpcyTCTByet pck o6xecbr.

1-3Tan: npedbapntelbny pa30peB rpn

1. BbIbpaTb peXIM rPnIc nOMOuBHO peryIaTopa MoUHocTN.

2.CnmooupopeyIaTopaBpeMeHnyCTaHOBtIpeDbapntelbHypa3oRpeB.

-PeKoMeHndaunn IIO npriroTOBneHHO CBexnx OBOeJ.

NcnoIb3ObaTb cocyd n3 xapocToiKoro cTeKnla, npedHa3HaeeHnyo dI npiroTOBHeHn B MmKpOBOnHObBix neaX HaInTb 2-3 cToNoBbIX loKKx XoJOnHO BoBt Ha 250 r CBeKnx OBOeI (ecnn HnXe He yKa3aHO nHOe).3aONKtB OBOUIN 3aKpbITb KpbIshO.Bo BPem npiroTOBHeHn NOMEuATb 1 pa3. Po OKOHauHn npiroTOBHeHn nepemEuaTb, Doabntb CoIb, 3eJIeHb IIN CNIOBOHoe MaCNO I 3aKpbITb Ha BPem OTCTaANBaHN. IIN LyuHero npiroTOBHeHn Nope3aTb CBeKne OBOUIN KaCOyKn.

-PeKoMeHdaaunIpo pa3oRpeBaHnIO DeTcKO rTaHnA.

I Ipeq KOpMneHnem TuaTeNbHO npOBepuTb TeMnpaTypy NnueBbIX npoDyKToB.

Pi3Hi pexmnpiroToyBaHHa 78

Pexim"MikpoxBnIbOba nIu" 78

Pexim "Tpnlb" * 79

KombiHOBaHn peXmM"MikpOxBnIbOba nIu + rpnB" * 79

PeryIIOBaHHaNtOyXHocTi / TpIBaIocTi 80

BumKHeHH neqi 80

IHCtpykci3 npiroToyBaHHa 80

PpiroTyBaHHBpeKmim"MikpoxBnIbOba niv" 80

PidirpiBaHH 80

Po3MopoxyBaHHa 80

PnroTuBaHnB PexKmI TlBKn "TprNlb" a6o B KOMbHOBaHOMy peXmI "MikpOxBnIbOba nIu +prnIb" * 81

OuHJENH 81

Texhihnpoblemn 82

IopadnctocOBNo ytnilizaauiynaokBkn i HecnpabHnx npnilaib 82

Dani npo ekcnnyatauii Bnnpo6yBaHHa 82

Onnc npnilaIy

Ppnilaand

PnpBvIaHn npucTpi

LHa hepYXOMa deTalb po3TaWOBa hi nd oBeptOBm nIDOnHOM, noCepeNHi neHi.BoHa 3'EdnHa 3 DnHyHom i nepeda npBIDhe 3ycnIHa oBeptOBn niDOnH.

HannpMne KJIbue

LZIeTajb po3aWOBaHa nID o6eTobm nIDOnHOM, nocepeunHi nei.

3aB4Kn p03MlueHm Ha hi pOiHKam BOHa NiItpmUe o6epTOBni nIDoh i yMOxJIbNIOE NOro O6epTaHH.

06eptobni ndoh

Lccklann nio don po3taowabn nocepein hi nei,Ha hnapmHomy KInbci, i nobHen 6ytu xopctko 3akpinlenn ha npnbIDHomy npncptoi. Ioro moKna BnKOpNCTOBvBaTN dIe Bcx BnDIB npiroTByaHH.Bi nCnykntb Dnpo3MIeHN NOcyDN, BnKOpNCTOBvBAHIN dNpiroTByaHH, i Dn 3bnpaHH pIDHN i TBePnX qacTHNOK, kI BiDOKpeMNIOTbcB iD npOyKTIB niac npiroTByaHH.Bi Dyke IerKO BnMaETbcra Dn OunueHH.

Pewtka «DyET»*

HnKxue Bn 3HaJdTe NOpObuNcI CTOCOBHO pIHNX TnINIB KOHTeHepiB, kI MOxHa a6o He MoxHa BnKOpNCTOBYBaTn B3aJIeXHoCTi BiD o6paHOrO cNoCoby npiroTuBaHHa.

Pexm "micro" (MikpoxBnii)

BukopncTobuyte KOHTeHepn, npuaTHI nla MikpoxBunboBOrO npiroTOBaHHa iXi.

KonteHep moXHa Ierko nepeBipuTn Ha "PpO3Opictb" dIa MikpoxBnIb:

IocTabTe Ha NoBOpOTnH CTIN NcTIn KOHTeHep pa3OM 3i CKJIAHKOIO BODi HA XBUNHy BBIMKHITb IIHa MaKcImaJIbHy NOTyXHICTb:

• kAIO KOHTeHep 3aIiunTbCra XOLOdHM, TO BIn "PpO3Opn" i NOrO MoKHa BVKnOpNUCTOByBaTN dIg MIKPOXBUNBOORo PnIroTOyBaHH iXi,
• kAIO KOHTeHep TeTnI a6o rapuY,TO BIN nOJIHaE BUNPOMiHOBaHH i NOrO He MoJHA BnKOpNCtOByBaTN dJa MIkPOxBnBObORO pNirOryBaHH iXi.

HikonHeKOpncTyTeCbRepmTuHO 3aKpntuM KOnTeHepaMn

PiiHnTa iHua iHa He NOBHHa Harpibatncb B repMeTmUHO 3akpntnx KOHTeHepax, TOMy 10 MoKe CTaTNCB BN6yx.

Pam'raTne npo Heo6xHnicb 3HimaHHKpOoK Ta npo6ok 3 pIaueok dIy DNITyoro Xap- yBaHH, 6aHOK, PIIaOoK Ta IpaCTNKOBX KOHTeHepiB.

Ondopa3oBi KOHTeHHePn

PnHarpiBaHnI iXi B PIIaCTNKOBHX YI NaepOBNX KOHTeHepax CTeXTe 3a NiyUO 3 npuHHMOxNIOBcTI iX 3aMHaHH.

PnnoaBIMy BmKHITb uN BiKIOuHt b 3 po3eTKn CBI npCTPi i TpMaTe Ioro DBepuTa 3aKpNTMn dIraCaHH NOyM'

MeTaneBIXoHTeHepn

Hikon He KopriCTyTecb dI MIKPOXBILBOO rPiNOrTOyBaHH iXi MeTaJIeBIMN KOHTeHepaM. Ondh Ka MoTehe BkOpINCTOBYBaTH CBII NOyTOBn IpiNCTpI dIra HarPIBAHH A6o p03-MOPOKyBAHN NEBHm NPOdYKTB M EAnLIHNN NotKx npu YMObi, 100 BnCota NotKa he nepeBnUyE 4 Me, HbePaxOByOn KpnKHy.

CTOCOBHO KPNiHKI - BIKOHNYTE BiIDNOBIDI HiCTPkyII Ha ynaKoBi. II NOTpiBO 3nTn H3aJIuHHTN Ha CBOEMy MiCi, JI KE MOE 6ytN BOKPemomy BnPaKy. JaIIO pno CE He cKa3aHo, He pR3NKyTe I 3HIMITb II.

Po3mictiNb IOTOK (IOTKN) B CEHTpi NOBOPOTHORO CTONY, 3aJIINbUIN npOMIXOK AK MINIMYM 1 CM DO CTIHOK nevi. KaIO E DeKInbKa IOTKIB, MIX HMIN NOBINH 6yTN npOMIXOK MINIMYM 2 CM.

Pexim "Tpnlb"

Дпя npriroTuBaHнь в cbyomy peximi cneizaihni nocSy He notpiieBn. BnkopnctOByTe ToIcami nocyd,ЯкN Bn BnKOpncTObYeTe dIpy npriroTuBaHn y 3BuaHni neci, To6To TeNIOCTInk nocyd.

HikonHe BnKOpNCTOByTe PnactKOBn Nocyd (BIn MoKe po3PnAbTncra) abo nanebpOuKapToHHn Nocyd (BIn MoKe 3aHrTaC).
I IpoodykTN cnid po3miuYbTu Ha BiDcTaHi He MeHwe 2 cm BiD HarpibaHoro enemEnta rpnna.

KombioBaHn peJm npiroToyBaHHa "MikpoxBnIbOba nI + rpnIb"

Iocyd, kyn He Do3BONHcTBcBnKOpNCTOByBatn B pexkimi "MikpoxBnIboba nIu", He Do3BONHcTBcBnKOpNCTOByBatn I B KOM6iHOBAHOMy pexkimi. Iocyd, BmKOpNCTaHnA KfOTo HE Do3BONHcTBcBnKOpNCTOByBatn I B KOM6iHOBAHOMy pexkimi.

BukopncToByte tInbKn nocyd i MaTepiAn, cTiKi JaK Do MikpoxBnIb, TaK i do BucKOi TEMpepatypn.

Kopotka DoBikka 0do KOhteHepi Ta MaTepiJib, Do3BOJeHX Ta He DO3BOJeHX DnB BnKOpNCTaHH B pexmI "micro" (Mikpo)

TpnbJIcIb npnroTybaHna

IbBn3NaHTn TpBnAicTb pInrOToyBaHHaBnX CtpaB,IOnepKnyTeCb npaD, BmIeHnx Ha ynaKOBkax rTOBnX CtpaB i 3amOpoxEHnx npOdyKTiB.

3a BiDcyTHOCTi YITKIN BKA3IbOK, NOJINIb TpnaHmHi Ha Tpr TpNBAJIcTb PniroTOyBaHHa 60 NiirpiBHaHH, NOTPI6Hy npn BIKOPNCtAHHi 3BvauHoi neHi. y Bcx Bnpankax KepyITeCb IHCTpyKUIMM 3 pnproToYBaHH, BKNlaDeHmHi y ciJ bpoWpyi.

I IporpamyTe Nnse Heo6xiny TprBAnicTb. TaKIM YHOM Bn yHnKHe Te nepeBaPouBaHNr a60 3aMHaNNr npOdykTtB.

TpBanictb BiDcTOOBHn

Mikpoxbni diIOb nepebaXHO ha NOBepxHIO npOyKTi B i npOHnKaIOb y HNX Ha rIINbHy 2/3 canTImeTpN. KOnn nobepxHBA Xe rapa, cepueBnHa npOyKTiB ue harpibaetbcu chepe3 TeNNPobIDHcT, To6To rapayi YactHHn HarpibaOTb 6IlbI xONoHi.

TOMy BapTO datn BiDCTOATNCb DeKm qac npoaykTy, TInbKn-HOBNTaRHTomy 3 neHi, 06oTeNlNo NOnpHIOcB CpeepHy.

P3hi pexmnpnroToBaHHa

Baawa niu do3B0nre roTyBatn, niirpiibatni i po3mopoxyBatn 6yIb-aki npo4kT. IaIzboR Bn Moxete Bn6paTn Odni 3 Tpbox pexIMIB npiroTyBaHHa:

• Pexkim "Mikpoxbunboba niu"

-Пириотувань -Пдirpiвань
-Po3MopoQyBaHHH
- ABTomatnue hiirpiBaHH

Pekim "Tpnlb"
- Kom6iHOBaHn peXum "MikpoxBInbOba nii+ rpnIb"

Bn6ip nopti6horo pexkmy npirotoybaHHa

3ДИСHIOETbCЯ 3a DONOMOROЮ NepemNKaHa nOTyXHOCTI.

Pexim "MikpoxbnloBa niu"

Ley pejkm BnKOpncToBvEcTbCnI npiroTyBaHH, niirpiBaHH i po3MopoxyBaHH npodykTIB.

① BnKOpncTObyIte tInbKn nocSy, cTikkn do MikoPoxBnIb.

PnirtoybaHH -PiirpiBaHH

1. Покладын рожукten в центri обертоворо пддаюа i за KMпгтдеверцята.

2. 北ictabTe notyXhIcTb 3a donomoroo nepemnkaua notyXhOCTi.

• INCTpykui3 npiroToyBaHnCbIXnx OBOHIB

Bi3bmitb nocdyhny 3 matepiany "PipeKC", npndaHTy dI na BnKOpncTahHn B MkpoxBnboBHX neaX. Hanniite 2 - 3 cToIobi noKxN xOnoHoi BOdHa KoxHn 250 r OOvIB (Rkuo B Ta6nui HnKJye 3a3NaHcEHO iHe). DoaJIte OBOHi I hApknTe nocdyHn. Pid cac npiroTyBaHHn po3Miuahe 1 pa3. No 3aKiHeuHn pInroTsyBaHHn nepemiiAte, doaJIte Cilb, cneJIi abO macNo I hApknTe Ha cac BiCTOBoBHn.

Дя ONТIMi3aJIпnprotyBaHHa NOPiXTe OBOci Ha WMaTOUkI.

• YneBHiTbCBA TOMU, IIO NOCyI, AIKI Bn BnKOpNCTOByTe, He MaE MeTaJIeBHX DeKopaTnBnX enMeHNTiB.
• YneBHITBCB TOMy, 10 Bn He 3aIIuINN BCEpeDNIH I nei BnIeKU n iHwe MeTaJIeBE HauHHra.
• YnEBHtbcB TOMy, 00 Bn He NOKIaIaIOMHiEbn panip 3aHaTOb 6nIbKO do BHTpiuHIX CTiHOK, 00 Bn NoCTabNIM MetaNebu CyDOK y cHTPI niDHOa (I 00 2 CyKn He CTOrB DyKee 6nIb3o OOnH Do OJHOro) I he 3a6yIn 3Hrtn MetaNebi NaKByaBblne IeMeENTn 3 naKetTB nlaZamOpoxExn npOdykTIB.

BHytpiHc OCBiTJIeHH He BMnKaetbCra, B ToI qac Jk BaHa nIy npaioc HopMaJIbHO:
- MoKJIInBO, 3rOpINA lamnoKa. BaIIM npIIaIOM BCE OJHO MOXHa KOpICyBaTINCb.

• Y BnnaKny neperpibaHnA 60 Tpnbanoro BnkOpncTahnn 3 HeBennKOIO KInbKCTIO npOyKTY: Baw npnIad O6NaIHaHn IpnCTpoem TenernoBO 3axNCTy, AknI ABToMaTHNo 6Ibokye pOboTy npnIaNy. 3aueKaIte 15 XbUlnH, NOKi ueI npncTpiH He BiJdkOnuHbC8a. JkIoB Baw npnIad Upee 15 XbUlnH He 3aepaioe, BiKnIOuHb MyoB BiD Mepeksi 6IbIbSe He BnkOpncTOByTe.

Jkuo zu npaui He donomoru y BnpiueHHi Baooipno6nemn, niiroyute Hactynhi Biomocti:

-Homep moDeni i 3aOoCbKn Hoomep, BnbiTi Ha 3aDiH CTInci neei
-Bauy rapantio
- 3pozymiŋn onnc Baωöi npo6nemn

Iicn yoro 3B'xjitbcra 3 BaWIM MlCueBm DnCTpN6'IoTOPOM aO 3 cHTpOM nicnnpoaidxhoro o6cnyrobybAHn.

Iopadn cTocobHO ytni3auiy naokBn i HecnpabHnx npnilaqIB

Прии ВИROSЕНС CBOIX ynakobok Фдм Ma Moulinex куретс,нackькп се можлбо, Міркувангим 3axnctу doвклл.Уnakobka cklaаetbс 3 roфpoBaHorO kapToHу, піndягп警察обци ha 100%

Пл actikobi DeTani npunaу MaOtb MapkyBaHn, 00 Bka3y TnM MaTepiAly. Lcdo3BONJIe 3dIINCHOBaTN B NOaJIbShOMy nepepO6ky uXN MaTePiaNIB.

Bilsh DeTalbHy IHOpmaio npo yTnizaoio KoxHoro MaTepiany BN MOXETe OTPMaTN Bcnyk6ax,Ha kI pOKnaedeHO IikBidaio BIXxodj 3a Micem BaWORO npoxBaHH.

Moxnbocti 0do liKBiauii BIXOIB, BKIOaUH NcnpabHn npnaH, 3a6e3neuyt b aDMHCpaTNBH cnyk63a MiCzem BaWOro npOXBaHH.

Cnyx6a,Ha kky noknaedeho nikbiaduio bixdiB,ab0Baui ynoBHOBXeHn cepbc- ceHTp φipm Moulinex 3 roTOBHCtIO daDyTB biNDoBiHa BauPiNTaHH.

Дбайно npo 3axnct doBknIII!

Bau npnlaic Mictnb 6arato MaTepiaiiB, kki MoKytb 6ytu nepepo6nehi a6o nobTOphO BkOpuctaHi.
-ПисязakihueHHaTeMHyCnyx6n3iTeHOrOdoNYHKTy360py npinaiaB, aKIO TaKOro HemaE -do yNobHOBaXeHoro cepBic-CEHTpy dIHaIexKHOI o6p6Kn.

Dani npo ekcnlyaTaciHi Bnnpo6yBaHna

3rɪdno 3i CTaHapTOM CEI 60705

MxKnapoHa eneKtpoTeXhiHa Komicia SC 59H po3pObna cTaHapr Ha npOBnJIbHi ekCnIyatauHi BInpo6ByaHHa H aHarpBaHHa Ipni p3Hnx MiKPOxBnBObNX neeu.

HnXue MNoaEMo DaHI npo MoedJI, Aky Bn pnpdabai.
