USER MANUAL AD1049X BRANDT

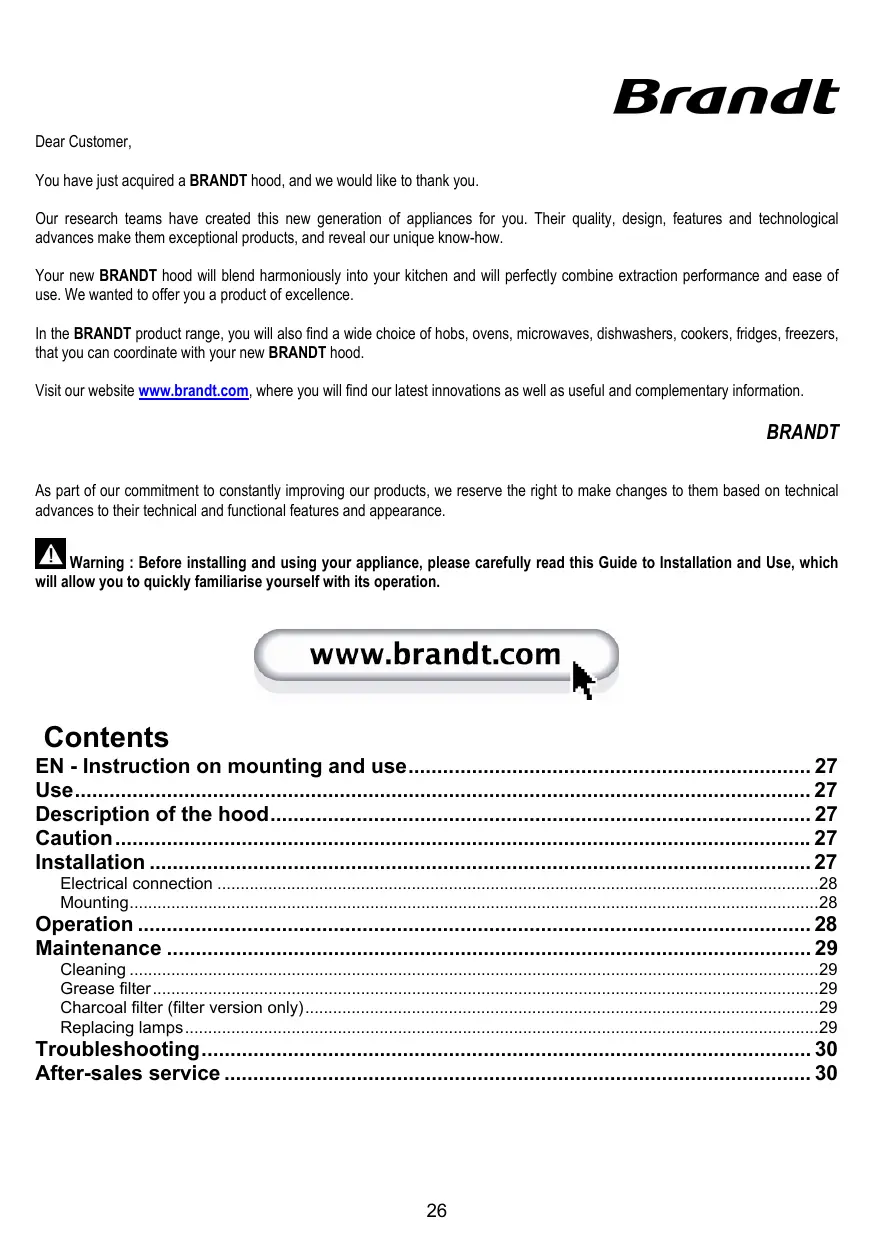

Warning : Before installing and using your appliance, please carefully read this Guide to Installation and Use, which

EN - Instruction on mounting and use WARNING! Do not connect the appliance to the mains until the installation is fully complete. Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply. Always wear work gloves for all installation and maintenance operations. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating! The hood must NEVER be used as a support surface unless specifically indicated. The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite. Accessible parts may become hot when used with cooking appliances. With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the authorised authorities. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH). This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the nonobservance of the instructions included in this manual. Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied. Use The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use. The hood is designed to be used either for exhausting or filter version. Ducting version The hood is equipped with a top air outlet B for discharge of fumes to the outside (exhaust pipe and pipe fixing clamps not provided). Filter version In the case of not being able to discharge the fumes and the steam of cooking outside, the hood in the filter version can be used mounting the F deflector on the flue and one or more carbon filters (on the basis of the model possessed). The fumes and steam are recycled into the kitchen through upper grill H. Description of the hood Fig. 1

3. Grease filter release handle

5. Telescopic chimney

Caution Keep this use manual with your apparatus. If the apparatus has to be sold or ceded to someone else, make sure that this manual is also sent. Read this manual carefully before installing or using your apparatus because it contains important information for your safety and for whoever installs or uses it. This apparatus has been created to be installed in a kitchen and for normal domestic use. Do not use it for commercial or industrial purposes or other purposes for which it was not created. Do not modify or try to modify the characteristics of this apparatus. It would be dangerous for you. Using over a fuel (wood, carbon) cooking top is not authorised. If the filtering hood is installed in a kitchen heated by an apparatus connected to a fireplace (e.g. a stove), the filtering version of the hood must be installed. Do not use the hood without fat filters. Do not use steam or pressure cleaning equipment on your apparatus (for reasons of electrical safety). Installation The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers

and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to. Fig. 3-4 Remove the grease filters. 1 With a pencil, make a line on the wall, up to the ceiling, corresponding to the centre line, it will make the installation operations easy. 2 Apply the drilling diagram to the wall: the vertical centre line printed on the drilling diagram shall correspond to the centre line drawn on the wall. Furthermore, the lower edge of the drilling diagram corresponds to the lower edge of the hood. 3 Make the holes indicated on the template, insert the wall plugs equipped with hooks and adjustment screws. 4 Apply the chimney stirrup to the wall next to the ceiling, use the stirrup as template (the small notch on the upper side must correspond to the centre line previously marked on the wall), mark 2 holes with a pencil. Make the holes and insert 2 plugs. 5 Fix the chimney support stirrup to the wall by 2 screws. 6 Hang the hood on the hooks and level it using the adjustment screws placed on the hooks themselves. 7 Mark with a pencil the position for the 4 final fixing screws T and R. 8 Remove the hood and bore where marked (4 x Ø 8 mm). 9 Insert the wall plugs and 2 screws in the upper holes, screw in partially, the screws will stand as additional hooking points. 10 Hook back the hood on the wall. 11 Tighten the 2 upper screws definitively and screw in the 2 lower screws. 12 Connect a pipe (pipe and clips for fixing not supplied, to be purchased) for fume discharge to the connecting ring placed above the suction motor unit. The other end of the pipe must be connected to a fume ejecting device towards the outside in case the hood is used in suction version. 13 In case the hood is to be used in filter version, fix the deflector to the chimney support stirrup and connect the other end of the pipe to the connecting ring placed on the deflector. 14 Connect to the power supply. 15 Slide the lower section of the chimney up to complete covering of the suction group to insert it into the special housing above the hood. 16 Lift the upper chimney and fix it by 2 screws to the chimney support stirrup. Electrical connection The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area apply a double poled switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to overcurrent category III, in accordance with installation instructions. Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled. Mounting Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.
• To facilitate installation, remove the fat filters and the other parts allowed and described here, dismantle and mount it. To remove see also the relative paragraphs.
• Remove the active carbon (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want lo use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.
• If possible, disconnect and move freestanding or slide-in range from cabinet opening to provide easier access to rear wall/ceiling. Otherwise put a thick, protective covering over countertop, cooktop or range to protect from damage and debris. Select a flat surface for assembling the unit. Cover that surface with a protective covering and place all canopy hood parts and hardware in it.
• In addition check whether near the installation area of the hood (in the area accessible also with the hood mounted) an electric socket is available and it is possible to connect a fumes discharge device to the outside (only suction version).
• Carry out all the masonry work necessary (e.g. installation of an electric socket and/or a hole for the passage of the discharge tube). Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Reinstall the grease filter. Operation The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights. Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

CLEANING AND UPKEEP OF YOUR APPLIANCE

Maintenance ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. To keep your appliance in good working order, we recommend that you use Clearit household products. Professional expertise general public Cleaning The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning

recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend oserving these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations. for the Clearit offers you professional products and adapted solutions for the daily upkeep of your household and kitchen appliances. You may find them in conventional retail outlets, along with a complete line of by-products and consumables. Replacing lamps Fig. 1 Disconnect the hood from the electricity. Warning! Prior to touching the light bulbs ensure they are cooled down. Remove cover A to access the lamp housing A. If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance. Grease filter Traps cooking grease particles. This must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity. To remove the grease filter, pull the spring release handle. Fig. 1 This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. Charcoal filter (filter version only) The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. Fig. 2 It absorbs unpleasant odours caused by cooking. The saturation of the activated charcoal occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four mounths. The carbon filter may NOT be washed or regenerated. Remove the grease filters. Fit the charcoalfilters over the motor. Align the pins R on the cowl with the slots S, then turn the filter clockwise until it locks in place. Reverse the above procedure to remove the charcoal filters. Refit the grease filters.

Troubleshooting SYMPTOMS SOLUTIONS The hood is not working... Ensure that:

• The power is not cut off.
• A speed has been selected. The hood is not operating Ensure that: effectively...
• The selected motor speed is sufficient for the quantity of smoke and vapours to be cleared.
• The kitchen is sufficiently ventilated to allow for fresh air intake.
• The air pipe circuit involves a lack of efficiency of the cooker hoods. Contact a qualified technician.
• The carbon filter is not worn (hood operating in recycling mode). The hood working stopped Ensure that:
• The power is not cut off.
• The single-pole cut-off device was not activated. After-sales service Any maintenance on your equipment should be undertaken by: - either your dealer, - or another qualified mechanic who is an authorized agent for the brand appliances. When making an appointment, state the full reference of your equipment (model, type and serialnumber). This information appears on the manufacturer's nameplate attached to your equipment.
