Brand	Jata
Model	FR680
Product type	Electric deep fryer
Tank capacity	Approximately 2.5 liters (between Min and Max marks)
Power	Approximately 1800-2000 W (estimate)
Power supply	220-240 V, 50/60 Hz (estimate)
Adjustable thermostat	Temperature selector with positions from 0 to max
Indicator lights	Power indicator and ready indicator (temperature reached)
Oil filter	Filtra Plus, built-in oil filter in the head
Safety system	Automatic shutdown in case of overheating, Reset button
Spare parts	Lid, basket, basket handle, tank, removable head, oil filter, Reset button, cable wrap
Maintenance and cleaning	Tank, basket and filter washable with soapy water; lid and exterior with a damp cloth; do not immerse the head
Repairability	Authorized after-sales service for intervention; Reset button accessible
Included accessories	Basket with removable handle, lid with viewing window, basket support
Dimensions (estimate)	Approximately 35 x 25 x 30 cm (length x width x height)
Weight (estimate)	Approximately 3 kg

Frequently Asked Questions - FR680 JATA

How to use the deep fryer for the first time?

Remove the lid, basket and handle. Place the handle in the basket attachment by pressing the rods. Remove the head with the filter and heating element, then the tank. Clean the basket and tank with a damp cloth, dry. Replace the tank, filter and head. Make sure the head is properly seated (safety). Unwind the cable, pour oil between Min and Max. Plug in, turn the temperature selector, wait for the ready indicator to go out. Place food in the basket (max 3/4 full), lower it into the oil. After cooking, drain on the support. Unplug and let cool.

What types of oil to use?

Use suitable frying oil (peanut oil, sunflower oil, etc.). Do not exceed the maximum level indicated in the tank. Never put any liquid other than oil.

What to do if the deep fryer no longer heats up or stops during use?

This may be due to overheating. Let the appliance and oil cool completely. Press the RESET button with a small screwdriver until you hear a click. If the problem persists, contact an authorized technical service.

How to clean the deep fryer?

Always unplug the appliance. Remove the head with the filter by pulling upwards. The basket, filter and tank can be washed with soapy water, rinsed and dried. The lid and exterior parts are cleaned with a damp cloth. The heating element with a slightly damp cloth. Never immerse the head in water or in the dishwasher. Do not use abrasive products.

How to attach the handle to the basket?

Press the two metal rods of the handle against each other and insert their ends into the holes of the basket attachment. Then turn the handle outward until it is securely anchored on the upper part of the basket.

Can the oil overflow?

Never pour oil above the maximum level (Max) indicated in the tank. Do not fill the basket more than three-quarters full. If you put breaded foods, place the basket in the tank before adding the food to prevent sticking. Monitor the frying.

How to know when the oil is at the right temperature?

Turn the temperature selector to the desired position. The ready indicator light turns on, then goes out when the oil has reached the selected temperature. You can then fry.

Can I use the deep fryer without oil?

No. The deep fryer is designed to work with oil. Insufficient oil level or empty operation can trigger the thermal safety and damage the appliance. Make sure the oil is between Min and Max.

How to store the power cord?

The cable can be wrapped around the cable wrap located under the appliance. Pull the cable completely before use and store it after complete cooling.

What to do if the lid is broken or the filter is lost?

Contact Jata after-sales service or an authorized center to obtain spare parts. Do not use the appliance without the lid or without the filter in place.

USER MANUAL FR680 JATA

INSTRUCCIONES DE USO

INSTRUÇÕES DE UTILIZAÇÃO • INSTRUCTIONS OF USE

INSTRUCTIONS D'USAGE • ISTRUZIONI PER L'USO

BEDIENUNGSANLEITUNG

FREIDORA INOX "FILTRA PLUS"

FRITADEIRA INOX "FILTRA PLUS"

INOX DEEP FRYER "FILTRA PLUS"

FRITEUSE INOX «FILTRA PLUS»

FRIGGITRICE INOX "FILTRA PLUS"

FRITTIERGERÄT AUS EDELSTAHL "FILTRA PLUS"

Mod. FR680

Electrodomésticos JATA, S.A.

ESPAÑA

Pol. de La Serna, calle D - 31500 TUDELA - Navarra - Spain

Tel. [phone] · Fax [phone]

www.jata.es

PORTUGAL

Avenida Engenheiro Duarte Pacheco, Torre 2-3, Sala 3

1070-102 Lisboa

Tel. [phone] · Fax [phone]

www.jata.pt

DATOS TÉCNICOS • DADOS TECNICOS • TECHNICAL DATA Julio 2019

Mod. FR680 220-240 V~ 50-60 Hz 2.000 W

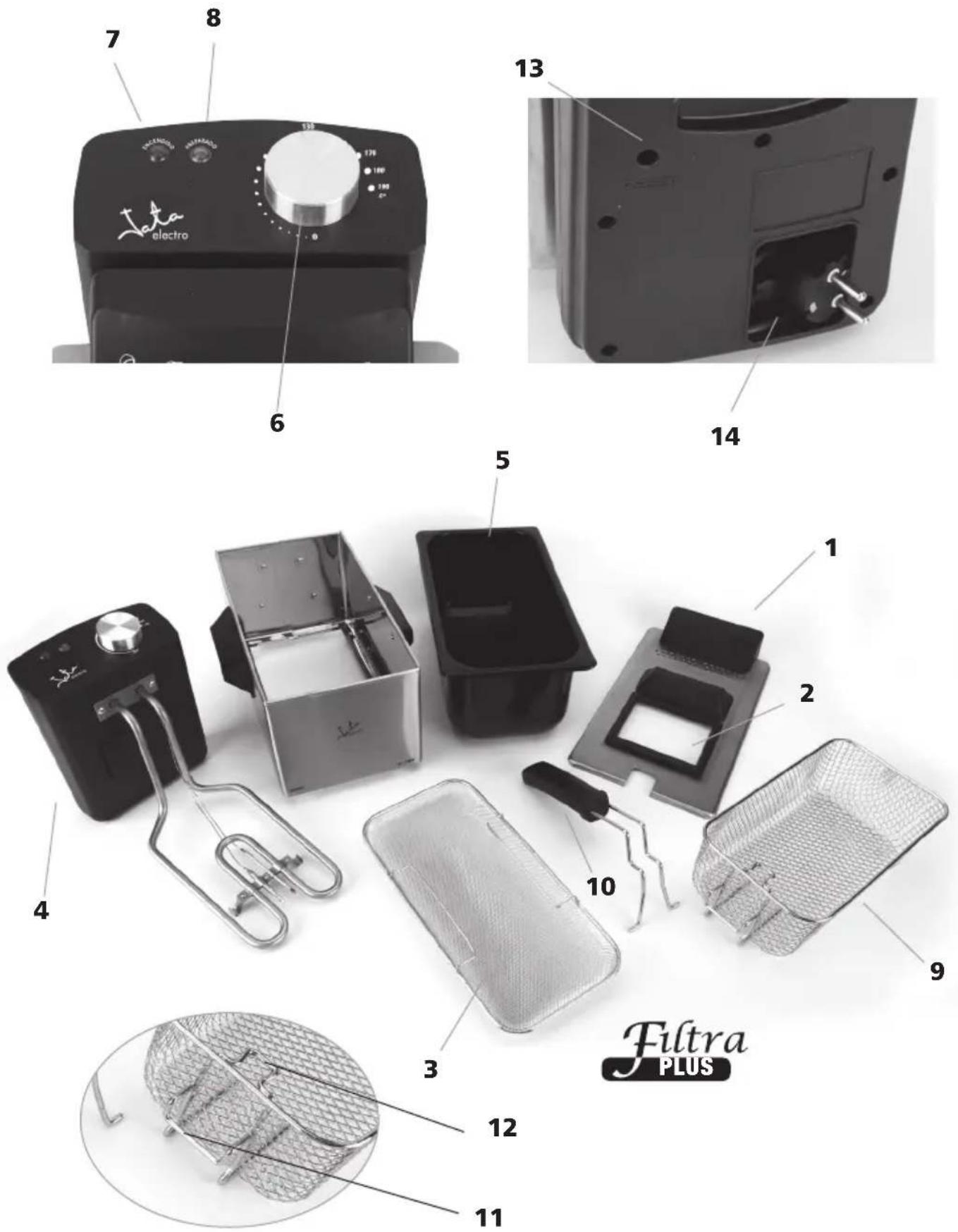

1. Lid.
2. Viewing window.
3. "Filtr Plus", special mesh for oil filtering.
4. Removable head.
5. Tank.
6. Temperature selector.
7. On indicator light.
8. Ready indicator light.
9. Basket.
   10.Baskethandle.
   11.Basketsupport.
   12.Hookbasket.
   13."RESET"button.
   14.Cordstorage.

COMPONENTI PRINCIPALI

- Carefully read these instructions before using the appliance for the first time and keep it for future enquires.

- This appliance must not be used by children under the age of 8. It can be used by children at the age of 8 or more if they are continuously supervised and by people with physical, sensory or mental capabilities or lack of experience and knowledge if are supervised or they have received instruction concerning to the correct use of the appliances and understand the dangers involved.

- Keep all plastic bags and packaging components out of the reach of children. They are potentially dangerous.

- Do not connect the appliance to the mains without checking that the voltage on the characteristics plate and that of your household are the same.

- Do not connect the appliance before making sure the plug has an adequate earth base.

• ATTENTION: Hot surface.

- Do not connect the fryer without an appropriate oil level in the tank, over the minimum and under the maximum.

- Do not put any other liquid in the tank but oil.

- VERY IMPORTANT: Never immerse the electric part of the appliance in water or any other liquid.

- Don’t allow children play with the appliance. Keep the appliance out of the reach of children.

- Keep the appliance and the cable cord out of the reach of children less than 8 years old.

- The body of the appliance may reach high temperatures, avoid touching it until after it has been unplugged for some time.

• Do not leave unattended while in use.
• Avoid moving or changing the location of the fryer while in use.
• The cooking devices must be placed in a stable position to avoid spill of liquids and with the handles (if any) placed.
• This appliance is not intended for using with an external timer or a separate system of remote control.
• This appliance has been designed for domestic use only.
• Do not use the fryer with a damaged plug or a deteriorated cable.
• The cleaning and maintenance done by users, can not be done by children.
• If the power cord is damaged, it must be replaced by the manufacturer or by its after-sales service or similar qualified personnel in order to avoid a danger.

INSTRUCTIONS OF USE

• Before using the deep fryer for the first time open the lid (1) remove the basket (9) and the handle.
• Assemble the handle (10) in the basket hook (12). To do it press the two wires of the handle and introduce them in the holes of the support. Then turn it outside wards until it is inserted in the upper side of the basket support.
• Remove the head (4) together the special mesh for oil filtering (3) and the resistance by pulling upwards and remove the tank (5).
• Clean the basket and the tank with a damp cloth and dry them carefully.
• Replace again the tank, the special mesh and the head.
• Verify that the head (4) is correctly put in place in its guides as it has a safety device which prevents the fryer from working if the head is not correctly placed or out of its housing.
• Completely remove the cable from the cable collector (14).
• Pour the oil into the tank (5). Bear in mind that the oil level must always be between the minimum (MIN.) and the maximum (MAX.) levels. Both levels are indicated in the inside of the tank.
• While you prepare the food for cooking you may heat up the oil. To do so, plug the deep fryer into the mains. The "on" indicator light (7) will light on. This indicator will be always on when the deep fryer is plugged to the mains.
• Turn the temperature selector (6) clockwise to the adequate position according to the food to be fried. The "ready" indicator (8) will light on and the oil will begin to heat up. The higher temperatures are usually the most adequate for frying food.
• Wait for the "ready" indicator light goes off; then the oil will have reached the selected temperature.
• Place the food to be fried in the basket (9). This must be done with the basket out of the tank, and the food must not exceed the three-quarter parts of the volume of the basket.
• If the food to be fried is in batter, it is advisable to put them in with the basket in the oil to avoid them sticking to the basket.
• Put the basket with the food in the tank (5). You can place the lid (1) if you need it and check the fried food through the window (2).
• Once the food are ready, remove the basket and await till they wring, leaving the basket hung on its support (11) in the edge of the tank.
• When you have finished frying unplug the fryer from the mains and set the temperature selector to "0".
• Wait for it to be completely cold and replace the lid to keep the oil clean of dust and other particles.

"RESET" button (13)

• The fryer has a safety device that automatically disconnects it if it should overheat. It may also overheat if the appliance is connected without oil in the tank or if the oil level is under the minimum level shown on the tank.
• If this were to happen you must proceed to reset the safety device. To do so, wait for the oil and the resistance to cool completely.
• Press with a small screwdriver on the button marked "RESET" until you hear a "click" indicating that the thermostat has rearmed. Once this operation done, the deep fryer will operate normally.
• If the device were to disconnect itself repeatedly, the appliance should be revised by an authorised technical service.

MAINTENANCE AND CLEANING

• Before you proceed to cleaning it, ensure the fryer is unplugged from the mains.
• Remove the head (4) with the special mesh (3) by pulling upwards.
• The basket, the special mesh and the tank can be cleaned with soap and water, taking care to rinse and dry them carefully afterwards.
• The lid can be cleaned with a dampened cloth and do not immerse in water neither into the dishwasher.
• The resistance may be cleaned with a damp cloth. Never immerse in water.
• Clean the outside of the appliance with a damp cloth.
• Do not use chemical or abrasive products, such as metallic scourers, which may deteriorate the surfaces of the appliance.

ENVIRONMENT PROTECTION

• Dispose the appliance according to the local garbage regulations.
• Never throw it away to the rubbish. So you will help to the improvement of the environment.

ATTENTION

GARANTIA GERAL (2 ANOS) - GARANTIA TOTAL

In the rest of countries, the holder of the guarantee will enjoy all the rights that his legislation in force concedes.
