TF831-3 - Washing machine ELEKTRO HELIOS - Free user manual and instructions

Product Type	Washing machine
Brand	Elektro Helios
Model	TF831-3
Capacity	8 kg
Maximum Spin Speed	1200 rpm
Dimensions (H x W x D)	850 x 595 x 540 mm
Weight	65 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	2000 W
Energy Efficiency Class	A
Water Consumption per Cycle	50 L
Noise Level (Wash/Spin)	56 dB / 72 dB
Wash Programs	Cotton, Synthetics, Delicates, Quick, Wool, Hand Wash
Detergent Drawer	Yes, with compartments for main wash, prewash, and fabric softener
Child Lock	Yes
Delay Timer	Up to 24 hours
Drum Material	Stainless steel
Heating	Internal heater
Safety Features	Overheat protection, water stop system
Maintenance	Clean detergent drawer, pump filter, and descaling recommended
Spare Parts Availability	Through authorized service centers
Manual Languages	Swedish (original), English available

Frequently Asked Questions - TF831-3 ELEKTRO HELIOS

How to clean the detergent drawer?

Remove the drawer by pulling it out and pressing the release catch. Wash it under warm water with a mild detergent. Use a small brush to clean the softener compartment. Dry and reinsert. Regular cleaning prevents blockages.

How to clean the pump filter?

Unplug the machine. Open the lower panel cover, place a container under the filter, and unscrew it counterclockwise. Remove any debris and clean the filter under running water. Screw it back and close the cover. Check monthly for optimal drainage.

What do the error codes mean?

The machine displays error codes like E01 (door lock issue), E02 (water supply problem), E03 (drainage issue). Refer to the manual for a full list. Resolve issues by checking hoses, filters, and connections.

How to install the washing machine?

Remove transport bolts, level the machine by adjusting feet, connect water inlet hose to a tap with cold water, connect drain hose to a sink or standpipe, plug into a grounded outlet. Use a spirit level to ensure stability.

How to use the delay timer?

Select a wash program and press the delay button repeatedly to set the desired delay (e.g., 3, 6, 9 hours). Press start. The machine will begin after the set time. Use it to finish washing when convenient.

What is the maximum load capacity?

The maximum load is 8 kg of dry laundry. For efficient washing, do not exceed this weight. Overloading can cause poor cleaning and excessive vibration.

How to descale the machine?

Use a descaling agent specifically for washing machines. Run a hot cotton cycle (90°C) with no laundry. Pour the descaler into the detergent drawer. Repeat every 2-3 months in hard water areas. Prevents limescale buildup.

Why is the machine not draining?

Check if the drain hose is kinked or blocked. Clean the pump filter (see question 2). Ensure the drain outlet is not clogged. If the problem persists, the drain pump may be faulty. Inspect connections first.

How to level the machine?

Adjust the front feet by turning them counterclockwise to raise or clockwise to lower. Place a spirit level on top. Tighten the lock nuts once level. Proper leveling reduces noise and vibration.

Where to get spare parts?

Contact Elektro Helios authorized service centers or check online retailers. Have the model number (TF831-3) ready. Common parts include belts, door seals, filters, and heating elements.

USER MANUAL TF831-3 ELEKTRO HELIOS

B R U K S A N V I S N I N G

TF 831-3

INNEHÅLLSFÖRTECKNING

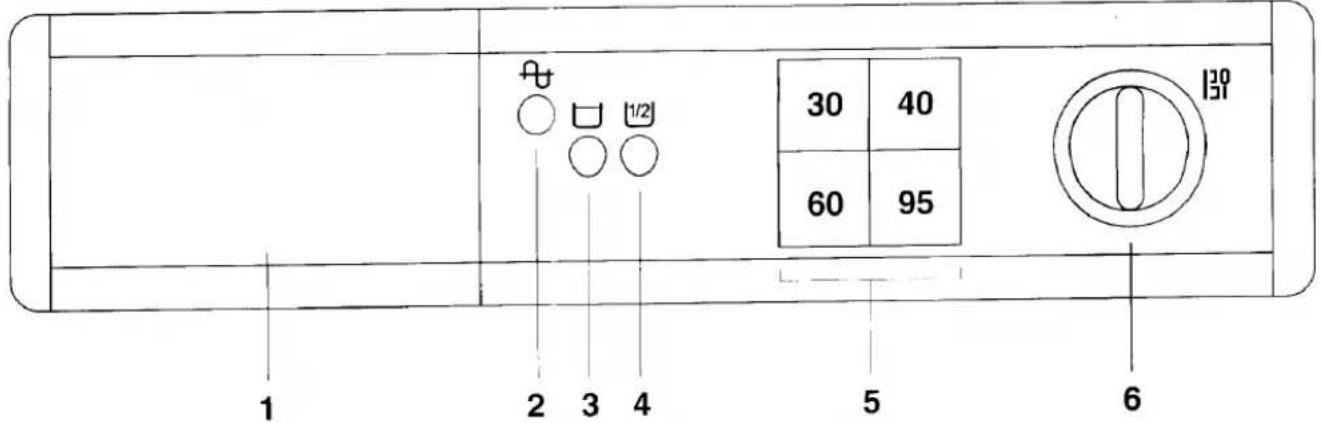

Kontrollpanel

1 Tvättmedelslåda

Symboler

Silen avlägsnas.

Modell

Prod nr....

Serie nr

SERVICE OCH RESERVDELAR
