CA-3370A - Loudspeaker Cyber Acoustics - Free user manual and instructions

Product Type	Powered Stereo Speaker System
Model	CA-3370A
Brand	Cyber Acoustics
Speaker Configuration	2.0 (Left and Right)
Dimensions (each speaker)	3.5" x 3.5" x 5.5" (89 mm x 89 mm x 140 mm)
Weight (total)	Approximately 1.5 lbs (0.68 kg)
Power Source	USB powered (5V, 500 mA)
Audio Input	3.5 mm stereo jack
Controls	Volume knob, power switch
Additional Ports	Headphone output (3.5 mm)
Driver Size	2.0" full range
Frequency Response	100 Hz - 20 kHz
Impedance	4 ohms
Signal-to-Noise Ratio	>60 dB
Material	Plastic enclosure
Color	Black
Included Accessories	2 speakers, USB power cable, 3.5 mm audio cable, user manual
Compatibility	Computers, smartphones, tablets, MP3 players with 3.5 mm output
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquids.
Safety Precautions	Avoid exposure to water or extreme temperatures. Keep away from children.
Spare Parts Availability	Not available for individual purchase. Contact support for repair options.
Repairability	Limited. No user-serviceable parts inside.
Warranty	Limited 1-year warranty (check documentation for details)

Frequently Asked Questions - CA-3370A Cyber Acoustics

How do I connect the speakers to my computer?

Use the included 3.5 mm audio cable to connect the speaker's input to your computer's headphone or speaker jack. Then plug the USB cable into a USB port for power. Turn on the speakers using the power switch.

Why is there no sound from the speakers?

Check that the speakers are powered on (green LED should be lit). Ensure the audio cable is fully inserted into both the speaker and the audio source. Verify that the volume on both the speakers and your device is turned up. Try a different audio source to isolate the issue.

Can I use these speakers with a smartphone or tablet?

Yes, if your device has a 3.5 mm headphone jack, you can connect the speakers using the included audio cable. Some devices may require a USB power source (e.g., a USB wall adapter) for the speakers, as they draw power from USB.

What is the power requirement for these speakers?

The speakers require a 5V USB power source with at least 500 mA current. They can be powered from a computer USB port or a standard USB wall charger.

How do I clean the speakers?

Unplug the speakers before cleaning. Use a soft, dry cloth to gently wipe the exterior. Do not use any liquids, solvents, or abrasive cleaners, as they may damage the surface.

Can I adjust the bass or treble?

No, the CA-3370A speakers only have a single volume control. They do not offer separate bass or treble adjustment.

What should I do if one speaker is not working?

Check the audio cable connections and ensure the cable is not damaged. Try swapping the left and right speakers to determine if the issue is with the speaker itself or the audio source. If the problem persists, contact Cyber Acoustics support.

Are these speakers compatible with a TV?

Yes, if your TV has a 3.5 mm headphone jack or RCA output (using a 3.5 mm to RCA adapter). Note that the speakers are relatively low power, so they are best suited for near-field listening.

Is there a built-in microphone?

No, the CA-3370A speakers do not include a microphone. They are purely audio output devices.

How can I obtain a replacement power cable?

The USB power cable is a standard USB-A to Micro-USB cable. You can use any similar cable that provides 5V power. For an original replacement, contact Cyber Acoustics customer support.

USER MANUAL CA-3370A Cyber Acoustics

CA-3370a Owner's Guide

50W | Powered Speaker System with Control Pod 25W RMS

Thank you!

Merci!

¡Gracias!

Getting Started

Pour commencer

Inicio

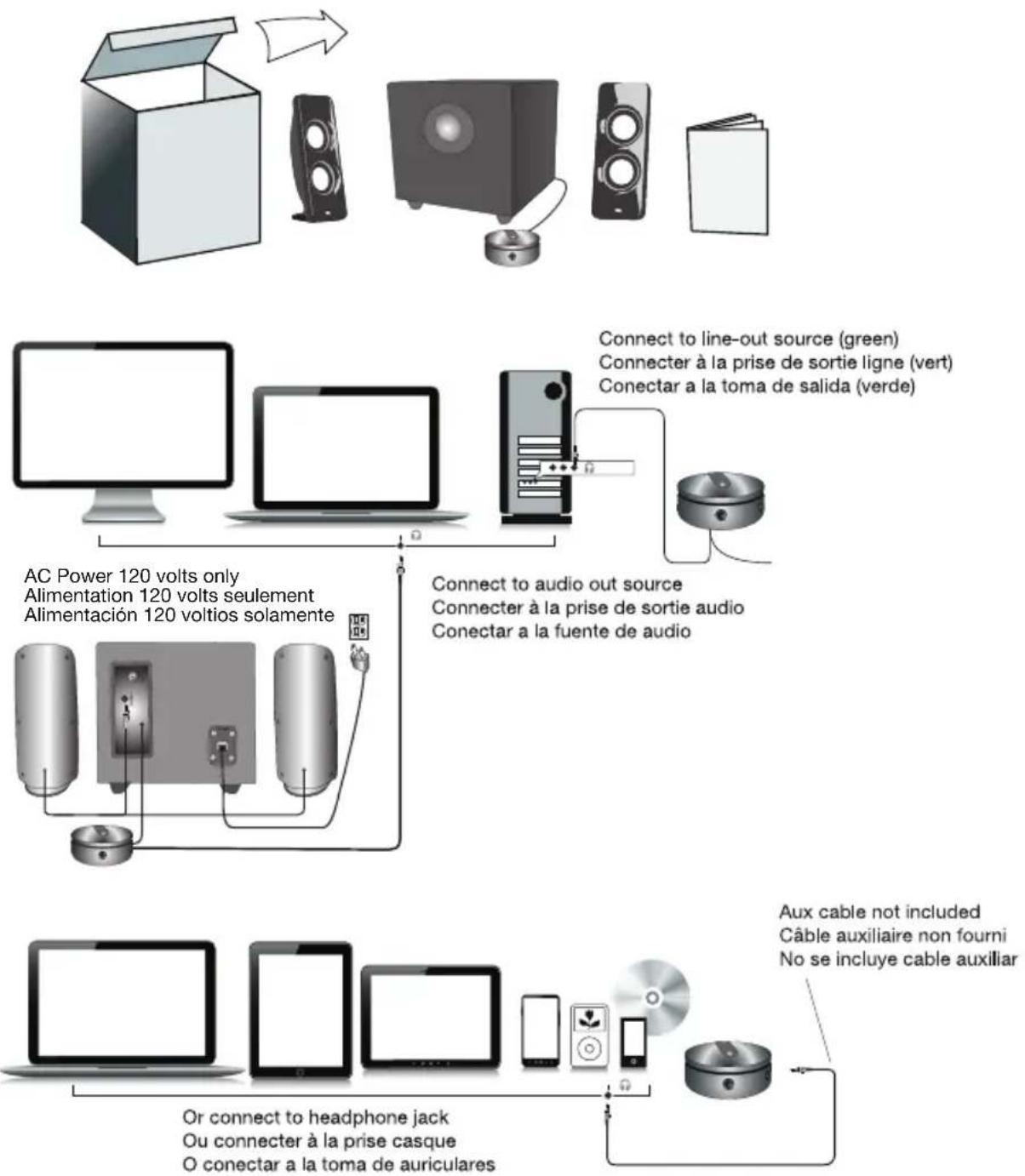

Connect to line-out source (green)

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT, FULLY INSERT.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is Intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

See the bottom of the set

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions - All the safety and operating instructions should be read before this product is operated.
2. Keep these instructions - The safety and operating instructions should be retained for future reference.
3. Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow all instructions All operating and use instructions should be followed.
5. Do not use this apparatus near water. The appliance should not be used near water or moisture for example, in a wet basement or near a swimming pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacture's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug the apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. Please keep the unit in a good ventilation environment.

4. CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

5. WARNING: Please refer the information on exterior bottom enclosure for electrical and safety information before installing or operating the apparatus.

6. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall not be placed on apparatus.

7. WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

8. This is CLASS II apparatus with double insulation, and no protective earth Provided.

9. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

10. Do not install this equipment in a confined space such as a book case or similar unit. The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains etc.

11. No naked flame sources, such as lighted candles, should be placed on the apparatus.

12. Attention should be drawn to environmental aspects of battery disposal.

13. Use of the apparatus in moderate climates.

AVERTISSEMENT

NE JAMAIS UTILISER UN CÂBLE DE RALLONGE, OU UNE PRISE OU AUTRES RACCORDS QUI EMPÊCHENT LE BRANCHEMENT COMPLET DE LA FICHE AFIN D'ÉVITER TOUT RISQUE DE FEU OU CHOC DANGEREUX. NE JAMAIS LAISSER CET APPAREIL SOUS LA PLUIE OU L'HUMIDITÉ POUR ÉVITER TOUT DANGER DE FEU OU CHOC ÉLECTRIQUE, LA FICHE DOIT TOUJOURS ÊTRE BRANCHÉE COMPLÈTEMENT SUR UNE PRISE LUI CONVENANT.

A Three-Piece Powered Speaker System

Introduction

This speaker system is designed to deliver superior audio performance to computers, smartphones, iPod®, MP3 players, DVD players, and other portable audio devices. The system offers high efficient, long excursion drivers combined with a low distortion, high powered amplifier that provides deep bass with clarity and a greater dynamic audio range.

Box Contents

• 2 x satellite speakers
• Subwoofer
• Control pod
• Owner's guide with connection diagram

Caution

• Do not plug the power supply in until all connections are made.
• Use only the AC power cable supplied with these speakers.
• Keep speakers away from sources of extreme heat, such as stereo amplifiers, space heaters, stoves, and heat vents.
• Use a dry cloth for cleaning. Do not wipe any part of the system with cleaning solvents, such as furniture wax, bleach, benzene, acetone, or ammonia.

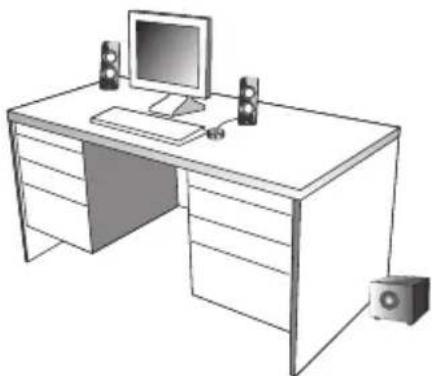

Speaker Preparation

• Subwoofer—place on the floor near a wall or corner, for optimum performance. Adjust distance from the corner or wall to affect quality of bass performance as desired. Direct open port toward wall to increase bass punch.
• Satellite Speakers—For best stereo separation, place on opposite sides of the listening device, computer, or TV screen (as far apart as possible is usually best). For example, if you are listening to the speakers using a laptop on a desk, place the left satellite speaker on the far left corner of the desk, and the right satellite speaker on the far right corner of the desk.

Speaker Connection

You can connect these speakers to a variety of devices, such as laptop, computer, smartphone, iPod, MP3 player, CD player, DVD player, and other audio devices. Please read the following instructions along with the diagrams provided to identify which diagram most closely matches your connection source.

Desktop computer

• Take the cable with the green plug and plug it into the green output/source jack in the back or front of the computer (also referred to as the sound/audio out jack).
- Connect the 3.5mm plug from satellite to the "To Speaker" jack on the back of the subwoofer.
• Take the AC power cord and plug it into a wall socket or power strip.

Smartphone, iPod, MP3 player, DVD Player, or CD player

• Take the cable with the green plug and plug it into the green output/source jack of the audio device.
- Connect the 3.5mm plug from satellite to the "To Speaker" jack on the back of the subwoofer.
• Take the AC power cord and plug it into a wall socket or power strip.

Gaming system

• In order to connect these speakers to a game console, you will need a console gaming adapter, also known as a "Y adapter", which has dual-RCA outputs and is sold separately.
• Turn off the power to your gaming system.
  • Take the red and white dual-RCA connections on the Y adapter, and plug them into the matching red and white RCA jacks on your gaming system.
  • Take the green stereo jack at the other end of the Y adapter, and plug that into the control pod cable with the green plug.
• Connect the 3.5mm plug from satellite to the "To Speaker" jack on the back of the subwoofer.

Controls and Features

• Power – The on/off button is on the wired remote. Slide to turn the speaker on or off.
• Master Volume Control – This control is on the wired remote. Rotate to turn volume up or volume down.
• Bass Volume Control – This control is on the subwoofer jack panel and is indicated by the word "Bass Vol". Rotate to turn volume up or down.
• Headphone Output Jack – Connect your favorite headphones to this jack and they will mute the speaker system automatically.
• Auxiliary Input Connection – The auxiliary input jack allows connection of a second source. An example of this would be your speakers are connected to your computer, so the second 3.5mm input jack on the side of the control pod allows you to quickly connect an MP3 player and will override your computer source connection while it's plugged in.

Troubleshooting

Symptom:

Speaker system will not power on.

Solution:

• Power button is not turned on. Slide the power button back and forth and check for the blue LED indicator light to come on.
• Verify the AC power cord is plugged into the wall outlet.
• Check if the wall outlet or power strip you are using is actually getting power, i.e. not a switched outlet.

Symptom:

Speaker does not produce sound.

Solution:

• Verify the speaker is getting power. Check above steps.
• Make sure the volume is turned up to audible listening level.
• Verify that all cables are plugged into the correct jacks.
• Many times users believe that the speakers are not working, when in fact they are having trouble with the sound source. The most common problem when connecting to a computer is that the connections are incorrect. Make sure you are connected to the audio output jack from your computer. Many times, this jack will be green. Also, make sure your media device or CD/DVD device is playing and the software volume settings are turned up and not muted.
• If you still have problems, disconnect the speaker source cable from your computer and connect to a smartphone, iPod, or anything else with a 3.5mm headphone output. If your speakers work on this other source, you know they are functioning as normal and the issue likely lies with your computer or the connections.

Symptom:

Sound is distorted.

Solution:

• Turn the volume down by 25% or 50%. If this does not work, also check the audio software volume level and decrease it if necessary.
• Adjust the computer's master volume control by balancing the volume until it's at 50%, then adjust the volume levels on the speakers.
• Adjust the bass volume control to test for maximum and minimum output. You may also need to move the subwoofer either closer or farther away from a wall or corner to affect the sound performance.

If you have questions or need assistance with your speakers, we're here to help.

Call 360-883-0333 during the hours of 8 am to 5 pm (United States PST) or send email to [e-mail]

iPod, iPhone, iPad, and iPad mini are a trademarks of Apple, Inc.
