Product Type	Power Cable
Model	SRT003
Brand	APC
Connector Type	C13 to C14
Length	3.0 ft (0.9 m)
Cable Gauge	14 AWG
Rated Current	10 A
Rated Voltage	100-250 V
Wattage Rating	2500 W
Compatibility	APC UPS models with C14 inlet
Jacket Material	PVC
Color	Black
Certifications	UL, CUL, FCC
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Cleaning	Wipe with dry cloth
Safety Precautions	Connect only to compatible devices; avoid overloading
Warranty	2 years limited

Frequently Asked Questions - SRT003 APC

What is the APC SRT003 cable used for?

The APC SRT003 is a power cable designed to connect APC UPS units to a power source or to connect equipment to the UPS. It features C13 to C14 connectors.

What is the length of the SRT003 cable?

The SRT003 has a length of 3 feet (0.9 meters), making it suitable for short-distance connections.

Is the SRT003 compatible with all APC UPS models?

No, it is compatible with APC UPS models that have a C14 inlet. Check your UPS connector before purchasing.

What is the maximum current rating of the SRT003?

The cable is rated for 10 Amps at 100-250V, supporting up to 2500W.

Can I use the SRT003 for other devices?

Yes, as long as the device has a C14 power inlet and the current draw does not exceed 10A.

What are the safety certifications for the SRT003?

The SRT003 is certified by UL, CUL, and FCC, ensuring compliance with safety standards.

How do I clean the SRT003 cable?

Unplug the cable and wipe it with a dry cloth. Do not use water or cleaning solvents.

What should I do if the cable gets damaged?

Replace the cable immediately. Do not attempt to repair it. Use only genuine APC replacement cables for safety.

Does the SRT003 come with a warranty?

Yes, APC offers a 2-year limited warranty against defects in materials and workmanship.

Can I find the user manual for the SRT003?

Yes, the manual is available for free download on notice-facile.com in PDF format.

USER MANUAL SRT003 APC

by Schneider Electric

Installation Smart-UPS™ On-Line 5 m Extension Cable SRT002/SRT003/SRT009/SRT010/SRT013

Package Contents

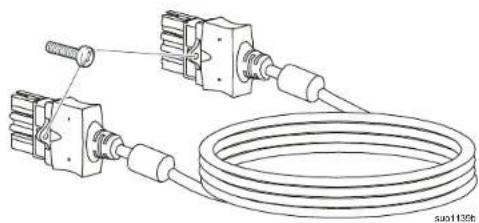

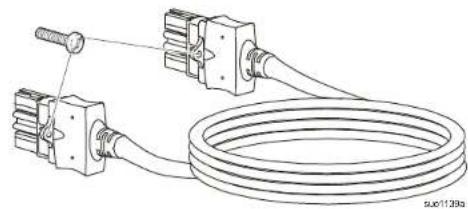

SRT002/SRT009/SRT010/SRT013 SRT003

• 1 five meter battery/communications extension cable
  • 2 screws

Technical line drawing of a coiled electrical cable with two connectors and a screw (no text or symbols)

• 1 five meter extension cable
• 2 screws

Technical line drawing of a mechanical assembly with coiled spring and two connected components (no text or symbols)

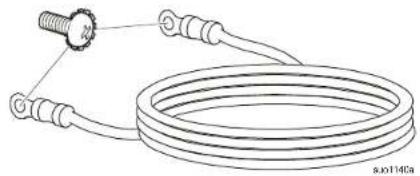

All models

• 1 ground cable
• 2 screws

Line drawing of a coiled cable with two connectors and a central connector (no text or symbols)

- Communications cable

Line drawing of a coiled electrical cable with two connectors (no text or symbols)

Connections

CAUTION

RISK OF ELECTRIC SHOCK

Ground the UPS and external battery pack(s) (XLBP) with each other and to the mains grounding system.

Failure to follow these instructions can result in minor or moderate injury.

Five meter extension cable connector Ground cable

SRT002 to connect UPS and XLBP(s) of SRT5K/SRT6K models

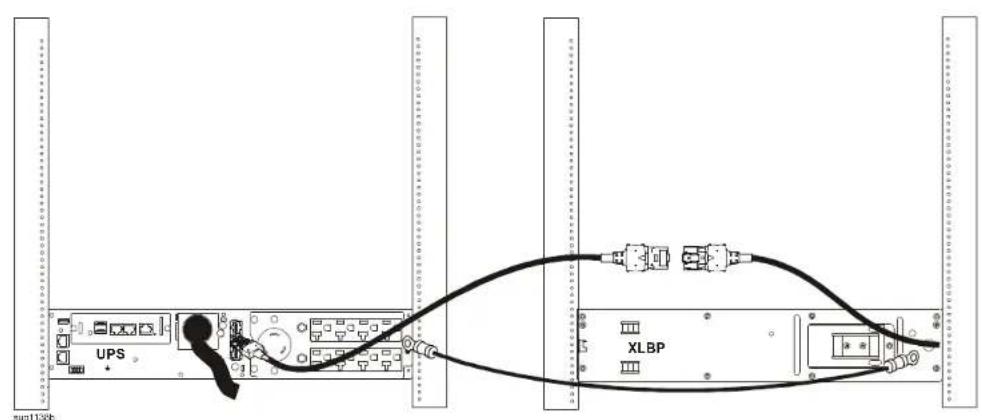

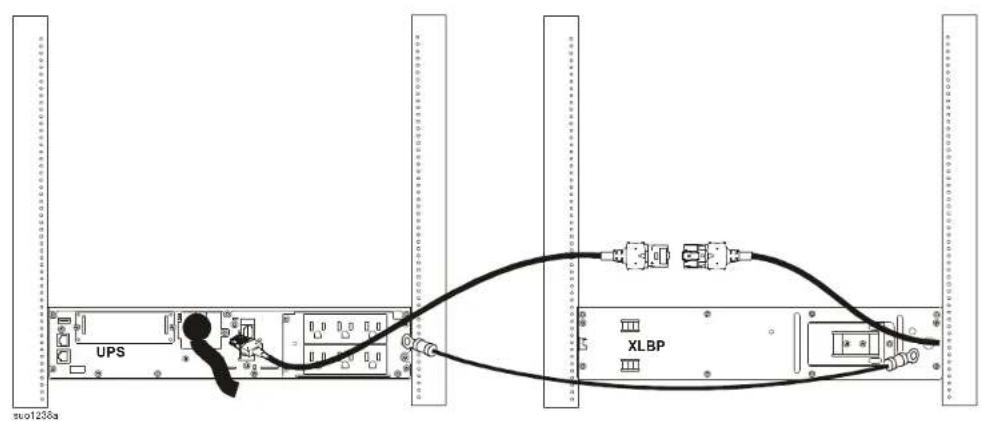

One UPS and one external battery pack and external battery pack battery/communications extension cable connection. See "Connections" on page 2 to secure the five meter battery/communications extension cable connector to UPS/XLBP and secure the ground cable connections.
    subgraph_Server_Rack1["Server Rack"]
        A["UPS"] --> B["XLBP"]
        C["XLBP"] --> D["XLBP"]
    end
    subgraph_Server_Rack2["Server Rack"]
        E["XLBP"] --> F["XLBP"]
        G["XLBP"] --> H["XLBP"]
    end
    A -->|Wireless Link| E
    C -->|Wireless Link| E
    D -->|Wireless Link| E
    F -->|Wireless Link| E
    G -->|Wireless Link| E
    H -->|Wireless Link| E

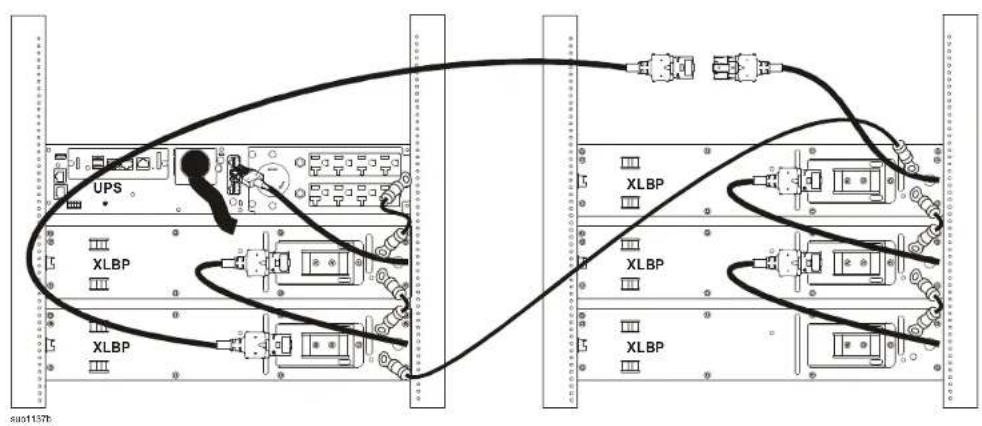

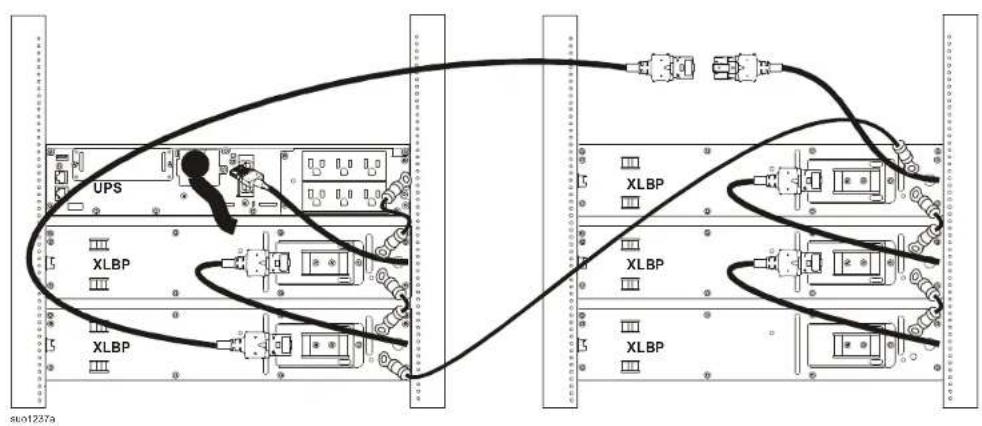

One UPS and five external battery packs and external battery pack battery/communications extension cable connection. See "Connections" on page 2 to secure the five meter battery/communications extension cable connector to UPS/XLBP and secure the ground cable connections.

SRT003 to connect UPS and XLBP(s) of SRT8K/SRT10K models

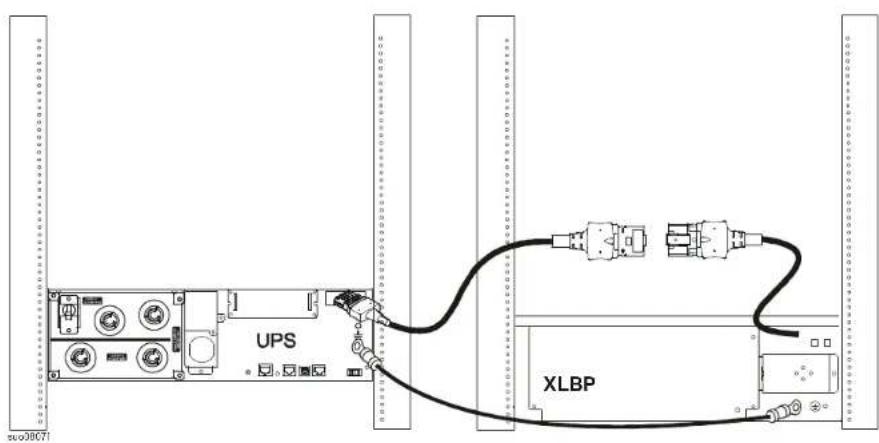

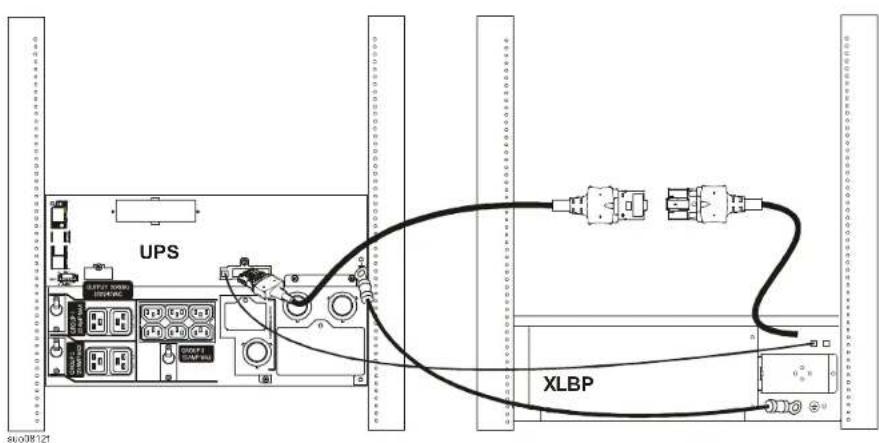

One UPS and one external battery pack and external battery pack extension cable connection. See "Connections" on page 2 to secure the five meter extension cable connector to UPS/XLBP and secure the ground cable connections. Connect the communication cable.

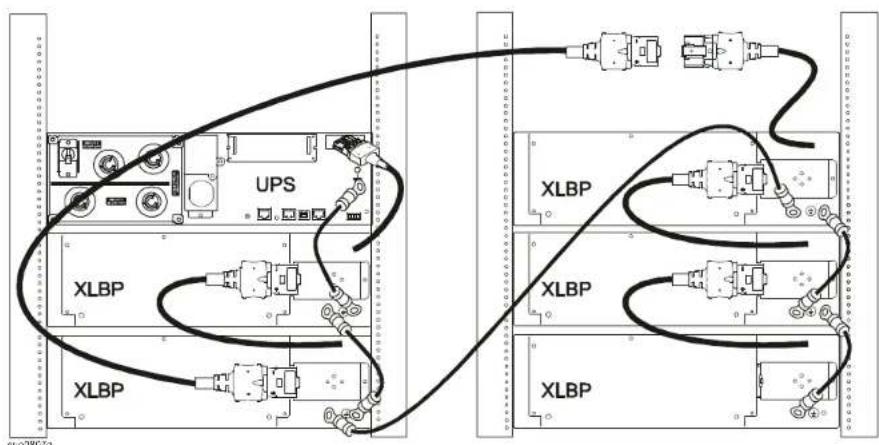

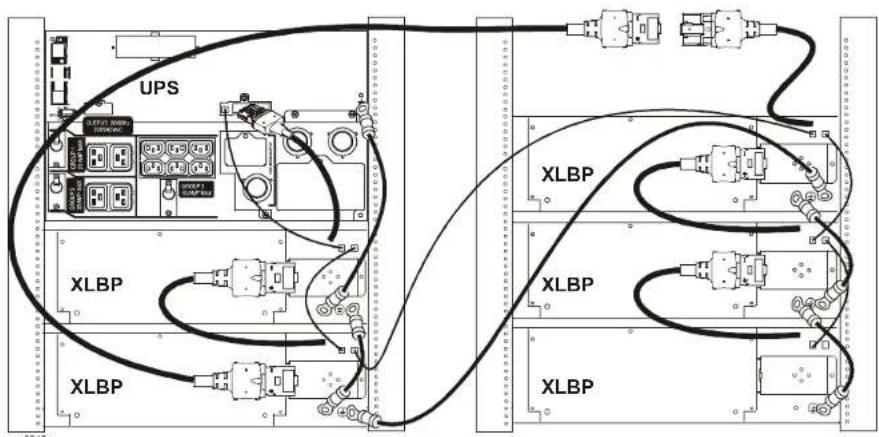

One UPS and five external battery packs and external battery pack extension cable connection. See "Connections" on page 2 to secure the five meter extension cable connector to UPS/XLBP and secure the ground cable connections. Connect the communication cables.

SRT009 to connect UPS and XLBP(s) of SRT2200 models

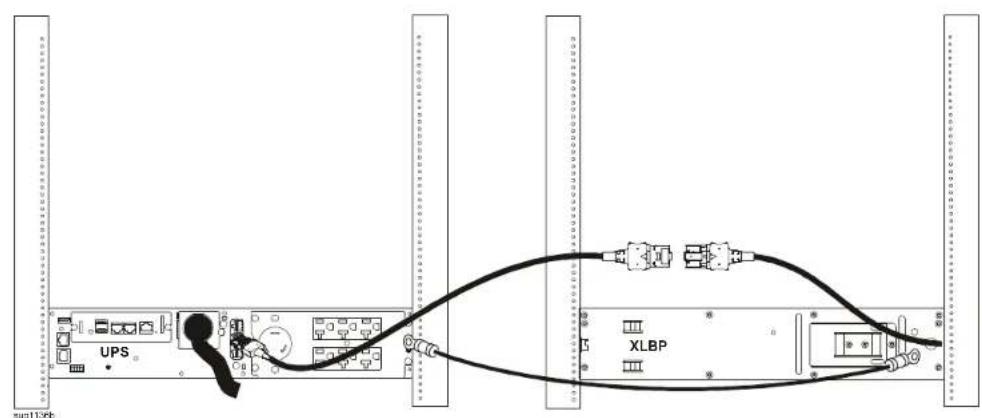

One UPS and one external battery pack and external battery pack battery/communications extension cable connection. See "Connections" on page 2 to secure the five meter battery/communications extension cable connector to UPS/XLBP and secure the ground cable connections.

One UPS and five external battery packs and external battery pack battery/communications extension cable connection. See "Connections" on page 2 to secure the five meter battery/communications extension cable connector to UPS/XLBP and secure the ground cable connections.

SRT010 to connect UPS and XLBP(s) of SRT3000 models

One UPS and one external battery pack and external battery pack battery/communications extension cable connection. See "Connections" on page 2 to secure the five meter battery/communications extension cable connector to UPS/XLBP and secure the ground cable connections.

One UPS and five external battery packs and external battery pack battery/communications extension cable connection. See "Connections" on page 2 to secure the five meter battery/communications extension cable connector to UPS/XLBP and secure the ground cable connections.

SRT013 to connect UPS and XLBP(s) of SRT1000/SRT1500 models

One UPS and one external battery pack and external battery pack battery/communications extension cable connection. See "Connections" on page 2 to secure the five meter battery/communications extension cable connector to UPS/XLBP and secure the ground cable connections.

One UPS and five external battery packs and external battery pack battery/communications extension cable connection. See "Connections" on page 2 to secure the five meter battery/communications extension cable connector to UPS/XLBP and secure the ground cable connections.
