Product Type	Locking IEC Power Cord
Model	AP8702S-NA
Brand	APC by Schneider Electric
Connector Type	C13 to C14
Cord Length	0.6 m (2 ft)
Cord Orientation	Straight
Standards	CSA, UL Listed
Pack Quantity	6 per pack
Color	Black
Material	Copper conductors, PVC jacket
Voltage Rating	250 V AC
Current Rating	10 A
Locking Mechanism	Yes, to secure connection
Operating Temperature	0 to 45 °C
Storage Temperature	-15 to 60 °C
Weight (approx.)	0.1 kg
Application	For APC Rack PDUs to secure power cords
Environmental Compliance	RoHS
Warranty	2 years
Maintenance	Wipe with dry cloth; do not use cleaning agents
Safety	Overcurrent protection provided by PDU breakers
Repairability	Not user-serviceable; replace if damaged

Frequently Asked Questions - AP8702S-NA APC

What is the APC AP8702S-NA?

The AP8702S-NA is a locking IEC power cord with C13 to C14 connectors, 0.6 m (2 ft) straight, designed for use with APC Rack PDUs to secure power connections.

What standards does the AP8702S-NA comply with?

It complies with CSA and UL standards for North America.

How many cords are in a pack?

The AP8702S-NA is sold in a pack of 6 cords.

What is the locking mechanism?

The connectors have a locking feature that prevents accidental disconnection, ensuring reliable power delivery.

What is the voltage and current rating?

The cord is rated for 250 V AC and 10 A maximum.

Is the AP8702S-NA compatible with all APC PDUs?

It is designed for APC Rack PDUs with C14 outlets, such as the AP8800 series, but may work with other devices having compatible connectors.

What is the warranty period?

APC provides a 2-year warranty against defects in materials and workmanship.

Can I clean the cord with water or chemicals?

No, only wipe with a dry cloth. Do not use water or cleaning agents as they may damage the cord.

Where can I find the manual?

The manual is available for free download on notice-facile.com in PDF format.

Is the cord field-repairable?

No, the cord is not user-serviceable. If damaged, replace it with a new one.

USER MANUAL AP8702S-NA APC

Metered Rack PDU - AP8800 Series

• Active power metering and remote alarming including volts, amps, real power (kW), and energy (kWh) measurements
- Comprehensive device, phase, and breaker bank level metering for overload protection, capacity planning purposes, and energy efficiency initiatives
• Environmental temperature and humidity sensor input for active monitoring and alarming via the Rack PDU network device
- Fully featured network management connectivity capability via web, SNMP, telnet
- Field replaceable display and network management module for field service and future upgrade capability

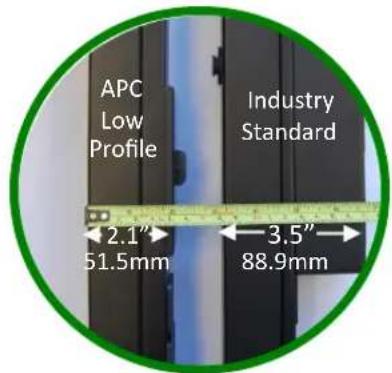

- Lowest profile design available in the industry helps avoid space interference with IT equipment and improve airflow efficiency
• Network Port Sharing (Up to 4 rack PDUs share one IP address in one enclosure)
• Network flash upgradeable and local USB port for easy firmware updates

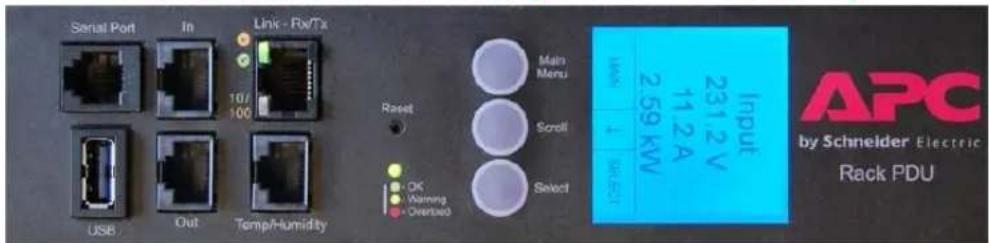

New Interactive LCD Display and Advanced Remote Management Connectivity

Industry's First Ultra Low-Profile Breakers

Avoid space interference with IT equipment and improve airflow with these low profile branch-rated, hydraulic-magnetic type breakers – The best overcurrent protection for high temperature rack enclosure environments!

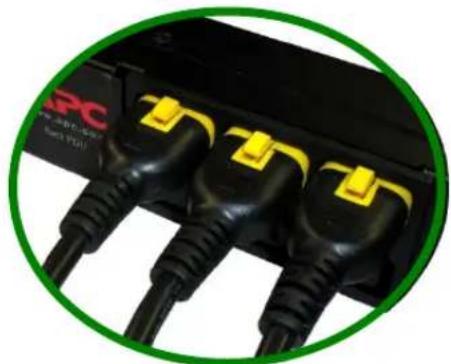

APC Exclusive Locking IEC Connectors

Close-up of black network cables with yellow connectors, enclosed in a green circle (no text or symbols visible)

Easy to install and space saving solution to secure critical power cords

AP8000 Series Accessories

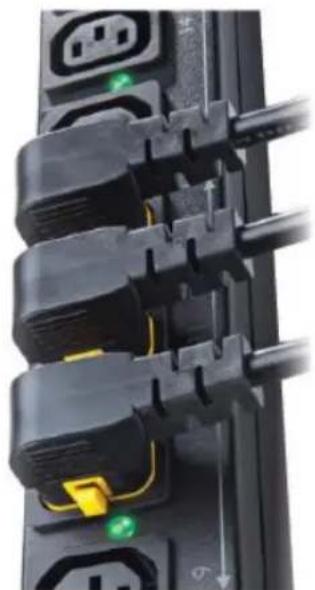

Locking IEC output cords

Close-up of black electrical power plug connectors with yellow and green labels, no readable text or symbols

LOCKING IEC POWER CORDS

Cord Type6 per pack	Straight		90 degree		CordLength
C13 to C14	AP8702S-NA	AP8702S-WW	AP8702R-NA	AP8702R-WW	0.6m (2ft)
	AP8704S-NA	AP8704S-WW	AP8704R-NA	AP8704R-WW	1.2.m (4ft)
	AP8706S-NA	AP8706S-WW	AP8706R-NA	AP8706R-WW	1.8m (6ft)
C19 to C20	AP8712S		AP8712R		0.6m (2ft)
	AP8714S		AP8714R		1.2.m (4ft)
	AP8716S		AP8716R		1.8m (6ft)

90 deg packs include (3each) right & left angled cords NA = CSA, UL Listed WW = CCC, PSE, VDE

Locking IEC input cords

INTERNATIONAL INPUT CORDS FOR AP8858 (10 ft.)

Australia AS3112 to C19 (15A)	AP8754
Schuko (CEE 7) to C19	AP8755
UK (BS1363) to C19	AP8756
China (16A) to C19	AP8757
Bare wire (for field wire) to C19	AP8759
C20 to C19	AP8760

NORTH AMERICAN INPUT CORDS FOR AP8858 (10 ft.)

NEMA 5-15P to C19	AP8750
NEMA 5-20P to C19	AP8751
NEMA L5-20P to C19	AP8752
C20 to C19	AP8760

Coiled black cable with blue and white connectors, no visible text or symbols

Environmental Sensors

Front view of a network switch device showing multiple ports (no visible text or labels)

ENVIRONMENTAL SENSORS

Temperature AP9335T

Temperature/Humidity AP9335TH

Coiled black cable with two connectors, no visible text or symbols
