Product Type	Power Cord
Brand	APC
Model	AP8702S-NAX590
Cable Length	5.9 ft (1.8 m)
Connector Type A	NEMA 5-15P (Male)
Connector Type B	C13 (Female)
Gauge	14 AWG
Rated Current	15 A
Rated Voltage	125 V
Compatibility	Computers, monitors, UPS systems, printers
Color	Black
Cable Jacket Material	PVC
Conductor Material	Copper
Weight	0.5 lbs (0.23 kg)
Operating Temperature	14°F to 140°F (-10°C to 60°C)
Safety Certifications	UL, cUL, RoHS
Warranty	2 years
Package Content	1 x Power Cord
Cleaning	Wipe with dry cloth
Storage	Dry place, avoid direct sunlight

Frequently Asked Questions - AP8702S-NAX590 APC

What devices is the APC AP8702S-NAX590 compatible with?

This power cord is designed for computers, monitors, UPS systems, and other peripherals with a standard C13 connector. It can be used with most devices that accept a NEMA 5-15P to C13 power cord.

What is the length of the AP8702S-NAX590 cable?

The cable length is approximately 5.9 feet (1.8 meters), providing flexibility for connecting devices to power outlets.

Can I use this cable with a 220V outlet?

No, this cord is rated for 125V. Using it with a 220V outlet could damage the cord or connected device. Always check voltage compatibility.

What gauge is the cable?

The cable uses 14 AWG (American Wire Gauge) conductors, suitable for up to 15 amps of current.

Is the cable shielded?

This is a standard power cord without shielding. It is not designed for data transmission but for AC power delivery.

How do I clean the cable?

Unplug the cable and wipe it with a dry or slightly damp cloth. Do not use solvents or abrasive cleaners.

Does this cable come with a warranty?

Yes, APC typically offers a 2-year warranty on power cords. Check your purchase receipt for specific terms.

Can I connect a C14 to C13 extension cord?

Yes, you can use a C14 to C13 extension if needed. However, ensure the total current does not exceed the cord's rating.

What safety certifications does this cable have?

The AP8702S-NAX590 is UL and cUL listed, and RoHS compliant, ensuring it meets North American safety standards.

Is this cable suitable for outdoor use?

No, this cable is intended for indoor use only. Exposure to moisture or extreme temperatures may damage it.

USER MANUAL AP8702S-NAX590 APC

Product End-of-Life Instructions

Power Cords

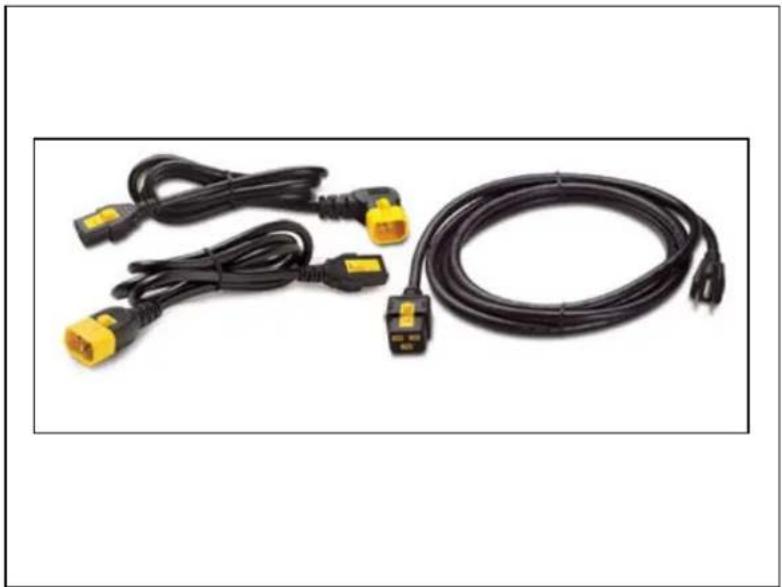

Two black and yellow cables with connectors, one open and one closed, shown against a white background (no text or symbols visible)

Green right-pointing arrow shape on white background (no text or symbols)

Schneider

Product End-of-Life Instructions – EoLI

Product overview

Product Range: Power cords

Marketing Model/Name: AP987X(YY)-(ZZZ), AP988X(YY)-(ZZZ), AP989X(YY)-(ZZZ), AP97XX(YY)-(ZZZ), and DELLXX, where X is a number, while YY and ZZZ represent product options such as color, region or customer designations.

Size: H x L x D in mm = 38 x 76 x 203

Weight in g = between 260 g and 3,065 g including packaging. It is 353.71 g for the AP9870 Power Cord, C13 to C14, 2.5m product.

Purpose

The product family must be disposed according to the legislation of the country. This document is intended for use by end of life recyclers or treatment facilities. It provides the basic information to assure an appropriate end of life treatment for the components and materials of the product.

Note:

This product family is in the scope of European Union directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This product range may be managed at end of life independently or with another product, such as an uninterruptible power supply (UPS), that is also subject to the WEEE directive.

Operations recommended for the end of life treatment

There are several steps to process the products at the end of life so as to recover components, materials or energy :

Reuse → Separation for special treatment → Other dismantling → Shredding

CAUTION: The components of the products that optimize the recycling performances are listed, identified and located hereunder.

Disassembly Instructions:

1. It is recommended to ship the power cords to recyclers as whole units for further processing.

The components of the products that optimize the recycling performances are listed, identified and located hereunder.


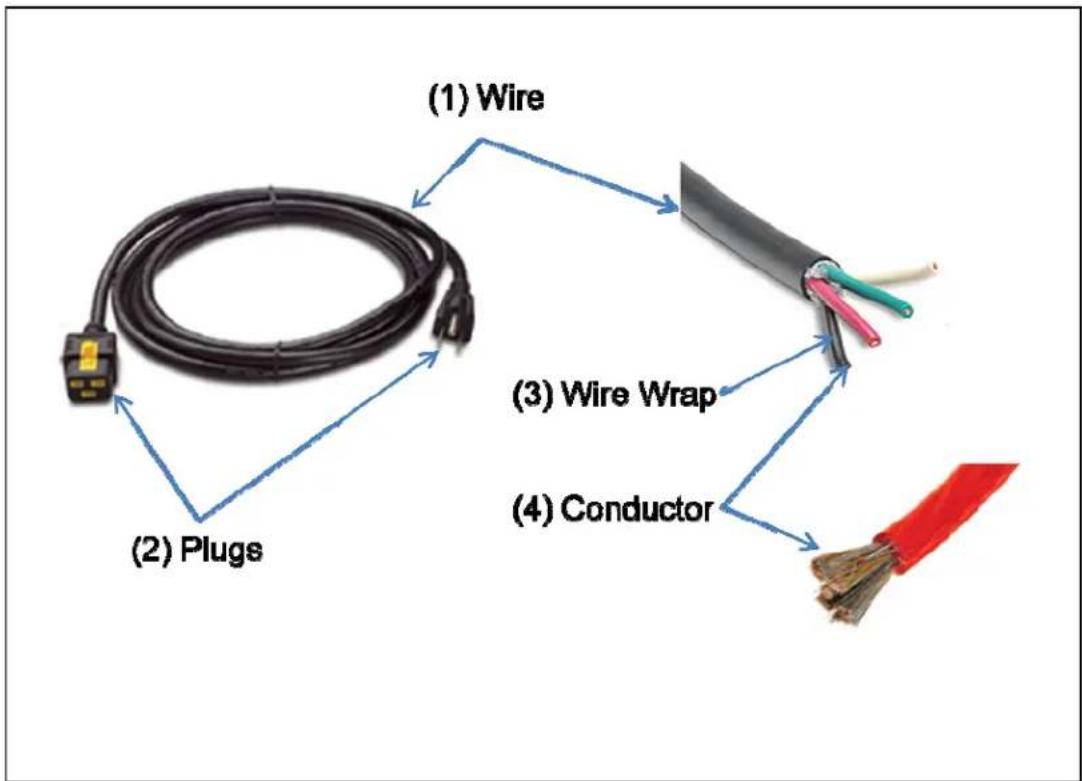

Power Cord product range consists of the following typical parts: (1) Wire, (2) Plugs, (3) wire wrap, and (4) copper conductors.

Recommendation	Number on drawing	Components	Weight (in g)	Comment
Special treatment (2), (3)		Plugs and Wire wrap, made with PVC	2160 and 160 each	Antimony Oxide Flame Retarded PVC with lead-free (SAC305) soldering.

EoLI achieved with Schneider-Electric TT03 V5 procedure
