USER MANUAL Sport BEMI

V: 2.2

Przycisk zasilania

White smartwatch with digital display showing 10:30 AM, no visible text or symbols on the device itself.

White smartwatch with circular head and facial profile, alongside a small grid-based sensor display (no text or symbols visible)

Two views of a smartwatch with a circular display and sensor port, showing the change from before to after (no text or symbols visible)

ip_url:52.28.132.157;

port:8001;

center:;

slave:;

sos1:;

sos2:;

sos3:;

upload:600S;

bat level:96;

language:1;

zone:8.00;

GPS:NO(0);

GPRS:OK(73);

pw:123456;

pw,123456,ip,52.28.132.157,8001#

pw,123456,time,hour.minute.second,date,year.month.day#

Symbol of a trash bin crossed with no text or numbers, accompanied by a black rectangular block below (no readable text or symbols)

linkiem: www.bemi-electronics.com/certificates

Adres: 602, 6/F, Block C, Huafeng International Robotics Industry Park, Huacheng Community Road, Xi'xiang, Bao'an, Shenzhen, Chiny 518126

Electronic version of this user guide is available on www.bemi-electronics.com/manuals

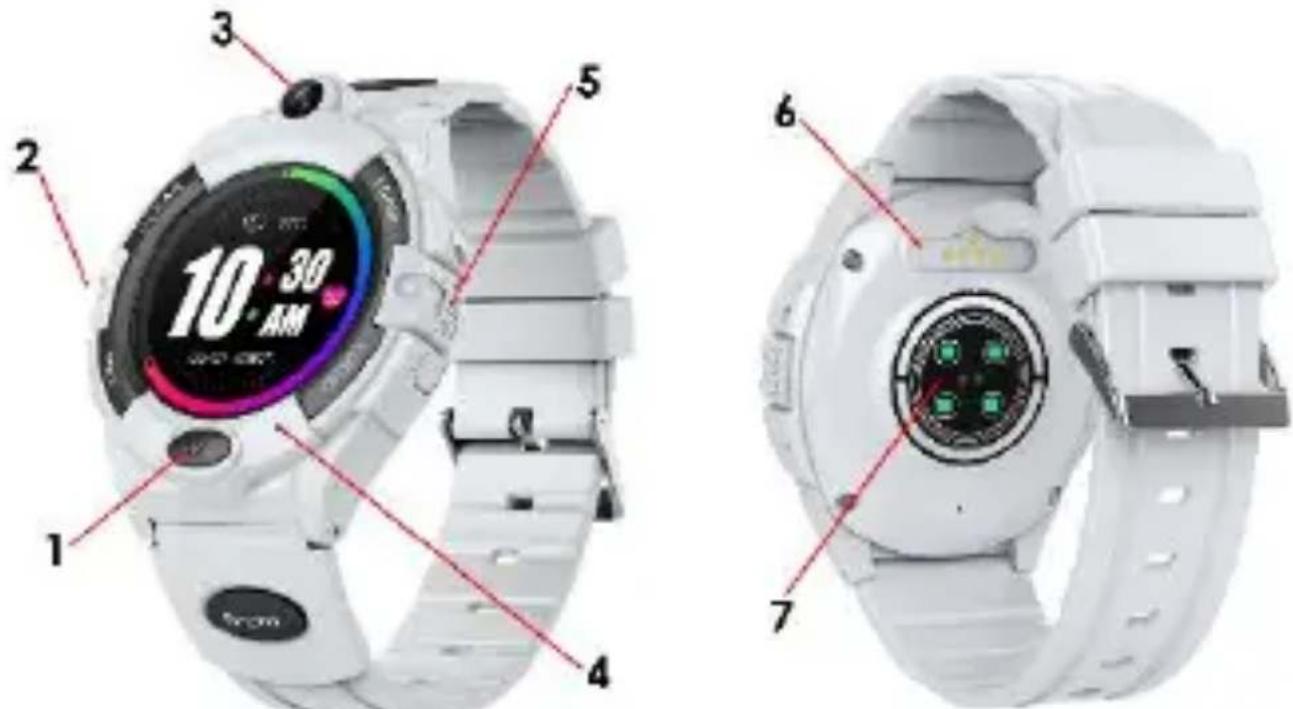

Product outlook

1 - back key, call pick-up, SOS, wake-up screen / 2 - loudspeaker / 3 - camera / 4 - microphone / 5 - nano SIM card slot / 6 - charging port / 7 - heart rate sensor

Power button

Turn on: press and hold the power button for 5s to turn on the watch.

Turn off: Power off via the watch interface "Settings-Turn off" or remotely via an application on your phone.

Restart: Press and hold the power button for 30 seconds to restart the watch. You can also restart your watch remotely from the app on your phone.

SOS: press and hold the power on button for 3s to activate the emergency SOS function.

Wake up the screen: press the key to wake up the screen.

Smartwatch Model: SPORT, is named in this user manual as

"device". It is mandatory to read this manual and the warranty card before using the device.

Children's watch is a telecommunications device used to locate its location and transmit data. The device is based on the 4G LTE / GSM / GPRS cellular network. In order to determine the location, the device uses the mobile operator's network (LBS), GPS system and WIFI network.

What's the difference between LBS, GPS and WIFI?

LBS

LBS base station positioning is based on calculating cell phone location based on differences in mobile communication towers, and it depends largely on base station coverage density nearby. If there are many base stations, the positioning is accurate. If there are several base stations, the positioning is not so good. Overall, the positioning accuracy is 50-2000 meters.

GPS

Thanks to GPS, the position can be precisely located anywhere and anytime without much effort. However, it takes some time to find satellites after starting GPS. usually about 2 minutes.

Positioning has high accuracy. The position may be within 5 meters (when it receives signals from at least four satellites)

Disadvantages: GPS positioning is heavily influenced by weather and location. When the weather is bad or indoors, in the corner of a tall building, underground garage (when the sky is not visible), GPS positioning will be affected.

WIFI

The purpose of WIFI positioning is to solve the problem of precise positioning indoors, the principle is similar to base station positioning. Each wireless access point has a globally unique MAC address. WIFI Positioning is by detecting the MAC addresses of all nearby wireless access points (WIFI Access Point), comparing the

MAC address coordinates in a database, and then calculating the location.

Attention!

The device requires the installation of a micro SIM card with an active service make / receive calls with disabled PIN lock. It is suggested to disable voicemail. When sending information about location, the watch will need access to mobile Internet, so it is worth buying a minimum 1 GB package. When using the watch, network and connection fees may be charged in accordance with the operator's tariff.

The device support nano SIM cards

Make sure you have the correct type of card

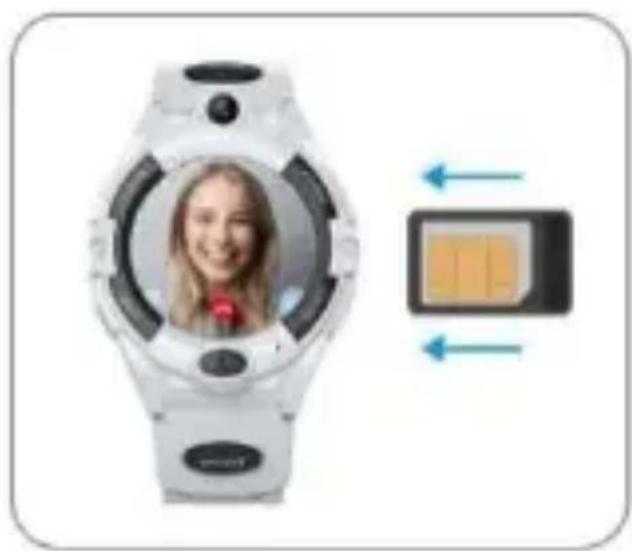

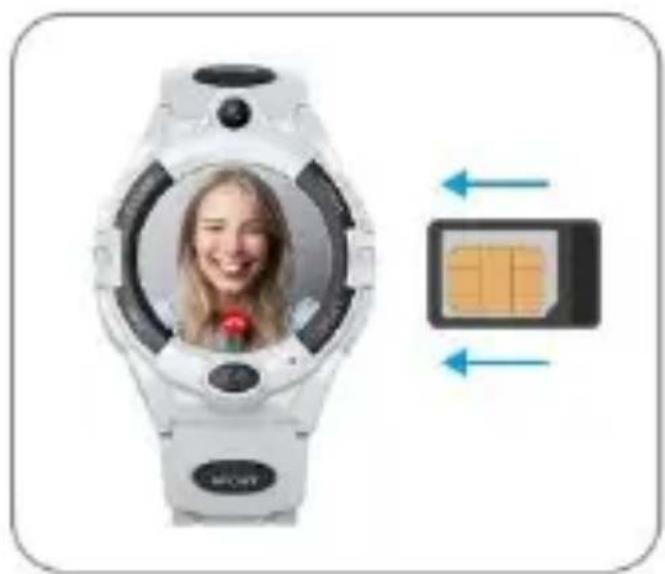

Installing a nano SIM card

White smartwatch with colorful display and wrist strap, no visible text or symbols on the device itself.

White smartwatch with a smiling face and a small display showing a grid of colored squares, accompanied by directional arrows (no text or symbols on the device itself)

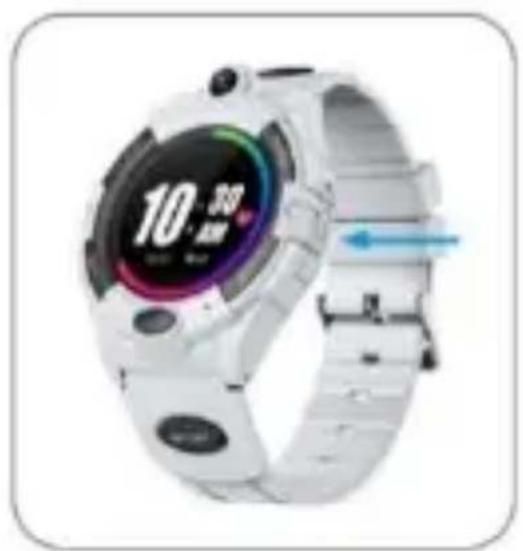

• Before inserting or removing the SIM card, always make sure that the watch is turned off. Never insert or remove cards SIM when watch is turned on.
• Unscrew the screws with included screwdriver.
• Locate SIM card cover on right side of device
• Open protective cover
• Use provided tool to take the SIM tray out
• Place a nano SIM card into the tray
• Make sure that the card's chip is on the up side, (chip facing up) like on picture above
  -Then put the tray back in and install protective cover
• Make sure cover fits tightly. This is very important for the water resistance of the device.

First run

- After installing the SIM card in the watch please be sure the device is charged. You can power on device by pressing and holding the switch on button.

- After starting, the watch connects to the mobile network.

Maintenance and use

Regularly clean the device, especially the part that adjoins the skin. Adjust the tightening of the device belt to ensure air circulation. Avoid excessive use of skin care products in the area where the device is being worn. If you have skin allergies or discomfort, stop wearing the device. Do not expose the device to cleaning agents, caustic agents or other chemicals. Do not expose the device to high (over + 50 °C) and low (below -10 °C) temperatures as well as to heating by e.g. sunlight or other heat source. This may damage the device.

Note: IP67 waterproof means that this device is resistant to dust, rain, moisture and a single immersion in standing water for a short time. Exposing the device to more severe conditions may

damage it. This device is not intended for water sports, diving or swimming.

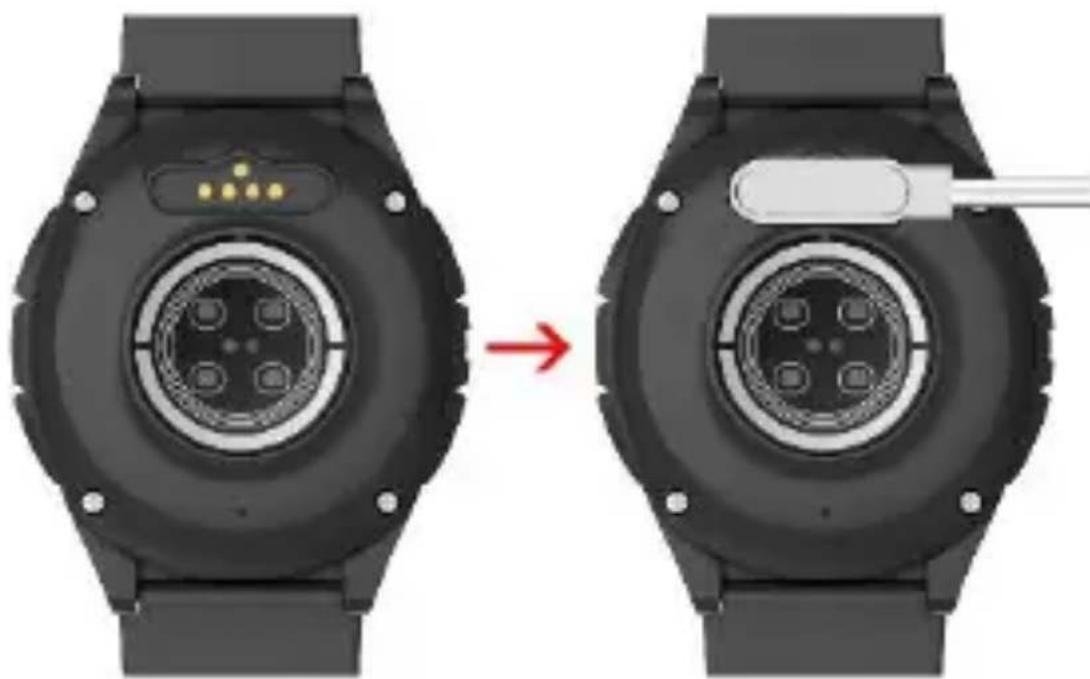

Battery charging

Two views of a smartwatch with an LED display and control panel, showing the process from external to internal states (no text or symbols visible)

Make sure that the battery is charged before using the device. For charging, use the cable provided in the set. It is recommended to use a 5V 1A power adapter. The power supply is not included in the set. It takes approximately 2 hours to fully charge the device.

To charge the device, follow the steps below:

1. Place the charging cord connector under the device so that its pins touch the metal points on the terminal.

2. Magnets will locate the connector in the correct position.

3. Connect the charging cable to a power source with the USB connector.

4. If everything is correct, the loading graphic will be displayed on the screen.

Note! if the device was completely discharged, charging graphics may be displayed after a few minutes.

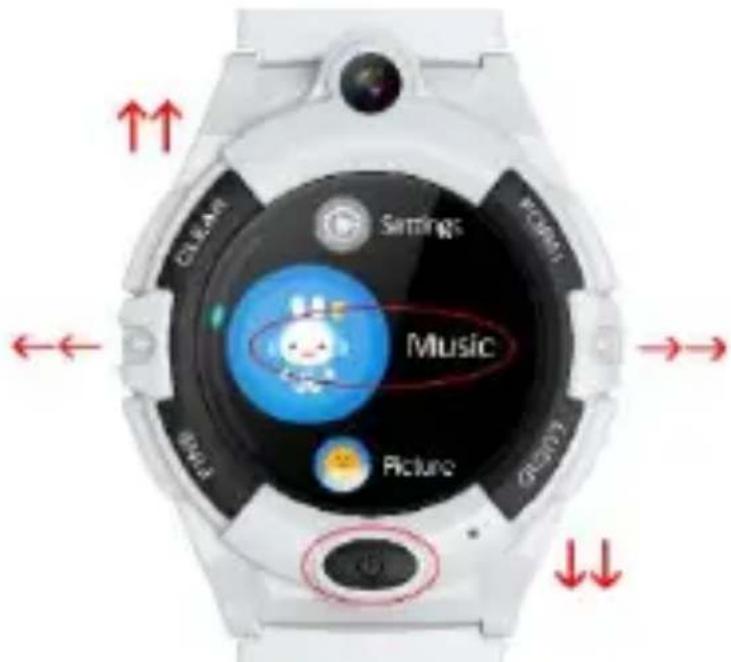

Device operation

We operate the watch via a touch screen.

To enter the device menu, in the clock face screen, slide your finger on the screen to the left. To go back to the watch face, press your finger on the screen to the right. The menu consists of several screens and you can navigate through it by sliding your finger up or down. To enter a specific function, touch the icon on the screen.

To go back, press the button below the screen.

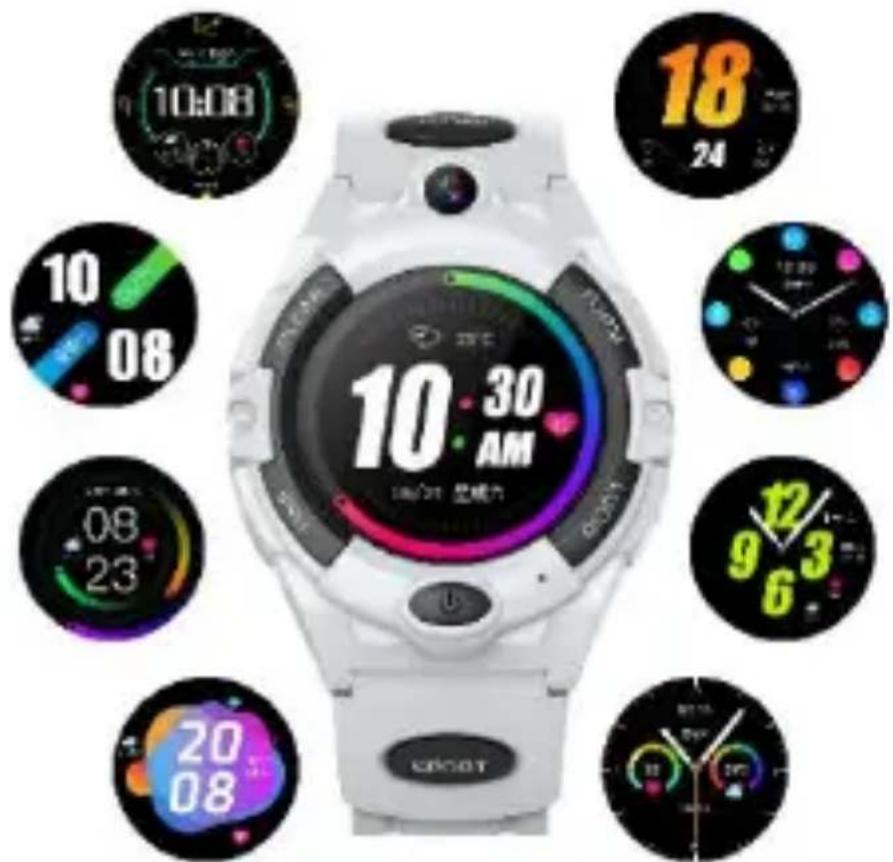

Clock faces selection

On the main screen, press the screen and hold for a while to enter the dial selection menu. Swipe left to select dials. Then press the screen to make the dial appear on the main screen.

Device menu

1. Watch main screen

It shows the current date and time as well as the battery level. On this screen, we also see the icon for connecting to the mobile network and the icon for the amount of contractual awards received.

2. SMS

It allows to send short text messages.

3. Heart rate

Touch the screen to start measuring. After the test, the result of the measurement of heart rate, blood pressure and oxygen level will appear. The history of the measurement results is saved in the application.

NOTE: The heart rate, blood pressure, and blood oxygen measurement data obtained from this device are approximate, informational only, and should not be used as a medical basis.

4. Contacts

Gives access to predefined phone numbers in the application.

5. Chat

It allows you to send and receive voice messages, photos. Attention! From the device it is possible to send only voice messages and currently taken photos.

6. Friends

Bring 2 devices close together, run functions in both devices. After a while, the devices will connect and add their contacts. The function allows you to send voice chats and photos from the camera.

7. Telephone

Enables you to make a call by manually entering the number.

8. Video connection

Allows you to make a video call with one person. It is possible to

make a group call (up to 8 people) through the app.

9. Camera

Allows you to take a photo that will be saved in the gallery.

10. Gallery

Store taken pictures.

11. Science

There is a simple math game and a preview of the timetable and activities. The timetable can be entered via the app.

12. Settings

Here you can make settings for the device.

-Mobile networks

Turn on/off VoLTE (voice over LTE), select or set APN and roaming.

-Wifi

Turn on/off wifi, select available networks.

-Bluetooth

Turn on/off bluetooth connection.

You can also pair device with Bluetooth earphones or speaker.

-Volume setting

Set loudness of ring, multimedia or alarm clock.

-Brightness setting

Set screen brightness level.

-Launcher style

Select user interface style

-Sleep

Set sleep mode time

-Reboot

Tap to restart device

-Shutdown

Tap to turn off device

-Clear tools

Enter to close running applications, clear cache or manage files by File Explorer

-More

Enter to acoustically dry the device, view device information, check if remote update is available, set swipe and click sound,

set PIN, SIM card lock, set date, time and select language.

13. Steps

Preview of the number of steps taken after switching on the pedometer function in the application.

14. App Store

It allows access to selected applications that can be installed on the device.

15. QR code

Direct access to the device registration code and the QR code to the application.

16. Music player

The device has a built-in music player. Upload music files to the built-in memory of the device, eg Connecting to a computer and then select a song to play. The device can also connect to, for example, TWS headphones or a loudspeaker via the bluetooth function.

17. Voice recorder

The device has a built-in voice recorder. It allows you to record and play back the recorded file.

Application

Download the application " SeTracker2 " for iOS or Android.

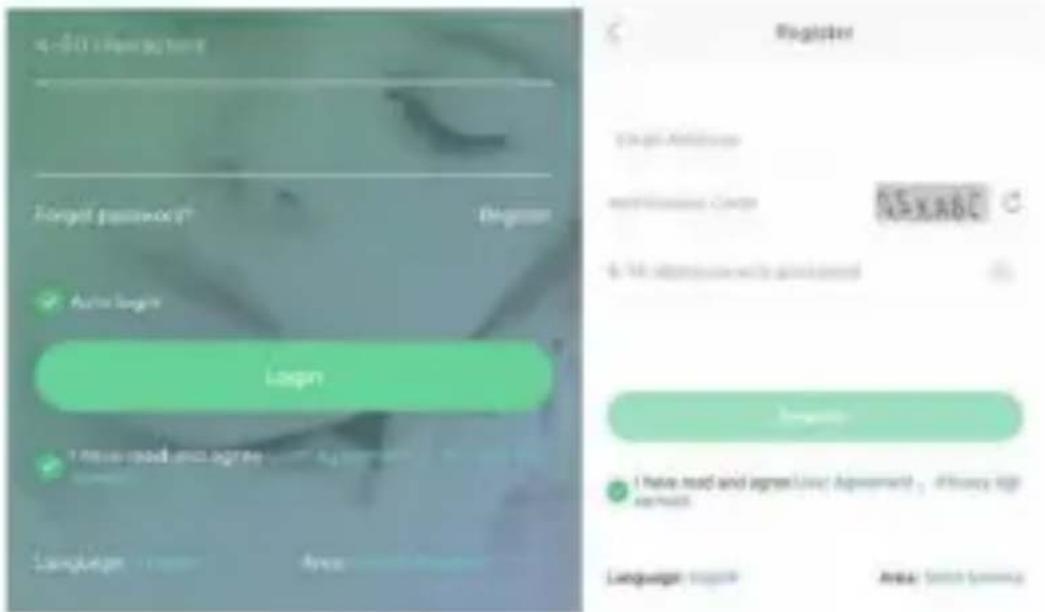

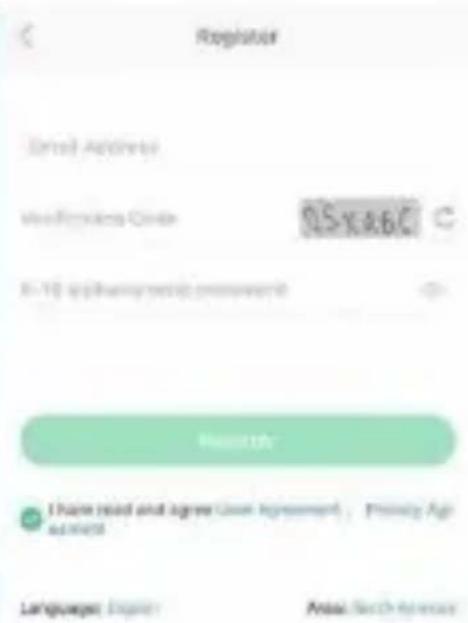

Account and watch registration

In the registration window, enter or scan the watch code (REG CODE) located on label attached to your watch or at the beginning of this user manual as well as on the device in the Device menu. Enter your email address, name and password.

Then select the language of the application and the area of use of the watch.

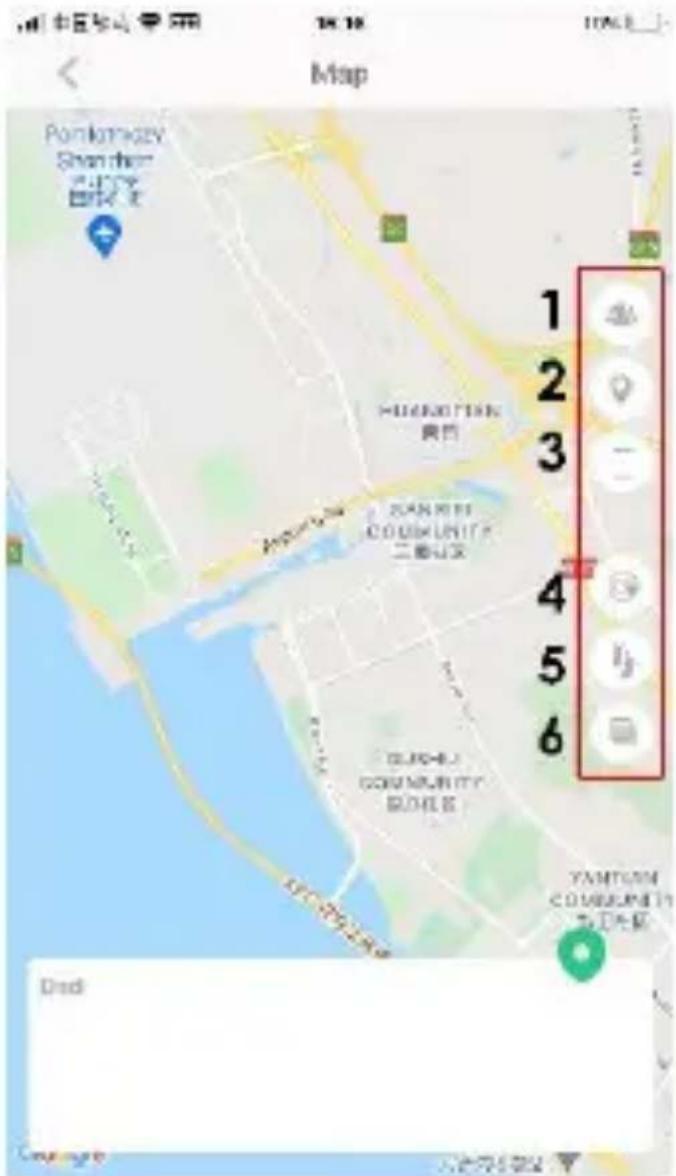

The main functions of the application Map

Shows the current position of the watch on the map. The following map functions are available:

1 - Device selection: tap to switch between paired watches.

2 – Location: press to refresh the location of the watch.

3 - Phone location: press to locate the phone.

4 - Safety zone: Click on the + sign to define the safety zone.

Enter the name of your zone, click on the map and then select the size of the designated zone in the

range from 200m to 2000m. After the watch has crossed the zone, you will receive notification.

5 - History: Set the date and time for which you want to check the route which the user of the watch has traveled in a given time.
6 - Map mode: press to select one of the three map modes.

At the top of the main screen on the left, we can choose the device if we have several watches connected to the application. On the right, press + to add a new device. Below there are shortcut icons for: phone book with contacts, chat with the device and calling.

Other functions

-Health: Click on one of the bars with data for steps, calories burned, distance, sleep, heart rate and blood pressure to start the activity measurement and enter the necessary settings such as

measurement time, stride length, weight. Remember to activate the function by moving the "change" slider. At the top of the screen you can select the data collected for the selected day.

NOTE: The heart rate, blood pressure, and blood oxygen measurement data obtained from this device are approximate, informational only, and should not be used as a medical basis.

-Notifications: This is where you get and preview to any notifications and alarms received from the watch.

-Alarm clock: Alarm clock settings. Set the desired time and frequency of repeat.

-Rewards: Send the correct amount of hearts to appear on device screen. Determine any meaning of each number and reward the user.

-Remote Camera: Remotely Take a picture using the watch's camera and receive it on your phone. The captured image may take some time to appear, depending on the signal strength of the cellular network.

-Class Schedule: Allows you to prepare a classes plan.

Video call: Allows you to make a video call to one person. It is possible to make a group call (up to 8 people) through the app.

-SOS numbers: When the watch user presses and holds the SOS button, the watch makes an automatic emergency call to three contacts defined here.

- Location Modes: Select Normal Mode - Location Refresh watch every ten minutes, save power once every hour, tracking - once a minute.

-Voice: enter the phone number to be called from the watch in order to listen to its surroundings. Pick up the call and check what's happening nearby. The user of the watch does not have any notification that such connection has been made.

-Guardian: View a list of family members.

Do not disturb: Select the time during the day when the user of the watch will not receive phone calls.

-Phone: define up to 15 contacts to the phone book will be available to the user of the watch.

-SMS notifications: Enter the number you want to receive SMS notifications about such events as: low battery level on the watch, activating the SOS alarm with the button watch.

-LBS: Enable or disable location using cellular operator antennas.

-Find Watch: Click Find Watch to find it if there is one near you.

The watch will ring to inform you of its location.

-Change Settings: Here you can enable or disable the device's dialing functions and GPS positioning.

-Language: Select one of the available languages on the watch.

-Time zone: Set your time zone so that the watch shows the correct date and time on the screen.

-Night energy saving mode: In order to save energy in the night mode, the device will disconnect from the network between 22:00 and 6:00.

-Unknown Number: Block numbers not included in your contact list.

-WiFi device: wifi network settings.

-App Store: Provides access to selected applications that can be installed on the device.

-Manual shutdown: Turn off the device remotely.

-Restore Default Settings: Remotely restore device defaults.

-Remote Reboot: Remotely reset your device.

Me / My profile

- Personal info: Your account settings

- Change Password: Change the password for your account.

- Device List: Add, edit or remove the link to watches.

- Delete Account. Press to delete the account.

Help

The application does not accept commands and shows information that the watch is not online.

- Check if the GSM signal is correct. The range is visible on the display. If not, turn off the device.

- Check that the SIM card is properly installed in watch and whether it supports 2G internet. Check if you have an available internet data package.

- Start the device and check if the network range is visible on the screen. If there is still no coverage, go to the next step.

Check if the icon symbolizing the data transfer appears, if not you need to set APN (Access Point Name, specific packet network, e.g. Internet).

Send an SMS from the phone to the device number with the following text:

pw,123456,apn,internet,,XXXXX#

the X character above means the number assigned to a specific operator, e.g.:

26001 – Plus / 26002 - T-Mobile / 26003 – Orange / 26006 - Play Other operator codes are available at www.mcc-mnc.com

After sending the SMS, wait several minutes for the device to receive the settings from the network. Data transfer arrows will appear as confirmation.

- Check if the server parameters contain the correct number IP, port and ID. Check the parameters by sending an SMS from the phone to device phone number with the following content:

pw,123456,ts#

In response, the device will send a message with the content containing IP address, port and ID, for example:

ID: 1451498657;

ip_url:52.28.132.157;

port:8001;

center:;

slave:;

sos1:;

sos2:;

sos3:;

upload:600S; bat level:96; language:1; zone:8.00; GPS:NO(0); GPRS:OK(73); pw:123456;

Check the data received in the SMS with the device number.

- If the ID / IMEI / REG CODE number is different from the badge on the watch, set a new IMEI number.

Send from the phone to the number of the card installed in the device SMS with the following text:

pw,123456,imei,xxxxxxxxxxxxxx#

- device after receiving the SMS with the code, it sends back in the SMS reply with the correct IMEI number, for example:

pw,123456,imei,359614514986574#

Check in the application, on the device list, whether the registered ID number matches the watch's ID.

- If IP_URL and PORT are different than in the example above, send an SMS from the phone to the device number with following text: pw,123456,ip,52.28.132.157,8001#

- the device in response sends a text message about the content [surl,52.28132.157,port,8001#]Ok.!

After that it will work properly.

-The GPRS / NET line from the example above should contain the word OK and the signal strength in parentheses. If the information contains the word NO, it means that the device is not connected to the internet. In that case, go back to the beginning of this paragraph and follow the guidelines.

Could not call watch. The signal is busy or subscriber does not answer

Reason: The device does not recognize the incoming number or in application is set to do not disturb mode.

• Check if the number you are calling from is unlisted.
• Check if contact numbers are set in the application.

The watch only receives calls from numbers previously set in the contacts of the application.

The application does not update the location in real time. Selects only LBS locations

Reason: The GPS signal is too weak to locate the watch or it is in sleep mode. Solution: - Leave the building, with the watch and in the application in the "MAP" function, press the "LOCATION" function. - Please note that you can set the appropriate operating mode for the watch in the application. This is related to the frequency of downloading data, including location. In energy-saving mode, data is sent once an hour. Therefore, in order to have full real-time location control, it is recommended to use the normal mode, which downloads data every 10 minutes.

The watch does not show the current time and date

Reason: The device failed to connect to the application server for the purpose time update.

• If the watch shows several hours back, check and select the appropriate time zone via the app.
• If the above does not help, please send SMS from phone to device with the following content:

pw,123456,ntpservers,121.40.88.40,8089#

In response, the watch should send an SMS with similar content OK. After that, restart your watch.

- Additionally, you can also send an SMS from phone to device number with the following text:

pw,123456,time,hour.minute.second,date,year.month.day# for example giving the current time: pw,123456,time,11.45.00, date,2021.06.01#

Attention!

When writing an SMS, please pay attention to punctuation marks and spaces. Entering a wrong command will result in no response.

Basic parameters: Screen type: 1.28 inch TFT; touch panel, battery capacity: 700 mAh; nano SIM card slot, Support 4G network, GPS, Wifi, HR sensor, camera, speaker, microphone.

Symbol of a trash bin crossed with no text or numbers, accompanied by a black rectangular block below (no readable text or symbols)

Proper disposal of this product. The device cannot be disposed of together with household waste. To prevent potential threats to the environment and human health due to improper disposal of waste, it is mandatory to take used electronic equipment to a designated collection point, or to the place where the product was purchased for the purpose of recycling electronic waste.

Warning: Lithium battery inside.

This device, smartwatch model SPORT, is in compliance with Directive 2014/53/EU of the European Parliament and of the Council. The complete declaration of conformity is available

online at the following link www.bemi-electronics.com/certificates

This manual is not covered by the warranty, and the appearance and/or functionality of the software installed on the device may be different from the one described. The Guarantor reserves the right to modify the instruction manual at any time without prior notice.

Data on the maximum radiated power of the radio frequency:

Frequency range	GSM 900/1800MHz	UMTS 900/2100MHz
Max. power emitted	32.51 / 30.44dBm EIRP	22.77 / 22.87dBm EIRP

Manufacturer: Shenzhen Minrek Electronic Ltd.

Address: C602, 6/F, Block C, Huafeng International Robotics Industry Park, Huacheng Community Road, Xi'xiang, Bao'an, Shenzhen, China 518126

Made in China
