Product Type	Air-to-Water Heat Pump
Brand	Panasonic
Model	WH-SDC09H3E8
Heating Capacity	9 kW
Cooling Capacity	9 kW
Power Supply	230 V / 50 Hz (single-phase)
Dimensions (W × H × D)	800 × 600 × 300 mm
Net Weight	40 kg
Refrigerant	R32
Outdoor Temperature Range (Heating)	-20 °C to 35 °C
Outdoor Temperature Range (Cooling)	-10 °C to 46 °C
Maximum Water Outlet Temperature	65 °C
Energy Class (Heating)	A++
Main Functions	Heating, cooling, domestic hot water (DHW) production, 2-zone regulation
Silent Mode	Yes, adjustable to 6 levels
Weekly Programming	Yes, up to 6 programs per day
Emergency DHW Forcing	Yes, by electric resistance
Emergency Heating Forcing	Yes, by electric resistance
Turbo Heating/Cooling	Yes
Forced Defrost	Yes
Remote Control Lock	Yes, by pin code
Display	LCD screen with wired remote control
Maintenance	Regular filter cleaning and annual inspection by a professional
Safety	Frost protection, leak detection, overpressure safety, automatic shutdown on fault
Repairability	Spare parts available through Panasonic authorized network

Frequently Asked Questions - WH-SDC09H3E8 PANASONIC

How to access the quick menu of the heat pump?

Press the dedicated key, then use the ▲▼ keys to select the desired menu. Confirm with the ▼ key. To return to the main screen, press the appropriate key.

How to activate the Emergency DHW Forcing mode?

In the quick menu, select the 'Emergency DHW Forcing' icon and press ▼ to confirm. This function activates the electric resistance of the hot water tank. It is disabled if heating forcing is active.

What does the Turbo Heating mode do?

The Turbo mode allows reaching the set temperature faster in heating or cooling. Select the corresponding icon in the quick menu and confirm. The mode activates about 1 minute after confirmation.

How to set the silent mode?

In the quick menu, select 'Silent mode'. Confirm, then choose the silence level (1 to 6) using the keys. The system then operates more discreetly, with a slight power reduction.

How to program the heating with the Weekly Prog.?

In the quick menu, select 'Weekly Prog.' then confirm. Choose 'Clock programming' to modify. Select the day, the program (1 to 6), set the time, mode (ON/OFF), temperature and confirm. You can also copy an existing program via 'Clock copy'.

Why use emergency heating forcing?

This option forces the activation of the emergency electric resistance for heating. It is useful in case of breakdown or very low outdoor temperature. It automatically deactivates when the system returns to normal operation mode.

How to manually defrost frozen pipes?

In the quick menu, select 'Forced defrost' and confirm. The request is accepted and the system starts a defrost cycle. Make sure the installation is stopped before activating this function.

How to reset an error code?

In the quick menu, select 'Error code reset' and confirm. The system restores the previous settings. It is recommended to turn off all units before performing this operation.

How to lock the remote control?

In the quick menu, select 'R/C Lock' and confirm. Choose 'Yes' to lock. To unlock, press any key, then enter any 4 digits (pin code) to unlock. If the code is forgotten, on the STOP screen, press the , and keys simultaneously for 5 seconds to reset the code to 0000.

What to do if the quick menu displays 'Gallon connection is disabled'?

The quick menu screen may lack space if the hot water tank is not connected. Make sure the 'Gallon connection' option is enabled in the system settings. Otherwise, some DHW-related functions may be unavailable.

USER MANUAL WH-SDC09H3E8 PANASONIC

Air-to-Water Heatpump

Model No.

Indoor Unit

WH-SDC09H3E8

WH-SDC12H9E8

WH-SDC16H9E8

WH-SXC09H3E8

WH-SXC12H9E8

WH-SXC16H9E8

Outdoor Unit

WH-UD09HE8

WH-UD12HE8

WH-UD16HE8

WH-UX09HE8

WH-UX12HE8

WH-UX16HE8

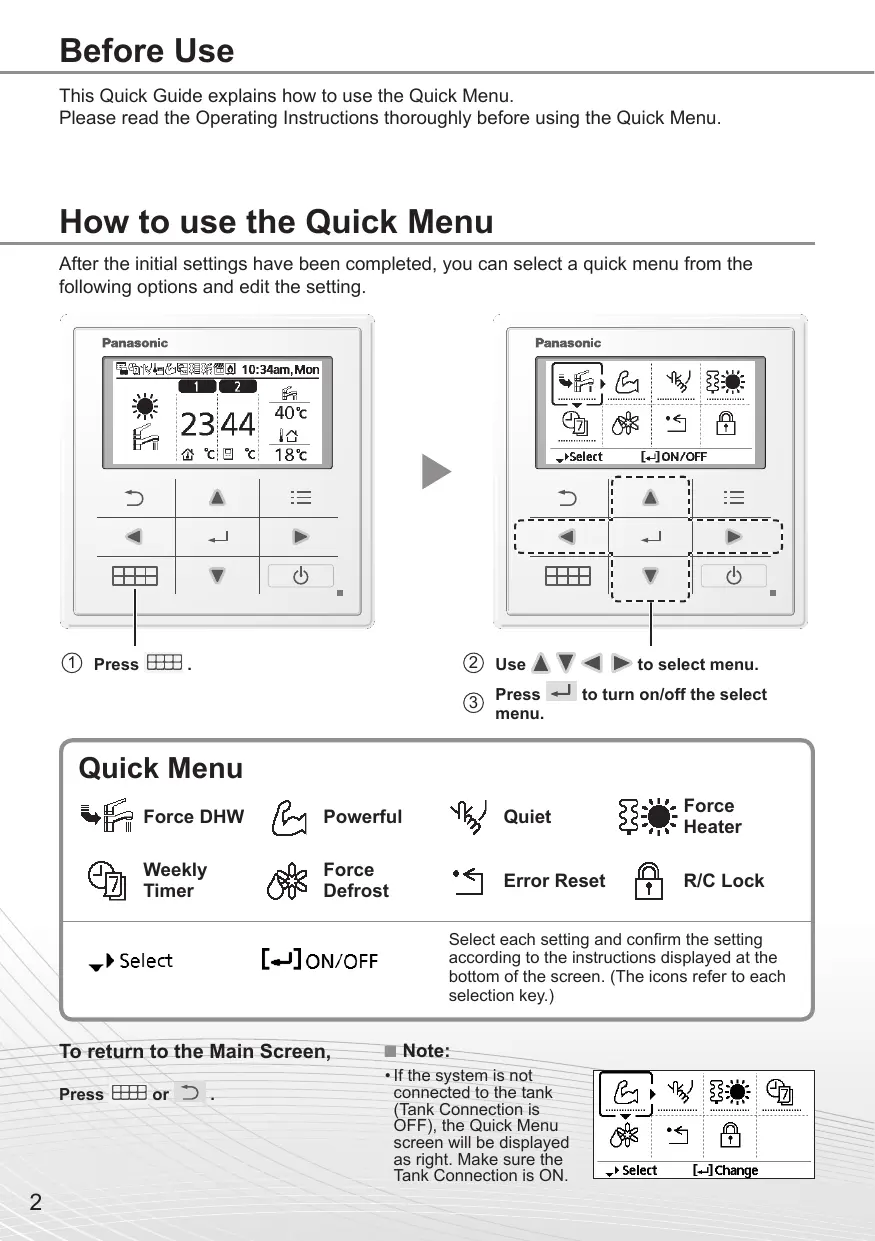

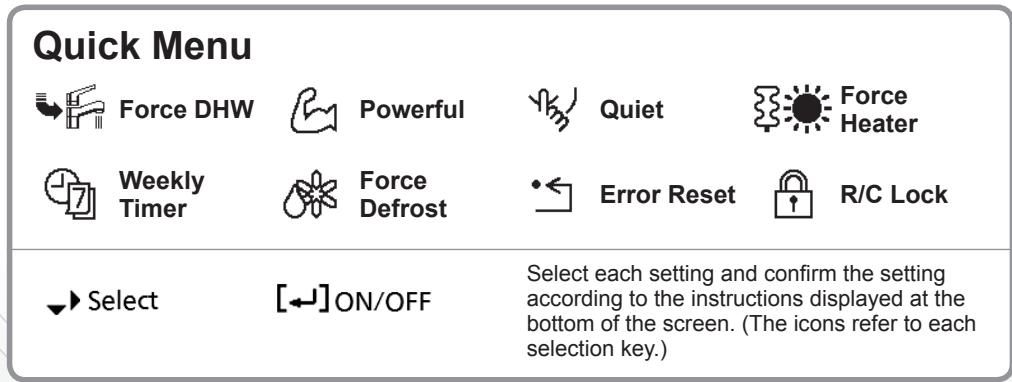

Quick Menu Guide

Air-to-Water Heatpump

Please read the Operating Instructions thoroughly before using the Quick Menu.

How to use the Quick Menu

After the initial settings have been completed, you can select a quick menu from the following options and edit the setting.

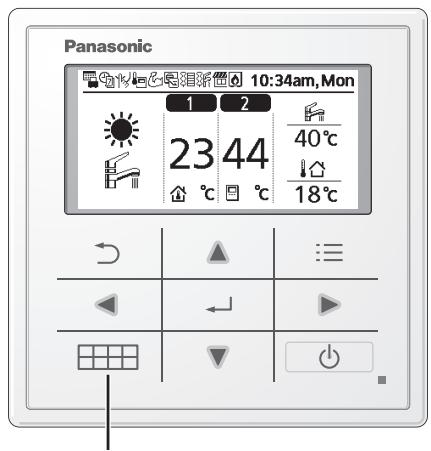

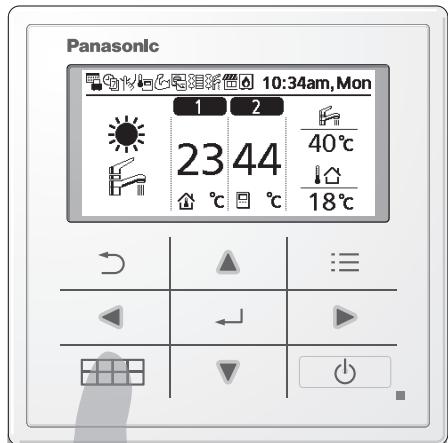

① Press .

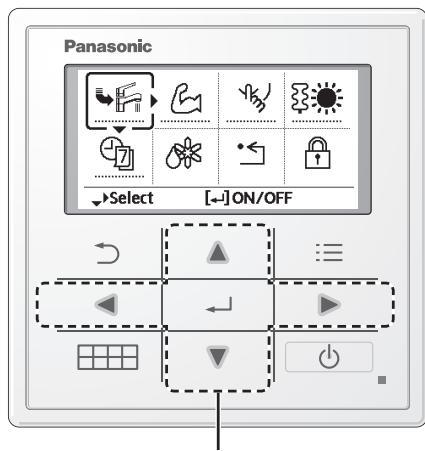

② Use ▲ ▼ ▶ ▷ to select menu.
③ Press to turn on/off the select menu.

To return to the Main Screen,

Press or

Note:

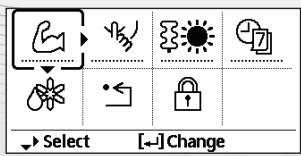

• If the system is not connected to the tank (Tank Connection is OFF), the Quick Menu screen will be displayed as right. Make sure the Tank Connection is ON.

Notes on operation icon

Example:

Operation icon indicate with "..........." = OFF

Operation icon indicate with "——" = ON

Force DHW

Select this icon to turn the Tank DHW on or off.

Press to confirm your selection.

• Force DHW is turned off.
• Force DHW is turned on.

Note:

• Force DHW is disabled when Force Heater is turned on.
• When Force DHW is turned off, operation & mode should change back to the previous memorized status.

Powerful

Select this icon to operate the heating/cooling system powerfully.

Press to confirm your selection.

(The powerful operation starts approximately 1 minute after is pressed.)

Note:

• Powerful is disabled when operation is turned OFF.

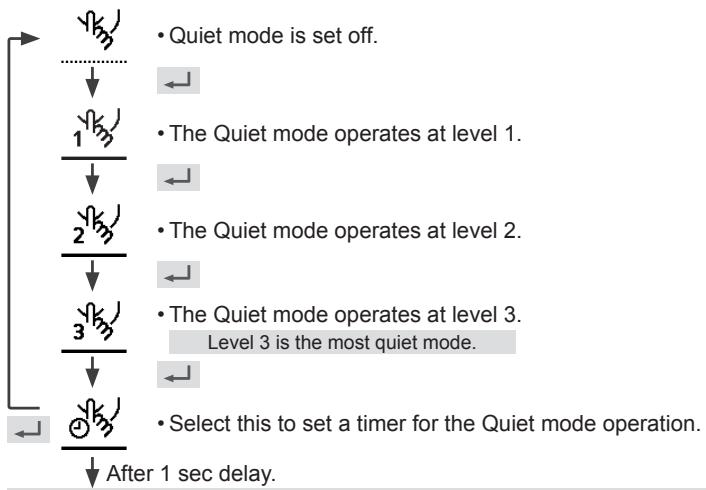

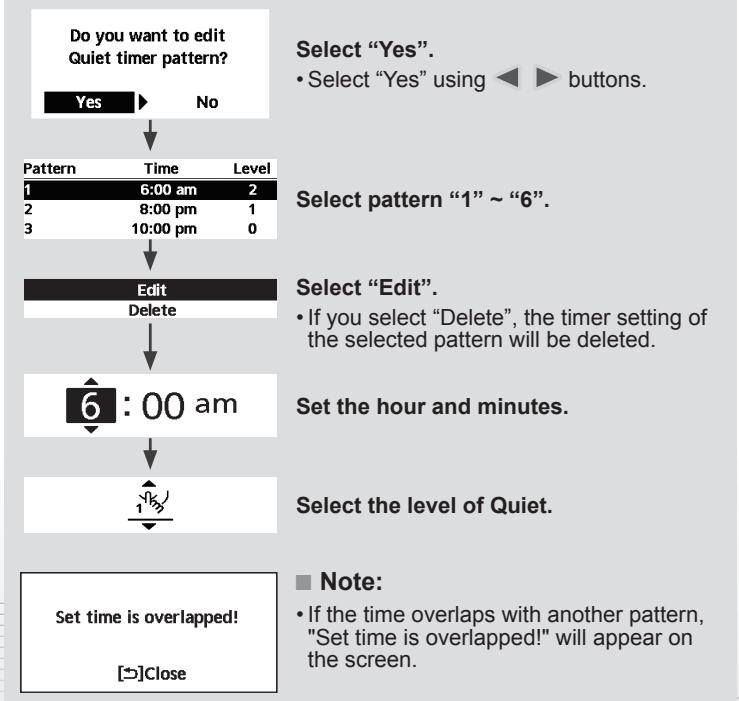

Quiet

Select this icon to operate quietly.

Press to confirm your selection.

(The quiet operation starts approximately 1 minute after is pressed.)

Force Heater

Select to force the Heater on.

Press to confirm your selection.

(The Force Heater mode starts approximately 1 minute after is pressed.)

Note:

• Force Heater is disabled whenever operation is already on and 'Disabled due to operation ON!' will be displayed.

Disabled due to operation ON!

[Close

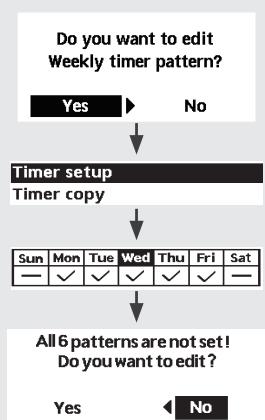

Weekly Timer

Select this icon to delete (cancel) or change the pre-set Weekly Timer.

Press to confirm your selection.

Select "Yes".

• If you select "No", the screen will return to the Main Screen.

• Timer setup: Select Timer setup to edit the Weekly Timer.

• Timer copy: Select to copy a timer setting.

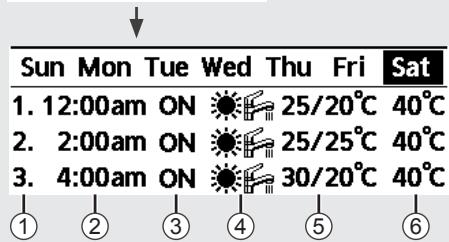

[Example of a Timer setup]

Select the day(s) which you wish to edit using buttons.

If all 6 patterns are not preset, this screen will be displayed.

④ Select the operation mode.

① Select pattern "1" ~ "6".
② Set the hour and minutes of the Timer.
③ Select ON/OFF of the Timer.

A/A/（//）/

• Select mode using buttons.

⑤ Set the temperature for both Zone 1 and 2 (if your system has the 2-Zone setting).

Saturday: Pattern 1: Set Temp

Zone1		Zone2
ON	25°C	ON	25°C

⑥ Set the Tank temperature.

Note:

• Timer is disabled when Force Heater is turned on or Heat-Cool SW is enabled.
  If you have preset the Weekly Timer on 2 zones, you must repeat the same procedure with Zone 2.

Force Defrost

Select to defrost the frozen pipes.

Press to confirm your selection.

(When the mode is accepted, below screen will be displayed.)

Request accepted!

[ ] Close

Error Reset

Select to restore the previous settings when error has occurred.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Request accepted!

[ ] Close

• Make sure all units are turned off before selecting this mode which restores the whole system to the previous settings.

R/C Lock

Select to lock the Remote Controller.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Do you want to lock remote control?

Yes

No

Select "Yes".

(The Main Screen will be locked.)

• If "No" is selected, the screen will return to the Main Screen.

To unlock the Remote Controller

Press any key.

(When the mode has been accepted, below screen will be displayed.)

Enter any 4 digits of number (if the number is correct, the screen will be unlocked).

To reset forgotten password (under operation OFF screen)

Press , and continuously for 5 seconds.

(When the mode has been accepted, below screen will be displayed.)

Select "Reset".

1. Password is reset to 0000
2. Remote control is unlocked

(The screen will be off after 3 seconds.)

Disabled due to operation ON!

[Close

Week-timer

Do you want to lock remote control?

Yes

No

1. Password is reset to 0000
2. Remote control is unlocked

Disabled due to operation ON!

[Close

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C	45°C

Do you want to lock remote control?

Yes No

ETIIAEETE "Yes".

1 Password is reset to 0000

2.Remote control is unlocked

Disabled due to operation ON!

[Close

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Tank sicutligini ayarlayin.

Not:

Kraftfull inaktiveras nar driften stangs AV.

Tystläge

Väljennaikonforattdravystyst.

Disabled due to operation ON!

[Close

Viikkoajastin

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Aseta sällön lämpötila.

Huomautus:

Do you want to lock remote control?

Yes No

Vaelg dette ikon for at stille drift.
