MJ-BH30W103 - Blender COMFEE - Free user manual and instructions

Type	Blender
Brand	Comfee
Model	MJ-BH30W103
Capacity	1.5 liters
Motor Power	350 watts
Voltage	220-240 V, 50/60 Hz
Blade Material	Stainless steel
Jar Material	Glass
Number of Speeds	2 speeds + pulse
Pulse Function	Yes
Ice Crush Capability	Yes
Dishwasher Safe Parts	Jar and lid
Non-Slip Feet	Yes
Safety Lock	Yes, lid must be locked
Cord Length	1 meter
Weight	2.5 kg
Dimensions (HxWxD)	40 x 18 x 18 cm
Color	White/Black
Warranty	1 year

Frequently Asked Questions - MJ-BH30W103 COMFEE

How do I clean the blender?

Fill the jar with warm water and a drop of dish soap, run on pulse for 30 seconds, then rinse thoroughly. The jar and lid are dishwasher safe.

Can I crush ice in this blender?

Yes, use the pulse function for ice crushing. Do not fill the jar more than half full with ice.

What is the maximum capacity?

The maximum liquid capacity is 1.5 liters, but do not exceed 1.2 liters for hot liquids.

How many speeds does it have?

It has 2 speeds (low and high) plus a pulse function for precise control.

Is the jar made of glass or plastic?

The jar is made of glass, which is durable and resistant to stains and odors.

Does it have a safety lock?

Yes, the blender will not operate unless the lid is securely locked into place.

Can I blend hot liquids?

You can blend warm liquids, but allow hot liquids to cool to below 60°C before blending.

What is the warranty period?

The blender comes with a 1-year limited warranty.

How do I replace the blade assembly?

Turn the jar upside down, unscrew the blade base, replace with a genuine Comfee blade assembly, and tighten securely.

Why does my blender smell like burning?

This may happen if the motor is overloaded. Turn off, let cool for 15 minutes, and reduce batch size next use.

USER MANUAL MJ-BH30W103 COMFEE

MonsterChef Series Comfee® ...is how I cook! 0 1 MJ-B130W103 Frullatore A Immersione Instruction Manual IMPORTANT NOTE: For your safety and continued enjoyment of this product, always read the instruction Manual carefully before using.

封面

Yellow cornfeeder hand mixer with a black handle, set against a yellow abstract background (no text or symbols on the device itself)

MJ-BH30W103

IMPORTANT NOTE: For your safety and continued enjoyment of this product, always read the instruction Manual carefully before using.

CC IMPO DAT DATA

CONTENUTO

IMPORTANTI ISTRUZIONI DI SICUREZZA ....1

DATI TECNICI DEL PRODOTTO....4

NOME DELLE COMPONENTI....4

ISTRUZIONI PER L'USO 5

ANALISI E GESTIONE DELLE ANOMALIE....8

PULIZIA E MANUNTENZIONE ....10

DIAGRAMMA DEI PRINCIPI DEL CIRCUITO....12

Abstract pattern of colorful squares arranged in a grid (no text or symbols)

IMPORTANTI ISTRUZIONI DI SICUREZZA

Line drawing of hands pouring liquid into a glass with food inside (no text or symbols)

Diagram showing a mechanical assembly with a 3D printer and a close-up of a cup (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified cable (no text or symbols)

Illustration of a hand holding a pen or pipette with an upward arrow indicating movement, no text or symbols present.

5

Illustration of a plug inserted into an electrical outlet with a magnified cable (no text or symbols)

Simple line drawing of a bucket with a piston and liquid level, no text or symbols present

Diagram showing a mechanical device transforming into a plastic container with granular material (no text or symbols)

Diagram showing a bottle being poured into a container with granular material, no text or symbols present

Illustration of a plug inserted into an electrical outlet with a cable, showing a lightning bolt (no text or symbols)

Diagram of a bottle with granular material inside, showing a piston and directional arrow (no text or symbols)

Illustration of a plug inserted into an electrical outlet, showing power flow direction (no text or symbols)

Illustration of a hand inserting a plug into an electrical outlet (no text or symbols)

Line drawing of two hands holding a device with a label, no text or symbols present

Abstract pattern of colorful squares arranged in a grid (no text or symbols)

Yellow and silver electric shaver with a black handle, no visible text or symbols on the body

MJ-BH30W103

Hand Blender

Instruction Manual

IMPORTANT NOTE: For your safety and continued enjoyment of this product, always read the instruction Manual carefully before using.

CC IMPC TEC RAD

CONTENT

IMPORTANT SAFETY INSTRUCTIONS....1

TECHNICAL DATA OF THE PRODUCT 4

PART NAME 4

INSTRUCTIONS FOR USE 5

ABNORMALITY ANALYSIS AND HANDLING 8

CLEANING AND MAINTENANCE 10

CIRCUIT PRINCIPLE DIAGRAM 12

IMPORTANT NOTE: Please read the manual carefully before operating your product. Retain it for future reference.

Abstract pattern of colorful squares arranged in a grid (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

To avoid the risk of serious injury when using your hand

blender, basicsafety precautions should be followed, including the following.

READ ALL INSTRUCTIONS, SAFEGUARDS, AND WARNINGS

1. To protect against risk of electrical shock do not put into water or other liquid.
2. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
3. Avoid contacting moving parts.
4. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner.
5. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
6. Do not use outdoors.
7. Do not let cord hang over edge of table or counter.
8. Do not let cord contact hot surface, including the stove.

IMPORTANT SAFETY INSTRUCTIONS

1. Blades are sharp. Handle carefully.
2. Do not blend hot liquids.
3. The appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. This appliance can be used by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children should not do not play with the appliance.
5. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent or similarly qualified person in order to avoid a hazard.

6. This appliance is intended to be used in household and similar applications such as:

7. Staff kitchen areas in shops, offices and other working environments;

8. Farm houses;

9. By clients in hotels, motels and other residential type environments;
   – Bed and breakfast type environments.

10. Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.

IMPORTANT SAFETY INSTRUCTIONS

1. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
2. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
3. Warning: Risks of injuries if you don't use the appliance correctly.
4. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
5. If the instruction has lost, you can download it from our website or contact local importer to send you the instruction or CD disc.

SAVE THESE INSTRUCTION.

THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY.

Caution:

The failure to follow any of the important safeguards and the important instructions for safe use is a misuse of your hand blender that can void your warranty and create the risk of serious injury.

TECHNICAL DATA OF THE PRODUCT

Product name Model No. Rated voltage			Rated frequency Rated power
	MJ-BH30W103	220-240V~	50-60Hz 400V	WHAND BLENDER

PART NAME

Power button Main unit

Beaker

Mini Chopper Attachment

Wand body

Chopper lid

Chopper Blade Chopper Bowl

Wire whisk Whisk body

Whisk Attachment

Wand Attachment Chopper Attachment

Note

• The hand blender is not designed for use over a heat source.
• This appliance is not intended to chop ice. To use the hand
- blender in a saucepan, be sure to remove the pan from the stove.
• To puree foods, liquid is needed. Add cooking liquid, broth, juice, milk, or cream until desired consistency is reached.
- For thorough blending, move hand blender up and down in mixture until smooth.
• To achieve best blending results and to reduce splattering (especially hot foods or liquids), use deep, tall containers.
• We recommend chopping only 5oz. (142g) of meat at a time in the food chopper. Meat should be cut into 2-inch (5.1-cm) pieces before processing.
- Don't allow to use hand blender on long time.

INS Wa

INSTRUCTIONS FOR USE

Wand attachment

Line drawing of hands pouring liquid into a glass with food items (no text or symbols)

Diagram showing a mechanical assembly with a component and a separate view of a bowl (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified cable (no text or symbols)

Illustration of a hand holding a pen or pipette with an upward arrow indicating movement, no text or symbols present.

5

Diagram showing a plug inserted into an electrical outlet with a magnified view of the plug (no text or symbols present)

According to require assembled appliance body and attachment, let every attachment be locked completely. Assembled way be showed on picture.

Wand use

- You can blend carrot (240g carrot, 360g water), operating time is less than 60 seconds and rest 60 seconds.

Wand used on beaker

• Please check over accessory is run good before use appliance for blend food.
• Put the beaker on a worktop, and pour not over 600ml food or mixture into it.
• Assembled appliance body and wand completely (wand be locked on appliance body).
• Put appliance plug into socket of supply power.

INSTRUCTIONS FOR USE

• Hold appliance body tightly and let finger can easy operate power button.
• Put wand into beaker, Press the power button.
• Do not hold power button down for more than 60 seconds at a time.
• Move appliance up-down, right-left slowly, until food be blended good.
• Release power button, let blade be stop, and put out appliance, Pull out power cord from socket or shut off appliance power if need blend another food.
  • Take a cool pan and put it on worktable, assemble blender body and wand tightly.
• Plug in. To avoid splashing, place the blade in food before switching on Hold the beaker steady, then press either power button.
• Don't let liquid get above the join between the power handle and blender shaft.
• Move the blade through the food and use a stabling action.
• If you blender gets blocked, unplug before clearing.
  • After use, unplug and dismantle.

Caution:

• Do not use nonfood items in this hand blender. This product is not meant for soap making.
• Do not immerse the main unit in water.
• Always inspect attachments before each use. Do not use cracked, bent, or damaged attachments.

Whisk attachment

Whisk used to make light ingredients such as egg whites, cream, instant dessert, eggs and sugar for whisked sponges.

- Push the wire whisk into the whisk body and fit this whisk-ASM to stick blender body and turn & lock it.

- Place you food in a bowl.

- Put whisk into bowl, Press the power button.

• After use, unplug in and dismantle it.

- Don't whisk more than four eggs whites or 400ml(3/4 Pt) cream.

- Don't let liquid get above the whisk wires. operating time is less than 2 minutes and rest 2 minutes.

- Push the wire whisk into the whisk body and fit this whisk-ASM to stick blender body and turn & lock it. - Place you food in a bowl. - Put whisk into bowl, Press the power button. - After use, unplug in and dismantle it. - Don't whisk more than four eggs whites or 400ml(3/4 Pt) cream. - Don't let liquid get above the whisk wires. operating time is less than 2 minutes and rest 2 minutes.

INSTRUCTIONS FOR USE

Note:

Please not use it whisk heavier mixtures such as margarine and sugar, you will damage the whisk.

Chopper attachment

Simple line drawing of a bucket with a candle above it, no text or symbols present

Diagram showing a mechanical device transforming into a plastic container with granular material (no text or symbols)

Diagram showing a bottle being poured into a glass jar with a lid, indicating a process (no text or symbols present)

Illustration of a plug inserted into an electrical outlet with two socket plugs (no text or symbols)

Diagram of a bottle being compressed with a container filled with granular material, no text or symbols present

Illustration of a plug inserted into an electrical outlet, showing power flow direction (no text or symbols)

• Remove bones and cut food into 1-2cm cubes.
• Open chopper lid and fit chopper blade right.
• Add you food and not let food volume over 500ml.
  • Fit chopper lid and locked it on bowl.
  • Fit stick blender body on chopper tightly.
  • After use, unplug and dismantle.

- Plug in. Hold the bowl and blender body tightly, then press power button.

Note:

You can chop meat, cheese, vegetable, herbs, bread, biscuits and nuts, but not permit use it to chop hard food such as coffee bean, ice cubes, spices or chocolate, otherwise will damage the blade.

INSTRUCTIONS FOR USE

Chopper recipes

Food type Maximum amount	Approx. time(S)
Meat 200g (7.0 Oz) 5
Herbs	20g (0.7 Oz) 20
Meat 200g (7.0 Oz) 30
Herbs	150g (5.0 Oz) 30
Meat 1 slice 50
Herbs	2
Meat 100g (3.5 Oz) 10
Herbs	150g (5.0 Oz) 30
Meat 300g (10.5 Oz) 30

Mini Chopper Attachment

You can blend cooked pig skin (30g cooked pig skin, 15g peanut oil), operating time is 5 seconds.

ABNORMALITY ANALYSIS AND HANDLING

Abnormality Handling

1. In case of abnormalities such as abnormal noises, smell, smoke, etc., you should immediately cut off power and stop use.
2. If the product cannot work, please check if the power supply is connected, if the switch is put to the ON position and if fittings are installed in place.
3. If the product still cannot work after checks mentioned above, please consult the designated repair centre for maintenance.

ABNORMALITY ANALYSIS AND HANDLING

Fault Analysis and Elimination

Symptom	Analysis of Possible Causes	Countermeasure
Product does not work	Did not press the inching switch	Keep the point switch in the pressed state
Mixing sword master	Excessive amount of food processing	Reduce the quantity of ingredients
	Ingredients stick to blade	Cut off the power supply, clean up the blade on the ingredients
The abnormal odor products, hot, the phenomenon such as smoking	Excessive amount of food processing	Reduce the quantity of ingredients
	Product continuous working time is too long	Shorten the product continuous working time
	Processing the ingredients of temperature is too high	The temperature of the ingredients do notexceed 60 °C

CLEANING AND MAINTENANCE

Cleaning

Illustration of a plug inserted into an electrical outlet with two socket plugs, showing a cable (no text or symbols)

Line drawing of two hands holding a device with a label, no text or symbols present

3 Chopper Lid, Whisk Ho Wand Inner, Main Unit

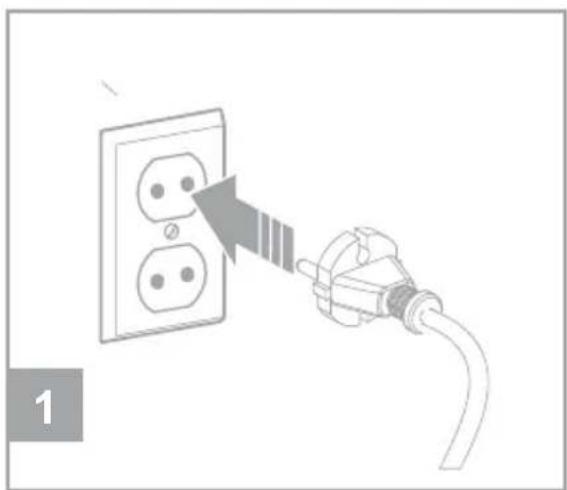

• Always switch off and unplug when cleaning appliance.
- Don't touch the sharp blades and keep special care when clearing blades avoid to be injured.
• Always switch off and unplug when cleaning appliance.
- Don't touch the sharp blades and keep special care when clearing blades avoid to be injured.
- Some food easy discolor plastic part, Please rub with a cloth dipped in vegetable oil help remove discoloring.
- Do not immerse in water or any other liquid as below parts, Only allow use simply wipe clean with a damp cloth: Main unit、Wand Attachment、Whisk body、Chopper lid.

CLEANING AND MAINTENANCE

• You can wash with warm soapy water or clean on top shelf of the dishwasher as below parts. To avoid scratch the parts, Do not use any sharp, metal objects.
• Beaker、Wire whisk、Chopper blade、Chopping bowl.

Caution:

Never hold main unit portion of hand blender under running water. Simply wipe clean with a damp cloth.

If you put the wand and whisk into the water to clean, you must pay attention to the following two aspects:

1. Height of water can't over the plastic part at top of wand.
2. Whisk must take out from the whisk body. Whisk can immerse in water for cleaning, but the whisk body only allows cloth to wipe.
3. Don't permit water or liquid be flow into chopper lid, stick blender body, wand, whisk body. If water get inside, drain and dry it before use it.

Maintaining

• If the power cord or top cap be damaged, for safety reasons, it must be send to our company authorized shop repair and changed.
• If the appliance have un-normal state, please contact with shop where purchase this appliance and make it clear or change it.
• When not use the appliance, please coil the cord, and lay it on somewhere children cannot get it.
• Keep appliance on a dry condition when not use appliance.
• Don't plug in when not use appliance.

CIF Ze

CIRCUIT PRINCIPLE DIAGRAM

Zero line Live line N L PCBA DC Motor

Environmental protection

The appliance must not be disposed of with regular household waste. At the end of its service life, the appliance must be properly delivered to a collection point for the recycling of electrical and electronic equipment. By Collection and recycling of old appliances, you are making an important contribution to the conservation of our natural resources and provide for environmentally sound and healthy disposal.

Abstract pattern of colorful squares arranged in a grid (no text or symbols)

comfee
