USER MANUAL CDW-10F60TB COMFEE

Simple geometric diagram with a rectangle and two horizontal lines, no text or symbols present

Máy rửa chén

SmartHome

Pure technical line drawing of a structural framework without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with grid pattern (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a bowl with a screw and a droplet above it (no text or symbols)

Line drawing of a kitchen appliance with a hand pouring liquid into a sink (no text or symbols)

Simple line drawing of a rectangular device with two vertical arrows indicating sound or vibration (no text or symbols)

LẮP ĐẶT SẢN PHẨM

CẢNH BÁO

Nguy cơ điện giật

Technical line drawing of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present)

Technical line drawing of a mechanical assembly with three circular components and internal channels (no text or symbols)

Pure geometric line drawing of vertical rectangles above a horizontal baseline (no text or symbols)

Line drawing of a device with a screen and indicator light, showing a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand pressing a button on a device with a slide and scroll (no text or symbols)

Line drawing of a device with a plug inserted into a cylindrical component (no text or symbols)

Diagram illustrating two steps of a device with labeled components A and B, showing powder being poured into a container.

Diagram of a refrigerator with an upward arrow indicating airflow or heat transfer (no text or symbols)

LU'U Ý

CẢNH BÁO

Illustration of a hand interacting with a smartphone displaying a small screen (no text or symbols visible)

Illustration of a hand interacting with a smartphone displaying a grid interface, with a magnified circular detail showing a square button.

Mobile phone screenshot showing a payment interface with a dark card displaying '3:22' and text lines below

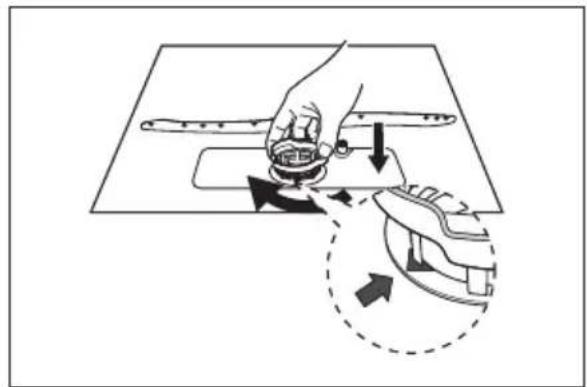

CHÚ Ý

Illustration of a hand holding a small object on a flat surface with directional arrows indicating rotation (no text or symbols)

Illustration of hands using a tool to clean or wash a surface, no text or symbols present

Diagram showing a hand operating a mechanical component with arrows indicating motion, no text or symbols present

CẢNH BÁO

Illustration of a hand using a tool to press or install a small object on a flat surface, with no visible text or symbols.

Illustration of hands using a kitchen sink to clean or wash air, no text or symbols present

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

ĐIỀU KHOẢN BẢO HÀNH

Đăng Ký BảoHành

https://www.feelcomfee.com/vn/bao-hanh

Thời Hạn Bảo Hành

Simple geometric diagram with a rectangle and two horizontal lines, no text or symbols present.

Dish Washer

SmartHome

QR code image containing encoded data, no visible human-readable text

Download the app & activate product

USER MANUAL

CDW-10F60TB

THANK YOU LETTER

Thank you for choosing comfee! Before using your new comfee product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

SAFETY INSTRUCTIONS 02

SPECIFICATIONS 08

PRODUCT OVERVIEW 10

QUICK START GUIDE 11

PRODUCT INSTALLATION 12

OPERATION INSTRUCTIONS 15

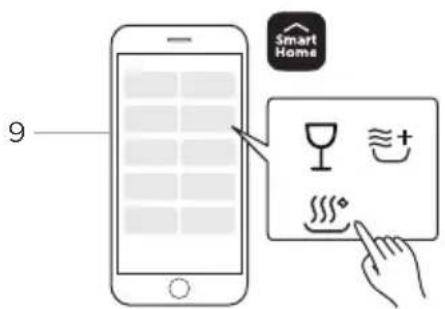

APP SETUP AND OPERATION 27

CLEANING AND MAINTENANCE 29

TROUBLESHOOTING 32

DISPOSAL AND RECYCLING 36

SAFETY INSTRUCTIONS

Intended Use

• The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer.
• Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of Symbols

Danger

This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.

Warning of electrical voltage

This symbol indicates that there is a danger to life and health of persons due to voltage.

Warning

The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.

Caution

The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.

Attention

The signal word indicates important information (e.g. damage to property), but not danger.

Observe instructions

This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

DANGER: Risk of Fire/Flammable materials

• When using your dishwasher, follow the precautions listed below:
• Installation and repair can only be carried out by a qualified technician.
• This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision. (For EN60335-1)
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1)
• Packaging material could be dangerous for children!
• Children should be supervised to ensure that they do not play with the appliance.

This appliance is for indoor household use only.

To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.

• Please unplug before cleaning and maintenance the appliance. Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Earthing Instructions

• This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.
• Extension sockets are forbidden.
• Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.
• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.
• Do not modify the plug provided with the appliance if it does not fit the outlet.
• Have a proper outlet installed by a qualified electrician.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is

operating, there is a risk of water squirting out.

• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.
• When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points facing down or placed in a horizontal position.

- Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed.

Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open.

• Check that there are no detergent residues after completion of the wash cycle.
• Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent.
• For unmarked plastic items not so marked, check the manufacturer's recommendations.
• Use only detergent and rinse agents recommended for use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• The door should not be left open, since this could increase the risk of tripping.
• During installation, the power supply must not be excessively or dangerously bent or flattened.
• Do not tamper with controls.

• The appliance needs to be connected to the main water valve using new hose sets. Old sets should not be reused.

• To save energy, in stand by mode, the appliance will switch of automatically after 15 minutes without any user interaction.

• The maximum number of place settings to be washed is 10.
• The maximum permissible inlet water pressure is 1MPa.
• The minimum permissible inlet water pressure is 0.04MPa.

Disposal

• For disposing of package and the appliance please go to a recycling center.
  Therefore cut off the power supply cable and make the door closing device unusable.
• Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
• For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.
• DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

SPECIFICATIONS

D1 W H D2

	595 mmHeight (H)
Width (W)	550 mm
Depth (D1)	500 mm (with the door closed)
Depth (D2)	964 mm (with the door opened 90°)

Product information sheet

Manufacturer	Comfee
Type / Description	CDW-10F60TB
Energy efficiency class 1	A+
Annual energy consumption 2	232 kWh
Energy consumption of the standard cleaning cycle	0,815 kWh
Power consumption of off-mode	N/A
Power consumption of left-on mode	1,99W
Annual water consumption 3	2660 liter
Drying efficiency class 4	A
Standard cleaning cycle 5	ECO 45°C
Program duration of the standard cleaning cycle	190 min
Noise level	49 dB(A) re 1 pW
Mounting	Free standing
Could be built-in	YES
Power consumption	1380W
Rated voltage / frequency	220V/50Hz
Water pressure (flow pressure)	0,04-1,0MPa=0,4-10 bar

NOTE:

1 A + + + (highest efficiency) to D (lowest efficiency)
2 Energy consumption based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
4 A (highest efficiency) to G (lowest efficiency)
5 This program is suitable for cleaning soiled normally soiled tableware and that it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.

PRODUCT OVERVIEW

Product

IMPORTANT

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

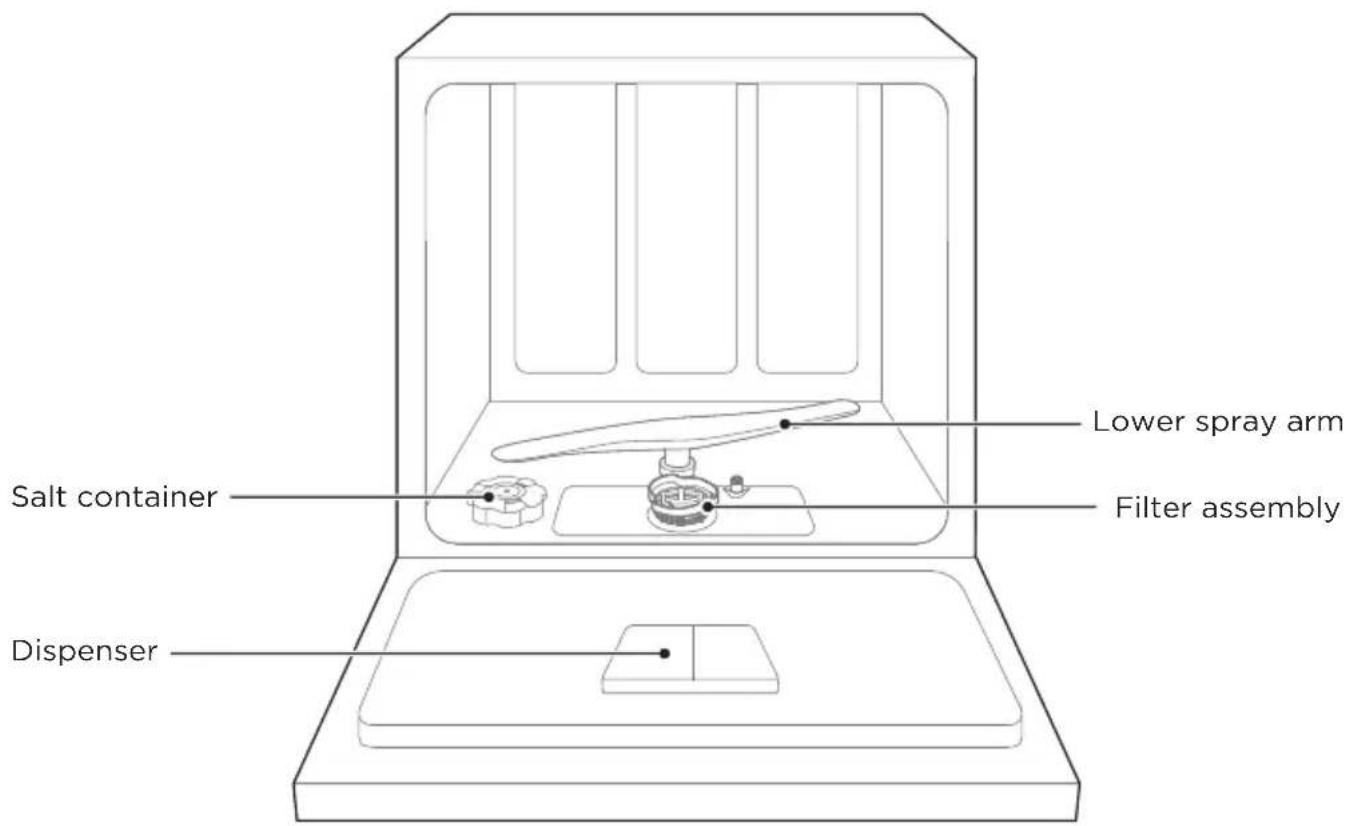

Lower spray arm Salt container Filter assembly Dispenser

Pure technical line drawing of a mechanical or structural component without any text, numbers, or symbols

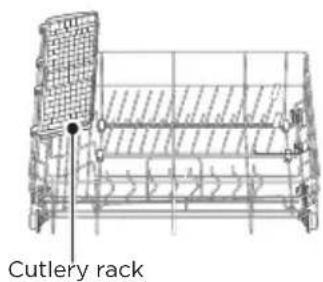

Cutlery rack

Cutlery rackLower basketUp

NOTE

Pictures are only for reference, different models may be different.

QUICK START GUIDE

Please read the corresponding content in the instruction manual for detailed operating method.

1. Install the dishwasher

Technical line drawing of a mechanical or electrical component with pipes and a housing (no text or symbols)

1. Remove larger residue from dishes. Avoid pre-rinsing.

2. Load the baskets.

Simple line drawing of a rocket and a sphere above a container (no text or symbols)

Inside Outside

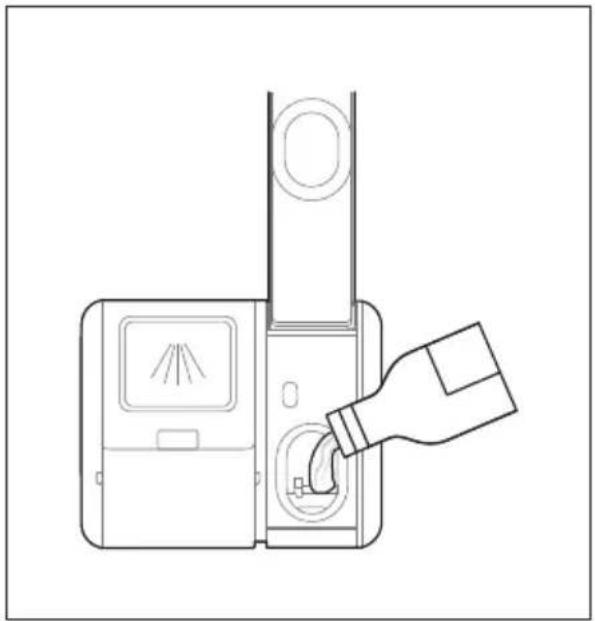

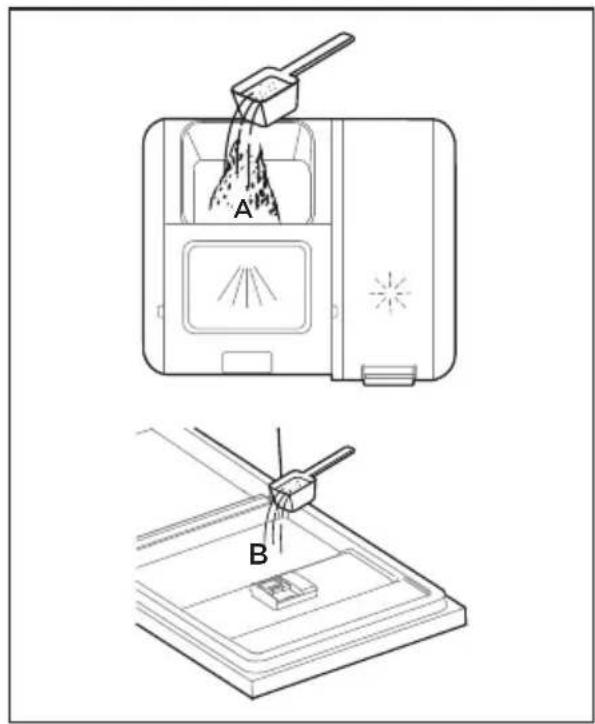

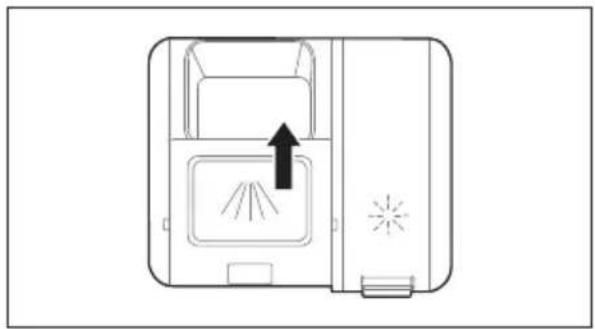

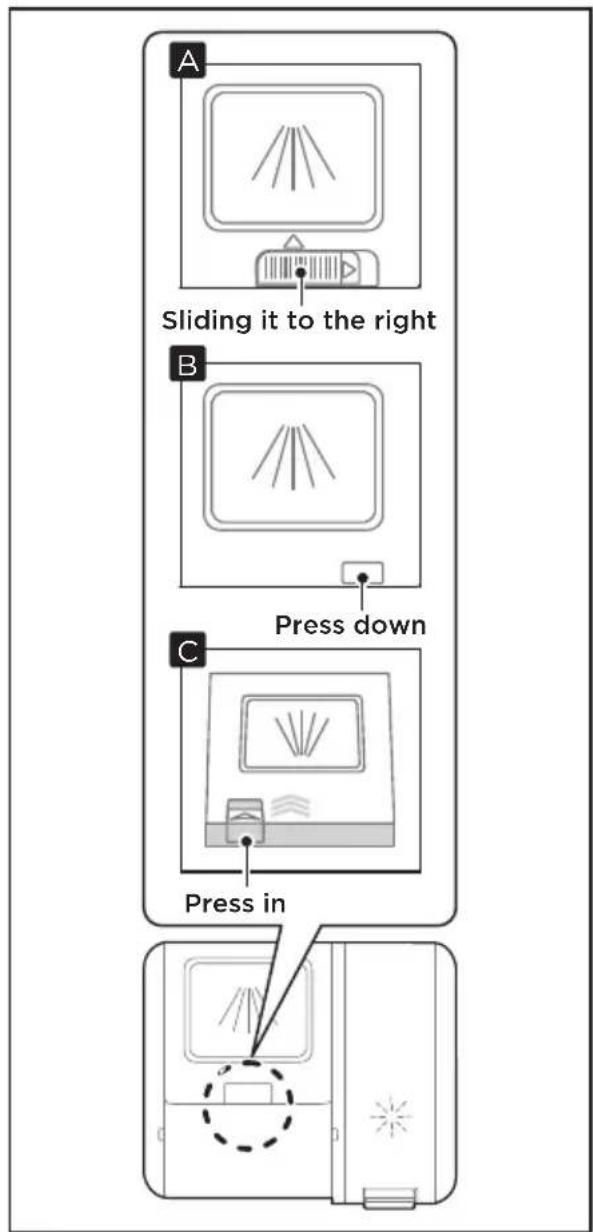

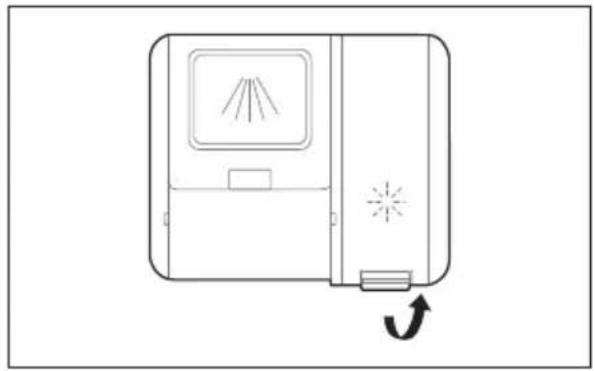

1. Fill the dispenser with detergent and rinse aid.

2. Select a suitable program and start the dishwasher.

Line drawing of a kitchen appliance with a hand pouring liquid into a pan (no text or symbols)

Simple line drawing of a rectangular device with two vertical arrows indicating sound or vibration (no text or symbols)

PRODUCT INSTALLATION

WARNING

Electrical Shock Hazard

Disconnect electrical power before installing dishwasher.

Failure to do so could result in death or electrical shock.

Attention

The installation of the pipes and electrical equipments should be done by professionals.

About Power Connection

WARNING

For personal safety:

Extension sockets are forbidden.

Do not use an extension cord or an adapter plug with this appliance.

Do not, under any circumstances, cut or remove the earthing connection from the power cord.

Electrical requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

⚠ Ensure that proper earthing exists before use

Water Supply And Drain

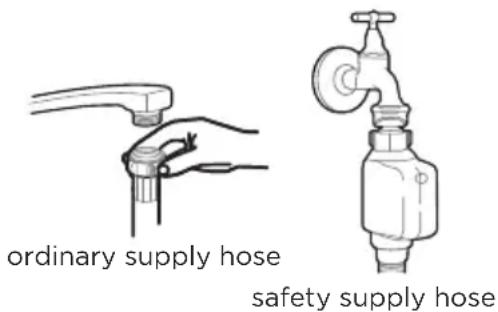

Cold water connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

About the safety supply hose

The safety supply hose consists of the double walls. The system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

WARNING

A hose that attaches to a tap can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to connect the safety supply hose

1. Pull the safety supply hoses out from storage compartment located at rear of dishwasher.
2. Tighten the screws of the safety supply hose to the faucet with thread 3/4inch.
3. Turn the water fully on before starting the dishwasher.

How to disconnect the safety supply hose

1. Turn off the water.
2. Unscrew the safety supply hose from the faucet.

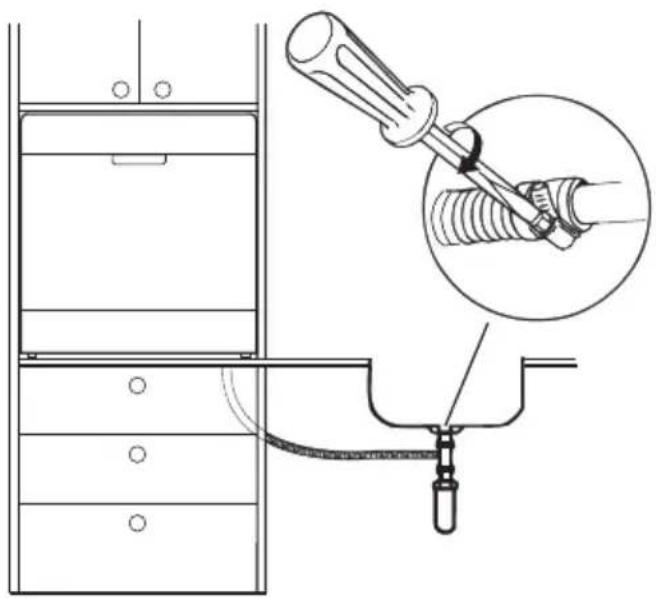

Connection Of Drain Hoses

Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 750 mm. The free end of the hose must not be immersed in water to avoid the back flow of it.

Please securely fix the drain hose in either position A or position B

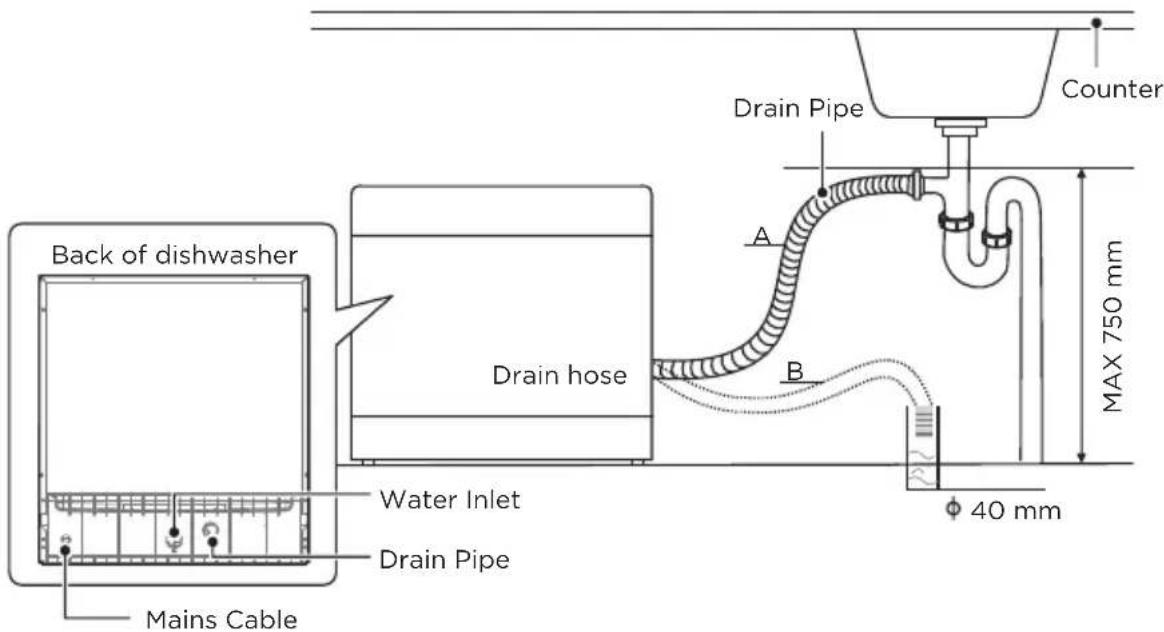

Back of dishwasher Drain hose Water Inlet Drain Pipe Mains Cable A B Drain Pipe Counter MAX 750 mm Φ 40 mm

Technical line drawing of a mechanical assembly with a magnified inset showing a screwdriver inserted into a threaded component (no text or symbols present)

How to drain excess water from hoses

If the connection to the drain pipe is positioned higher than 1000 mm, excess water may remain in the drain hose. It will be necessary to drain excess water from the hose into a bowl or suitable container that is held outside and lower than the sink.

Water outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension hose

If you need a drain hose extension, make sure to use a similar drain hose. It must not be longer than 4 meters, otherwise the cleaning effect of the dishwasher could be reduced.

Syphon connection

The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the dishwasher.

Positioning The Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

OPERATION INSTRUCTIONS

Control Panel

ECO 90° 8:88 1 2 3 4 5 6 7 10 8 9 8:88

Smart Home 9

		Description
No.1	Power	Press this button to turn on your dishwasher.
No.2	Program	• Press this button to select the appropriate washing program, the corresponding program indicator will be lit.
No.3	[WD66] Connect	• Press the button for more than 3 seconds. After a shout bleeping and the icon starts to blink slowly, it's in the network linking status to APP.Slowly flashing shows DW is waiting for connection. Quickly flashing shows DW is connecting. Always light on shows DW is connected to your wireless router.
No.4	Hot air	• Under the action of the turbine fan, the Hot air function can achieve better drying effect and keep the air in the dishwasher fresh.The Hot air function is carried out after the dishwasher has finished washing, and it can run for up to 72 hours.With the door closed, the Hot air function can be run by pressing the button for 3s.
No.5	Delay	• Press this button to set the delayed hours for washing. You can delay the start of washing up to 24 hours. One press on this button delays the start of washing by one hour.
No.6	Child lock	This option allows you to lock the buttons on the control panel,so children cannot accidentally start the dishwasher by pressing the buttons on the panel. Only the Power button remains active.To lock or unlock the buttons on the control panel, press the button for 3 seconds.
No.7	▷ll Start/Pause	After completing program and function selection or delay time setting, press this button to start or pause.
No.8 Program indicator	Intensive	For heaviest soiled crockery, and normally soiled pots, pans, dishes etc. With dried-on food.
	ECO	This is standard program, it is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.
	90 min	For normally soiled loads that need quick wash.
	Rapid	A shorter wash for lightly soiled loads that do not need drying.
	Self clean	This program provides an effective cleaning of the dishwasher itself.
No.9 Options on APP only	Glass	For lightly soiled crockery and glass.
	Hygiene	Use to sanitize your dishes and glassware. The highest water temperature is 72°C.
	Extra drying	For better drying result.(It can not be used with Rapid. Hygiene & Self clean.)
No.10 Screen		To show the reminding time, delay time, error code etc.
	Child lock	If the “ ” indicator is lit, it means the Child lock is light on.
	Rinse Aid	If the “ ” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and needs to be refilled.
	Salt	If the “ ” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled.

Programmes

The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. Consumption values and program duration are only indicative except for the ECO program.

(●) indicates that the program uses rinse aid in the last rinse.

Program	Description Of Cycle	Detergent Pre/Main Wash	Running Time(min)	Energy (kWh)	Water (L)	Rinse Aid
Intensive	PreWash (50°C) Wash (50°C) Rinse Rinse Rinse Rinse (72°C) Drying	4/23.5g	165		15.01.255	●
ECO	Prewash Wash (45°C) Rinse Rinse (70°C) Drying	4/23.5g			9.50.81519	●
90 min	Wash (65°C) Rinse Rinse Rinse (70°C) Drying	27.5	90	1.150	10.0	●
Rapid	Wash (55°C) Rinse Rinse (51°C)	20g			7.40.58529	●
Self clean	Wash(70°C) Rinse Rinse(65°C) Drying	20g			9.80.8301	●
[2DS6] Glass	Wash(55°C) Rinse Rinse(60°C) Drying	20g	100		7.40.675	●
hygiene	Wash(65°C) Rinse(50°C) Rinse(72°C) Drying	20g			7.40.91518	●

Preparing And Loading Dishes

Consider buying utensils which are identified as dishwasher-proof.

For particular items, select a program with the lowest possible temperature.

To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

For washing the following cutlery/dishes

Are not suitable

Cutlery with wooden, horn china or mother-of-pearl handles

Plastic items that are not heat resistant

Older cutlery with glued parts that are not temperature resistant

Bonded cutlery items or dishes

Pewter or cooper items

Crystal glass

Steel items subject to rusting

Wooden platters

Items made from synthetic fibres

Are of limited suitability

Some types of glasses can become dull after a large number of washes

Silver and aluminum parts have a tendency to discolor during washing

Glazed patterns may fade if machine washed frequently

Recommendations for loading the dishwasher

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water.

For best performance of the dishwasher, follow these loading guidelines.

(Features and appearance of baskets and cutlery baskets may vary from your model.)

Place objects in the dishwasher in the following way:

tems such as cups, glasses, pots, pans, etc. must face downwards.

Curved items, or ones with recesses, should be loaded aslant so that water can run off.

All utensils are stacked securely and can not tip over.

All utensils are placed in the way that the spray arms can rotate freely during washing.

Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.

Dishes and items of cutlery must not lie inside one another, or cover each other.

To avoid damage, glasses should not touch one another.

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups.

Long bladed knives stored in an upright position are a potential hazard!

Long and sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.

Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

NOTE

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Removing the dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first, followed by the upper basket.

WARNING

Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the program has ended.

Loading the upper basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Technical line drawing of a mechanical assembly with three circular components and a rectangular housing (no text or symbols)

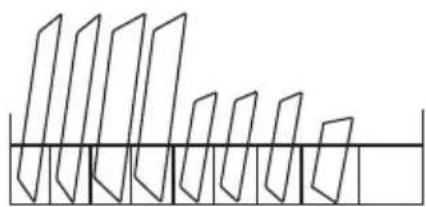

Loading the lower basket

We suggest that you place large and difficult to clean items into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper the opening of it.

Pure geometric line drawing of a vertical structure with horizontal base (no text or symbols)

Loading the cutlery rack

Cutlery should be placed in the cutlery rack separate from each other in the appropriate positions. Avoid nesting of the cutlery to prevent insufficient cleaning performance.

LOADING THE BASKETS

Loading the dishwasher to its full capacity will contribute to energy and water savings.

1. Upper basket:

1 2 3 4 5 6 1

Number Item
1	Small serving bowl
2	Seasoning dish
3	Cup
4	Medium serving bowl
5	Soup ladle
6	Rice spoon

2. Lower basket:

11 12 13 8 7 9 11 1 3 10

Number Item
7	Soup bowl
8	Dinner plates
9	Noodles bowl
10	Glass cup
11	Small soup ladle
12	Chopsticks
13 Big soup bowl

NOTE

If your model does not have any water softener, you may skip this section.

Always use salt intended for dishwasher use.

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.

The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

The salt container is located beneath the lower basket and should be filled as explained in the following:

WARNING

Only use salt specifically designed for dishwashers use!

Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.

Only fill with salt before running a cycle.

This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

Please follow the steps below for adding dishwasher salt:

1. Remove the lower basket and unscrew the reservoir cap.
2. Place the end of the funnel (if supplied) into the hole and pour in about 1 kg of dishwasher salt.
3. Fill the salt container to its maximum limit with water, It is normal for a small amount of water to come out of the salt container.
4. After filling the container, screw back the cap tightly.
5. The salt warning light will turn off after the salt container has been filled with salt.
6. Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

NOTE

The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.

If there is no salt warning light in the control panel (for some models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.

If salt has spilled, run a soak or quick program to remove it.

Water Softener

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.

The more minerals there are, the harder your water is.

The softener should be adjusted according to the hardness of the water in your area.

Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting salt consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt consumption.

1. Close the door, switch on the appliance;

2. Within 60 seconds after the appliance was switched on, press the Program button for more than 5 seconds to start the water softener setting mode.

3. Press the Program button again to select the proper setting according to your local environment, the setting will change in the following sequence: H4->H5->H6->H1->H2->H3->H4;

4. Without operation in 5 seconds or press the Power button to complete the setup and exit the setup mode.

WATER HARDNESS Regeneration occurs Setting on the water softener			Digital display stalls	every X program sequence 3)
^^1)2)	Mmol/l
0 - 5	0 - 0.9	1	H1	No regeneration
6 - 11	1.0 - 2.0	2	H2	10
12 - 17	2.1 - 3.0	3	H3	5
18 - 22	3.1 - 4.0	4^*	H4	3
23 - 34	4.1 - 6.1	5	H5	2
35 - 45	6.2 - 8.0	6	H6	1

The factory setting: H4

1) German degree of measurement for the water hardness

2) millimol, international unit for water hardness

3) Every cycle with a regeneration operation consumes additional 3.0 litres of water, the energy consumption increases by 0.02 kWh and the program extends by 4 minutes.

Function Of The Rinse Aid And Detergent

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.

WARNING

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to refill the rinse aid

Unless the rinse-aid warning light (✗) on the control panel is on, you can always estimate the amount from the color of the optical level indicator located next to the cap. When the rinse-aid container is full, the indicator will be fully dark. The size of the dark dot decreases as the rinse-aid diminishes. You should never let the rinse aid level be less than 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full

3/4 full 1/2 full 1/4 full

Empty

Function of detergent

The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

WARNING

Proper Use of Detergent

Use only detergent specifically made for dishwashers use. Keep your detergent fresh and dry.

Do not fill detergent into the dispenser until you are ready to start the dishwasher.

Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children.

Filling The Rinse Aid Reservoir

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.

1. Remove the rinse reservoir cap by lifting up the handle.

Line drawing of a device with a screen and indicator light, showing a right-angle button (no text or symbols)

1. Close the cap after all.

Line drawing of a hand pressing down on a device with a curved arrow indicating rotation (no text or symbols)

1. Pour the rinse aid into the dispenser, being careful not to overfill.

Line drawing of a device with a bottle inserted into a cylindrical component (no text or symbols)

Adjusting the rinse aid reservoir

To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by user. Follow the below steps.

1. Close the door, switch on the appliance.

2. Within 60 seconds after the appliance was switched on press the Program button for more than 5 seconds, and then press the Delay button to enter the set model, the rinse aid indication blinks as 1Hz frequency. (Press the Delay button again to set the soft water salt level adjustment.)

3. Press the Program button again to select the proper set according to your using habits, the setting will change in the following sequence:

d2->d3->d4->d5->d1->d2.

The higher the number, the more rinse aid the dishwasher uses.

1. Without operation in 5 seconds or press the Power button to complete the setup and exit the setting mode.

2. The factory is : d2

Filling The Detergent Dispenser

1. Please choose an open way according to the actual situation.
   A. Open the cap by sliding the release latch.
   B. Open the cap by pressing down the release latch.
   C. Open the cap by pressing in the release latch.

2. Add detergent into the larger cavity (A) for main wash.
   For better cleaning result, especially if you have very dirt items, pour a small amount of detergent onto the door. The additional detergent will activate during the pre-wash phase.

A Sliding it to the right B Press down C Press in

Technical diagram showing two steps of a device with labeled components A and B, illustrating a process involving powder or material being poured into a container.

1. Close the flap by sliding it to the front and then pressing it down.

Diagram of a device with a slide and fan, showing an upward arrow and starburst pattern (no text or symbols)

NOTE

Please observe the manufacturer's recommendations on the detergent packaging.

Saving Energy

1. Pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.
2. Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the instructions.

Starting A Program

1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one.
2. Pour in the detergent.
3. Insert the plug into the socket. The power supply refer to last page "Product fiche". Make sure that the water supply is turned on to full pressure.
4. Close the door, press the Power button.
5. Choose a program, the response light will turn on. Then press the Start/Pause button, the dishwasher will start its cycle after a few seconds.

Changing The Program Mid-cycle

A program can only be changed if it has been running only for a short period of time, otherwise the detergent may have already been released or the the wash water with detergent has already been drained. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

1. Press the Start/Pause button to pause the washing.
2. Press Program button for more than 3 seconds the machine will be in program selection mode.
3. Press the Program button to select the desired program.
4. Press the Start/Pause button, the dishwasher will start after a few seconds.

Forget To Add A Dish?

A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

1. Press the Start/Pause button to pause the washing.
2. After the spray arms stopped working, you can open the door completely.
3. Add the forgotten dishes.
4. Close the door.
5. Press the Start/Pause button, the dishwasher will continued to run after 10 seconds.

WARNING

It is dangerous to open the door mid-cycle, as hot steam may scald you.

APP SETUP AND OPERATION

How to connect with SmartHome APP

Before you start, make sure that:

1. Your smartphone is connected to home wireless network, and you know the network password.
2. You are next to the appliances.
3. The 2.4GHz band wireless signal is enabled on your wireless router.
4. Turn on your mobile phone's Bluetooth and allows the APP to discover the smart device nearby.

Download the SmartHome app

On an app market (Google Play Store, Apple App Store), search for SmartHome* and find the SmartHome app. Download and install it on your phone. You can also download the app by scanning the QR code below.

SmartHome Download the app & activate product

Connect your devices to SmartHome

① Please make sure your mobile phone is connected to a wireless network. If it is not, go to Settings and enable wireless networks and Bluetooth.
② Please power on your devices.
3 Open SmartHome app on your phone.

5 If no message appears, select "+" on the page and select your device in the list of nearby devices available. If your device is not listed, please add your device manually by the device category and device model.

Illustration of a smartphone screen with a hand pointing to a mobile app interface, showing a speech bubble and grid layout.

Register and log in

Open the SmartHome app, and create a new account to start (you can also register through a third-party account). If you already have an existing account, use the account to log in.

Login Login

4 If a message of "Smart devices discovered nearby" appears, click to add.

Illustration of a hand interacting with a smartphone screen displaying a small icon (no text or symbols visible)

6 Connect your device to the wireless network according to instructions on app. If the connection fails, please follow the instructions provided by the app to continue with the operation.

NOTE

1. Make sure your devices are powered on.
2. Keep your mobile phone close enough to your device when you are connecting your device to the network.
3. Connect your mobile phone to the wireless network at home, and make sure you know the password of the wireless network.
4. Check if your wireless router supports 2.4 GHz band and turn it on. If you are not sure whether the router supports 2.4 GHz band, please contact the router manufacturer.
5. The device cannot connect to the wireless network that requires authentication, and it usually appears in public areas such as hotels, restaurants, etc. Please connect to a wireless network that does not require authentication.
6. Turn off the WLAN+ (Android) or WLAN Assistant (iOS) function of your mobile phone when connecting your device to the network.
7. In the case that your device connected to a wireless network before but it needs to reconnect, please click "+" on the app Home page, and add your device again by the device category and model according to the instructions on app.

CLEANING AND MAINTENANCE

External Care

The door and the door seal

Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed.

The control panel

If cleaning is required, the control panel should be wiped with a soft damp cloth only.

WARNING

To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface.

Internal Care

Filtering system

The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle, including foreign objects such as tooth picks or shards. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly, carefully remove foreign objects and clean the parts of the filtering system if necessary with water. Follow the steps below to clean the filter.

WARNING

Pictures are only for reference, different models of the filtering system and spray arms may be different.

1. Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher.

Illustration of a hand holding a small object on a flat surface with directional arrows indicating motion (no text or symbols)

1. Lift fine filter up from main filter.

Fine filter Main filter

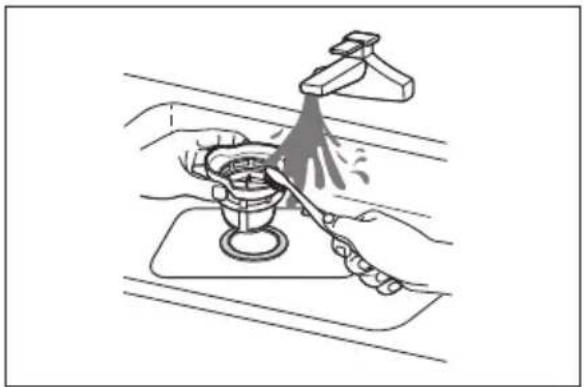

1. Larger food remnants can be cleaned by rinsing the filter under running water. For a more thorough clean, use a soft cleaning brush.

2. Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow.

Illustration of hands using a tool to clean or store items on a kitchen sink (no text or symbols)

Diagram showing a hand operating a mechanical component with an inset close-up of the motion (no text or symbols)

WARNING

Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage.

Never use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Spray arms

It is necessary to clean the spray arm regularly for hard water chemicals will clog the spray arm jets and bearings.

To clean the spray arm, follow the instructions below:

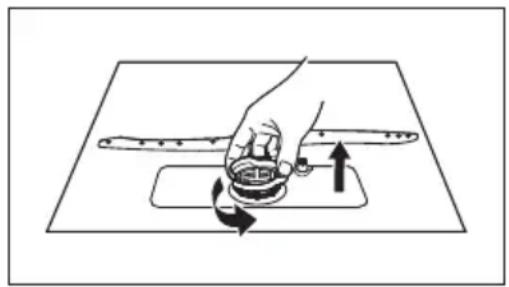

1. To remove the spray arm, pull out the spray arm upward.

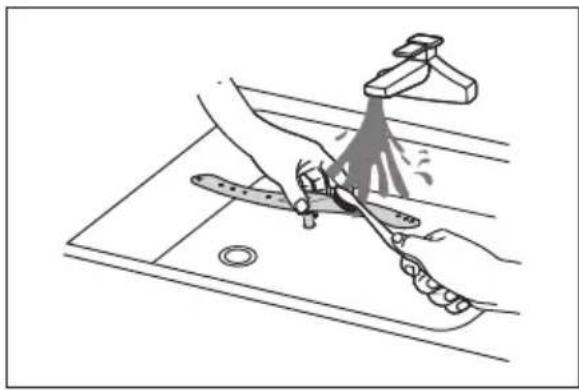

2. Wash the spray arm in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

Illustration of a hand using a tool to press or install a small component on a flat surface, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a kitchen sink with a hand cleaning the surface and a bucket being washed (no text or symbols)

Caring For The Dishwasher

Frost precaution

Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

After every wash

After every wash, turn off the water supply to the appliance and leave the door slightly open for a while so that moisture and odors are not trapped inside.

Remove the plug

Before cleaning or performing maintenance, always remove the plug from the socket.

No solvents or abrasive cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

When not in use for a long time

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance.

Moving the appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

TROUBLESHOOTING

Before Calling For Service

Reviewing the charts on the following pages may save you from calling for service.

	Possible reason SolutionProblem
Dishwasher doesn't start	Fuse blown, or the circuit break tripped.	Replace fuse or reset circuit breaker.Remove any other appliances sharing the same circuit with the dishwasher.
	Power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
	Water pressure is low	Check that the water supply is connected properly and the water is turned on.
	Door of dishwasher not properly closed.	Make sure to close the door properly and latch it.
Water not pumped form dishwasher	Twisted or trapped drain hose.	Check the drain hose.
	Filter clogged. Check the coarse filter.(see section titled “Internal Care”)
	Kitchen sink clogged.	Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink that is not draining , you may need a plumber rather than a serviceman for dishwashers.
Foam in the tub	Wrong detergent.	Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 liter of cold water to the bottom of the dishwasher.Close the dishwasher door, then select any cycle. Initially, the dishwasher will drain out the water. Open the door after draining stage is complete and check if the suds have disappeared.Repeat if necessary.
	Spilled rinse aid. Always wipe up rinse aid spills immediately.
Stained tub interior	Detergent with colourant may have been used.	Make sure that the detergent has no colourant.
White film on inside surface	Hard water minerals To clean the interior, use the damp soft cloth with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
There are rust stains on cutlery	The affected items are not corrosion resistant.	Avoid washing items that are not corrosion resistant in the dishwasher.
	A program was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle.	Always run a wash program without any crockery after adding salt. Do not select the Turbo function (if present), after adding dishwasher salt.
	The lid of the softer is loose.	Check the softener lid is secure.
Knocking noise in the dishwasher	A spray arm is knocking against an item in a basket	Interrupt the program and rearrange the items which are obstructing the spray arm.
Rattling noise in the dishwasher	Items of crockery are loose in the dishwasher.	Interrupt the program and rearrange the items of crockery.
Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on the dishwasher function. If in doubt, contact a qualified plumber.
The dishes are not clean	The dishes were not loaded correctly.The program was not powerful enough.	See the “Preparing And Loading Dishes”.Select a more intensive program.
	Not enough detergent was dispensed.	Use more detergent, or change your detergent.
	Items are blocking the movement of the spray arms.	Rearrange the items so that the spray can rotate freely.
	The filter combination is not clean or is not correctly fitted in the base of wash cabinet. This may cause the spray arm jets to get blocked.	Clean and/or fit the filter correctly. Clean the spray arm jets.
Cloudiness on glassware.	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean.
Black or grey marks on dishes	Aluminium utensils have rubbed against dishes	Use a mild abrasive cleaner to eliminate those marks.
Detergent left in dispenser	Dishes block detergent dispenser	Re-loading the dishes properly.
The dishes aren't drying	Improper loading	Use gloves if detergent residue can be found on dishes to avoid skin irritations.
	Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket.
	Wrong program has been selected.	With a short program, the washing temperature is lower, decreasing cleaning performance. Choose a program with a long washing time.
	Use of cutlery with a low-quality coating.	Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.

WARNING

Self-repair or non-professional repair may cause serious risks to the safety of the user of the appliance and impact warranty.

Availability Of Spare Parts

• Seven years after placing the last unit of the model on the market:
  Motor, circulation and drain pump, heaters and heating elements, including heat pumps (separately or bundled), piping and related equipment including all hoses, valves, filters and aqua stops, structural and interior parts related to door assemblies (separately or bundled), printed circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software.
• Ten years after placing the last unit of the model on the market:
  Door hinge and seals, other seals, spray arms, drain filters, interior racks and plastic peripherals such as baskets and lids.

ERROR CODES

If there is a malfunction the dishwasher will display an error code. The following table shows possible error codes and their causes.

	Possible reason SolutionProblem
E1	• Longer inlet time.	Faucets is not opened, or water intake is restricted, or water pressure is too low.
E3	• Not reaching required temperature.	Malfunction of heating element.
E4	• Overflow. Some element of dishwasher leaks.
Ed	• Failure of communication between main circuit board with display circuit board.	Open circuit or break wiring for the communication.

WARNING

• If overflow occurs, turn off the main water supply before calling a service.
• If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.
• If there is an error code that cannot be solved, please request professional assistance.

DISPOSAL AND RECYCLING

Important instructions for environment

Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Comfee

00000000000000
