Monster Chef MJ-HM30W115A - Hand blender COMFEE - Free user manual and instructions

Type	Hand Blender
Brand	Comfee
Model	Monster Chef MJ-HM30W115A
Rated Voltage	220-240V~
Rated Frequency	50-60Hz
Rated Power	130W
Speed Settings	5 speeds (1-5) plus OFF/Eject
Attachments Included	Whisk (hand blender/whisk attachment)
Intended Use	Household use only
Safety Features	Disconnect before cleaning, not for children, automatic shut-off if overheated
Usage Instructions	Insert attachments until click, select speed, max continuous use 2 minutes, cool down before reuse
Cleaning Instructions	Unplug before cleaning; do not immerse mixer, cord or plug in any liquid
Maintenance	Wipe with damp cloth; store in dry place
Troubleshooting	Check power, switch, and attachment installation; if still not working, contact service center
Environmental Disposal	Do not dispose with household waste; recycle at appropriate collection point

Frequently Asked Questions - Monster Chef MJ-HM30W115A COMFEE

What is the power rating of the Comfee Monster Chef MJ-HM30W115A hand blender?

The hand blender has a rated power of 130W at 220-240V~, 50-60Hz.

How many speed settings does the hand mixer have?

It offers 5 speed settings (1 to 5) plus an OFF/Eject position.

Can the hand blender be used for continuous blending for long periods?

No. For blending, do not use it for more than 2 minutes continuously to avoid motor overheating. For whisking egg whites, maximum operation time is 5 minutes.

How should I clean the hand mixer?

Always unplug the mixer before cleaning. Do not immerse the mixer body, cord, or plug in any liquid. Wipe the body with a damp cloth and clean attachments separately.

Is the hand blender safe to use for children?

No. This appliance should not be used by children. Keep the appliance and its cord out of reach of children.

What should I do if the hand blender does not start?

First, check if the power supply is connected. Ensure the switch is in the ON position and that the attachment is properly inserted and clicked into place. If it still doesn't work, contact a designated repair center.

Can I use the hand mixer to knead dough?

The manual suggests using speed 2 for most cookie dough, but it does not recommend heavy dough kneading. The mixer is best for mixing batters, creams, and egg whites.

What are the symptoms of overheating and how to avoid it?

Overheating may cause abnormal odors, smoke, or the product becoming hot. To avoid, reduce the quantity of ingredients and shorten continuous operation time (max 2 minutes). If overheating occurs, cut off power immediately.

How do I attach the whisk to the hand blender?

Make sure the mixer is unplugged and turned to OFF. Following diagrams on the bottom of the mixer, insert the desired attachment into the proper opening and push until it clicks into place.

How should I dispose of the hand blender at the end of its life?

Do not dispose of it with regular household waste. Recycle it at a designated collection point for electrical and electronic equipment to help conserve natural resources.

USER MANUAL Monster Chef MJ-HM30W115A COMFEE

封面

Yellow Comfee electric shaver with a metal whisk, against a yellow background (no text or symbols visible on the device itself)

MJ-HM30W115A

IMPORTANT NOTE: For your safety and continued enjoyment of this product, always read the instruction Manual carefully before using.

CONTENUTO

IMPORTANTI ISTRUZIONI DI SICUREZZA ....1

DATI TECNICI DEL PRODOTTO....2

NOME DELLE COMPONENTI....3

Abstract pattern of colorful squares arranged in a grid (no text or symbols)

IMPORTANTI ISTRUZIONI DI SICUREZZA

IMPORTANTI MISURE DI SICUREZZA

Line drawing of a kitchen sink with faucet and floor drain (no text or symbols)

Line drawing of a hand holding a small electronic device with a handle (no text or symbols)

Attenzione:

Abstract pattern of colorful squares arranged in a grid (no text or symbols)

ISTRUZIONI PER L'USO

Illustration showing a wall socket connected to a cable with a hand holding a cable, alongside a hand pointing at it (no text or symbols present)

1. Following diagrams on bottom of mixer, insert desired attachment(s) into proper openings on bottom of mixer. Push and click into place.

Line drawing of a hand mixer device (no text or symbols)

Illustration of a plug inserted into an open socket with a power cord, showing internal circuit lines (no text or symbols)

ISTRUZIONI PER L'USO

Line drawing of a hand pouring liquid into a bowl with a whisk (no text or symbols)

Illustration of a hand holding a cable with a downward arrow indicating direction (no text or symbols)

Illustration of a hand holding a cable with an arrow indicating direction (no text or symbols)

Attenzione:

Yellow Comfee electric blender with a metal whisk, against a yellow background (no text or symbols visible on the device itself)

MJ-HM30W115A

Hand Mixer Instruction Manual

IMPORTANT NOTE: For your safety and continued enjoyment of this product, always read the instruction Manual carefully before using.

comfee

CONTENT

IMPORTANT SAFETY INSTRUCTIONS .... 1

TECHNICAL DATA OF THE PRODUCT 2

PART NAME 3

CLEANING AND MAINTENANCE 4

INSTRUCTIONS FOR USE....5

RECIPES 7

ABNORMALITY ANALYSIS AND HANDING 7

CIRCUIT PRINCIPLE DIAGRAM....9

IMPORTANT NOTE: Please read the manual carefully before operating your product. Retain it for future reference.

Abstract pattern of colorful squares arranged in a grid (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFEGUARDS

To avoid the risk of serious injury when using your hand mixer, basic safety precautions should be followed, including the following.

READ ALL INSTRUCTIONS, SAFEGUARDS, AND WARNINGS BEFORE OPERATING HAND MIXER

1. There is a potential injury from misuse. Please handle it with care.
2. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
3. This appliance shall not be used by children. Keep the appliance and its cord out of children reach.
4. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
5. Children shall not play with the appliance.
6. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
7. This appliance is intended to be used in household and similar applications such as:

IMPORTANT SAFETY INSTRUCTIONS

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses;
• By clients in hotels, motels and other residential type environments;

• Bed and breakfast type environments.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance conforms to EC Regulation 1935/2004 on materials.

SAVE THESE INSTRUCTION.

THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY.

Caution:

The failure to follow any of the important safeguards and the important instructions for safe use is a misuse of your hand mixer that can void your warranty and create the risk of serious injury.

TECHNICAL DATA OF THE PRODUCT

Product name Model No. Rated voltage Rated frequency Rated power

HAND MIXER MJ

HM30W115A 220-240V~

50-60Hz

130W

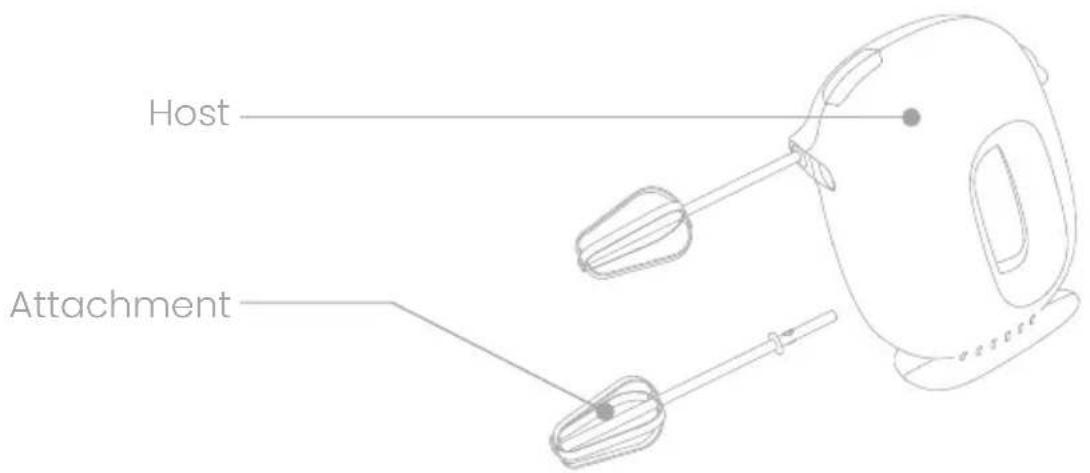

PART NAME

General mixing guide

The following mixing guide is a suggestion for selecting mixing speeds for 5-speed mixers. Begin on speed 1 and increase to desired speed depending on the recipe consistency

Speed Function
O OFF and / or Eject
1	LOW speed for folding or mixing in dry ingredients, muffins, or quick breads
2	To cream butter and sugar; most cookie dough
3	MEDIUM speed for most packaged cake mixes
4 Frosting and mashed potatoes
5	Beating egg whites

Abstract pattern of colored squares arranged in vertical columns (no text or symbols)

CLEANING AND MAINTENANCE

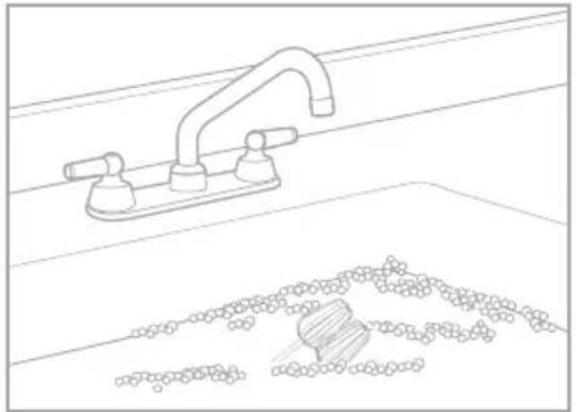

Line drawing of a kitchen sink with faucet and floor drain (no text or symbols)

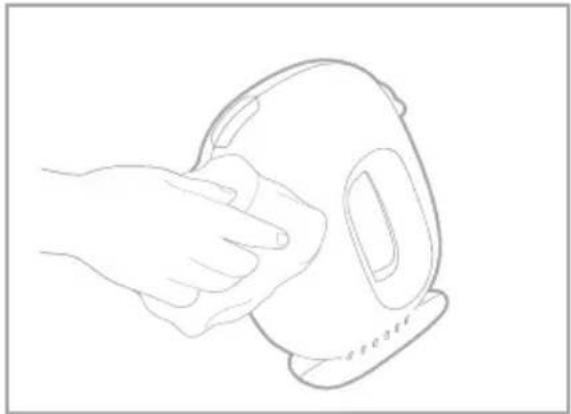

Line drawing of a hand holding a small electronic device (no text or symbols)

Caution:

Disconnect power before cleaning. Do not immerse mixer, cord, or plug in any liquid.

Abstract pattern of colorful squares arranged in a grid (no text or symbols)

INSTRUCTIONS FOR USE

Hand blender/whisk attachment

1. Make sure mixer is unplugged and turned to O (OFF).

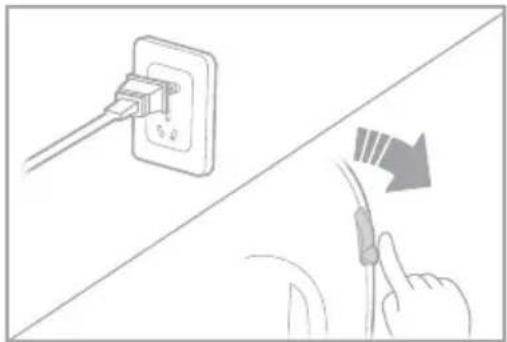

Illustration showing a plug inserted into a socket connected to a cable with a hand pointing at it (no text or symbols present)

1. Following diagrams on bottom of mixer, insert desired attachment(s) into proper openings on bottom of mixer. Push and click into place.

Line drawing of a hand mixer device (no text or symbols)

1. Plug the main unit to power source of 220-240V\~50-60Hz

Illustration of a plug inserted into an open socket with a power cord, showing internal circuit lines (no text or symbols)

INSTRUCTIONS FOR USE

1. Move speed control to desired speed. Start at 1 and increase speed as needed.

Line drawing of hands pouring liquid from a container into a bowl (no text or symbols)

1. Select the setting (1\~ 5 setting).

Illustration of a hand holding a cable with a downward arrow indicating direction (no text or symbols)

1. When finished, turn speed control to O (OFF) and unplug mixer.

Illustration of a hand holding a cable with an arrow indicating direction (no text or symbols)

Caution:

Do not use quick burst for more than two minutes at a time or motor may overheat.

RECIPES

• Use a large mixing bowl so that the ingredients spread out for easier mixing.
• Butter and margarine should be at room temperature.
• Whisking egg white 2-6PCS at a time and at max speed setting, mixing thoroughly after each addition. operation time:Max 5 mins.
  • Chips and nuts should be stirred by hand.

ABNORMALITY ANALYSIS AND HANDING

Abnormality Handling

1. In case of abnormalities such as abnormal noises, smell, smoke, etc., you should immediately cut off power and stop use.
2. If the product cannot work, please check if the power supply is connected, if the switch is put to the ON position and if fittings are installed in place.
3. If the product still cannot work after checks mentioned above, please consult the designated repair centre for maintenance.

ABNORMALITY ANALYSIS AND HANDING

Fault Analysis and Elimination

Symptom	Analysis of Possible Causes	Countermeasure
Product does not work	Did not press the inching switch	Keep the point switch in the pressed state
The ingredients stick on the inner wall of the bowl	Excessive amount of food processing or formula incorrect	Spin the bowl by hand until the mixing effect you want
The abnormal odor products, hot, the phenomenon such as smoking	Excessive amount of food processing	Reduce the quantity of ingredients
	Product continuous working time is too longt	Shorten the product continuous working time

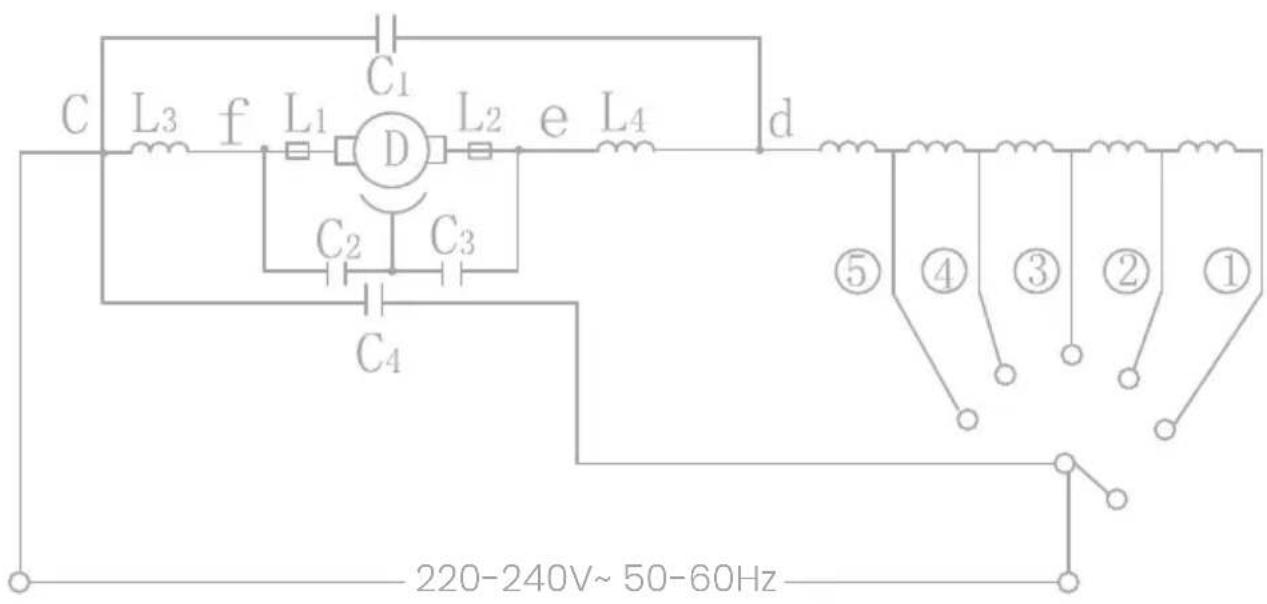

CIRCUIT PRINCIPLE DIAGRAM

Environmental protection

The appliance must not be disposed of with regular household waste. At the end of its service life, the appliance must be properly delivered to a collection point for the recycling of electrical and electronic equipment. By Collection and recycling of old appliances, you are making an important contribution to the conservation of our natural resources and provide for environmentally sound and healthy disposal.
