VT7100 - Computer accessory VisionTek - Free user manual and instructions

Product Type	Video Adapter / Converter
Brand	VisionTek
Model	VT7100
Dimensions (L x W x H)	4.5 x 2.2 x 0.8 inches (11.4 x 5.6 x 2.0 cm)
Weight	0.15 lbs (68 g)
Power Source	Bus-powered via USB
Input Interface	USB Type-A or USB-C
Output Interface	VGA or DVI-D (depending on variant)
Supported Resolutions	Up to 1920x1200 @ 60Hz
Compatible Operating Systems	Windows 7/8/10/11, macOS, Linux
Plug and Play	Yes, no driver required for basic operation
Main Functions	Convert USB signal to VGA/DVI video output; extend or mirror desktop
Maintenance & Cleaning	Wipe with dry cloth; avoid liquids; unplug before cleaning
Safety Precautions	Do not expose to moisture; avoid bending cables; use in well-ventilated area
Spare Parts & Repairability	No user-serviceable parts; contact VisionTek support for replacement
General Information	Supports single monitor extension; ideal for legacy monitors or projectors

Frequently Asked Questions - VT7100 VisionTek

How do I connect the VisionTek VT7100?

Plug the USB end into your computer and connect the VGA or DVI cable from the adapter to your monitor. It is plug-and-play and should work immediately.

Does it support 1080p resolution?

Yes, the VT7100 supports resolutions up to 1920x1200 at 60Hz, which includes 1080p (1920x1080).

Is this adapter compatible with macOS?

Yes, it works with macOS as well as Windows and Linux. On some macOS versions, you may need to adjust display settings in System Preferences.

Why is my monitor not showing a picture?

Ensure both connections are secure. Try a different USB port or restart your computer. If using a DVI connection, verify the monitor is set to the correct input source.

Can I use this adapter with a projector?

Absolutely. The VT7100 works with any VGA or DVI projector. It is commonly used for presentations.

Does it require driver installation?

For basic function, no driver is needed. However, to access advanced display settings or ensure best compatibility, you can download drivers from the VisionTek website.

How do I clean the adapter?

Use a soft, dry cloth to wipe the exterior. Do not use any liquids or cleaners. Always unplug before cleaning.

What should I do if the adapter gets hot?

Some warmth is normal during use. Ensure it is placed in a well-ventilated area. If it becomes uncomfortably hot, unplug and contact support.

Can I connect multiple monitors with one VT7100?

No, the VT7100 supports only one external monitor at a time. For multi-monitor setups, you would need additional adapters or a different hub.

Where can I find the user manual?

The manual is available for free download on notice-facile.com in PDF format. You can also request a translated version by providing your email.

USER MANUAL VT7100 VisionTek

TABLE OF CONTENTS

Introduction 2

Features 3

Contents 3

System Requirements 4

Docking Station Configuration 5

Driver Installation (Windows).... 7

Windows Setup 11

Driver Installation (macOS) 13

Managing Multiple Displays (macOS) 16

Configuring Displays from the Menu Bar (macOS) ...... 18

Warranty 19

INTRODUCTION

Your new 4K Docking Station can connect to any host with Type C connectors providing a fully future-proof docking solution. Allowing you to connect up to three additional monitors through a single USB cable.

The 4K Docking Station Software allows full configuration of all additional USB displays, including:

• Support for up to 6 additional USB Displays (Windows) via DisplayLink Technology
• Support for up to 4 additional USB Displays (Mac OS X) via DisplayLink Technology
• Expand USB-A and USB-C connectivity
  • Supports DP and HDMI displays
• Gigabit Ethernet
• Extended, Mirrored, Primary Display
• Extend left, right, above, or below
• Rotation
• Layout of displays
• Color Depth

FEATURES

• Compatible with both Type-C Laptops and Desktop Computers
  • Supports resolutions up to 4K (3840 x 2160 @60Hz)
  • Supports Extend and Mirror Display Mode
  • Supports 5.1 Channel Surround Sound
  • Built-in USB 3.0 GPU, Plug and Display
• SuperSpeed USB 3.0, speeds up to 5Gbps and backward compatible with 2.0/1.1
  • Built-in Ethernet RJ45 for increased network performance
  • USB-C charging up to 100W

CONTENTS

• 4K Display Docking Station
- AC Power Adapter
- USB-C to USB-C Cable
- Quick Start Guide

SYSTEM REQUIREMENTS

DisplayLink USB Graphics Software for Windows

Windows 11 (64-bit edition)

Windows 10 (32-bit and 64-bit edition)

Windows 8.1 Update 2015 (32-bit and 64-bit editions)

Windows 8 (32-bit and 64-bit editions)

Windows 7 (32-bit and 64-bit editions)

DisplayLink USB Graphics Software for macOS

Big Sur 11

Yosemite 10.10

Catalina 10.15

Mavericks 10.9

Mojave 10.14

Mountain Lion 10.8

High Sierra 10.13

Lion 10.7

Sierra 10.12

Snow Leopard 10.6

El Capitan 10.11

For output to 3 displays at the same time a System with a USB-C port that supports DP Alt Mode is required.

For USB-C charging a system with a USB-C port that supports USB-C Power Delivery is required

Connect the USB-C to USB-C cable to the Docking Station. Plug the USB cable into your Laptop/Desktop Computer, Connect the power adapter.

DOCKING STATION CONFIGURATION (Continued)

Step2

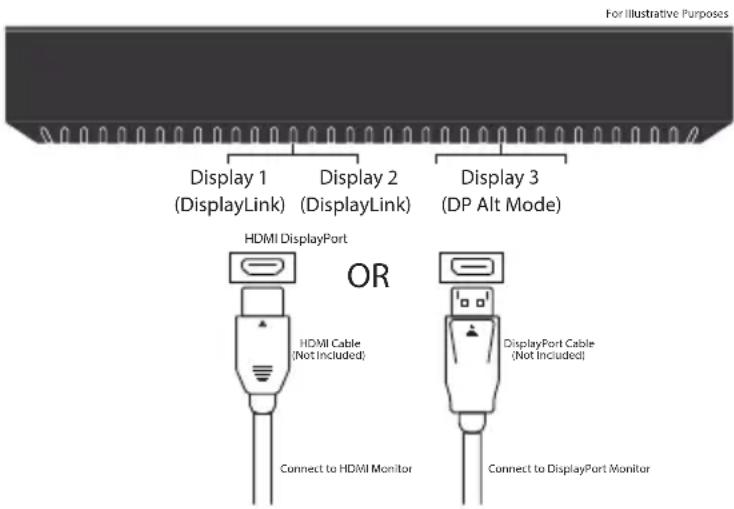

Connect your displays to the Docking Station, display connections vary by dock

Display 1 and 2 function via DisplayLink when connected with USB-A or USB-C. Display 3 is supported via USB-C DP Alt Mode and will only output video when connected via USB-C.

DRIVER INSTALLATION (Windows)

Step 1

The following section shows you how to install the Docking Station software on different operating systems.

Download and install the latest Displaylink software. Select the driver according to your operating system.

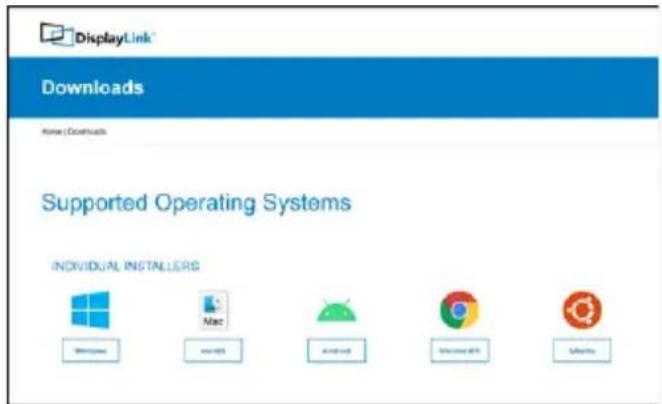

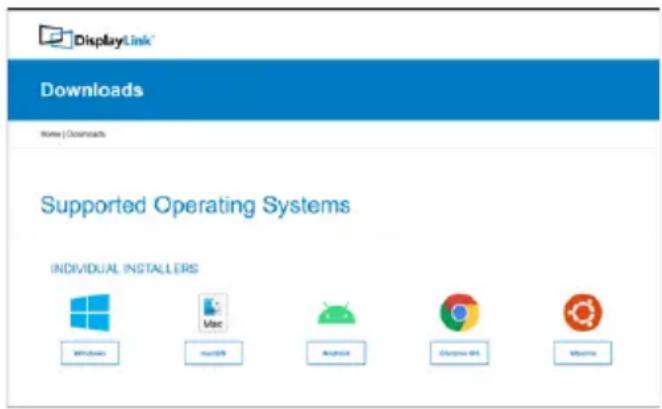

Please visit displaylink.com/downloads and download the latest drivers. Displaylink-provided drivers are always compatible with the USB Docking Station.

DRIVER INSTALLATION (Windows Continued)

Step2

Select the downloaded file double click to begin the DisplayLink software installer

Step3

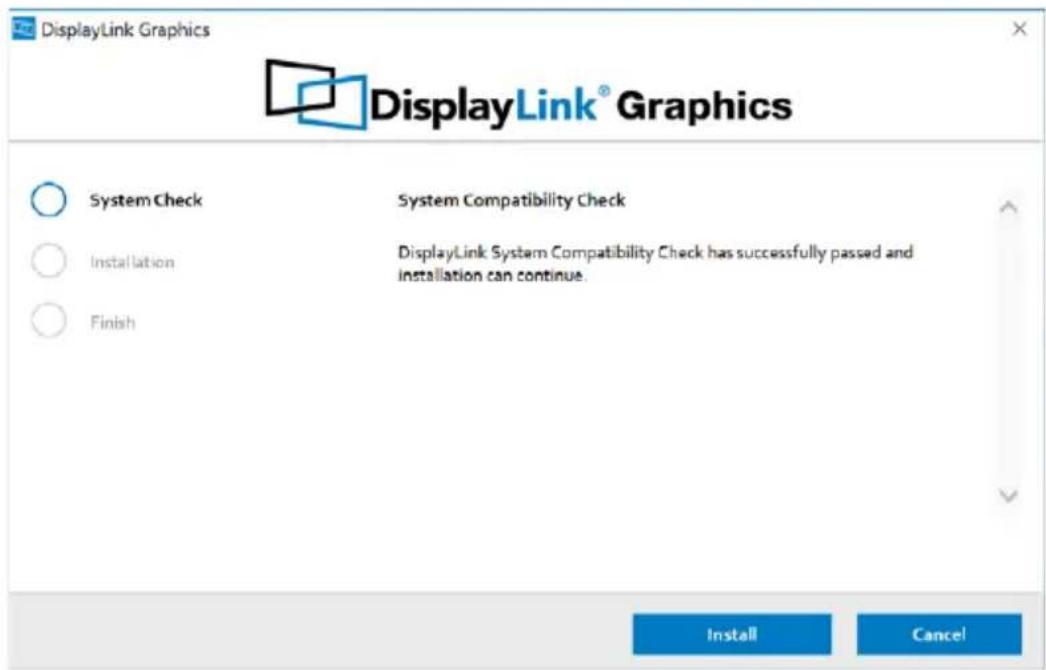

Once the installer begins a window will pop up and verify that your system is compatible with DisplayLink USB Graphics.

DRIVER INSTALLATION (Windows Continued)

Step4

Click "Install"

DRIVER INSTALLATION (Windows Continued)

Step 5

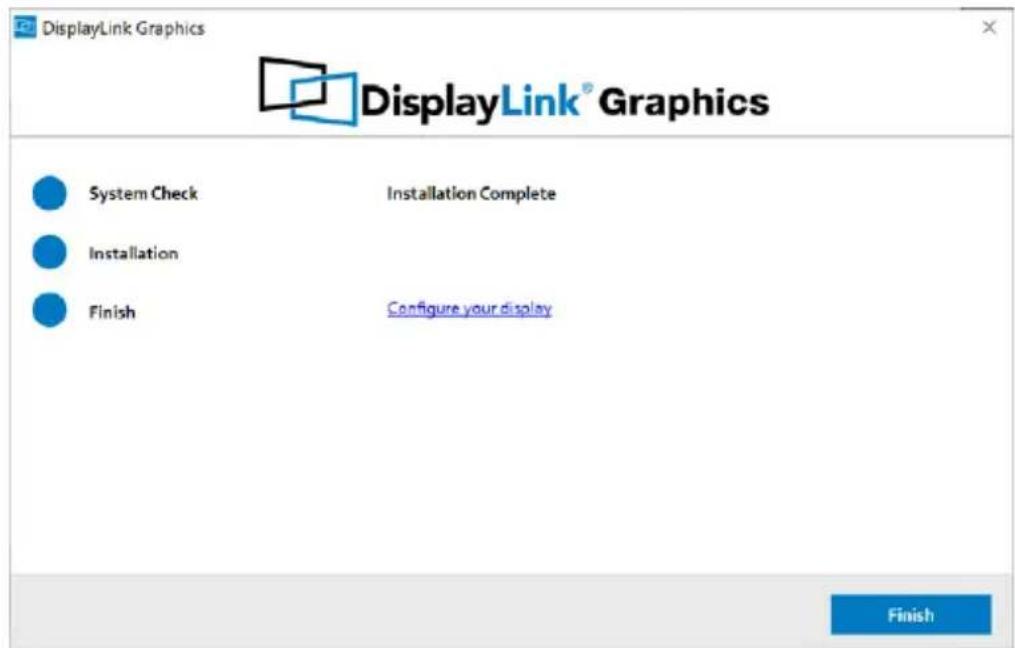

Once the "Finish" button appears the install is complete and your system will may need to reboot. If the option pops up click "Reboot" to finalize the driver installation.

WINDOWS SETUP

Audio setting for Windows 10

Step 1

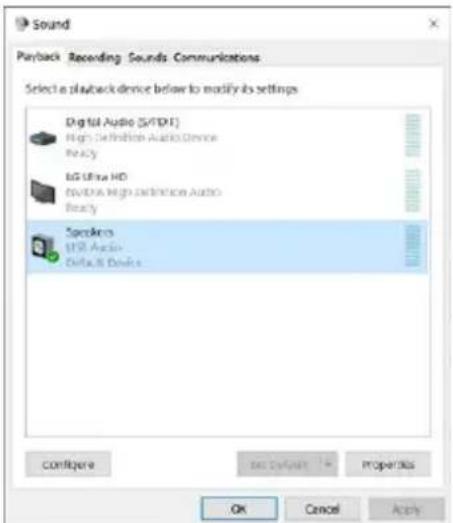

Click the DisplayLink "Icon" at the lower right corner to set up audio and video, click "Audio setup"

Step 2

Choose Speaker

Step 3

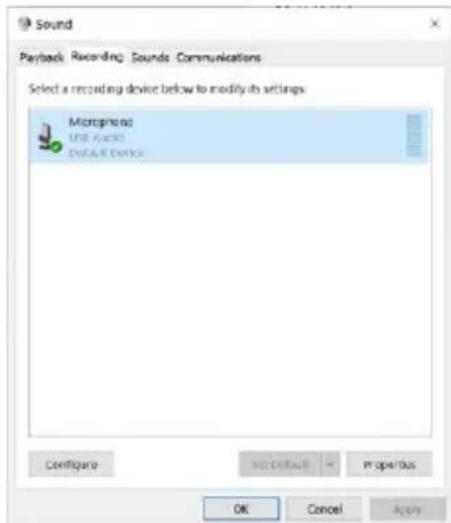

Choose Microphone

WINDOWS SETUP (Continued)

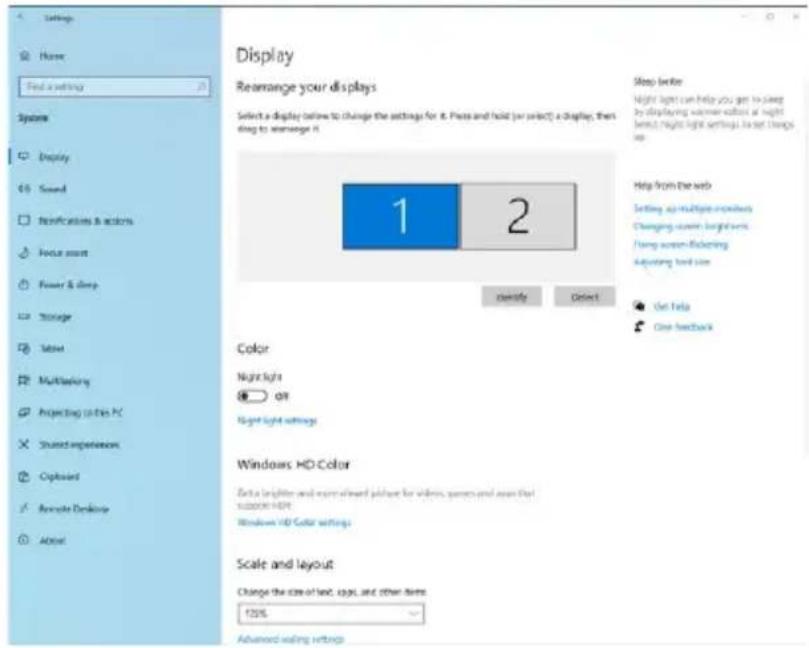

Video Setting: Windows 10

Display mode

• Click video setup
• Select Display and choose Orientation then select Extend desktop to this display.

DRIVER INSTALLATION (macOS)

Introduction: This guide applies to software version 1.3 and above of the Mac software.

What is the macOS Driver?

The macOS driver is designed for macOS 10.4 - 11 to enable you to add an additional monitor to your mac using Displaylink technology. This software allows you to run your DisplayLink UGA devices on any Intel or M1 based Mac desktop or laptop, allowing you to connect up to 4 additional monitors via USB.

Please Note: Power PC-based Macintosh computers, such as late-model iMacs, PowerBooks and PowerMacs, are not currently supported.

DRIVER INSTALLATION (macOS)

Step 1

Download and install the latest Displaylink software. Select the driver according to your operating system.

Please visit displaylink.com/downloads and download the latest drivers. Displaylink-provided drivers are always compatible with the USB Docking Station.

DisplayLink USB Graphics Software supports macOS 10.4 - 11. M1 macs are supported on software version 1.3 or later.

Please Note: Power PC-based Macintosh computers, such as late-model iMacs, PowerBooks and PowerMacs, are not supported.

DRIVER INSTALLATION (macOS)

Step 2

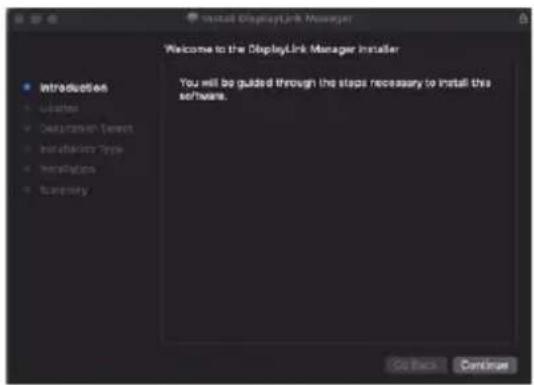

Click "Continue" to start the installation process.

Step 3

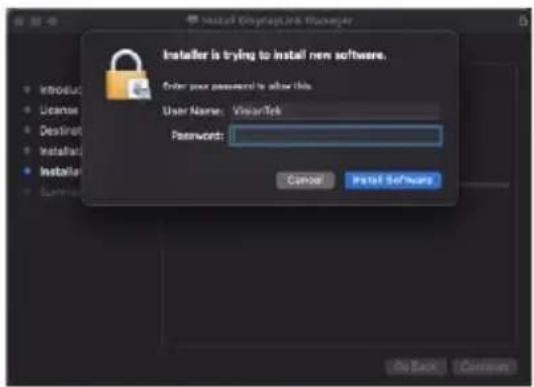

Once prompted input your account password and click "Install Software"

Step 4

After installation is complete restart your system. Your dock should now be working. If not, make sure the Displaylink Manager application is running by entering "Displaylink" into the finder and running the DisplayLink application.

MANAGING MULTIPILE DISPLAYS (macOS)

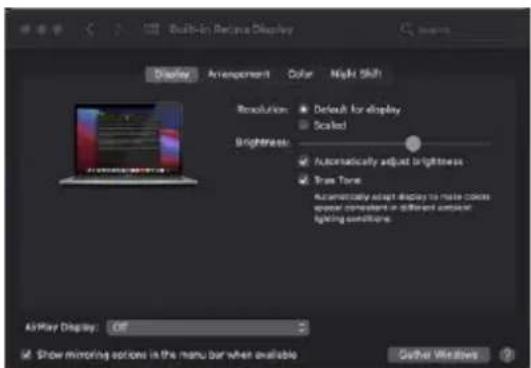

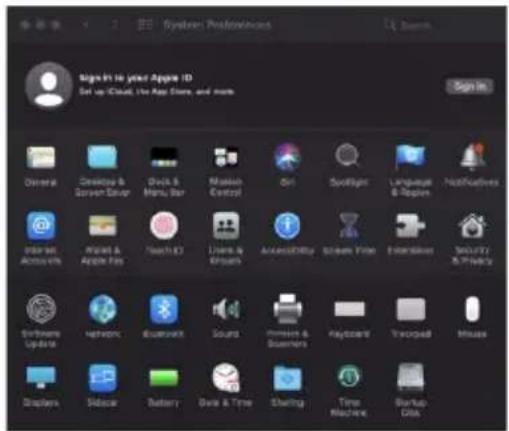

When a new display is connected to your Mac, it will default to being extended to the right of the main display. To configure the settings for each of your displays, select "Displays" from the "System Preferences" menu. This will open the "Display Preferences" window on each of your displays allowing you to configure each.

Display Preferences:

Display Resolutions

Rotating a Display

Display Positions

Display to Mirror mode

Display to Extend

Using both extended and mirrored displays

Changing the main display

MANAGING MULTIPLE DISPLAYS (mac OS Continued)

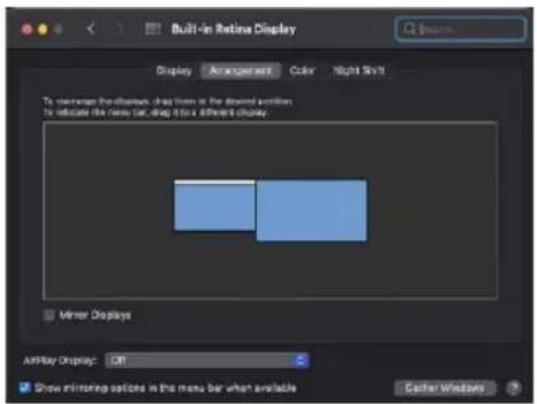

To arrange displays and configure mirrored or extended displays click on the arrangement tab.

To move a display, click and drag the display in the arrangements window.

To change primary display, click on the small bar on top of the main monitor and drag in onto the monitor you want to be the primary.

CONFIGURING DISPLAYS FROM THE MENU BAR (macOS)

If you have checked the "Show Displays" ON menu bar in "Display Preferences" then you can configure the displays by clicking the display icon in the menu bar.

This menu allows you to perform the following actions:

Detect all displays connected to the Mac

Turn display mirroring on/off

Set the resolution of both the primary display, and the additional display(s)

Open "Display Preferences"

WARRANTY

VisionTek Products LLC, ("VisionTek") is pleased to warrant to the original purchaser ("Warrantee") of the Device ("Product"), that the product will be free from manufacturing defects in material for Two (2) Years when given normal and proper usage. The product must be registered within 30 days from the original date of purchase to receive this 2 year warranty. All products not registered within 30 days will ONLY receive a 1 year limited warranty.

VisionTek's liability under this warranty, or in connection with any other claim relating to the Product, is limited to the repair or replacement, at VisionTek's option, of the product or portion of the product which is defective in manufacturing material. Warrantee assumes all risk of loss in transit. The returned products shall be the sole property of VisionTek. VisionTek warrants the repaired or replaced Products will be free from manufacturing defects in material for the remainder of the warranty period.

VisionTek reserves the right to inspect and verify the defectiveness of any products or portion of product returned. This warranty does not apply to any software component.

FULL WARRANTY DISCLOSURE AVAILABLE AT WWW.VISIONTEK.COM

Product must be registered within 30 days of purchase for warranty to be valid. IF YOU HAVE QUESTIONS OR NEED ASSISTANCE WITH THIS PRODUCT,

CALL SUPPORT AT 1 [phone].

© 2021 VisionTek Products, LLC. All rights reserved. VisionTek is a registered trademark of VisionTek Products, LLC. Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
