USER MANUAL SR-BH5 Saramonic

Noise Cancelling Wireless

Sport Headphones

室外运动降噪耳机

SR-BH5

User Manual

用户手册

Statement

Thank you for purchasing Saramonic!

Please read this manual carefully before using and strictly operate and store it in accordance with the instructions. Please save manual for your future reference. If you need further assistance than the user manual, please consult with your retailer for help or email us: [e-mail]

Packaging List

Line drawing of a pair of earphones with earbuds and clamps (no text or symbols)

SR-BH5 Headphones

Carrying Bag

Simple line drawing of a USB cable with two connectors (no text or symbols)

Charging Cable (Type-C) Eartips (2 Pairs)

Blank document page with a curled corner (no text or symbols)

User Manual Warranty Card

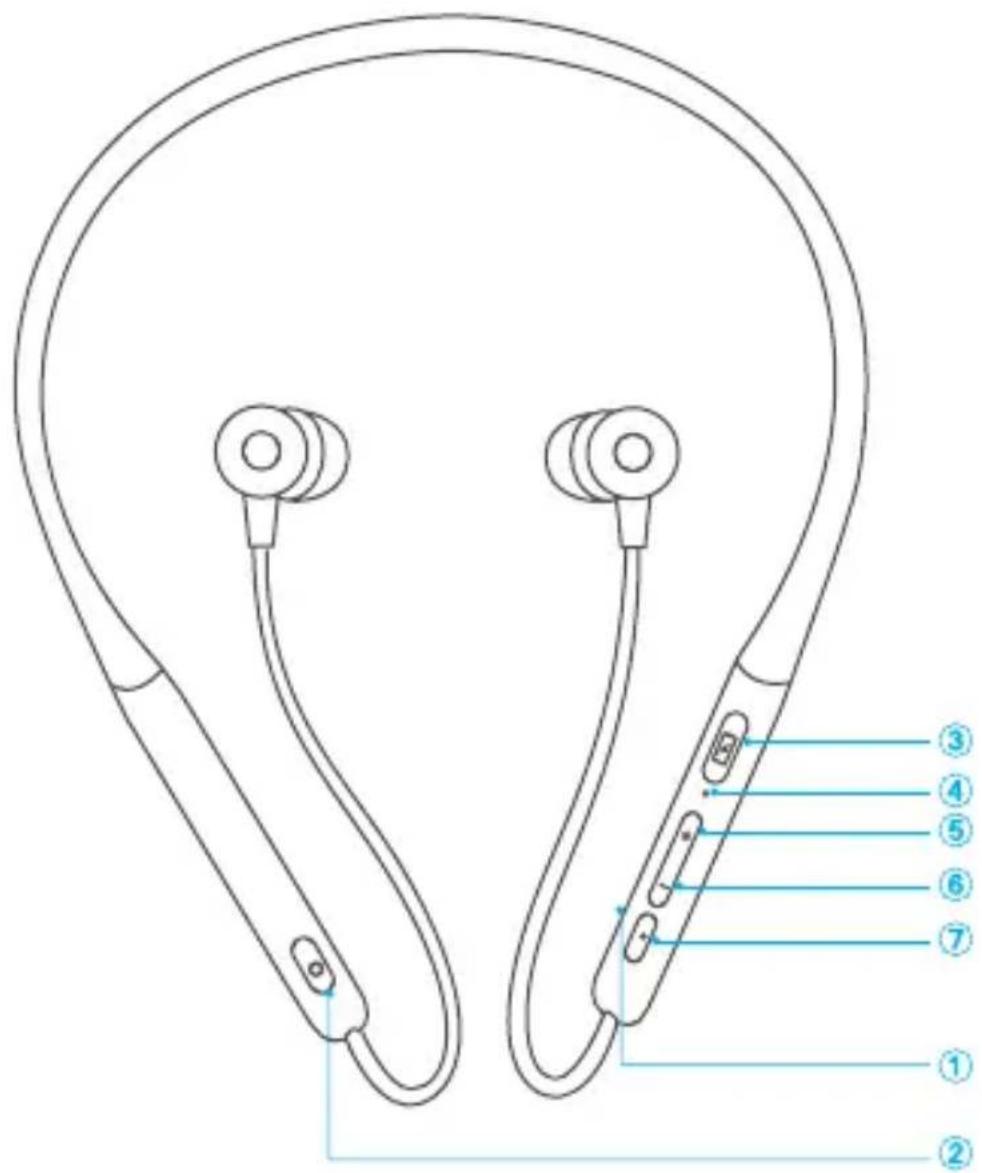

① Microphone
② Active Noise Cancellation (ANC) Switch
③ Type-C Charging Port
④ Indicator
⑤ Volume +/ Previous Song
⑥ Volume -/ Next Song
⑦ Multi-function button

LED Indicator Status

Equipment Status	Indicator Light	Icon	Voice Prompts
Power on	Blue indicator flashing 1s		Power on
Power off	Red indicator flashing 1s and then turn off		Power off
Playing	Blue indicator flashing 1 time / 3s		/
Charging	Indicator solid red		/
Fully charged	Indicator solid blue		/
Battery low	When connected, the red indicator flashing 1 time / 10s		Battery low
Pairing	Red and blue indicators flashing alternately		/
Connected	Blue indicator flashing 1 time / 3s		Your headset is connected

Specifications

Model	SR-BH5
Bluetooth Version	5.0
Driver Specifications	12mm Graphene
Impedance	32Ω
Frequency Response	20Hz~20kHz
Music Play time	Approx 15 hrs (ANC off, BT on) Approx 9 hrs (ANC on, BT on)
Supported Audio Formats	APTX, APTX-HD, AAC, SBC
Operating Distance	10m
Noise Cancellation Depth	22dB
Battery Capacity	182mAh
Charging Time	Approx 2 hrs
Dimensions	160*130*35mm
Weight	37g

Note: BT=bluetooth, ANC=active noise cancelling

Button Operation

① Active Noise Cancellation (ANC) switch

Turn on the ANC mode:

Flick down the ANC switch

Turn off ANC mode:

Swipe up the ANC switch (red dot indicates)

Note: Slide the ANC on / off switch to turn on or turn off the ANC mode.

Diagram of a medical or laboratory procedure showing a catheter or tube with an arrow pointing to a point of interest, labeled with number 1 (no text or symbols beyond label)

② Volume +/Previous Track

Volume up: Short press the Volume + button

(Maximum volume will be reminded)

Previous song: Long press the Volume + button for 3s

③ Volume-/Next Track

Volume down: Short press the Volume-button

(Minimum volume will be reminded)

Next song: Long press the Volume-button for 3s

④ Multi-function button

Equipment Status	Instructions
Turn on/ off	Long Press for 5s
Play/ Pause	Click once
Voice assistant	Double-click
Reset the device	After power off, long press for 8s
Answer/ hand up	Double clickn
Reject Calls	Long press for 1s
Headphones / mobile phone hands-free switch	Long press for 1s

Tips:

Please turn off the ANC function when stop using this headphone to avoid battery consumption.

Please use high-quality playback sources to experience the best sound quality.

Instructions for Use

1. Pairing

①Long press the multi-function button for 5s, the headphone will automatically start pairing;
② The red and blue lights flash alternately;
③ Select the Bluetooth name "SR-BH5" on your device;
④ Once successful, the voice prompts "Your Headset is Connected".

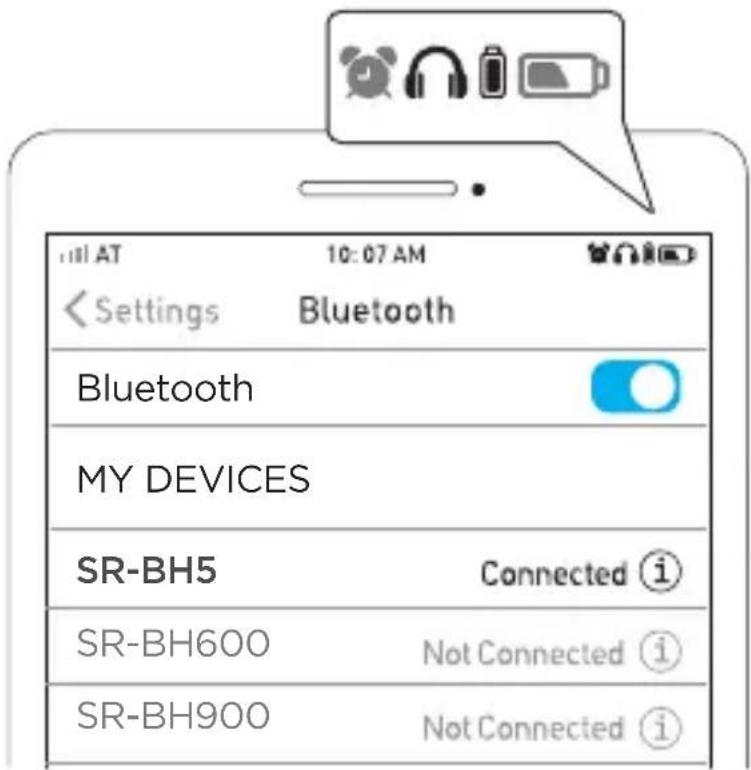

After the connection is successful, you can check the battery level on the phone.

Note:

The headphone will automatically turn off if there's no connection after 5 mins.

Line drawing of a person holding a medical device (no text or symbols)

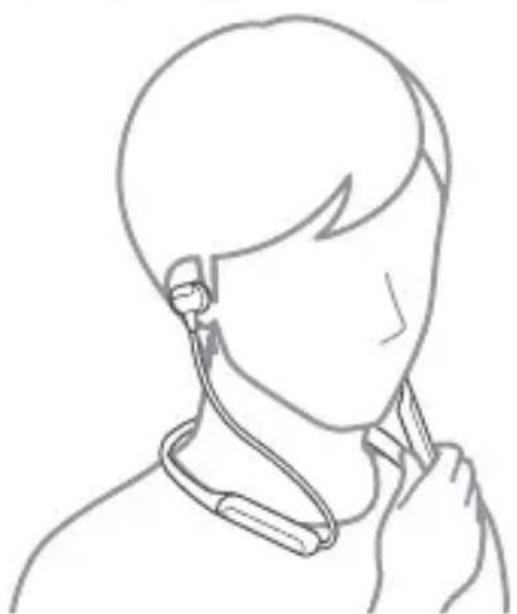

1. Unfold and put on the headphone, adjust it into a comfortable position in the direction shown.

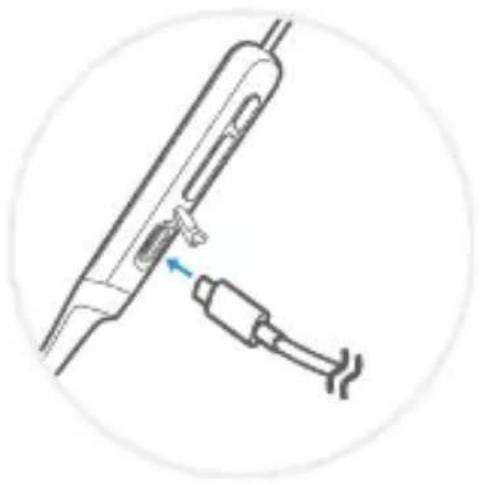

3. Charging

Use the Type-C cable to charge the headphones.

Diagram of a medical device with attached tubing and a blue arrow indicating a point of interest (no text or symbols present)

Equipment Status	Voice Prompts	Indicator Light
Battery low	Battery low	When connected, the red indicator flashes 1 time / 10s
Battery low and turn off automatically	Power off	Red indicators flashes 1s and then turn off

Multi-Device Connection (Wireless)

Diagram of a medical or laboratory device with a blue arrow pointing to a component (no text or symbols present)

1. Connect the headphone with the first device.
2. Turn off Bluetooth on the first device, the headphone will enter pairing mode automatically again.
3. Search the Saramonic SR-BH5 on the bluetooth list of the second device, select it and connect the headphone.
4. Go back to first device, select SR-BH5 and connect.
5. Now the headphone is connecting with two devices simultaneously.

After-sales and Supports

Warranty Service:

2 years Quality Warranty

Life time Technical Service Support

According to the relevant laws and regulations of consumer electronic products and the actual the situation of the industry, the following after-sales service regulations are formulated to provide consumers with satisfactory after-sales services:

1. Warranty certificate mainly includes: warranty card and sales certificate.

2. After-sales service scope:

3. During the warranty period of the product, the company will be responsible for providing free maintenance for any failure caused by the quality problem of the product itself under normal use without disassembly and repair;

4. For products beyond the warranty period, the warranty certificate shall be issued and the maintenance fee shall be paid. If any spare parts are needed for repair cost for the spare parts would be born by the purchaser; please avoid repair and replace when the product is not tested by Saramonic after-sales department;
5. Once the warranty certificate is altered, the warranty will become invalid immediately;

6. The warranty certificate of the product shall be properly kept by the consumer and shall not be supplemented if lost.

7. Warranty Period:

8. Within two years after purchasing this product, there are quality problems in normal use (non-human damage) without disassembly and repair;

9. Consumers who have quality problems in normal use (non-human damage) within 7 days from the date of purchase, without repair, can enjoy the replacement service; 1-year warranty (including all accessories) from the date of issuing the sales certificate;

10. Regulations on invalidation of the warranty during the warranty period:

4.1 In the following cases, the warranty is invalid, but the maintenance service is provided, the labor fee and parts fee are charged:

(1) any damage to accessories caused by improper use, maintenance and storage of consumers;
(2) damage caused by force majeure, such as natural disasters.

4.2 In the following cases, the company will refuse to provide maintenance services or provide charged maintenance services:

(1) fail to provide holograms on product packaging box;
(2) the contents of the holograms are altered or illegible;
(3) It is unable to provide the product warranty card or the content recorded in the warranty card is inconsistent with the product, or the content is altered or illegible;
(4) headphones that have been removed by any unauthorized person of Shenzhen Jiayz Photo Industrial., Ltd. (such as changing wires, removing voice coils, etc.);
(5) there is no sales voucher or the content of the sales voucher is inconsistent with the product.

1. We will not provide warranty service in the following cases after our inquiry: if we find that your repair products are not our products, we will refuse to provide warranty service, or double the maintenance fee. Please attach the warranty certificate when you send the headphones to our company for repair. If you don't have any certificate, our company will handle it as parallel imports.

Safety Instructions

Please read the following precautions carefully before using.

1. Please do not put the headphones close to flammable materials to avoid fire accidents when charging.
2. Please keep the plastic bag away from babies and children to avoid suffocation.
3. Please keep the headphones and all accessories away from children and pets, to avoid swallowing as it may cause asphyxia and other dangers.
4. Please do not use the headphones in situation which need concentration, such as driving, cycling and etc. Please abide by the local laws and regulations for using headphone when driving.
5. Please avoid using indicator light of the device near children or animals eyes.
6. Please do not use the headphones too long at high volume as it may damage your hearing, it is recommended to use an appropriate volume when listening to calls and music.
7. Please do not rinse or immerse the headphones in water to avoid damage.
8. Please do not disassemble the headphones and accessories by yourself to avoid damage and invalidation of the warranty.
9. Please do not subject the headphones to a strong shock or vibration to avoid damage.
10. Please do not use chemical solvents or detergents to clean the headset.
11. If this headset will not be used for a long time, it should be power off after fully charged. Please unplug the charging cable after charging and use the charger provided by the official manufacturer or for charging.

Q&A

Q: The headphone cannot connect to the device?

A: Please make sure your headphone is in pairing mode. Delete the pairing record on the Bluetooth device and reconnect the headphone.

Q: The headphone cannot be turned on?

A: Please check if the headphone has power.

Q: Can the battery in the headphone be replaced?

A: No. This headphone uses a built-in non-removable lithium polymer battery that cannot be replaced.

Q: Can I use headphone while driving?

A: For your safety, we strongly recommend that do not use the headphone while driving to avoid danger.

Q: Why the headphone is disconnected within 10 meters?

A: As the Bluetooth signal connection may be interfered when it encounters WiFi routers, 4G signals, high-power electrical appliances and other devices etc. You can change the environment or try again.

Q: Why is there no sound on the computer or mobile phone?

A: Please check whether the output channel of the computer supports A2DP. Also check the volume setting on the headphone and computer/phone.

Q: Why can't I control the volume of the tracks playing on my phone?

A: As the headphone may not be fully compatible with some apps, due to the different configurations of various APP.
