USER MANUAL SHWL30EC PANASONIC

Thank you for purchasing Panasonic ALL series product.

Please read these instructions carefully before using this product, and save this manual for future use.

Operating Instructions

Mode d'emploi

Access Point Adaptor

This unit allows you to convert the security type of your home Wi-Fi® environment from WPA™ to WPA2™.

For further dedicated help, support and advice about your ALL Series product please visit: http://panasonic.jp/support/global/cs/music/ALL/index.html

(This site is in English only.)

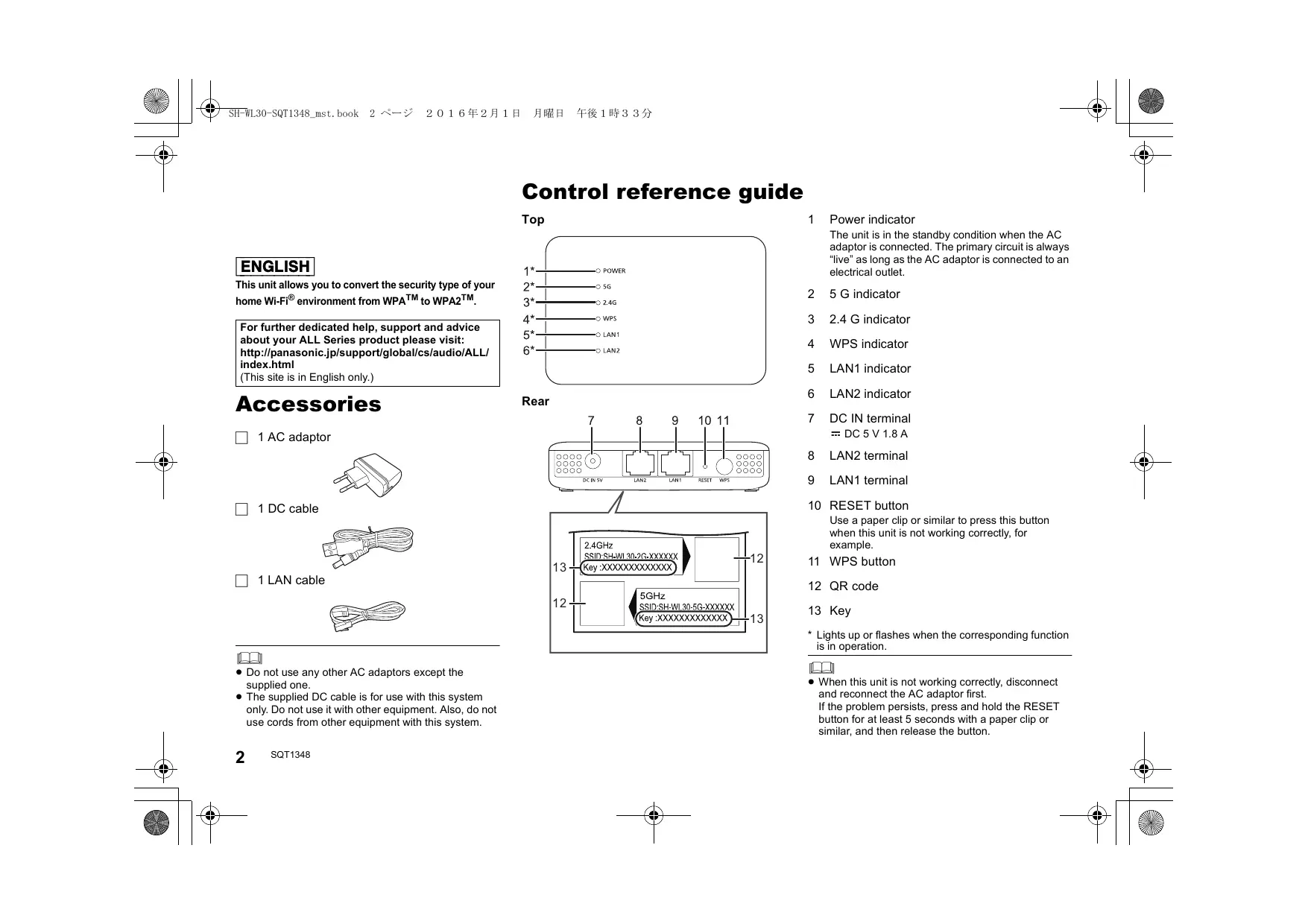

Accessories

1 AC adaptor

1 DC cable

1 LAN cable

• Do not use any other AC adaptors except the supplied one.
• The supplied DC cable is for use with this system only. Do not use it with other equipment. Also, do not use cords from other equipment with this system.

Control reference guide

Top

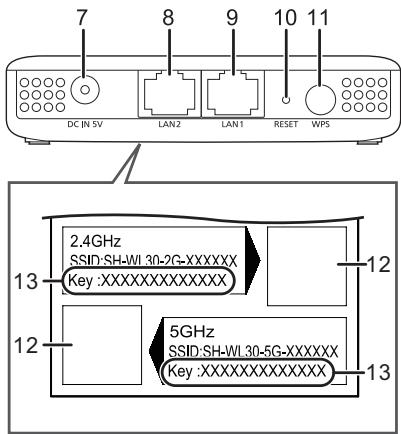

Rear

1 Power indicator

The unit is in the standby condition when the AC adaptor is connected. The primary circuit is always "live" as long as the AC adaptor is connected to an electrical outlet.

2 5Gindicator

3 2.4 G indicator

4 WPS indicator

5 LAN1 indicator

6 LAN2 indicator

7 DC IN terminal = DC5V1.8A

8 LAN2 terminal

9 LAN1 terminal

10 RESET button Use a paper clip or similar to press this button when this unit is not working correctly, for example.

11 WPS button

12 QR code

13 Key

• Lights up or flashes when the corresponding function is in operation.

• When this unit is not working correctly, disconnect and reconnect the AC adaptor first. If the problem persists, press and hold the RESET button for at least 5 seconds with a paper clip or similar, and then release the button.

Precautions

WARNING

Unit

• To reduce the risk of fire, electric shock or product damage,
• Do not expose this unit to rain, moisture, dripping or splashing.
• Do not place objects filled with liquids, such as vases, on this unit.
• Use only the recommended accessories.
• Do not remove covers.
• Do not repair this unit by yourself. Refer servicing to qualified service personnel.
• Do not let metal objects fall inside this unit.
• Do not place any item on top of this unit.

AC adaptor

• To reduce the risk of fire, electric shock or product damage,
• Ensure that the power supply voltage corresponds to the voltage printed on this unit.
• Insert the mains plug fully into the socket outlet.
• Do not pull, bend, or place heavy items on the lead.
• Do not handle the plug with wet hands.
• Hold onto the mains plug body when disconnecting the plug.

• Do not use a damaged mains plug or socket outlet.

• The socket outlet shall be installed near the equipment and shall be easily accessible.

CAUTION

Unit

• Do not place sources of naked flames, such as lighted candles, on this unit.
• This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.
• This unit is intended for use in moderate climates.

Placement

• Place this unit on an even surface.

• To reduce the risk of fire, electric shock or product damage,

• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.

• Do not obstruct this unit's ventilation openings with newspapers, tablecloths, curtains, and similar items.

• Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.

Specifications

Wi-Fi SECTION

WLAN Standard

IEEE802.11a/b/g/n

Frequency range

2.4 GHz band (1 to 11 ch)

5 GHz band (36 ch, 40 ch, 44 ch, 48 ch)

Security

WPA2TM

WPA2TM/WPA™ mixedmode

WPS version

Version 2.0

TERMINALS SECTION

LAN port

2

10 Base-T/100 Base-TX

DC IN

5V1.8A

ACCESSIONS SECTION

AC Adaptor

AC 110 V to 240 V, 50 Hz/60 Hz, 0.25 A

DC Cable

1.2 m (USB A to DC plug)

LAN Cable

1 m (Straight/Category 5)

GENERAL

Power consumption

Approx. 3.8 W

Dimensions (W× H× D)

100.0mm× 23.0mm× 67.2mm

Mass

Approx. 81.0g

Operating temperature range

0^ C to +40^ C

Operating humidity range

10% to 80% RH

(no condensation)

• Specifications are subject to change without notice.

This symbol indicates separate collection of waste electrical and electronic equipment.

More detailed information is contained in "Operating Instructions "

Class II equipment (The construction of the product is double-insulated.)

CERTIFIED

The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance®.

The Wi-Fi Protected SetupTM Identifier mark is a certification mark of Wi-Fi Alliance®.

"Wi-Fi®" is a registered trademark of Wi-Fi Alliance®.

"Wi-Fi Protected SetupTM", "WPA™", and "WPA2™" are trademarks of Wi-Fi Alliance®.

Google Play and Android are trademarks of Google Inc.

App Store is a service mark of Apple Inc.

All other trademarks are trademarks of their respective owners.

C∈0560 ①

Declaration of Conformity (DoC)

Hereby, "Panasonic Corporation" declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Customers can download a copy of the original DoC to our R&TTE products from our DoC server: http://www.doc.panasonic.de

Contact to Authorised Representative:

Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsberging 11, 22525 Hamburg, Germany

This product is in compliance with the radio standards of the following countries.

GB, DE, AT, BE, DK, SE, FR, IT, ES, NL, FI, GR, PT, PL, HU, CZ, SK, EE, LV, LT, SI, BG, RO, MT, CY, IE, LU, HR, NO, CH, SI, LI

The WLAN feature of this product shall exclusively be used inside buildings.

This product on purpose to connect to access point of 2.4 GHz or 5 GHz WLAN.

Product Identification Marking is located on the bottom of the unit.

QR Code is a registered trademark of DENDSO WAVE INCORPORATED.

Wi-Fi® QUICK SETUP GUIDE

This guide describes how to connect ALL speaker to a network while starting up and operating the Panasonic Music Streaming app.

Preparation

Make your ALL speaker system ready for use.

A LAN cable (supplied)
Do not use any other LAN cable except the supplied one.
⑧ Broadband router, etc.

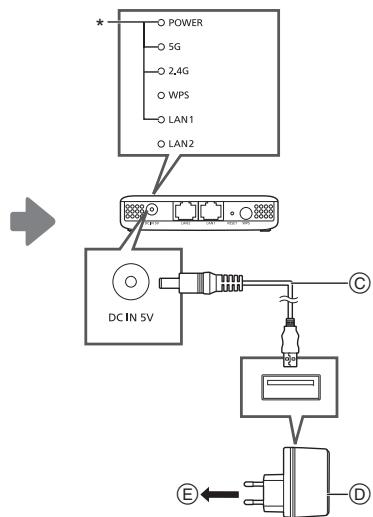

DC cable (supplied)

Check the directions of the connectors, and plug them straight in or unplug them straight out. (Otherwise the connectors may bend out of shape, which may cause malfunction.)

AC adaptor (supplied)
To power outlet The indicators (^*) light up in blue after approximately 60 seconds.

1 Download the app.

Download the free "Panasonic Music Streaming" app from the store on your smartphone/ tablet.

• The operations and on-screen display items, etc. of the app "Panasonic Music Streaming" are subject to change. For the latest information, visit http://panasonic.jp/support/global/cs/audio/app/ (This site is in English only.)

iOS:AppStore

Android : Google PlayTM

2 Open the app and follow the on-screen instructions.

Follow the app's instructions to connect to your ALL speaker.

The procedure splits into the paths described below along the way.

■ Path 1: When the SH-WL30 is detected (a screen similar the one below appears)

① Select "Add".
② Scan the QR code on the bottom side of this unit. Scan the QR code for either 5 GHz (recommended) or 2.4 GHz, depending on your environment. (→ right)

■ Path 2: When the SH-WL30 is not detected automatically (a screen similar the one below appears)

① Go to Wi-Fi settings on your smartphone or tablet.
② Select "AllPlay _AJ" ·
③ Type a device name.
④ Change the network name (SSID) to "SH-WL30-5G☐☐☐☐☐" or "SH-WL30-2G-☐☐☐☐☐" and type the password (Key) for this unit (refer to the bottom side of the unit).

• This can sometimes take 1 minute to appear.

3 After a short wait ...you're connected!

Configure the connection of the ALL speaker to be added to the wireless network.

For details, refer to the Operating Instructions for the ALL speaker.

• In case you are not connected automatically, please re-select your Wi-Fi network from the settings / Wi-Fi settings menu on your device.

Further Support

For more information and other network setting methods, refer to the Operating Instructions.

If you require further help, please visit http://panasonic.jp/support/ global/cs.audio/ (This site is in English only.)

Characteristics of radio wave frequency bands

5 GHz frequency band

• Normally not used by devices other than routers. As a result, it provides very reliable connections and stable performance.
• Offers faster communication speeds than the 2.4 GHz band.
• More sensitive to obstacles such as walls and floors than the 2.4 GHz band. Radio waves become weaker over longer communication distances.
• Older Wi-Fi devices may not support the 5 GHz band.

2.4 GHz frequency band

• Offers superior penetration of obstacles such as walls and floors, allowing radio waves to travel longer distances.
• Supported by most Wi-Fi devices
• Prone to congestion and unstable performance because it is used by a wide variety of products. (In an apartment or condominium building, for example, you may also experience radio wave interference from devices in other rooms.)
