Operation Manual

SPS-635

Congratulations on your purchase of the Sven speaker system!

COPYRIGHT

© 2016. SVEN PTE. LTD. Version 1.0 (V 1.0).

This Manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information in this Manual is given on «as is» terms. The author and the publisher do not bear any liability to a person or an organization for loss or damage which has arisen from the information contained in this Manual.

CONTENTS

RUS 1

UKR 6

ENG 12

1. BUYER RECOMMENDATIONS 13

2. PACKAGE CONTENTS.... 14

3. SAFETY PRECAUTIONS 14

4. TECHNICAL DESCRIPTION 14

5. PREPARATION AND OPERATION 15

6. TROUBLESHOOTING.... 16

7. TECHNICAL SPECIFICATIONS 17

1. BUYER RECOMMENDATIONS

- Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device for damage; if the product was damaged during transportation, address the firm which carried out the delivery; if the product functions incorrectly, address the dealer at once.

- Check up the package contents and availability of the warranty card. Make sure the warranty card has a shop stamp, a legible signature or the seller's stamp and purchase date, and the goods number corresponds to that in the warranty card. Remember: in case of warranty card loss or discrepancy of numbers you forfeit the right for warranty repairs.

- Do not switch on the speaker system immediately after you bring it into a room from environment with negative temperature! After unpacking, the speaker system should be kept in conditions of room temperature for at least 4 hours.

- Before installing and using the speaker system, read this Manual carefully and keep it for future reference.

- Shipping and transportation equipment is permitted only in the original container.

- Does not require special conditions for realization.

- Dispose of in accordance with regulations for the disposal of household and computer equipment.

Technical support is on www.sven.fi.

2. PACKAGE CONTENTS

• Speakers — 2 pcs
• 2RCA to mini-jack (∅ 3.5 mm) stereo signal cable — 1 pc
• Audio cable — 1 pc
  • Operation manual — 1 pc
  • Warranty card — 1 pc

3. SAFETY PRECAUTIONS

Caution! High voltage inside! To avoid the risk of electric shock do not open or touch elements inside.

• To avoid electric shock, do not open the MSS and do not perform repairs by yourself. Service and repairs should be performed only by qualified specialists in an authorized service center. The list of authorized service centers is available on www.sven.fi
• Do not allow the circuit of wires (including the grounded ones) between the speakers, on the power amplifier or the ground, for it causes damage to the power amplifier output stage.
• Do not touch the MSS power cord plug pins for 2 seconds after unplugging it from the mains.
• Do not put foreign objects inside the holes of the MSS.
• Protect the MSS from high humidity, water and dust.
• Protect the MSS from heating: do not place it closer than 1 m from a heat source. Do not expose it to direct sunlight.
• Do not place any open flame sources on or close to MSS.
• Do not place the MSS in poorly ventilated areas. Leave an air gap of 10cm or more. When operating the MSS, do not put any devices on it, do not cover it with cloth or other objects preventing it from cooling.
• Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.

4. TECHNICAL DESCRIPTION

SPS-635 2.0 Multimedia Speaker Systems (MSS) is designed to play music and sound games, movies, etc. The MSS has a built-in transformer power supplyallowing to connect it to virtually any audio source (CD/DVD-player, TV, PC, etc.). The speaker with an audio input and a control panel is named the active one.

Special features

• Speaker system is compatible with PCs, DVD/Media-players, mobile devices and other sound sources
  • Control knobs on the active speaker side panel
• Smooth timbre control
• Headphone jack
  • MDF speaker cabinets

Operation Manual

SPS-635

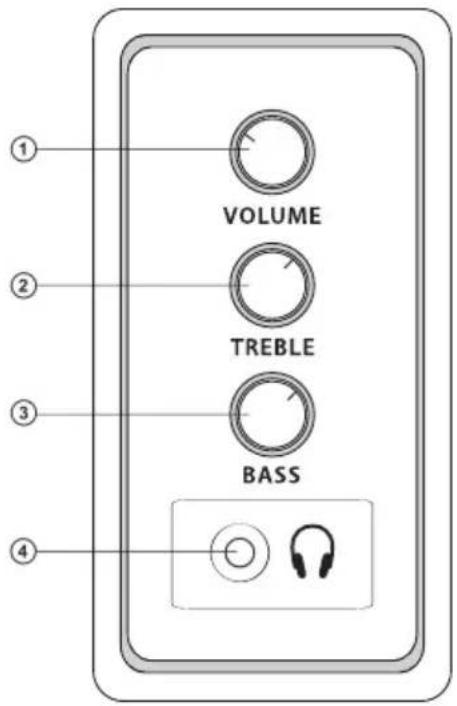

Control panel

① VOLUME: volume control knob
② TREBLE: treble control knob
③ BASS: bass control knob
④ Headphone jack

5. PREPARATION AND OPERATION

Speaker placement

• Place the speakers symmetrically to the listener at least one meter away.
• Place MSS far away from monitors and TV sets, as insignificant image distortion in these supersensitive devices is possible.

MSS Connecting

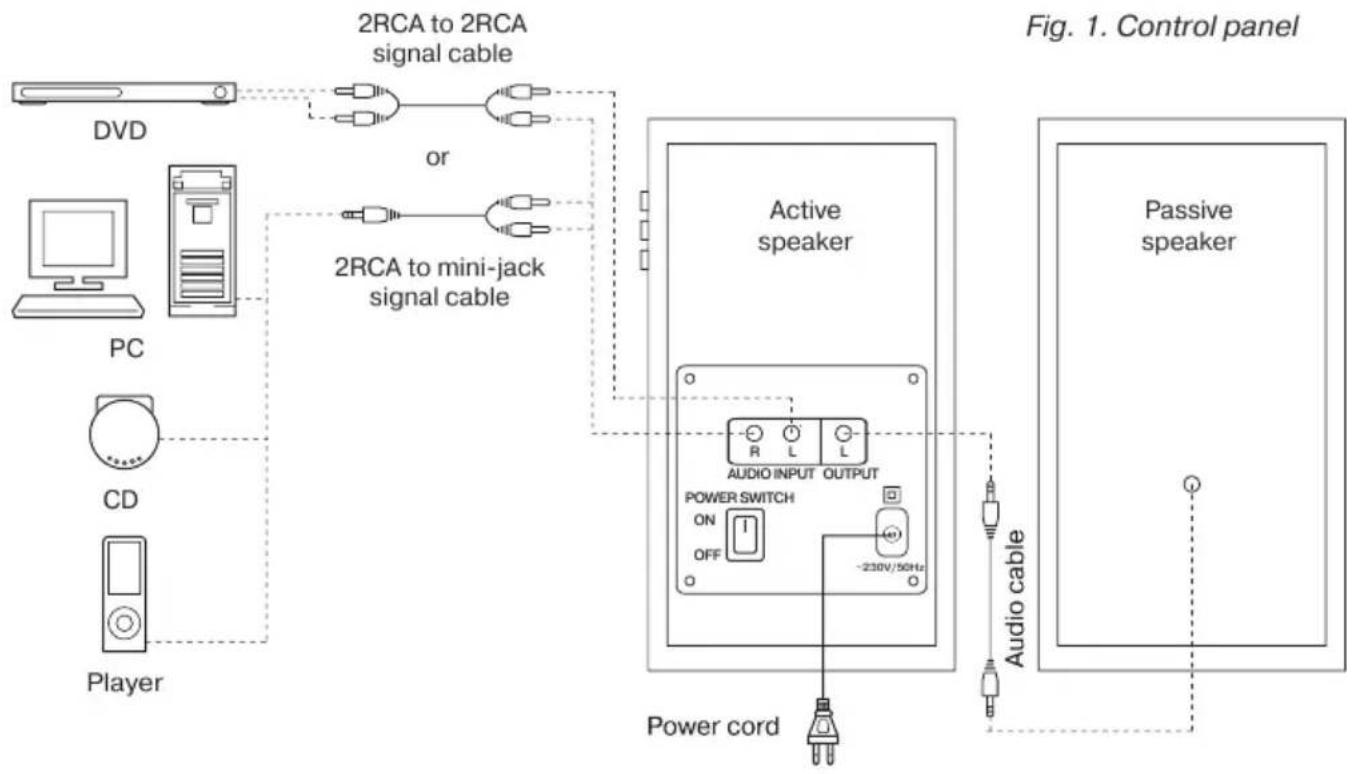

SPS-635 Multimedia Speaker System can be connected to virtually any audio source: DVD/CD, PC sound card, etc. (see connection diagram in Fig. 2).

Fig. 2. Connection diagram

- Plug the RCA connectors of the 2RCA to 3.5mm mini-jack stereo signal cable (included) into the AUDIO INPUT L/R input, and the 3.5mm mini-jack of the signal cable - into the output of your PC sound card or an audio output of another sound source, as shown in Fig. 2.

Note:

• To connect the MSS to a CD/DVD/MP3 player or TV, use the 2RCA to 3.5mm mini-jack stereo signal cable (included) with a mini-jack to 2RCA adapter (not included) or a 2RCA to 2RCA stereo signal cable (not included), as shown in Fig. 2.
• Plug the power cord into a mains outlet. Set the master volume level to the minimum by turning the VOLUME control knob ① counterclockwise until it stops.
• Switch on power supply by ON/OFF switch on the active speaker rear panel.
• Turn on your audio source.
• Adjust the volume level by turning the VOLUME control knob ①. By turning the knob clockwise, you increase volume level; by turning the knob counterclockwise, you reduce it.
• Adjust the treble and bass levels by turning the TREBLE control knob ② and BASS control knob ③ respectively. By turning the knobs clockwise, you increase the treble/bass level; by turning the knobs counterclockwise, you reduce it.
• Connect your headphones to the headphone jack ④ (see Fig. 1).

Note:

- After using the MSS, mind to switch it off on the active speaker rear panel by ON/OFF switch, and unplug the power cord.

1. TROUBLESHOOTING

Problem	Cause	Solution
The MSS does not turn on.	The MSS isn’t connected to a mains outlet.	Check the connection.
	The power switch is off.	Turn on the switch.
No sound.	The volume level is set at minimum value.	Adjust the volume control knob.
	Improperly connected audio source.	Connect audio sources correctly.
There is too quiet sound of speakers.	The volume level is set at minimum value.	Adjust the volume control knob.
Distortion of sound.	Large amplitude of the input signal.	Turn down the source volume and MSS volume.

If none of the above methods can solve the problem, please seek professional advice at your nearest service center. Never attempt to repair the product yourself.

Operation Manual

SPS-635

1. TECHNICAL SPECIFICATIONS

Parameter, measurement unit	Value
Output power (RMS), W	40 (2 × 20)
Frequency range, Hz	40 – 22,000
Speaker diameter, mm
tweeter	∅ 25
woofer	∅ 100
Power supply, V/Hz	~230/50
Dimensions (one speaker) (W × H × D), mm	150 × 263 × 172
Weight, kg	4.7

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications and package contents are subject to change without notice due to the improvement of SVEN production.

Two black audio/video sound amplifiers with visible sound waves and speaker heads (no text or symbols)

Модель: SPS-635

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,

Nº 02-02, Singapore, 427447. Produced under the

control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,

Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland.

EAC CE

SPS-635
