Product Type	Portable Bluetooth Speaker
Brand	Sven
Model	PS-350
Color	Black
Dimensions (W x H x D)	200 mm x 100 mm x 100 mm
Weight	500 g
Power Supply	USB 5V 1A
Battery Capacity	1200 mAh Lithium-ion
Battery Life	Up to 6 hours (at 50% volume)
Connectivity	Bluetooth 5.0, AUX 3.5mm, USB, TF Card
Audio Output	2 x 5W stereo
Frequency Response	100 Hz – 20 kHz
Signal-to-Noise Ratio	≥ 80 dB
Additional Features	FM Radio, Hands-free calling, TF card playback
Controls	Power, Volume +/-, Play/Pause, Mode, Next/Previous
Included Accessories	USB charging cable, AUX cable, user manual
Material	Plastic
Certifications	CE, RoHS
Maintenance	Wipe with a soft dry cloth; avoid water and solvents
Safety Notices	Do not disassemble; keep away from heat and moisture
Spare Parts / Repairability	Contact Sven support for service; no user-replaceable parts
General Information	Designed for portable use with multiple playback options

Frequently Asked Questions - PS-350 Sven

How do I charge the Sven PS-350 speaker?

Connect the included USB cable to the speaker's charging port and a USB power adapter (5V 1A). The LED indicator will light up during charging.

How can I connect my phone via Bluetooth?

Turn on the speaker and press the Mode button until the Bluetooth indicator flashes. Activate Bluetooth on your phone and select 'Sven PS-350' from the list.

Why is there no sound from the speaker?

Check that the speaker is powered on and the volume is turned up. Ensure your connected device is playing audio and paired correctly. Try a different source (AUX, TF card) to isolate the issue.

Can I use the speaker while it is charging?

Yes, you can use the speaker while it is connected to a power source. However, charging may take longer if the speaker is in use.

How do I play music from a TF card?

Insert a TF card (microSD) into the dedicated slot. Press the Mode button repeatedly until the speaker switches to TF card mode. Playback will begin automatically.

What is the range of Bluetooth connection?

The Bluetooth range is approximately 10 meters (33 feet) in open space. Obstacles like walls may reduce the range.

How do I reset the speaker?

If the speaker is unresponsive, press and hold the Power button for 10 seconds to force a restart. A factory reset can be done by holding the Mode and Volume+ buttons simultaneously for 5 seconds.

Does the speaker have a built-in microphone?

Yes, the speaker supports hands-free calling. When a call comes in, press the Play/Pause button to answer. The microphone is integrated.

How can I switch between Bluetooth, AUX, and FM modes?

Press the Mode button repeatedly to cycle through Bluetooth, AUX, TF card, and FM radio modes. The LED indicator color may change per mode.

How do I clean and maintain the speaker?

Wipe the exterior with a soft, dry cloth. Do not use liquids or abrasive cleaners. Keep the speaker away from water, dust, and extreme temperatures.

USER MANUAL PS-350 Sven

Black and white photo of a modern portable electronic device labeled 'SVEN' (no additional text or symbols visible)

PS-350

www.sven.fi

SVEN®

Portable Speaker System with Bluetooth and FM-radio

Congratulations on your purchase of the SVEN speaker system!

COPYRIGHT

© 2019. SVEN PTE. LTD. Version 1.0 (V 1.0).

This Manual and information contained in it are copyrighted. All rights reserved.

CONTENTS

RUS 2

UKR 7

ENG....12

BUYER RECOMMENDATIONS

• Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device for damage; if the product was damaged during transportation, address the firm which carried out the delivery; if the product functions incorrectly, address the dealer at once.
• Shipping and transportation equipment is permitted only in the original container.
• Does not require special conditions for realization.
• Dispose of in accordance with regulations for the disposal of household and computer equipment.

APPLICATION

SVEN PS-350 portable multimedia speaker system with Bluetooth and FM-radio is designed for operation with PC, notebooks and other mobile devices by means of data transfer via Bluetooth protocol. It can be also used in internet telephony, during video conferences, in multimedia applications, in interactive games. There is a built in FM-tuner, and player with USB flash and with micro SD memory card.

PACKAGE CONTENTS

• Speaker system – 1 pc
• USB to micro USB power cable – 1 pc
• Antenna/mini-jack to mini-jack signal cable – 1 pc
• User's Manual – 1 pc
• Warranty card – 1 pc

SPECIAL FEATURES

• Bluetooth wireless signal transmission
  • Built-in audio files player from USB-flash and microSD card storage devices
  • Built-in FM tuner
• Wired connection
• Waterproof (IPx5)
• Wireless connection of two speakers to one source

User's Manual

PS-350

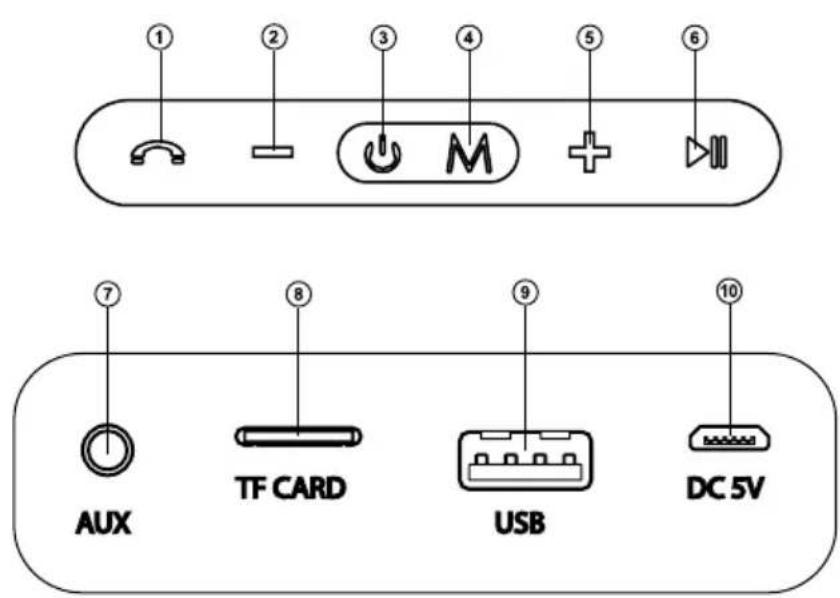

Speaker system description

①: Answer an incoming call

② -: Volume decrease button (short pressing);

Previous track (long pressing in Player and Bluetooth mode);

Previous station (long pressing in Radio mode)

③ ⏻: POWER button (long pressing)

④ M: Switch mode button: Bluetooth/FM/Player/AUX (short pressing);

Disconnect from device (long pressing in Bluetooth mode)

⑤ +: Volume increase button (short pressing);

Next track (long pressing in Player and Bluetooth mode);

Next station (long pressing in Radio mode)

⑥ ▶: Play/Pause button (in Player and Bluetooth mode);

Start/Stop auto scan (long pressing in Radio mode);

Mute (short pressing in Radio mode or AUX);

Connecting an additional speaker (long pressing in Bluetooth mode)

⑦ AUX: 3.5 mm mini-jack for audio signal connecting (phone, MP3 player, etc.)

⑧ TF CARD: Micro SD card slot

⑨ USB: USB-flash card slot

⑩ DC 5V: micro USB jack for charger connecting Speaker system to laptop / PC USB port

Fig. 1.

Attention! The built-in battery must be charged completely prior to the application.

Speaker system battery charging

• Connect speaker system to a USB port of PC or USB charger using micro USB to USB cable (included). During battery charging the indicator is red. Indicator goes out when the battery is charged.
• The battery is used in the speaker system as an integral part of the device, therefore do not try to extract or replace it, because this can result in the warranty cancellation or the device damage.

OPERATION MODES

Bluetooth mode

• Wireless data transfer via the Bluetooth protocol enables to connect speaker system to compatible devises. Maximum radius of action of data transfer is 10 m. Such obstacles as walls or other electronic devices can interfere with the signal transfer.
• Turn on the speaker in Bluetooth mode.
• It is necessary to select the search mode of devices with Bluetooth on a signal source (telephone, notebook, smartphone, etc.). «SVEN PS-350», massage will be displayed on the screen which is to be connected to*.
• When connection is successful, there will be a short beep and the indication of the search mode on speaker system is over**.

Radio mode

Attention! To improve the quality of radio reception, connect the mini-jack signal cable to the mini-jack (included) to the AUX input.

- Turn on the speaker system – press button ④ several times until, the radio mode will turn on. Long-term pressing button ⑥ activates auto search mode. After scanning completion, the first scanned radio station will start to operate automatically. With buttons ② and ⑤ (long pressing) select a desired radio station.

Player mode

Attention! The file system of a micro SD carrier is FAT32. Maximum volume is 32 GB. It is not recommended to use the micro SD Ultra Speed.

- The system will enter the Player mode automatically when a carrier (USB flash or SD card) is connected to corresponding ports. Use button ⑥ to switch between Play / Pause modes. You can control tracks by using buttons ② (previous track) and ⑤ (next track) (long pressing).

The use in the wired mode (AUX)

• Connect the 3.5 mm mini-jack cable to the 3.5 mm mini-jack (included) to the AUX input and the 3.5 mm jack to the signal source.
• Turn on the speaker in AUX mode – press the button ④ several times until the speaker goes into AUX mode.


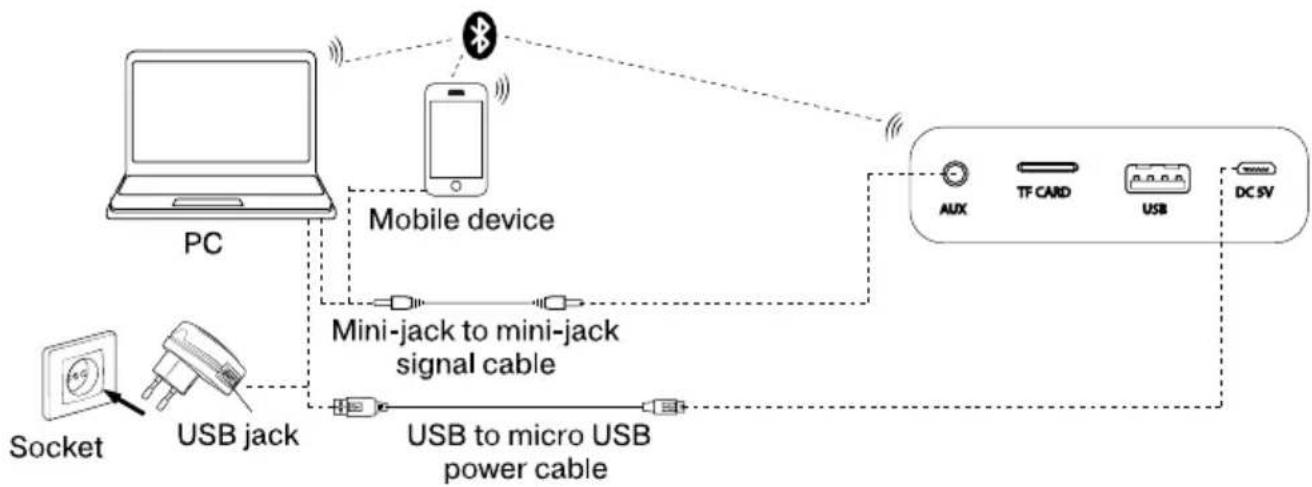

Fig. 2. Connection diagram

Connecting an additional speaker

For model PS-350 you can connect an additional speaker (Bluetooth mode only):

• Turn both speakers into Bluetooth mode.
• Connect the signal source to one of the speakers via Bluetooth (the second column should be in search mode).
• On another speaker press and hold button ▶⑥.
• If two speakers are successfully connected between themselves, there will be a short beep.

TECHNICAL SPECIFICATIONS

Parameter, measurement unit Value
Frequency response, Hz 70 – 22 000
Output power (RMS), W 30 (2 × 15)
Membrane, mm ∅ 63
Battery capacity, mA * h 1800 (2 pcs)
Power supply USB/DC 5V
Weight, g 1800
Dimensions, mm 197 × 77 × 72

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications and package contents are subject to change without notice due to the improvement of SVEN production.

Technical support is on www.sven.fi.

Black portable electronic device with a curved handle and 'SVEN' logo on the front (no text or symbols on body)

Модель: PS-350

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, N° 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.
