PS-240 - Pregnant Sven - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	Sven
Model	PS-240
Dimensions (W x H x D)	200 x 100 x 100 mm
Weight	0.5 kg
Power Supply	DC 5V via USB-C
Battery Capacity	1200 mAh
Playback Time	Up to 6 hours at 50% volume
Output Power	5W RMS
Frequency Response	80 Hz – 20 kHz
Bluetooth Version	5.0
Bluetooth Range	Up to 10 m
Supported Profiles	A2DP, AVRCP, HFP
AUX Input	3.5 mm jack
FM Radio	Yes
Microphone	Built-in for hands-free calls
Controls	Buttons: Power, Volume +/-, Play/Pause, Next/Previous, Mode, Answer call
Indicators	LED status light
Material	Plastic with fabric grille
Water Resistance	IPX4 (splash-proof)
Cleaning & Maintenance	Wipe with a soft, dry cloth. Avoid using liquids or chemicals.
Safety Precautions	Do not expose to rain or moisture. Keep away from heat sources.
Spare Parts & Repairability	No spare parts available. Device is not user-serviceable.

Frequently Asked Questions - PS-240 Sven

How do I pair the Sven PS-240 via Bluetooth?

Turn on the speaker and press the Mode button until Bluetooth is selected. On your phone or tablet, enable Bluetooth and search for 'Sven PS-240'. Tap to pair. The speaker will confirm with a tone.

Can I use the speaker while it is charging?

Yes, you can use the speaker while it is connected to a power source via USB-C. However, charging may take longer if the speaker is in use.

How long does it take to fully charge the battery?

The Sven PS-240 takes approximately 3 hours to fully charge from empty using a standard 5V/1A charger.

What is the maximum Bluetooth range?

The Bluetooth range is up to 10 meters (33 feet) in open space. Obstacles like walls may reduce the range.

How do I switch between Bluetooth, FM radio, and AUX modes?

Press the Mode button repeatedly to cycle through Bluetooth, FM radio, and AUX input modes. The speaker will indicate the current mode with a voice prompt.

Why is the sound distorted at high volume?

Distortion may occur at maximum volume due to the speaker's power limits. Lower the volume to a comfortable level for clearer sound.

Is the Sven PS-240 waterproof?

The speaker has an IPX4 rating, meaning it is splash-proof but not waterproof. Avoid submerging in water or exposing to heavy rain.

Can I connect multiple speakers together?

The Sven PS-240 does not support stereo pairing or daisy-chaining multiple speakers. It operates as a single unit.

How do I reset the speaker to factory settings?

To reset, press and hold the Power and Mode buttons simultaneously for about 5 seconds until you hear a confirmation tone. This clears paired devices and resets settings.

Does the speaker have a microphone for hands-free calls?

Yes, the Sven PS-240 has a built-in microphone. When a call comes in while connected via Bluetooth, press the Play/Pause button to answer. Press again to end the call.

USER MANUAL PS-240 Sven

Black SVEN portable speaker with textured grille and adjustable handle (no visible text or symbols)

Black SVEN portable speaker with perforated grille and black strap (no visible text or symbols)

PS-88

PS-240

www.sven.fi

SVEN®

Рис. 1.

Мал. 1.

Portable Speaker System with Bluetooth

Congratulations on your purchase of the SVEN speaker system!

COPYRIGHT

© 2019. SVEN PTE. LTD. Version 1.0 (V 1.0).

This Manual and information contained in it are copyrighted. All rights reserved.

CONTENTS

RUS 2

UKR 7

ENG....12

BUYER RECOMMENDATIONS

• Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device for damage; if the product was damaged during transportation, address the firm which carried out the delivery; if the product functions incorrectly, address the dealer at once.
• Shipping and transportation equipment is permitted only in the original container.
• Does not require special conditions for realization.
• Dispose of in accordance with regulations for the disposal of household and computer equipment.

APPLICATION

SVEN PS-88 and SVEN PS-240 portable multimedia speaker systems with Bluetooth are designed for operation with PC, notebooks and other mobile devices by means of data transfer via Bluetooth protocol. There is a built in player with micro SD memory card.

PACKAGE CONTENTS

• Speaker system – 1 pc
• USB to micro USB power cable – 1 pc
• Mini-jack to mini-jack signal cable – 1 pc
• Carabine – 1 pc
• User's Manual – 1 pc
• Warranty card – 1 pc

SPECIAL FEATURES

• Bluetooth wireless signal transmission
  • Built-in audio files player from micro SD card storage devices
• Waterproof (IPx7)
• Wired connection

Technical support is on www.sven.fi.

User's Manual

PS-88

PS-240

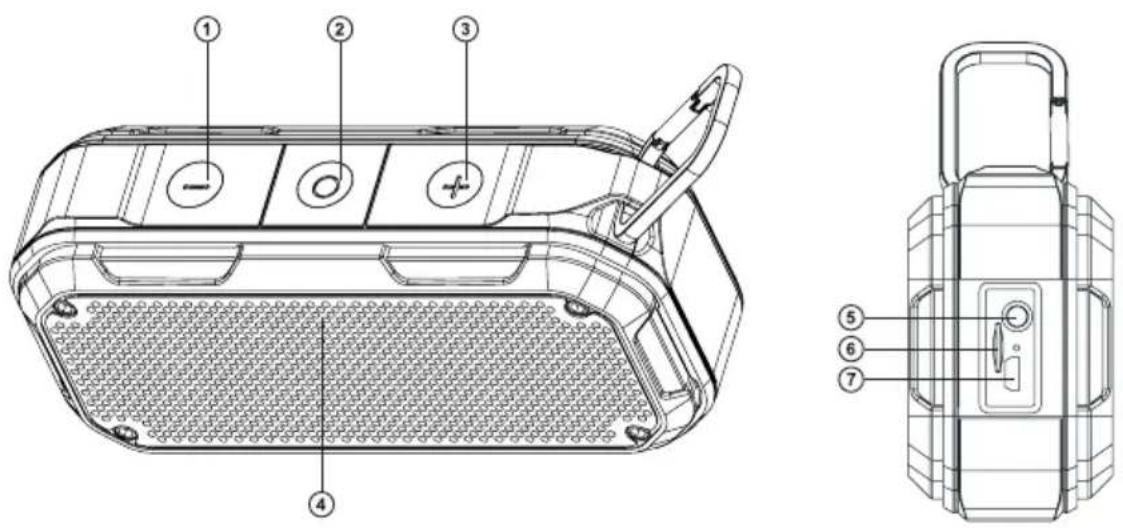

SPEAKER SYSTEM DESCRIPTION

① Volume decrease button (short pressing);
Previous track (long pressing in Player and Bluetooth mode)
② POWER button (long pressing);
Play/Pause button (short pressing in Player and Bluetooth mode);
Mute (short pressing in AUX mode);
Connecting an additional speaker (triple press);
Switch mode button: Bluetooth/Player/AUX (double short press)
③ Volume increase button (short pressing); Next track (long pressing in Player and Bluetooth mode)
④ Indicator

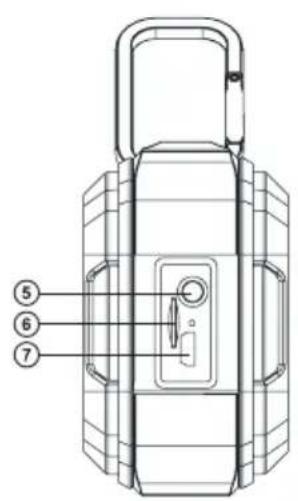

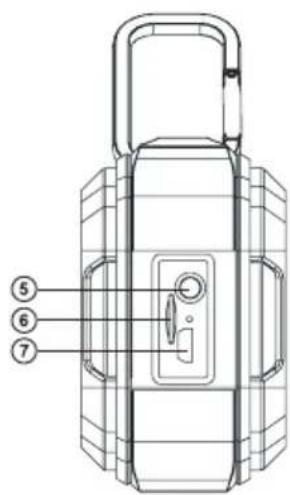

⑤ AUX: 3.5 mm mini-jack for audio signal connecting (phone, MP3 player, etc.)
⑥ Micro SD card slot

⑦ Micro USB jack for charger connecting Speaker system to laptop / PC USB port

Fig. 1.

Attention! The built-in battery must be charged completely prior to the application.

Speaker system battery charging

• Connect speaker system to a USB port of PC or USB charger using micro USB to USB cable (included). During battery charging the indicator is red. Indicator goes out when the battery is charged.
• The battery is used in the speaker system as an integral part of the device, therefore do not try to extract or replace it, because this can result in the warranty cancellation or the device damage.

OPERATION MODES

Bluetooth mode

• Wireless data transfer via the Bluetooth protocol enables to connect speaker system to compatible devises. Maximum radius of action of data transfer is 10 m. Such obstacles as walls or other electronic devices can interfere with the signal transfer.
• Turn on the speaker in Bluetooth mode.
• It is necessary to select the search mode of devices with Bluetooth on a signal source (telephone, notebook, smartphone, etc.). «SVEN PS-88» or «SVEN PS-240, massage will be displayed on the screen which is to be connected to*».
• When connection is successful, there will be a short beep and the indication of the search mode on speaker system is over**.

Player mode

Attention! The file system of a micro SD carrier is FAT32. Maximum volume is 32 GB.

- The system will enter the Player mode automatically when a carrier (SD card) is connected to corresponding ports. Use button ② to switch between Play / Pause modes. You can control tracks by using buttons ① (previous track) and ③ (next track) (long pressing).

The use in the wired mode (AUX)

• Connect the 3.5 mm mini-jack cable to the 3.5 mm mini-jack (included) to the AUX input and the 3.5 mm jack to the signal source
• Turn on the speaker in AUX mode – press the button ② several times until the speaker goes into AUX mode.

Connecting an additional speaker

For models PS-88 and PS-240, you can connect an additional speaker:

• Turn on both speakers (long press ②).
• On one of the speakers, 3 times quickly press the button ② until the sound signal appears. The speakers will connect with each other.

Note. At the subsequent inclusion of both speakers, they will be connected automatically


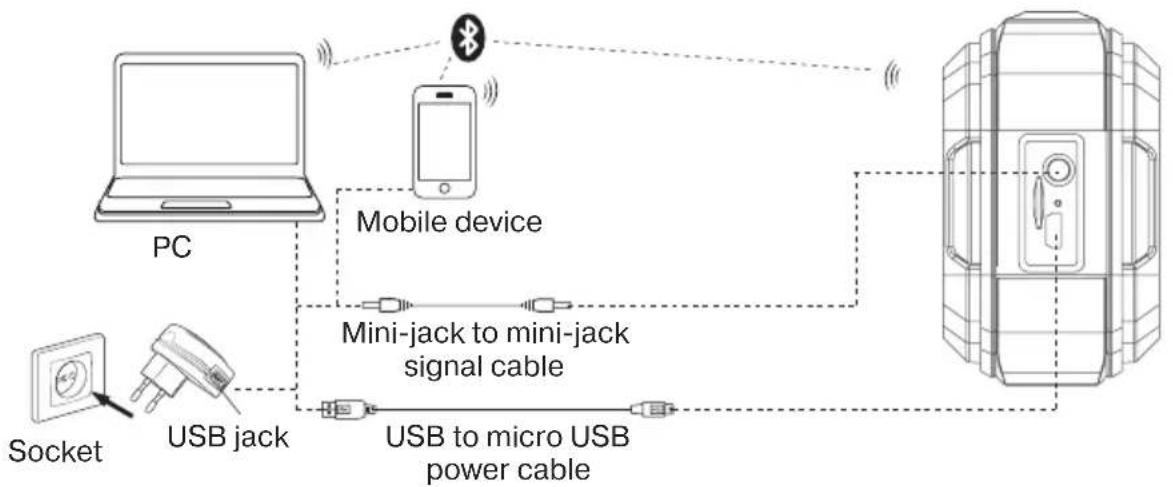

Fig. 2. Connection diagram

TECHNICAL SPECIFICATIONS

Parameter, measurement unit Value	PS-88 Value PS-240
Frequency response, Hz 100 – 20 000 100 – 20	000
Output power (RMS), W 7 12 (2 × 6)
Membrane, mm ∅ 36 ∅ 36
Radius of operation Bluetooth, m up to 10 up to 10
Battery capacity, mA * h 1500 2000
Power supply USB/DC 5V USB/DC 5V
Weight, g 280 470
Dimensions, mm	90 × 90 × 48 175 ×	86 × 50

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications and package contents are subject to change without notice due to the improvement of SVEN production.

Technical support is on www.sven.fi.

Black square electronic device with a strap and speaker grille (no visible text or symbols)

Black SVEN portable speaker with mesh grille and attached strap (no visible text or symbols)

Модели: PS-88, PS-240

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, N° 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.

EACCE

PS-88 PS-240
